Structural Isomers

C - C - C - C - C - C - C. C. C. C. C - C - C - C - C - C - C - C. C. C. Structural Isomers. Name, draw, and construct structural models of alkanes Include : branched alkanes , structural isomers Additional KEY Terms cycloalkanes. Structural isomers :

erno
Download Presentation

Structural Isomers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. C - C - C - C - C - C - C C C C C - C - C - C - C - C - C - C C C Structural Isomers

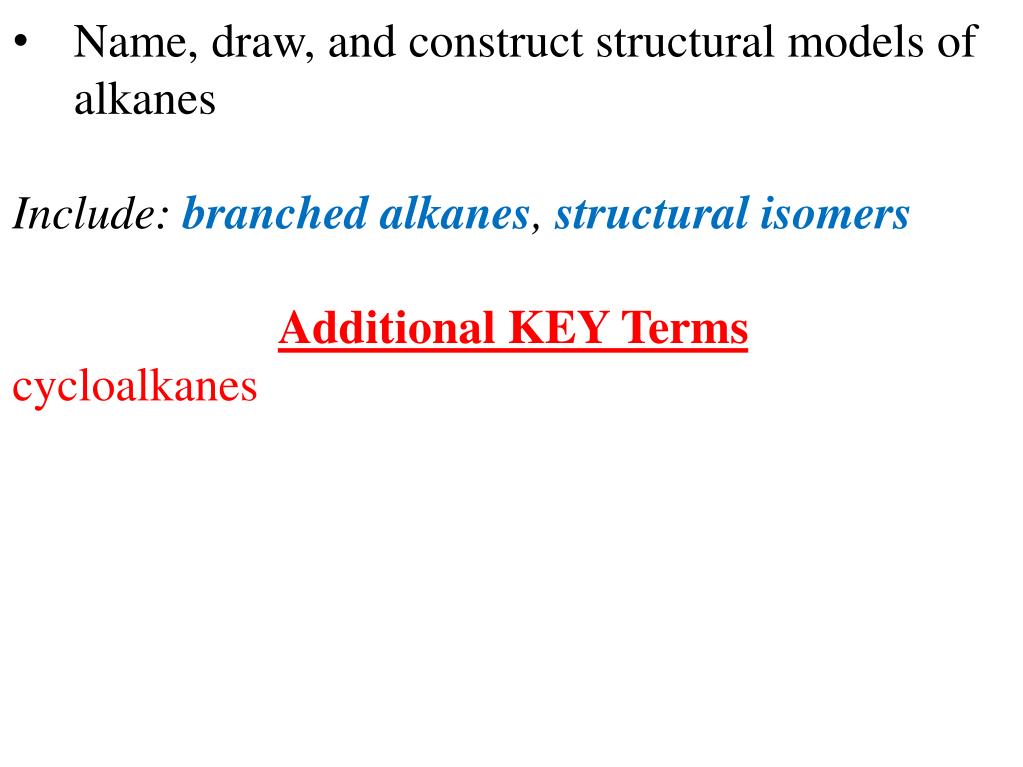

  2. Name, draw, and construct structural models of alkanes • Include: branchedalkanes, structuralisomers • Additional KEY Terms • cycloalkanes

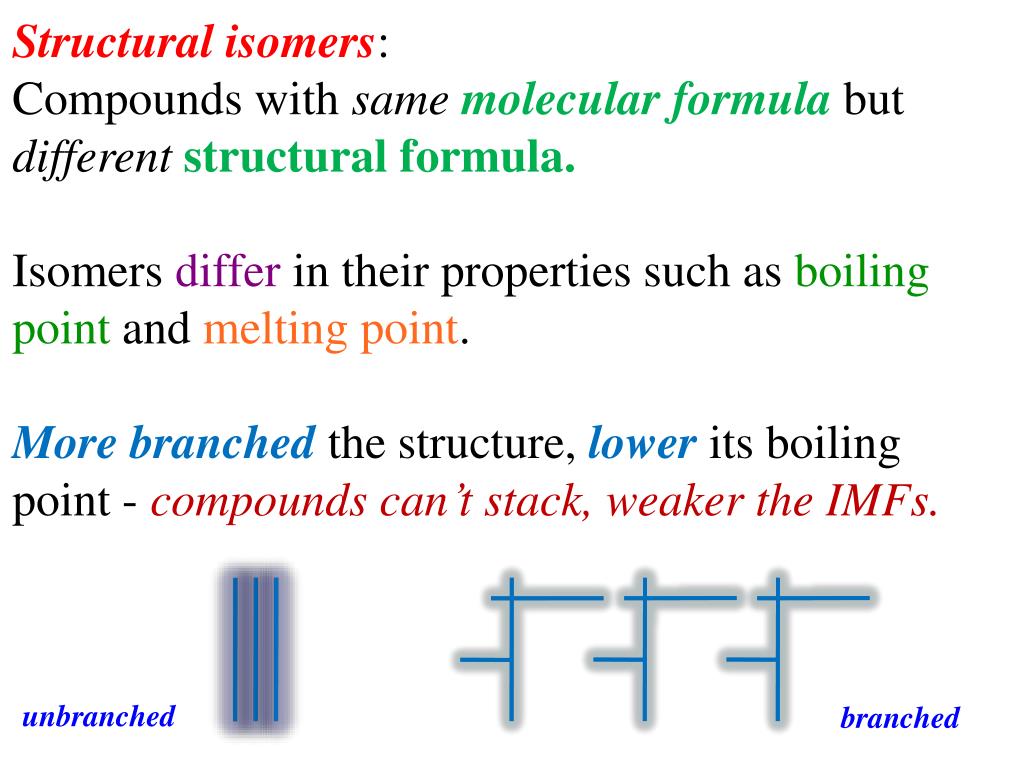

  3. Structural isomers: Compounds with samemolecular formulabut different structural formula. Isomers differ in their properties such as boiling point and melting point. More branched the structure, lowerits boiling point - compounds can’t stack, weaker the IMFs. unbranched branched

  4. C4H10 isomers butane 2-methylpropane

  5. C - C - C - C - C - C - C C C C C - C - C - C - C C C More carbon atoms - more structural isomers. Octane - 18 different structural isomers Decane - 75 Eicosane - 366 319 (20 carbon alkane) C C C decane 3-methyl-5-ethylheptane

  6. Draw and name 2 structural isomers of pentane. C - C - C - C 2-methylbutane 2,2-dimethylpropane C - C - C - C C C C C C - C - C - C C - C - C 2-methylbutane pentane Take care when naming your isomers to be sure you don’t have the same thing. C

  7. 3-ethyl-2-methylhexane is a structural isomer of which straight chained alkane? hexane ethyl methyl 6 carbons + 2 carbons + 1 carbon = 9 carbons The alkane with 9 carbons is nonane. C C C C - C - C - C - C - C 1 2 3 4 5 6

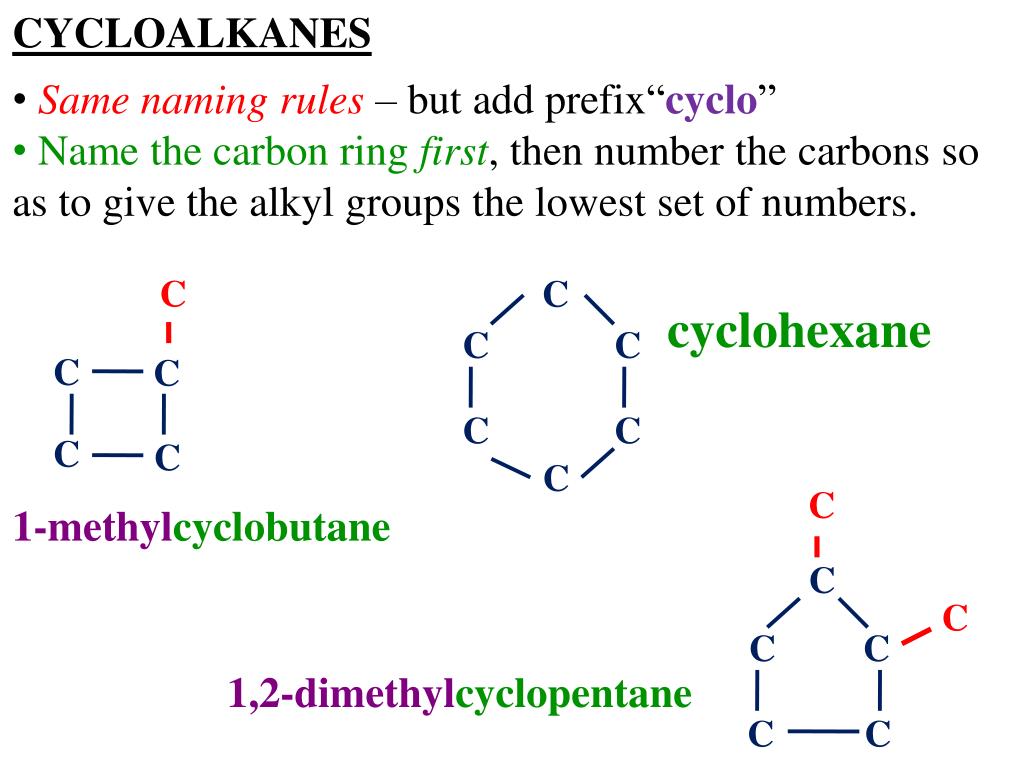

  8. CYCLOALKANES • Same naming rules – but add prefix“cyclo” • Name the carbon ring first, then number the carbons so as to give the alkyl groups the lowest set of numbers. C C cyclohexane C C C C C C C C C C C 1-methylcyclobutane C C C C C 1,2-dimethylcyclopentane

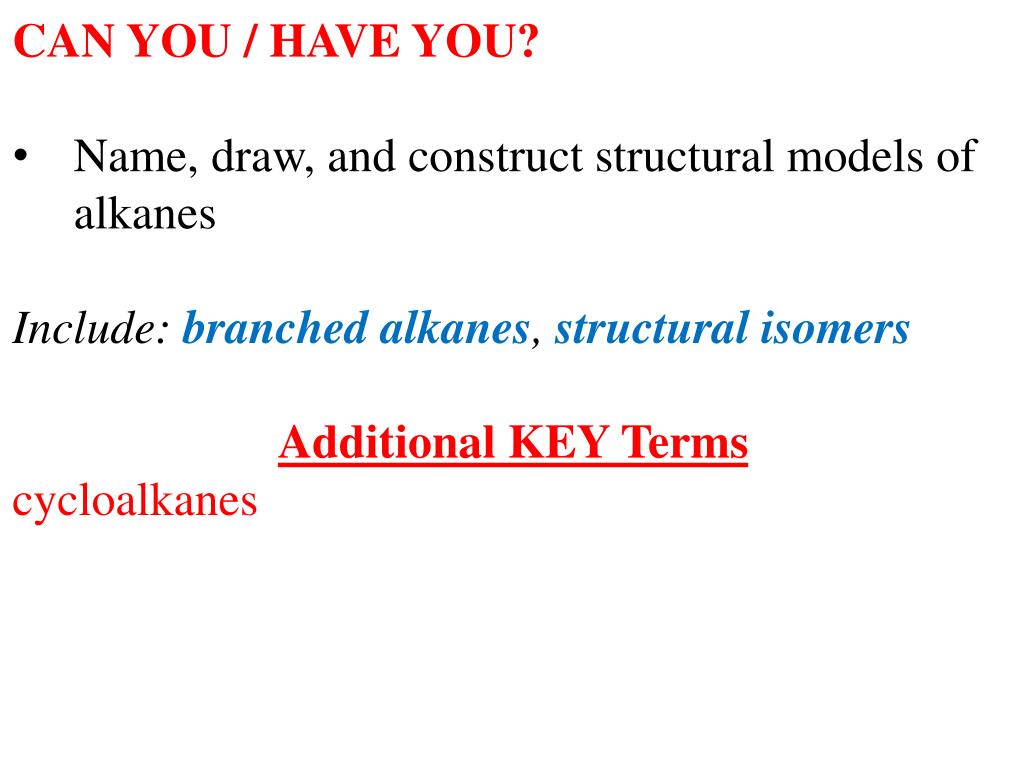

  9. CAN YOU / HAVE YOU? • Name, draw, and construct structural models of alkanes • Include: branchedalkanes, structuralisomers • Additional KEY Terms • cycloalkanes
