  1. Emirates Telecommunications Corporation Emirates Internet Exchange EMIX

  2. Presented by Hassan M. AL Abdouli Marketing Manager Emirates Internet Exchange - EMIX

  3. AGENDA • ETISALAT Fiber Optic Connection via UAE • ETISALAT available Earth Stations Emirates Internet Exchange - EMIX

  4. Etisalat Cable connection Etisalat has invested in the following International mega projects: Oman Fiber Optic Cable Iran Fiber Optic Cable Saudi A. Fiber Optic Cable FOG Fiber Optic Cable FLAG Fiber Optic Cable SMW3 Fiber Optic Cable

  5. FOG Cable The FIRST SUBMARINE CABLE in the Gulf linking GCC countries

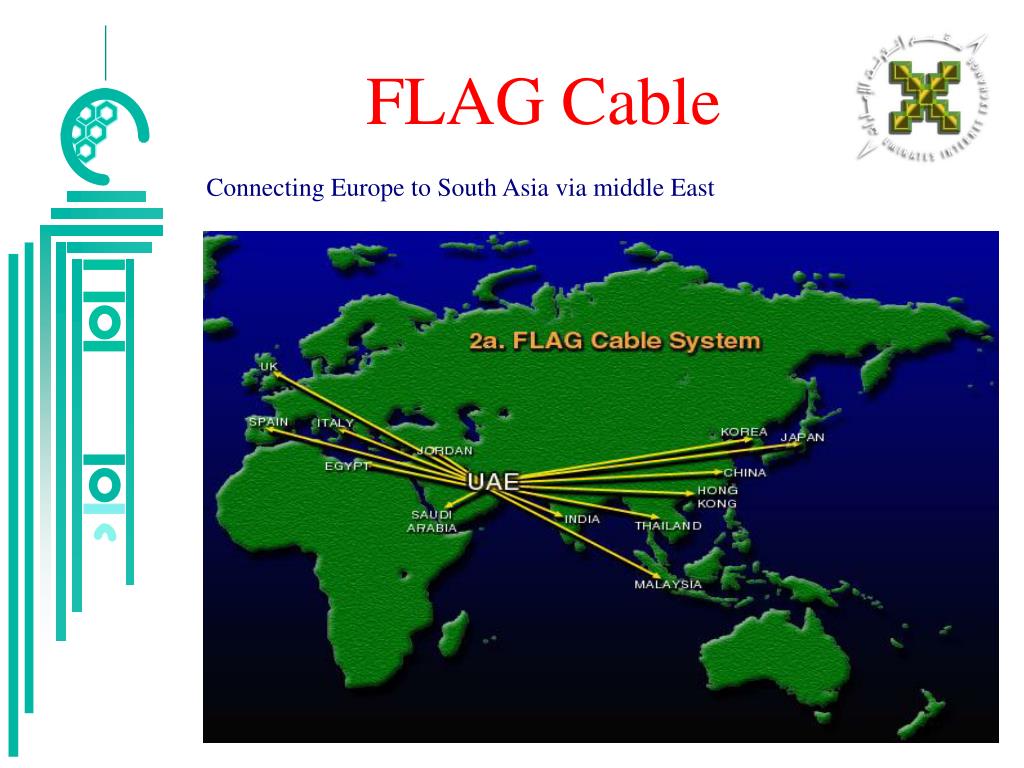

  6. FLAG Cable Connecting Europe to South Asia via middle East

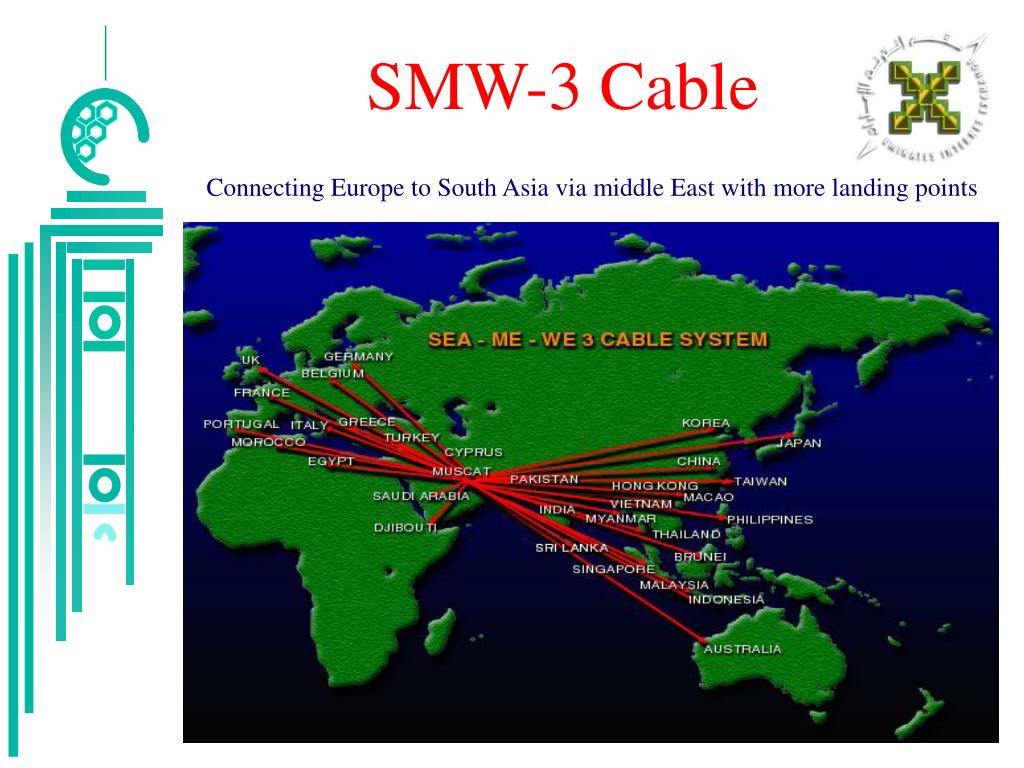

  7. SMW-3 Cable Connecting Europe to South Asia via middle East with more landing points

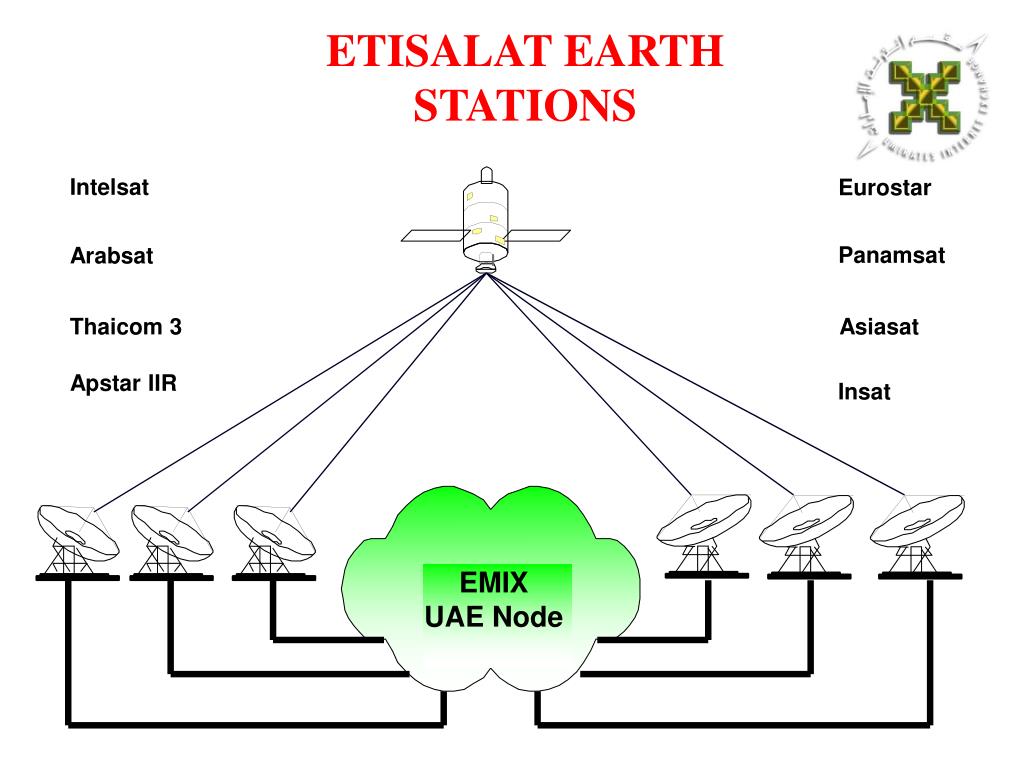

  8. EMIX UAE Node ETISALAT EARTH STATIONS Intelsat Eurostar Panamsat Arabsat Thaicom 3 Asiasat Apstar IIR Insat

  9. EMIRATES INTERNET EXCHANGE EMIX Commercially Launched September 1998

  10. EMIX - Mission To become the Regional hub providing all Neighboring Countries with access to the Internet via Fiber Optic at competitive prices

  11. Reasons for EMIX Most of the Regional ISP’s are connected to USA All E-mail and Web traffic are routed via US. Some Regional ISP’s are connected via satellite Cable is favored over satellite because a.Delay in Satellite ~ 600 MS b. Satellite links are erroneous resulting in retransmissions. c. Satellites are affected by Radar Interference d. Delay in Cable ~ 200 MS

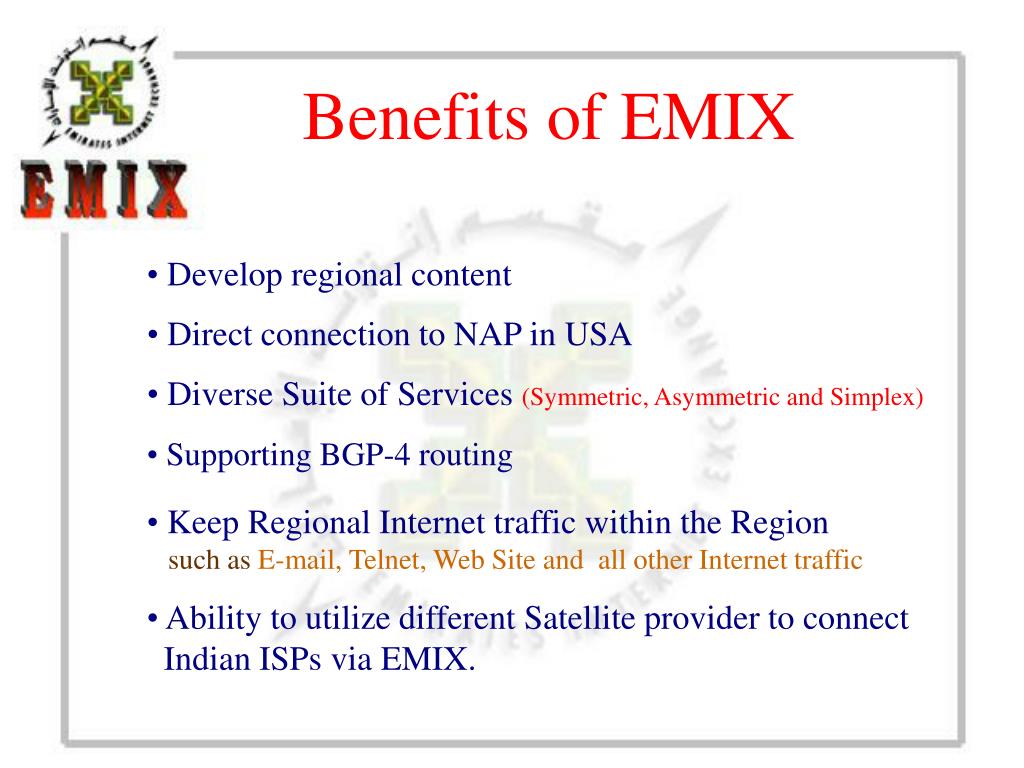

  12. Benefits of EMIX Develop regional content Direct connection to NAP in USA Diverse Suite of Services (Symmetric, Asymmetric and Simplex) Supporting BGP-4 routing • Keep Regional Internet traffic within the Region such as E-mail, Telnet, Web Site and all other Internet traffic • Ability to utilize different Satellite provider to connect Indian ISPs via EMIX.

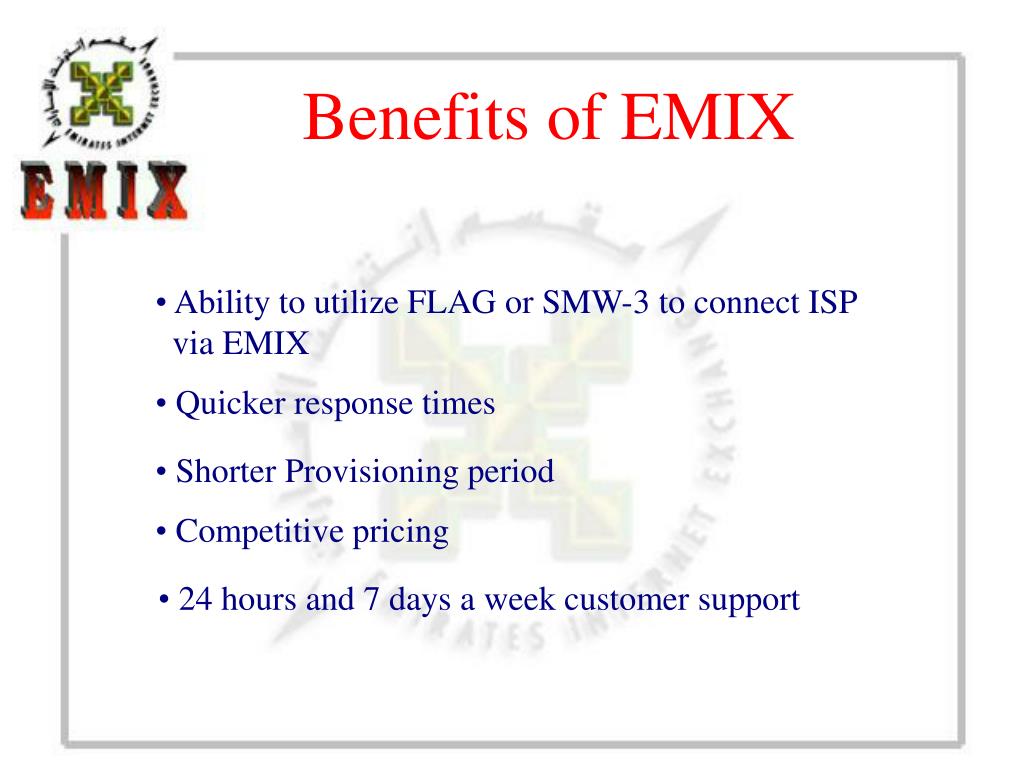

  13. Benefits of EMIX • Ability to utilize FLAG or SMW-3 to connect ISP via EMIX Quicker response times Shorter Provisioning period Competitive pricing 24 hours and 7 days a week customer support

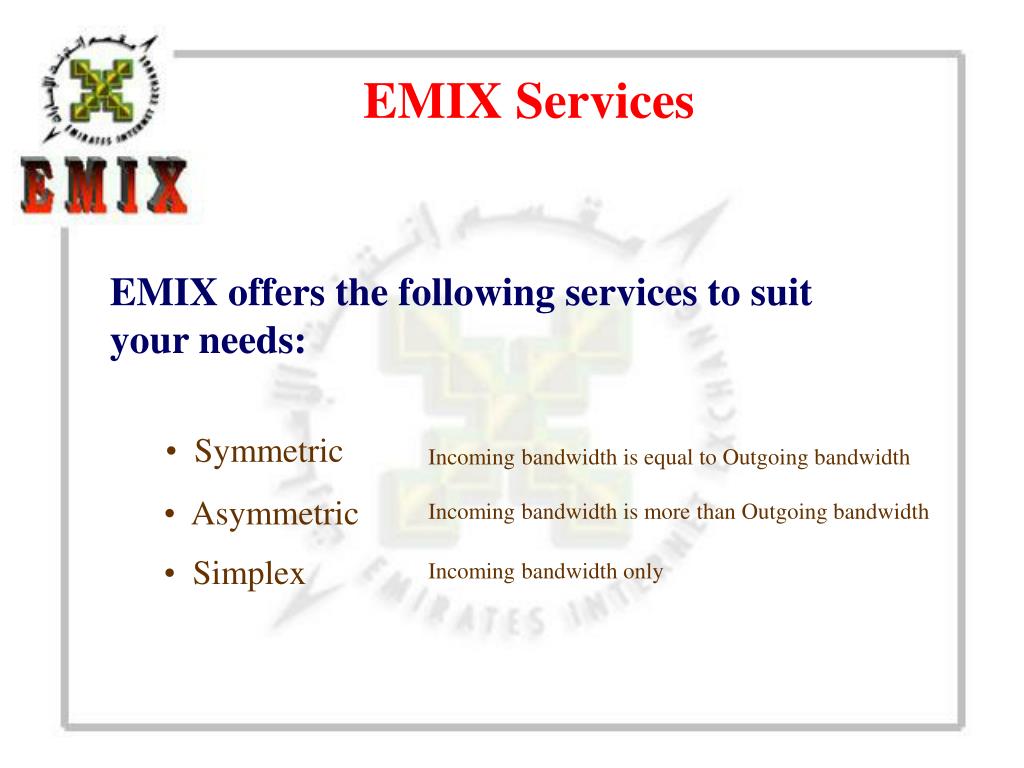

  14. EMIX Services EMIX offers the following services to suit your needs: Symmetric Incoming bandwidth is equal to Outgoing bandwidth Asymmetric Incoming bandwidth is more than Outgoing bandwidth Simplex Incoming bandwidth only

  15. EMIX Connection Etisalat can provide the service via Cable • Satellite • Full circuit • Half circuit

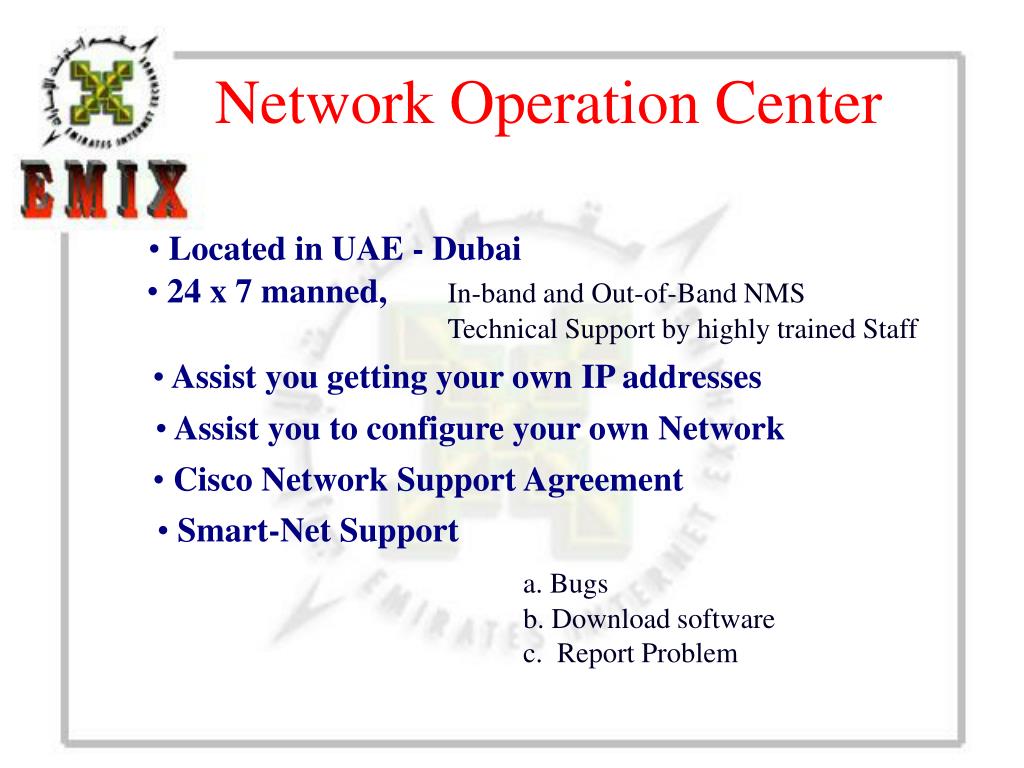

  16. Network Operation Center Located in UAE - Dubai 24 x 7 manned, In-band and Out-of-Band NMS Technical Support by highly trained Staff Assist you getting your own IP addresses Assist you to configure your own Network Cisco Network Support Agreement Smart-Net Support a. Bugs b. Download software c. Report Problem

  17. EMIRATES INTERNET EXCHANGE NETWORK TOPOLOGY FLAG California Peering New York IIE Netplus PC-1 cable Hong Kong STM-1 (155 Mbps) 100 FLAG Cable Mbps STM-1 (155 Mbps) FLAG Cable STM - 1 (155 Mbps) EMIX FLAG Cable AC - 1 Cable EMIX EMIX New York Node Customers UAE Node FLAG Cable STM - 1 (155 Mbps) DS-3 DS-3 DS-3 (45 Mbps) (45 Mbps) (45 Mbps) FLAG UK GENUITY UUNET TELEGLOBE Peering Peering Peering Malaysia Taiwan Singtel

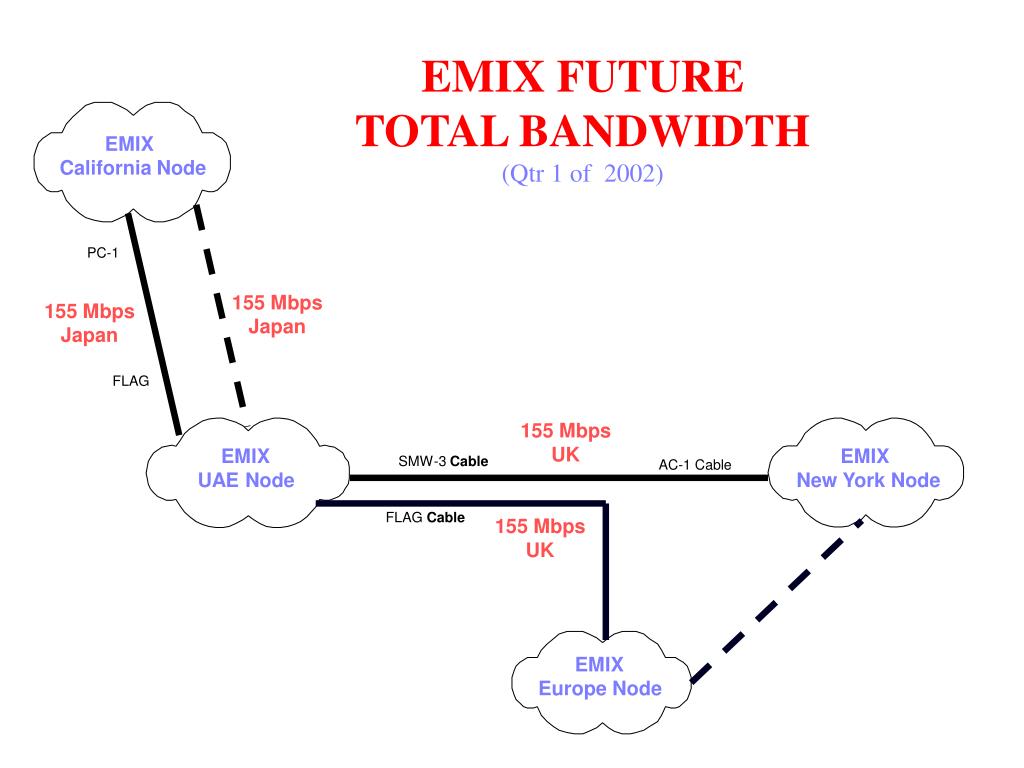

  18. EMIX FUTURE TOTAL BANDWIDTH (Qtr 1 of 2002) EMIX California Node PC-1 155 Mbps Japan 155 Mbps Japan FLAG 155 Mbps UK EMIX UAE Node EMIX New York Node AC-1 Cable SMW-3 Cable FLAG Cable 155 Mbps UK EMIX Europe Node

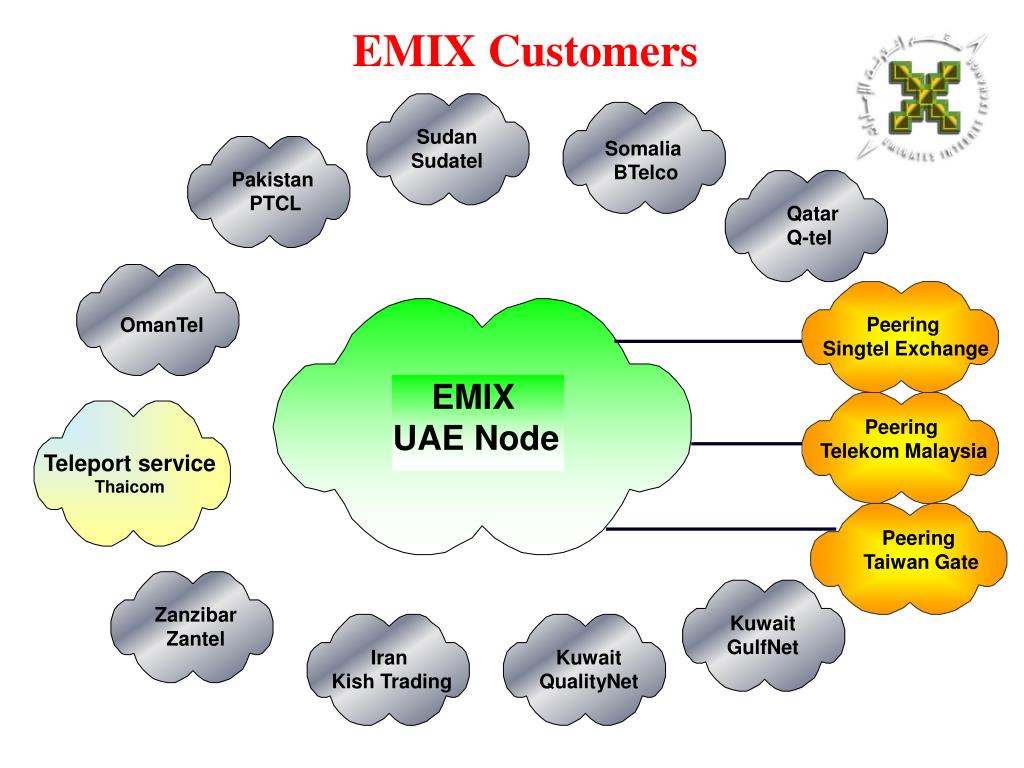

  19. Sudan Sudatel Somalia BTelco Pakistan PTCL Qatar Q-tel Peering Singtel Exchange EMIX UAE Node Teleport service Thaicom Peering Taiwan Gate Kuwait GulfNet Zanzibar Zantel Kuwait QualityNet Iran Kish Trading EMIX Customers OmanTel Peering Telekom Malaysia

  20. EMIXContactaddress Http//www.emix.net.ae emix@emirates.net.ae Tele 971 2 6184 784 Mbl 971 50 6627 181 Fax 971 2 6336 700

  21. THANK YOU
