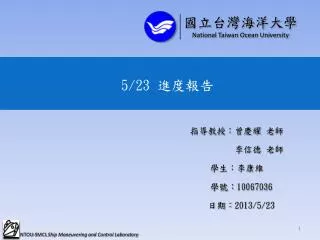

  1. National Taiwan Ocean University 國立台灣海洋大學 5/23 進度報告 指導教授：曾慶耀 老師 李信德 老師 學生：李康維 學號：10067036 日期：2013/5/23 NTOU-SMCL Ship Maneuvering and Control Laboratory

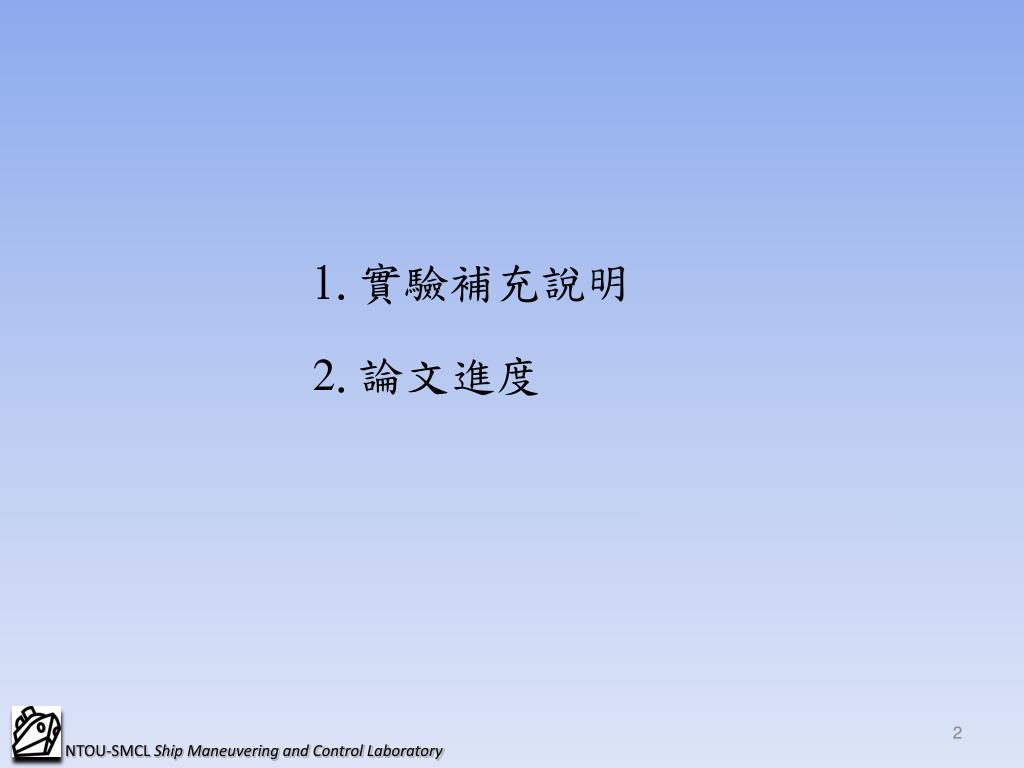

  2. 1.實驗補充說明 2.論文進度 NTOU-SMCL Ship Maneuvering and Control Laboratory

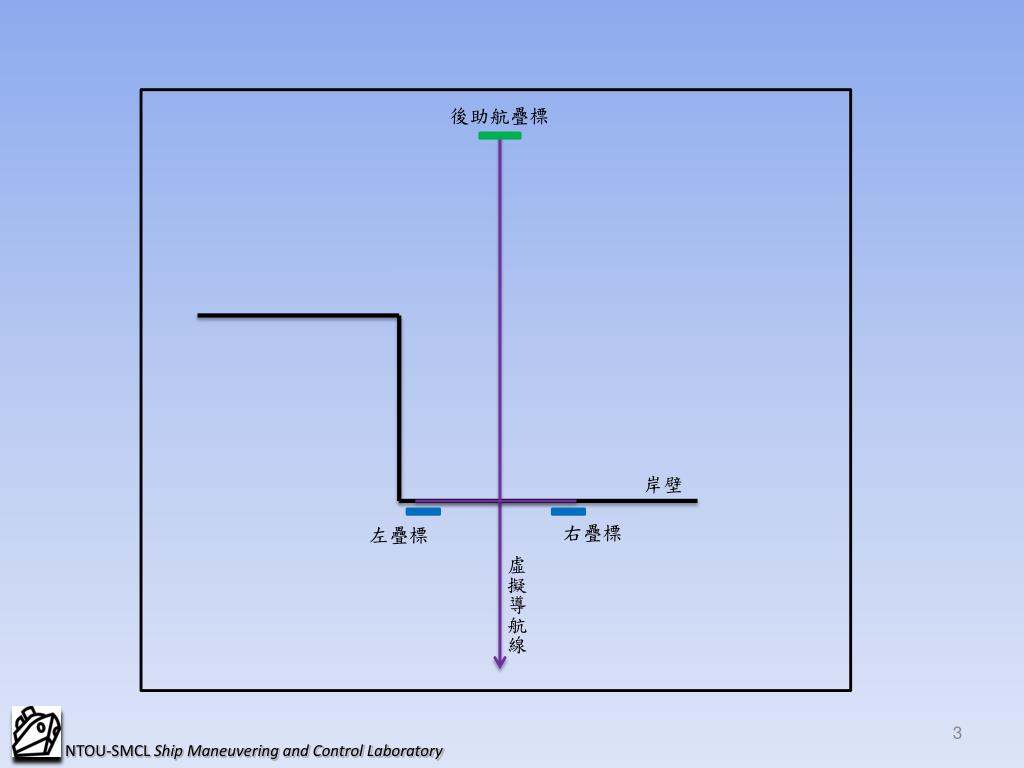

  3. 後助航疊標 岸壁 右疊標 左疊標 虛擬導航線 NTOU-SMCL Ship Maneuvering and Control Laboratory

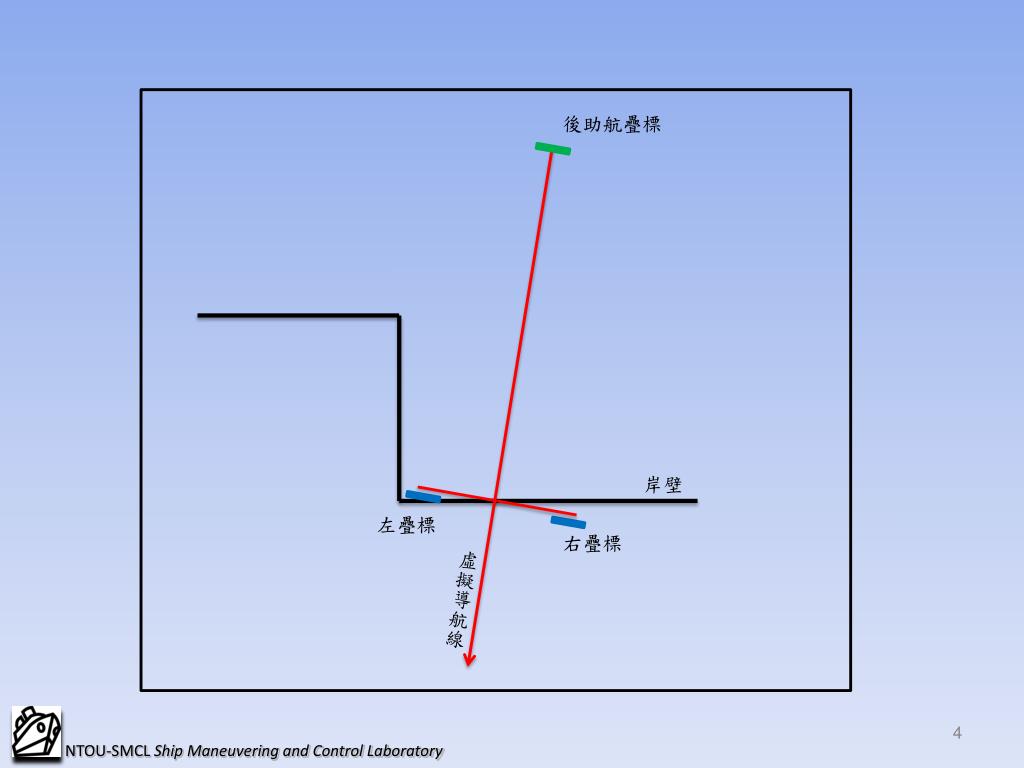

  4. 後助航疊標 岸壁 左疊標 右疊標 虛擬導航線 NTOU-SMCL Ship Maneuvering and Control Laboratory

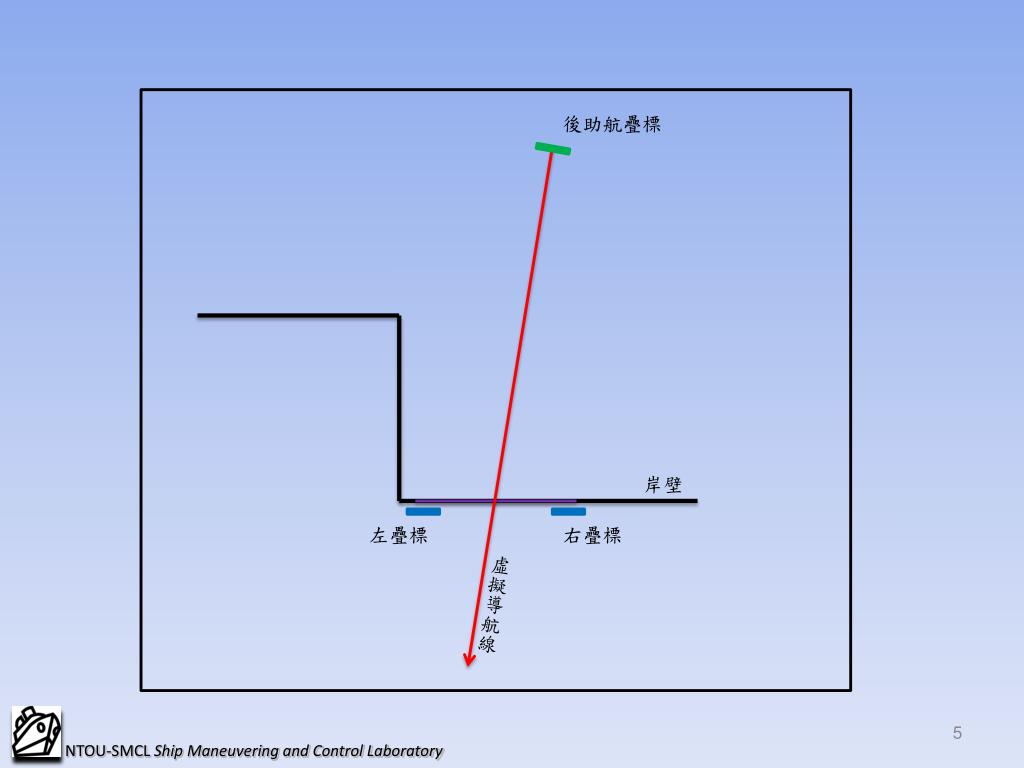

  5. 後助航疊標 岸壁 左疊標 右疊標 虛擬導航線 NTOU-SMCL Ship Maneuvering and Control Laboratory

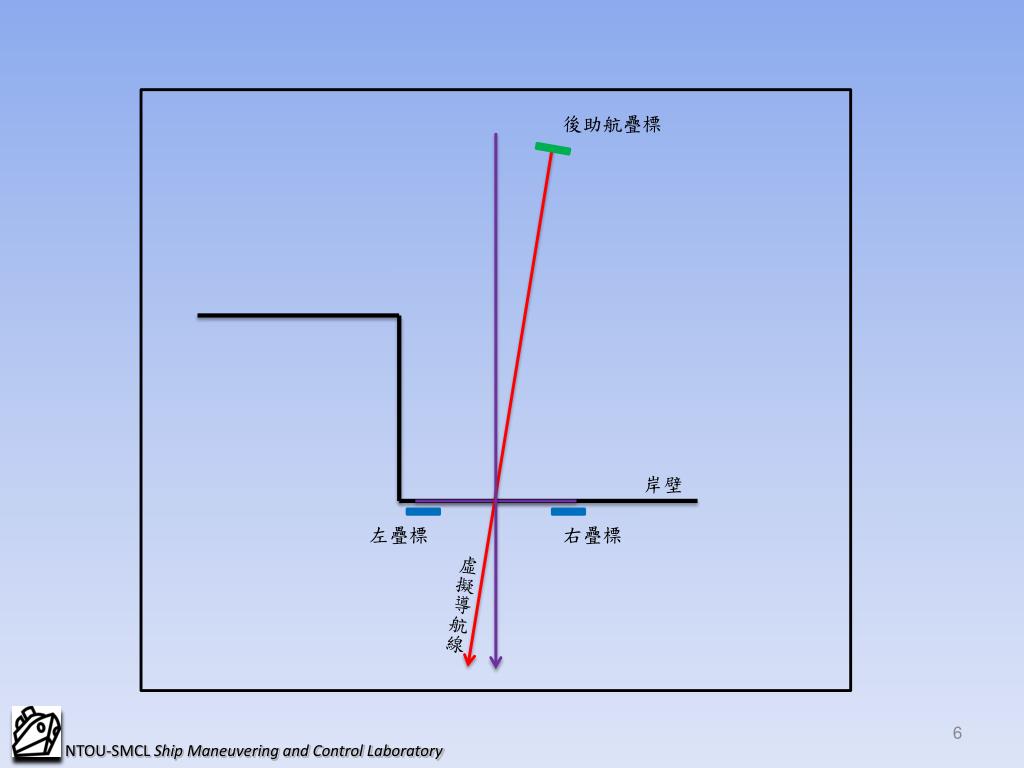

  6. 後助航疊標 岸壁 左疊標 右疊標 虛擬導航線 NTOU-SMCL Ship Maneuvering and Control Laboratory

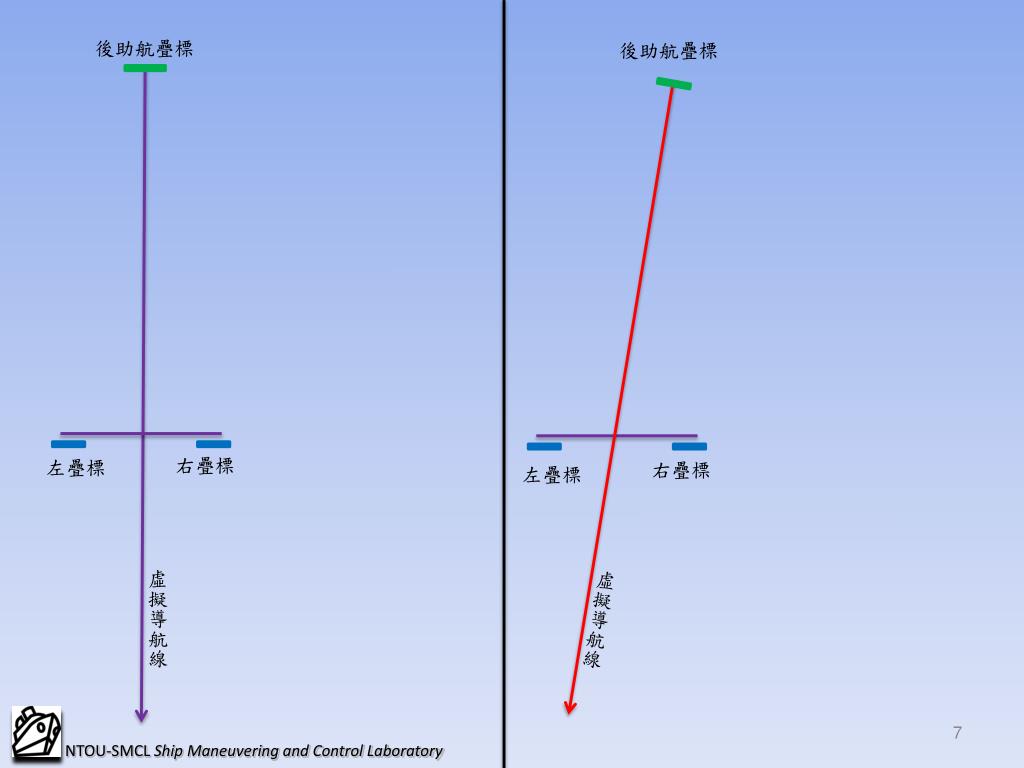

  7. 後助航疊標 後助航疊標 右疊標 左疊標 右疊標 左疊標 虛擬導航線 虛擬導航線 NTOU-SMCL Ship Maneuvering and Control Laboratory

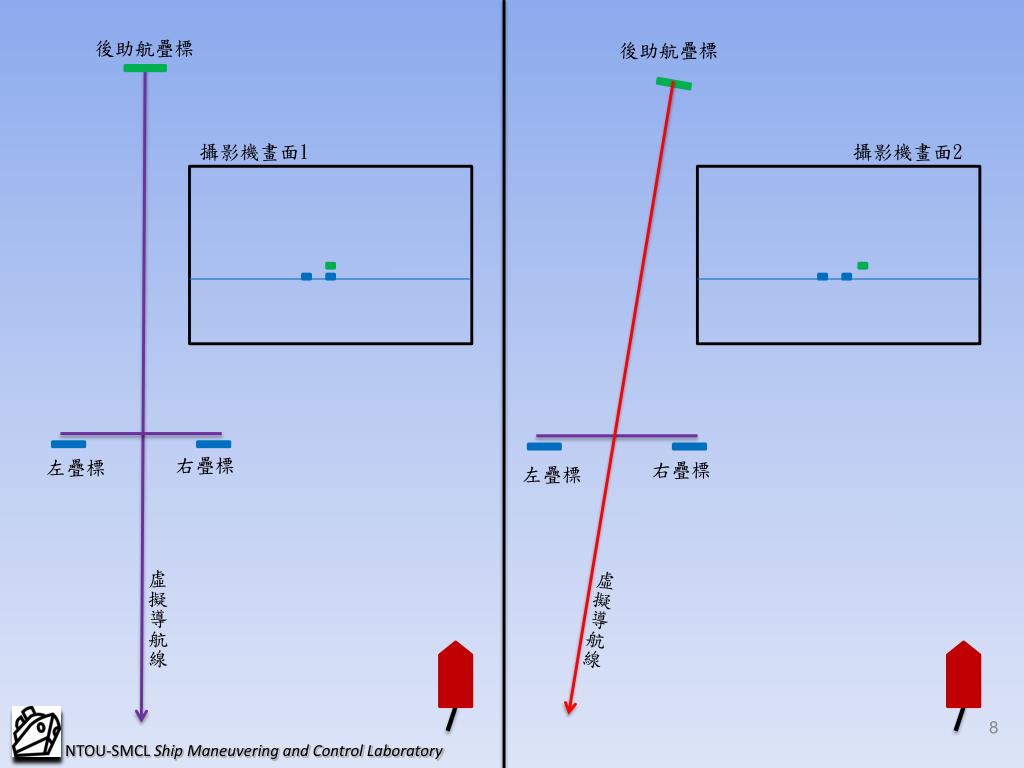

  8. 後助航疊標 後助航疊標 攝影機畫面1 攝影機畫面2 右疊標 左疊標 右疊標 左疊標 虛擬導航線 虛擬導航線 NTOU-SMCL Ship Maneuvering and Control Laboratory

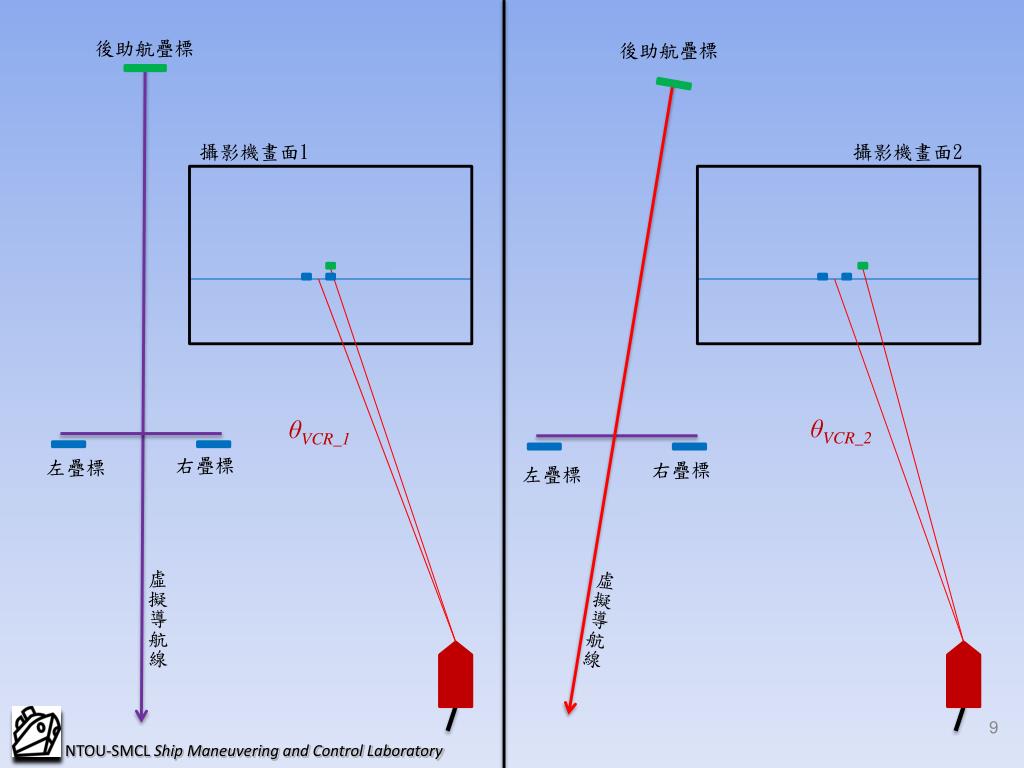

  9. 後助航疊標 後助航疊標 攝影機畫面1 攝影機畫面2 θVCR_2 θVCR_1 右疊標 左疊標 右疊標 左疊標 虛擬導航線 虛擬導航線 NTOU-SMCL Ship Maneuvering and Control Laboratory

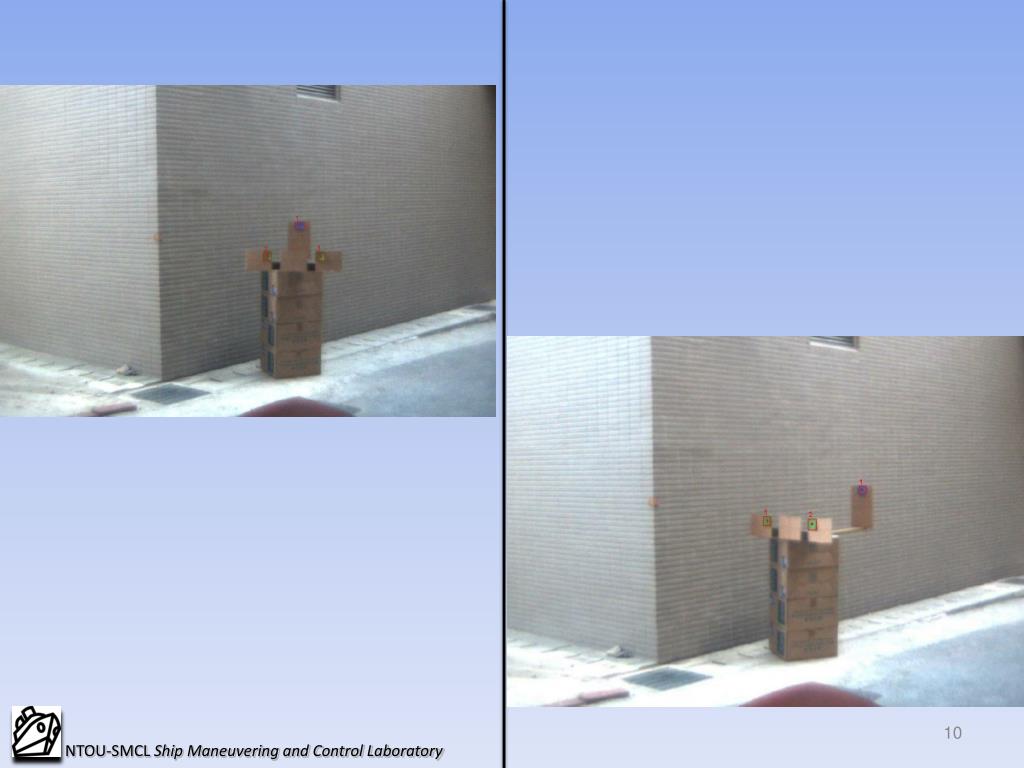

  10. NTOU-SMCL Ship Maneuvering and Control Laboratory

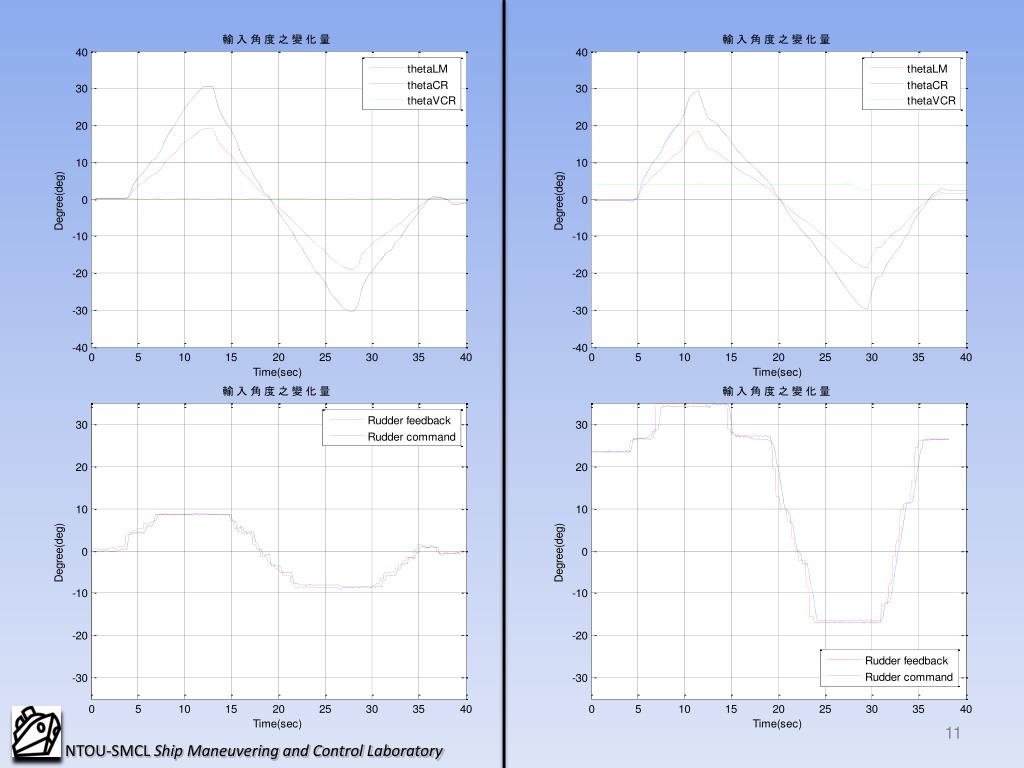

  11. NTOU-SMCL Ship Maneuvering and Control Laboratory

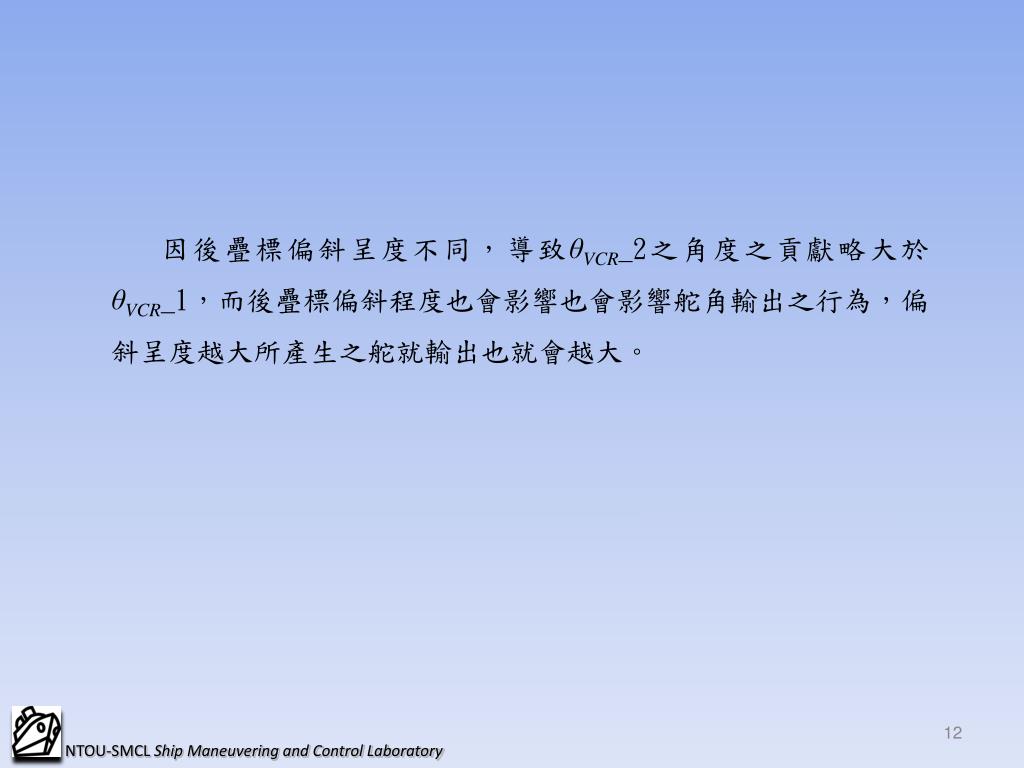

  12. 因後疊標偏斜呈度不同，導致θVCR_2之角度之貢獻略大於θVCR_1，而後疊標偏斜程度也會影響也會影響舵角輸出之行為，偏斜呈度越大所產生之舵就輸出也就會越大。因後疊標偏斜呈度不同，導致θVCR_2之角度之貢獻略大於θVCR_1，而後疊標偏斜程度也會影響也會影響舵角輸出之行為，偏斜呈度越大所產生之舵就輸出也就會越大。 NTOU-SMCL Ship Maneuvering and Control Laboratory

  13. Thank youfor your attention. NTOU-SMCL Ship Maneuvering and Control Laboratory
