  1. EZ Positioning with SINAMICS S120Agenda

  2. Starter Basic Sinamics Drive Setup Insert Drive (CU310 or CU320) Auto Configure CU and Drive-CLIQ Devices Starter Offline Configuration Drive Configuration Wizard Telegram Setup for EZ _EPOS Block Check S7 Hardware Configuration Execute EZ_EPOS Script File Copy from Example Project Execute and Save Project Download to Sinamics Step7 Simatic Manager Programming Copy Needed blocks to new Program Setup FB120 in new Program Edit Symbol Table Save and Download S7 Project Test EPOS Application on Demo Run through all EPOS Modes with S7 PLC and S120 Demo Sinamics EZ EPOS Agenda

  3. EZ Positioning with SINAMICS S120S7 Hardware Configuration

  4. Open S7 and Select File / New Select new Name for Project and Press OK Start New Project with S7 Simatic Manager

  5. Right Click on New Project and insert new Object Choose S7 300 Station New Station inserted --Note Hardware Icon Insert S7 300 Simatic Station

  6. Start Hardware Configuration Click on Hardware Icon and Open HW Configuration • Open Hardware Catalogue • Insert S7 300 Rack, Power Supply, and CPU

  7. Add Sinamics S120 in Hardware Configuration Drag the drive on to the Profibus Network • Choose Node Address 4 • Select Present Firmware Version (2.5) • Choose Telegram Type None

  8. Save and Close Hardware Configuration Press Save an Compile Button • Hardware Configuration should Save and Compile • Correct any errors if they occur Exit the Hardware Configuration • HW Config must not be Open for Next Section!

  9. EZ Positioning with SINAMICS S120Basic Starter Online Commissioning

  10. Open Starter by Motor Icon for Sinamics Open Starter Program & Go Online • Go Online with Starter –Use • Do not Upload to the PG!

  11. Right Click On CU310 (or CU320) and Choose… Target Device / Restore Factory Settings Default CU310 or CU320 • Check the Box – Save Factory Settings to ROM • Power Cycle Drive after RAM to ROM Completed

  12. Complete Auto Configuration • Select Auto Configuration and Start Auto Configuration • Choose Control type for Motor type • Close after Initialization

  13. Starter Offline Configuration Go Offline with the Sinamics Select Configuration under the Device Folders • This Configuration is under the Drive Object Used • Click On Configure DDS to Parameterize Drive Settings

  14. Thank you very much Name: Carl Owens & Kevin Wu Department: Production Machines Address: 5300 Triangle Parkway, Suite 100 Norcross, GA 30092 Mail: carl.owens@siemens.com wu.kevin@siemens.com

  15. EZ Positioning with SINAMICS S120Basic Starter Offline Commissioning

  16. Open Starter by Motor Icon for Sinamics Open Starter Program & Go Offline Go Offline with Starter –Use

  17. From the Drive to be Commissioned Choose… Configuration Open DDS (Drive Data Set) • Choose Configure DDS… • Offline Configuration Wizard is Opened

  18. Control Structure Setup • Select Speed Control with Encoder • Use Function Modules when Needed • For EPOS Basic Positioner is Needed • Next, Select Continue

  19. Power Unit Configuration Power Unit Data Up-read in Auto Configuration (Drive-CLIQ) • Confirm Device type is Correct via Part label • Select Continue for next Configuration Screen

  20. Motor Configuration Motor Data Up-read in Auto Configuration (Drive-CLIQ) ** • **If Motor is a Drive-CLIQ Motor • Non Drive-CLIQ Motors can be Selected from List • Third Party Motors can have data entered

  21. Holding Brake Configuration Motor Data Up-read in Auto Configuration (Drive-CLIQ) ** • **If Motor is a Drive-CLIQ Motor • Non Drive-CLIQ Motors Check Motor Name Plate • DEMO drive do not Use Holding Brakes

  22. Encoder Configuration Encoder Data Up-read in Auto Configuration (Drive-CLIQ) ** • **If Encoder / Motor is a Drive-CLIQ Motor • Siemens and Third Party Encoders can be Parameterized • Note Encoder 1 is from Motor Encoder

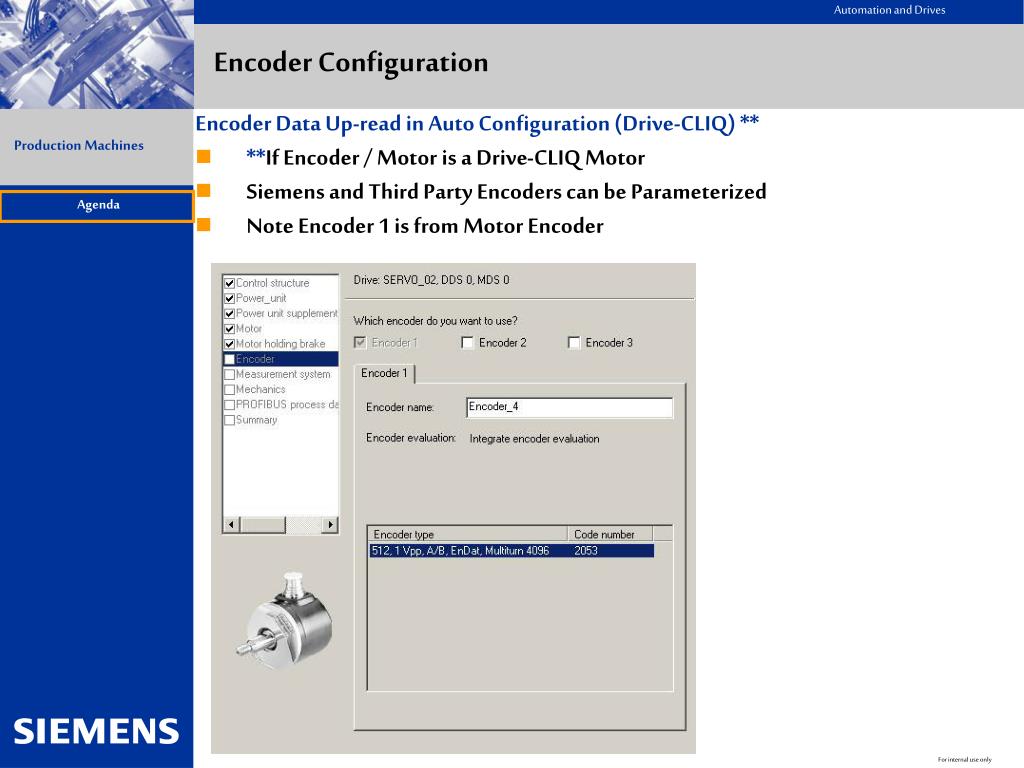

  23. Encoder Data Configuration Encoder Data Up-read in Auto Configuration (Drive-CLIQ) ** • **If Encoder / Motor is a Drive-CLIQ Motor • Siemens and Third Party Encoders can be Parameterized • Note Encoder 1 is from Motor Encoder

  24. EPOS Only - Encoder Used for Position Sensing Select Encoder Used • Note that Encoder_4 refers to Device number 4 • Usually Motor Encoder used for Position Sensing

  25. EPOS Only – Mechanics Parameterize Gearing and Resolution • Modulo Axis can be programmed if need • This is only used in EPOS – For Basic Positioner • Load Revolutions = Gearing • Lu / Load is resolution • Default for testing in DEMO

  26. EPOS Only – Mechanics Parameterize Gearing and Resolution • Modulo Axis can be programmed • Load Revolutions = Gearing • Load Revolutions = Gearing • Lu / Load is resolution • Use Default for testing in DEMO

  27. Profibus Telegram type Choose Free Telegram with BICO • The Profibus Telegram will be Configured Later • Free Telegram allows Custom Telegrams • Script Files will be used to Setup Telegram Mapping

  28. Summary Data Acceptance Review data and Click Finish if Complete • After Completing DDS Wizard “Save and Compile” • DDS Wizard Data is now Complete

  29. Profibus Telegram Configuration • From the Drive to be Commissioned Choose… • Configuration • Use Up – Down Buttons to Move Drive Objects • CU is 1st and Drive (S) should be in Preceding Order • S7 Hardware Configuration Should be Closed!

  30. Profibus Telegram Configuration Select Word Length For Telegrams • CU Telegram not needed for Demo Word Length For Telegrams • EZ_EPOS uses 10 words IN and 10 Words Out • EZ_APC_SPEED uses 10 Words IN and 10 Words Out • EZ_Basic_SPEED uses 6 Words IN and 6 Words Out

  31. Profibus Telegram Configuration Select Transfer to HW Config • CU Telegram will be sent to the S7 Hardware Config. • Select Yes to transfer

  32. Profibus Telegram Configuration Telegram has Successfully been Transferred • Note Blue Check Boxes Save and Compile Program before Proceeding • Save and Compile Using Starter

  33. EZ Positioning with SINAMICS S120Starter Script File

  34. Copy Script file from Example Program Open Starter Program in EZ_EPOS Example • Close Example Program’s Starter and go to new Program

  35. Right Click On Drive to be Commissioned Expert / Insert Script Folder Create Script Folder in New Program Paste EPOS Script in Script Folder

  36. Click On EPOS Script The Script Editor Opens Open EPOS Script in New Project • Click inside the Script Editor area • The Script Editor Buttons appear on the Task Bar

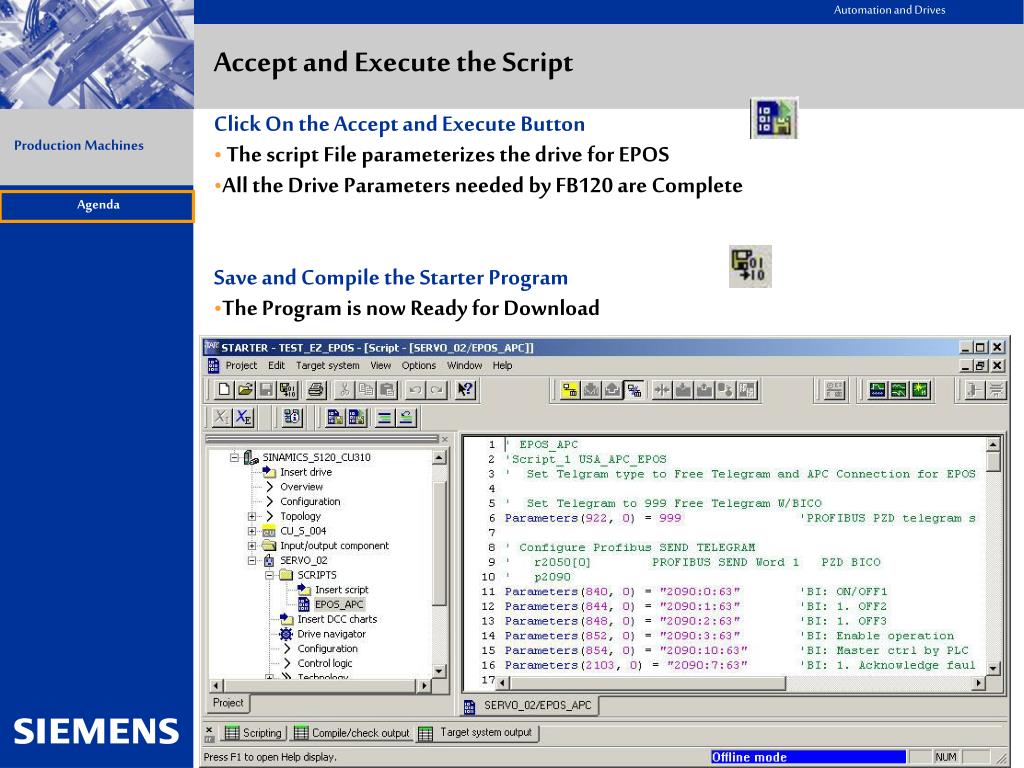

  37. Click On the Accept and Execute Button The script File parameterizes the drive for EPOS All the Drive Parameters needed by FB120 are Complete Save and Compile the Starter Program The Program is now Ready for Download Accept and Execute the Script

  38. Go Online with Starter to the Drive Choose Download to the Drive Choose RAM to ROM Drive is now ready for Operation Download to the Drive

  39. EZ Positioning with SINAMICS S120S7 Simatic Manager Programming

  40. Open S7 Program & S7 Hardware • Open New Sinamics S7 Project • And Open Hardware Configuration • To Confirm Configuration of Telegram

  41. Verify Telegram Configuration • Highlight the Profibus Card and View the Telegram • Telegram will be “User Defined” • Length should be 10 words (20 bytes)

  42. Download Configuration to PLC • Save and Compile HW Configuration • Download Configuration to PLC

  43. Download Configuration to PLC • Follow S7 Sequence to Download Hardware Config • Select Target Module (If Multiple PLCs) • Restart PLC after Download • PLCs LED will still show Fault

  44. Copy Blocks to New S7 Program • Open the Example Program and Copy Relevant Blocks • Task Bar – Use Window / Split Horizontally

  45. Copy Blocks to New S7 Program • Open the Example Program and Copy Relevant Blocks • See Example Below for Copying Blocks • Paste Blocks in new S7 Program • VAR (Variable Table) can be copied • VAR may need editing if Instance DB # Changes • Instance DB will be Created in Later Step • Copy Relevant Profibus Communication Blocks • OB82, OB86, and OB122 • SFC14 and SFC15 are PLC System Function Blocks

  46. Insert FC (Function Call) for Drive(s) • Right Click on S7 Blocks Folder and Insert a FC • Edit Symbolic Name and Comments

  47. Open New FC and Insert Drive FB • Open FC and Choose Drive FB from Catalogue • Note Catalogue Icon Highlighted on Task Bar • Insert a network and Drag FB120 on to Network Add text

  48. Insert Instance DB in Drive FB • DB number is Entered to Generate Instance DB • Enter DB120 in “????” to test with Variable table included • Multiple FB120s with Specific DBs can be used

  49. Parameterize Function Block • Nominal RPM and Hex address from Drive • Use Nominal Speed for Demo or Machine • Address is same as in Hardware Config-Profibus for Drive • Address is Hex value and not decimal value • Save FC

  50. Insert FC in OB1 • Open OB1 Block • Save Program in OB1 After Inserting FC
