  1. Institute of Cognitive Neuroscience University College London Experimental Design in Functional Neuroimaging

  2. Overview • Subtractive designs • Factorial designs • Functional specialisation and functional integration • Parametric designs • Psychophysiological interactions

  3. Functional specialisation • Identification of regionally specific effects that can be attributed to changing stimuli or task conditions • Functional integration • Identification of interactions among specialised cortical areas and how these interactions depend upon context

  4. Cognitive subtraction A B Region(s) involved in the cognitive/ sensorimotor process of interest Activation task involving process of interest Baselinetask identical to A except for process of interest

  5. MT / V5 STS Frontal eye fields Cerebellum Parietal cortex Biological motion

  6. Assumptions of cognitive subtraction 1. The experimental task and baseline task must be identical in every way except for the process of interest Many processes in addition to presence of biological motion in A including: • Visual motion • Eye movements

  7. Superior temporal sulcus activated by biological motion minus random dot motion

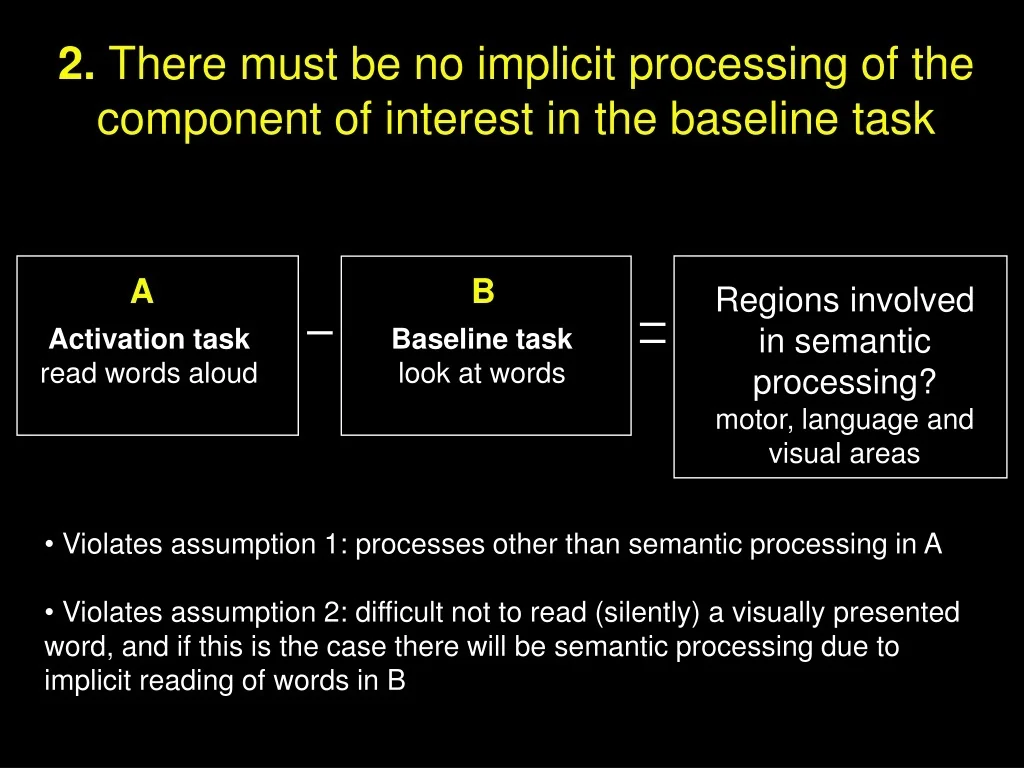

  8. A B Regions involved in semantic processing? motor, language and visual areas Activation task read words aloud Baselinetask look at words 2. There must be no implicit processing of the component of interest in the baseline task • Violates assumption 1: processes other than semantic processing in A • Violates assumption 2: difficult not to read (silently) a visually presented word, and if this is the case there will be semantic processing due to implicit reading of words in B

  9. 3. Pure insertion ‘Pure insertion’assumes that an extra cognitive component can be introduced without affecting the expression of existing components There may be an interaction between the new component the old component If visual cortex is activated more by reading words than by seeing words, it might be concluded that the visual cortex is involved in reading But adding the cognitive component of reading might affect the processing or expression of seeing words There may be a top-down effect of reading on the way words are processed in visual cortex - this interaction effect will be indistinguishable in the subtraction

  10. Conjunctions Cognitive conjunctions combine a series of subtractions with the aim of isolating a process that is common to two (or more) task pairs The assumption of pure insertion can be avoided by extracting the presence of a main effect in the absence of an interaction

  11. Conjunctions Require two (or more) task pairs: the activation task of each pair must engage the component of interest, and each must have its own baseline task e.g. object processing: A1 B1 Activation task Name objects Baselinetask Name colour X Y A2 B2 Activation task Looking at objects Baselinetask Looking at colours Z

  12. Conjunctions Baseline tasks can be high level or low level The only restriction is that differences between the task pairs both contain the component of interest The analysis results in any commonality in activation differences between the task pairs The resulting region should be uniquely associated with the process of interest, not any interactions specific to each subtraction

  13. Factorial designs In factorial designs there are two or more factors and the different levels of each factor must be equated The interaction identifies brain areas where the effect of one factor varies depending on the presence or absence of the other factor This allows the effect of one factor on the expression of the other factor to be measured

  14. Interaction effect (A x B) With Factor A Without Factor A Words Pictures With Factor B 1 2 Semantic association Without Factor B 3 4 Non-semantic association (size) Left posterior inferior temporal sulcus is activated more by the semantic processing of words than by the semantic processing of pictures (Vandenberghe et al. 1996) A A 1 2 3 4 Condition With factor B Without factor B

  15. Main effect of semantic association 600 Semantic RT Non-semantic 0 Words Pictures Stimuli

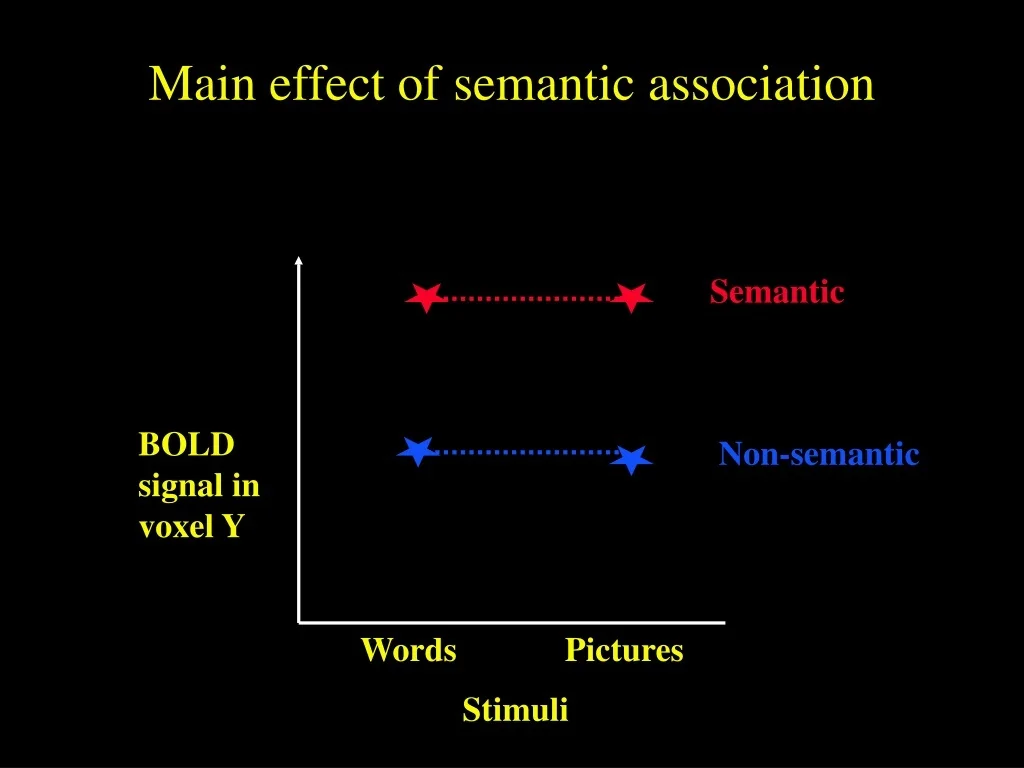

  16. Main effect of semantic association Semantic BOLD signal in voxel Y Non-semantic Words Pictures Stimuli

  17. Main effect of pictures Semantic Non-semantic 600 RT 0 Words Pictures Stimuli

  18. Main effect of pictures Semantic Non-semantic BOLD signal in voxel Y Words Pictures Stimuli

  19. Interaction 600 RT Semantic Non-semantic 0 Words Pictures Stimuli

  20. Interaction BOLD signal in voxel Y Semantic Non-semantic Words Pictures Stimuli

  21. Crossover interaction Semantic 600 RT Non-semantic 0 Words Pictures Stimuli

  22. Crossover interaction Semantic BOLD signal in voxel Y Non-semantic Words Pictures Stimuli

  23. With Factor A Without Factor A Words Pictures With Factor B 1 2 Semantic association Without Factor B 3 4 Non-semantic association (size) Cond 1 2 3 4 Main effect of: SEMANTIC PROCESSING (1+2)-(3+4) = 1 1 -1 -1

  24. With Factor A Without Factor A Words Pictures With Factor B 1 2 Semantic association Without Factor B 3 4 Non-semantic association (size) Cond 1 2 3 4 Main effect of: WORDS (1+3)-(2+4) = 1 -1 1 -1

  25. With Factor A Without Factor A Words Pictures With Factor B 1 2 Semantic association Without Factor B 3 4 Non-semantic association (size) Cond 1 2 3 4 Interaction between the factors: (1-2)-(3-4) = 1 -1 -1 1

  26. With Factor A Without Factor A Words Pictures With Factor B 1 2 Semantic association Without Factor B 3 4 Non-semantic association (size) Cond 1 2 3 4 Interaction between the factors: (3-4)-(1-2) = -1 1 1 -1

  27. Parametric designs • Process of interest is treated as a dimension • The covariate of interest (or regressor) can be: • manipulated externally by the experimenter (e.g. word presentation rate) • determined by subject (e.g. number of words correctly remembered) • Analysis reveals brain areas whose activity shows a significant regression on the covariate of interest • Positive or negative slope • Linear or non-linear

  28. Subject’s right hand Left robot Right robot Tactile stimulus Delay Subject’s left hand PET study Delays: 0 ms 100 ms 200 ms 300 ms

  29. Cerebellum rCBF Delay (ms) Right cerebellar cortex activity shows a positive regression on delay

  30. Blood flow (PET) BOLD signal (fMRI) Saturation effect

  31. Task A BOLD signal in voxel Y Task B BOLD signal in voxel X Psychophysiological interactions Assess how interactions among brain regions depend upon context Explain the physiological response in one part of the brain in terms of an interaction between a psychological process and activity in another part of the brain

  32. Cerebellum contributes of SI activity during self-produced but not externally produced touch Self-produced touch Externally produced touch
