  1. Statics Challenge J. W. Eischen Precision Engineering Center Lunch Seminar March 4, 2011

  2. Early Boeing 747 Engine Mount Issue

  3. Original Design- statics floating mount - weight and maneuver loads single thrust mount Rf Hr Rr d (turbine case offset) T L causes ovalization

  4. Original Design- statics Rf Hr Rr d M T L

  5. Early Boeing 747 Engine Mount Issue

  6. Early Boeing 747 Engine Mount Issue

  7. Early Boeing 747 Engine Mount Issue

  8. Early Boeing 747 Engine Mount Issue

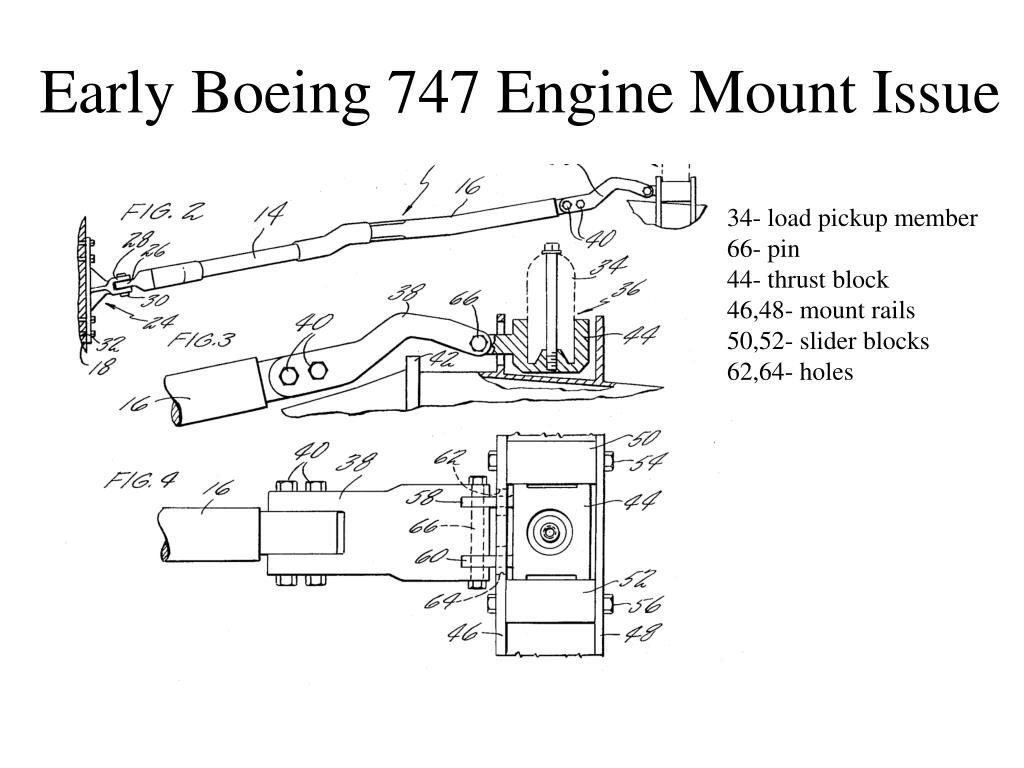

  9. Early Boeing 747 Engine Mount Issue 34- load pickup member 66- pin 44- thrust block 46,48- mount rails 50,52- slider blocks 62,64- holes

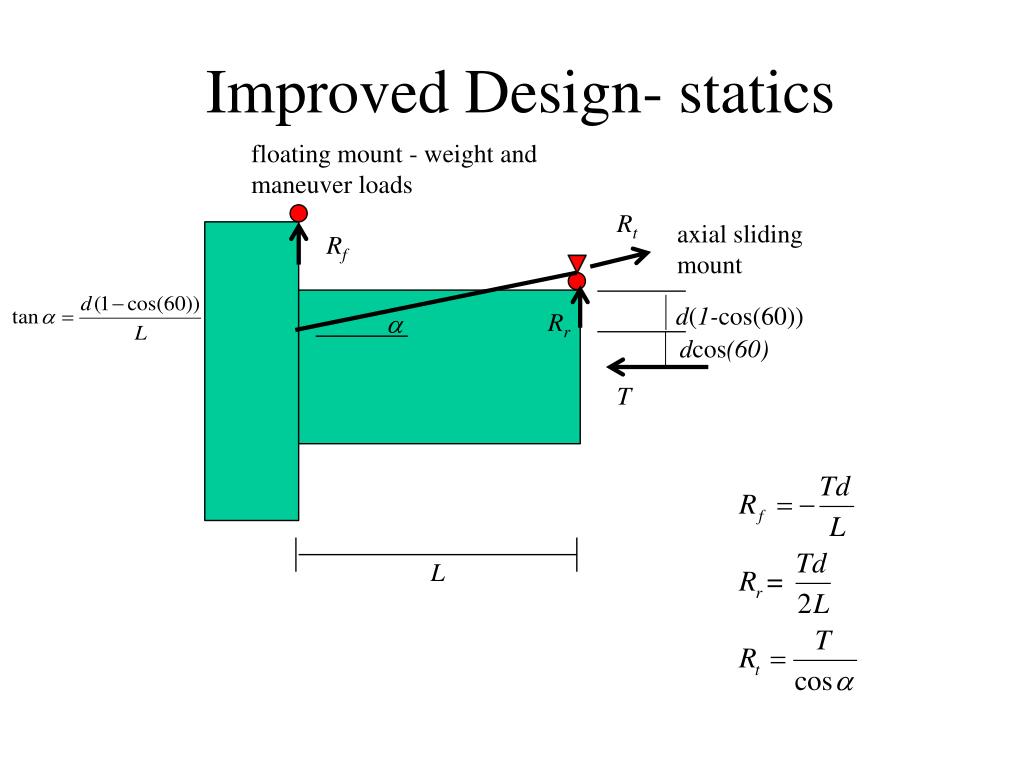

  10. Improved Design- statics floating mount - weight and maneuver loads Rt axial sliding mount Rf d(1-cos(60)) Rr a dcos(60) T L

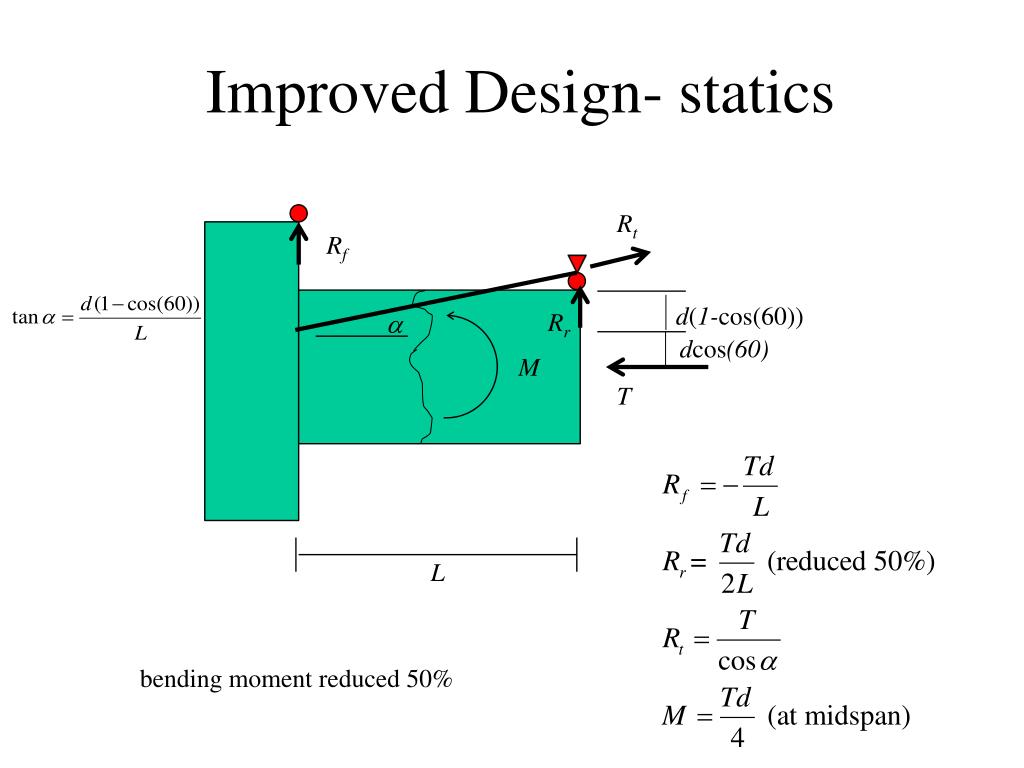

  11. Improved Design- statics Rt Rf d(1-cos(60)) Rr a dcos(60) M T L bending moment reduced 50%
