code generation

Code Generation

Professor Yihjia Tsai

Tamkang University

outline

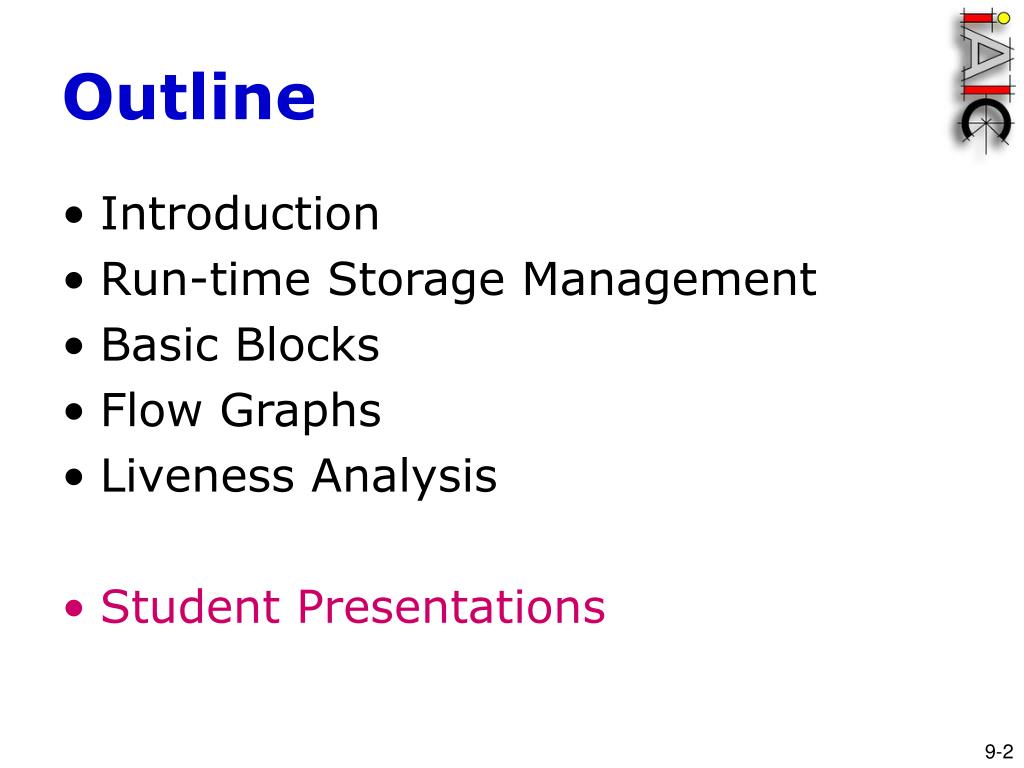

Outline
  • Introduction
  • Run-time Storage Management
  • Basic Blocks
  • Flow Graphs
  • Liveness Analysis
  • Student Presentations
introduction

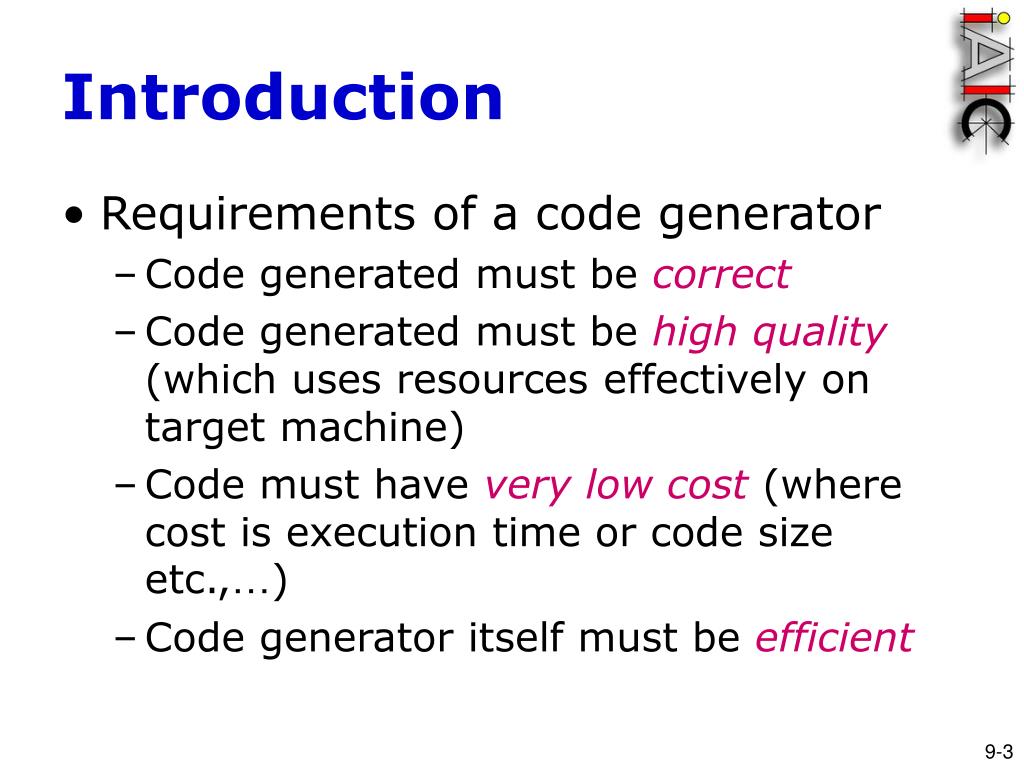

Introduction
  • Requirements of a code generator
    • Code generated must be correct
    • Code generated must be high quality (which uses resources effectively on target machine)
    • Code must have very low cost (where cost is execution time or code size etc.,…)
    • Code generator itself must be efficient
code generation overview

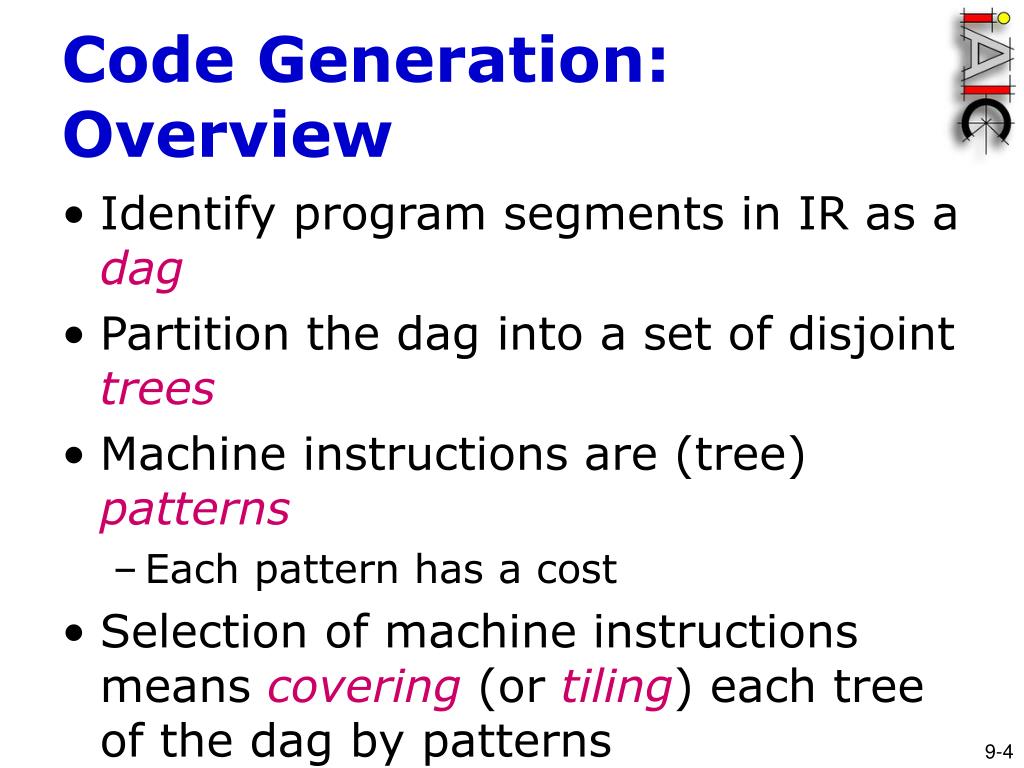

Code Generation: Overview
  • Identify program segments in IR as a dag
  • Partition the dag into a set of disjoint trees
  • Machine instructions are (tree) patterns
    • Each pattern has a cost
  • Selection of machine instructions means covering (or tiling) each tree of the dag by patterns
    • So that total cost is the lowest (or very low)
issues to consider

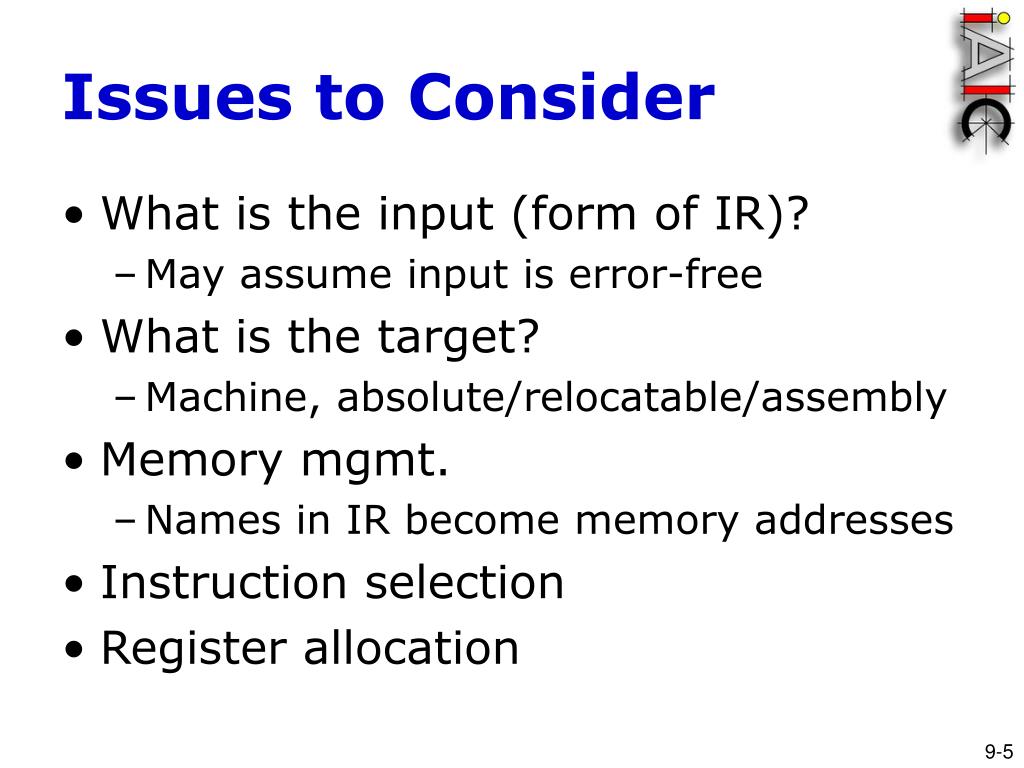

Issues to Consider
  • What is the input (form of IR)?
    • May assume input is error-free
  • What is the target?
    • Machine, absolute/relocatable/assembly
  • Memory mgmt.
    • Names in IR become memory addresses
  • Instruction selection
  • Register allocation

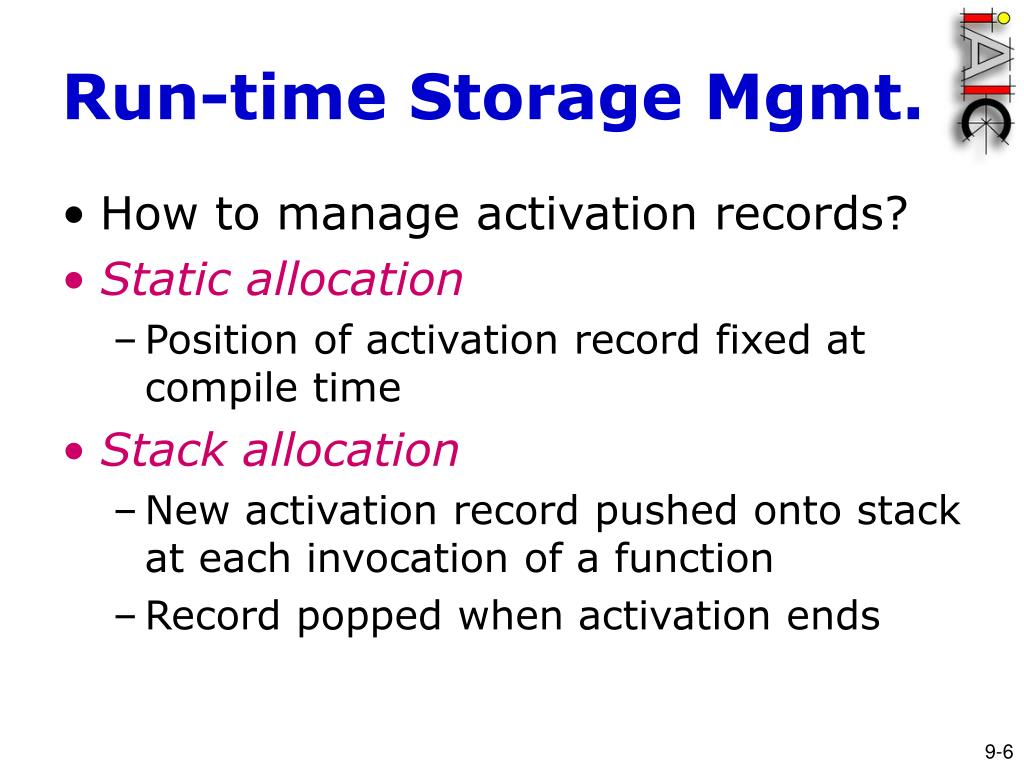

run time storage mgmt
Run-time Storage Mgmt.
  • How to manage activation records?
  • Static allocation
    • Position of activation record fixed at compile time
  • Stack allocation
    • New activation record pushed onto stack at each invocation of a function
    • Record popped when activation ends
static allocation

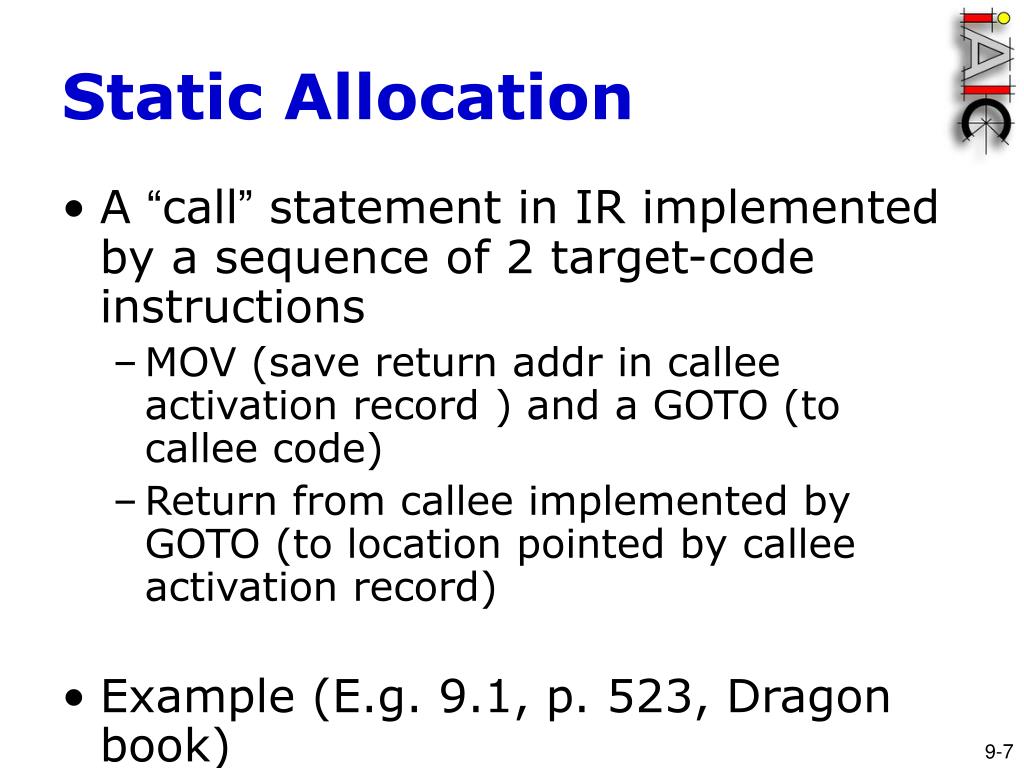

Static Allocation
  • A “call” statement in IR implemented by a sequence of 2 target-code instructions
    • MOV (save return addr in callee activation record ) and a GOTO (to callee code)
    • Return from callee implemented by GOTO (to location pointed by callee activation record)
  • Example (E.g. 9.1, p. 523, Dragon book)
    • Assume “action” instruction takes 20 bytes
example

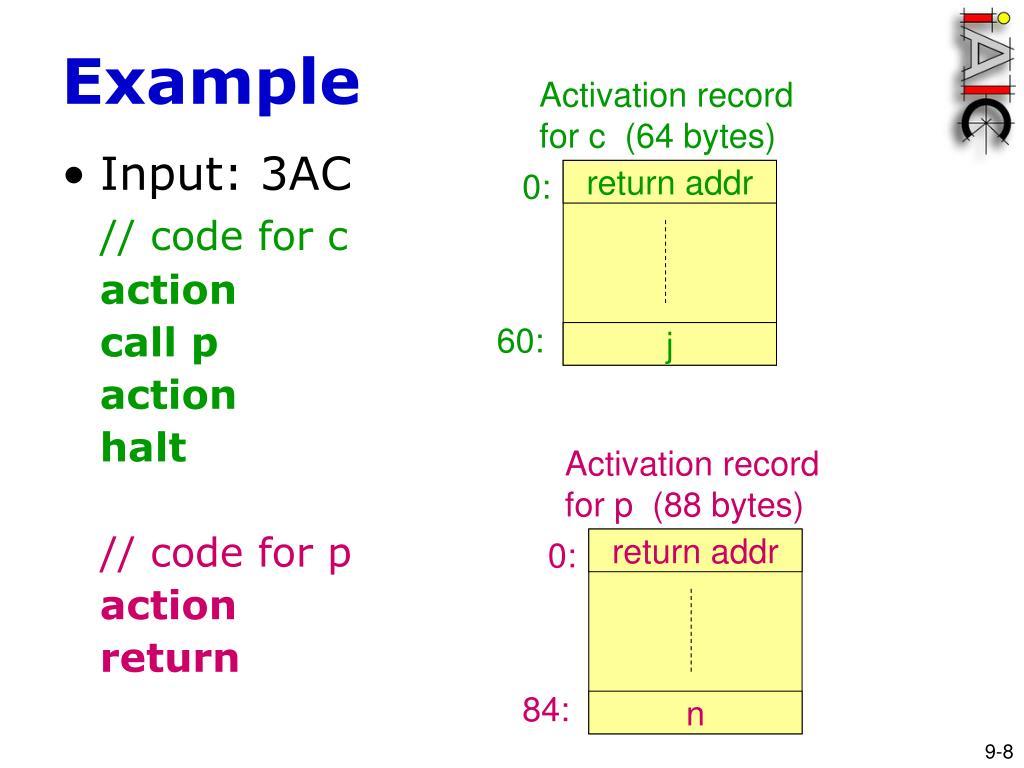

Example

Activation record for c (64 bytes)

0:

return addr

  • Input: 3AC

// code for c

action

call p

action

halt

// code for p

action

return

60:

j

Activation record for p (88 bytes)

0:

return addr

84:

n

example contd
Example …contd

// code for c

100: action // c’s activation record

120: MOV #140, 364 300: …..

132: GOTO 200 304: …..

140: action …….

160: halt 360: ….

// p’s activation record

//code for p 364: …

200: action 368: …

220: GOTO *364 …….

448: …

stack allocation

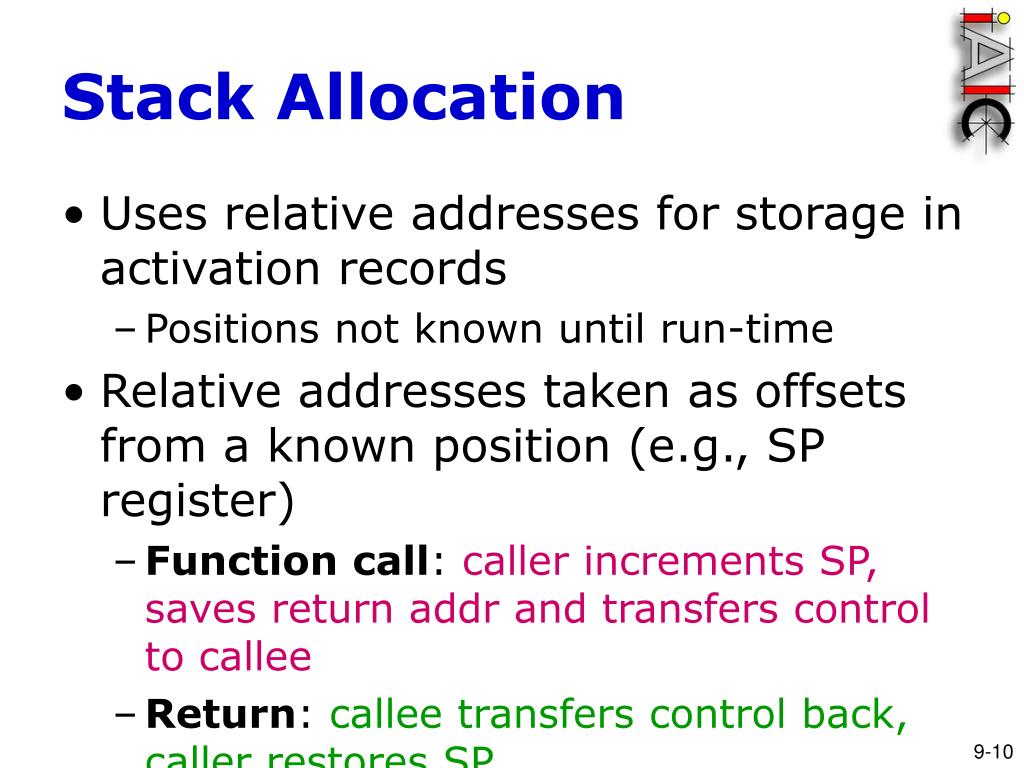

Stack Allocation
  • Uses relative addresses for storage in activation records
    • Positions not known until run-time
  • Relative addresses taken as offsets from a known position (e.g., SP register)
    • Function call: caller increments SP, saves return addr and transfers control to callee
    • Return: callee transfers control back, caller restores SP
example1

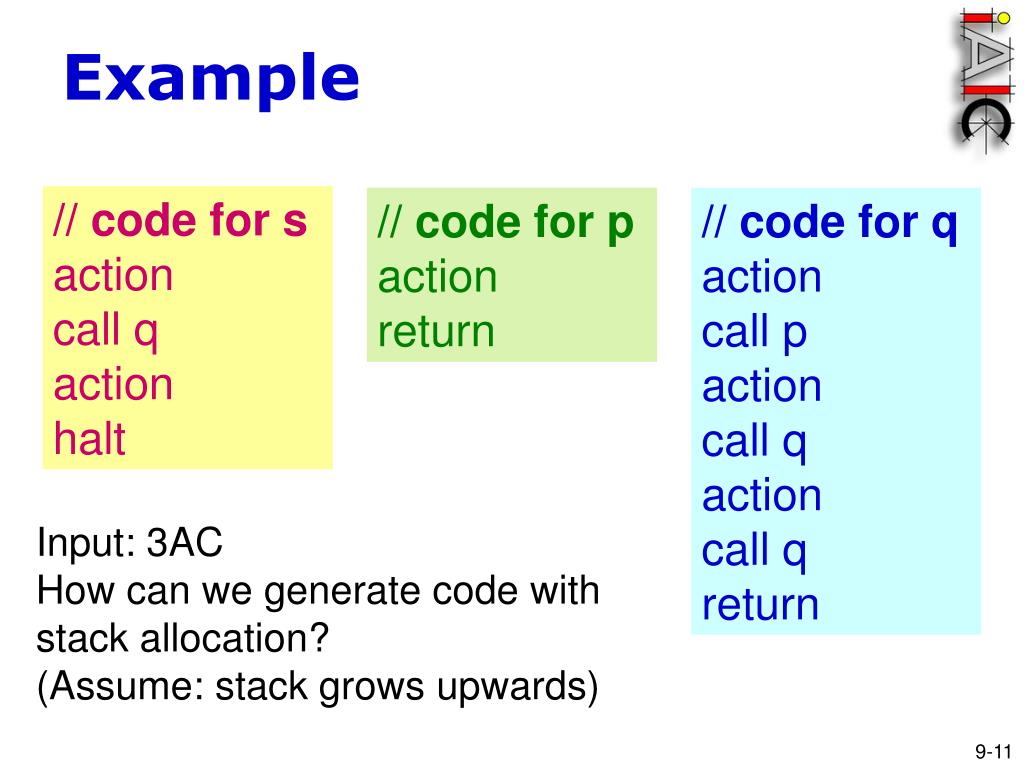

Example

// code for s

action

call q

action

halt

// code for p

action

return

// code for q

action

call p

action

call q

action

call q

return

Input: 3AC

How can we generate code with stack allocation?

(Assume: stack grows upwards)

example contd1

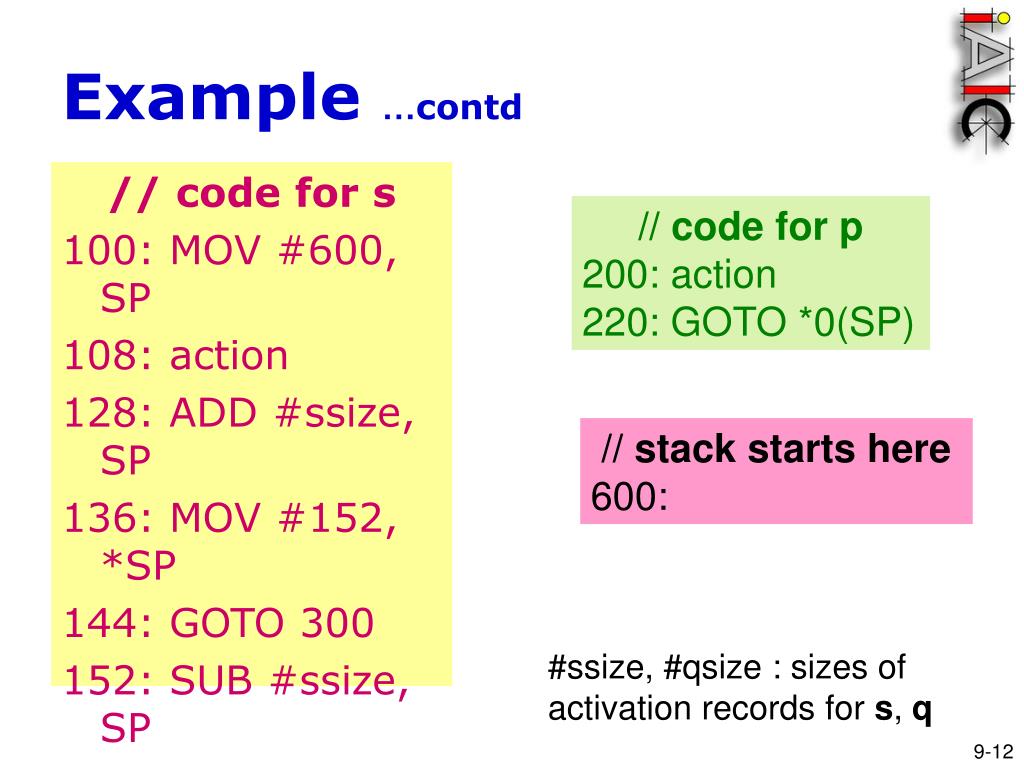

Example …contd

// code for s

100: MOV #600, SP

108: action

128: ADD #ssize, SP

136: MOV #152, *SP

144: GOTO 300

152: SUB #ssize, SP

160: action

180: halt

// code for p

200: action

220: GOTO *0(SP)

// stack starts here

600:

#ssize, #qsize : sizes of activation records for s, q

example contd2

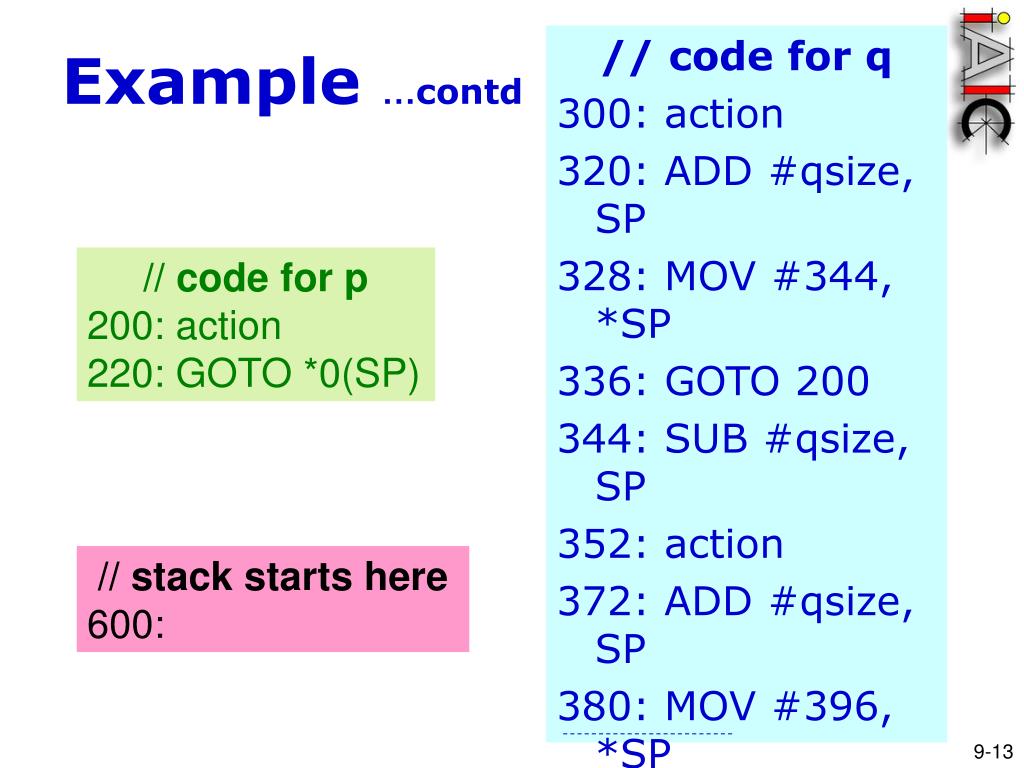

Example …contd

// code for q

300: action

320: ADD #qsize, SP

328: MOV #344, *SP

336: GOTO 200

344: SUB #qsize, SP

352: action

372: ADD #qsize, SP

380: MOV #396, *SP

388: GOTO 300

396: SUB #qsize, SP

404: action …

// code for p

200: action

220: GOTO *0(SP)

// stack starts here

600:

basic blocks

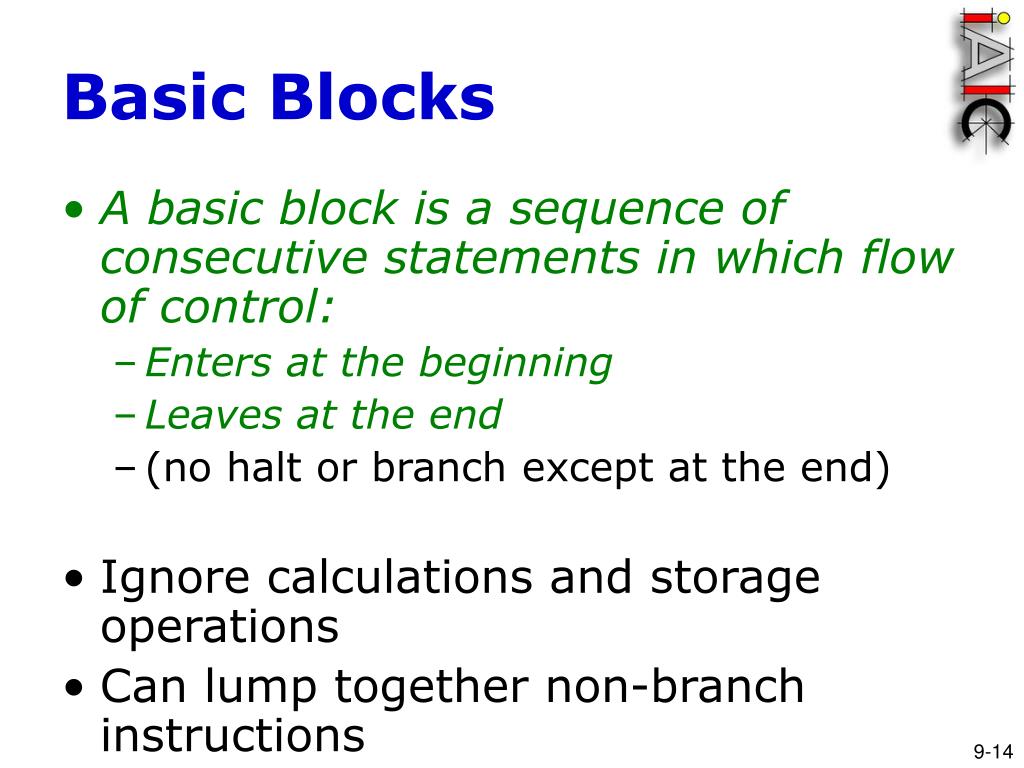

Basic Blocks
  • A basic block is a sequence of consecutive statements in which flow of control:
    • Enters at the beginning
    • Leaves at the end
    • (no halt or branch except at the end)
  • Ignore calculations and storage operations
  • Can lump together non-branch instructions
algorithm to obtain basic blocks

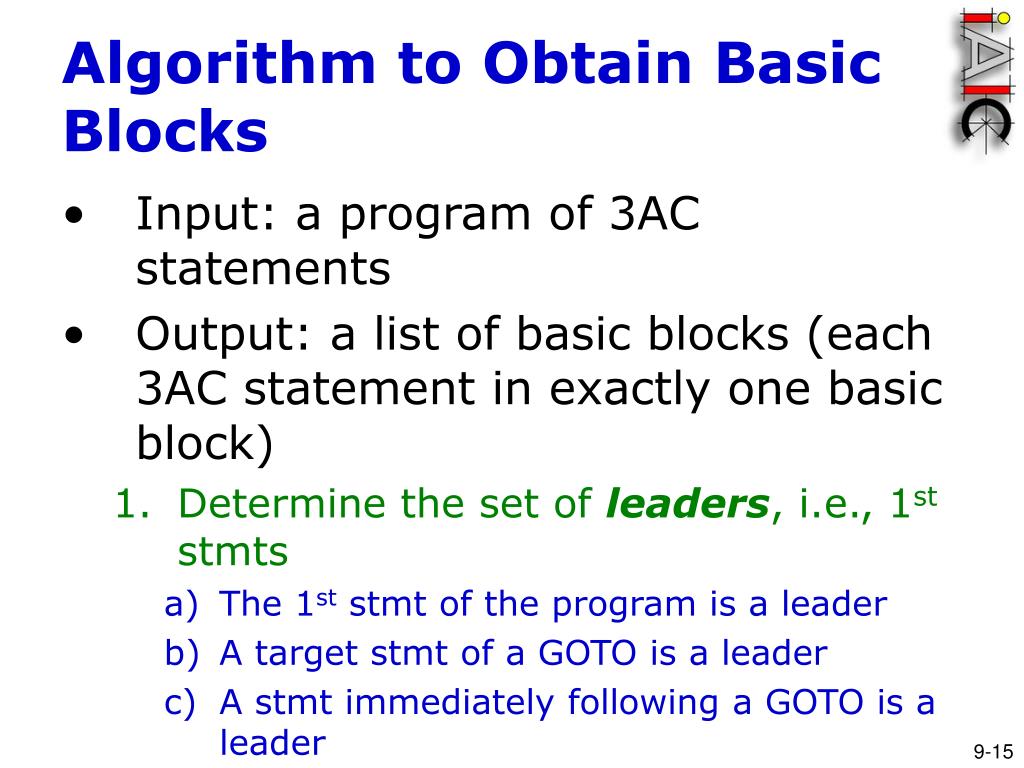

Algorithm to Obtain Basic Blocks
  • Input: a program of 3AC statements
  • Output: a list of basic blocks (each 3AC statement in exactly one basic block)
    • Determine the set of leaders, i.e., 1st stmts
      • The 1st stmt of the program is a leader
      • A target stmt of a GOTO is a leader
      • A stmt immediately following a GOTO is a leader
    • For each leader, its basic block ends before next basic block or at the end of program

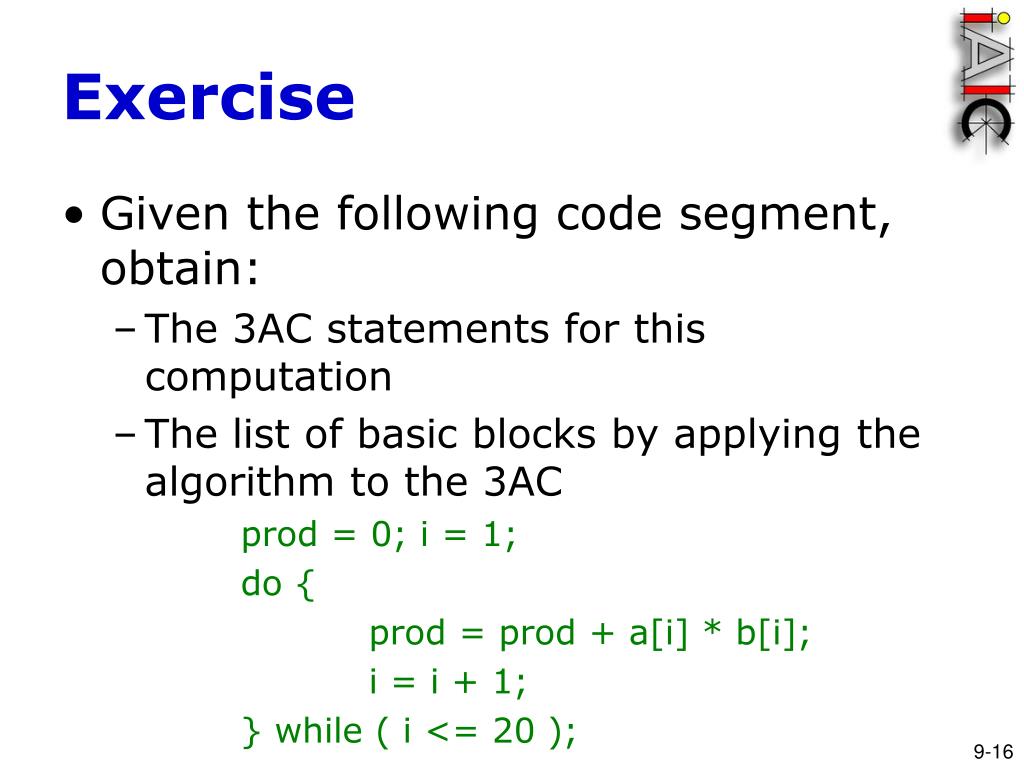

exercise
Exercise
  • Given the following code segment, obtain:
    • The 3AC statements for this computation
    • The list of basic blocks by applying the algorithm to the 3AC

prod = 0; i = 1;

do {

prod = prod + a[i] * b[i];

i = i + 1;

} while ( i <= 20 );

flow graphs

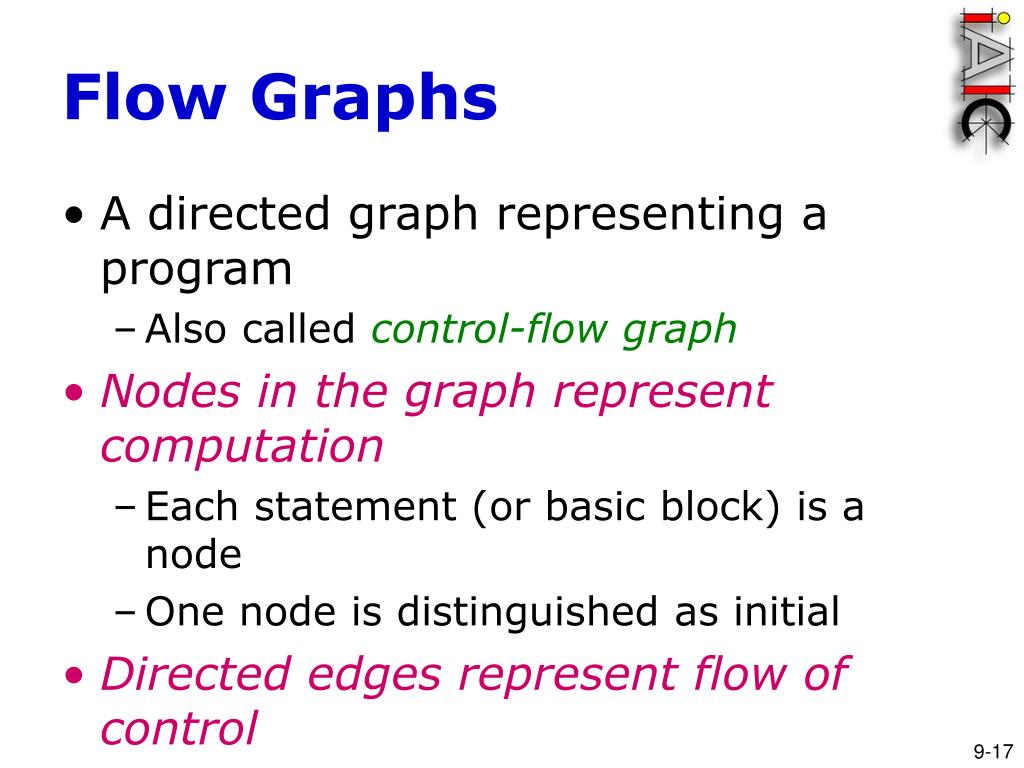

Flow Graphs
  • A directed graph representing a program
    • Also called control-flow graph
  • Nodes in the graph represent computation
    • Each statement (or basic block) is a node
    • One node is distinguished as initial
  • Directed edges represent flow of control
    • There is an edge from node n1 to node n2 if n2 can immediately follow n1 in execution
flow graphs contd

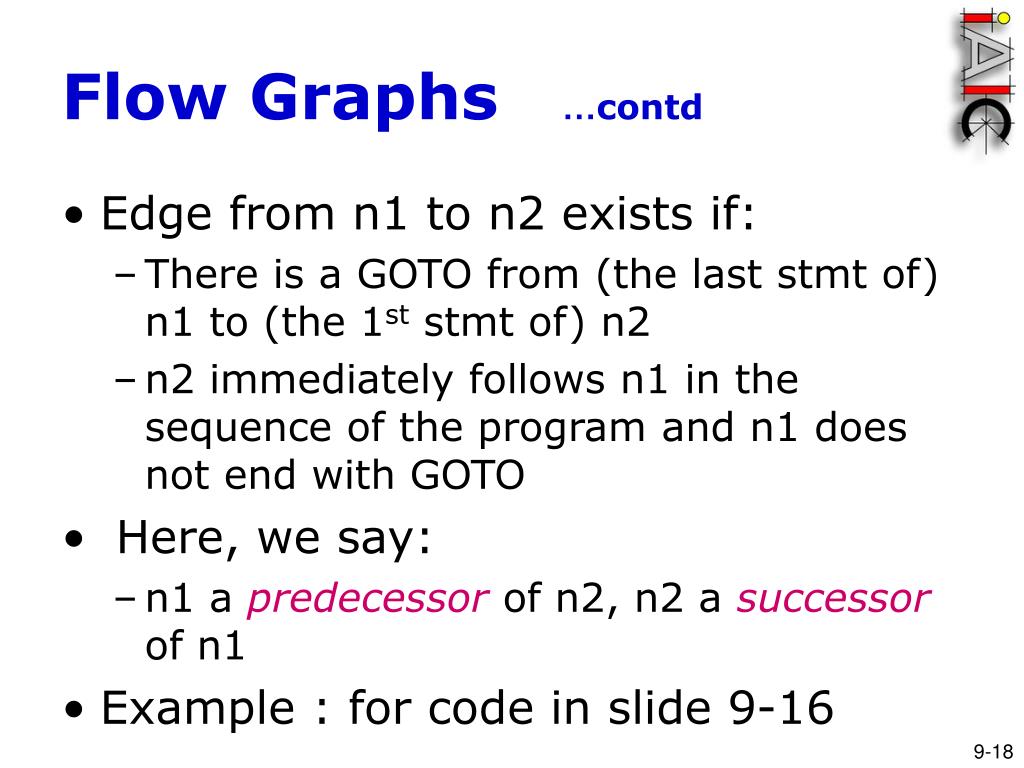

Flow Graphs …contd
  • Edge from n1 to n2 exists if:
    • There is a GOTO from (the last stmt of) n1 to (the 1st stmt of) n2
    • n2 immediately follows n1 in the sequence of the program and n1 does not end with GOTO
  • Here, we say:
    • n1 a predecessor of n2, n2 a successor of n1
  • Example : for code in slide 9-16
exercise1

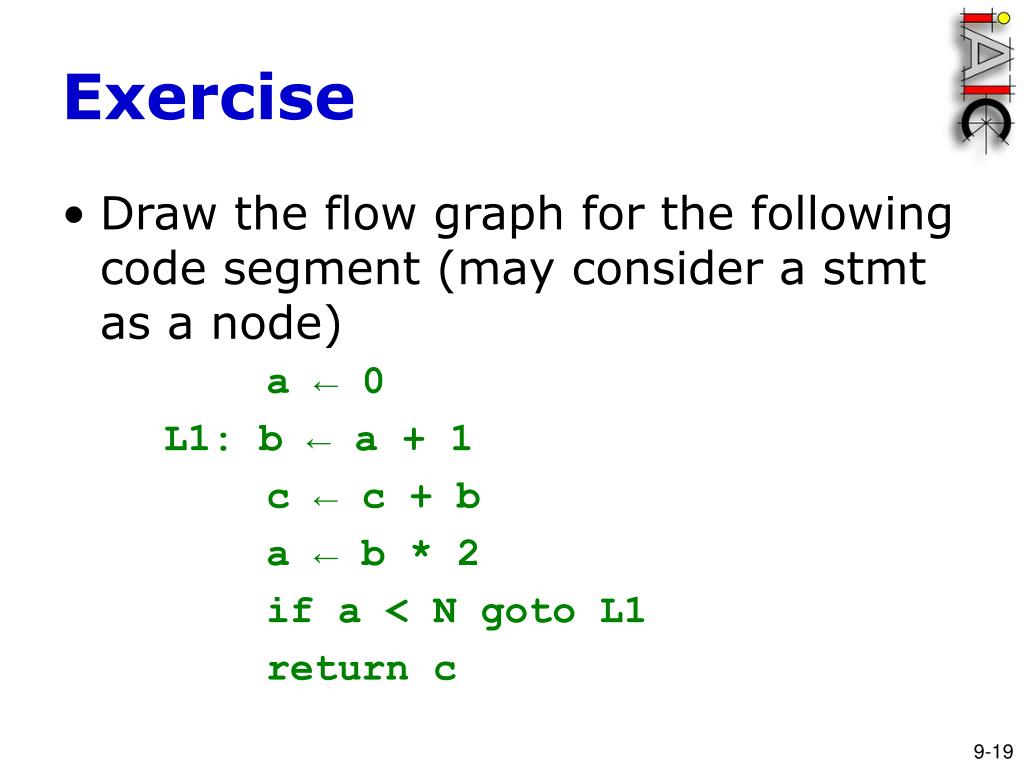

Exercise
  • Draw the flow graph for the following code segment (may consider a stmt as a node)

a ← 0

L1: b ← a + 1

c ← c + b

a ← b * 2

if a < N goto L1

return c

liveness analysis
Liveness Analysis
  • An example application
    • IR code (say 3AC) may have large # of temps and program vars
    • But we have limited # of registers
    • Need to know which temps/vars are in use at the same time (for efficient use of registers)
  • A variable is live if it holds a value needed in the future
  • This analysis is called liveness analysis

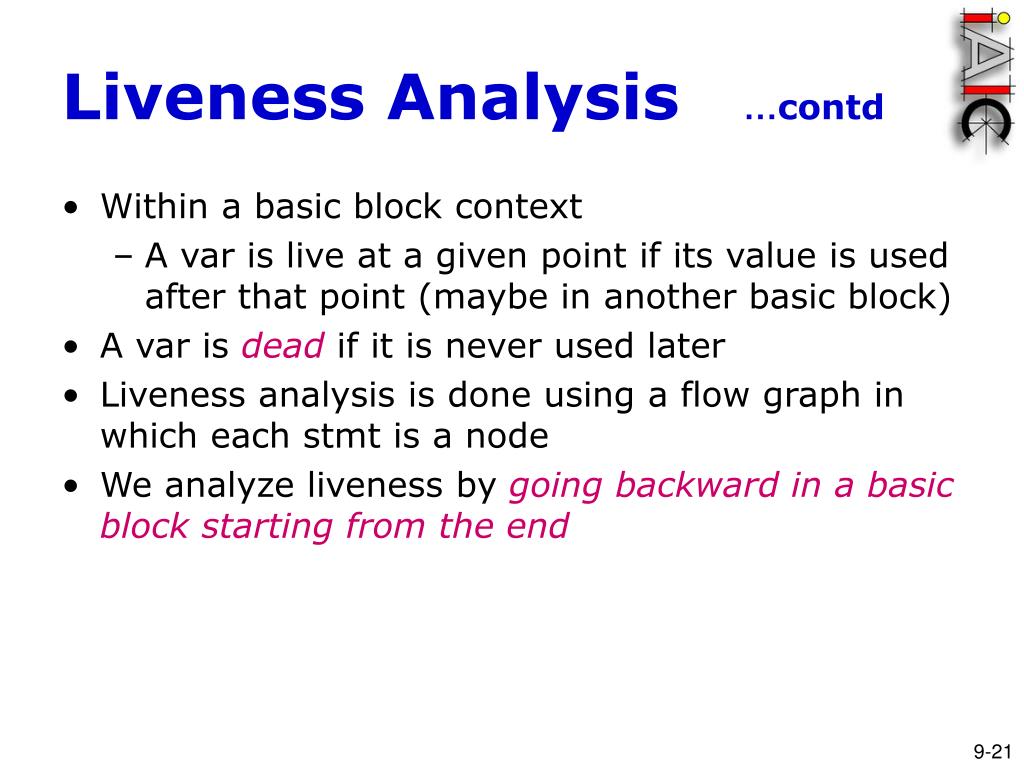

liveness analysis contd
Liveness Analysis …contd
  • Within a basic block context
    • A var is live at a given point if its value is used after that point (maybe in another basic block)
  • A var is dead if it is never used later
  • Liveness analysis is done using a flow graph in which each stmt is a node
  • We analyze liveness by going backward in a basic block starting from the end

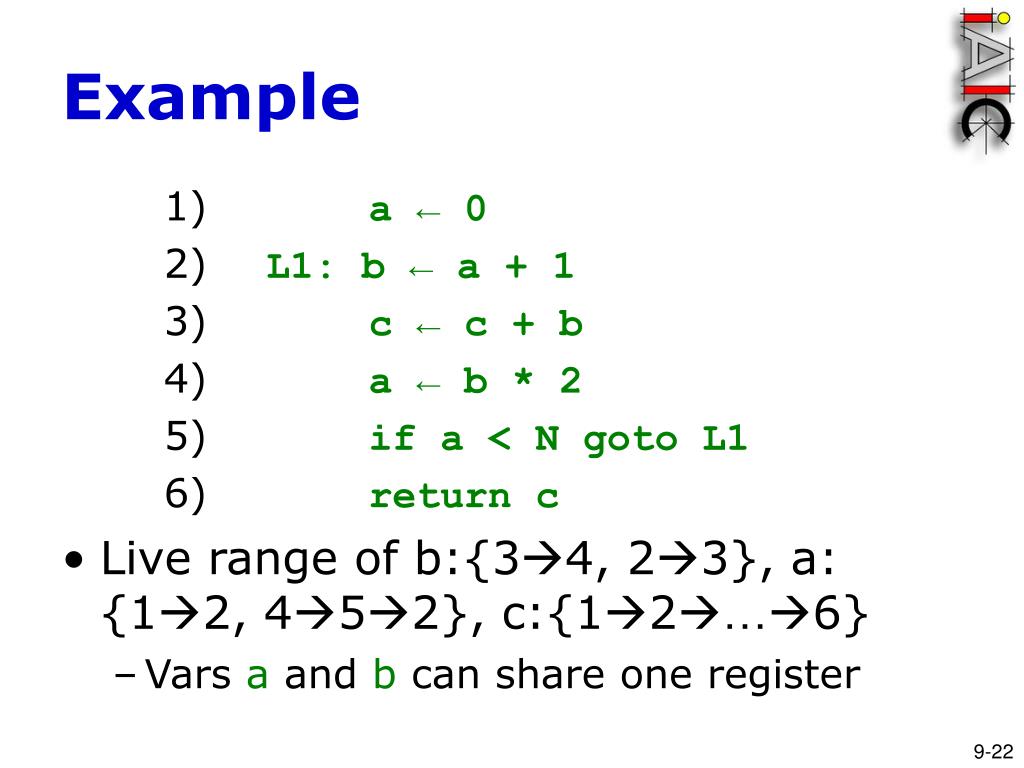

example2
Example

1)a ← 0

2) L1: b ← a + 1

3) c ← c + b

4) a ← b * 2

5) if a < N goto L1

6) return c

  • Live range of b:{34, 23}, a: {12, 452}, c:{12…6}
    • Vars a and b can share one register
liveness analysis contd1

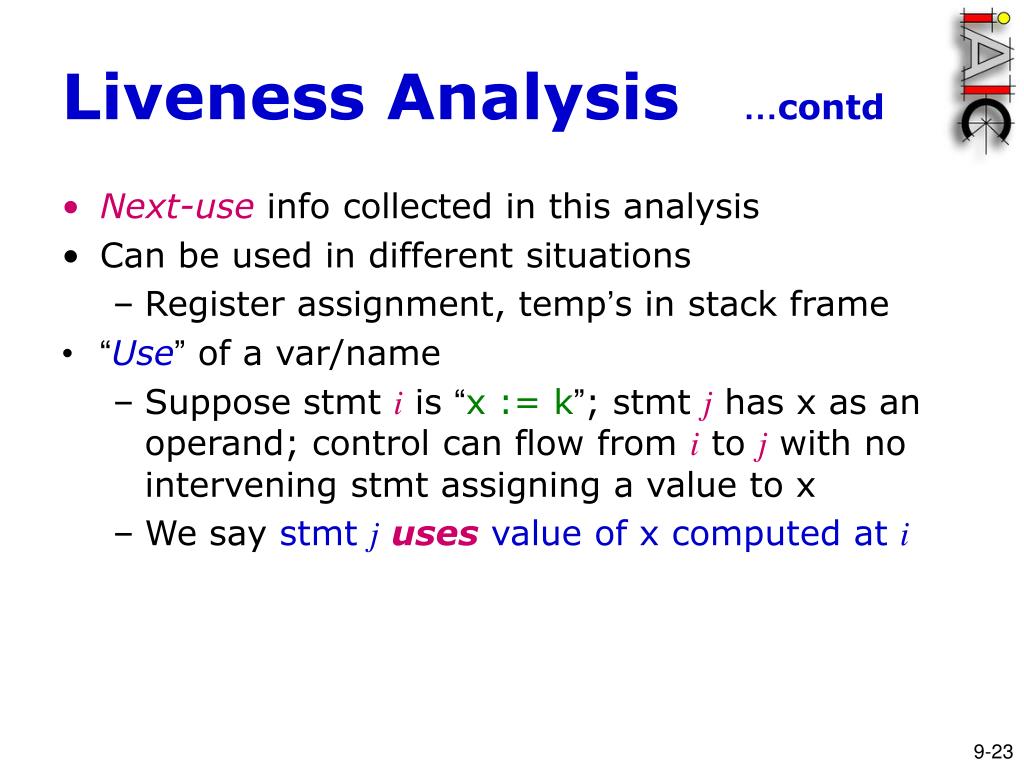

Liveness Analysis …contd
  • Next-use info collected in this analysis
  • Can be used in different situations
    • Register assignment, temp’s in stack frame
  • “Use” of a var/name
    • Suppose stmt i is “x := k”; stmt j has x as an operand; control can flow from i to j with no intervening stmt assigning a value to x
    • We say stmt jusesvalue of x computed at i
liveness analysis contd2
Liveness Analysis …contd

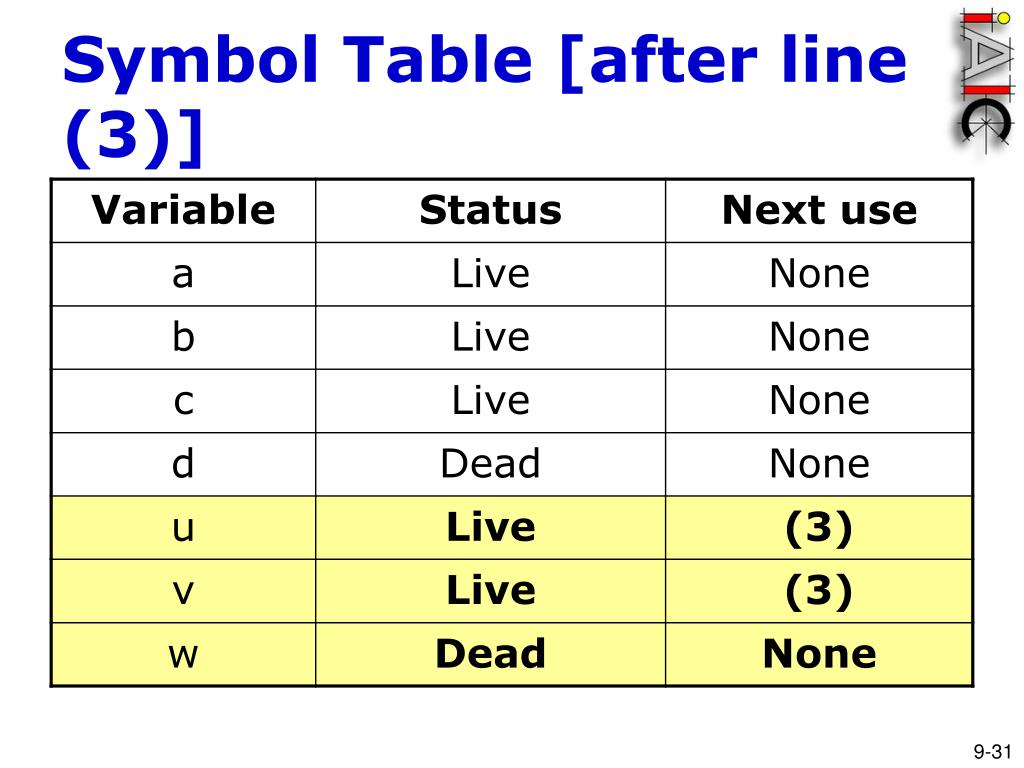

  • At a stmt k: “x := y <op> z”, check symbol table and update info as follows
    • Attach to stmt k, current info in symbol table on status (live/dead) & next use for x, y and z
    • In symbol table, set x to dead and no next use
    • In symbol table, set y, z to live and their next uses to k
    • Steps 2 and 3 must be in that order! (because we may have “x := x <op> y”
example3

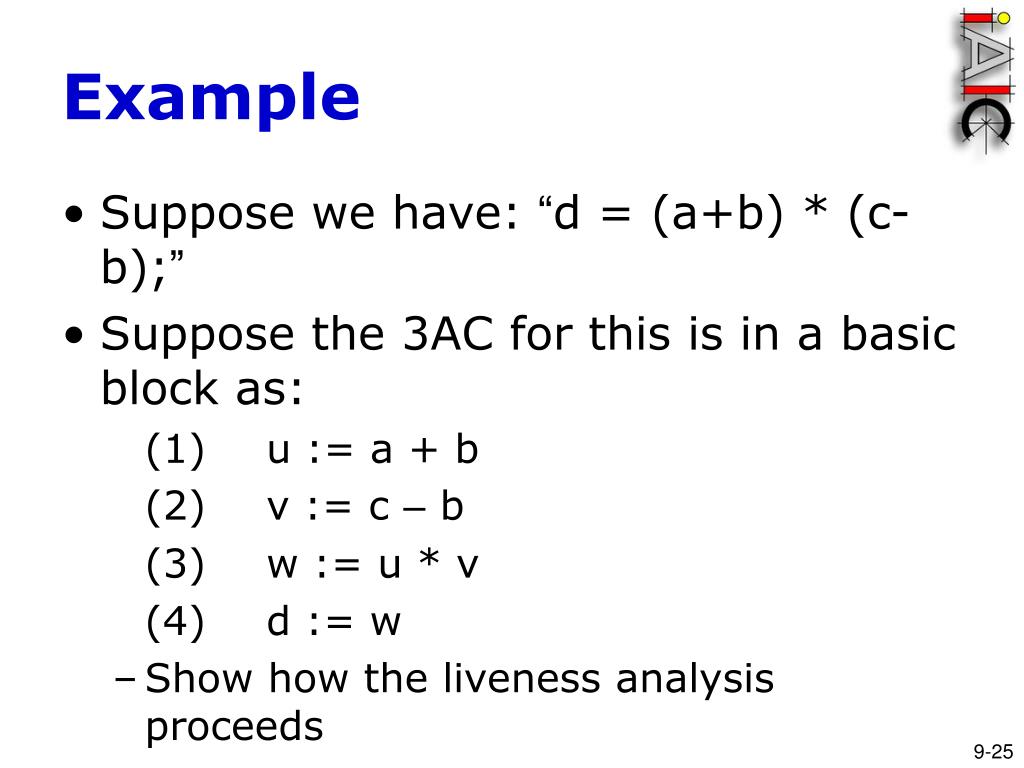

Example
  • Suppose we have: “d = (a+b) * (c-b);”
  • Suppose the 3AC for this is in a basic block as:

(1) u := a + b

(2) v := c – b

(3) w := u * v

(4) d := w

    • Show how the liveness analysis proceeds
example4

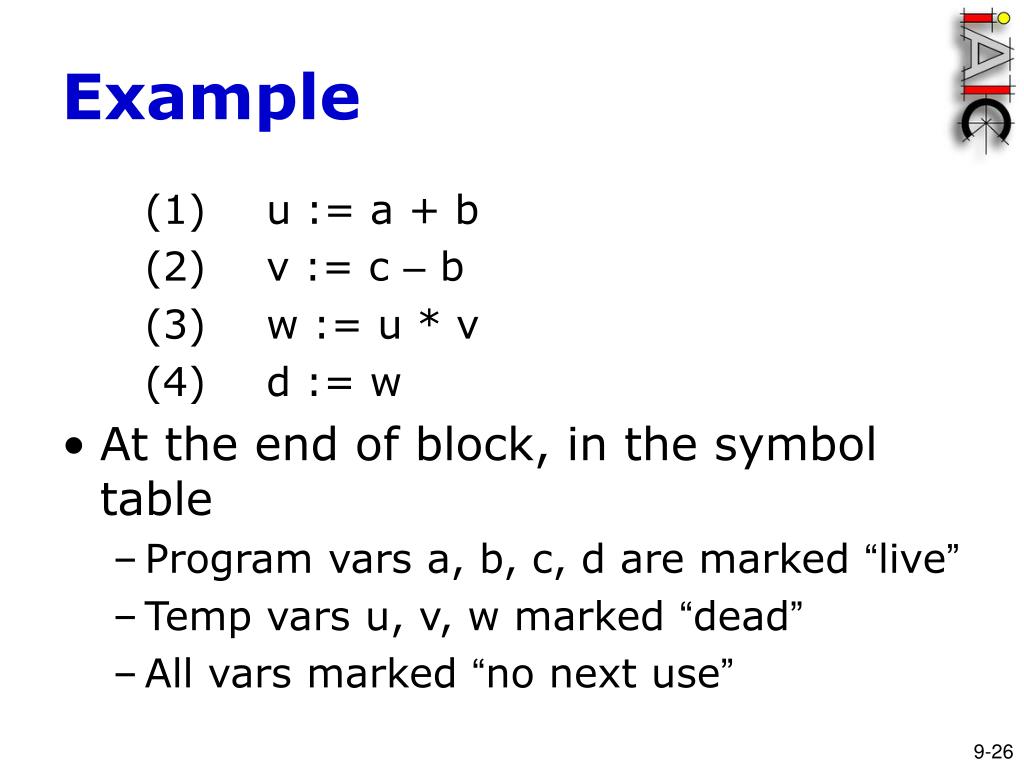

Example

(1) u := a + b

(2) v := c – b

(3) w := u * v

(4) d := w

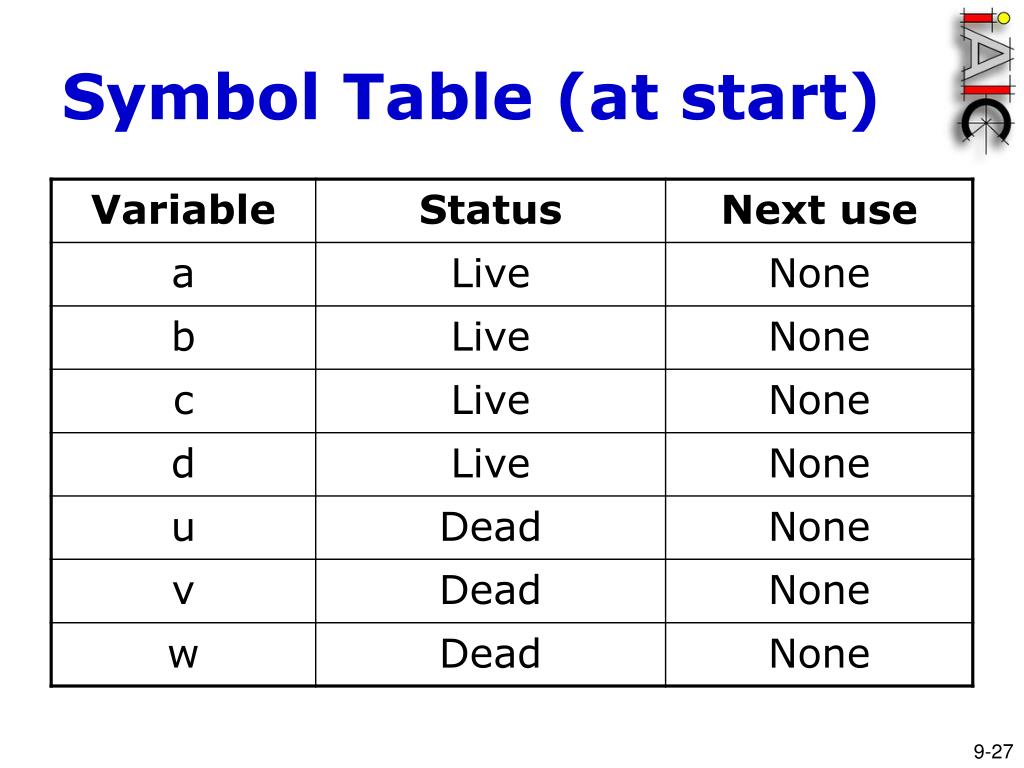

  • At the end of block, in the symbol table
    • Program vars a, b, c, d are marked “live”
    • Temp vars u, v, w marked “dead”
    • All vars marked “no next use”

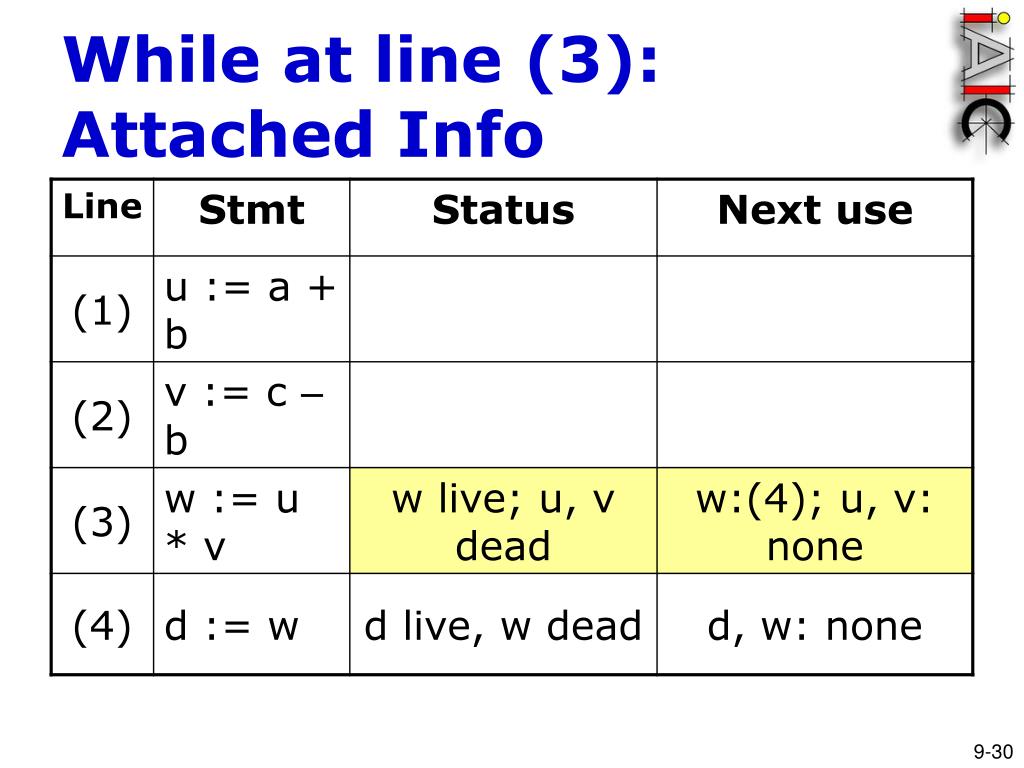

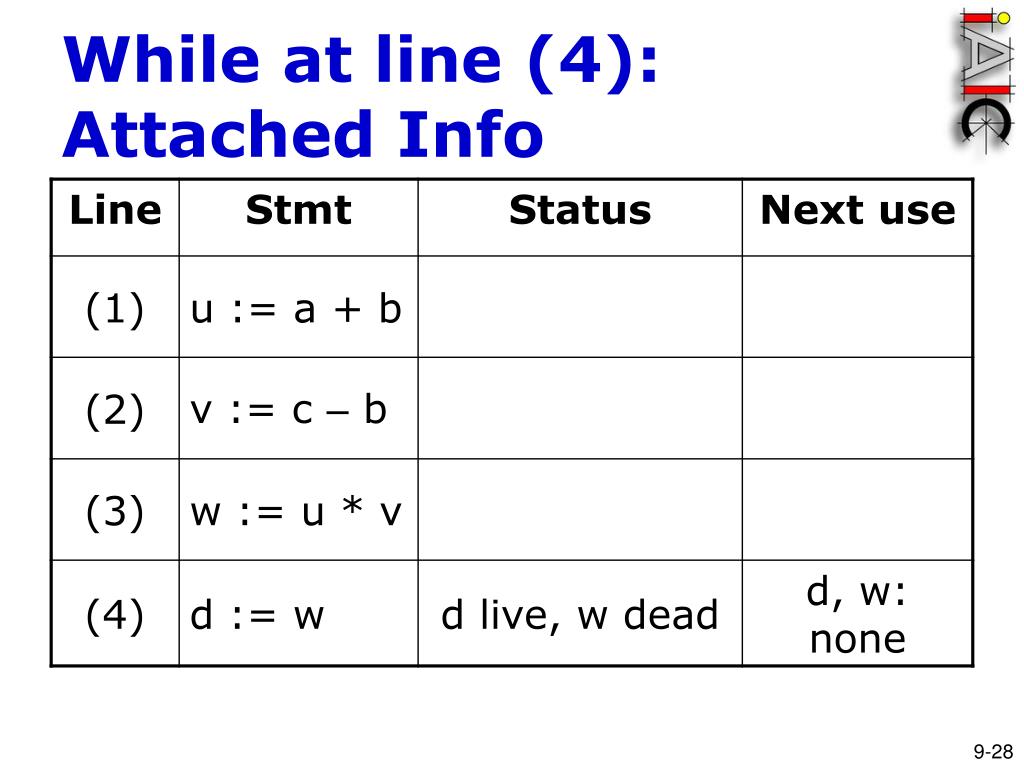

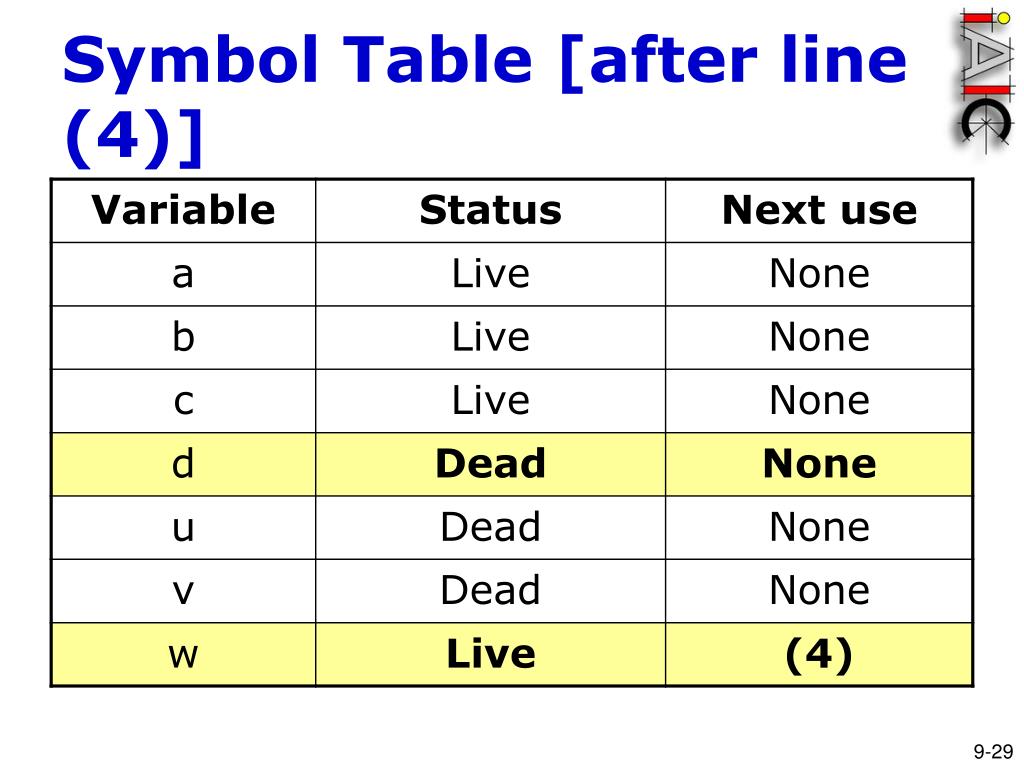

at the end attached info

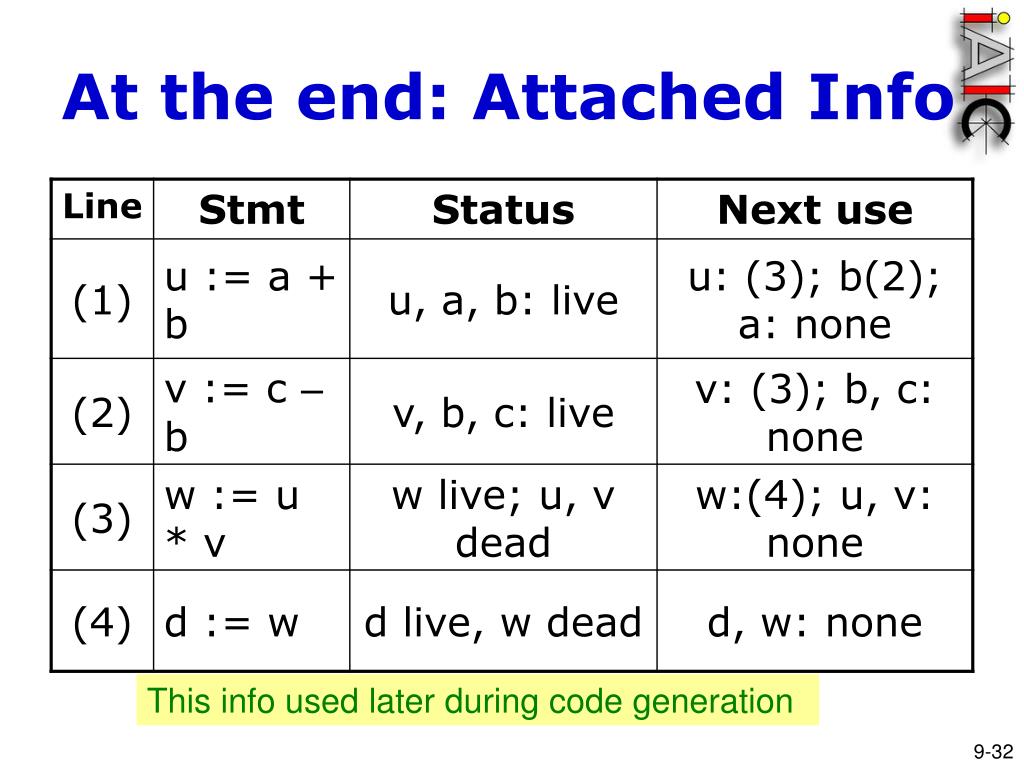

At the end: Attached Info

This info used later during code generation

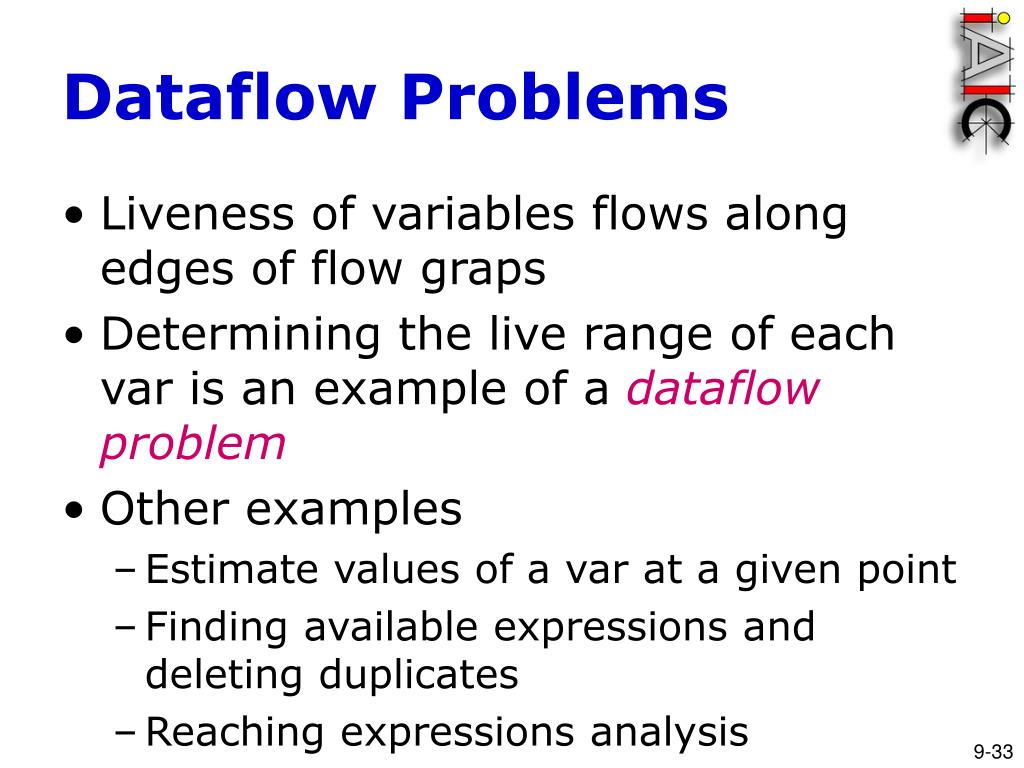

dataflow problems
Dataflow Problems
  • Liveness of variables flows along edges of flow graps
  • Determining the live range of each var is an example of a dataflow problem
  • Other examples
    • Estimate values of a var at a given point
    • Finding available expressions and deleting duplicates
    • Reaching expressions analysis
storage for temp s
Storage for Temp’s
  • Temporary names are generated by the compiler during compilation (e.g., in 3AC)
  • Temp’s can be held in activation records
    • But with many temp’s, storage requirement can be large
  • But we may be able to pack 2 temp’s in the same location if they are not live simultaneously
    • Next-use info within basic blocks can be used

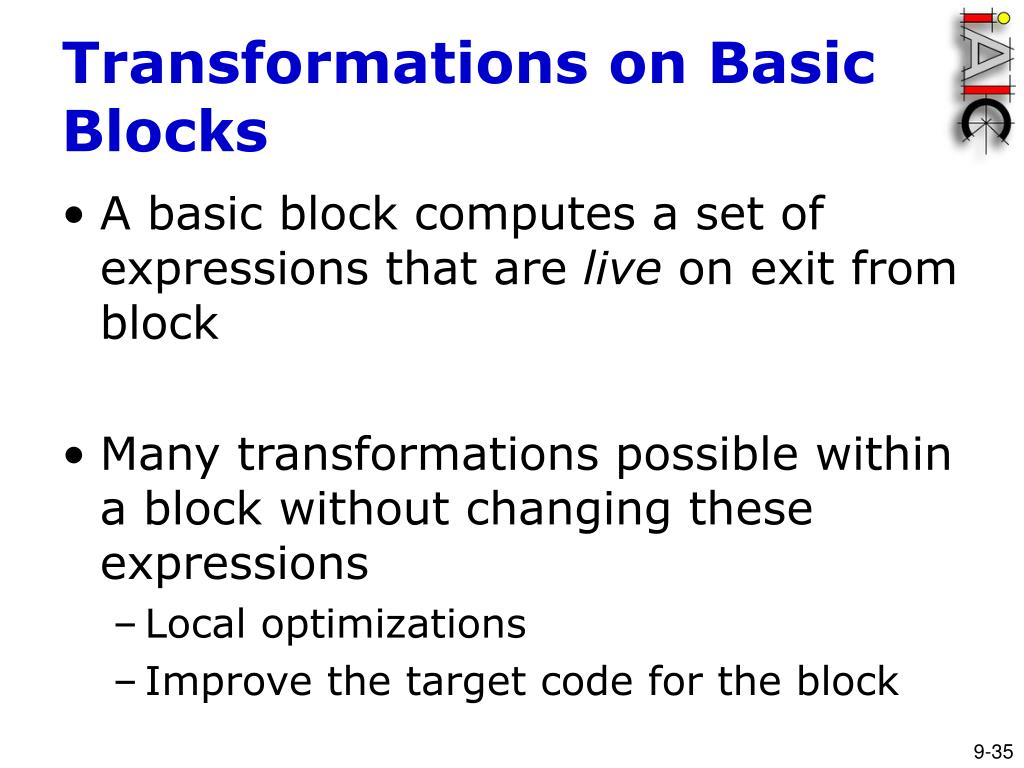

transformations on basic blocks
Transformations on Basic Blocks
  • A basic block computes a set of expressions that are live on exit from block
  • Many transformations possible within a block without changing these expressions
    • Local optimizations
    • Improve the target code for the block
example transformations
Example Transformations
  • Common sub-expression elimination
  • Dead-code elimination
    • Suppose x is dead (never used subsequently) at the point of stmt “x = y + z;” in a basic block
    • Then this stmt can be safely removed

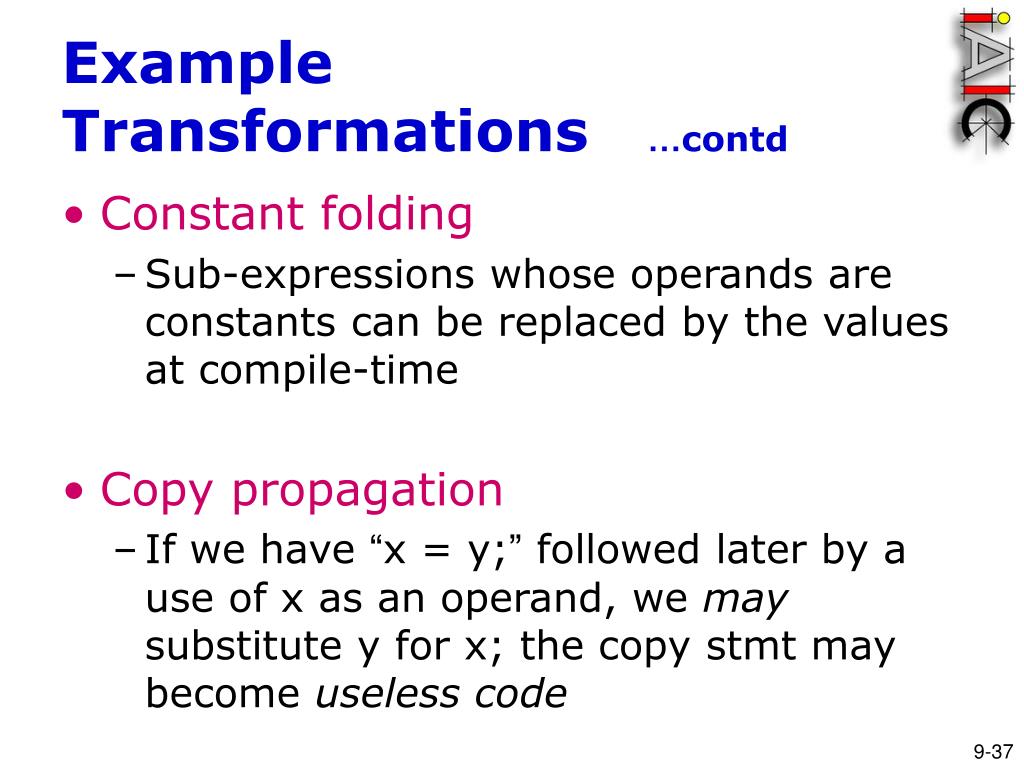

example transformations contd
Example Transformations …contd
  • Constant folding
    • Sub-expressions whose operands are constants can be replaced by the values at compile-time
  • Copy propagation
    • If we have “x = y;” followed later by a use of x as an operand, we may substitute y for x; the copy stmt may become useless code
example transformations contd1

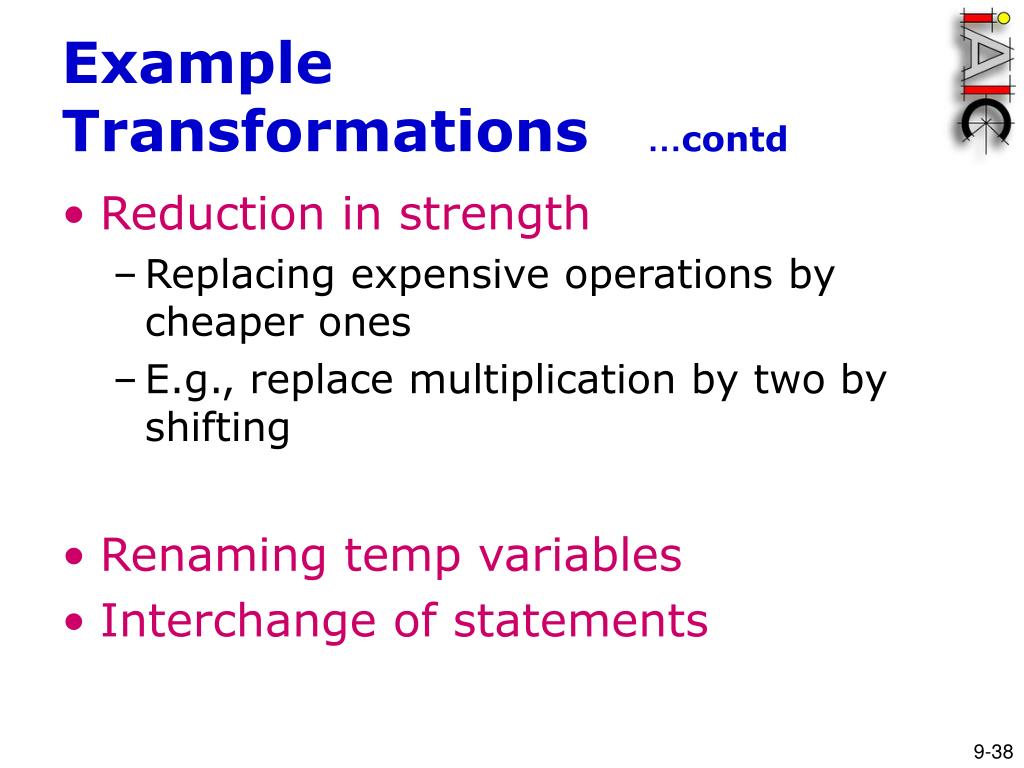

Example Transformations …contd
  • Reduction in strength
    • Replacing expensive operations by cheaper ones
    • E.g., replace multiplication by two by shifting
  • Renaming temp variables
  • Interchange of statements
