  1. Robots Introduction Based on the lecture by Dr. Hadi Moradi University of Southern California

  2. Outline • Control Approaches • Feedback Control • Cybernetics • Braitenberg Vehicles • Artificial Intelligence • Early robots • Robotics Today • Why is Robotics hard

  3. Control • Sensing => Action • Reactive • Don’t think, act: Animals • Deliberative • Think hard, act later: Chess • Hybrid • Think and act in parallel: car races • Behavior-based • Think the way you act: human

  4. Reactive Systems • Collection of sense-act rules • Stimulus-response • Advantages: • ? • Disadvantages • ?

  5. Reactive Systems • Collection of sense-act rules • Stimulus-response • Advantages: • Inherently parallel • No/minimal state • Very fast • No memory • Disadvantages • No planning • No learning

  6. Deliberative Systems • 3 phase model: • Sense • Plan • Act • Example: Chess • Advantages: • ? • Disadvantages: • ?

  7. Deliberative Systems • 3 phase model: • Sense • Plan • Act • Advantages: • can plan • Can learn • Disadvantages: • Needs world model • Searching and planning are slow • World model gets outdated

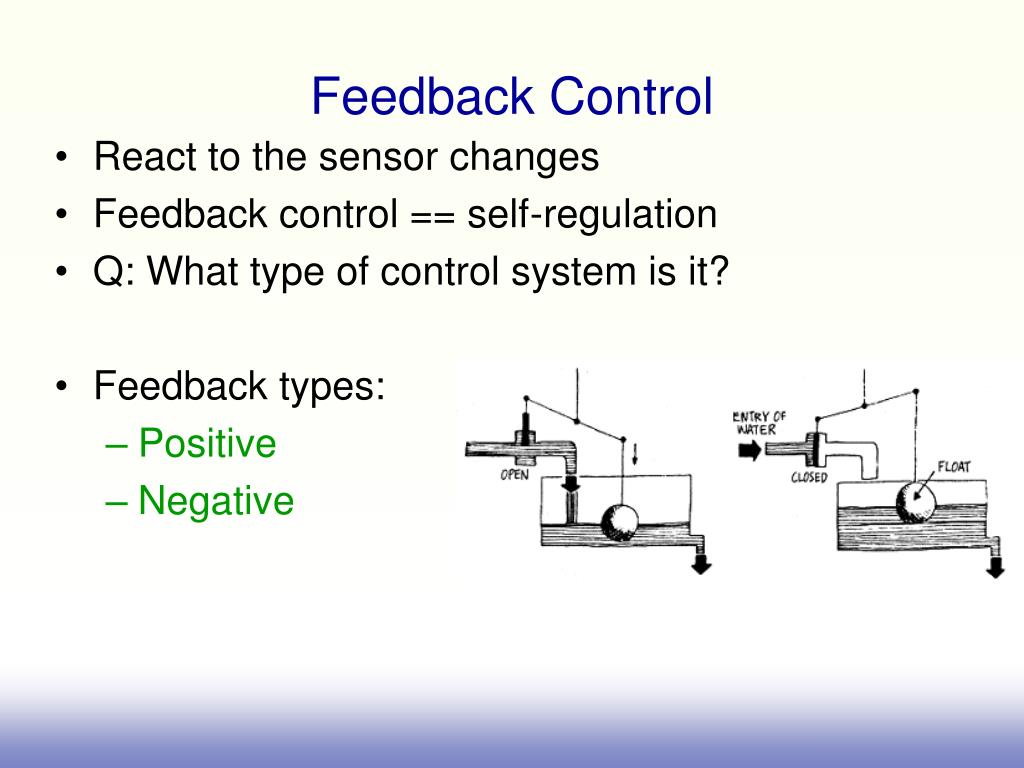

  8. Feedback Control • React to the sensor changes • Feedback control == self-regulation • Q: What type of control system is it? • Feedback types: • Positive • Negative

  9. - and + Feedback • Negative feedback: • Regulates the state/output • Examples: Thermostat, bodies, … • Positive feedback: • Amplifies the state/output • Examples: Stock market • The first use: ancient Greek water system • Re-invented in the Renaissance for ovens

  10. W. Grey Walter’s Tortoise • 1953 • Machina Speculatrix • Sensors • 1 photocell, • 1 bump sensor • 2 motors • Reactive control

  11. W. Grey Walter’s Tortoise • Behaviors: • seeking light, • head toward weak light, • back away from bright light, • turn and push (obstacle avoidance), • recharge battery. • Basis for creating adaptive behavior-based

  12. Turtle Principles • Parsimony: simple is better • e.g., clever recharging strategy • Exploration/speculation: keeps moving • except when charging • Attraction (positive tropism): • motivation to approach light • Aversion (negative tropism): • motivation to avoid obstacles, slopes • Discernment: ability to distinguish and make choices • productive or unproductive behavior, adaptation Ducking

  13. Tortoise behavior • A path: a candle on top of the shell

  14. Tortoise behavior • Two turtles: Like dancing

  15. New Tortoise

  16. Question • How does it do the charging? • Note: When the battery is low, it goes for the light.

  17. Braitenberg Vehicles • Valentino Braitenberg • early 1980s • Extended Walter’s mode • Based on analog circuits • Direct connections between light sensors and motors • Complex behaviors from very simple mechanisms

  18. Braitenberg Vehicles • Complex behaviors from very simple mechanisms

  19. Braitenberg Vehicles • By varying the connections and their strengths, numerous behaviors result, e.g.: • "fear/cowardice" - flees light • "aggression" - charges into light • "love" - following/hugging • many others, up to memory and learning! • Reactive control • Later implemented on real robots • Check: http://www.duke.edu/~mrz/braitenberg/braitenberg.html • Botsorder Styrofoam cubes(16 min 30 sec) • Tokyo Lecture 3 time 24:30-41:00

  20. Brief History • 1750: Swiss craftsman create automatons with clockwork to play tunes • 1917: Word Robot appeard in Karel Capek’s play • 1938: Issac Asimov wrote a novel about robots • 1958: Unimation (Universal Automation) co started making die-casting robots for GM • 1960: Machine vision studies started • 1966: First painting robot installed in Byrne, Norway. • 1966: U.S.A.’s robotic spacecraft lands on moon. • 1978: First PUMA (Programmable Universal Assembly) robot developed by Unimation. • 1979: Japan introduces the SCARA (Selective Compliance Assembly Robot Arm).

  21. Early Artificial Intelligence • "Born" in 1955 at Dartmouth • "Intelligent machine" would use internal models to search for solutions and then try them out (M. Minsky) => deliberative model! • Planning became the tradition • Explicit symbolic representations • Hierarchical system organization • Sequential execution

  22. Artificial Intelligence • Early AI had a strong impact on early robotics • Focused on knowledge, internal models, and reasoning/planning • Eventually (1980s) robotics developed more appropriate approaches => behavior-based and hybrid control • AI itself has also evolved... • Early robots used deliberative control • Intelligence through construction (5 min 20 sec) • Tokyo Lecture 2 time 27:40-33:00
