Evaluating Riemann Sum for Arctan Function Using Given Partitions and Test Points

This solution demonstrates the evaluation of the Riemann sum R(P,T,f) for the function f(x) = arctan(x) over the specified partitions P and test points T. The partitions are defined as P = {0, 1/4, 1/3, 1/2, 3/4, 4/5, 1}, and the test points are T = {1/8, 1/3, 5/12, 3/5, 4/5, 7/8}. By substituting these values into the Riemann sum formula, we calculate the area approximation under the curve of the arctangent function, resulting in an estimated value of approximately 0.437.

enye
Download Presentation

Evaluating Riemann Sum for Arctan Function Using Given Partitions and Test Points

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

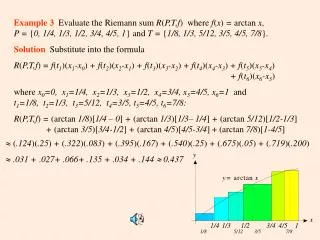

  1. Example 3 Evaluate the Riemann sum R(P,T,f)where f(x) = arctan x, P = {0, 1/4, 1/3, 1/2, 3/4, 4/5, 1}and T = {1/8, 1/3, 5/12, 3/5, 4/5, 7/8}. Solution Substitute into the formula R(P,T,f) = f(t1)(x1-x0) + f(t2)(x2-x1) + f(t3)(x3-x2) + f(t4)(x4-x3) + f(t5)(x5-x4) + f(t6)(x6-x5) where x0=0, x1=1/4, x2=1/3, x3=1/2, x4=3/4, x5=4/5, x6=1 and t1=1/8, t2=1/3, t3=5/12, t4=3/5, t5=4/5, t6=7/8: R(P,T,f) = (arctan 1/8)[1/4 – 0] + (arctan 1/3)[1/3– 1/4] + (arctan 5/12)[1/2-1/3] + (arctan 3/5)[3/4-1/2] + (arctan 4/5)[4/5-3/4] + (arctan 7/8)[1-4/5] • (.124)(.25) + (.322)(.083) + (.395)(.167) + (.540)(.25) + (.675)(.05) + (.719)(.200) • .031+ .027+ .066+ .135 + .034 +.144  0.437
