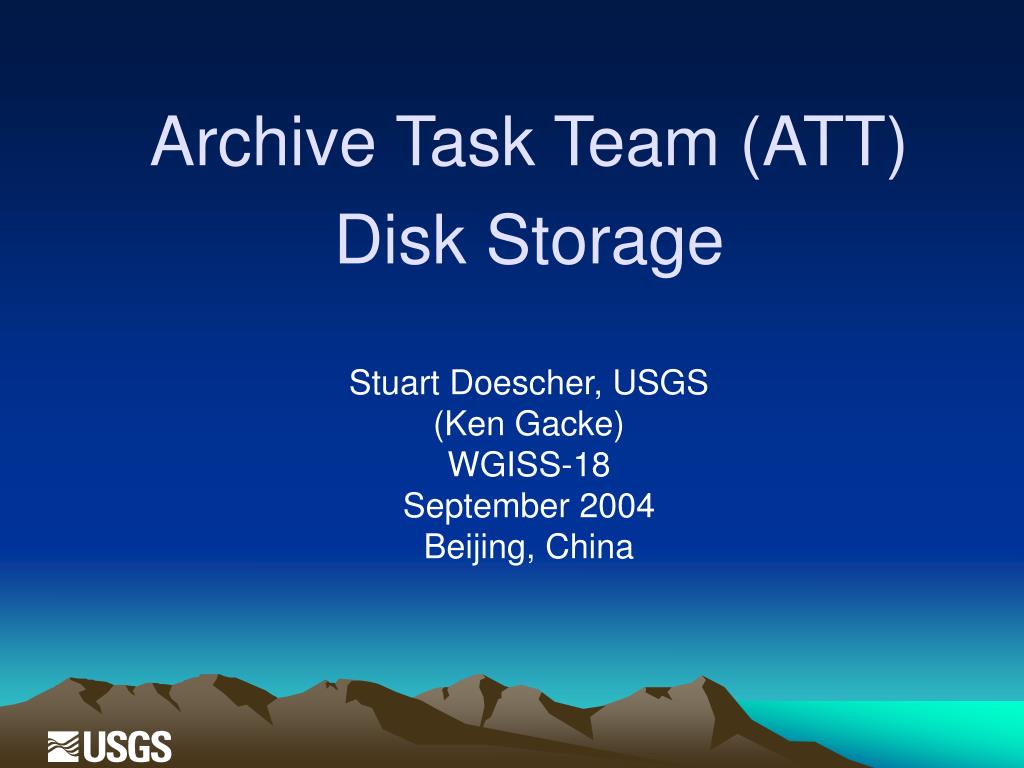

Archive Task Team (ATT)

Disk Storage

Stuart Doescher, USGS

(Ken Gacke)

WGISS-18

September 2004

Beijing, China

storage technologies
Storage Technologies

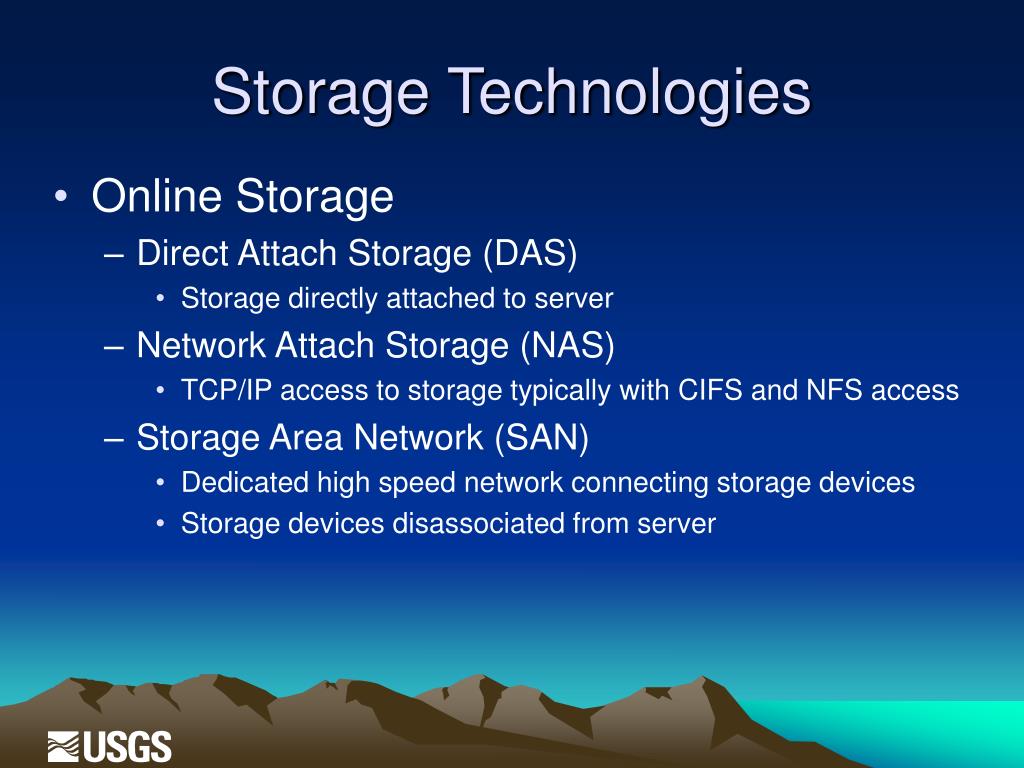

  • Online Storage
    • Direct Attach Storage (DAS)
      • Storage directly attached to server
    • Network Attach Storage (NAS)
      • TCP/IP access to storage typically with CIFS and NFS access
    • Storage Area Network (SAN)
      • Dedicated high speed network connecting storage devices
      • Storage devices disassociated from server
storage technologies1
Storage Technologies
  • Direct Attach Online Storage
    • Disk is direct attached to single server
    • System Configuration
      • SCSI or Fibre Channel
        • RAID Fibre Channel devices are typically SAN ready
      • Just a Bunch of Disk (JBOD)
      • Redundant Array Independent Disk (RAID)
    • High Performance on the local server
    • Manageability
      • Simple Configuration
      • Resource reallocation requires physical move of controllers and disk
storage technologies2

Host A

Host C

File System

File System

File System

Storage Technologies

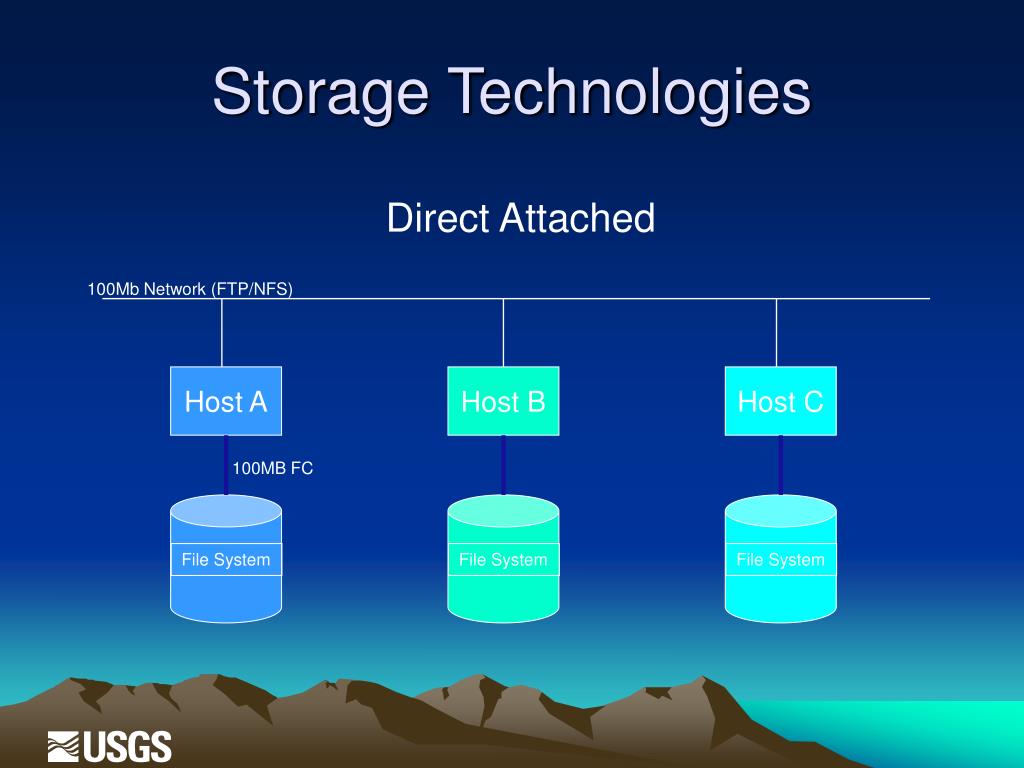

Direct Attached

100Mb Network (FTP/NFS)

Host B

100MB FC

storage technologies3
Storage Technologies

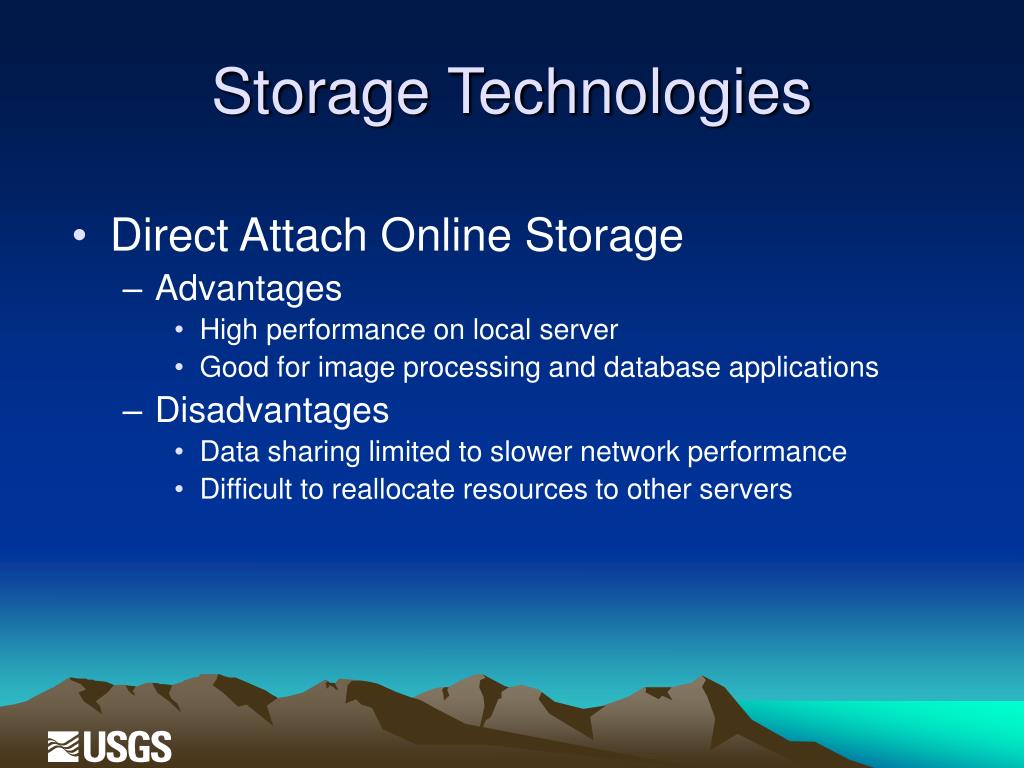

  • Direct Attach Online Storage
    • Advantages
      • High performance on local server
      • Good for image processing and database applications
    • Disadvantages
      • Data sharing limited to slower network performance
      • Difficult to reallocate resources to other servers
storage technologies4
Storage Technologies

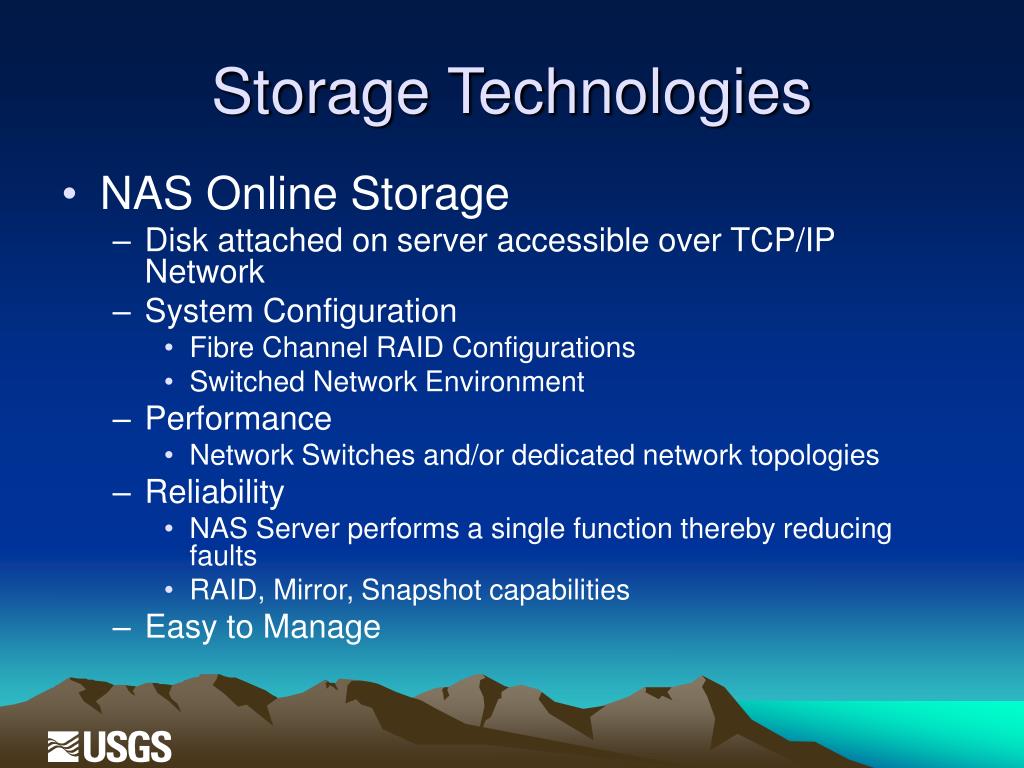

  • NAS Online Storage
    • Disk attached on server accessible over TCP/IP Network
    • System Configuration
      • Fibre Channel RAID Configurations
      • Switched Network Environment
    • Performance
      • Network Switches and/or dedicated network topologies
    • Reliability
      • NAS Server performs a single function thereby reducing faults
      • RAID, Mirror, Snapshot capabilities
    • Easy to Manage
storage technologies5

Host A

Host B

Host C

File System

File System

File System

Share Files

Storage Technologies

Network Attached

1Gb Network (NFS/CIFS)

NAS

Server

storage technologies6
Storage Technologies
  • Network Attach Online Storage
    • Advantages
      • Easy to share files among servers
        • Network Storage support NFS and CIFS
        • Servers can use existing network infrastructure
      • Good for small file sharing such as office automation
      • Availability of fault protection such as snapshot and mirroring
    • Disadvantages
      • Slower performance due to TCP/IP overhead
      • Increases network load
      • Backup/Restore to tape may be difficult and/or slow
      • Does not integrate with nearline storage
storage technologies7
Storage Technologies
  • SAN Online Storage
    • Disk attached within Fabric Network
    • System Configuration
      • Fibre Channel
      • RAID Configurations
    • Scalable High Performance
    • High Reliability with redundant paths
    • Manageability
      • Configuration becomes more complex
      • Logical reallocation of resources
storage technologies8
Storage Technologies

Redundancy SAN Configuration

Fibre

Switch

100Mb Network

Host A

Host B

Fibre

Switch

Host C

(DMF)

storage technologies9
Storage Technologies
  • SAN Online Storage Architecture
    • Disk Farm
      • Multiple servers share large disk farm
      • Server mounts unique file systems
    • Clustered File Systems
      • Multiple servers share a single file system
      • Software Required – Vendor solutions include
        • SGI CXFS
        • ADIC StorNext File System
        • Tivoli SANErgy
storage technologies10

Logical

reallocation

of disk

Storage Technologies

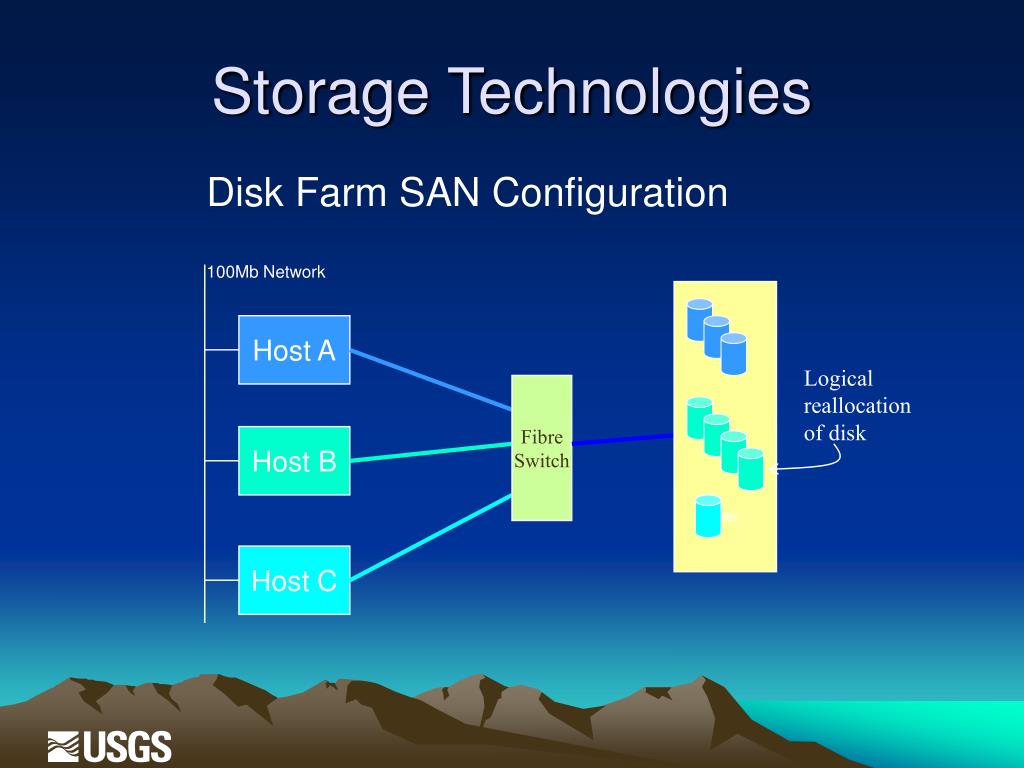

Disk Farm SAN Configuration

100Mb Network

Host A

Fibre

Switch

Host B

Host C

storage technologies11
Storage Technologies
  • SAN Risks
    • Cost is higher than DAS/NAS
    • Technology Maturity
      • Solutions are typically vendor specific
      • Application software dependencies
    • Infrastructure Support
      • Complexity of Architecture
      • Management of SAN Resources
      • Sharing of storage resources across multiple Programs/Projects
storage technologies12
Storage Technologies
  • SAN Benefits
    • Administration flexibility
      • Logically move disk space among servers
      • Large capacity drives can be sliced into smaller file systems
      • Scales better than direct attach
      • Integrate within nearline configuration
    • Data Reliability
      • Storage disassociated from the server
      • Fault Tolerant with Redundant Paths
    • Increase Resource Utilization
      • Reduce the number of FTP network transfers
      • Logically allocate space among servers
storage technologies13

Clustered

File System

Tape Library

Storage Technologies

SAN with Nearline Configuration

Fibre

Switch

1Gb Network

Host A

Host B

CXFS

Host C

DMF/CXFS

cr1 san nearline architecture

2Gb Fibre

1Gb Fibre

Disk Cache

/dmf/edc 68GB

/dmf/doqq 547GB

/dmf/guo 50GB

/dmf/pds 223GB

/dmf/pdsc 1100GB

Tape Drives

8x9840

2x9940B

CR1 SAN/Nearline Architecture

Ethernet

DMF Server

Product Distribution

future seamless silo architecture

DMF

FTP (lxs37)

PDS

Tape Library

8x9840

3x9940B

Future Seamless/Silo Architecture

Ethernet

CIFS

Mount

Data Servers

TP9300S

3TB

TP9400

Web/Extract

storage technologies14
Storage Technologies

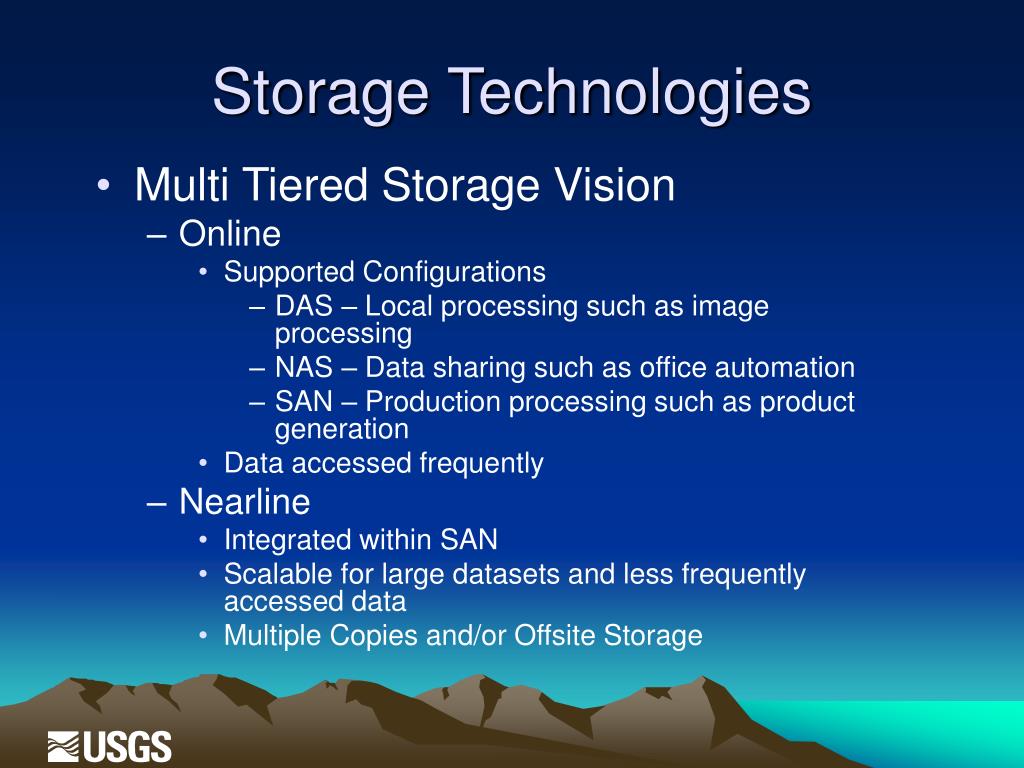

  • Multi Tiered Storage Vision
    • Online
      • Supported Configurations
        • DAS – Local processing such as image processing
        • NAS – Data sharing such as office automation
        • SAN – Production processing such as product generation
      • Data accessed frequently
    • Nearline
      • Integrated within SAN
      • Scalable for large datasets and less frequently accessed data
      • Multiple Copies and/or Offsite Storage
storage technologies15
Storage Technologies
  • SAN – Final Thoughts
    • SAN Technology Maturity
      • SAN solution should be from a single vendor
    • Program/Project SAN solution benefits
      • Decrease storage requirements
      • Increase performance
      • Increase reliability
      • Increase flexibility of resource allocations
      • Increase cost (hardware/software)
      • Increase configuration complexity
storage architecture decisions
Storage Architecture Decisions
  • Optimized by individual program and program manager, not the enterprise.
  • Requirements Factors
    • Reliability – Data Preservation
    • Performance – Data Access
    • Cost – $/GB, Engineering Support, O&M
    • Scalability – Data Growth, Multi-mission, etc.
    • Compatibility with current Architecture
  • Evaluated and recommended through engineering white papers and weighted decision matrices.
additional reference materials
Additional Reference materials
  • 0403 Storage Matrix.doc
  • 040419 SAN Forum.ppt
  • 0407 storage overview.ppt
  • EDC CR1 Storage Architecuture.ppt
