Silicone Rubber Keypad

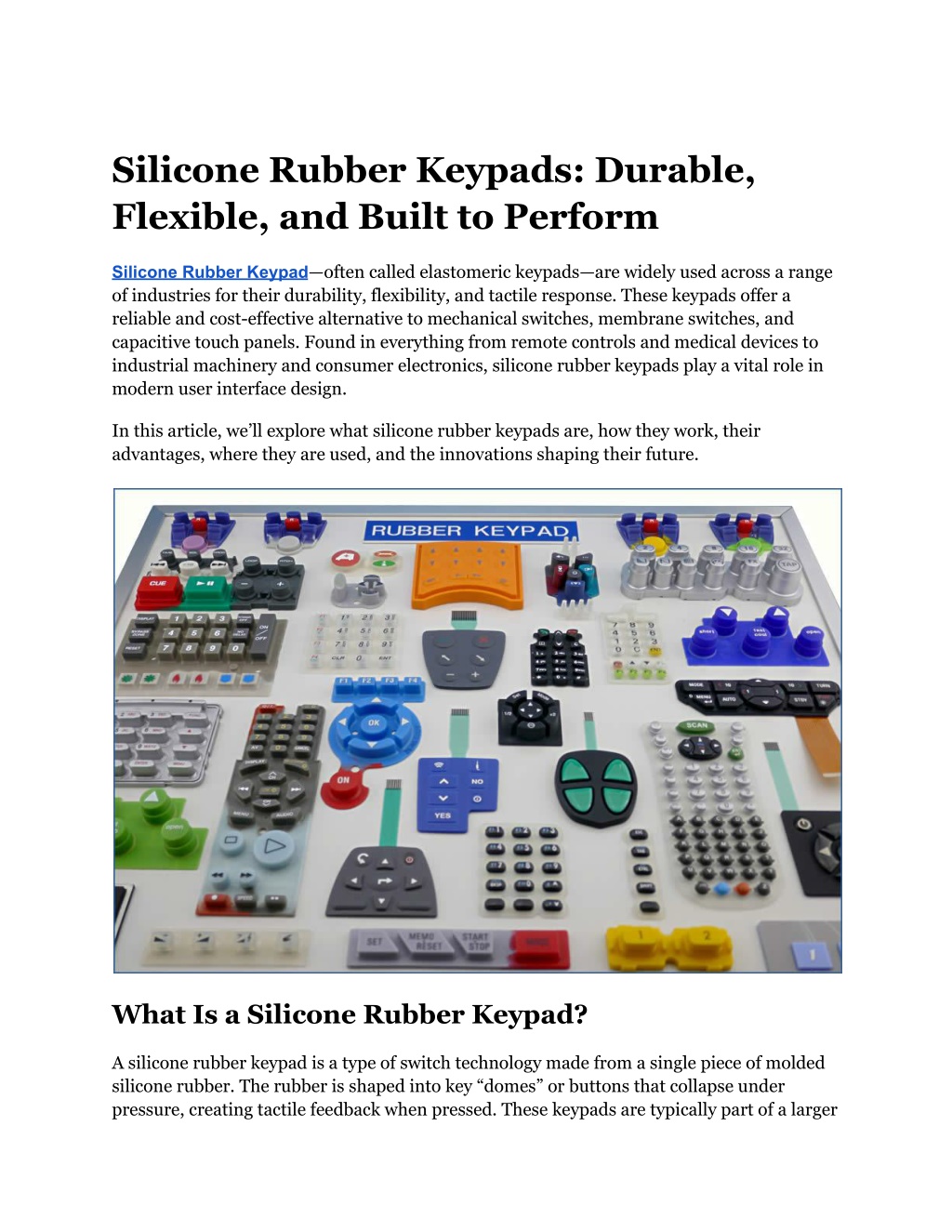

1. Silicone Rubber Keypads: Durable, Flexible, and Built to Perform Silicone Rubber Keypad—often called elastomeric keypads—are widely used across a range of industries for their durability, flexibility, and tactile response. These keypads offer a reliable and cost-effective alternative to mechanical switches, membrane switches, and capacitive touch panels. Found in everything from remote controls and medical devices to industrial machinery and consumer electronics, silicone rubber keypads play a vital role in modern user interface design. In this article, we’ll explore what silicone rubber keypads are, how they work, their advantages, where they are used, and the innovations shaping their future. What Is a Silicone Rubber Keypad? A silicone rubber keypad is a type of switch technology made from a single piece of molded silicone rubber. The rubber is shaped into key “domes” or buttons that collapse under pressure, creating tactile feedback when pressed. These keypads are typically part of a larger

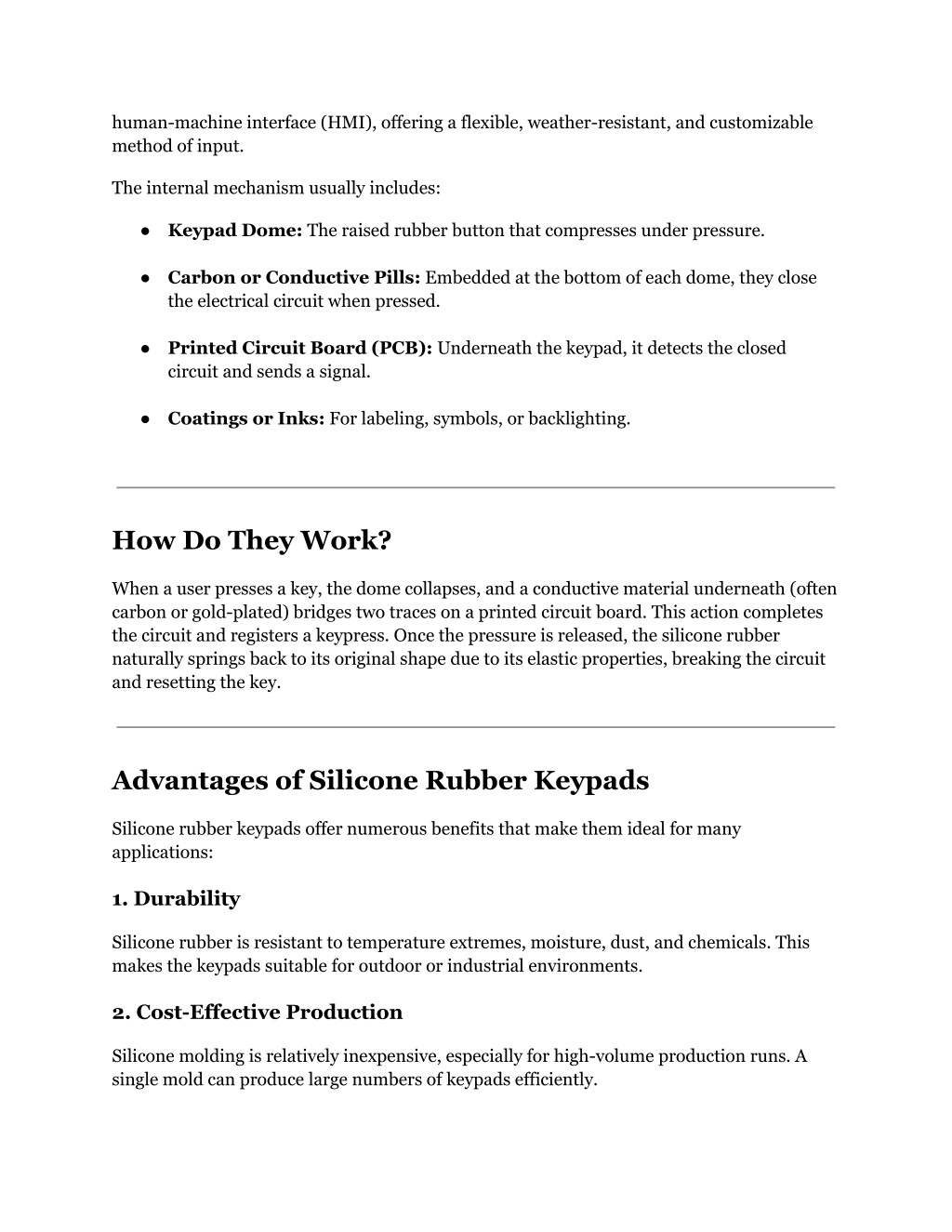

2. human-machine interface (HMI), offering a flexible, weather-resistant, and customizable method of input. The internal mechanism usually includes: ● Keypad Dome: The raised rubber button that compresses under pressure. ● Carbon or Conductive Pills: Embedded at the bottom of each dome, they close the electrical circuit when pressed. ● Printed Circuit Board (PCB): Underneath the keypad, it detects the closed circuit and sends a signal. ● Coatings or Inks: For labeling, symbols, or backlighting. How Do They Work? When a user presses a key, the dome collapses, and a conductive material underneath (often carbon or gold-plated) bridges two traces on a printed circuit board. This action completes the circuit and registers a keypress. Once the pressure is released, the silicone rubber naturally springs back to its original shape due to its elastic properties, breaking the circuit and resetting the key. Advantages of Silicone Rubber Keypads Silicone rubber keypads offer numerous benefits that make them ideal for many applications: 1. Durability Silicone rubber is resistant to temperature extremes, moisture, dust, and chemicals. This makes the keypads suitable for outdoor or industrial environments. 2. Cost-Effective Production Silicone molding is relatively inexpensive, especially for high-volume production runs. A single mold can produce large numbers of keypads efficiently.

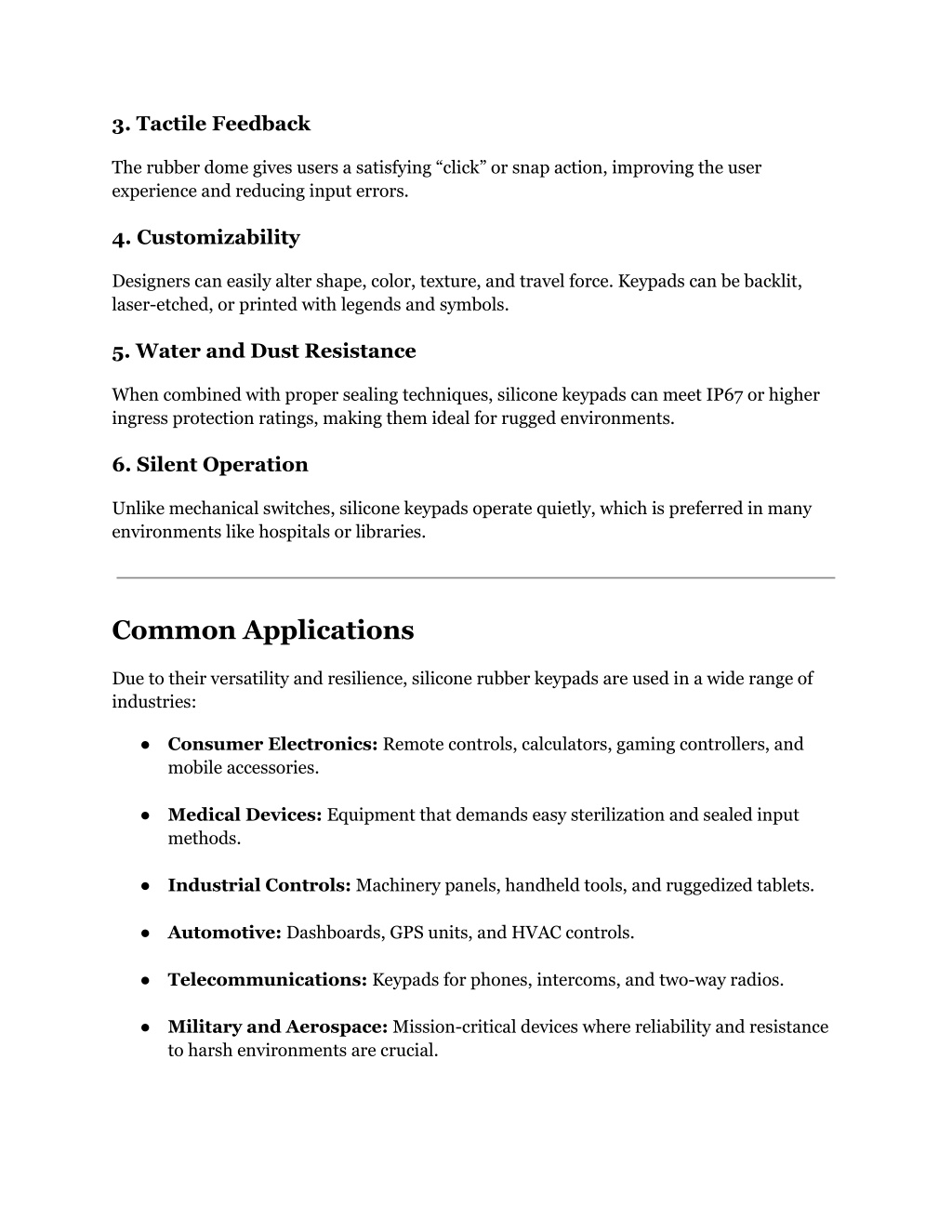

3. 3. Tactile Feedback The rubber dome gives users a satisfying “click” or snap action, improving the user experience and reducing input errors. 4. Customizability Designers can easily alter shape, color, texture, and travel force. Keypads can be backlit, laser-etched, or printed with legends and symbols. 5. Water and Dust Resistance When combined with proper sealing techniques, silicone keypads can meet IP67 or higher ingress protection ratings, making them ideal for rugged environments. 6. Silent Operation Unlike mechanical switches, silicone keypads operate quietly, which is preferred in many environments like hospitals or libraries. Common Applications Due to their versatility and resilience, silicone rubber keypads are used in a wide range of industries: ● Consumer Electronics: Remote controls, calculators, gaming controllers, and mobile accessories. ● Medical Devices: Equipment that demands easy sterilization and sealed input methods. ● Industrial Controls: Machinery panels, handheld tools, and ruggedized tablets. ● Automotive: Dashboards, GPS units, and HVAC controls. ● Telecommunications: Keypads for phones, intercoms, and two-way radios. ● Military and Aerospace: Mission-critical devices where reliability and resistance to harsh environments are crucial.

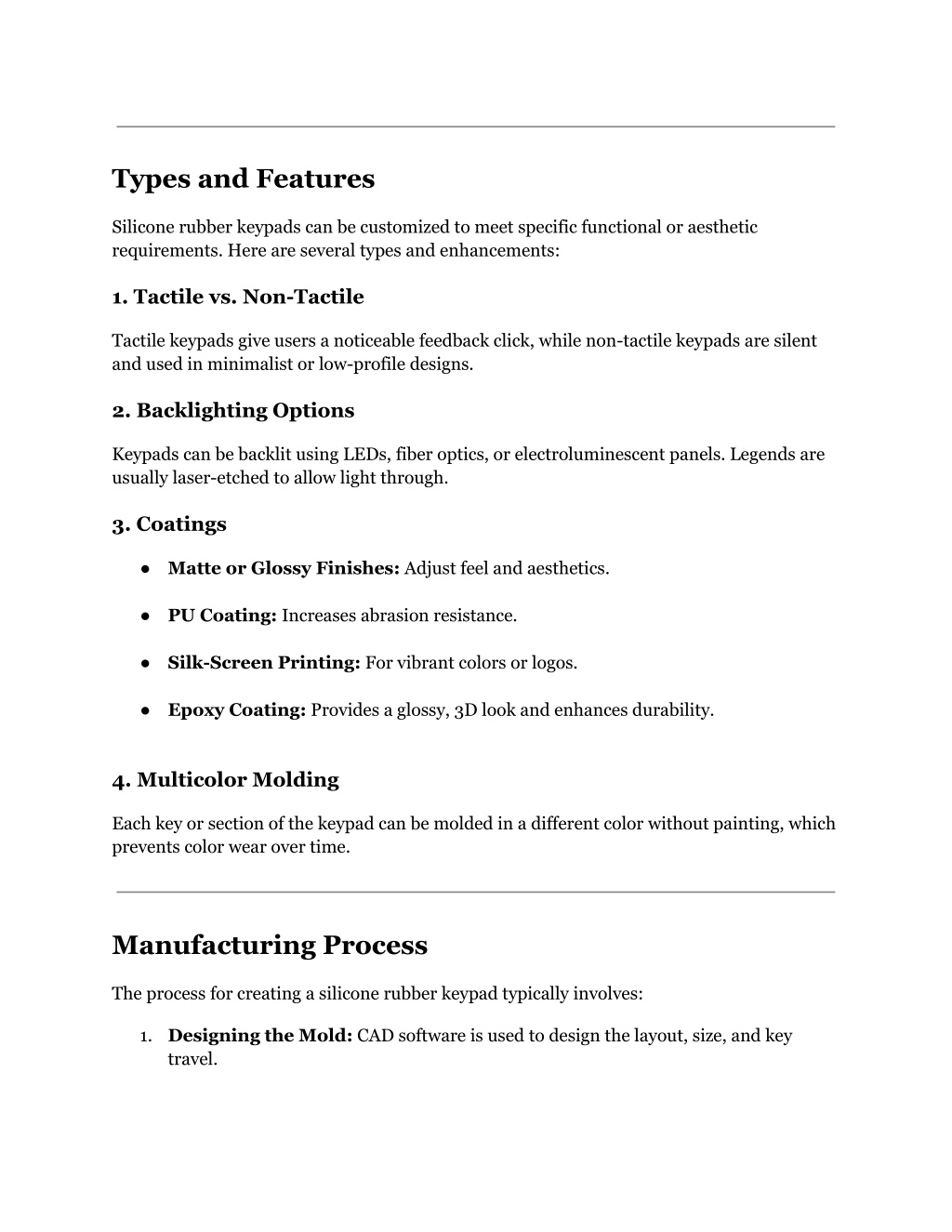

4. Types and Features Silicone rubber keypads can be customized to meet specific functional or aesthetic requirements. Here are several types and enhancements: 1. Tactile vs. Non-Tactile Tactile keypads give users a noticeable feedback click, while non-tactile keypads are silent and used in minimalist or low-profile designs. 2. Backlighting Options Keypads can be backlit using LEDs, fiber optics, or electroluminescent panels. Legends are usually laser-etched to allow light through. 3. Coatings ● Matte or Glossy Finishes: Adjust feel and aesthetics. ● PU Coating: Increases abrasion resistance. ● Silk-Screen Printing: For vibrant colors or logos. ● Epoxy Coating: Provides a glossy, 3D look and enhances durability. 4. Multicolor Molding Each key or section of the keypad can be molded in a different color without painting, which prevents color wear over time. Manufacturing Process The process for creating a silicone rubber keypad typically involves: 1.Designing the Mold: CAD software is used to design the layout, size, and key travel.

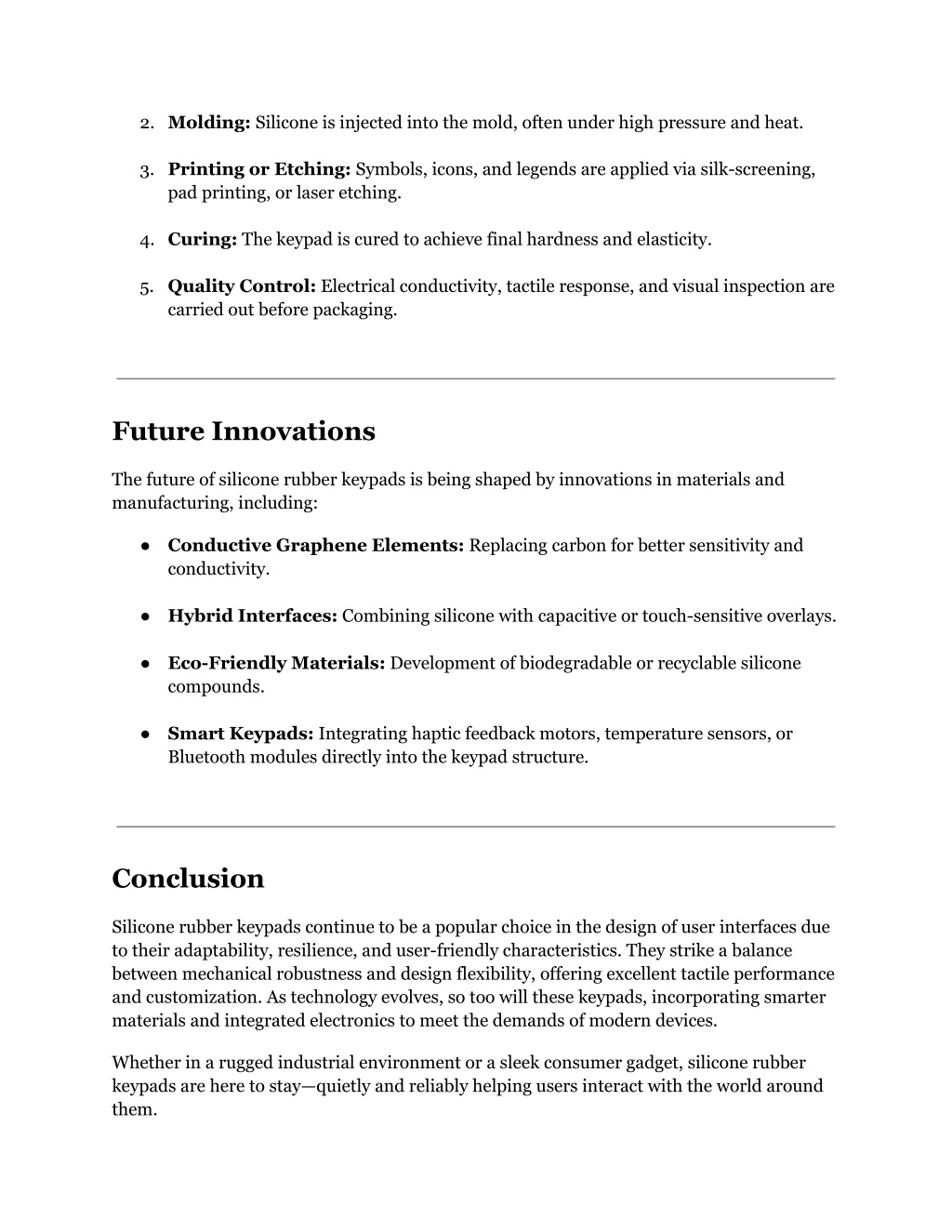

5. 2.Molding: Silicone is injected into the mold, often under high pressure and heat. 3.Printing or Etching: Symbols, icons, and legends are applied via silk-screening, pad printing, or laser etching. 4.Curing: The keypad is cured to achieve final hardness and elasticity. 5.Quality Control: Electrical conductivity, tactile response, and visual inspection are carried out before packaging. Future Innovations The future of silicone rubber keypads is being shaped by innovations in materials and manufacturing, including: ● Conductive Graphene Elements: Replacing carbon for better sensitivity and conductivity. ● Hybrid Interfaces: Combining silicone with capacitive or touch-sensitive overlays. ● Eco-Friendly Materials: Development of biodegradable or recyclable silicone compounds. ● Smart Keypads: Integrating haptic feedback motors, temperature sensors, or Bluetooth modules directly into the keypad structure. Conclusion Silicone rubber keypads continue to be a popular choice in the design of user interfaces due to their adaptability, resilience, and user-friendly characteristics. They strike a balance between mechanical robustness and design flexibility, offering excellent tactile performance and customization. As technology evolves, so too will these keypads, incorporating smarter materials and integrated electronics to meet the demands of modern devices. Whether in a rugged industrial environment or a sleek consumer gadget, silicone rubber keypads are here to stay—quietly and reliably helping users interact with the world around them.
