Warbirds. The Birddog, made by Cessna, has an outboard taper to the wing and the standard C170B vertical tail. The Stinson L-5 has a constant cord wing with rounded tips and a much larger vertical tail. . L-19 Birddog.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Warbirds' - emily


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide3

The Birddog, made by Cessna, has an outboard taper to the wing and the standard C170B vertical tail. The Stinson L-5 has a constant cord wing with rounded tips and a much larger vertical tail.

L-19 Birddog

The L-5 also has two smaller struts instead of the L-19’s larger single strut. Yes, if you look close, you can see these differences from the tower.

L-5 Sentinel

slide4

02 Oscar Deuce

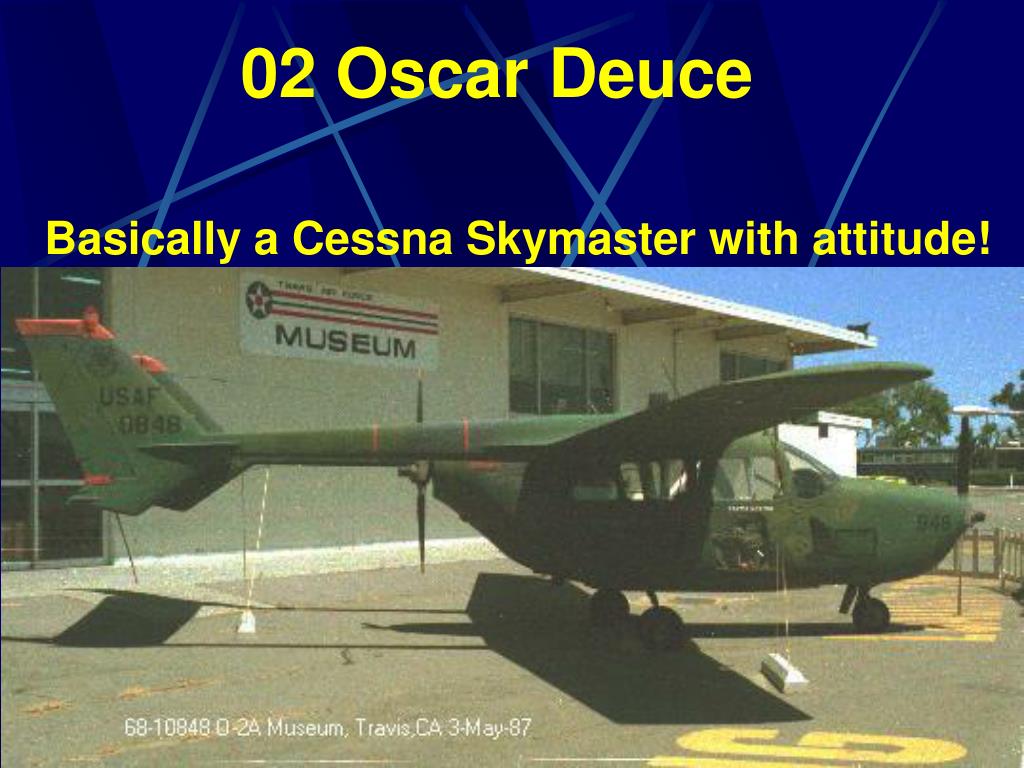

Basically a Cessna Skymaster with attitude!

slide6

T-6 Texan

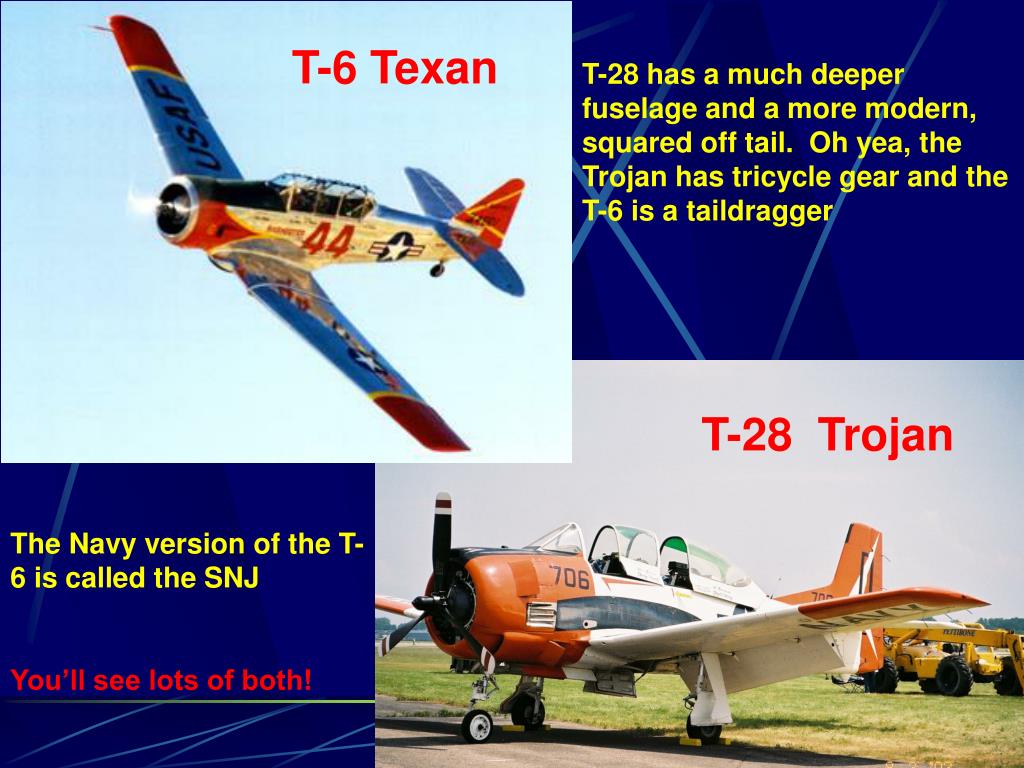

T-28 has a much deeper fuselage and a more modern, squared off tail. Oh yea, the Trojan has tricycle gear and the T-6 is a taildragger

T-28 Trojan

The Navy version of the T-6 is called the SNJ

You’ll see lots of both!

slide7

F8F Bearcat

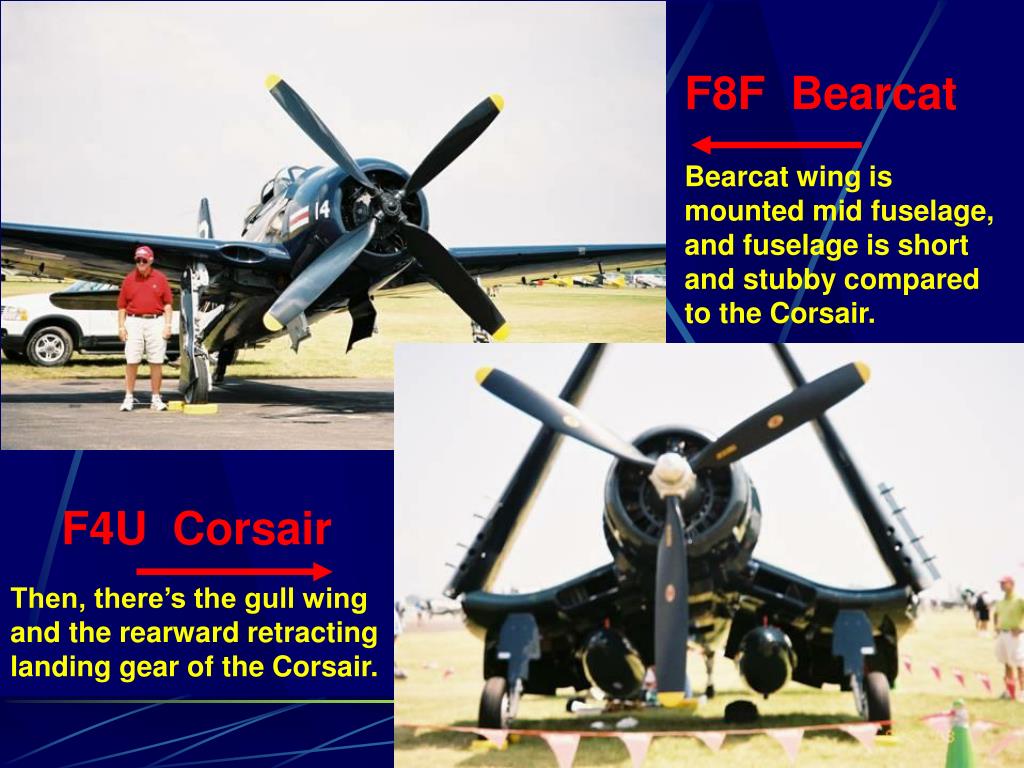

Bearcat wing is mounted mid fuselage, and fuselage is short and stubby compared to the Corsair.

F4U Corsair

Then, there’s the gull wing and the rearward retracting landing gear of the Corsair.

slide9

P-40 Warhawk

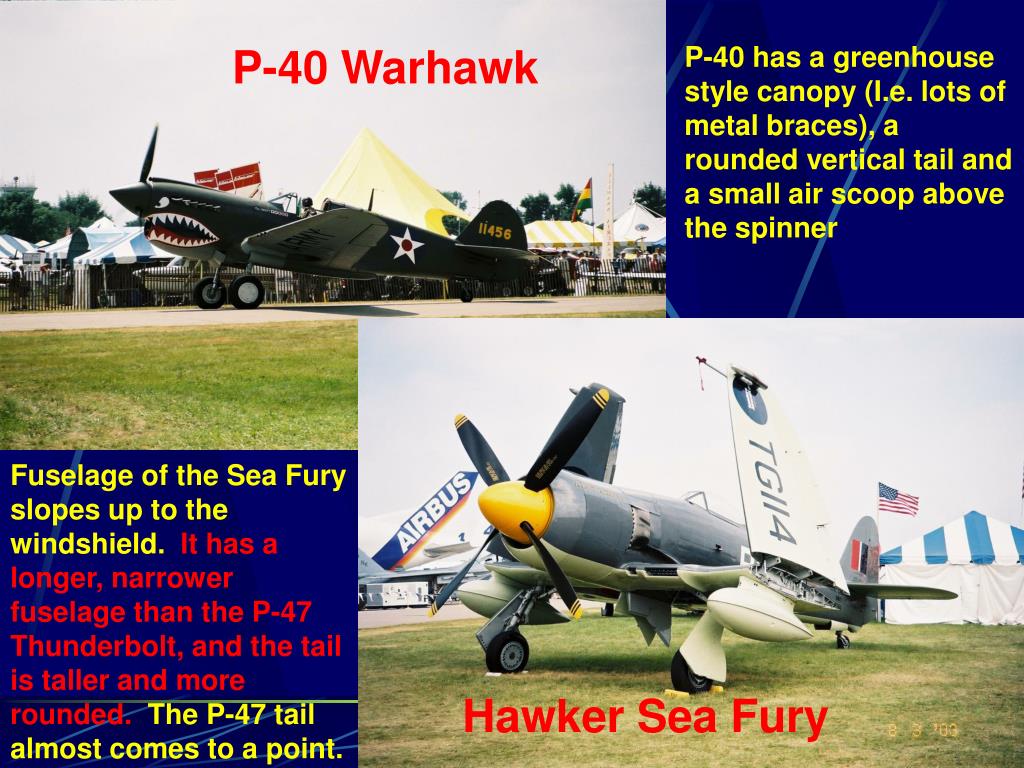

P-40 has a greenhouse style canopy (I.e. lots of metal braces), a rounded vertical tail and a small air scoop above the spinner

Fuselage of the Sea Fury slopes up to the windshield. It has a longer, narrower fuselage than the P-47 Thunderbolt, and the tail is taller and more rounded. The P-47 tail almost comes to a point.

Hawker Sea Fury

slide10

Grumman TBM Avenger

Largest of the single engine, WWII Grumman’s.

OV-1 Mohawk

slide12

Not to be confused with the B-26 Marauder which had a much fatter aft fuselage. From the side, the A-26 has a very narrow aft fuselage, much like a Meyers 145

A-26 Invader

B-25 is distinctinguished by it’s twin vertical tails. Also, from the front, the wings, outboard the engines, are bent down.

B-25 Mitchell

slide15

Venom is the big engined version of these early DeHavilind jets. The other one is the Vampire. Both jets look the same with the twin tail booms and the small vertical tails.

DeHavilind Venom

Fouga is the only warbird jet we will work with a V-tail.

Probably won’t see more than one or two of these

Fouga Magister

slide16

T-33 is the most common two seat version. There is also a single seat version called the P-80 Shooting Star.

T-33

This little twin jet trainer was made by Cessna. You may also see the A-37 variant which looks the same, but with bigger T-38 motors and hardpoints on the wings for bombs or drop tanks

T-37

slide18

Foland Gnat

Soko Galeb

slide20

Usually get 1 or 2 Delfin’s and half a dozen L-39’s.

Both do jet speeds, but the Albatross can be much faster on approach due to the small, thin wing

L-29 Delfin

Both have straight wings as opposed to the F-86’s swept wings.

L-39 Albatross

slide21

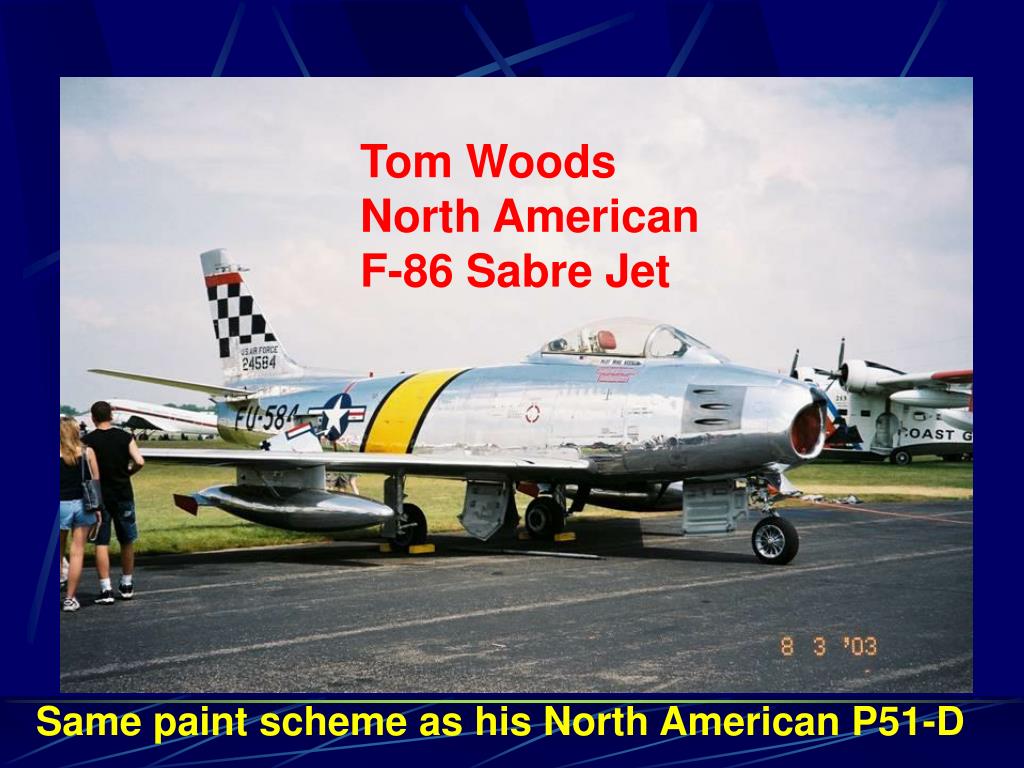

Tom Woods North American F-86 Sabre Jet

Same paint scheme as his North American P51-D
