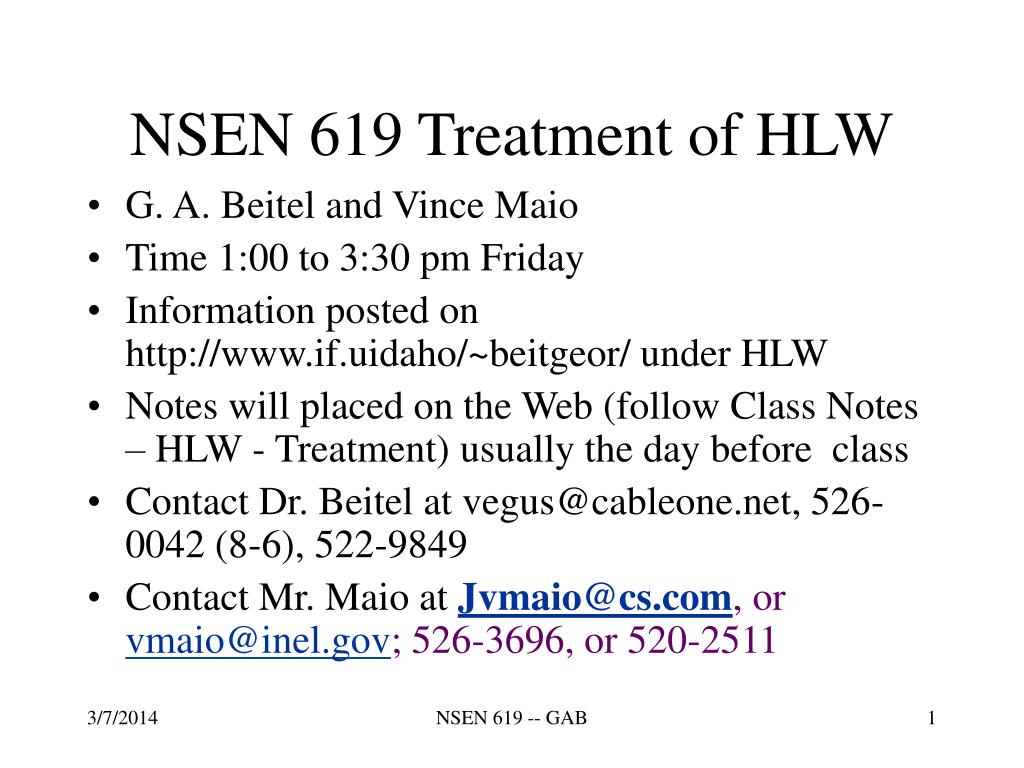

NSEN 619 Treatment of HLW

G. A. Beitel and Vince Maio

Time 1:00 to 3:30 pm Friday

Information posted on http://www.if.uidaho/~beitgeor/ under HLW

Notes will placed on the Web (follow Class Notes – HLW - Treatment) usually the day before class

Contact Dr. Beitel at vegus@cableone.net, 526-0042 (8-6), 522-9849

Contact Mr. Maio at Jvmaio@cs.com, or vmaio@inel.gov; 526-3696, or 520-2511

NSEN 619 -- GAB


Resource materials l.jpg
Resource Materials

  • Text: Engineering for Nuclear Fuel Reprocessing, by Justin T. Long, American Nuclear Society 1978,  ISBN 0-89448-012X;

  • Have used:

  • Scientific Basis for Nuclear Waste Management, Materials Research Society (Volume 333) (Conference Proceedings on High Level Waste: not required, too hard to obtain

  • Management Alternative HLW Treatments at INEEL, National Academy Press, 1999. Available to read free at NAP

  • IDB free from Net

  • Chart of the Nuclides – Required, Recommended text.

  • 10 CFR 60, 10 CFR 63- Free from Net

  • Cs-Sr Separation at Hanford – Will be provided

  • Handouts and articles

  • Manson, Pigford, and Levi recommended Alternative to Long – excellent resource ($100), but out of print.

NSEN 619 -- GAB


Course details l.jpg
Course details

  • Topics: On Home Page http://www.if.uidaho.edu/~beitgeor/

  • Then select Programs – HLW

  • Then Grading: On Home page

  • Then Lectures

NSEN 619 -- GAB


Internet document sites l.jpg
Internet document sites

Lots of documents, free for downloading

We will share useful sites

http://www2.em.doe.gov/idb97/

Also see http://enterprise.eh.doe.gov/

Use Internet Explorer – Netscape won’t load menu

http://www2.em.doe.gov/waps/index.html

See Links on my Home Page Lots of DOE material and Codes and Standards are available from Tech library from an INEEL computer that is not available from home.

Unfortunately, 9/11 caused many sites to take some of the better material off. Much is coming back.

NSEN 619 -- GAB


Why hlw not tru l.jpg
Why HLW, not TRU?

We will learn the difference.

Originally the course was Treatment of Radioactive Waste.

Split was made to cover Incineration and Cement in LLW and Separations and Glass in HLW.

The Nuclear industry is in doldrums because of inability to treat and dispose of HLW; TRU is a DOE problem. The course title dominates. INEEL is attempting to reclassify last of liquid HLW as TRU. These are political issues, not academic or technical.

This is very terse. You will be expected to have a good command of this distinction.

NSEN 619 -- GAB


Review of nuclear physics similar to llw waste class l.jpg

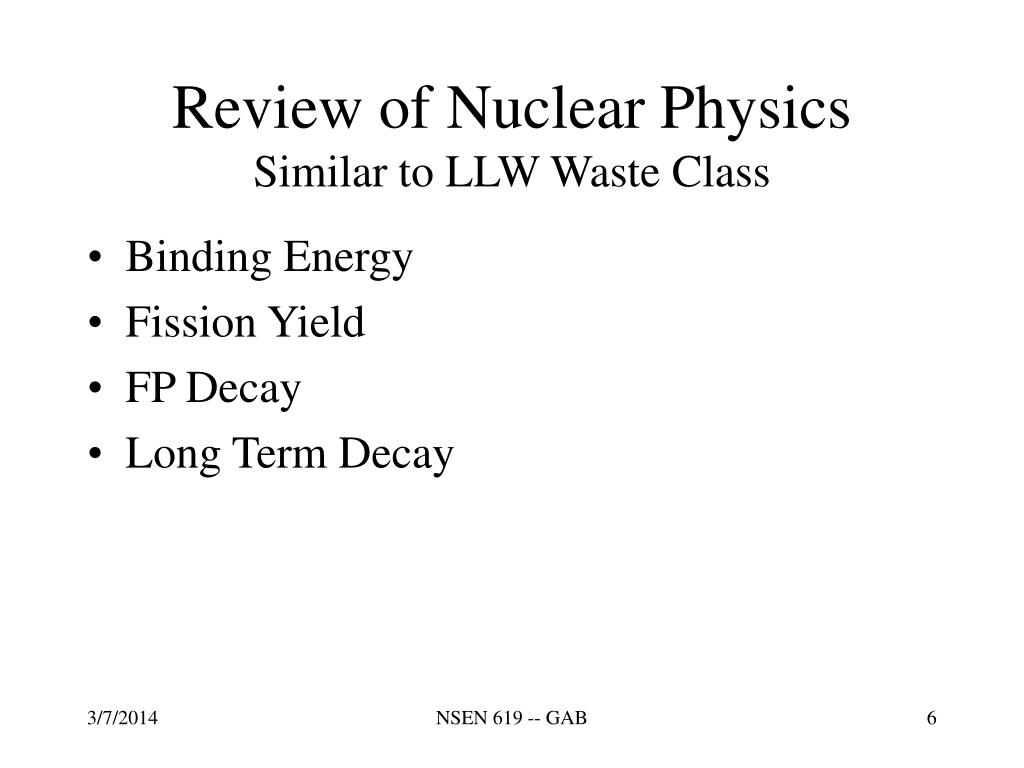

Review of Nuclear PhysicsSimilar to LLW Waste Class

Binding Energy

Fission Yield

FP Decay

Long Term Decay

NSEN 619 -- GAB




Slide9 l.jpg

Typical LWR Commercial Fuel Bundle. Probably a 14x14 in array weighing around 1000 lbs

NSEN 619 -- GAB


Slide10 l.jpg

NSEN 619 -- GAB array weighing around 1000 lbs


Slide11 l.jpg

NSEN 619 -- GAB array weighing around 1000 lbs


Nuclear waste regulations l.jpg
Nuclear Waste - Regulations array weighing around 1000 lbs

10 CFR 20; 10 CFR 60; 10 CFR 61; 10 CFR 63, and 40 CFR 191

These regulations tell what and how well to dispose of.

These regulations do not tell how to treat, but define the requirements for disposal.

We treat to meet the requirements for disposal.

NSEN 619 -- GAB


Slide13 l.jpg

Waste Management Regulations array weighing around 1000 lbs

  • 10 CFR 20.2001 through 2005 in essence defines radioactive

  • waste by what you can do with Radioactive Material:

  • You can:

    • Keep

    • Transfer

    • Decay

    • Vent - if less than Table 2 of Appendix B

    • Flush - if less than Table 3 of Appendix B

    • Incinerate

    • Environmentally Safe 40 CRF 190

    • Dispose of per 10 CFR 60, or

    • Dispose of per 10 CFR 61

  • All are required for HLW treatment

  • In DOE, we must also include WIPP WAC

  • NSEN 619 -- GAB


    Slide14 l.jpg

    Alternatives Requiring Treatment array weighing around 1000 lbs

    Vent

    Incinerate

    • Operation

    • Use

    • Process

    • Store

    Radioactive Material

    Transfer

    Treat

    Dispose of

    Flush

    NSEN 619 -- GAB


    Slide15 l.jpg

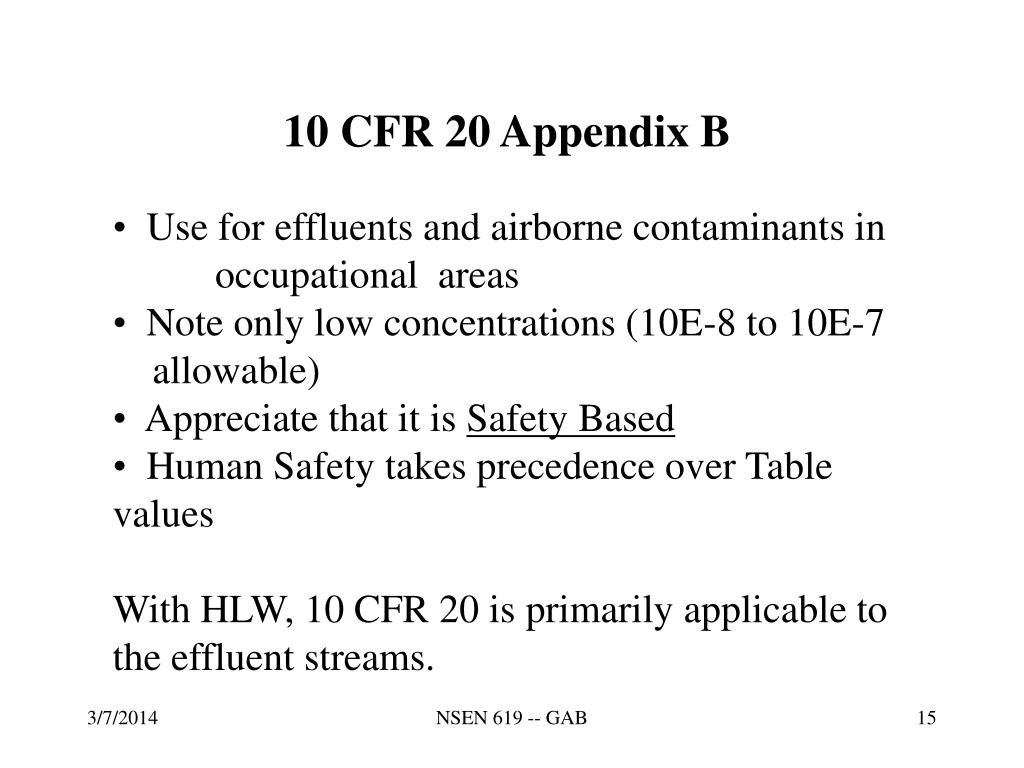

    10 CFR 20 Appendix B array weighing around 1000 lbs

    • Use for effluents and airborne contaminants in occupational areas

    • Note only low concentrations (10E-8 to 10E-7

    • allowable)

    • Appreciate that it is Safety Based

    • Human Safety takes precedence over Table values

    • With HLW, 10 CFR 20 is primarily applicable to

    • the effluent streams.

    NSEN 619 -- GAB


    Waste disposal regulations l.jpg
    Waste Disposal Regulations array weighing around 1000 lbs

    10 CFR 60

    High Level Waste the scope of this class

    To the extent that TRU requires the same treatment, or is destined for a similar repository, or is a fraction of HLW, it will also be included.

    10 CFR 63

    Governs the disposal of HLW at Yucca Mtn.

     10 CFR 61

    Low Level Radioactive Waste NS&E 618

    Also not included in class are UMTRAP, FUSRAP, and NARM

    NSEN 619 -- GAB


    Slide17 l.jpg

    10 CFR 61 General Requirements array weighing around 1000 lbs

    • License based on human health and safety (10 CFR 61.23)

    • Performance Objectives (10 CFR 61.41-44)

      • 25 mRem whole body dose or individual organ

      • 75 mRem thyroid

      • Protect inadvertent intruder (waste form)

      • Long term site stability after closure

      • (waste form, no voids)

    • Control Based on Waste Classes A, B, C

    • If Greater Than Class C one should technically

    • go to 10 CFR 60, However, this is actually a

    • politically sensitive issue)

    NSEN 619 -- GAB


    Slide18 l.jpg

    10CFR 61.56 - General Waste Characteristics array weighing around 1000 lbs

    • No cardboard containers

    • No free liquid (< 1%)

    • No explosives

    • No toxic or pressurized (1.5 atm) gas

    • No pyrophorics

    • Minimum hazardous, pathogenic and infectious

    NSEN 619 -- GAB


    Slide19 l.jpg

    10 CFR 61.56 - Specific Characteristics array weighing around 1000 lbs

    (allocable to waste or container)

    • Stability against slumping, collapse, or failure

    • of the unit

    • Stability against moisture, microbes, radiation

    • <1% liquid in container; or <0.5% in stable waste

    • Minimum void volume (not specified in regulation, but it is generally accepted to be <15 vol% void

    NSEN 619 -- GAB


    High level waste l.jpg
    High Level Waste array weighing around 1000 lbs

    10 CFR 60

    Includes Spent Fuel, first cycle raffinate (liquid from the first cycle solvent extraction,) and solids derived from first cycle raffinate

    We include Transuranic Wastes in this course

    First cycle raffinate derived from fuel reprocessing

    We will address 10 CFR 63 later

    NSEN 619 -- GAB


    Fuel reprocessing l.jpg
    Fuel Reprocessing array weighing around 1000 lbs

    Dissolve clad fuel, (dissolve fuel and cladding or declad and dissolve fuel only)

    Extract U, Pu, or both, or FP only

    Fuel is measured in terms of MTHM or MTIHM

    Specifically, MWd/MTIHM (burn-up)

    We will learn to have a sense of concentrations of FP and TRU elements

    NSEN 619 -- GAB

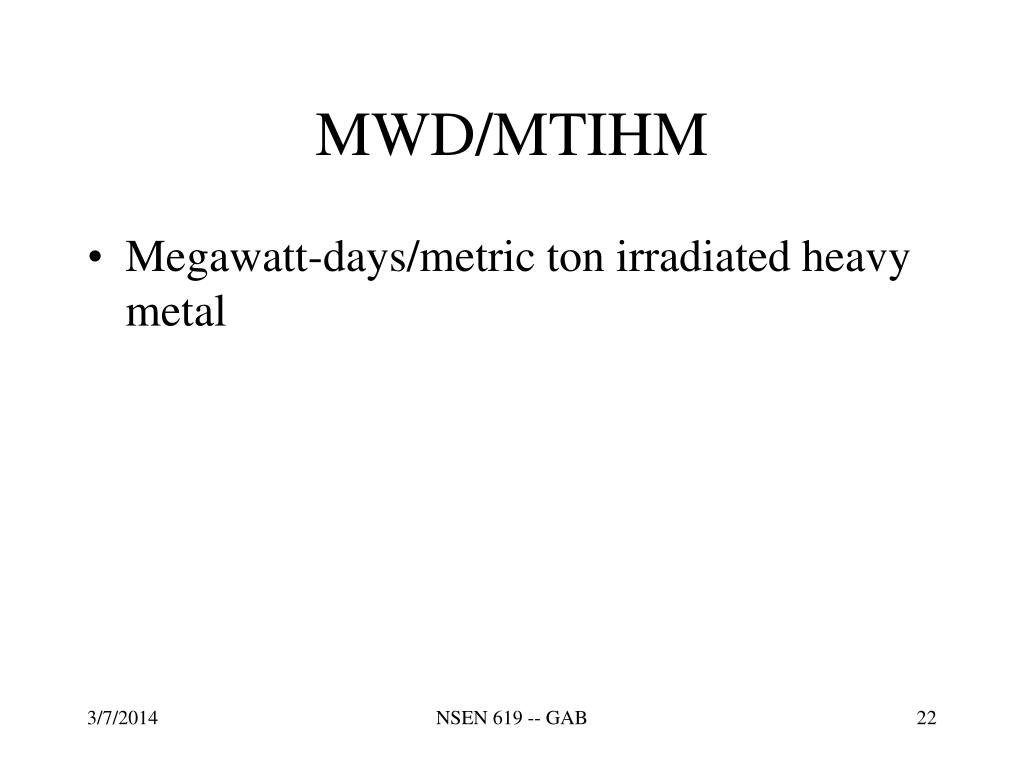

    Mwd mtihm l.jpg
    MWD/MTIHM array weighing around 1000 lbs

    Megawatt-days/metric ton irradiated heavy metal

    NSEN 619 -- GAB


    Mwd mhihm l.jpg
    MWD/MHIHM array weighing around 1000 lbs

    • Key measure in Spent fuel and HLW

    • MWD is energy

    • Energy* is E = mc2

    • m can be computed as tons/ton burnup

    • Since m appears as fission products, MWD/MTHM is a direct measure of:

      • activity

      • reactivity

    *True, but the mass, m, is the difference in the mass of the fissionable material (U-235), and the masses of the fission products and neutrons and protons ejected. That mass difference is easier thought of in terms of binding energy.

    NSEN 619 -- GAB


    Primary program l.jpg
    Primary Program array weighing around 1000 lbs

    Yucca Mountain – HLW Repository Wannabe

    Initial Search goes back to 1957

    First approach was Salt – Lyons Kansas then side-tracked to WIPP

    Nevada always a prime candidate

    Waste Policy Act of 1981 established a 3-way search

    Only Nevada Survives

    NSEN 619 -- GAB


    Yucca mountain status l.jpg
    Yucca Mountain Status array weighing around 1000 lbs

    • See http://www.ymp.gov/

    NSEN 619 -- GAB


    Pu concentrations of fuel l.jpg
    Pu Concentrations of Fuel array weighing around 1000 lbs

    Depends on reactor

    Commercial Reactors use 3.5 to 5% U-235 enriched fuel (50 kg/ton)

    If you remove the fuel at 1%, then Pu may be around 2-3% (20 – 30 kg/ton)

    If you extract 99.5% of the Pu, you have 0.5% (of the 2-3% produced) left in the waste (10 – 15 g/ton)

    But ton of heavy metal; to compare against the “waste” the solids in the HLW from a ton of fuel consist principally of the fission products (20 – 40 kg) plus some chemicals, let’s suppose another 20 kg.

    So the concentration of Pu is now 10 g in the 60 kg of HLW solids or about 200 ppm

    0.02% = 200 ppm -- TRU lower limit 2 ppm

    Typically >100 times the TRU limit.

    NSEN 619 -- GAB


    The problem l.jpg
    The Problem array weighing around 1000 lbs

    Transuranics (Np, Pu, Am, Cm) and Actinides (Ac, Th, Pa, U plus TRU)

    Long-lived beta/gamma emitters

    Ultimately dominated by Actinides: Am(241 and 243), Pu(239 and 240), and Np-237

    and, Fission and Activation products I-129, Tc-99, C-14, Nb-94

    NSEN 619 -- GAB


    The problem cont l.jpg

    First 1000 years, HLW has both high Radiation and Thermal array weighing around 1000 lbs

    Radiation is high enough to cause material damage; dislocations, embrittlement, stored energy, degradation of polymers, radiolysis

    Thermal implies there is enough heat to raise temperatures to 700 - 800 C

    After 1000 yr, HLW equivalent to TRU

    The Problem, cont.

    NSEN 619 -- GAB

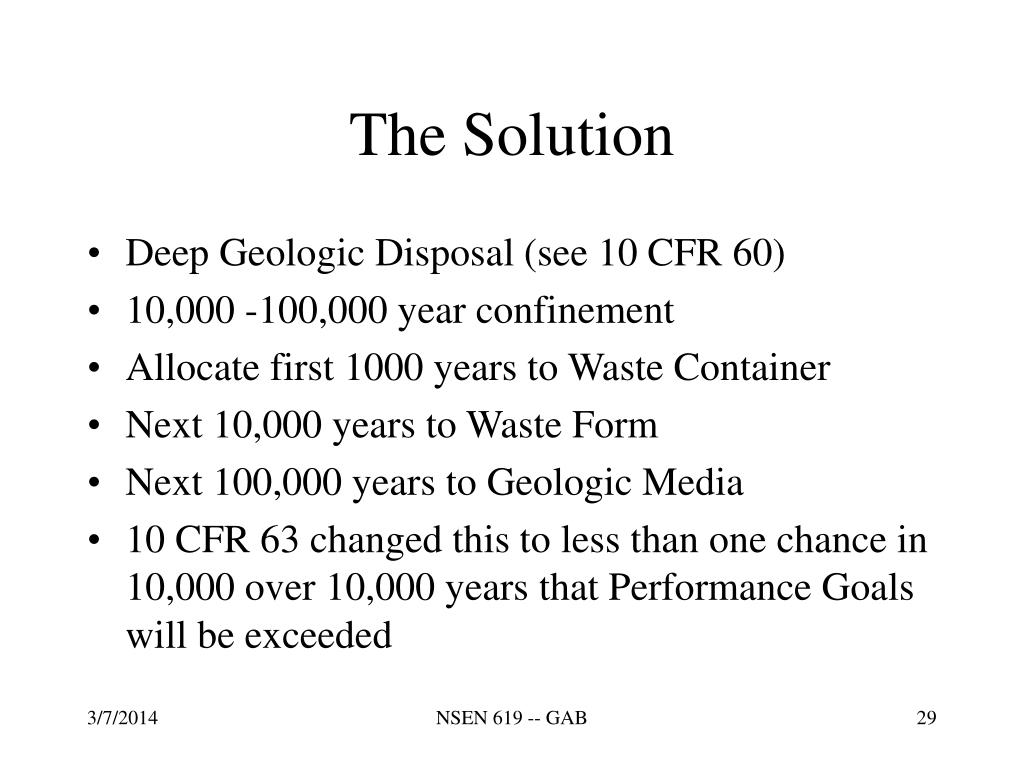

    The solution l.jpg
    The Solution array weighing around 1000 lbs

    Deep Geologic Disposal (see 10 CFR 60)

    10,000 -100,000 year confinement

    Allocate first 1000 years to Waste Container

    Next 10,000 years to Waste Form

    Next 100,000 years to Geologic Media

    10 CFR 63 changed this to less than one chance in 10,000 over 10,000 years that Performance Goals will be exceeded

    NSEN 619 -- GAB


    Slide30 l.jpg

    Geologically Stable Materials array weighing around 1000 lbs

    * Formations seriously considered for repositories

    NSEN 619 -- GAB


    Slide31 l.jpg

    Stable Man-Made Materials array weighing around 1000 lbs

    • Glass

    • Bricks

    • Hydraulic Cements

    NSEN 619 -- GAB


    10 cfr 63 l.jpg
    10 CFR 63 array weighing around 1000 lbs

    See file Named Key Items in 10 CFR 63 (also read 10 CFR 63)

    10 CFR 63 is Yucca Mtn specific

    It allocates everything to the license which allocates containment assurance to design and the performance assessment

    Does not place requirements on the waste form

    Waste form requirements contained in the Waste Acceptance Criteria Document

    NSEN 619 -- GAB


    Homework l.jpg
    Homework array weighing around 1000 lbs

    See Homework file

    NSEN 619 -- GAB
