Presented By Eric Linsley

Director of Public Safety Communications

Mobile County Commission

APCO Local Frequency Advisor

Region 1 700 MHz Chairman

Region 1 800 MHz NPSPAC Vice-Chair

Credit given to John Johnson

TN Emergency Management Agency

rule number 1
Rule Number 1

If you own or operate a radio communications system then you must follow the Federal Communications Commission Rules and Regulations.

Failure to do so could result in fines, forfeitures, or imprisonment.

Public Safety and Public Service operate under FCC Rules and Regulations, Part 90 primarily.

so what does that mean to me
So what does that mean to me?
  • You must have a valid FCC license.
  • Exception - Police surveillance, 2 watts or less, approved by frequency coordinator
  • Exception - You use a radio system owned and operated by another public safety agency or commercial vendor.
what does my agency need to do
What does my agency need to do?
  • You should have obtained an FCC Registration Number (FRN) using your Federal Taxpayer ID #.
  • Registered all your FCC Callsign(s) with the FCC using your FCC Registration Number (FRN)
rule number 2
Rule Number 2

Never, ever let your license expire

Renewal of your FCC license, without technical changes, costs nothing and can easily accomplished over the internet. Minor changes may be made over the internet such as phone #, contact person, etc.

Once your license expires, your frequency is up for grabs.

Once your license expires, then you have to pay the frequency coordination fees.

slide7
Licenses are now good for ten years.
  • Impact - More chance for licenses to get lost when renewal time comes up.
  • I recommend that you not use a persons’ name but the department section.
rule number 3
Rule Number 3
  • If you move your radio site, dispatch office, increase the antenna height, increase power, etc., you need to file a license modification. Keep your license current.
other rules to know
Other rules to know
  • You need to use your FCC Callsign or have it automatically transmitted. (90.425)
  • The FCC requires periodic radio equipment checks (90.215)
  • Post your FCC license at the transmitter site (90.437)
tower owners
Tower Owners
  • Tower Registration
  • RF Exposure Regulations
  • Lighting and Marking
slide12
Simplex SystemClass Station: FBBase and Mobile take turn to communicate.Base & Mobile utilize one frequency such as 155.1300 MHz.
simplex system
SIMPLEX SYSTEM

Tx=Rx=155.1300 MHz for Mobile & Base

repeater system
REPEATER SYSTEM
  • Class Station: FB2
  • Base & Mobile Communicate at the same time.
  • The base transmits on 153.1300 & receives on 158.1300 MHz.
  • The mobile transmits on 158.1300 & receives on 153.1300 MHz.
repeater system15
Repeater System

Tx = 153.1300 MHz

Rx = 158.1300 MHz

repeater system16
Repeater System

153.1300

158.1300

158.1300

repeater system17
Repeater System
  • Base can reach the mobile due to tower height, output power, and high ERP.
  • Mobile is too far away from the base to communicate back (referred to as Talk-Back or Talk-IN).
  • Solution: USE OF A SATELLITE RECEIVER
satellite receiver configuration
Satellite Receiver Configuration

158.1300

153.1300

Satellite Receiver

Landline or Microwave

mutual aid and interoperability frequencies
Mutual Aid and Interoperability Frequencies

Wikipedia, the free on-line encyclopedia defines “Mutual Aid” as

In emergency services, mutual aid is a formal agreement among emergency responders to lend assistance across jurisdictional boundaries when required; either by an emergency that exceeds local resources or a disaster. Alabama has agreements to share certain frequencies.

“Interoperability” is defined as the ability of two or more systems or components to exchange information and to use the information that has been exchanged. The FCC designated five VHF frequencies and four UHF frequency pairs for Interoperability across the nation.

alabama statewide mutual aid frequencies
Alabama Statewide Mutual Aid Frequencies

All are simplex operation with no PL tones. All are wideband operation:

Display Name Frequency (MHz) Purpose_______________________________________

MA LE 155.010 Alabama State Law Enforcement Mutual Aid.

Also known as Inner City.

MA FIRE 155.040 Alabama State Fire Mutual Aid

MA AMBL 155.265 Alabama State Ambulance Mutual Aid

N E L E 155.475 National Law Enforcement

N FIRE 154.280 National Fire

N EMS 155.340 National EMS. Alabama Hospitals have this for their use.

vhf interoperability frequencies
VHF Interoperability Frequencies

155.75250 VCALL

151.13750 VTAC 1

154.45250 VTAC 2

158.73750 VTAC 3

159.47250 VTAC 4

Simplex Only - No repeaters

vhf interoperability frequencies22
VHF Interoperability Frequencies

155.75250 VCALL

If you use 155.745 MHz or 155.760 MHz, starting January 1, 2005 you should have changed to narrowband.

vhf interoperability frequencies23
VHF Interoperability Frequencies

151.13750 VTAC 1

If you use 151.130 MHz or 151.145 MHz, starting January 1, 2005 you should have changed to narrowband.

vhf interoperability frequencies24
VHF Interoperability Frequencies

154.45250 VTAC 2

If you use 154.445 MHz or 154.460 MHz, starting January 1, 2005 you should have changed to narrowband.

vhf interoperability frequencies25
VHF Interoperability Frequencies

158.73750 VTAC 3

If you use 158.730 MHz or 158.745 MHz, starting January 1, 2005 you should have changed to narrowband.

vhf interoperability frequencies26
VHF Interoperability Frequencies

159.47250 VTAC 4

If you use 159.465 MHz or 159.480 MHz, starting January 1, 2005 you should have changed to narrowband.

uhf interoperability frequencies
UHF Interoperability Frequencies

453/458.21250 UCALL

453/458.46250 UTAC 1

453/458.71250 UTAC 2

453/458.86250 UTAC 3

Simplex or Repeater operation

uhf interoperability frequencies28
UHF Interoperability Frequencies

453/458.21250 UCALL

If you use 453/458.200 or 453/458.225, starting January 1, 2005 you should have changed to narrowband.

uhf interoperability frequencies29
UHF Interoperability Frequencies

453/458.46250 UTAC 1

If you use 453/458.450 or 453/458.475, starting January 1, 2005 you should have changed to narrowband.

uhf interoperability frequencies30
UHF Interoperability Frequencies

453/458.71250 UTAC 2

If you use 453/458.700 or 453/458.725, starting January 1, 2005 you should have changed to narrowband.

uhf interoperability frequencies31
UHF Interoperability Frequencies

453/458.86250 UTAC 3

If you use 453/458.850 or 453/458.875, starting January 1, 2005 you should have changed to narrowband.

npspac 800 mhz region 1
NPSPAC 800 MHz Region 1

In 1988, the FCC allocated additional 800 MHz spectrum to Public Safety if they would form Regional Planning Committees and set policies and standards on how the spectrum would be utilized.

The Alabama Region 1 Plan was developed and approved by the FCC.

All counties in Alabama has been allocated at least four frequency pairs.

Five dedicated National Interoperability frequency pairs

800 mhz interoperability frequencies
800 MHz Interoperability Frequencies

821/866.0125 ICALL

821/866.5125 ITAC 1

822/867.0125 ITAC 2

822/867.5125 ITAC 3

823/868.0125 ITAC 4

Simplex or Repeater operation

700 mhz regional planning
700 MHz Regional Planning
  • FCC Report and Order 96-86
  • FCC has reallocated 60 MHz of spectrum from TV channels 60 – 69.
  • 36 MHz allocated for Commercial wireless usage.
  • 24 MHz allocated for Public Safety usage.
  • President Bush signed the date certain DTV transition legislation on Feb 8,2006. Part of S.1932, Deficit Reduction Act of 2005. Law provides for:
    • Firm TV clearing date of 02/17/09.
    • Up to $1B for interoperable communicationsequipment for public safety
700 mhz public safety band
700 MHz Public Safety Band

24 MHz allocated to Public Safety - Channels 63 - 64 & 68 - 69

12.6 MHz will be for Public Safety general use

2.6 MHz for Interoperability / Mutual Aid

2.4 MHz for State agencies

8.8 MHz will be held in reserve for future technology growth.

Region 1 Alabama submitted our plan on September 11, 2006. Still pending F.C.C. review.

interference
Interference

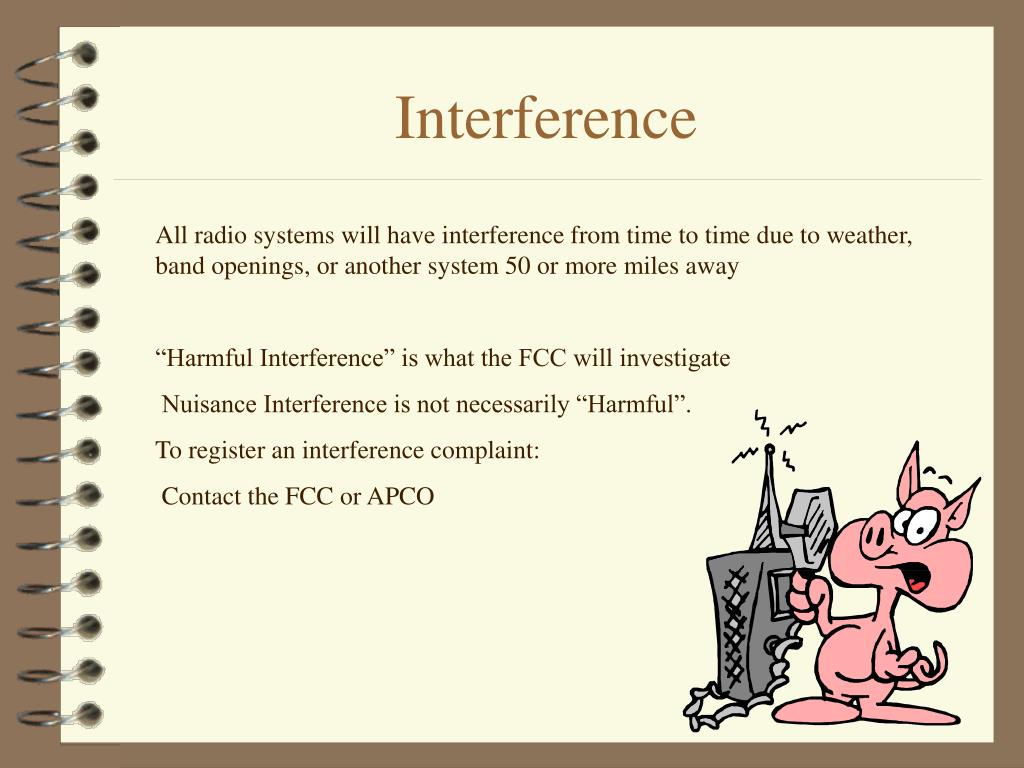

All radio systems will have interference from time to time due to weather, band openings, or another system 50 or more miles away

“Harmful Interference” is what the FCC will investigate

Nuisance Interference is not necessarily “Harmful”.

To register an interference complaint:

Contact the FCC or APCO

refarming narrowbanding
Refarming (Narrowbanding)
  • All existing Part 90 radio systems operating on frequencies between 150-512 MHz have until January 1, 2013 to convert those systems to 12.5kHz bandwidth.
  • Impact - To try to make more frequencies available by splitting the frequencies in half.
fcc radio license audit
FCC Radio License Audit

FCC has sent an audit letter to all FCC License holders under 512 MHz to see what spectrum can be reused.

Began September 1, 2001

You had 60 days to respond

http://wireless.fcc.gov/plmrs/audit.html

how to contact the fcc
How to contact the FCC

Web Site www.fcc.gov

www.fcc.gov/wtb

(888) CALL FCC

(888) 225 - 5322

how to contact apco
How to contact APCO

Web Site www.apco911.org

(888) 272 - 6911

(888) APCO 911

how to contact me
How to contact me

Eric Linsley

Mobile County Electronics Department

(251) 574 – 4030

linsleye@apco911.org

fema home study courses
FEMA Home Study Courses
  • http://training.fema.gov/EMIWeb/WMICoursers/EMICourse.asp
  • Emergency Management Institute
  • Independent Study Program
  • Course Study in:
    • Intergrated Emergency Management
    • Professional Development
    • Master Trainer Program
    • Mitigation Branch
    • Readiness
    • Disaster Operations and Recovery
