1. Overview of Grid middleware concepts Peter Kacsuk MTA SZTAKI, Hungary Univ. Westminster, UK kacsuk@sztaki.hu

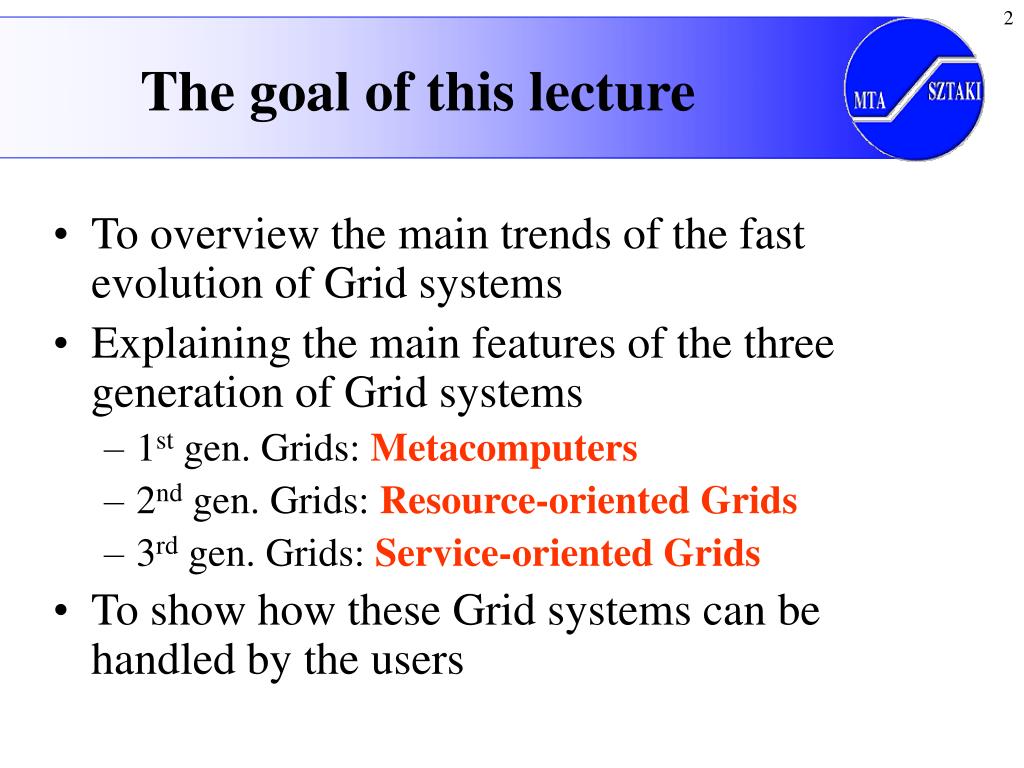

2. The goal of this lecture • To overview the main trends of the fast evolution of Grid systems • Explaining the main features of the three generation of Grid systems • 1st gen. Grids: Metacomputers • 2nd gen. Grids: Resource-oriented Grids • 3rd gen. Grids: Service-oriented Grids • To show how these Grid systems can be handled by the users

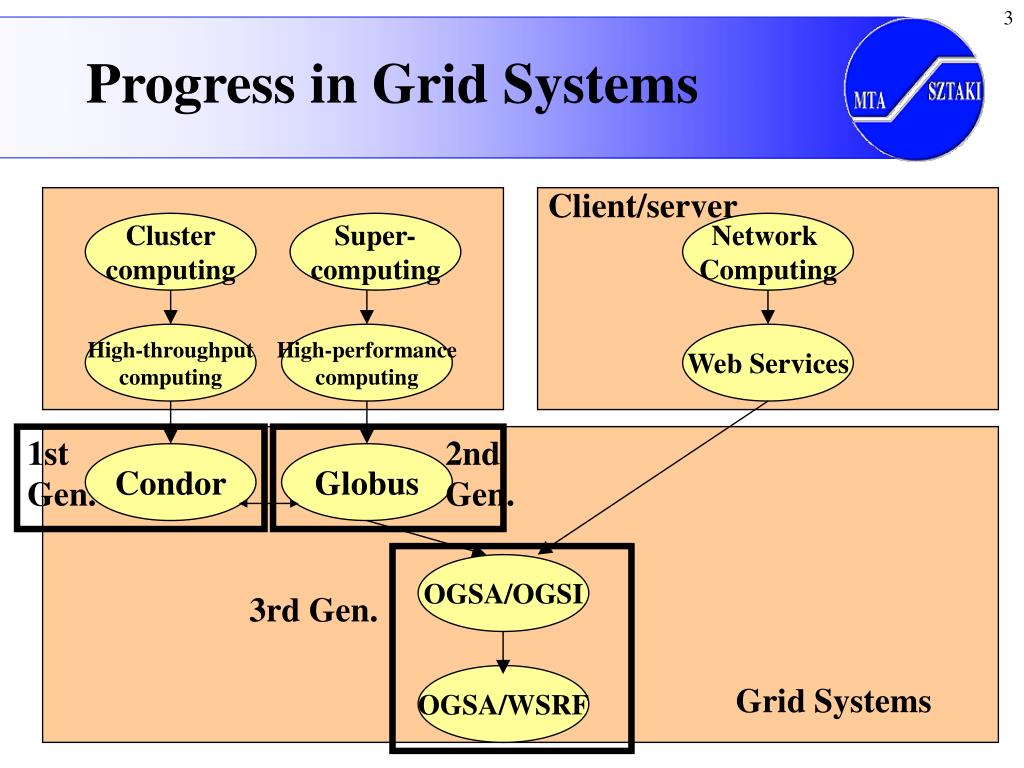

3. 1st Gen. 2nd Gen. 3rd Gen. Progress in Grid Systems Client/server Cluster computing Super- computing Network Computing High-throughput computing High-performance computing Web Services Condor Globus OGSA/OGSI OGSA/WSRF Grid Systems

4. 1st Generation GridsMetacomputers

5. Various supercomputers/clusters must be connected by wide area networks in order to solve grand challenge problems in reasonable time Original motivation for metacomputing • Grand challenge problemsrun weeks and months even on supercomputers and clusters

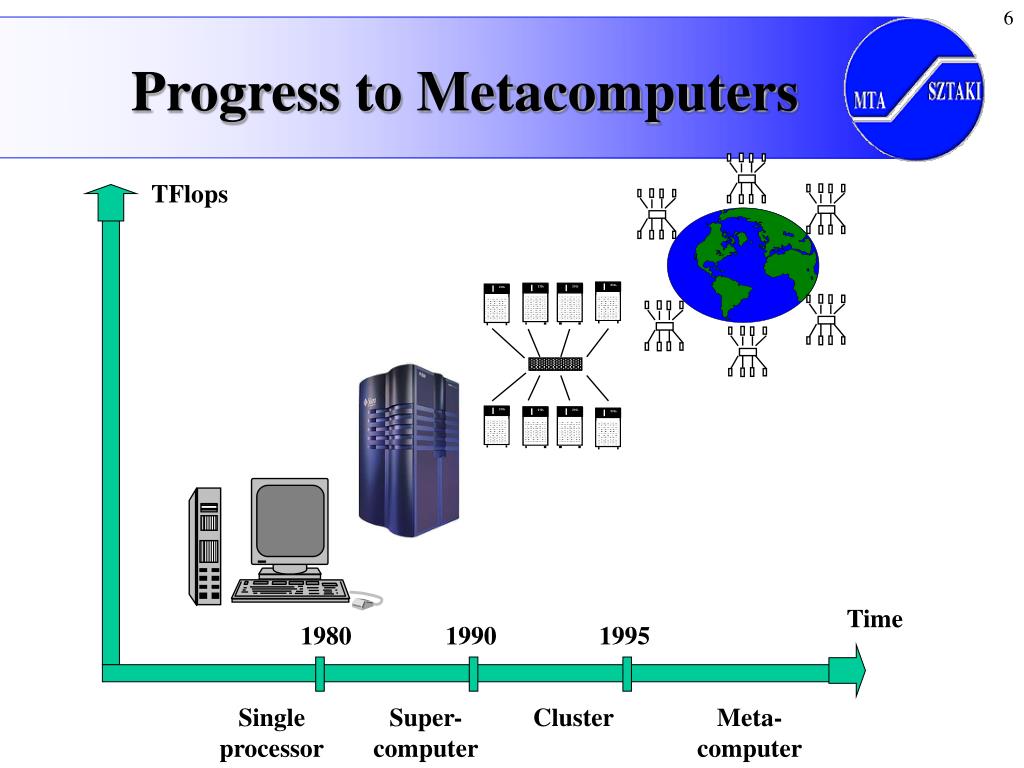

6. 2100 2100 2100 2100 2100 2100 2100 2100 Single processor Super-computer Cluster Meta-computer Progress to Metacomputers TFlops Time 1980 1990 1995

7. Metacomputing Super computing = + Original meaning of metacomputing Wide area network Original goal of metacomputing: • Distributed supercomputing to achieve higher performance than individual supercomputers/clusters can provide

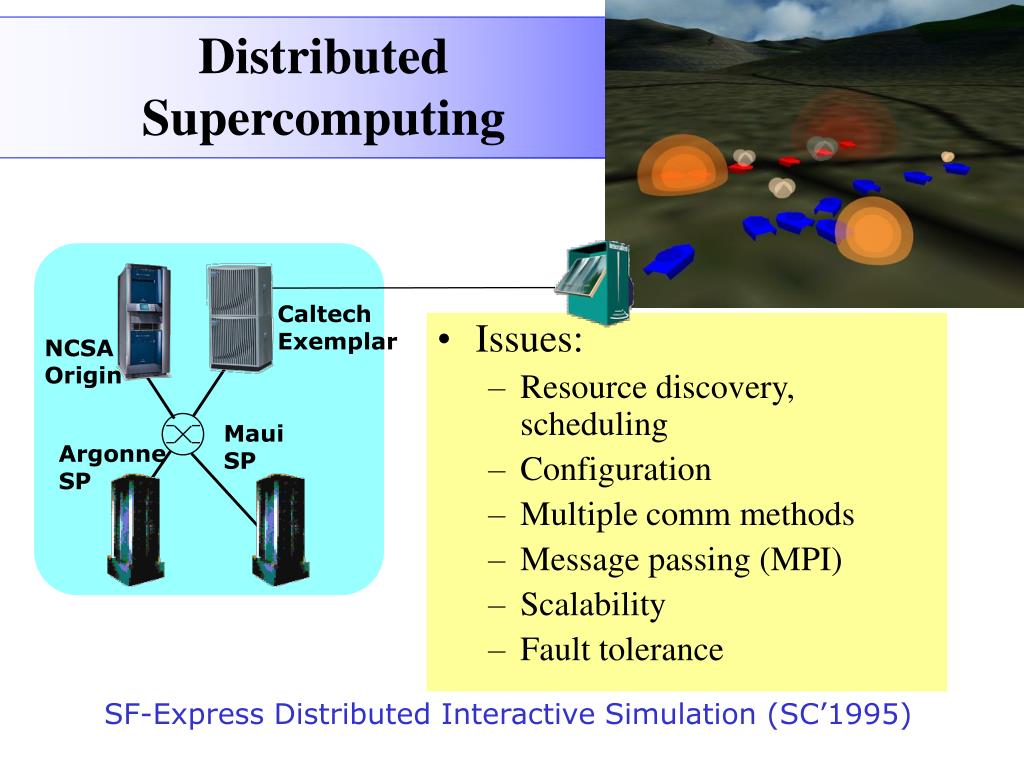

8. Distributed Supercomputing • Issues: • Resource discovery, scheduling • Configuration • Multiple comm methods • Message passing (MPI) • Scalability • Fault tolerance Caltech Exemplar NCSA Origin Maui SP Argonne SP SF-Express Distributed Interactive Simulation (SC’1995)

9. To exploit the spare cycles of various computers connected by wide area networks • Two main representatives • SETI • Condor High-throughput computing (HTC) and the Grid • Better usage of computing and other resources accessible via wide area network

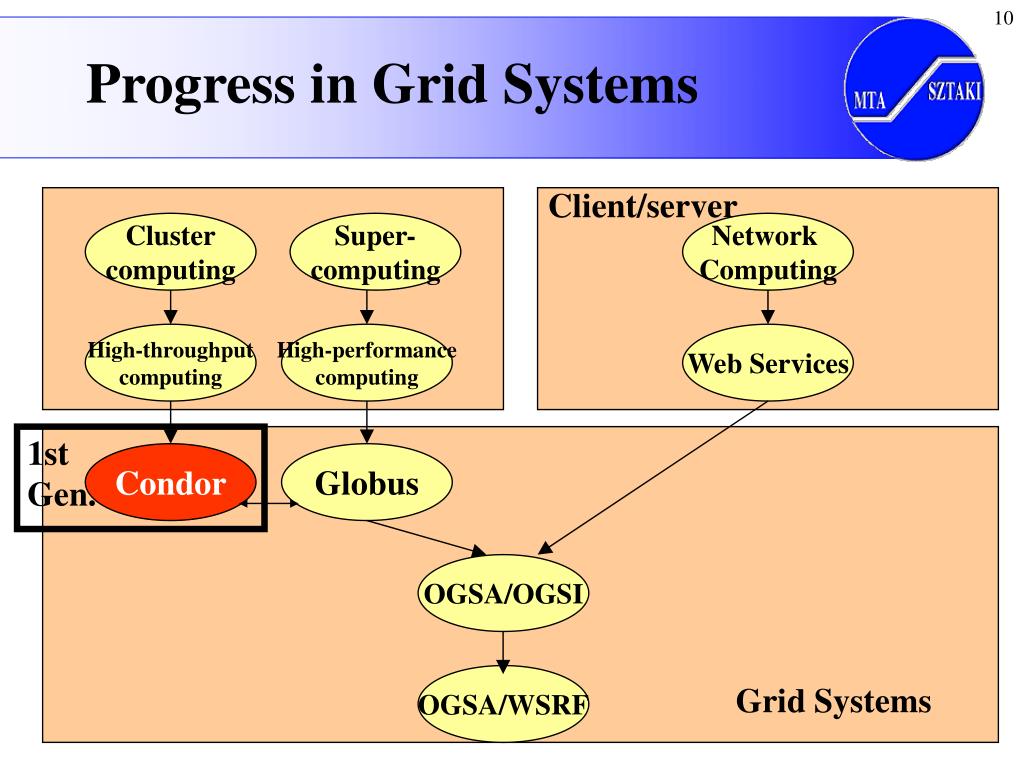

10. 1st Gen. Progress in Grid Systems Client/server Cluster computing Super- computing Network Computing High-throughput computing High-performance computing Web Services Condor Globus OGSA/OGSI OGSA/WSRF Grid Systems

11. Client program moves to resource(s) Security is a serious problem! The Condor model ClassAdds Match-maker Publish Resource requirement (configuration description) Resource Resource requestor provider TCP/IP

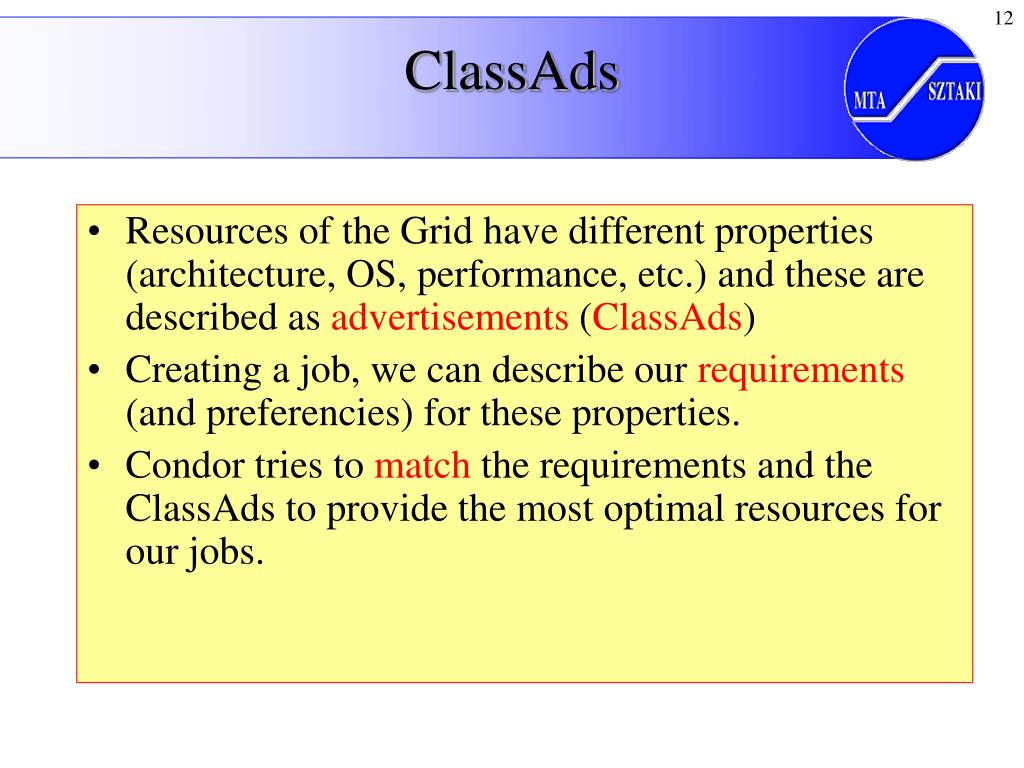

12. ClassAds • Resources of the Grid have different properties (architecture, OS, performance, etc.) and these are described as advertisements (ClassAds) • Creating a job, we can describe our requirements (and preferencies) for these properties. • Condor tries to match the requirements and the ClassAds to provide the most optimal resources for our jobs.

13. personal Condor your workstation Condor jobs The concept of personal Condor

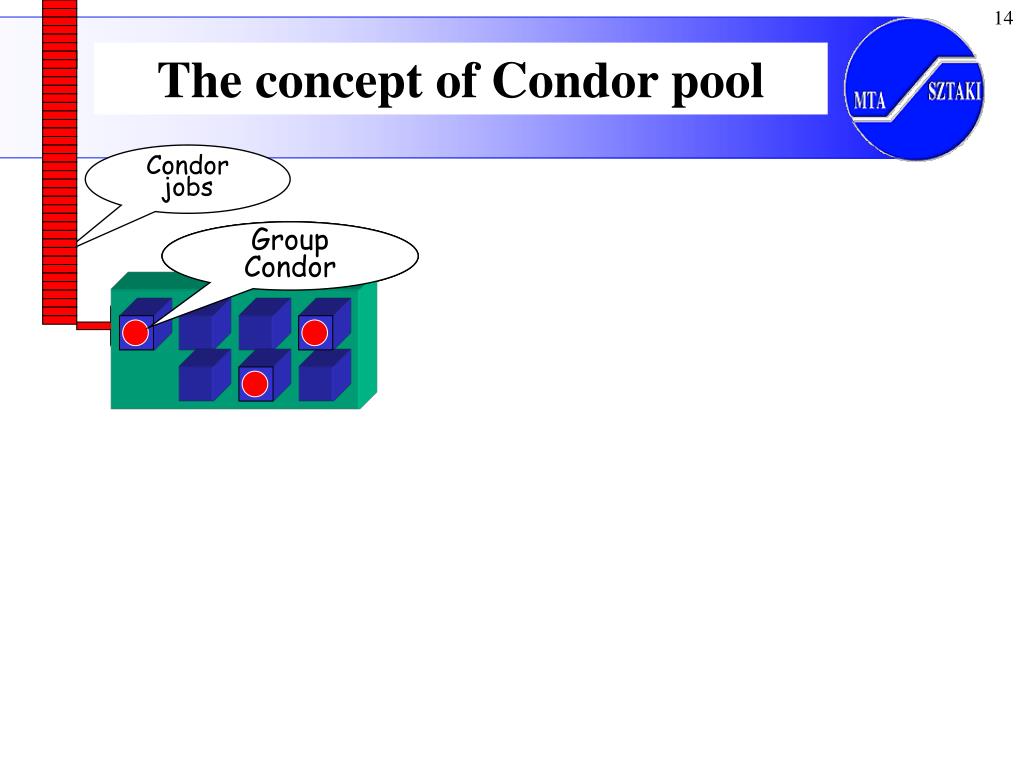

14. personal Condor Group Condor your workstation Condor jobs The concept of Condor pool

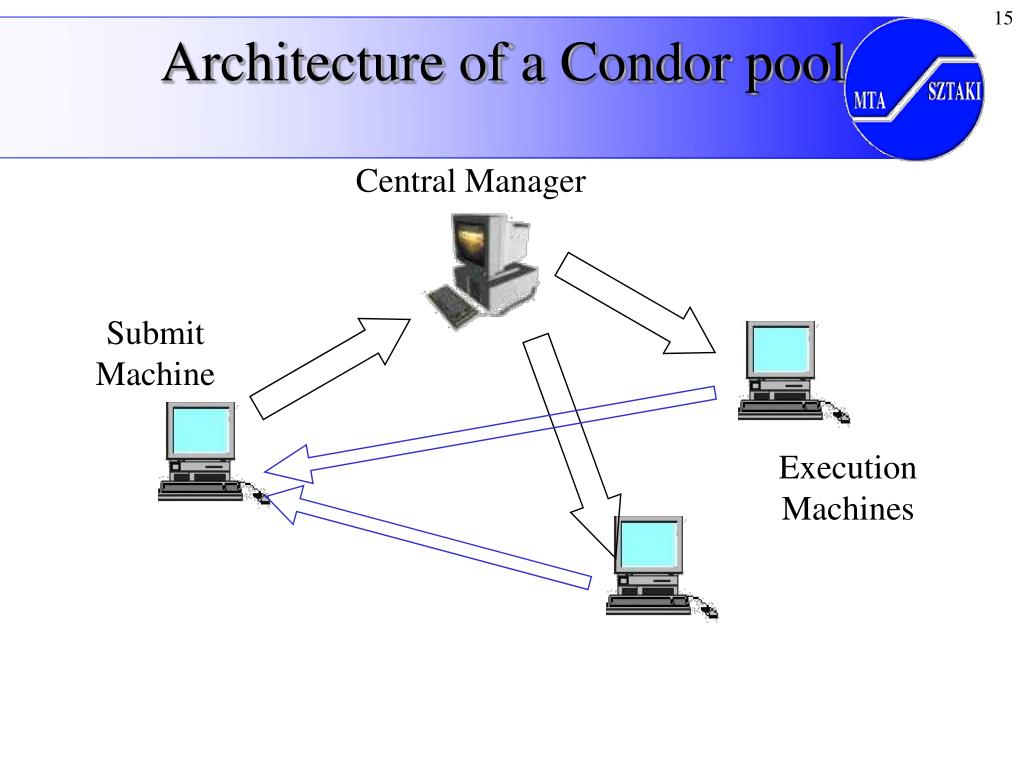

15. Central Manager Submit Machine Execution Machines Architecture of a Condor pool

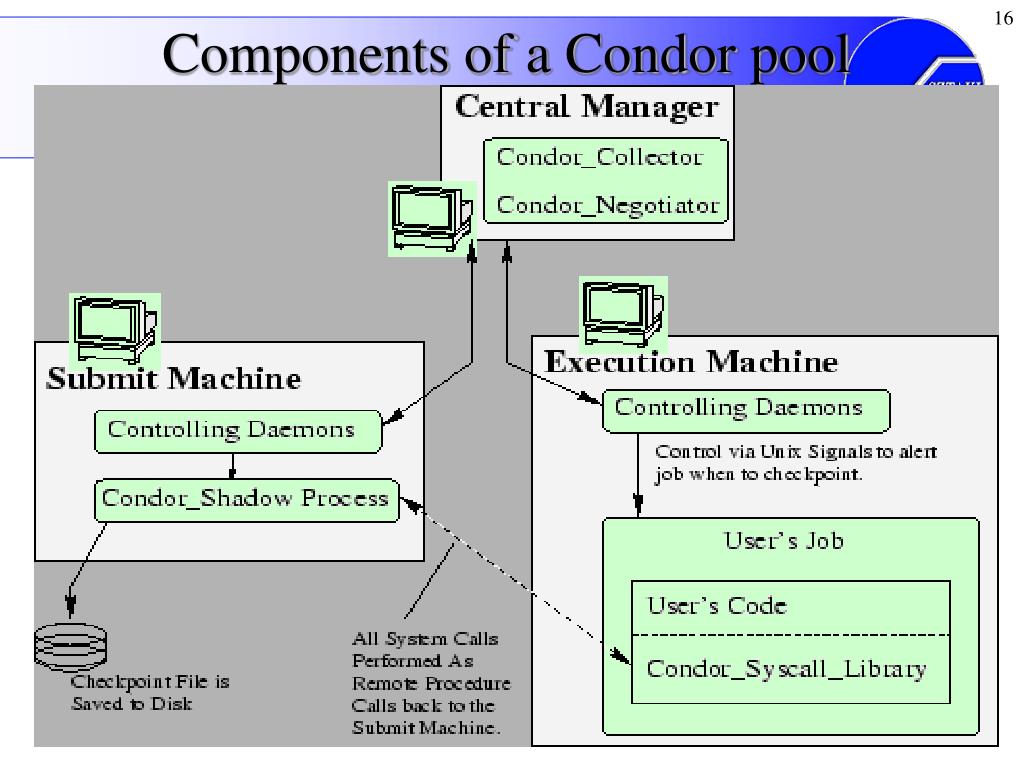

16. Components of a Condor pool

17. personal Condor Group Condor your workstation Condor jobs friendly Condor The concept of Condor flocking Your schedd daemons see the CM of the other pool as if it was part of your pool

18. Job submit Job Condor flocking“grids” Resources do meet the requirements of the job: execute it Condor pool Condor pool Resources do not meet the requirements of the job: forward it to a friendly pool Condor pool Client machine Condor pool Condor pool

19. personal Condor Grid Group Condor your workstation Condor jobs LSF PBS glide-ins friendly Condor Condor The concept of glide-in

20. Flocking among clusters 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 2100 Among nodes of a cluster Grid Gliding Three levels of scalability in Condor

21. Number of workers NUG30 - Solved!!! Solved in 7 days instead of 10.9years

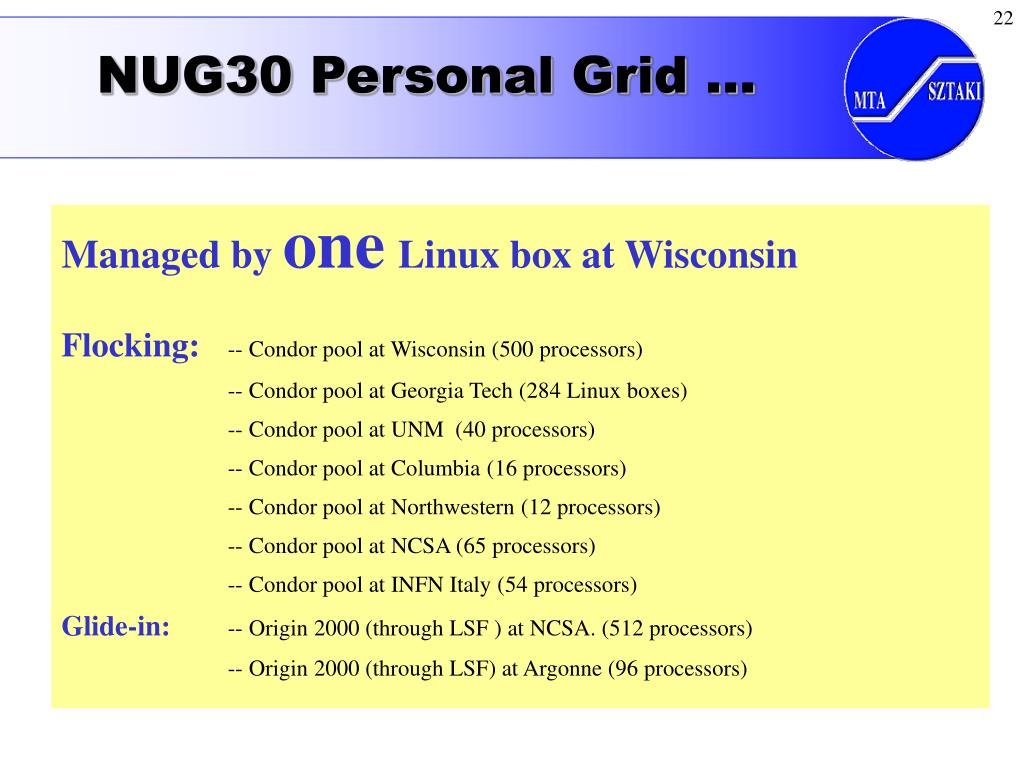

22. NUG30 Personal Grid … Managed by oneLinux box at Wisconsin Flocking: -- Condor pool at Wisconsin (500 processors) -- Condor pool at Georgia Tech (284 Linux boxes) -- Condor pool at UNM (40 processors) -- Condor pool at Columbia (16 processors) -- Condor pool at Northwestern (12 processors) -- Condor pool at NCSA (65 processors) -- Condor pool at INFN Italy (54 processors) Glide-in: -- Origin 2000 (through LSF ) at NCSA. (512 processors) -- Origin 2000 (through LSF) at Argonne (96 processors)

23. Problems with Condor flocking “grids” • Friendly relationships are defined statically. • Firewalls are not allowed between friendly pools. • Client can not choose resources (pools) directly. • Private (non-standard) “Condor protocols” are used to connect friendly pools together. • Not service-oriented

24. 2nd Generation GridsResource-oriented Grid

25. The main goal of 2nd gen. Grids • To enable a • geographically distributed community [of thousands] • to perform sophisticated, computationally intensive analyses • on large set (Petabytes) of data • To provide • on demand • dynamic resource aggregation • as virtual organizations Example virtual organizations : • Physics community (EDG, EGEE) • Climate community, etc.

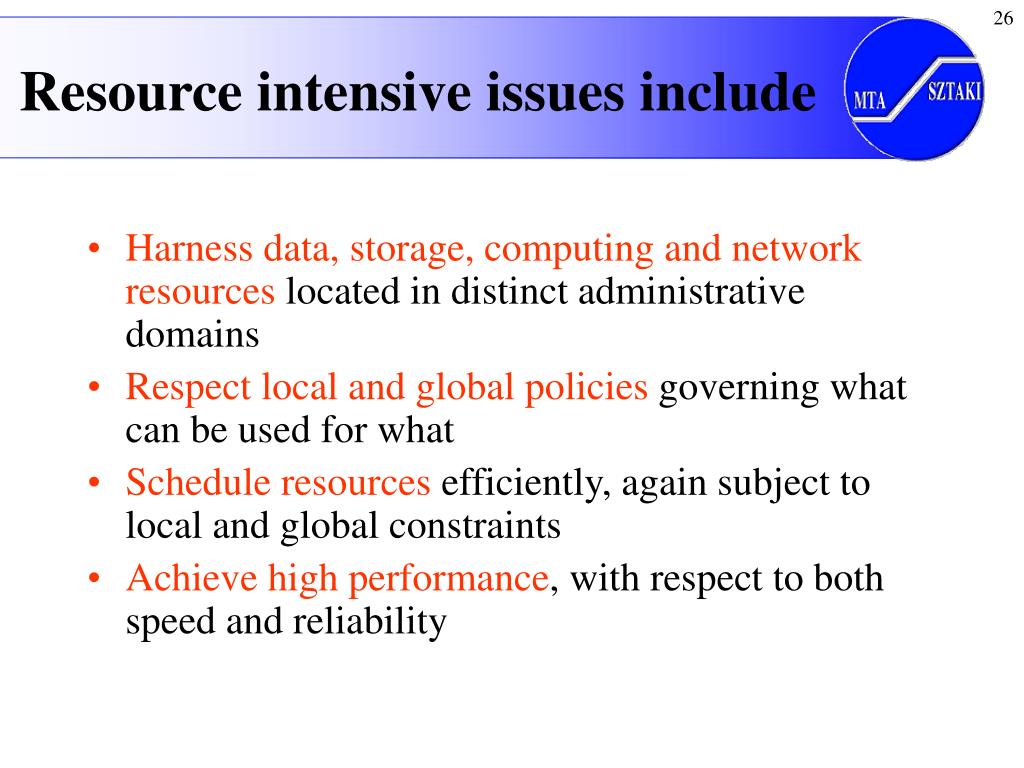

26. Resource intensive issues include • Harnessdata, storage, computing and network resources located in distinct administrative domains • Respect local and global policies governing what can be used for what • Schedule resources efficiently, again subject to local and global constraints • Achieve high performance, with respect to both speed and reliability

27. Grid Protocols, Services and Tools • Protocol-based access to resources • Mask local heterogeneities • Negotiate multi-domain security, policy • “Grid-enabled” resources speak Grid protocols • Multiple implementations are possible • Broad deployment of protocols facilitates creation of services that provide integrated view of distributed resources • Tools use protocols and services to enable specific classes of applications

28. Collaboration Tools Data Mgmt Tools Distributed simulation . . . Information services Resource mgmt Data mgmt . . . Remote access Remote monitor The Role of Grid Middleware and Tools net Credit to Ian Foster

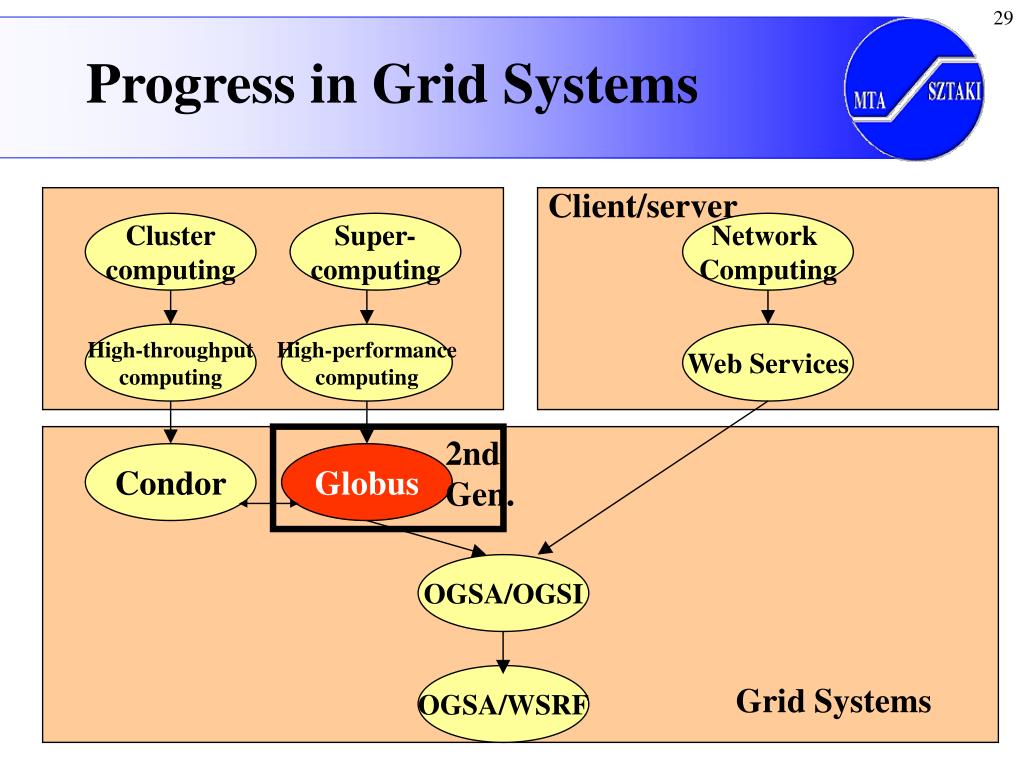

29. Progress in Grid Systems Client/server Cluster computing Super- computing Network Computing High-throughput computing High-performance computing Web Services 2nd Gen. Condor Globus OGSA/OGSI OGSA/WSRF Grid Systems

30. Solutions by Globus (GT-2) • Creation of Virtual Organizations (VOs) • Standardprotocols are used to connect Globus sites • Security issues are basically solved • Firewalls are allowed between Grid sites • PKI: CAs and X.509 certificates • SSL for authentication and message protection • The client does not need account on every Globus site: • Proxies and delegation for secure single Sign-on • Still: • provides metacomputing facilities (MPICH-G2) • Not service-oriented either

31. Client program moves to resource(s) Security is a serious problem! The Globus-2 model Resource description MDS-2) Publish MDS-2 API (configuration description) Resource Resource requestor provider GRAM API

32. The Role of the Globus Toolkit • A collection of solutions to problems that come up frequently when building collaborative distributed applications • Heterogeneity • A focus, in particular, on overcoming heterogeneity for application developers • Standards • We capitalize on and encourage use of existing standards (IETF, W3C, OASIS, GGF) • GT also includes reference implementations of new/proposed standards in these organizations

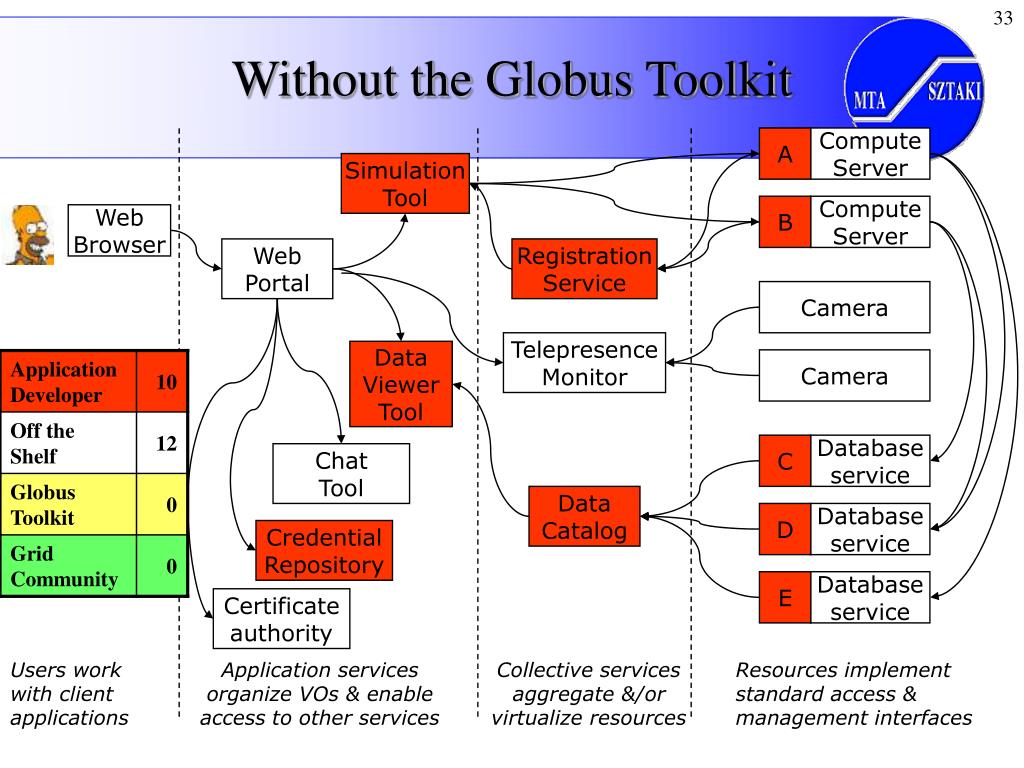

33. Without the Globus Toolkit A ComputeServer SimulationTool B ComputeServer WebBrowser WebPortal RegistrationService Camera TelepresenceMonitor DataViewerTool Camera C Database service ChatTool DataCatalog D Database service CredentialRepository E Database service Certificate authority Users work with client applications Application services organize VOs & enable access to other services Collective services aggregate &/or virtualize resources Resources implement standard access & management interfaces

34. A possibility with the Globus Toolkit GlobusGRAM ComputeServer SimulationTool GlobusGRAM ComputeServer WebBrowser CHEF Globus IndexService Camera TelepresenceMonitor DataViewerTool Camera GlobusDAI Database service CHEF ChatTeamlet GlobusMCS/RLS GlobusDAI Database service MyProxy GlobusDAI Database service CertificateAuthority Users work with client applications Application services organize VOs & enable access to other services Collective services aggregate &/or virtualize resources Resources implement standard access & management interfaces

35. Globus Toolkit version 2 (GT2) User applications&Higher level services Authentication Authorization (GSI) GridFTP Grid Resource Alloc. Mgmt (GRAM) Monitoring & Discovery (MDS) C Common Libraries Security Data Mgmt Execution Mgmt Info Services CommonRuntime

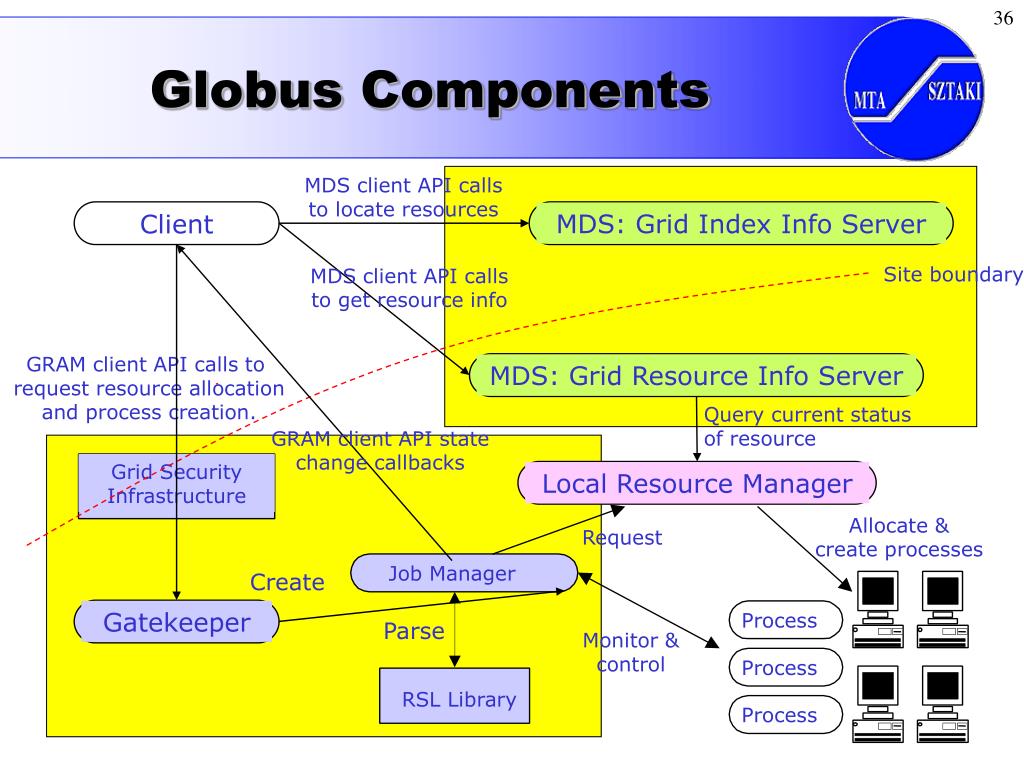

36. MDS: Grid Index Info Server Client MDS: Grid Resource Info Server Grid Security Infrastructure Local Resource Manager Gatekeeper Globus Components MDS client API calls to locate resources Site boundary MDS client API calls to get resource info GRAM client API calls to request resource allocation and process creation. Query current status of resource GRAM client API state change callbacks Allocate & create processes Request Job Manager Create Process Parse Monitor & control Process RSL Library Process

37. Example 1 for a GT2 Grid: TeraGrid 574p IA-32 Chiba City 256p HP X-Class 128p Origin 128p HP V2500 HR Display & VR Facilities Caltech: Data collection and analysis applications 92p IA-32 HPSS HPSS ANL: Visualization SDSC: Data-orientedcomputing Myrinet UniTree HPSS Myrinet 1024p IA-32 320p IA-64 1176p IBM SP Blue Horizon 1500p Origin Sun E10K NCSA: Compute-Intensive Credit to Fran Berman

38. Linux Operating Environment Basic and Core Globus Services GSI (Grid Security Infrastructure) GSI-enabled SSH and GSIFTP GRAM (Grid Resource Allocation & Management) GridFTP Information Service Distributed accounting MPICH-G2 Science Portals Advanced and Data Services Replica Management Tools GRAM-2 (GRAM extensions) Condor-G (as brokering “super scheduler”) SDSC SRB (Storage Resource Broker) TeraGrid Common Infrastructure Environment Credit to Fran Berman

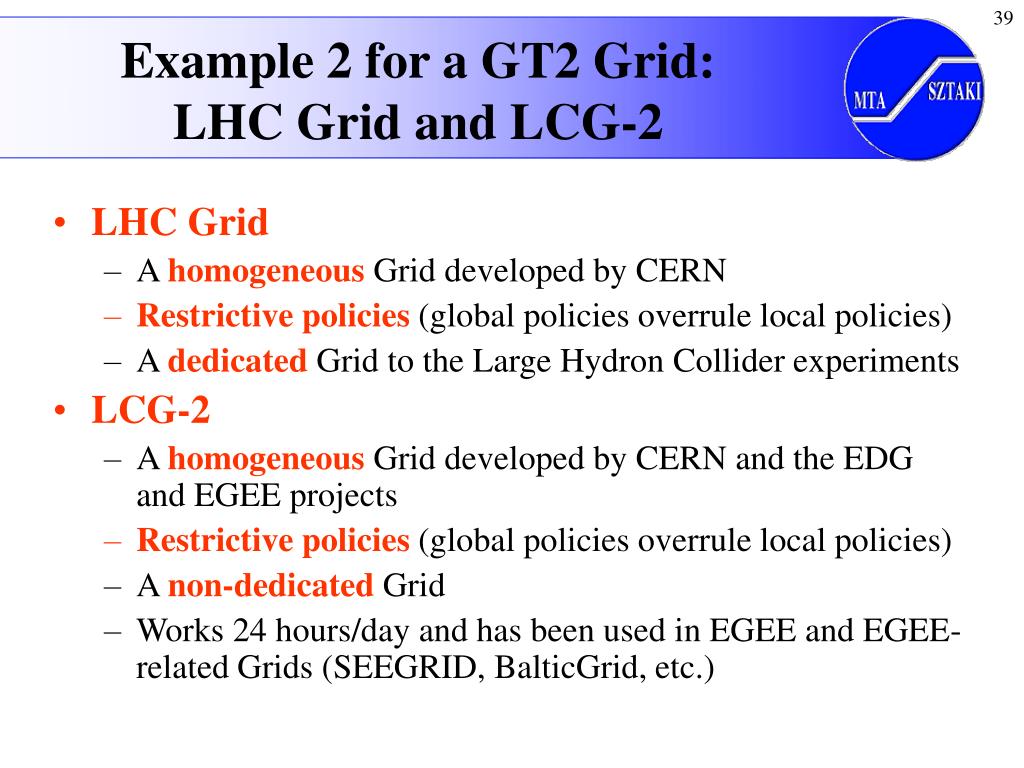

39. Example 2 for a GT2 Grid: LHC Grid and LCG-2 • LHC Grid • A homogeneous Grid developed by CERN • Restrictive policies (global policies overrule local policies) • A dedicated Grid to the Large Hydron Collider experiments • LCG-2 • A homogeneous Grid developed by CERN and the EDG and EGEE projects • Restrictive policies (global policies overrule local policies) • A non-dedicated Grid • Works 24 hours/day and has been used in EGEE and EGEE-related Grids (SEEGRID, BalticGrid, etc.)

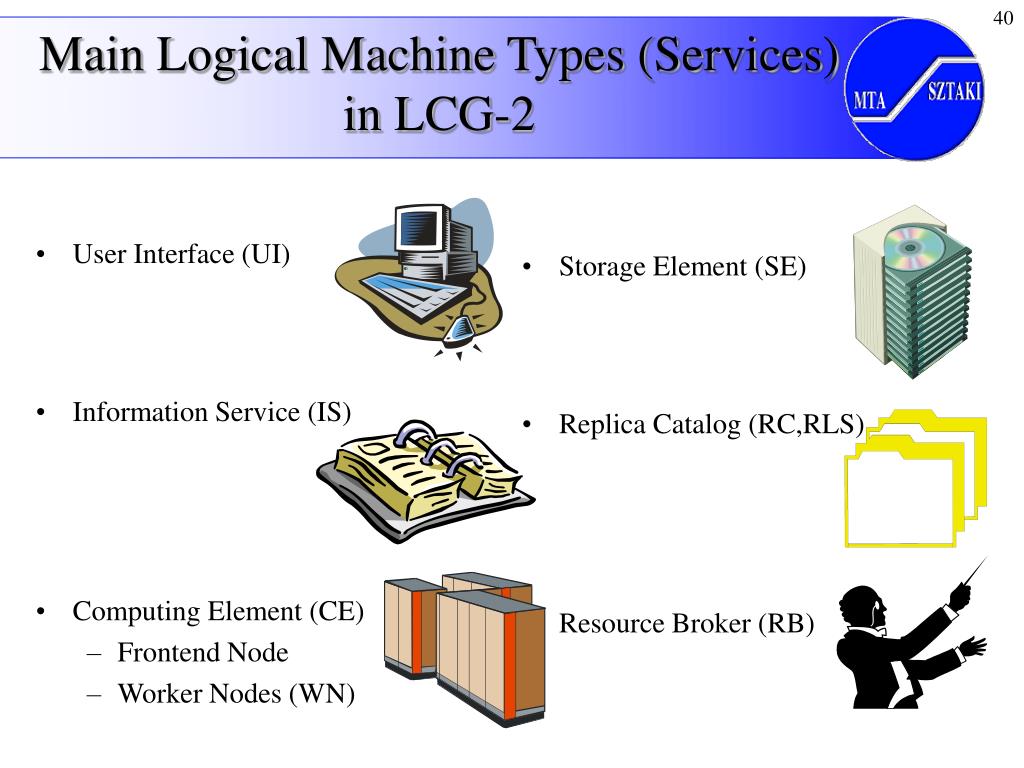

40. Storage Element (SE) Replica Catalog (RC,RLS) Resource Broker (RB) Main Logical Machine Types (Services) in LCG-2 • User Interface (UI) • Information Service (IS) • Computing Element (CE) • Frontend Node • Worker Nodes (WN)

41. Apps Mware Globus The LCG-2 Architecture Local Computing Local Application Local Database Grid Grid Application Layer Data Management Metadata Management Job Management Collective Services Information & Monitoring Replica Manager Grid Scheduler Underlying Grid Services Computing Element Services Storage Element Services Replica Catalog Authorization Authentication & Accounting Logging & Book-keeping Database Services Grid Fabric services Fabric Monitoring and Fault Tolerance Node Installation & Management Fabric Storage Management Resource Management Configuration Management

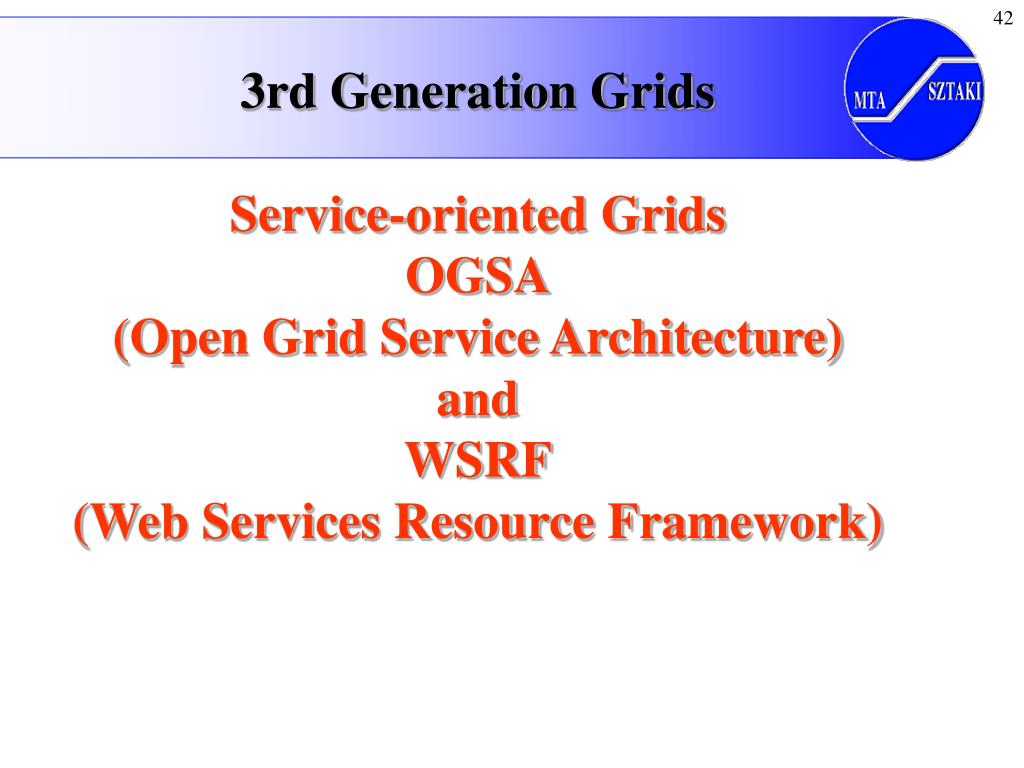

42. 3rd Generation GridsService-oriented GridsOGSA(Open Grid Service Architecture)andWSRF(Web Services Resource Framework)

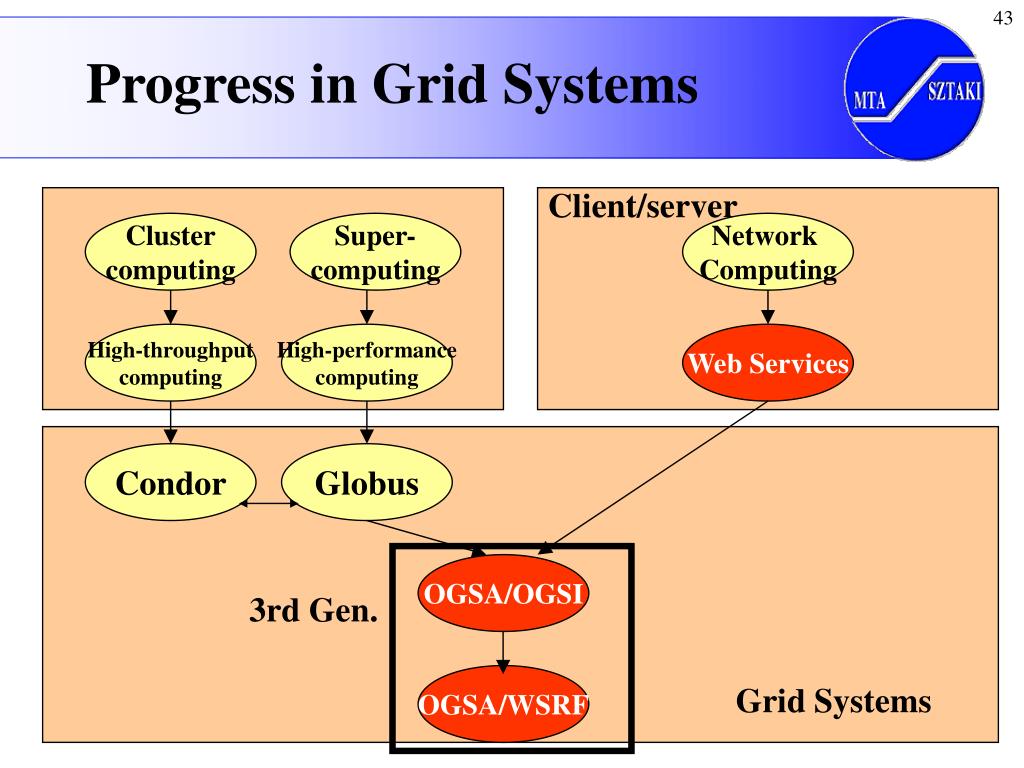

43. 3rd Gen. Progress in Grid Systems Client/server Cluster computing Super- computing Network Computing High-throughput computing High-performance computing Web Services Condor Globus OGSA/OGSI OGSA/WSRF Grid Systems

44. Predefined programs (services) wait for invocation Much more secure than the GT-2 concept The Web Services model UDDI provider (SOAP)

45. GT1 GT2 OGSI/GT3 Started far apart in apps & tech Have been converging ? WSDL 2, WSDM WSDL, WS-* HTTP Grid and Web Services: Convergence Grid Web However, despite enthusiasm for OGSI, adoption within Web community turned out to be problematic

46. Concerns • Too much stuff in one specification • Does not work well with existing Web services tooling • Too object oriented

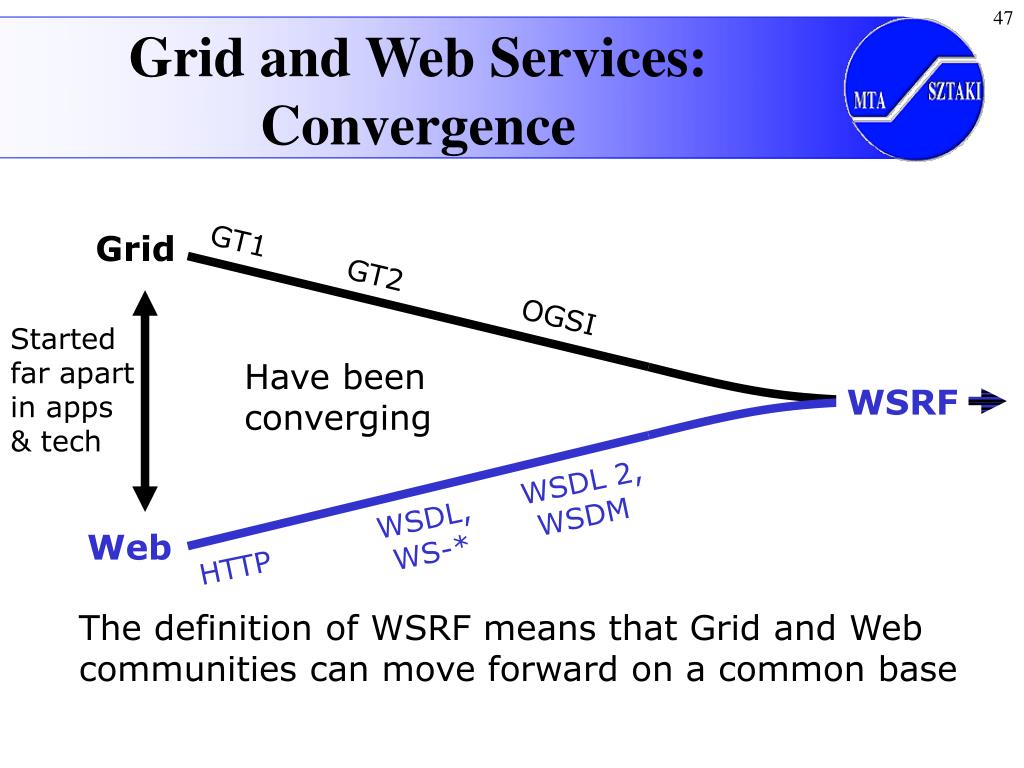

47. GT1 GT2 OGSI Started far apart in apps & tech Have been converging WSRF WSDL 2, WSDM WSDL, WS-* HTTP Grid and Web Services: Convergence Grid Web The definition of WSRF means that Grid and Web communities can move forward on a common base

48. Layered diagram of OGSA, GT4, WSRF, and Web Services

49. Relationship between OGSA, GT4, WSRF, and Web Services
