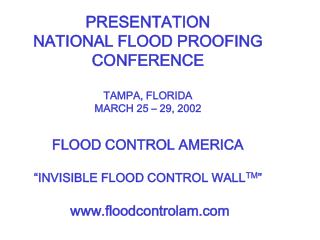

PRESENTATIONNATIONAL FLOOD PROOFING CONFERENCETAMPA, FLORIDAMARCH 25 – 29, 2002FLOOD CONTROL AMERICA“INVISIBLE FLOOD CONTROL WALLTM” www.floodcontrolam.com


Slide2 l.jpg

MARCH 1997 VENLO, HOLLAND, MAAS RIVER PHOTO ENCOMPASSES THIS PRESENTATION FLOOD PROTECTION THAT PRESERVES URBAN RIVERSIDE LIFEREVOLUTIONARY DEMOUNTABLE FLOOD CONTROL WALL


Slide3 l.jpg
EVOLVED FROM COLOGNE, GERMANY MID 1980’S REPETITIVE RHINE RIVER FLOODING PATENTED INTERNATIONALLY “SET THE FLAME BURNING FROM WITHIN”


Slide4 l.jpg

ONE MONTH LATER….A DISASTROUS FAILURE STORY EAST GRAND FORKS, MN – GRAND FORKS, ND RED RIVER 4/97 FLOOD OF RECORD EARTHEN LEVEE FAILURE AND OVER-TOPPING


Slide5 l.jpg

EAST GRAND FORKS, MN 4/97FLOOD LEVEL LINE(8) DRY BUILDINGS REMAINING IN CITYGARY SAUNDERS, CITY ENGINEER, “THERE MUST BE A BETTER WAY.”


Slide6 l.jpg

EAST GRAND FORKS, MN….TODAY A WONDERFUL SUCCESS STORYFOR FCA… A FIVE YEAR CONTINUING STRUGGLE….SELLING ANEW IDEA TO SOLVE THE NATION’S FLOODING PROBLEMSSCULPTURE AT CABELA’S, A NEW BUSINESS……


Cabela s located 200 ft behind ifcw tm l.jpg
CABELA’SLOCATED 200 FT BEHIND IFCWTM


Slide8 l.jpg

STATUE REPRESENTS IFCWTM PROGRESS….BLUE MOOSE RESTAURANTNORTH ABUTMENT OF IFCWTM EAST GRAND FORKS, MNIFCWTM….A DEMONSTRATION PROJECT BUILT IN 1999EDA, FEMA, STATE OF MN, ST. PAUL COE, CITY OF EAST GRAND FORKS


Slide9 l.jpg
THIS PRESENTATION EMPHASIZES SUCCESS LOUISVILLE, KY OHIO RIVER NEW LOUISVILLE SLUGGER FIELD COMPLETED 4/2000 NOTE IFCWTM SILL PLATE


Revisiting the old chaos and destruction repetitive waste and loss money down the drain l.jpg
REVISITING THE OLDCHAOS AND DESTRUCTION REPETITIVE WASTE AND LOSS MONEY DOWN THE DRAIN


Slide11 l.jpg
A SWEET SUCCESS STORY…APRIL 2001 FARGO, ND – RED RIVER OF THE NORTH OAK GROVE LUTHERAN SCHOOL1997 FLOOD OF RECORD $3.5 MILLION DAMAGE


Slide12 l.jpg
OAK GROVE SCHOOL PROJECT BUILD TIME FIVE MONTHSIFCWTM (5) ACCESS CLOSURES PLANKS READY FOR INSTALLATION


Slide13 l.jpg
ACCEPTANCE INSTALLATION FEBRUARY 2001 (5) CLOSURES HEIGHT 4 - 6 FT WIDTH 10 - 17 FT TIME 1.25 HOURS – CREW OF SIX


Then a flood happened 3 months later april 2001 lack of chaos and destruction note the current flow l.jpg
THEN A FLOOD HAPPENED! 3 MONTHS LATER APRIL 2001 LACK OF CHAOS AND DESTRUCTION NOTE THE CURRENT FLOW


Fargo nd success story red river channel background park street l.jpg

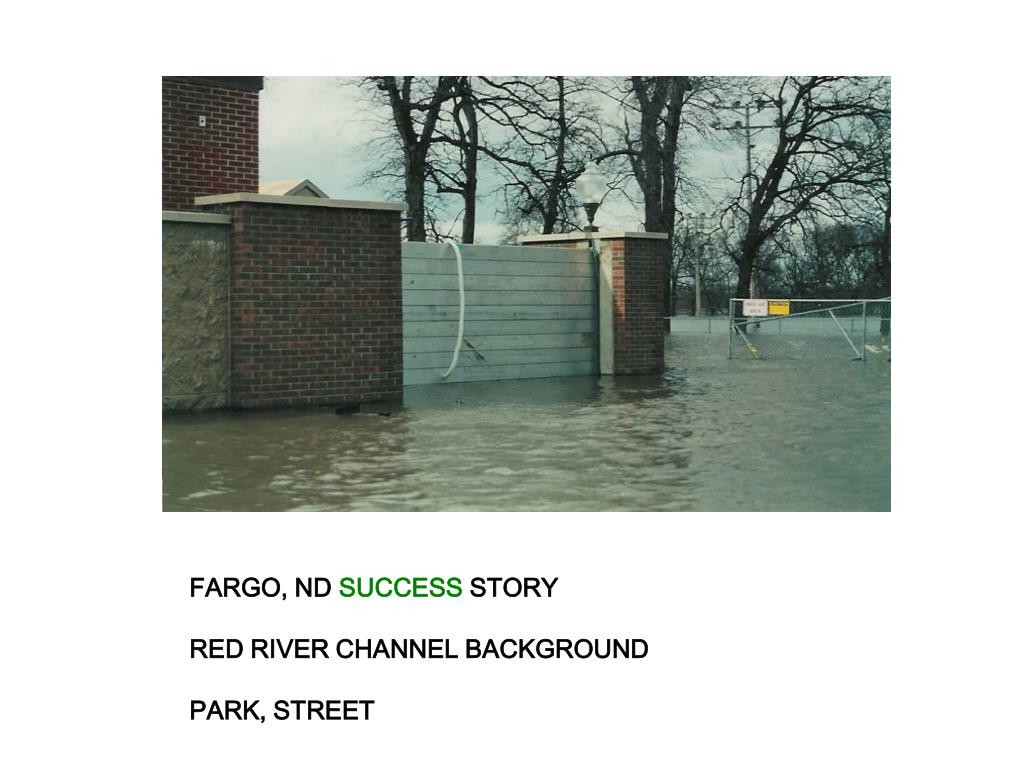

FARGO, ND SUCCESS STORY RED RIVER CHANNEL BACKGROUND PARK, STREET


Flood height 2 ft or flow right to left background channel a school is saved l.jpg
FLOOD HEIGHT 2 FT + OR – FLOW RIGHT TO LEFT BACKGROUND CHANNELA SCHOOL IS SAVED


Slide17 l.jpg
NEW IFCWTMTECHNOLOGY AT WORK LOUISVILLE, KY UTILIZATION OF HISTORIC RAILROAD STATION ADJACENT TO OHIO RIVER



Slide19 l.jpg
JANUARY 1937 FLOOD OF RECORD “COE” CONCRETE WALL 21ST CENTURY CHANGING NEEDS LOUISVILLE DISTRICT COE AUSPICES


Existing coe concrete wall removed to sub grade ifcw tm inserted invisible wall a result l.jpg
EXISTING “COE” CONCRETE WALL REMOVED TO SUB GRADE IFCWTM INSERTEDINVISIBLE WALL A RESULT


How does it work threaded dayton anchor positioned deep into concrete foundation l.jpg
HOW DOES IT WORK? THREADED DAYTON ANCHOR POSITIONED DEEP INTO CONCRETE FOUNDATION


Ifcw tm sill plate positioned on top of footing components set into concrete foundation l.jpg
IFCWTM SILL PLATE POSITIONED ON TOP OF FOOTING COMPONENTS SET INTO CONCRETE FOUNDATION


Slide23 l.jpg

IFCWTM WALL INSTALLATION PLACE VERTICAL PARTING SUPPORTS BOLT PASSES THROUGH SILL PLATE INTO THREADS OF ANCHOR LOCATED IN CONCRETE FOUNDATION


Slide24 l.jpg
NEXT….PATENTED ALUMINUM PLANK SEALED TONGUE AND GROOVE DESIGN SIDE THRUST RESISTANT BASE PLANK “FOOT” PROFILE - SEALED


Slide25 l.jpg

BASE PLANK ORIENTS WET/DRY SIDESEALS ON PLANK AND VERTICAL DRY SIDECONTINUOUS DRY SIDE SEAL ALWAYS FACES DRY SIDE NOTE VERTICAL LOCKING HANDLEPLANK IS ALLOWED TO FILL WITH WATER AS FLOOD WATERS RISE


Slide26 l.jpg
20 FT LENGTHS ON THIS IFCWTM PROJECT STANDARD PLANK DESIGN, MAX LENGTH 35 FT PLANK WEIGHT 4.5 POUNDS/LN FT FOUR MEN TO INSTALL


Louisville wall dimensions 700 ft length 4 ft 9 ft height first time installation 8 men 12 hours l.jpg
LOUISVILLE WALL DIMENSIONS 700 FT LENGTH 4 FT – 9 FT HEIGHT FIRST TIME INSTALLATION 8 MEN – 12 HOURS


Slide28 l.jpg

INTERMEDIATE AND PARTING SUPPORTS HOLD DOWN CLAMPS TIGHTEN NUTS ON THREADED RODS DRAWS SEALS TO A SQUEEZE SETTIGHT…A SUCTION POP WHEN DISMANTLING


Slide29 l.jpg
THE INVISIBLE FLOOD CONTROL WALLTM STRUCTURAL FLOOD CONTROL…. NOT AS YOU’VE KNOWN IT IFCWTM….. MINGLES EASILY WITH URBAN SCENE!!


Slide30 l.jpg
IFCWTM SILL PLATE ALLOWS UNIMPEDED FOOT TRAFFIC AND DELIVERY VEHICLEACCESS DIRECTLY OVER INVISIBLE WALL BASE.


Ifcw tm protects preserves and reconnects enjoy don t destroy the river l.jpg
IFCWTM….PROTECTS, PRESERVES AND RECONNECTSENJOY… DON’T DESTROY THE RIVER


Slide32 l.jpg

BRECKENRIDGE, MN RED RIVER OF THE NORTH PROTECT AND PRESERVE HEADWATERS PARK….CULTURAL SHRINE 5 FT CONCRETE WALL AND IFCWTM 4/97 3 FT OF FLOOD WATER


Breckenridge installation ifcw tm wall 4 ft x 90 ft 4 to 6 men 1 2 hours l.jpg
BRECKENRIDGE INSTALLATION IFCWTM WALL 4 FT X 90 FT 4 TO 6 MEN 1 ½ - 2 HOURS


Breckenridge mn wet side foundation flush to ground all standardized components l.jpg
BRECKENRIDGE, MN WET SIDE FOUNDATION FLUSH TO GROUND ALL STANDARDIZED COMPONENTS


Slide35 l.jpg
STORAGE 4 FT X 90 FT COMPLETE ONE PALLET 10 FT X 5 FT X 5 FT VERTICAL SUPPORTS, LOCKING HANDLES HOLD DOWN CLAMPS


Slide36 l.jpg
EAST GRAND FORKS, MN APRIL 2001 RED RIVER FLOOD GAUGE ON BRIDGE ABUTMENT 4/97 FLOOD OF RECORD ALMOST TO TOP


Ifcw tm east grand forks mn 2001 red river almost a flood within 1 ft of wall l.jpg
IFCWTM EAST GRAND FORKS, MN 2001 RED RIVER…ALMOST A FLOOD WITHIN 1 FT OF WALL


Slide38 l.jpg

EAST GRAND FORKS, MN IFCWTM “VISIBLE”MAXIMUM HEIGHT 10 FT ON TOP OF PARAPET WALL1997 FLOOD EQUAL TO LEVEL OF TOP OF CONCRETE WALLINTERMEDIATE AND PARTING SUPPORT INSTALLED


East grand forks mn ifcw tm same view invisible 99 of the time city emphasizing river heritage l.jpg
EAST GRAND FORKS, MN IFCWTM SAME VIEW “INVISIBLE” 99% OF THE TIME CITY EMPHASIZING RIVER HERITAGE


East grand forks mn april 2001 wet side visible parting supports maximum dimensions 14 ft x 880 ft l.jpg
EAST GRAND FORKS, MN APRIL 2001 WET SIDE “VISIBLE” – PARTING SUPPORTSMAXIMUM DIMENSIONS 14 FT X 880 FT


Wet side invisible life and business as usual no lack of investor confidence l.jpg
WET SIDE “INVISIBLE” LIFE AND BUSINESS AS USUAL NO LACK OF INVESTOR CONFIDENCE


East grand forks mn dry side partial installation diagonal braces not installed l.jpg
EAST GRAND FORKS, MN DRY SIDE PARTIAL INSTALLATION DIAGONAL BRACES NOT INSTALLED



Slide44 l.jpg
ON A COLD SPRING DAY, ONE CAN SEE THE PROMISE OF SUMMER SIDEWALK TABLES AND COMMUNITY ENJOYMENT OF THE RED RIVER THANKS TO THE IFCWTM


Slide45 l.jpg

IFCWTM…. SAVED A CITY’S SOUL PROVIDES BENIGN FLOOD PROTECTION $33 MILLION NEW BUSINESS INVESTMENT – 5 YEARS FLOURISHING CITY CENTER ST. PAUL DISTRICT “COE” AUSPICES


East grand forks mn ifcw tm award winning l.jpg
EAST GRAND FORKS, MNIFCWTM AWARD WINNING


Slide47 l.jpg

CLOSURE REVIEW SIMILAR TO OAK GROVE SCHOOL….VENLO, HOLLAND TYPICAL CLOSURE 8 FT X 20 FT – FLUSH SILL PLATE ABUTMENT CONTAINING LOCKING HANDLES


Slide48 l.jpg
CAIRO, IL REPETITIVE FLOOD HISTORY SOUTHERN TIP OF ILLINOIS PENINSULA FORMED BY MISSISSIPPI AND OHIO RIVERS


Slide49 l.jpg

MEMPHIS DISTRICT “COE” AUSPICES CAIRO, IL IFCWTM CLOSURES (6) DIMENSIONS 16 - 18 FT X 4 - 10 FT INSTALLATION VERTICAL SUPPORTS AND DIAGONAL BRACE


Cairo il wet side stacking aluminum planks two man job user friendly l.jpg
CAIRO, IL WET SIDE “STACKING” ALUMINUM PLANKS TWO MAN JOB – USER FRIENDLY


Slide51 l.jpg
CAIRO, IL OHIO RIVER DRY SIDE DIAGONAL BRACES….PIN CONNECTED THRUST SHOE/TENSION ROD “COE”…SOLE SOURCE PURCHASE


Slide52 l.jpg

CEDAR FALLS, IA ROCK ISLAND “COE” DISTRICT AUSPICES (3) CLOSURES WIDTH 20 FT HEIGHT 8 FTSTREET, RAILROAD, BICYCLE PATH104 FT X 7 FT WALL IFCWTM PROTECTS NATIONAL ARCHIVE BUILDING


Slide53 l.jpg
CEDAR FALLS, IA AUSPICES IFCWTM MORE INGENUITY! RAILWAY CLOSURE SPACER TO “BRIDGE” RAIL HEIGHT OTHERWISE STANDARD COMPONENTS


Shelby oh warehouse facility doors flood proofing attached to concrete foundation l.jpg
SHELBY, OH AUSPICES WAREHOUSE FACILITY DOORS FLOOD PROOFING ATTACHED TO CONCRETE FOUNDATION


Shipping ramp no problem l.jpg
SHIPPING RAMP… AUSPICES NO PROBLEM!


Louisville baseball stadium playing field access closure ohio river looms in background l.jpg
LOUISVILLE BASEBALL STADIUM AUSPICES PLAYING FIELD ACCESS CLOSURE OHIO RIVER LOOMS IN BACKGROUND


Closure 8 ft x 26 ft wet side view acceptance installation all components standardized l.jpg
CLOSURE 8 FT X 26 FT AUSPICES WET SIDE VIEW ACCEPTANCE INSTALLATION ALL COMPONENTS STANDARDIZED


Slide58 l.jpg

EAST GRAND FORKS, MN STATE HIGHWAY CLOSURE AUSPICES ONE OF THREE CLOSURES DIMENSION 60 FT X 14 FT IFCWTM “VISIBLE”….WET SIDE TWO MORE CURRENTLY BEING INSTALLED


East grand forks mn state highway 2 60 ft x 14 ft dry side visible diagonal braces l.jpg
EAST GRAND FORKS, MN STATE HIGHWAY 2 AUSPICES 60 FT X 14 FT DRY SIDE – “VISIBLE” DIAGONAL BRACES


Slide60 l.jpg
INVISIBLE CLOSURE AUSPICES 60 FT X 14 FTON A TYPICAL DAY….TRAFFIC PASSING THROUGH THE MAIN GATE CLOSURE INTO EAST GRAND FORKS CITY CENTER


Slide61 l.jpg

IFCW AUSPICES TM PROTECTS WORLD FAMOUS VELAUS RESTAURANT VENLO, HOLLAND MAAS RIVER 1996 FLOOD LEVEL TO WINDOW SILL RESTAURANT – VISUAL PLEASURE OF CLASSIC RIVERSIDE VIEW


Venlo holland sill plate standard components a city center thriving with ifcw tm l.jpg
VENLO, HOLLAND AUSPICES SILL PLATE – STANDARD COMPONENTS A CITY CENTER THRIVING WITH IFCWTM


Fargo nd fargodome university of north dakota l.jpg
FARGO, ND….FARGODOME AUSPICES UNIVERSITY OF NORTH DAKOTA


Slide64 l.jpg
OVERLAND FLOODING YEAR 2000 AUSPICES INDOOR STADIUM FLOODED….BUILDING AND FIELD INUNDATED….SOLUTION IFCWTMINVISIBLE WALL 110 FT X 8 FT


Repetitive theme standardized components from venlo holland to fargo nd l.jpg
REPETITIVE THEME..STANDARDIZED COMPONENTS AUSPICES FROM VENLO, HOLLAND TO FARGO, ND


Ifcw tm invisible ifcw tm is a problem solver over 40 installations in u s l.jpg
IFCW AUSPICES TM – “INVISIBLE”IFCWTM….IS A PROBLEMSOLVEROVER (40) INSTALLATIONS IN U.S.


Flood control america invisible flood control wall tm www floodcontrolam com l.jpg
FLOOD CONTROL AMERICA AUSPICES INVISIBLE FLOOD CONTROL WALLTMwww.floodcontrolam.com
