  1. Efficient Runtime Policy Enforcement Using Counterexample-Guided Abstraction Refinement Matt Fredrikson, Rich Joiner, SomeshJha, Tom Reps, Phillip Porras, HassenSaïdi, VinodYegneswaran Funded by:

  2. Outline • Ensuring safety properties: current practice • CEGAR: program verification • IRM: filtering program behavior • SafetyWeave: a hybrid approach • Implementation and experimental results

  3. CEGAR Invalid counter-example Model Refinement No counter-examples Source Code “Verified” Model Construction Model Checking Safety Property Counterexample Trace Valid counter-example

  4. CEGAR Issues • Computational complexity • Model grows exponentially with each refinement step • May not terminate (in our lifetimes) • Statically indeterminable behavior • Higher-order functions • Dynamic scope • No recourse for valid counterexamples • Requires manual intervention Takeaway: CEGAR can be an expensive analysis

  5. Runtime Enforcement Source Code Dynamically-filtered Source Code Inlined Reference Monitoring Safety Property ÚlfarErlingsson, Fred B. Schneider, “The inlinedreferencemonitor approach to security policy enforcement,” 2004

  6. var state = 0; if (state == 0 && check("var d = document", "call(document.getElementById)")) state = 1; if (state == 0 && check("var d = document", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("var d = document", "set(document.cookie)")) halt(); 1 var d = document; if (state == 0 && check("varf = d.getElementById", "call(document.getElementById)")) state = 1; if (state == 0 && check("varf = d.getElementById", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("varf = d.getElementById", "set(document.cookie)")) halt(); 2 var f = d.getElementById; if (state == 0 && check("vart = f('secret')", "call(document.getElementById)")) state = 1; if (state == 0 && check("var t = f('secret')", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("var t = f('secret')", "set(document.cookie)")) halt(); 3 var t = f('secret'); if (state == 0 && check("if (t)", "call(document.getElementById)")) state = 1; if (state == 0 && check("if (t)", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("if (t)", "set(document.cookie)")) halt(); 4 if (t) { if (state == 0 && check("d.cookie= t.innerHTML", "call(document.getElementById)")) state = 1; if (state == 0 && check("d.cookie= t.innerHTML", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("d.cookie= t.innerHTML", "set(document.cookie)")) halt(); 5d.cookie = t.innerHTML; 6 } IRM Example var state = 0; if (state == 0 && check("var d = document", "call(document.getElementById)")) state = 1; if (state == 0 && check("var d = document", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("var d = document", "set(document.cookie)")) halt(); 1 var d = document; if (state == 0 && check("varf = d.getElementById", "call(document.getElementById)")) state = 1; if (state == 0 && check("varf = d.getElementById", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("varf = d.getElementById", "set(document.cookie)")) halt(); 2 var f = d.getElementById; if (state == 0 && check("vart = f('secret')", "call(document.getElementById)")) state = 1; if (state == 0 && check("var t = f('secret')", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("var t = f('secret')", "set(document.cookie)")) halt(); 3 var t = f('secret'); if (state == 0 && check("if (t)", "call(document.getElementById)")) state = 1; if (state == 0 && check("if (t)", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("if (t)", "set(document.cookie)")) halt(); 4 if (t) { if (state == 0 && check("d.cookie= t.innerHTML", "call(document.getElementById)")) state = 1; if (state == 0 && check("d.cookie= t.innerHTML", "call(document.getElementsByTagName)")) state = 1; if (state == 1 && check("d.cookie= t.innerHTML", "set(document.cookie)")) halt(); 5d.cookie = t.innerHTML; 6 } 1 var d = document; 2 var f = d.getElementById; 3 var t = f('secret'); 4 if (t) { 5d.cookie = t.innerHTML; 6 } 1 var d = document; 2 var f = d.getElementById; 3 var t = f('secret'); 4 if (t) { 5d.cookie = t.innerHTML; 6 } Safety property: Don’t inspect the document prior to assigning to the cookie. Safety property: Don’t inspect the document prior to assigning to the cookie.

  7. IRM Issues • Runtime overhead • Spurious instrumentation placement • Programs run slower Takeaway: IRM can be expensive at runtime

  8. The Idea • Combine CEGAR and IRM • Statically remove naïve IRM instrumentation • Limit the size of the abstract program model

  9. Rewritten Program var state = 0; 1 var d = document; 2 var f = d.getElementById; if (state == 0 && check("vart = f('secret')", "call(document.getElementById)")) state = 1; 3 var t = f('secret'); 4 if (t) { if (state == 1 && check("d.cookie= t.innerHTML", "set(document.cookie)")) halt(); 5d.cookie = t.innerHTML; 6 } 1 var d = document; 2 var f = d.getElementById; 3 var t = f('secret'); 4 if (t) { 5d.cookie = t.innerHTML; 6 } Safety property: Don’t inspect the document prior to assigning to the cookie.

  10. The SafetyWeave Algorithm • INPUT: Program, safety property • OUTPUT: Rewritten program • Sound • Rewritten program proven safe w.r.t. the property • All benign execution is preserved • Language-independent • Tunable tradeoff between static and dynamic overhead • Always terminates Characteristics

  11. Safety Properties • Temporal state traces that a program should not exhibit • Can be encoded as an automaton with state predicateslabeling the edges call(document.getElementById) set(document.cookie) A B C * * call(document.getElementsByTagName)

  12. Invalid counter-example Model Refinement Source Code Key Insight: CEGAR analysis used to minimize IRM instrumentation No counter-examples Verified, Instrumented Source Code Model Construction Model Checking Safety Property Source CodeRewriting Valid counter-example

  13. Model Refinement Source Code Key Insight: Number of predicates learned limited to ensure termination No counter-examples Verified, Instrumented Source Code Model Construction Model Checking Safety Property Abstraction Limit Reached Source CodeRewriting

  14. Prototype Implementation • JaM is the JavaScript Model Checker • Why JavaScript? • Pervasive on the Internet • Code often comes from many authors • Libraries, advertisements, mash-ups, web service interfaces • JavaScript is challenging to analyze statically • Higher-order functions, scope-resolution rules, writable native objects

  15. Deployment Scenario JaM is part of a DARPA clean-slate security effort Verified online ad service JaM analysis server Website owners: JaM Ads entreprenuer:

  16. Model Refinement Source Code OpenNWA XSB, Kaluza/Yices Verified, Instrumented Source Code Model Construction Model Checking Safety Property Closure Compiler Source CodeRewriting

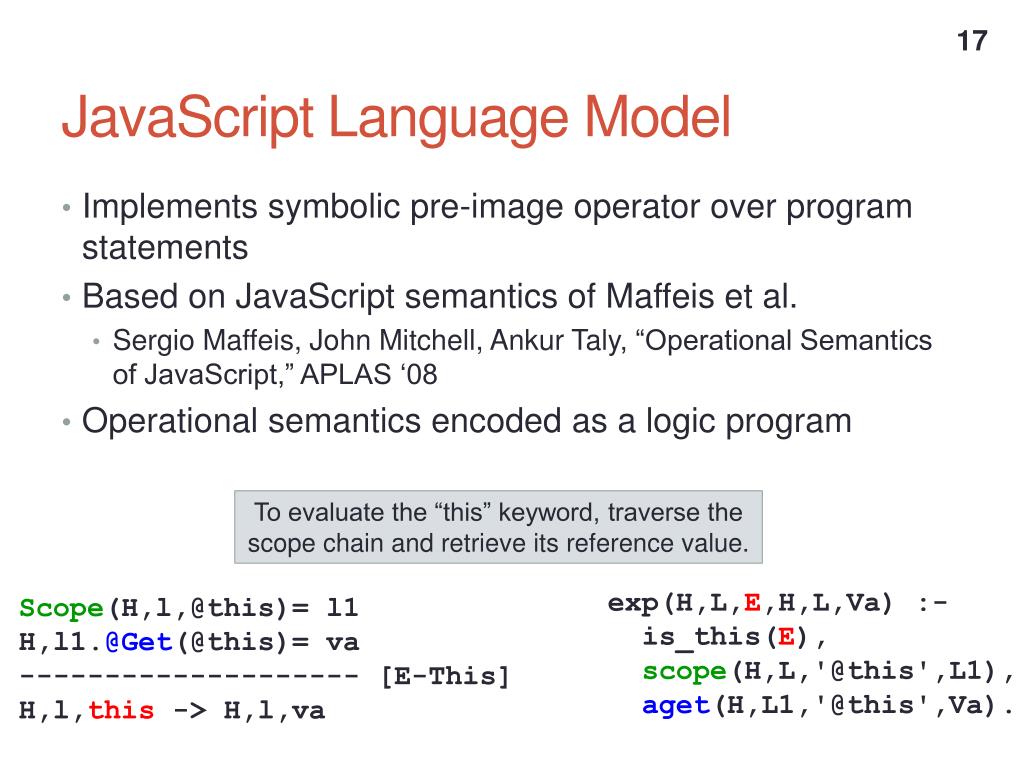

  17. JavaScript Language Model • Implements symbolic pre-image operator over program statements • Based on JavaScript semantics of Maffeis et al. • Sergio Maffeis, John Mitchell, AnkurTaly, “Operational Semantics of JavaScript,” APLAS ‘08 • Operational semantics encoded as a logic program To evaluate the “this” keyword, traverse the scope chain and retrieve its reference value. exp(H,L,E,H,L,Va) :- is_this(E), scope(H,L,'@this',L1), aget(H,L1,'@this',Va). Scope(H,l,@this)= l1 H,l1.@Get(@this)= va -------------------- [E-This] H,l,this -> H,l,va

  18. Applications and Policies • Benchmark applications • 12 real programs used on the WWW • Range from 25 to 4000 lines • Exercise a wide range of JavaScript coding patterns and constructs • JaM safety properties • Communication with external hosts • Modification of persistent storage to reflect page contents • Creation of foreign pop-up dialog boxes • DOM access/modification

  19. Experimental Results • Initial abstract model (without refinement) • Program model composed of predicates used in safety property • 89% to 100% of statements deemed safe • Effect of model refinement • 5 of 12: required no refinement • 5 of 12: reduced spurious counterexamples by learning 1 to 4 predicates

  20. Invalid counter-example Model Refinement Source Code No counter-examples Verified, Instrumented Source Code Model Construction Model Checking Safety Property Abstraction Limit Reached Source CodeRewriting Valid counter-example

  21. Complete Results

  22. A Simple Example: Program & Policy 1 api[0] = readFile; 2 api[1] = sendPacket; 3 while (true) { 4 instr, data = read(); 5 api[instr](data); 6 } call readHistory call sendPacket A B C * call readFile *

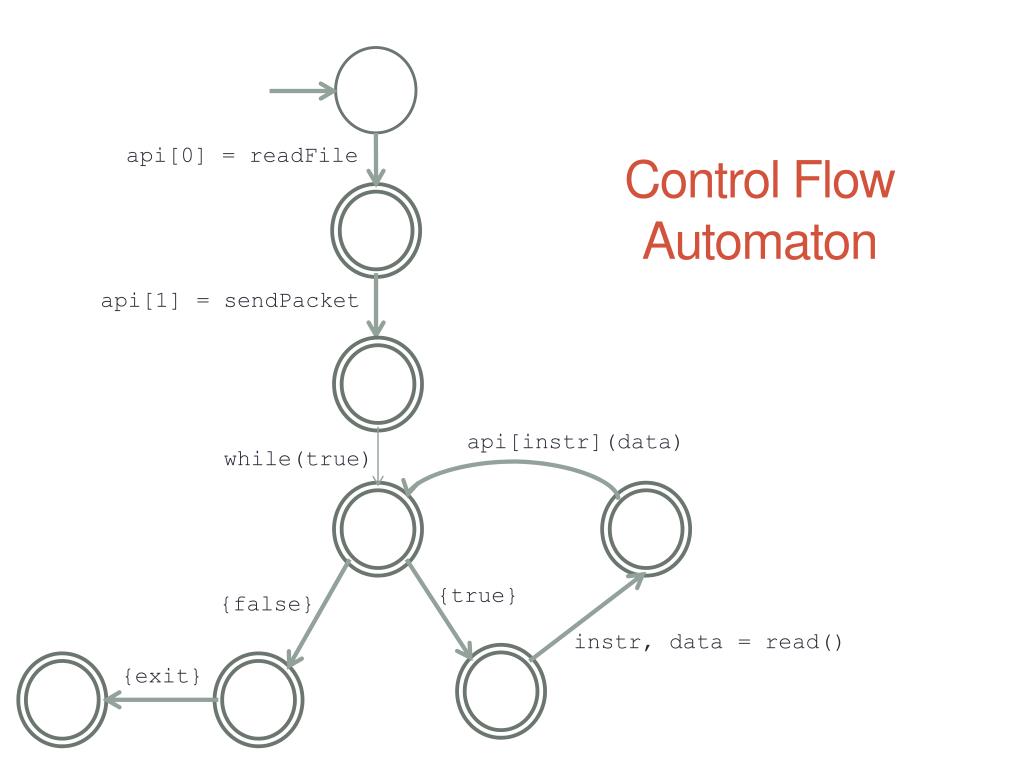

  23. Control Flow Automaton api[0] = readFile api[1] = sendPacket api[instr](data) while(true) {true} {false} instr, data = read() {exit}

  24. Data Automaton α: call readFile β: call readHistory γ: call sendPacket !α !β !γ !α α [Self-edges omitted for sanity] !β !β γ !γ !α β !γ
