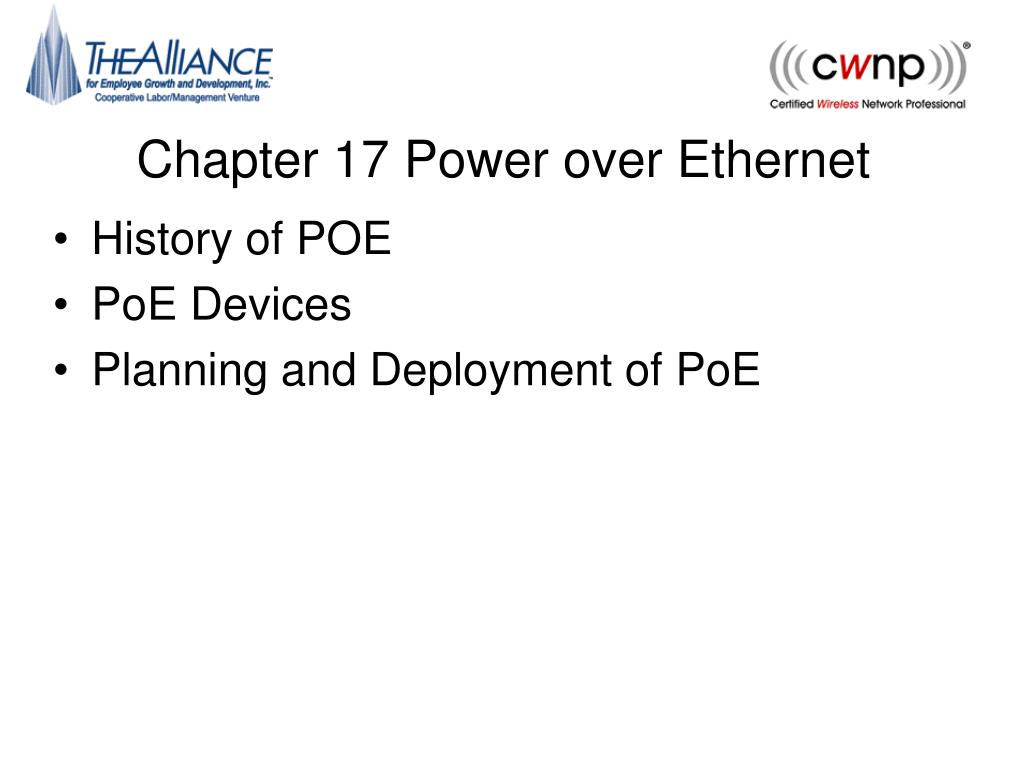

  1. Chapter 17 Power over Ethernet • History of POE • PoE Devices • Planning and Deployment of PoE

  2. Exam Essentials • Know the history of PoE. • Make sure you know the history of PoE, the original 802.3af amendment, and current references to IEEE Std. 802.3-2005, Clause 33. • Know the different PoE devices and how they interoperate. • Make sure you know the different PoE devices and their roles in providing PoE. Make sure you understand how the following devices work: powered device (PD), power-sourcing equipment (PSE), endpoint PSE , and midspan PSE. • Know the different device classes and the classification process. • Make sure you know the five device classes and how the classification process works to determine the class of a powered device. Know how much current each class of devices uses along with how much power the PSE generates for each class of devices.

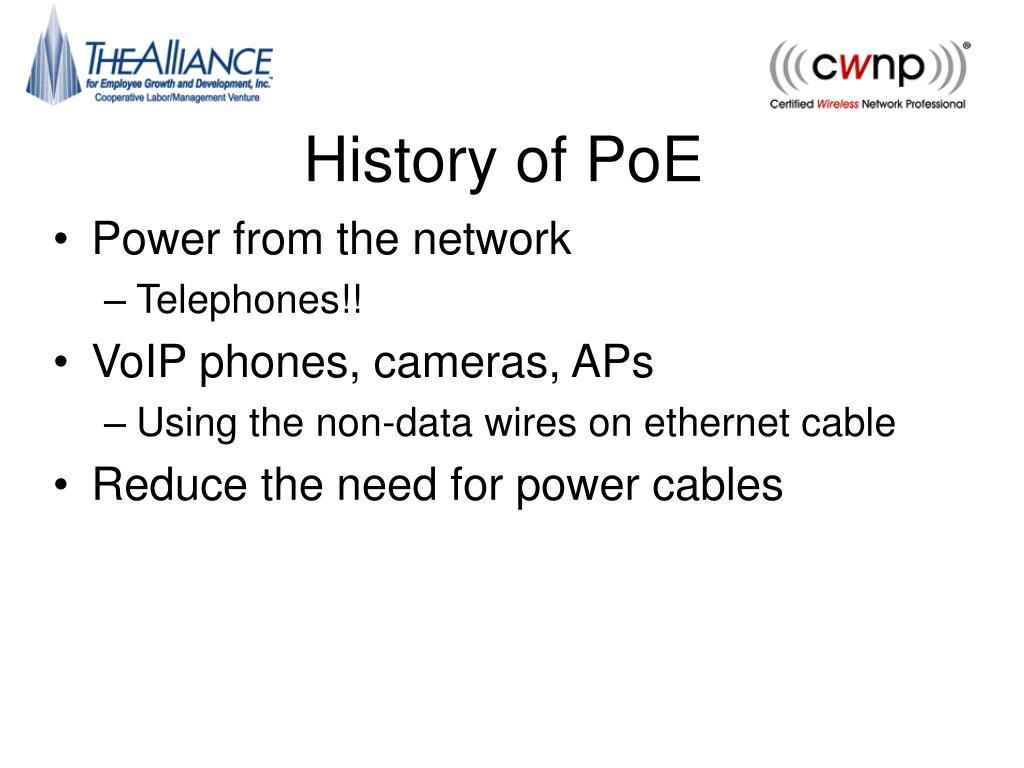

  3. History of PoE • Power from the network • Telephones!! • VoIP phones, cameras, APs • Using the non-data wires on ethernet cable • Reduce the need for power cables

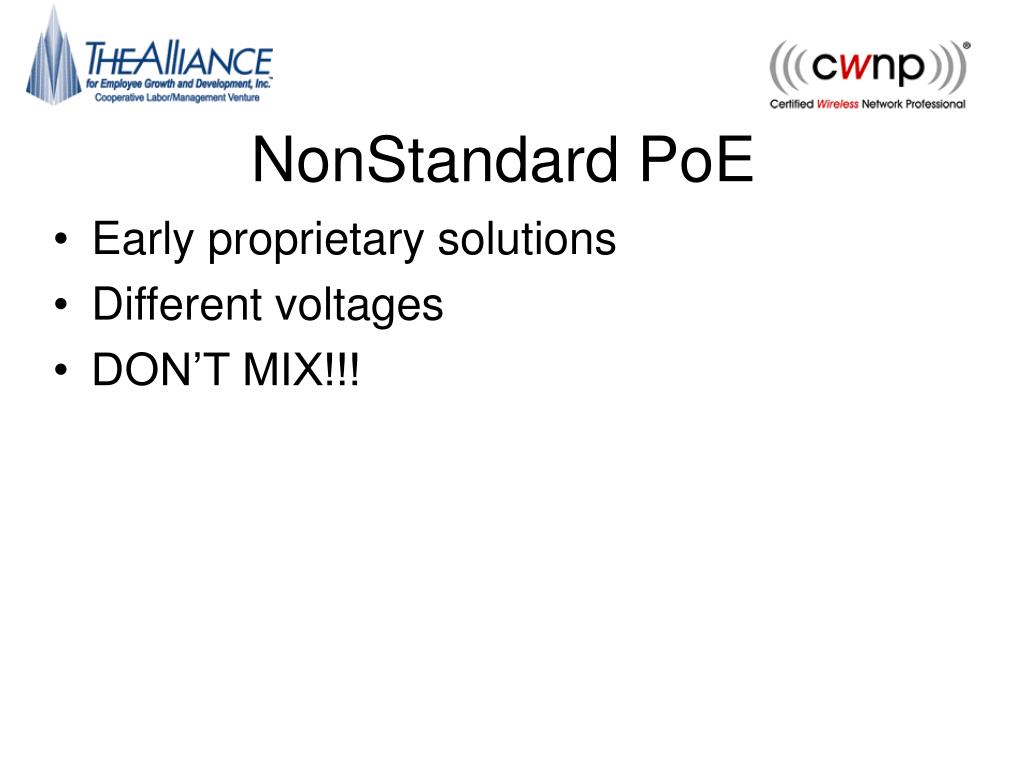

  4. NonStandard PoE • Early proprietary solutions • Different voltages • DON’T MIX!!!

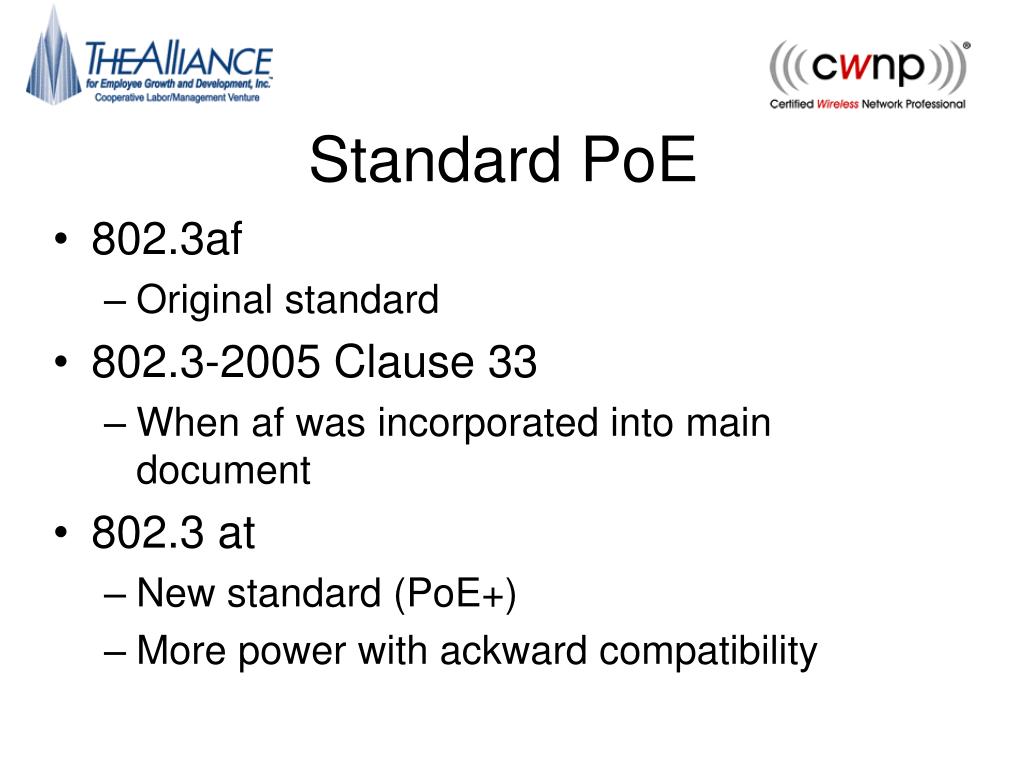

  5. Standard PoE • 802.3af • Original standard • 802.3-2005 Clause 33 • When af was incorporated into main document • 802.3 at • New standard (PoE+) • More power with ackward compatibility

  6. PoE Devices • Powered Device • Draw power-up to 57 volts • AP or phone

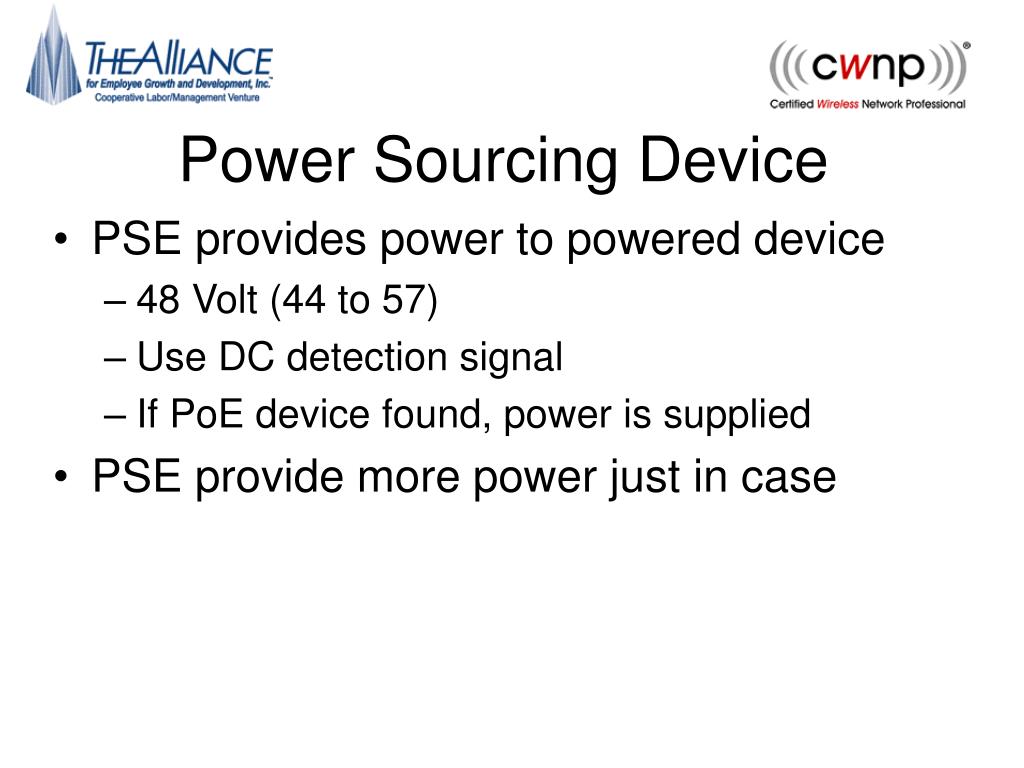

  7. Power Sourcing Device • PSE provides power to powered device • 48 Volt (44 to 57) • Use DC detection signal • If PoE device found, power is supplied • PSE provide more power just in case

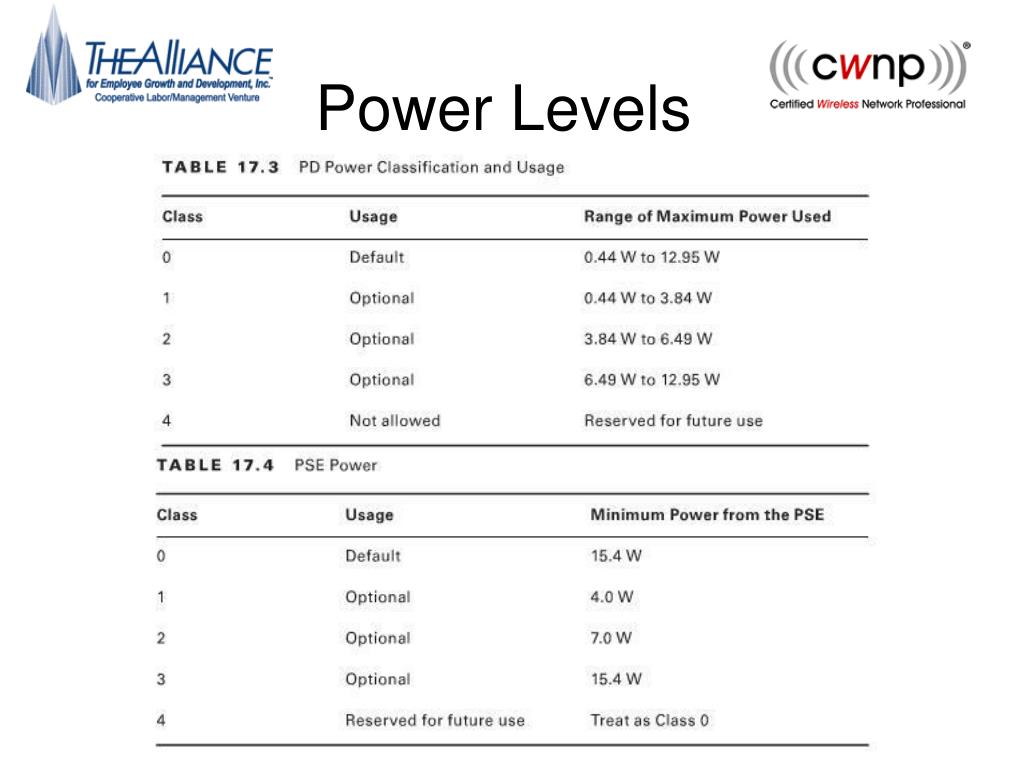

  8. Power Levels

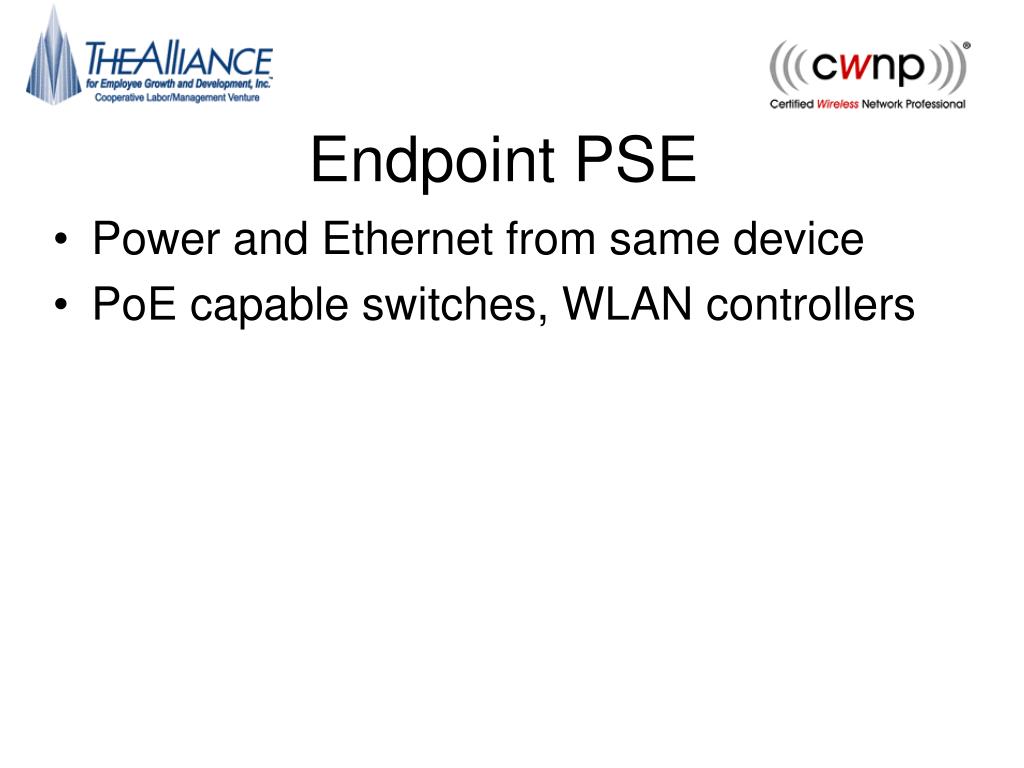

  9. Endpoint PSE • Power and Ethernet from same device • PoE capable switches, WLAN controllers

  10. Mindspan PSE • Pass though devices • Add power to ethernet cable • Don’t need to replace current equipment

  11. Pin Assignements

  12. Planning and Deploying PoE • Power Planning • How many devices will be powered • Must make a power budget • Will device classify itself? • Redundancy • What is the backup?

  13. Exam Essentials • Know the history of PoE. • Make sure you know the history of PoE, the original 802.3af amendment, and current references to IEEE Std. 802.3-2005, Clause 33. • Know the different PoE devices and how they interoperate. • Make sure you know the different PoE devices and their roles in providing PoE. Make sure you understand how the following devices work: powered device (PD), power-sourcing equipment (PSE), endpoint PSE , and midspan PSE. • Know the different device classes and the classification process. • Make sure you know the five device classes and how the classification process works to determine the class of a powered device. Know how much current each class of devices uses along with how much power the PSE generates for each class of devices.
