Installation Tips to Maximize Gantry Crane Stability and Strength

A gantry crane is a large, heavy-duty crane used for lifting and moving heavy materials, often found in shipyards, warehouses, or construction sites. It consists of a bridge supported by two or more legs that move along tracks. The crane's hoist and trolley system allow it to lift and transport materials vertically and horizontally. Gantry cranes are essential for handling large loads in confined spaces, offering high efficiency and flexibility in various industrial applications.

elvish1
Download Presentation

Installation Tips to Maximize Gantry Crane Stability and Strength

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

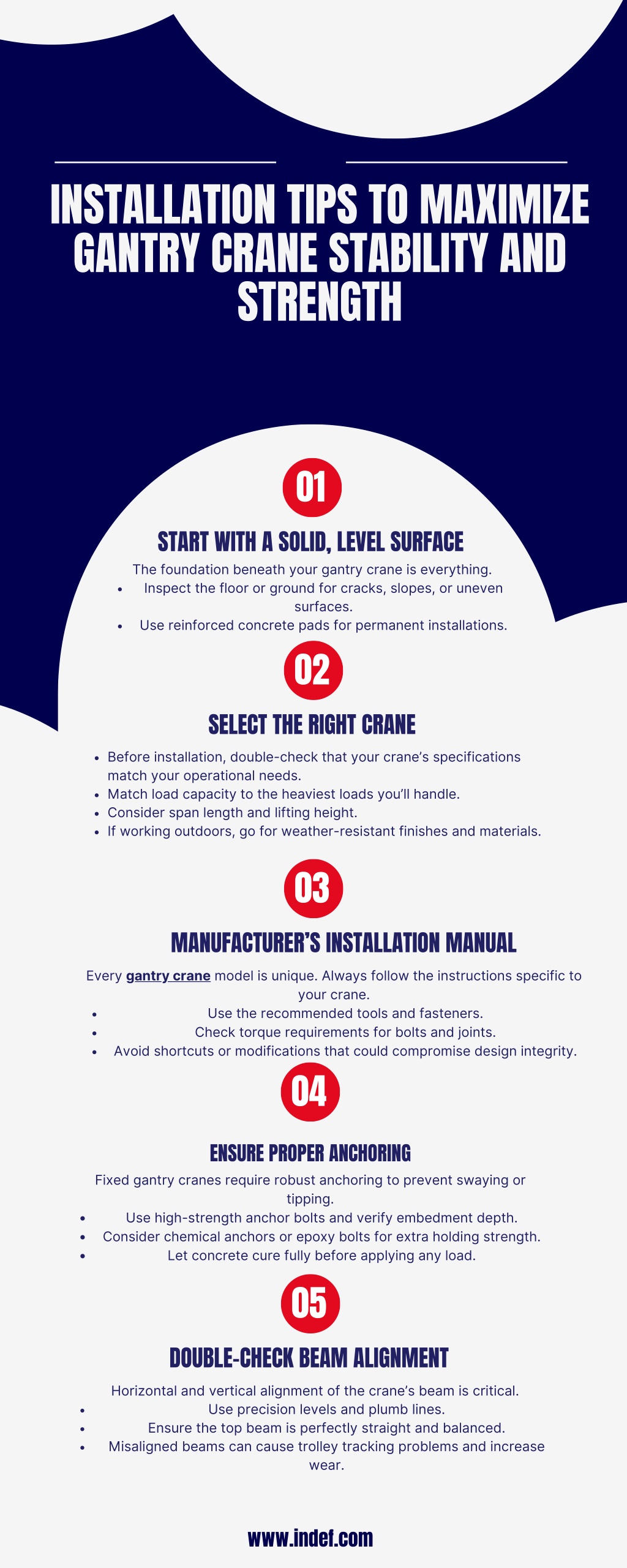

  1. INSTALLATION TIPS TO MAXIMIZE GANTRY CRANE STABILITY AND STRENGTH 01 START WITH A SOLID, LEVEL SURFACE The foundation beneath your gantry crane is everything. Inspect the floor or ground for cracks, slopes, or uneven surfaces. Use reinforced concrete pads for permanent installations. 02 SELECT THE RIGHT CRANE Before installation, double-check that your crane’s specifications match your operational needs. Match load capacity to the heaviest loads you’ll handle. Consider span length and lifting height. If working outdoors, go for weather-resistant finishes and materials. 03 MANUFACTURER’S INSTALLATION MANUAL Every gantry crane model is unique. Always follow the instructions specific to your crane. Use the recommended tools and fasteners. Check torque requirements for bolts and joints. Avoid shortcuts or modifications that could compromise design integrity. 04 ENSURE PROPER ANCHORING Fixed gantry cranes require robust anchoring to prevent swaying or tipping. Use high-strength anchor bolts and verify embedment depth. Consider chemical anchors or epoxy bolts for extra holding strength. Let concrete cure fully before applying any load. 05 DOUBLE-CHECK BEAM ALIGNMENT Horizontal and vertical alignment of the crane’s beam is critical. Use precision levels and plumb lines. Ensure the top beam is perfectly straight and balanced. Misaligned beams can cause trolley tracking problems and increase wear. www.indef.com
