keeping hot chips cool

Circuits R-US

Keeping Hot Chips Cool

Ruchir Puri, Leon Stok, Subhrajit Bhattacharya

IBM T.J. Watson Research Center

Yorktown Heights, NY

so what s going on
So, What’s Going On ?
  • At 65nm node Static Power is equal to Active Power
    • Clock distribution accounts for half of active power
low power opportunities

5%

10%

15%

20%

Exploiting positive slacks

Power4 Timing Histogram

Low Power Opportunities
  • Most of the Power reduction techniques exploit this positive slack.
low power levers
Low Power Levers
  • Structural Techniques
    • Voltage Islands
    • Multi-threshold devices
    • Multi-oxide devices
    • Minimize capacitance by custom design
    • Power efficient circuits
    • Parallelism in micro-architecture
  • Dynamic Techniques
    • Clock gating
    • Power gating
    • Variable frequency
    • Variable voltage supply
    • Variable device threshold
outline
Outline

Clock & Latch

Optimization

Voltage

Islands

Power

Gating

Leakage Power

Active Power

Clock Power

outline8
Outline

Clock & Latch

Optimization

Voltage

Islands

Power

Gating

Leakage Power

Active Power

Clock Power

minimizing active power coarse grained voltage islands
Minimizing Active Power:Coarse Grained Voltage Islands
  • Trade off power for delay by running functional blocks at different voltages
  • Can use mix of Low and High Vt to balance performance and leakage
  • Switch off inactive blocks to reduce leakage power
  • High VT
  • E.g.: Telecom ASIC 1.0/1.2 V islands saved:

16 % active power

50 % standby power

fine grained voltage islands

Secondary power drop

Vddh = 1.5V

Vddl = 1.2V

Fine-Grained Voltage Islands

PowerPC 405

  • No timing degrade, and no area increase for the core!
outline11
Outline

Clock & Latch

Optimization

Voltage

Islands

Power

Gating

Leakage Power

Active Power

Clock Power

minimizing clock power local clock buffer latch clustering

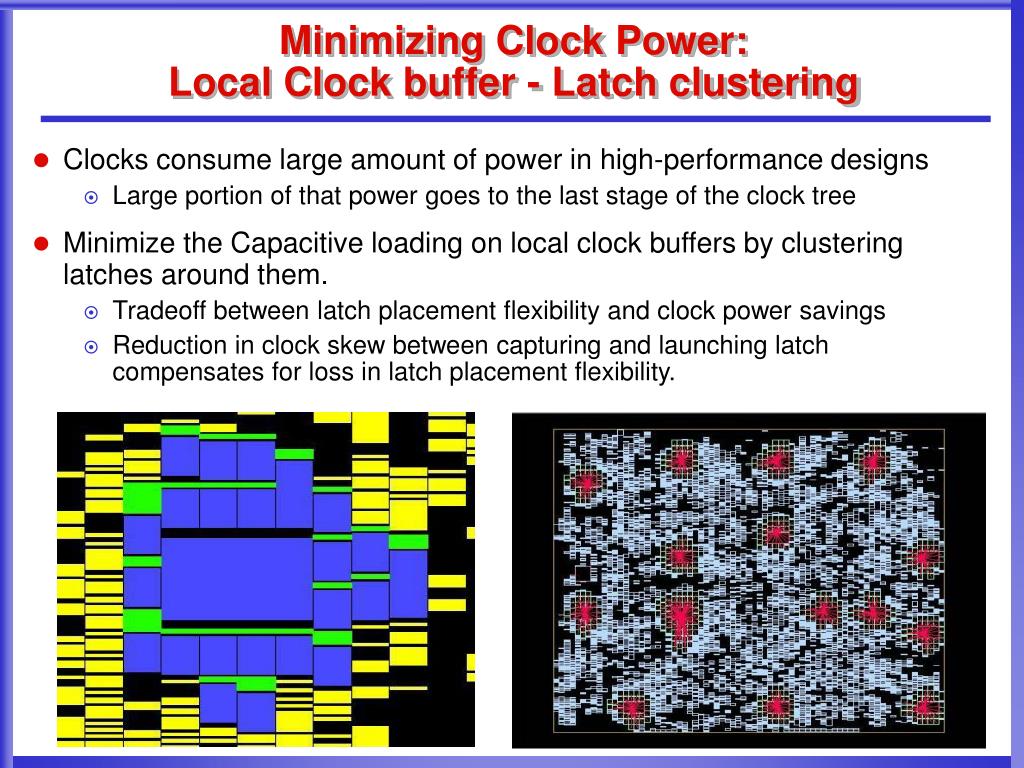

Minimizing Clock Power:Local Clock buffer - Latch clustering
  • Clocks consume large amount of power in high-performance designs
    • Large portion of that power goes to the last stage of the clock tree
  • Minimize the Capacitive loading on local clock buffers by clustering latches around them.
    • Tradeoff between latch placement flexibility and clock power savings
    • Reduction in clock skew between capturing and launching latch compensates for loss in latch placement flexibility.
clock power savings
Clock Power Savings
  • Reduces total capacitance on the local clock buffer by 25%
  • Direct savings in clock power in the Random Control Logic
outline14
Outline

Clock & Latch

Optimization

Voltage

Islands

Power

Gating

Leakage Power

Active Power

Clock Power

minimizing leakage power power supply gating
Minimizing Leakage Power:Power Supply Gating
  • Leakage power is now more than switching power
    • Limits the performance of microprocessors
  • Power gating is one of the most effective ways of minimizing leakage power
    • Cut-off power to inactive units/components
      • Dynamic/workload based power gating
    • Reduces both gate and sub-threshold leakage
    • Over 20-2000x reduction in leakage with little or no cycle time penalty.
slide16

Power Gating Concept

Performance on Demand

Dedicated Units

off

on

P1

P2

P1

P2

L2

L2

P4

P4

P3

P3

More Power Available to Scalar Units

Higher SPEC Performance

Dedicated Units Available for

Higher Application Performance

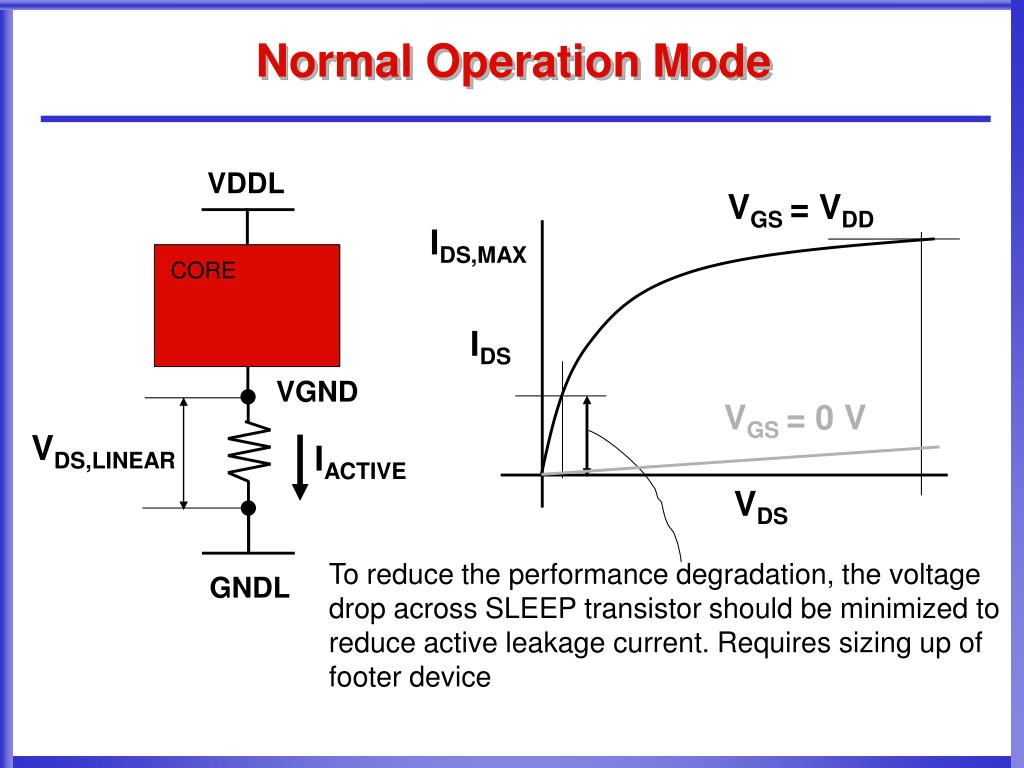

normal operation mode

VDDL

VGS = VDD

IDS,MAX

CORE

IDS

VGND

VGS = 0 V

VDS,LINEAR

IACTIVE

VDS

To reduce the performance degradation, the voltage drop across SLEEP transistor should be minimized to reduce active leakage current. Requires sizing up of footer device

GNDL

Normal Operation Mode
sleep mode
Sleep Mode

VDDL

VGS = VDD

IDS,MAX

CORE

IDS

VGND

VGS = 0 V

VDS

During the sleep mode, all of the internal capacitive nodes and VGND node are charged up to near VDD. Requires sizing down of footer device to reduce standby leakage.

GNDL

wake up mode

VDDL

VGS = VDD

IDS,MAX

CORE

IDS

VGND

VGS = 0 V

ITURN_ON

Rs

VDS

When the SLEEP transistor is turned on,

the maximum instant current can flow.

Requires sizing up of footer device.

GNDL

Wake-Up Mode
sleep wake run state control
Sleep / Wake / Run State Control

assert

run

Exit sleep

state

assert

wake

disable

fence

discharge

off

&

run

deassert

wake/run

enable

fence

Enter sleep

state

off

run

charge

)

discharge cycle

(wake)

charge cycles

sleep

sleep

run

(idle)

slide21

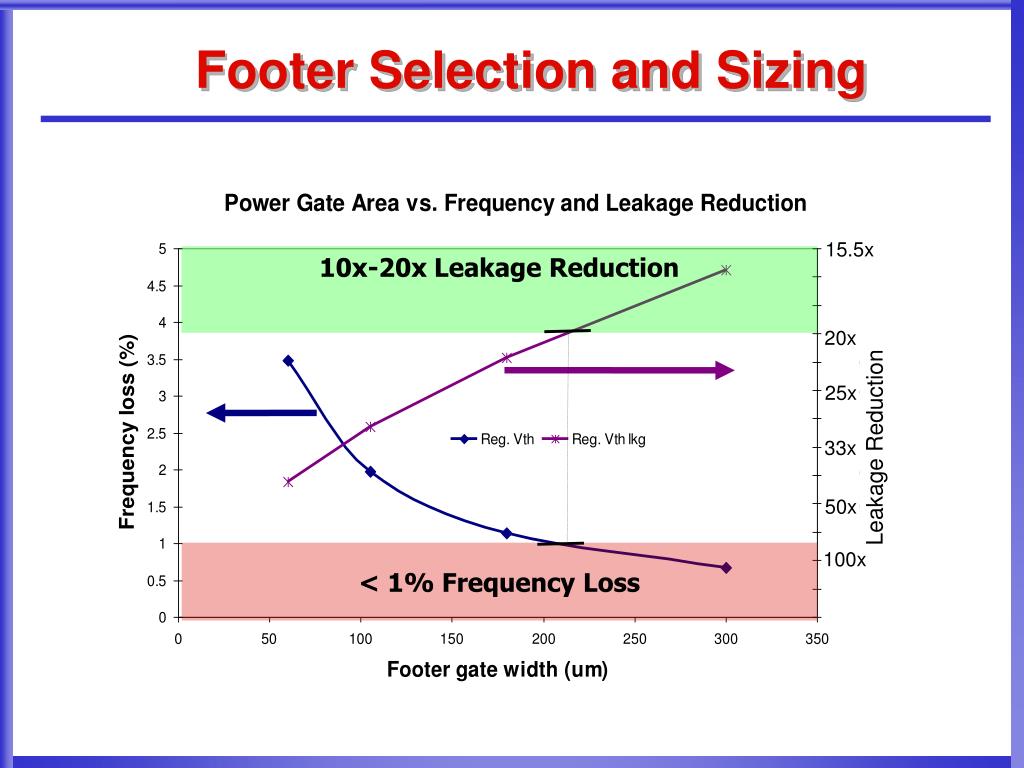

Footer Selection and Sizing

15.5x

10x-20x Leakage Reduction

20x

25x

Leakage Reduction

33x

50x

< 1% Frequency Loss

100x

power vs performance tradeoff
Power vs Performance Tradeoff

130nm Hardware

~8% Performance Degradation Due to Sleep Transistor with 1% area overhead

Target Specification: 250MHz at 0.9V ~ 500MHz at 1.4V

1% footer size is used for a 2-stage pipelined 40-bit ALU

sleep transistor sizing and performance
Sleep Transistor Sizing and Performance

130nm Hardware

Less Than 2%

Performance

Degradation

More Than 8%

Performance

Degradation

leakage power reduction
Leakage Power Reduction

130nm Hardware

Leakage Suppression Using VDD Scaling

~8.4 x

~2000 x

Leakage Suppression using Power Gating Structure with 1% area overhead

physical design internal footer switch
Physical Design:Internal Footer Switch
  • Internal fine-grained power gating is more efficient in addressing:
    • Electro-Migration and Current Delivery.
ground redistribution
Ground Redistribution

The ‘real’ chip-level ground distribution is M4 and above. It is unchanged by power gating

Global ground

Virtual ground

M3

This part of the redistribution is electrically similar to an unmodified distribution

V2

M2

V1

M1

Contact

Logic Device

Footer Cell

physical design footer insertion
Physical Design: Footer Insertion

Footer Rows

Without Footers

With Footers

power gating in high performance
Power Gating in High-Performance

Gated and non-gated

logic haveidentical width

5% total area overhead

for power gating

20X leakage reduction

<1% performance degradation

Non-gated Logic

Gated Logic

conclusions
Conclusions
  • Power is the limiting factor in traditional CMOS scaling and must be dealt with aggressively
    • Controlling leakage is crucial for future scaling
    • Power gating and voltage islands are effective techniques to minimize leakage and active power
    • Special consideration to clock distribution must be given in high performance designs to minimize clock power
  • In order to keep hot chips cool, a holistic power minimization approach across the whole design stack is required which must include :
    • Device level techniques
    • Circuit level techniques
    • System level power management
