Presentation Transcript

  1. ASUS Networking

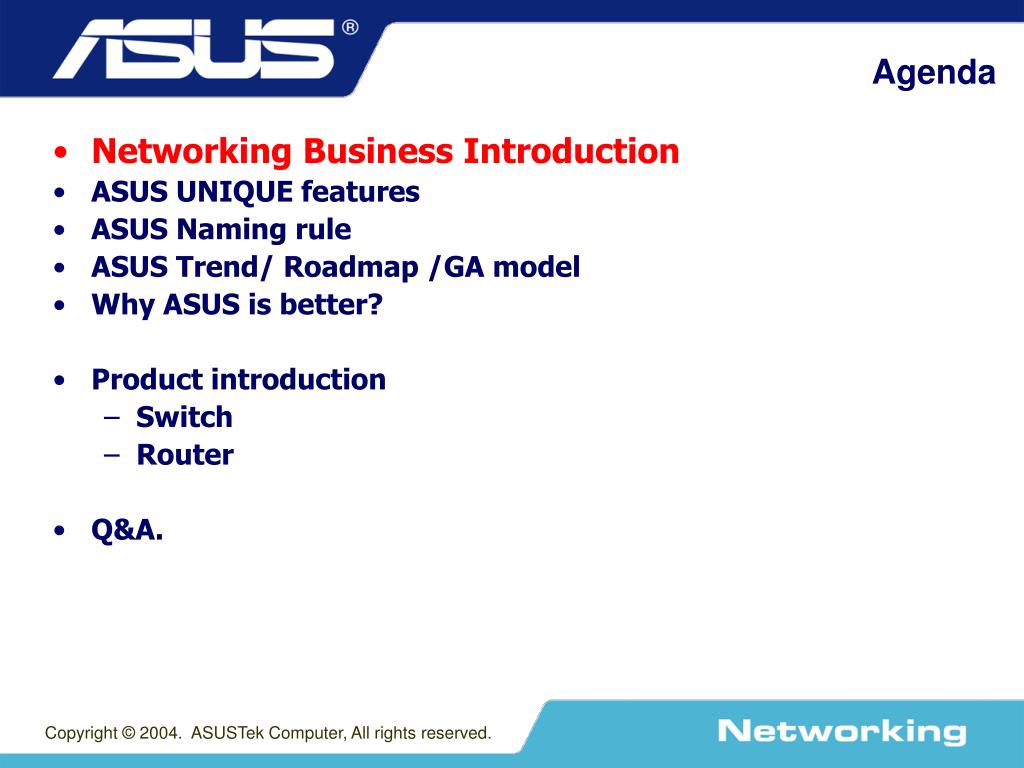

  2. Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction • Switch • Router • Q&A.

  3. Networking Product Segmentation • High-end (Core) • For service provider, carrier • Multi-service switch/router, core router • Middle-end (Distribution) • For enterprise, and middle size office. • Managed switch, Layer 3 switch, • middle-end router, VPN gateway. ASUS Low-end (Access) - For SOHO market - ADSL modem/router, Cable modem/router, - IP sharing gateway, VOIP gateway, 802.11 - modem/AP, unmanaged low port switch

  4. ASUS Price Strategy Cisco 3Com Price ASUS Linksys Netgear D-Link

  5. What do you want from your Networking equipment? Reliable 可信賴感 High Performance 高效能?? Feature Rich 高規格&高標準??? Easy to use

  6. Winner of Taiwan 2004 “Symbol of Excellence” Award Winners SL 1000 SL 500 Reliable Advanced EMI Testing Advanced Thermal Testing Winner of Taiwan 2005 “Symbol of Excellence” Award Winners Winner of Taiwan 2006 “Symbol of Excellence” Award Winners GigaX 2048 GigaX 3112F GigaX 3112 GigaX 2024B GigaX 2024X GigaX 1024P GigaX 2024 GigaX 2008EX RX 3042H GigaX 1108N GigaX 1116

  7. 榮獲台灣精品獎的肯定!! Winner of Taiwan " Symbol of Excellence" award 最高品質與超強功能!!!!

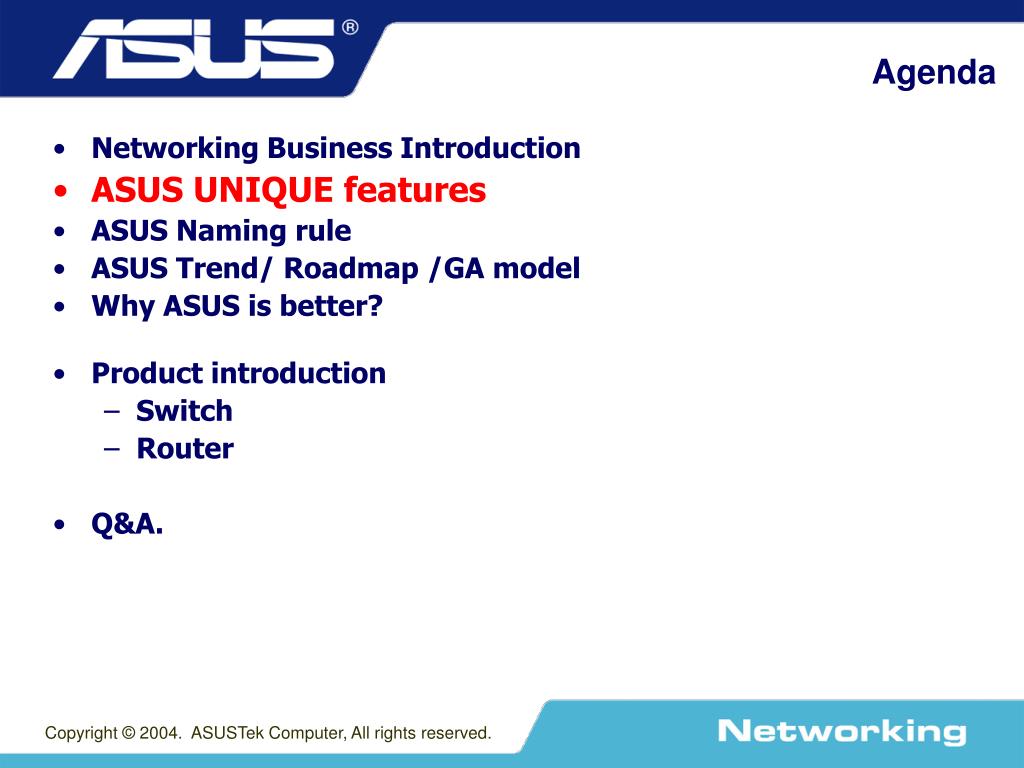

  8. Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction • Switch • Router • Q&A.

  9. Feature Rich Extra Secure Brackets Swappable Fan Module USB + RS232 Console Redundant Power Supply

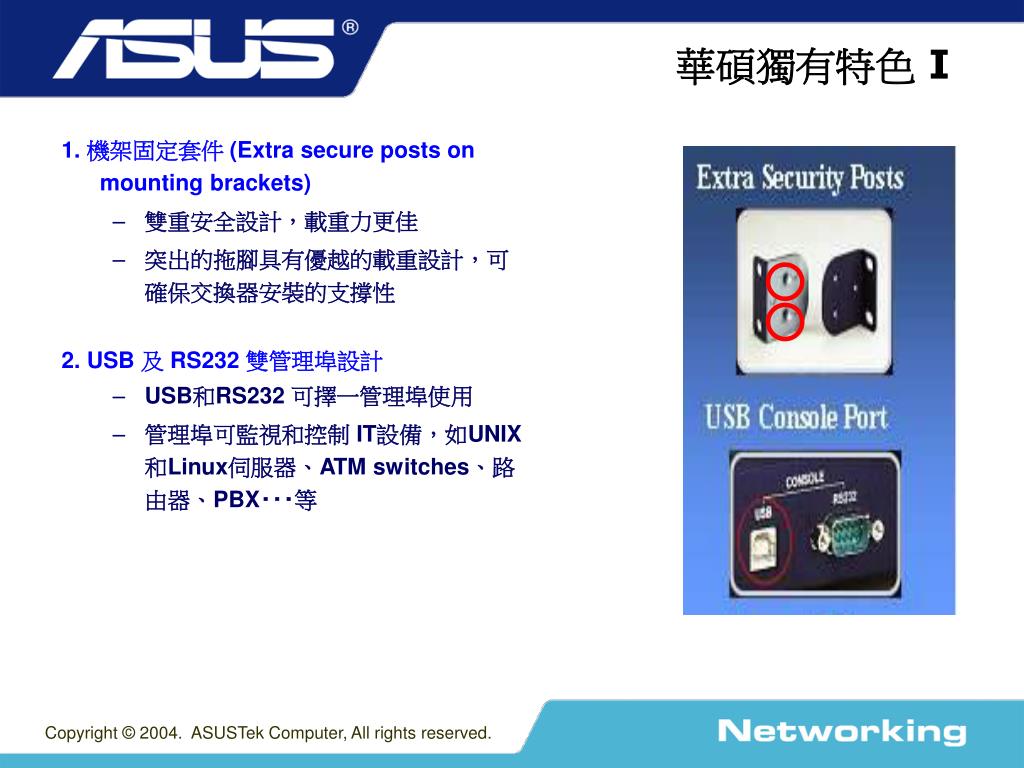

  10. 華碩獨有特色 I 1. 機架固定套件 (Extra secure posts on mounting brackets) • 雙重安全設計,載重力更佳 • 突出的拖腳具有優越的載重設計,可確保交換器安裝的支撐性 2. USB 及 RS232 雙管理埠設計 • USB和RS232 可擇一管理埠使用 • 管理埠可監視和控制 IT設備,如UNIX和Linux伺服器、ATM switches、路由器、PBX‧‧‧等

  11. 華碩獨有特色 II 3. 可抽換式風扇 • 二台熱抽換式系統風扇 • 風扇可獨立更換 4. 備援電源 (RPS) • 基本系统僅內建电源供應器,另一组电源供應器機框閒置 • 第二个电源可選購,作為 1+1 備援 • 在其中一组电源供應器故障情况下,另一個備援电源供應器即可馬上發揮效用

  12. 華碩獨有特色 III 5.獨家Q-FAN技術 • 降低擾人噪音,噪音值降低到僅有 28 分貝 ( 符合 ISO-7779 標準 ) • 華碩 Q-Fan 技術能夠根據系統負載與溫度自動調整 CPU 的風扇速度,以確保使用者能在安靜的、不受雜音干擾的工作環境,安心使用 6.支援雙韌體映像檔(Dual Code Image of Firmware) • 華碩把兩個不同版本的韌体(F/W) 合成於同一記憶体中 • 透過獨立運作,可成功解決了韌体升級失敗所導致系統無法正常運作的問題

  13. ANWM – ASUS Networking 瀏覽器(Web-based)管理介面 功能 網路協定設定管理 韌體升级實體埠端管控橋接器簡單網路管理協議組態設定過濾器 產品特色 ASUS圖形化埠端管理介面。 埠端狀態及監控埠連结、風扇和 備用電源的狀態即時顯示。 人性化的瀏覽器(Web-based)管理介 面,圖形化介面可控制各連接埠。

  14. 人性化介面,操作容易 Tagged VLAN IP Filtering Permit/Deny Port/VLAN ID and Priority Link Aggregation Spanning Tree SNMP Traffic Monitoring

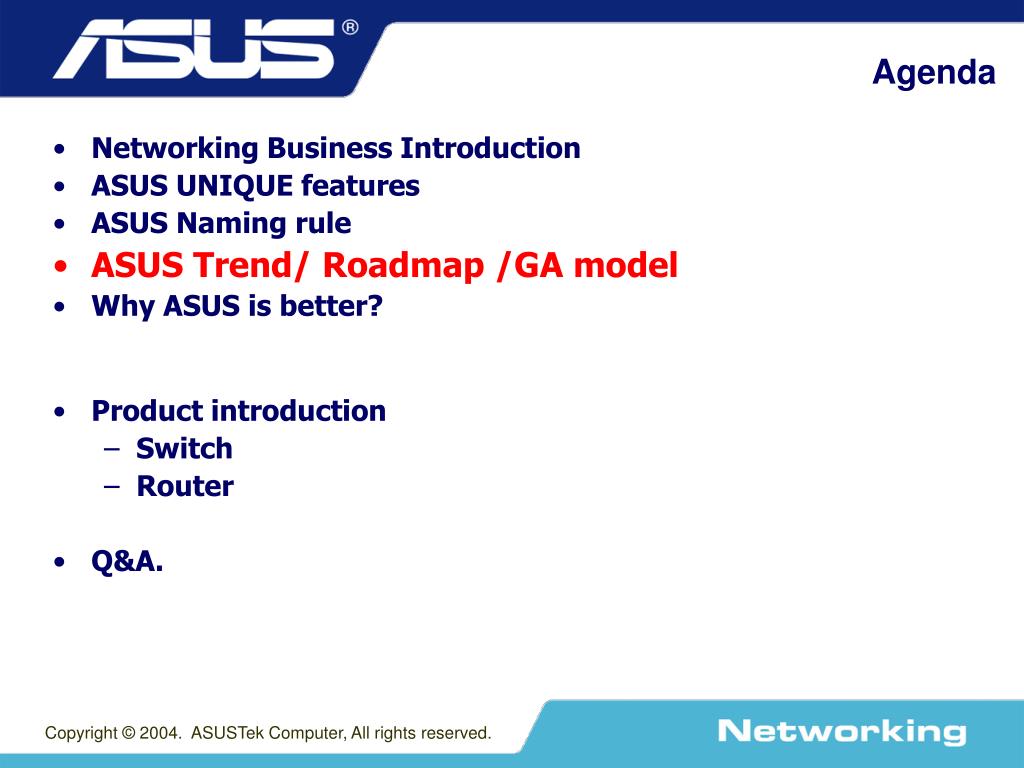

  15. Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction • Switch • Router • Q&A.

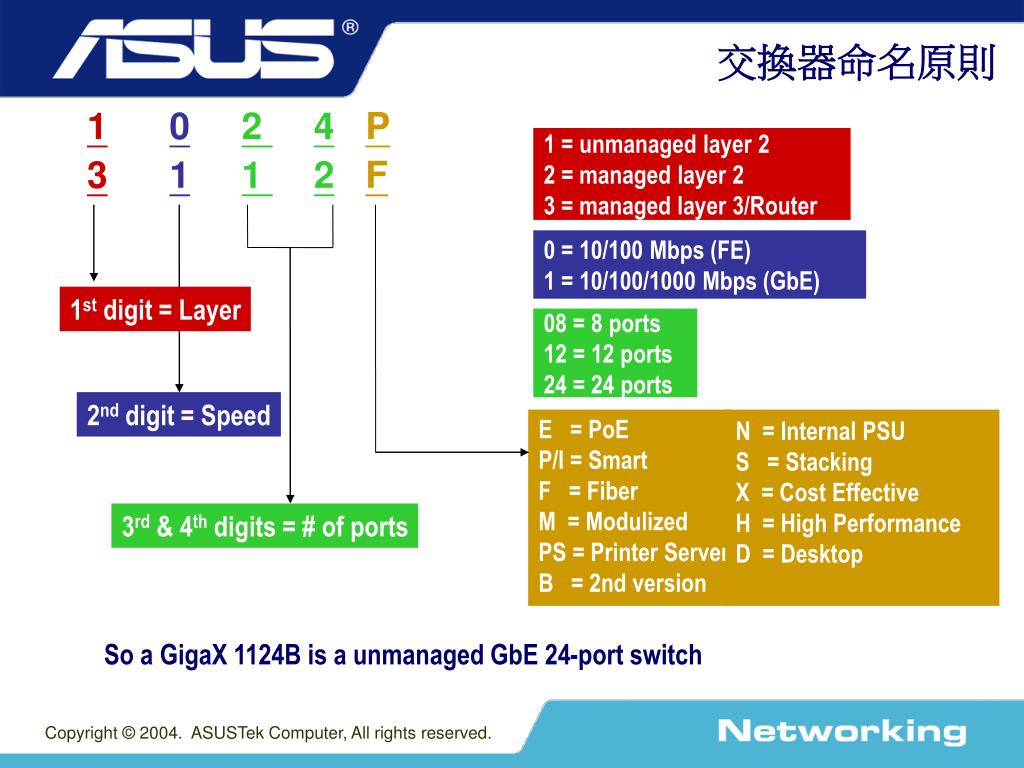

  16. 交換器命名原則 102 4P 311 2F 1 = unmanaged layer 2 2 = managed layer 2 3 = managed layer 3/Router 0 = 10/100 Mbps (FE) 1 = 10/100/1000 Mbps (GbE) 1st digit = Layer 08 = 8 ports 12 = 12 ports 24 = 24 ports 2nd digit = Speed E = PoE P/I = Smart F = Fiber M = Modulized PS = Printer Server B = 2nd version N = Internal PSU S = Stacking X = Cost Effective H = High Performance D = Desktop 3rd & 4th digits = # of ports So a GigaX 1124B is a unmanaged GbE 24-port switch

  17. Router Naming Principle SLseries RX304 2H SL: Security Router SL-200 / SL-300 / SL-1200 (VPN Router) 1st digit = Layer 3 = Router 2nd digit = Speed H = High Performance D = Desktop 0 = 10/100 Mbps (FE) 1 = 10/100/1000 Mbps (GbE) 3rd digits = # of LAN ports; 4th digits = # of WAN pots 41 = 4 LAN + 1 WAN 42 = 4 LAN + 2 WAN So RX 3041 is a 4 LAN + 1 WAN Router

  18. Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction • Switch • Router • Q&A.

  19. Switch Roadmap New GigaX3112F 12-port combo GbE L3 GigaX2024M 24 FE + 2GbE Managed L2 PR Oct.MP: Mar. GigaX2124X 24-port GbE L2 Enterprise GigaX3024X 24-port FE +2-port GbE L3 Enterprise GigaX2024B 24 FE + 2 GbE Managed L2 MP:Nov. GigaX2016X/2024X 16/24 FE + 2 GbE Managed L2 GigaX2008EX 8-port FE + 2 GbE Managed L2 w/POE GigaX1124i+ 24-port GbE Smart L2 GigaX1116i+ 16-port GbE Smart L2 SMB SMB GigaX1124B 24-port GbE L2 GigaX1116B 16-port GbE L2 New GigaX1024i+ 24-port FE Smart L2 GigaX1016 16-port FE L2 Switch GigaX1108N 8-port GbE L2 (internal PSU) GigaX1105N 5-port GbE L2 (internal PSU) Home / SOHO GigaX1008N 8-port FE L2 (internal PSU) GigaX1005N 5-port FE L2 (internal PSU) New GigaX1008B 8-port FE L2 MP: Oct. GigaX1005B 5-port FE L2 MP:Oct NOW Q2 2007 Q4 Q1 2007 Q3

  20. 2007 Router Roadmap SL 1200 PR: Nov, MP: Dec. Security Router VPN Tunnel: 60 SMB New RX 3042H MP: Nov. 10/100 Mbps Router 4 LAN +2 WAN RX 3141 Gigabit Router 4 LAN + 1 WAN New WIFI VoIP Router AX-112W VoIP ATA/AP/Router/Firewall PR: Feb. MP: Mar SL 300 PR: Feb, MP: Mar. Security Router VPN Tunnel: 3 SL 200 PR: Dec. MP: Jan. Security Router VPN Tunnel: 2 Home/SOHO New RX 3041 10/100 Mbps: SOHO Router/ 4 LAN +1 WAN NX1101 GbE PCI LAN Card NX1001 10/100Mbps PCI LAN Card Q2 2007 Q3 Q4 2006 Q1 2007 NOW

  21. Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction • Switch • VoIP • Q&A.

  22. ASUS Switch Web GUI Static Addresses Table Static Multicast Tagged VLAN IP Filtering Permit/Deny Physical Interfaces Spanning Tree CoS Queue Mapping Link Aggregation Dynamic Addresses Table Port/VLAN ID and Priority MAC Filtering Permit/Deny SNMP Traffic Monitoring

  23. ASUS Centralized Network Management • Innovative management Software for all ASUS Smart Switches • Windows-based system: • For Windows 2000, ME and XP. • Full-function Configurations • Trunk and Link Aggregation • VLAN, port-based with tag recognition • Bandwidth control • CoS and QoS Priority Queues. • Real-time Network Monitoring: • Port traffic comparison, Traffic History • Auto Discovery • Discover all switches on the • LAN automatically. • Topology Tree • Display the relationships of switch nodes in a tree list.

  24. 啟動網路安全防護 Dynamic VLAN Assignment within 802.1x 允許動態 VLAN分派(assignment)的 IEEE 802.1x

  25. Greater Productivity and Security Unwanted Guest Your Current Network No Security Meeting room Sales Connected to Sales LAN Connected to Finance LAN Finance

  26. Greater Productivity and Security 具備動態 VLAN分派(assignment)的 IEEE 802.1x --可允許動態 VLAN分派到個別使用者,無論使用者在哪連線 Your Network Made Better With ASUS Meeting room Connected to Finance LAN Connected to Sales LAN 802.1x Security with Dynamic VLAN Assignment Sales Connected to Sales LAN Connected to Sales LAN Finance

  27. Greater Productivity and Security Unauthorized NO Connection Your Network Made Better With ASUS Unwanted Guest 802.1x Security with Dynamic VLAN Assignment Meeting room Sales IEEE 802.1x 不允許沒有 802.1x 的客戶端存取 VLAN Finance

  28. Agenda • Networking Business Introduction • ASUS UNIQUE features • ASUS Naming rule • ASUS Trend/ Roadmap /GA model • Why ASUS is better? • Product introduction • Switch • Router • Q&A.

  29. GigaX3112F • 12 埠 10/100/1000Mbps + 12 埠 Combo SFP擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D Spanning Tree Protocol • 802.1p COS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • RIPv1, RIPv2 and OSPF • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 8 priority queues • Multicast filtering and snooping • Access Control Lists • 管理介面 • Web GUI, Console via RS-232, USB, Telnet and SSH

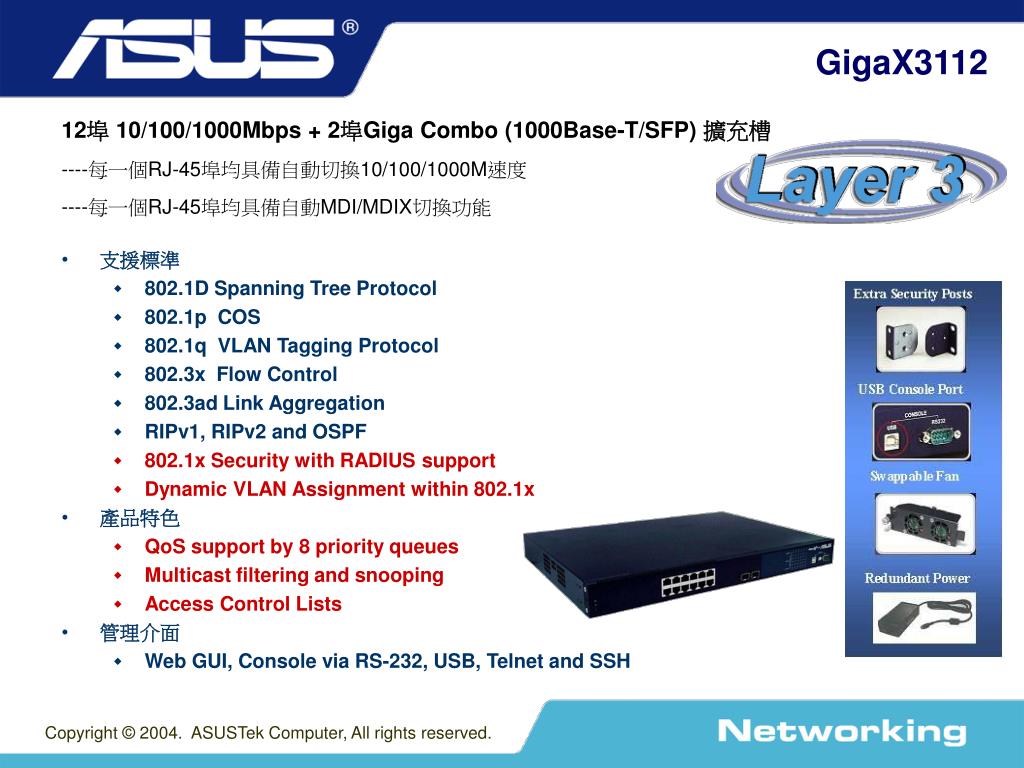

  30. GigaX3112 • 12埠 10/100/1000Mbps + 2埠Giga Combo (1000Base-T/SFP) 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D Spanning Tree Protocol • 802.1p COS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • RIPv1, RIPv2 and OSPF • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 8 priority queues • Multicast filtering and snooping • Access Control Lists • 管理介面 • Web GUI, Console via RS-232, USB, Telnet and SSH

  31. GigaX3024X • 24 埠 10/100Mbps + 2 埠Giga Combo (1000Base-T/SFP) 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D Spanning Tree Protocol • 802.1p COS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • RIPv1, RIPv2 and OSPF • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 4 priority queues • Multicast filtering and snooping • Access Control Lists • 管理介面 • Web GUI, Console via RS-232, USB, Telnet and SSH

  32. GigaX2124X • 24埠 10/100/1000Mbps + 4埠Combo SFP 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D Spanning Tree Protocol • 802.1w Rapid Spanning Tree Protocol • 802.1p CoS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 4 priority queues • Multicast filtering and snooping • 管理介面 • Web GUI, Console via RS-232, USB, and Telnet

  33. GigaX2024M • 24埠 10/100Mbps + 2 埠Giga Combo (1000Base-T/SFP) 擴充槽+擴充模組 (Modual slot) • ----每一個RJ-45埠均具備自動切換10/100M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1S MSTP, 802.1D Spanning Tree Protocol • 802.1w Rapid Spanning Tree Protocol • 802.1p CoS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 4 priority queues • Multicast filtering and snooping • Access Control Lists • Stacking Modual • 管理介面 • Web GUI, Console via RS-232, USB, and Telnet • Cisco-like Command Line Interface

  34. GigaX2048 • 48 埠 10/100Mbps + 2 埠Giga Combo (1000Base-T/SFP) 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D Spanning Tree Protocol • 802.1w Rapid Spanning Tree Protocol • 802.1p CoS Priority Queues • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 4 priority queues • Multicast filtering and snooping • Access Control Lists • 管理介面 • Web GUI, Console via RS-232, USB, Telnet and SSH

  35. GigaX2024B • 24 埠 10/100Mbps + 2 埠Giga Combo (1000Base-T/SFP) 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D, 802.1w, 802.1s Spanning Tree Protocols • 802.1p CoS Priority Queues • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 4 priority queues • Multicast filtering and snooping • Access Control Lists • 管理介面 • Web GUI, Console via RS-232, USB, Telnet and SSH • Cisco-like Command Line Interface

  36. GigaX2024X • 24 埠 10/100Mbps + 2 埠Giga Combo (1000Base-T/SFP) 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D Spanning Tree Protocol • 802.1w Rapid Spanning Tree Protocol • 802.1p CoS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 4 priority queues • Multicast filtering and snooping • 管理介面 • Web GUI, Console via RS-232, USB, and Telnet

  37. 8埠支援PoE網路供電埠 減少電源線部署成本 Web-based 管理介面 8埠支援PoE網路供電埠 文字 集中管理, 減少電源消耗 降低管理負擔 隨插即用 電源集中管理, 減少消耗 乙太網路供電交換器 Model:GX2008EX 乙太網路供電(PoE) 交換器

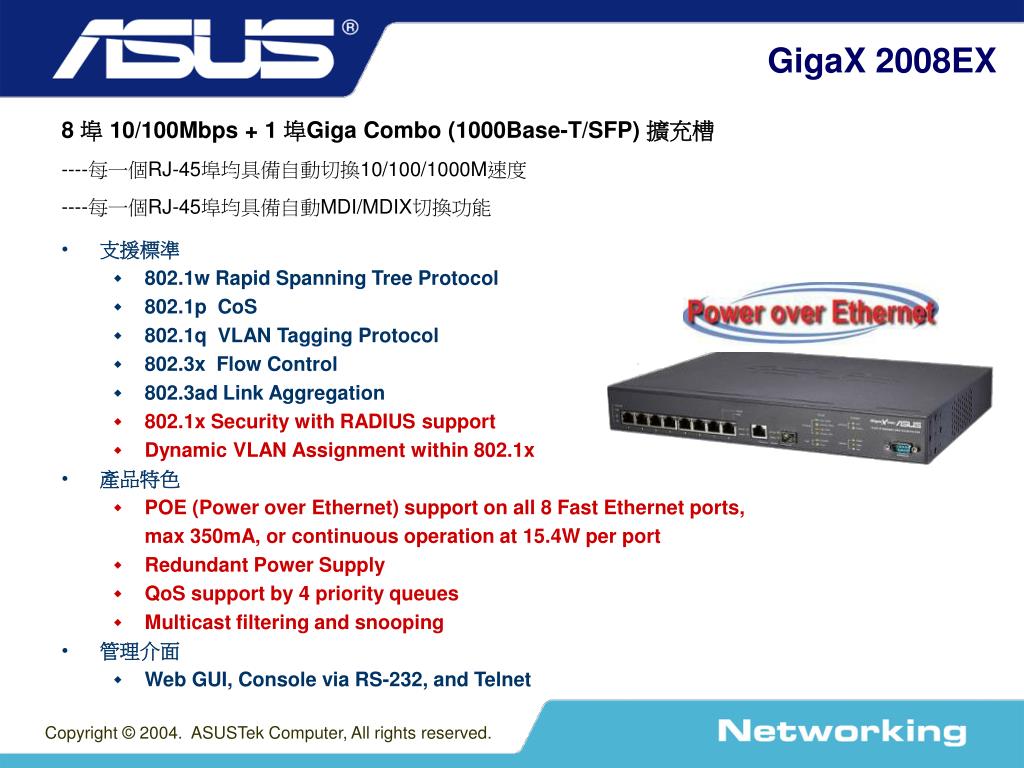

  38. GigaX 2008EX • 8 埠 10/100Mbps + 1 埠Giga Combo (1000Base-T/SFP) 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1w Rapid Spanning Tree Protocol • 802.1p CoS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • POE (Power over Ethernet) support on all 8 Fast Ethernet ports, max 350mA, or continuous operation at 15.4W per port • Redundant Power Supply • QoS support by 4 priority queues • Multicast filtering and snooping • 管理介面 • Web GUI, Console via RS-232, and Telnet

  39. GigaX1116i+/1124i+ • 16/24 埠 10/100/1000Mbps + 4 埠Giga Combo (SFP) 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D Spanning Tree Protocol • 802.1w Rapid Spanning Tree Protocol • 802.1p CoS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 4 priority queues • Multicast filtering and snooping • Source IP filtering • 管理介面 • Web GUI ,CLI and Telnet

  40. GigaX1024i+ • 24 埠 10/100Mbps + 2 埠Giga 1000Base-T+2埠 Giga SFP 擴充槽 • ----每一個RJ-45埠均具備自動切換10/100/1000M速度 • ----每一個RJ-45埠均具備自動MDI/MDIX切換功能 • 支援標準 • 802.1D Spanning Tree Protocol • 802.1w Rapid Spanning Tree Protocol • 802.1p CoS • 802.1q VLAN Tagging Protocol • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1x Security with RADIUS support • Dynamic VLAN Assignment within 802.1x • 產品特色 • QoS support by 4 priority queues • Multicast filtering and snooping • SNMP v1,v2,v3 • 管理介面 • Web GUI and Telnet

  41. GigaX1024P • 24埠 10/100Mbps + 2 埠Giga 1000Base-T 擴充槽 • 19” Rackmount Design • Auto Negotiation for Speed and Duplex Mode • 每一個RJ-45埠均具備自動MDI/MDIX切換功能 • Non-Blocking Wire Speed Performance • 802.3x 流量控制 • 2 Copper 1000Base-T on GX1024P switch • Easy to read LEDs • Provides quick overview of connection status • CNM Lightly Managed Switch • Bundle with window based software to • Discover switches in the LAN • Configure features on switches • Monitor status and get statistics • Bandwidth control • Price competitive with unmanaged switches

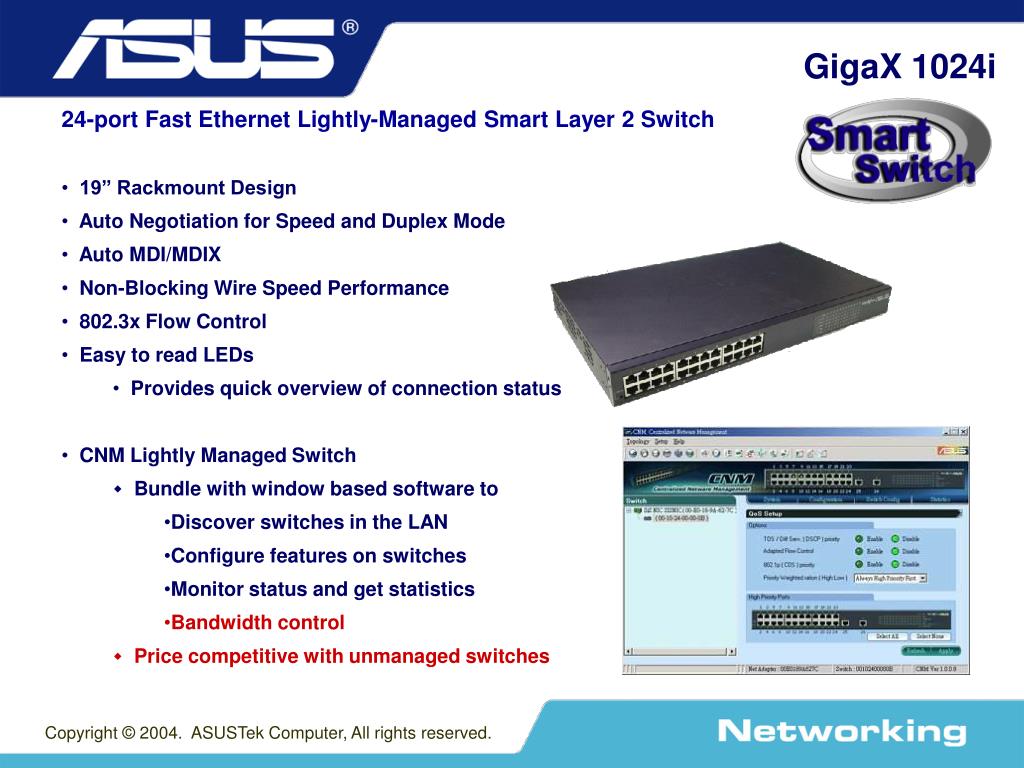

  42. GigaX 1024i • 24-port Fast Ethernet Lightly-Managed Smart Layer 2 Switch • 19” Rackmount Design • Auto Negotiation for Speed and Duplex Mode • Auto MDI/MDIX • Non-Blocking Wire Speed Performance • 802.3x Flow Control • Easy to read LEDs • Provides quick overview of connection status • CNM Lightly Managed Switch • Bundle with window based software to • Discover switches in the LAN • Configure features on switches • Monitor status and get statistics • Bandwidth control • Price competitive with unmanaged switches

  43. GigaX1124B and GigaX1116B • 16/24埠 10/100/1000Mbps + 4 埠Giga Combo SFP 擴充槽 • 16/24-port 10/100/1000 Mbps Copper Gigabit Ethernet (RJ-45) • Allows for easy migration to Gigabit using your existing Category 5 cables • No need to deal with complicated fiber. • 4 SFP ports for Gigabit Fiber support (1000Base-X) • Plug and Play • Auto MDI/MDIX detection and correction • Auto-sensing on speed and duplex mode • Easy to read LEDs • Provides quick overview of connection status • Up to 2Gbps for all ports • Non-Blocking Wire Speed Performance • 802.3x Flow Control • Source Address Learning and Aging Function • 19” 1U Rackmount design

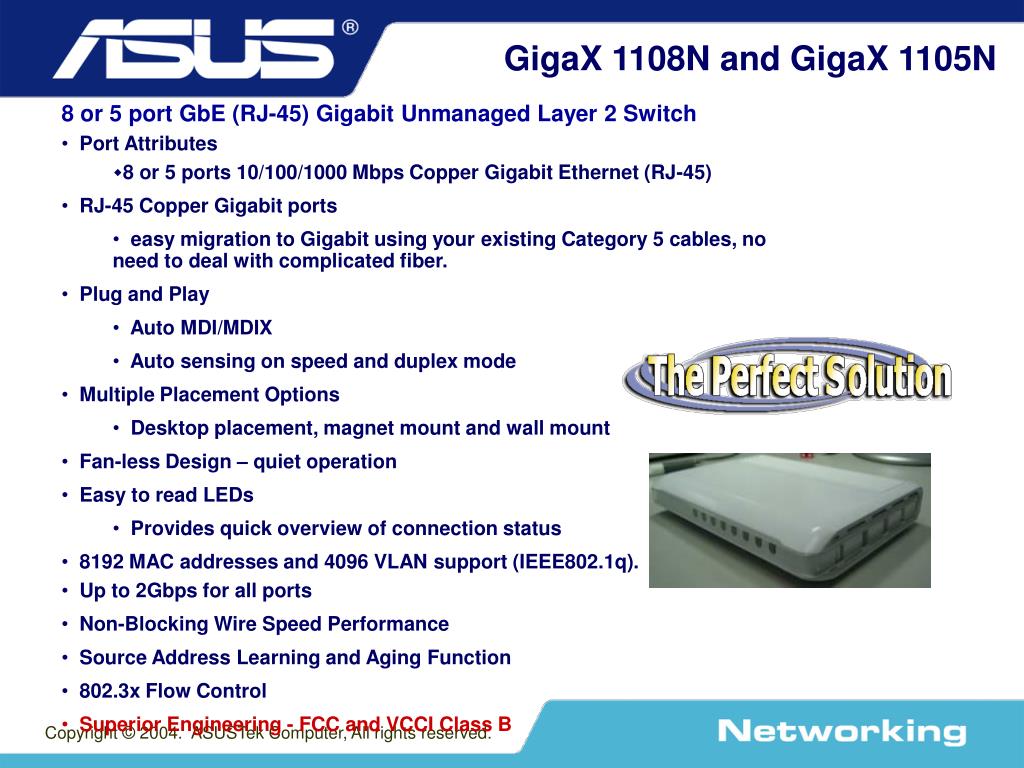

  44. GigaX 1108N and GigaX 1105N • 8 or 5 port GbE (RJ-45) Gigabit Unmanaged Layer 2 Switch • Port Attributes • 8 or 5 ports 10/100/1000 Mbps Copper Gigabit Ethernet (RJ-45) • RJ-45 Copper Gigabit ports • easy migration to Gigabit using your existing Category 5 cables, no need to deal with complicated fiber. • Plug and Play • Auto MDI/MDIX • Auto sensing on speed and duplex mode • Multiple Placement Options • Desktop placement, magnet mount and wall mount • Fan-less Design – quiet operation • Easy to read LEDs • Provides quick overview of connection status • 8192 MAC addresses and 4096 VLAN support (IEEE802.1q). • Up to 2Gbps for all ports • Non-Blocking Wire Speed Performance • Source Address Learning and Aging Function • 802.3x Flow Control • Superior Engineering - FCC and VCCI Class B

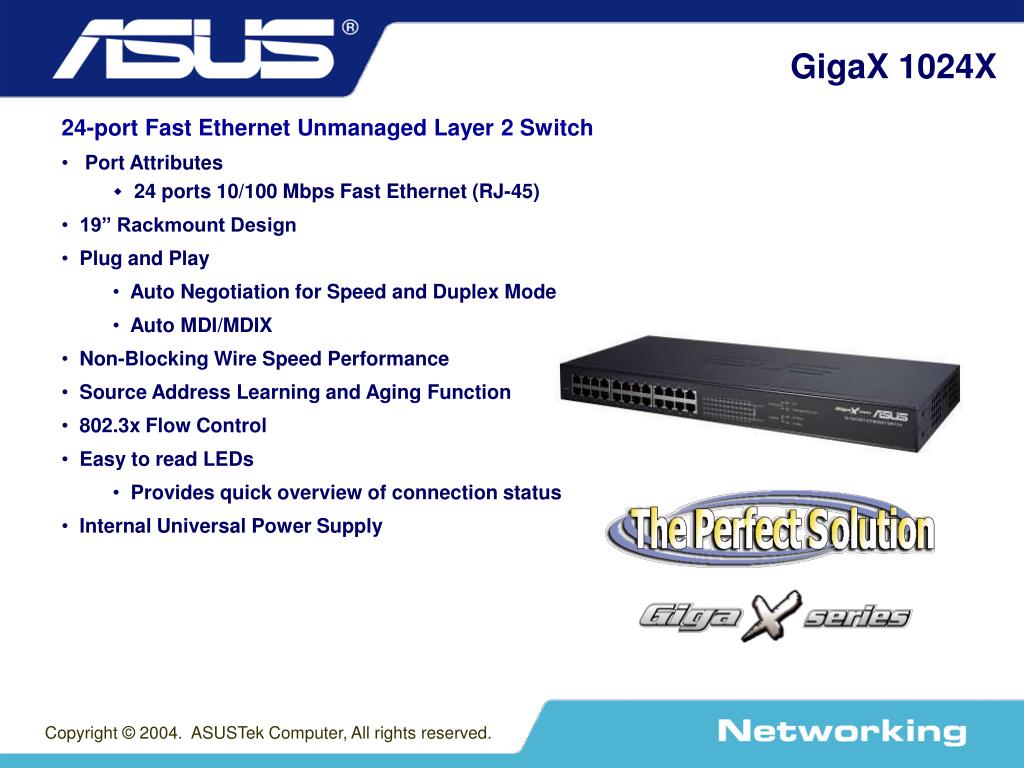

  45. GigaX 1024X • 24-port Fast Ethernet Unmanaged Layer 2 Switch • Port Attributes • 24 ports 10/100 Mbps Fast Ethernet (RJ-45) • 19” Rackmount Design • Plug and Play • Auto Negotiation for Speed and Duplex Mode • Auto MDI/MDIX • Non-Blocking Wire Speed Performance • Source Address Learning and Aging Function • 802.3x Flow Control • Easy to read LEDs • Provides quick overview of connection status • Internal Universal Power Supply

  46. GigaX 1016D • 16-port Fast Ethernet Unmanaged Layer 2 Switch • Port Attributes • 16 ports 10/100 Mbps Fast Ethernet (RJ-45) • Plug and Play • Auto Negotiation for Speed and Duplex Mode • Auto MDI/MDIX • Non-Blocking Wire Speed Performance • Source Address Learning and Aging Function • 802.3x Flow Control • Easy to read LEDs • Provides quick overview of connection status • Internal Universal Power Supply

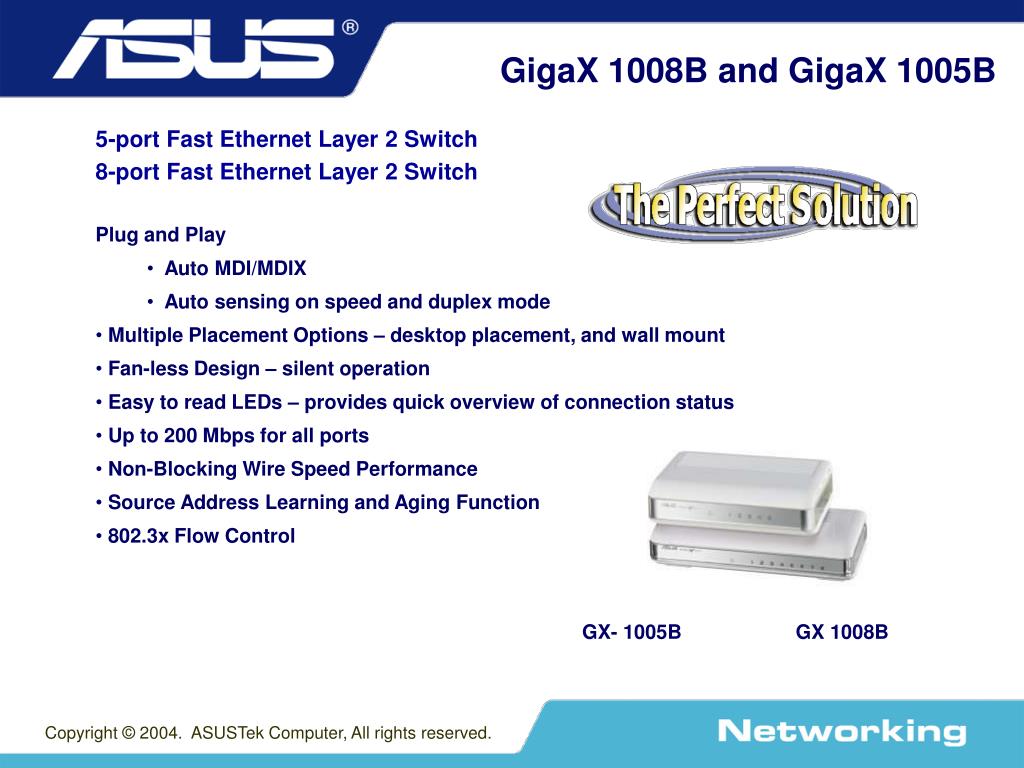

  47. GigaX 1008B and GigaX 1005B • 5-port Fast Ethernet Layer 2 Switch • 8-port Fast Ethernet Layer 2 Switch • Plug and Play • Auto MDI/MDIX • Auto sensing on speed and duplex mode • Multiple Placement Options – desktop placement, and wall mount • Fan-less Design – silent operation • Easy to read LEDs – provides quick overview of connection status • Up to 200 Mbps for all ports • Non-Blocking Wire Speed Performance • Source Address Learning and Aging Function • 802.3x Flow Control GX- 1005B GX 1008B

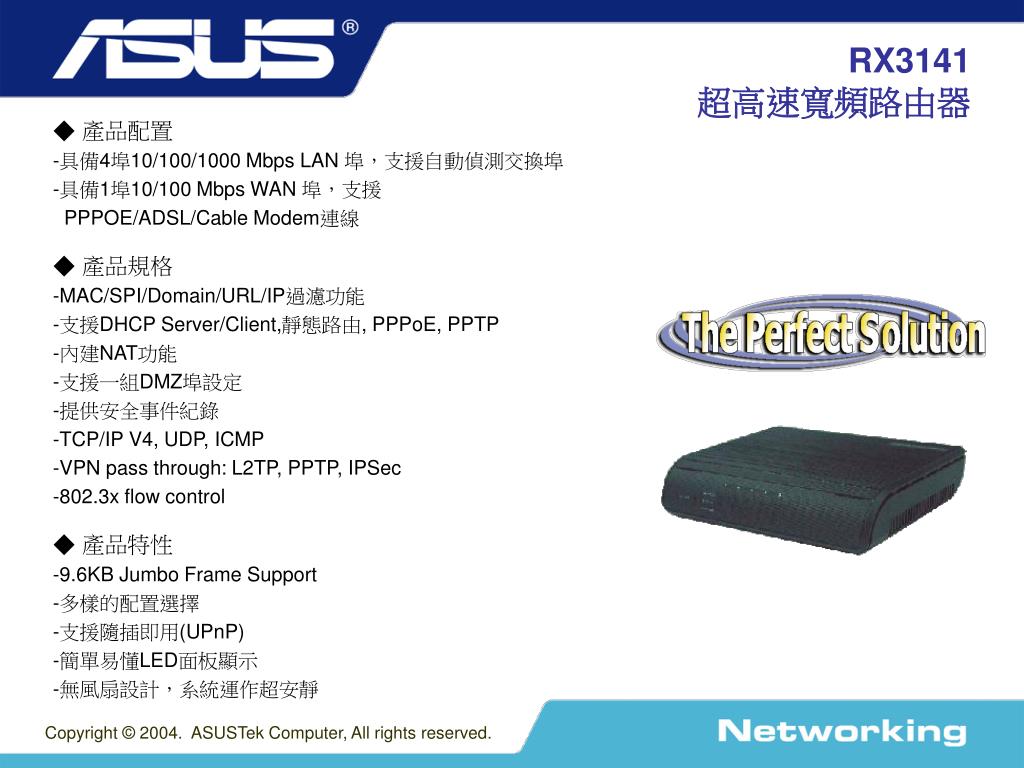

  48. RX3141 超高速寬頻路由器 ◆ 產品配置 -具備4埠10/100/1000 Mbps LAN 埠,支援自動偵測交換埠 -具備1埠10/100 Mbps WAN 埠,支援 PPPOE/ADSL/Cable Modem連線 ◆ 產品規格 -MAC/SPI/Domain/URL/IP過濾功能 -支援DHCP Server/Client,靜態路由, PPPoE, PPTP -內建NAT功能 -支援一組DMZ埠設定 -提供安全事件紀錄 -TCP/IP V4, UDP, ICMP -VPN pass through: L2TP, PPTP, IPSec -802.3x flow control ◆ 產品特性 -9.6KB Jumbo Frame Support -多樣的配置選擇 -支援隨插即用(UPnP) -簡單易懂LED面板顯示 -無風扇設計,系統運作超安靜

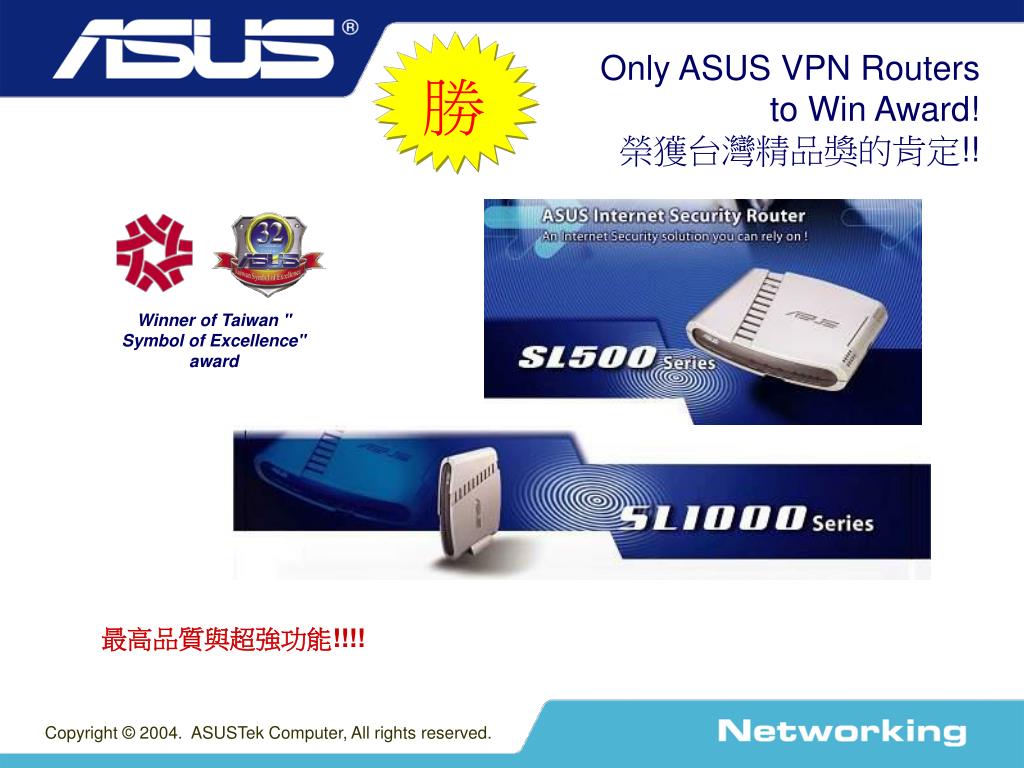

  49. Only ASUS VPN Routers to Win Award!榮獲台灣精品獎的肯定!! 勝 Winner of Taiwan " Symbol of Excellence" award 最高品質與超強功能!!!!

  50. 3 in 1 VPN 路由器 路由器 + 虛擬私人網路(VPN) + 防火牆(Firewall) ◆ Firewall - SPI,ACL, 29 DoS Protection, 20+ ALGs, URL Filtering, Application Command Filtering, Remote Access ◆ NAT -Static and Dynamic NAT -PAT -Virtual Server ◆ Performance -VPN:Up to 80M (1430 bytes packet) -Firewall: Up to 100M -NAT: up to 90M (512 bytes packet) ◆ VPN: - IKE (Internet Key Exchange) Pre-shared key/Manual key - D-H1/2/5 (Diffie-Hellman group 1/2/5), AH/ESP - Hardware accelerated encryption:DES(56-bit)/3DES (168-bit) - SL1000: up to 25 VPN tunnels - SL500: up to 5 VPN tunnels
