Phylogeny

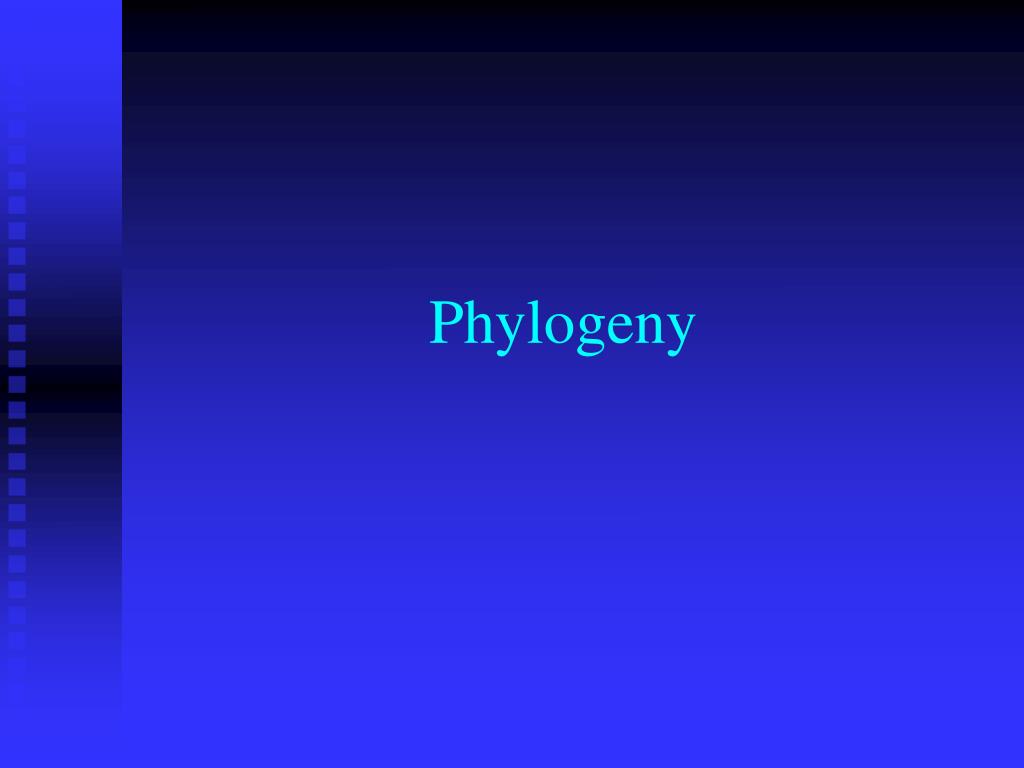

1. Phylogeny

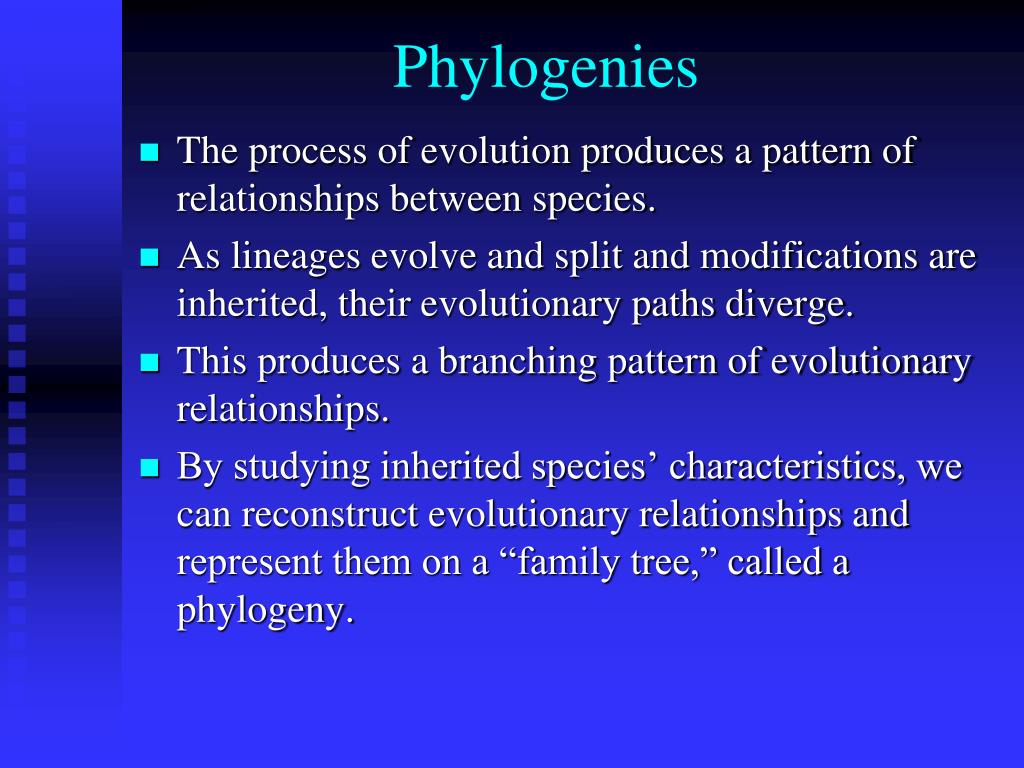

2. Phylogenies The process of evolution produces a pattern of relationships between species. As lineages evolve and split and modifications are inherited, their evolutionary paths diverge. This produces a branching pattern of evolutionary relationships. By studying inherited species’ characteristics, we can reconstruct evolutionary relationships and represent them on a “family tree,” called a phylogeny.

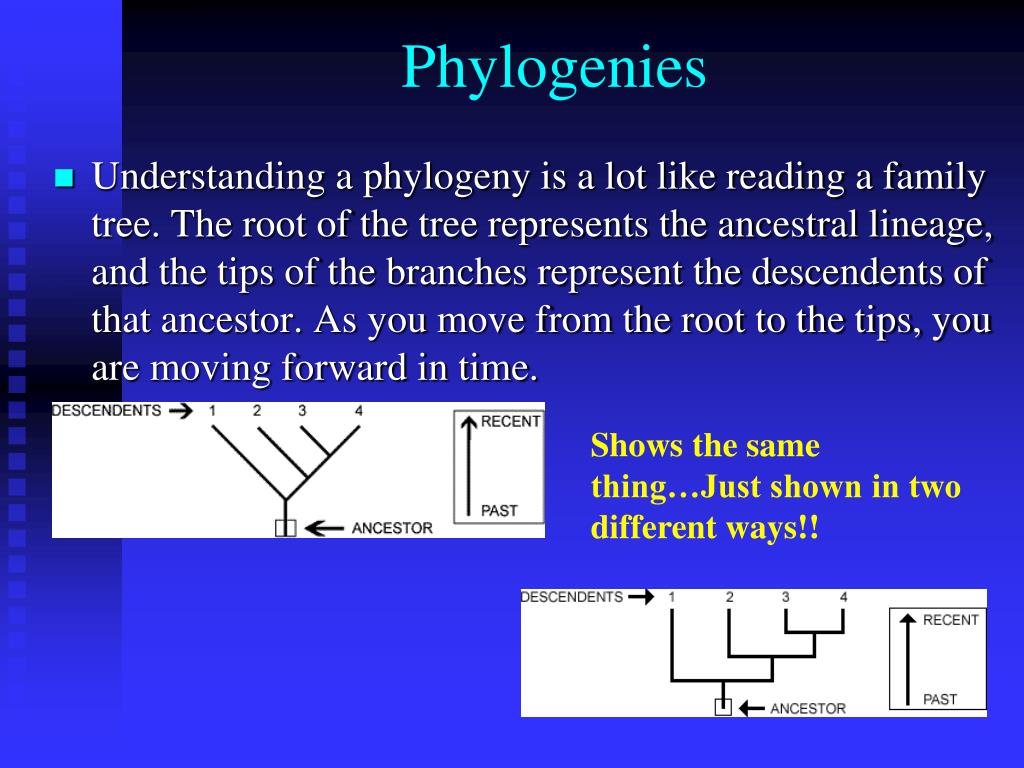

3. Phylogenies Shows the same thing…Just shown in two different ways!! Understanding a phylogeny is a lot like reading a family tree. The root of the tree represents the ancestral lineage, and the tips of the branches represent the descendents of that ancestor. As you move from the root to the tips, you are moving forward in time.

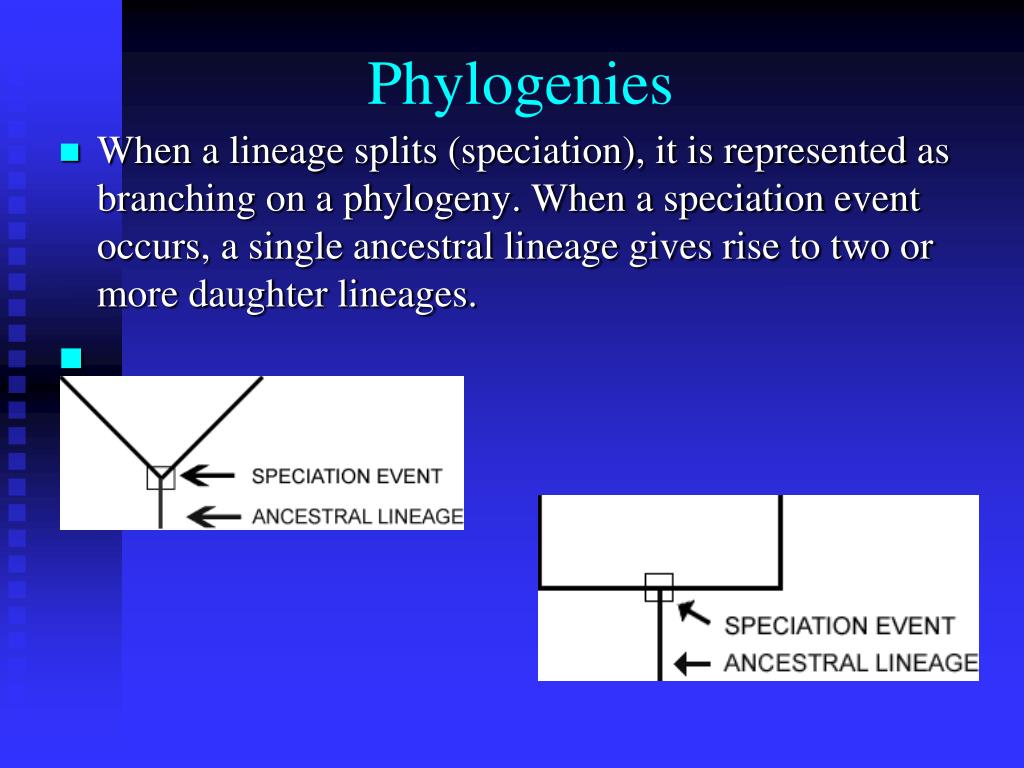

4. Phylogenies When a lineage splits (speciation), it is represented as branching on a phylogeny. When a speciation event occurs, a single ancestral lineage gives rise to two or more daughter lineages.

5. Phylogenies Phylogenies trace patterns of shared ancestry between lineages. Each lineage has a part of its history that is unique to it alone and parts that are shared with other lineages.

6. Phylogenies Similarly, each lineage has ancestors that are unique to that lineage and ancestors that are shared with other lineages—common ancestors

9. Phylogeny

10. Evolutionary Relationships Phylogenetic trees may show shared derived traits

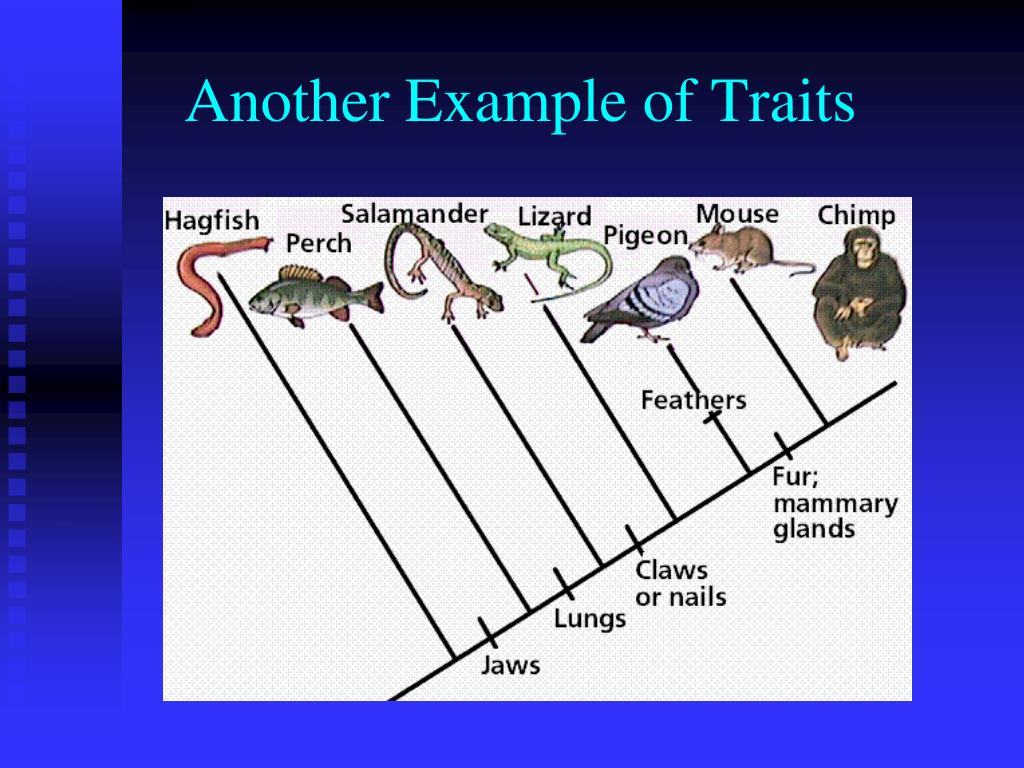

11. Another Example of Traits

12. Other Means of Showing Evolutionary Relationships Chromosome Comparison – Number and types of chromosomes Biochemistry – Similar amino acid sequences between groups of organisms shows relatedness

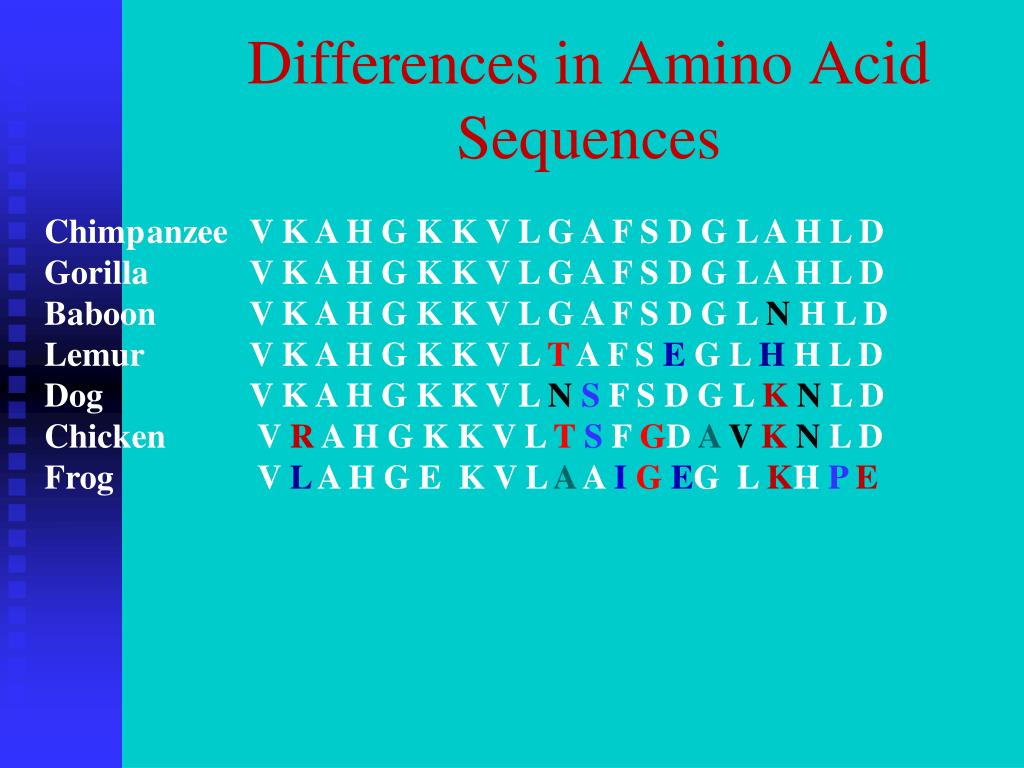

13. Differences in Amino Acid Sequences Chimp anzee V K A H G K K V L G A F S D G L A H L D Gorilla V K A H G K K V L G A F S D G L A H L D Baboon V K A H G K K V L G A F S D G L N H L D Lemur V K A H G K K V L T A F S E G L H H L D Dog V K A H G K K V L NS F S D G L KN L D Chicken V R A H G K K V L TS F GD AVKN L D Frog V L A H G E K V L A A I GEG L KH PE
