  1. LevetidsforlengelseavExisterende felt Oppgraderingavkontrollsystemer subsea ErfaringeroglosningerfraTordisogVigdis February 8th 2012

  2. Need to adapt to changing field situations over time Up front field knowledge is often limited and reservoirs significantly change over time Managing older assets is often limited by old technology, instrumentation and flow control New reserves becoming more difficult / costly to develop Transfer of older assets to new producers creates a need for offerings that will maximize assets performance Equipment obsolescence challenge for older fields Field life extending well beyond original design dates How to solve the changing operations puzzle?  The Technology Insertion Solution

  3. The Brownfield technology time bomb Obsolete equipment Coming to end of natural life Long repair times, often needing re-engineering 1983 Today Compared to other industries much shorter expected operational life – affects availability of your equipment

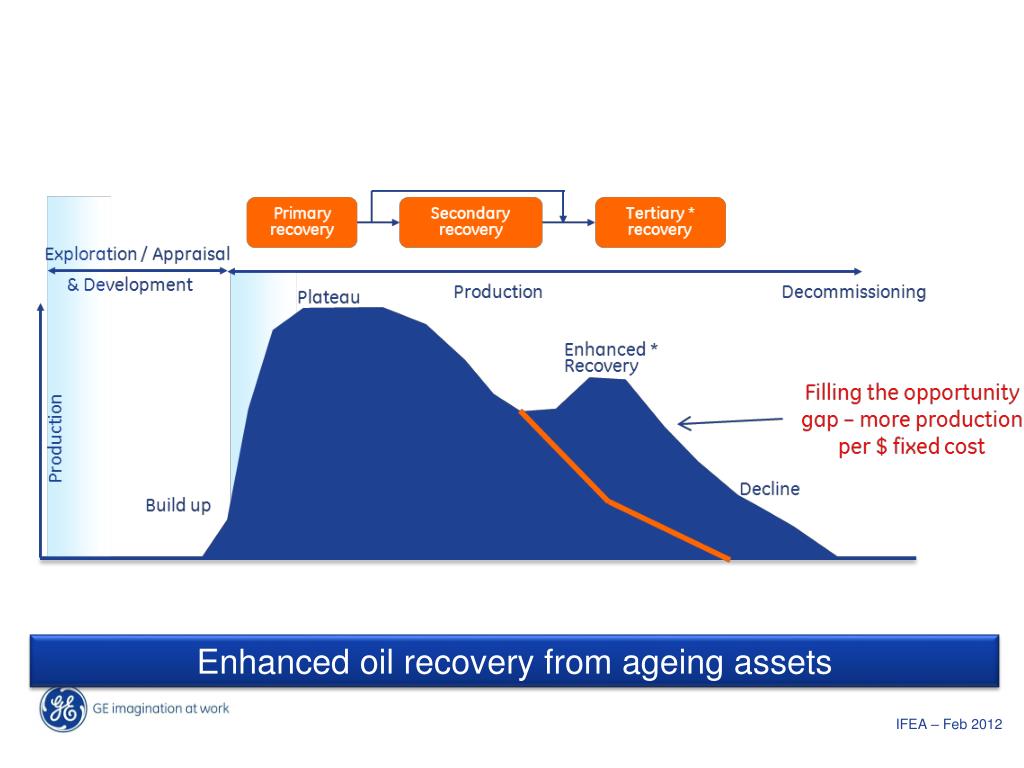

  4. The Brownfield Opportunity Enhanced oil recovery from ageing assets

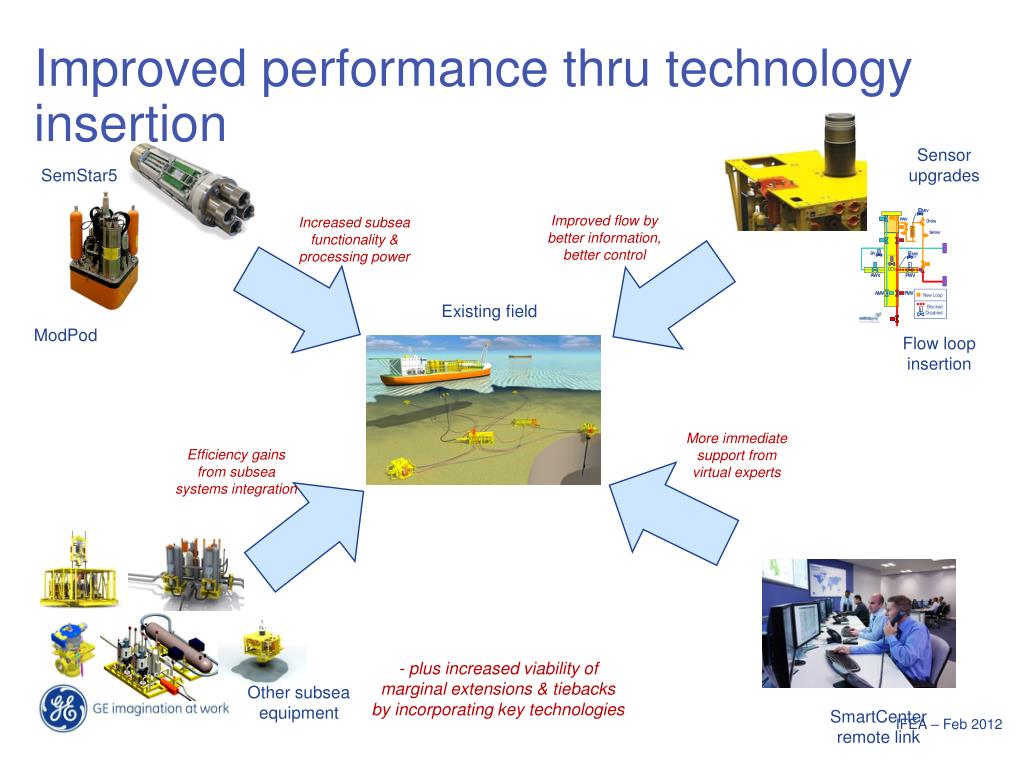

  5. Improved performance thru technology insertion Sensor upgrades SemStar5 Improved flow by better information, better control Increased subsea functionality & processing power Existing field ModPod Flow loop insertion More immediate support from virtual experts Efficiency gains from subsea systems integration - plus increased viability of marginal extensions & tiebacks by incorporating key technologies Other subsea equipment SmartCenter remote link

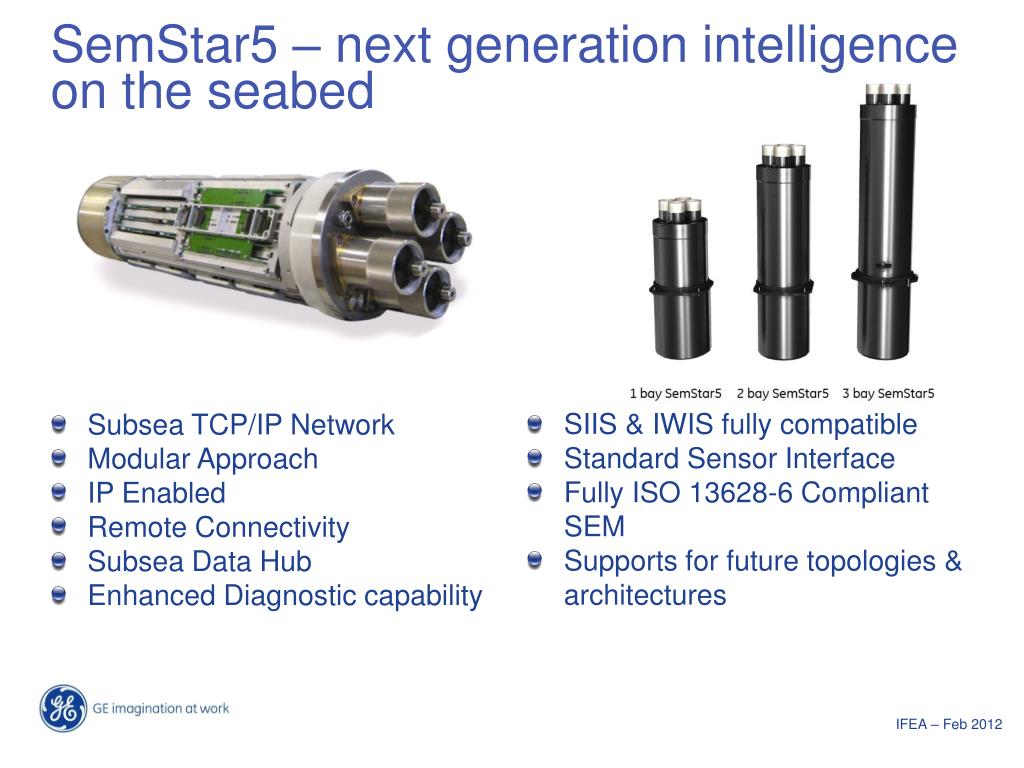

  6. SemStar5 – next generation intelligence on the seabed • SIIS & IWIS fully compatible • Standard Sensor Interface • Fully ISO 13628-6 Compliant SEM • Supports for future topologies & architectures • Subsea TCP/IP Network • Modular Approach • IP Enabled • Remote Connectivity • Subsea Data Hub • Enhanced Diagnostic capability

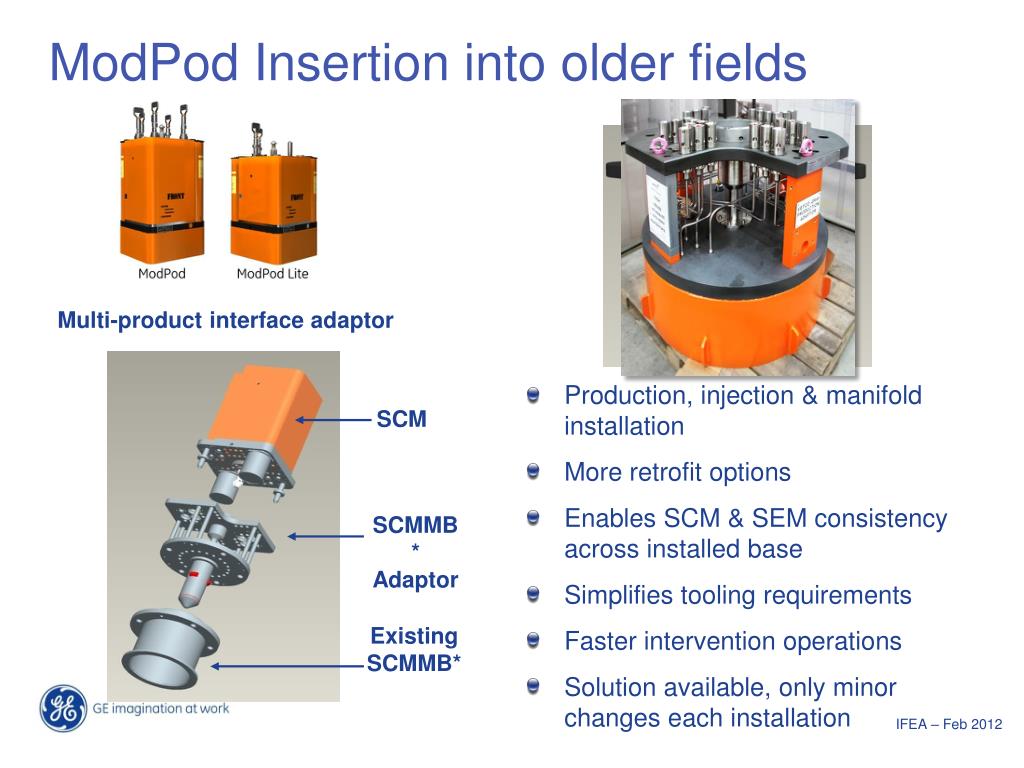

  7. ModPod Insertion into older fields Multi-product interface adaptor • Production, injection & manifold installation • More retrofit options • Enables SCM & SEM consistency across installed base • Simplifies tooling requirements • Faster intervention operations • Solution available, only minor changes each installation SCM SCMMB* Adaptor Existing SCMMB*

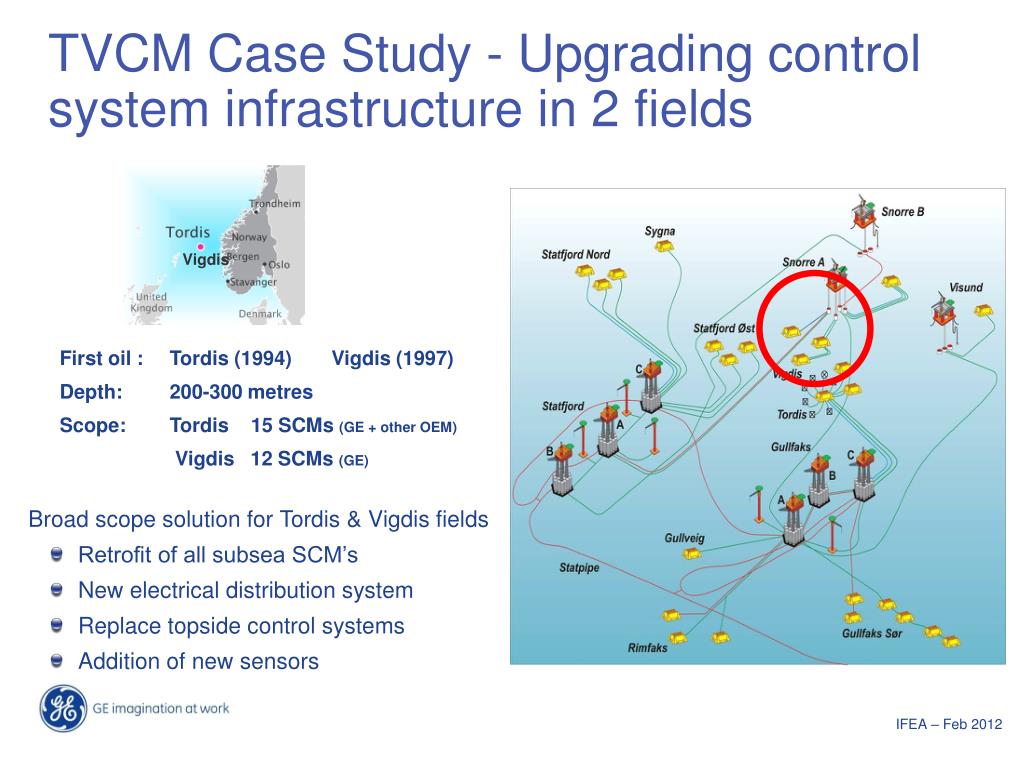

  8. TVCM Case Study - Upgrading control system infrastructure in 2 fields Vigdis First oil : Tordis (1994) Vigdis (1997) Depth: 200-300 metres Scope: Tordis 15 SCMs (GE + other OEM) Vigdis 12 SCMs (GE) • Broad scope solution for Tordis & Vigdis fields • Retrofit of all subsea SCM’s • New electrical distribution system • Replace topside control systems • Addition of new sensors

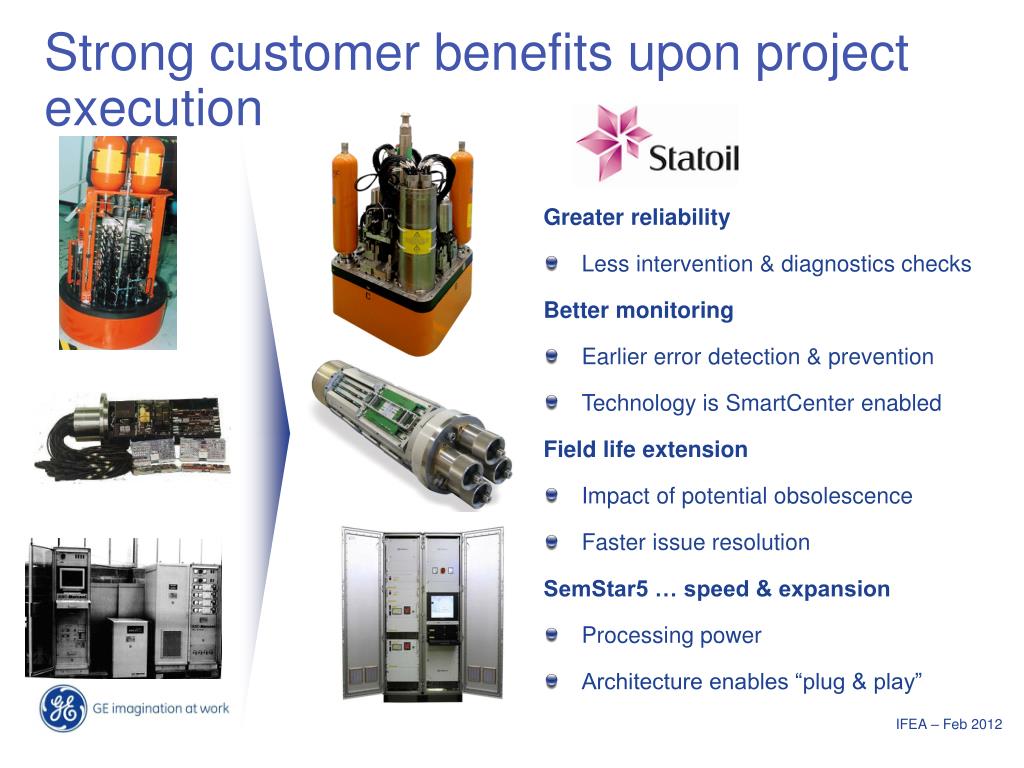

  9. Strong customer benefits upon project execution • Greater reliability • Less intervention & diagnostics checks • Better monitoring • Earlier error detection & prevention • Technology is SmartCenter enabled • Field life extension • Impact of potential obsolescence • Faster issue resolution • SemStar5 … speed & expansion • Processing power • Architecture enables “plug & play”

  10. Field sustainability - Enhanced performance from bespoke solutions • Leveraging each field’s unique status can produce an optimized sustainability solution • Implementation risk and deployment timescale can be minimized - by developing a sustainable solution from a suite of proven units and techniques ……… and finally technology insertion for performance reasons can also give a step change in mitigating obsolescence risk technology insertion to mitigate obsolescence risk gives the opportunity to improve field performance, enhanced oil recovery and increased availability

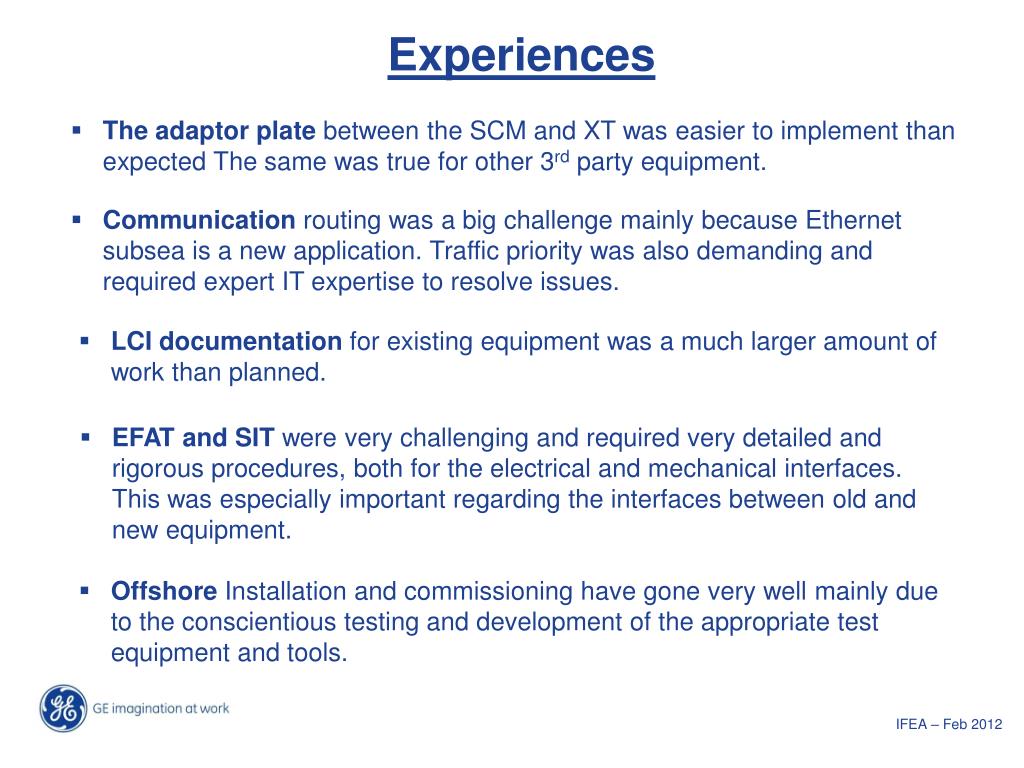

  11. Experiences • The adaptor plate between the SCM and XT was easier to implement than expected The same was true for other 3rd party equipment. • Communication routing was a big challenge mainly because Ethernet subsea is a new application. Traffic priority was also demanding and required expert IT expertise to resolve issues. • LCI documentation for existing equipment was a much larger amount of work than planned. • EFAT and SIT were very challenging and required very detailed and rigorous procedures, both for the electrical and mechanical interfaces. This was especially important regarding the interfaces between old and new equipment. • Offshore Installation and commissioning have gone very well mainly due to the conscientious testing and development of the appropriate test equipment and tools.

  12. Questions ?
