Presentation Transcript
slide2

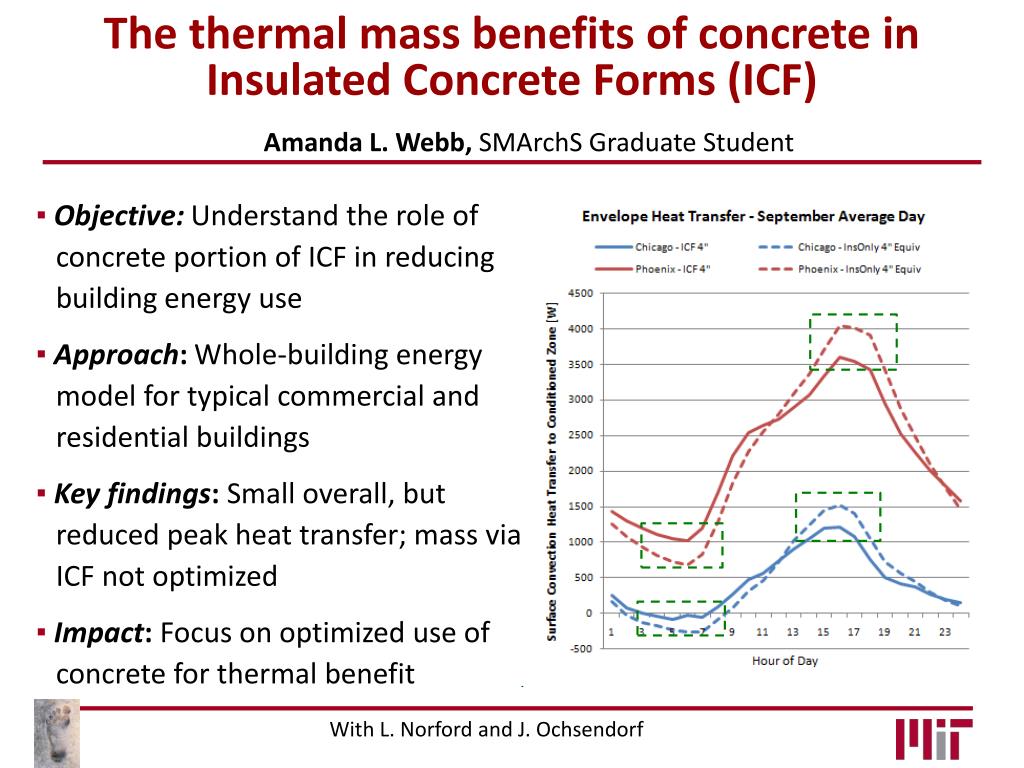

The thermal mass benefits of concrete in Insulated Concrete Forms (ICF)

Amanda L. Webb, SMArchS Graduate Student

▪Objective:Understand the role of concrete portion of ICF in reducing building energy use

▪Approach:Whole-building energy model for typical commercial and residential buildings

▪Key findings: Small overall, but reduced peak heat transfer; mass via ICF not optimized

▪Impact: Focus on optimized use of concrete for thermal benefit

With L. Norford and J. Ochsendorf

residential buildings single family multifamily

Residential BuildingsSingle Family & Multifamily

Amanda Webb

Feb 17, 2011

CONCRETE SUSTAINABILITY HUB

major model changes
Major Model Changes

= Most significant changes

*From DOE’s National Renewable Energy Laboratory

**Focus in this analysis on mass benefits of ICF

CONCRETE SUSTAINABILITY HUB

slide8

Peaks reduced

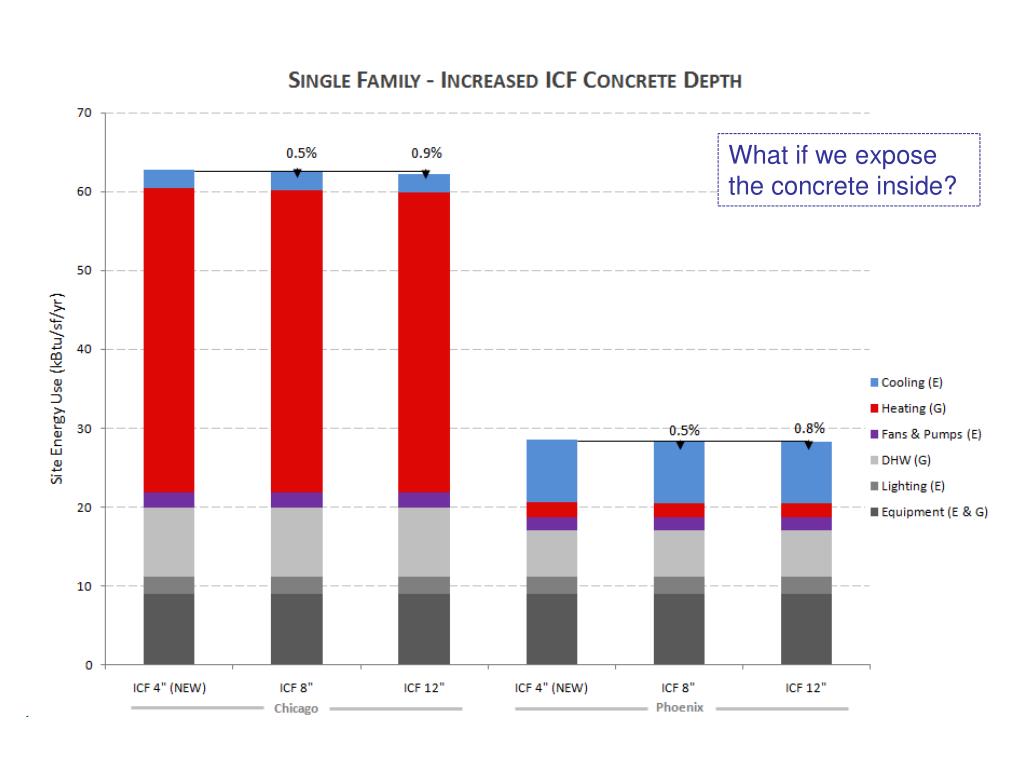

What if we add more concrete?

slide10

e.g., Thermomass

Better in PHX

Could be better with optimized use of interior mass

energy model lca conclusions
Energy Model/LCA Conclusions

Very solid model specifications

Better contextualize our work – NREL, etc.

Infiltration, R-value, and mass benefits of ICF should be considered separately

Infiltration highly climate dependent; mass somewhat climate dependent

Look at optimized use of mass – balance changes for low energy buildings

CONCRETE SUSTAINABILITY HUB

work through aug 2011
Work Through Aug 2011
  • Energy benefits of concrete. Focus: low energy houses.
    • Analysis to find optimum curve for use of concrete in envelope, interior [Hacker 2008, Zhu 2009]
    • Mass vs. insulation tradeoff
    • Range of climates, thermal performance
  • Comfort benefits of concrete [beyond Aug]
    • Control algorithm testing to understand role of concrete in comfort-based HVAC controls

CONCRETE SUSTAINABILITY HUB
