  1. Karim Ali & Sarah Nadi CS848 – Spring 2010 July 14th, 2010 Physical Design Patterns in Information Systems

  2. Outline • Database lifecycle • Elements of Physical Design in Traditional Databases • Physical Design of Different Systems • Memory Based Relational Database Systems (MMDB) • XML Databases • Data Warehouses • Conclusions & Future Work Karim Ali & Sarah Nadi

  3. Database Lifecycle Karim Ali & Sarah Nadi

  4. Elements of Physical Design Traditional Disk Based Relational Databases Karim Ali & Sarah Nadi

  5. Traditional database systems • Disk Based Relational Databases (RDBMS) • Data is stored on disk as relations (i.e. tables) • Data is organized based on a relational model • Elements of physical design: • Index Structures • Materialized Views • Partitioning • Clustering • Data compression, striping, mirroring & denormalization Karim Ali & Sarah Nadi

  6. 1. Index Structures • Data needs to be organized for quick searching • Need to minimize expensive I/O operations • Examples: • B+trees • Bitmap Index • Hashtable • ... Karim Ali & Sarah Nadi

  7. 1. Index Structures Cont’d • B+tree Karim Ali & Sarah Nadi

  8. 1. Index Structures Cont’d Karim Ali & Sarah Nadi

  9. 2. Materialized Views • Repeated complicated queries should not have to be executed every time • Saves execution time & I/O reads by pre-computing the results • Materialized views are stored on disk • Rewriting queries using materialized views speeds up execution Karim Ali & Sarah Nadi

  10. 3. Partitioning • Divides the data into related partitions • Horizontal Partitioning: divides tables into sets of rows according to a specific attribute (E.g. Date ranges) • Vertical Partitioning: divides tables into sets of columns • Reduces table scan time • Improves performance Karim Ali & Sarah Nadi

  11. 3. Partitioning Cont’d Types of Horizontal Partitioning: Karim Ali & Sarah Nadi

  12. 4. Clustering • Grouping related items together for • Efficiency of access • Resource utilization • Achieved on the page level on disk • Pros • Very useful for multidimensional queries (e.g. group by) • Reduced I/O operations • Reduced CPU cost • Cons • Difficult to define clustering keys, clustering scheme, and the granularity of clustering Karim Ali & Sarah Nadi

  13. 5. Other Methods • Data Compression: • Fitting more data into a fixed amount of space • Striping: • Distribute data that is accessed together across multiple disks • Mirroring: • Duplicating the data to multiple disks • Denormalization: • Refine global schema to reflect query and transaction requirements Karim Ali & Sarah Nadi

  14. Physical Design of Different Information Systems Karim Ali & Sarah Nadi

  15. 1. Main Memory Databases (MMDB) Karim Ali & Sarah Nadi

  16. MMDBOverview • Primary copy of data resides in main memory • Cheaper to access main memory • MMDB has better performance • Usually has an archived copy of the data in case of crashes Karim Ali & Sarah Nadi

  17. MMDB1. Index Structures • Use: • Reduce overall computation time without using too much extra space • Factors to consider: • Read/Write operations are cheaper • Should be cache conscious • No need to store data in the index structure • Categories of indexes used: • B+trees • T Trees • Search Trees Karim Ali & Sarah Nadi

  18. MMDB1. Index Structures Cont’d Karim Ali & Sarah Nadi

  19. MMDB2. Materialized Views • Not beneficial to MMDB • Cost of computing complicated queries is much less • Maintenance costs will outweigh benefit Karim Ali & Sarah Nadi

  20. MMDB3. Partitioning • Not necessary in main memory • Used for the secondary storage on disk to speed up reload • Horizontal partitioning • Vertical partitioning Karim Ali & Sarah Nadi

  21. MMDB4. Clustering • Not applicable to MMDB • Sequential access in main memory is not cheaper than random or dispersed access Karim Ali & Sarah Nadi

  22. 2. XML Databases (XML DBs) Karim Ali & Sarah Nadi

  23. XML DBsOverview • XML-enabled DBs (E.g. SQL Server, Oracle): • Maps XML documents to relational tables • Useful for data-centric XML documents • Native XML DBs (E.g. eXist, Sedna) • Useful for document-centric, semi-structured XML documents • Data structures store actual XML nodes with pointers between them Karim Ali & Sarah Nadi

  24. XML DBs1. Index Structures • XML-enabled DB • Shred XML data in a relational table with columns: ORDPATH, tag, node type, value, path ID • Use a B+tree index based on combination of primary key of base table & the ORDPATH Karim Ali & Sarah Nadi

  25. XML DBs1. Index Structures Cont’d • Native XML DB • Index for document collections • Index for nodes • Numbering schema for the XML nodes • B+tree (or variations) used on the numbered nodes Karim Ali & Sarah Nadi

  26. XML DBs2. Materialized Views • Greatly enhances performance • XQuery and Xpath query results are materialized • Query rewriting is more tricky due to semi-structured nature & complicated querying languages Karim Ali & Sarah Nadi

  27. XML DBs3. Partitioning • Horizontal partitioning • Based on node type • Through inlining Karim Ali & Sarah Nadi

  28. XML DBs4. Clustering • Elements & sub-elements are clustered together • XML documents are clustered based on structural similarity Karim Ali & Sarah Nadi

  29. 3. Data Warehouses Karim Ali & Sarah Nadi

  30. Data WarehousesOverview • Collection of data and decision support technologies • Used in: • Retail: user profiling • Finance: claims analysis, risk analysis, credit card analysis, and fraud detection • Healthcare: outcomes analysis Karim Ali & Sarah Nadi

  31. Data WarehousesDesign Karim Ali & Sarah Nadi

  32. Data WarehousesChallenges • Data is usually • Extremely large • Multi-dimensional • Priority for aggregated and summarized data • Ad-hoc and complex queries • Expensive operations: aggregation, and joins • The fact table in the star schema participates in every join Karim Ali & Sarah Nadi

  33. Data Warehouses1. Index Structures Karim Ali & Sarah Nadi

  34. Data Warehouses2. Materialized Views • To materialize or not? • Workload characteristics • Cost for incremental update • Storage requirements • Pros • Improves performance through fast lookups • Useful for rollup and drilldown operations • Cons • Not applicable to all queries (e.g. ad-hoc queries) Karim Ali & Sarah Nadi

  35. Data Warehouses3. Partitioning • Horizontal & Vertical partitioning are used • Pros • Ability to manage larger databases • Enhances query performance over large tables • Enables parallel processing • Facilitates data compression • Cons • Complexity: managing partitions • Efficiency: number of partitions affects the performance of meta data operations (e.g. browsing the data cube definition) Karim Ali & Sarah Nadi

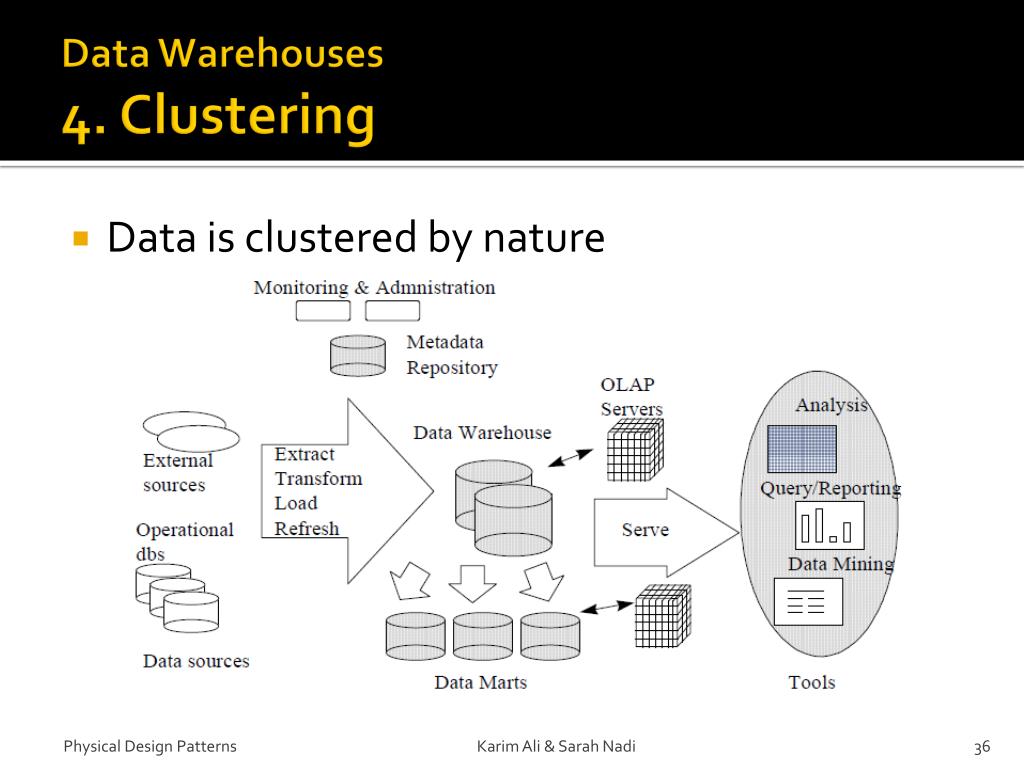

  36. Data Warehouses4. Clustering • Data is clustered by nature Karim Ali & Sarah Nadi

  37. Conclusions & Future Work Karim Ali & Sarah Nadi

  38. Karim Ali & Sarah Nadi

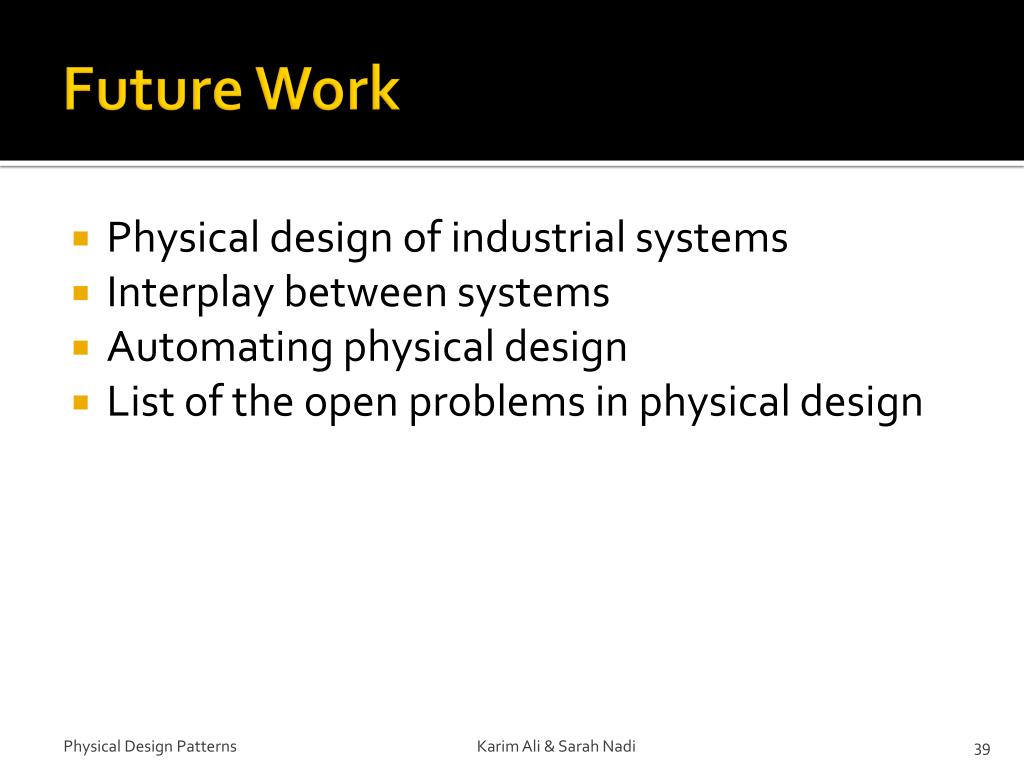

  39. Future Work • Physical design of industrial systems • Interplay between systems • Automating physical design • List of the open problems in physical design Karim Ali & Sarah Nadi

  40. Thank you Karim Ali & Sarah Nadi
