evaluation of strings in computer go using apc and seki judgement

Evaluation of strings in computer Go using APC and Seki judgement

Author: Hyun-Soo Park and Kyung-Woo Kang

Presented by: Xiaozhen Niu

outline
Outline
  • Introduction
  • String Graph (SG)
  • Rules
  • Experiments
  • Summary
introduction

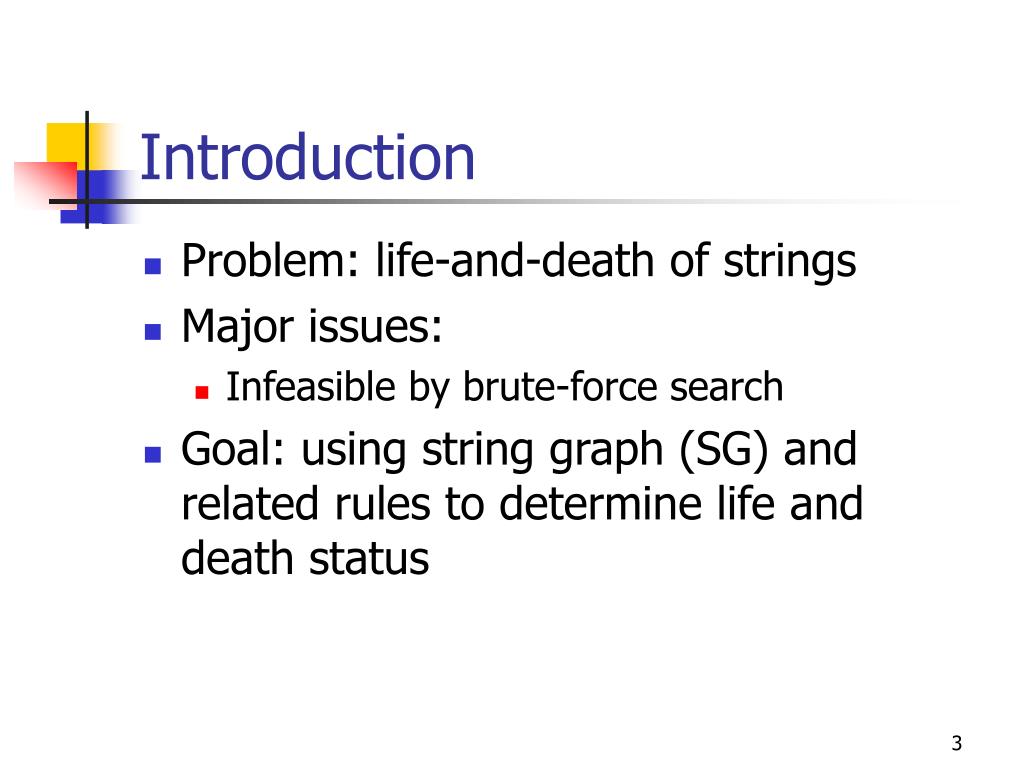

Introduction
  • Problem: life-and-death of strings
  • Major issues:
    • Infeasible by brute-force search
  • Goal: using string graph (SG) and related rules to determine life and death status
string graph sg

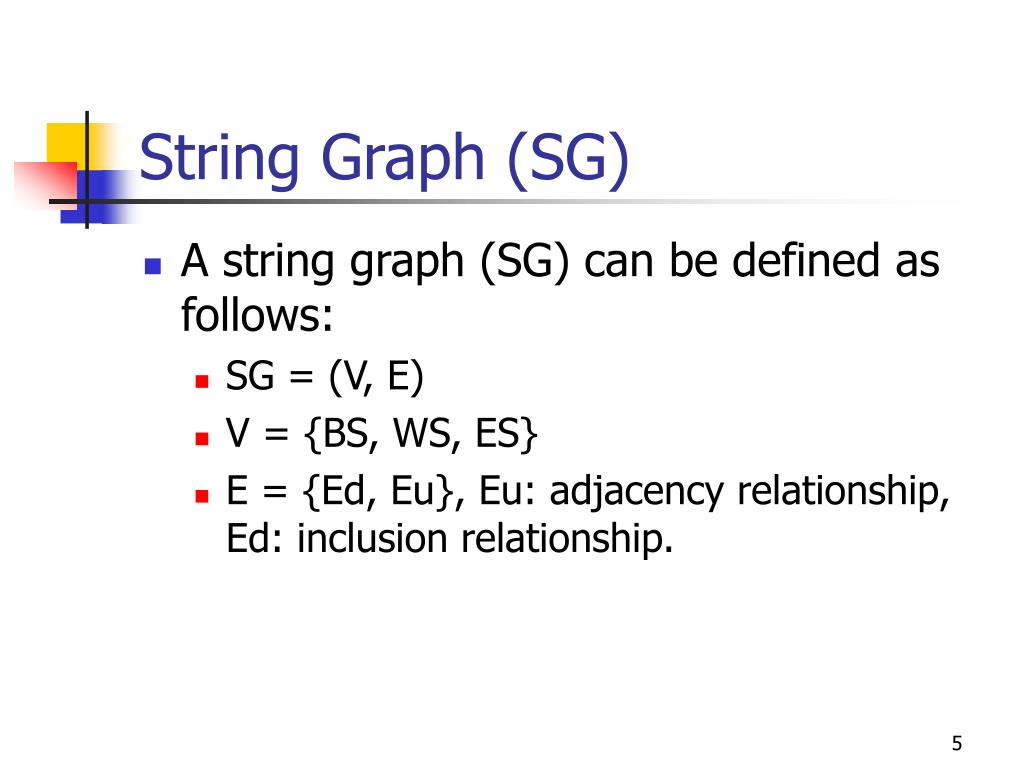

String Graph (SG)
  • A string graph (SG) can be defined as follows:
    • SG = (V, E)
    • V = {BS, WS, ES}
    • E = {Ed, Eu}, Eu: adjacency relationship, Ed: inclusion relationship.
examples 1

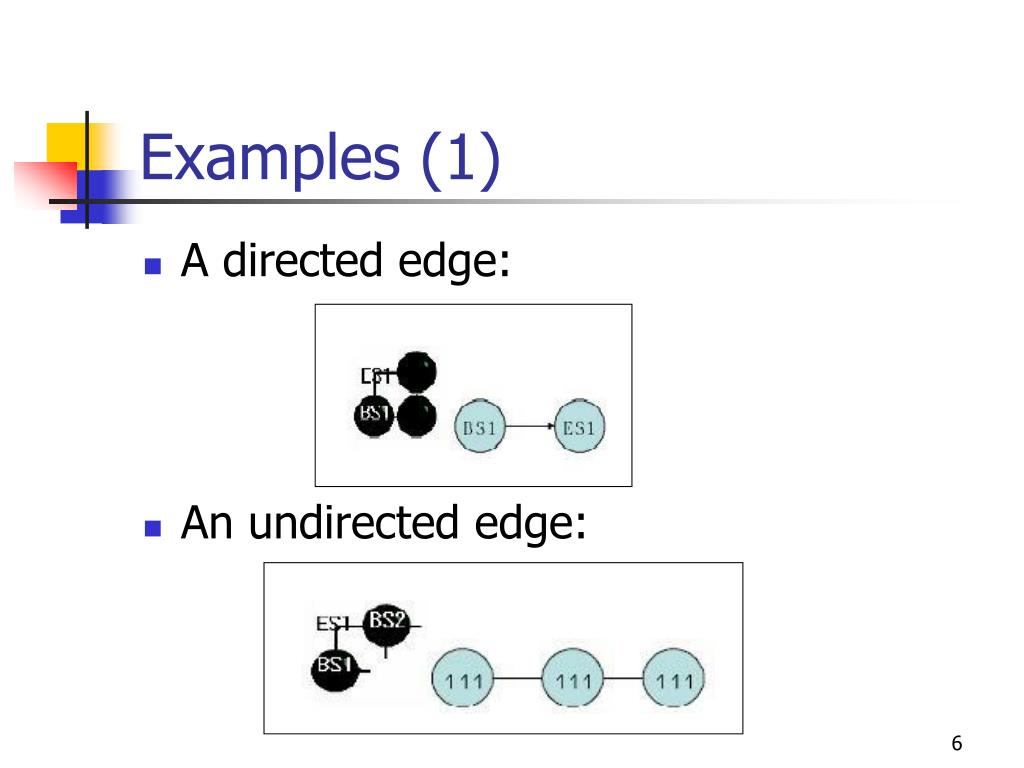

Examples (1)
  • A directed edge:
  • An undirected edge:

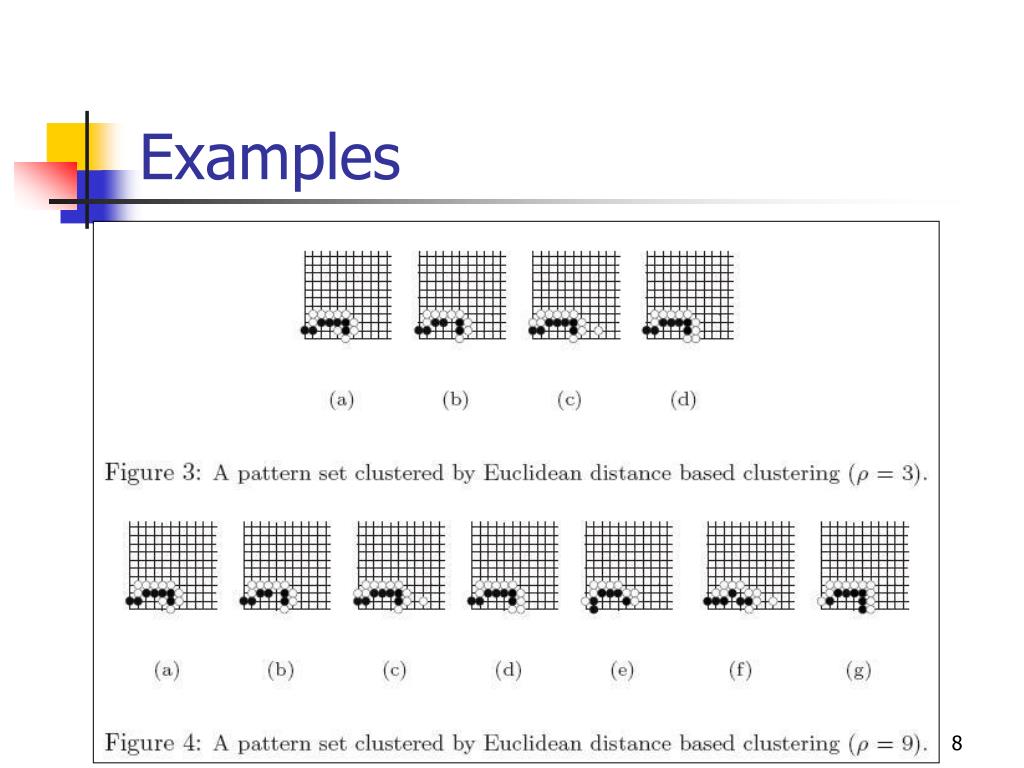

euclidean distance based clustering

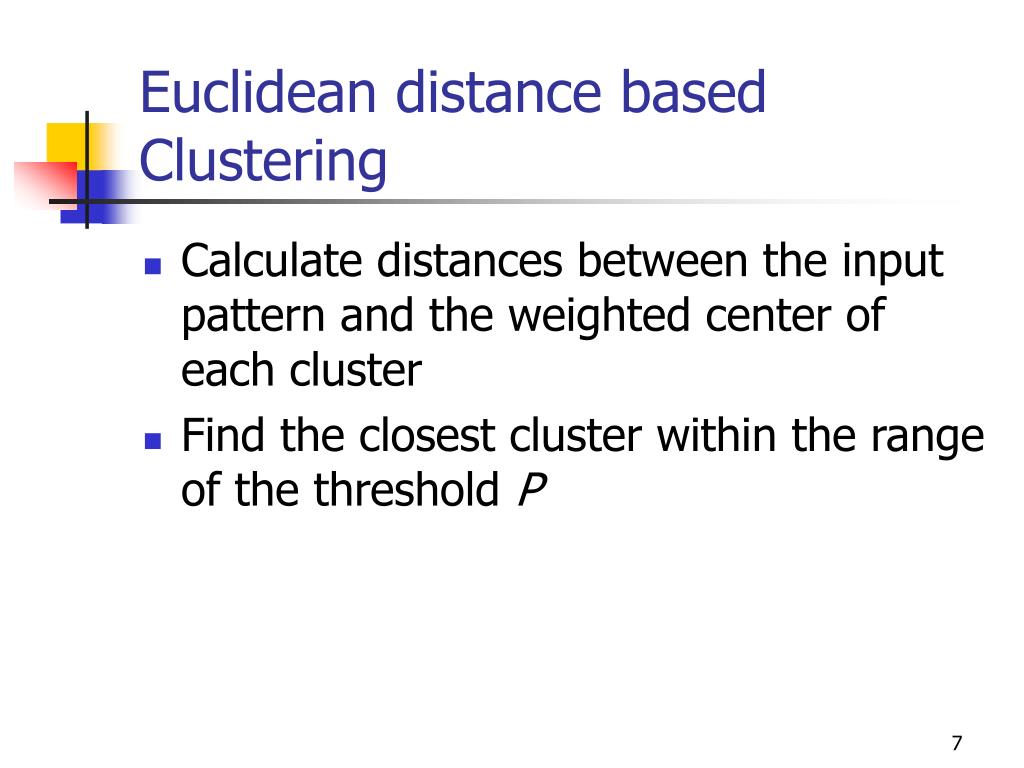

Euclidean distance based Clustering
  • Calculate distances between the input pattern and the weighted center of each cluster
  • Find the closest cluster within the range of the threshold P
examples 2

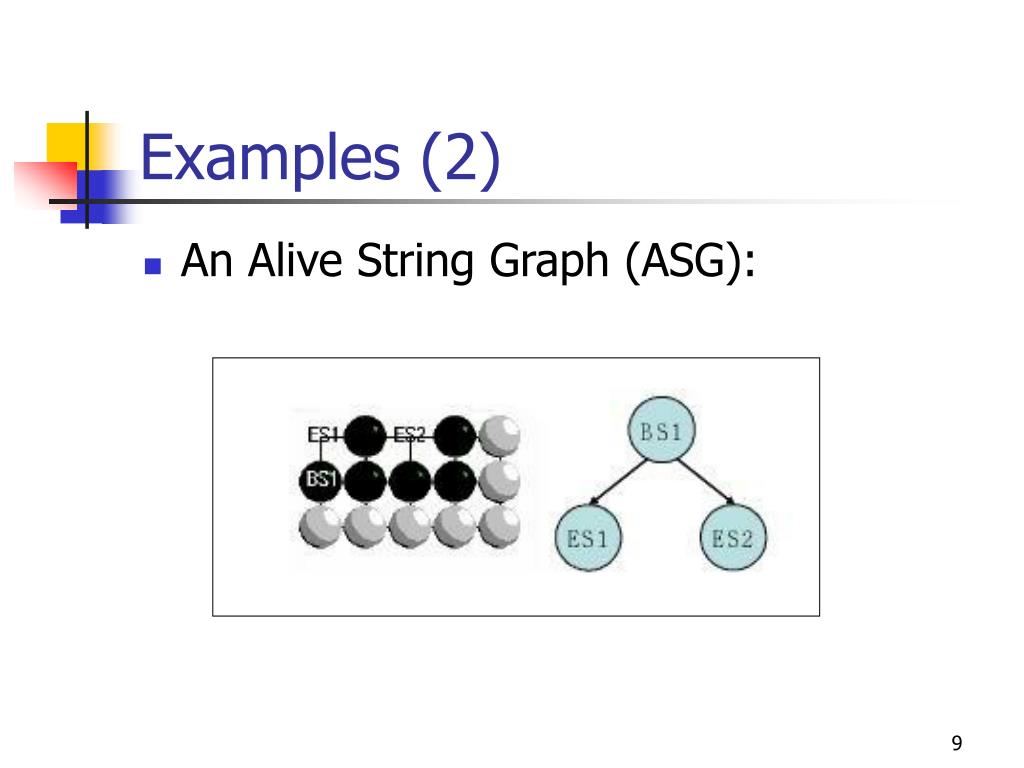

Examples (2)
  • An Alive String Graph (ASG):
rules

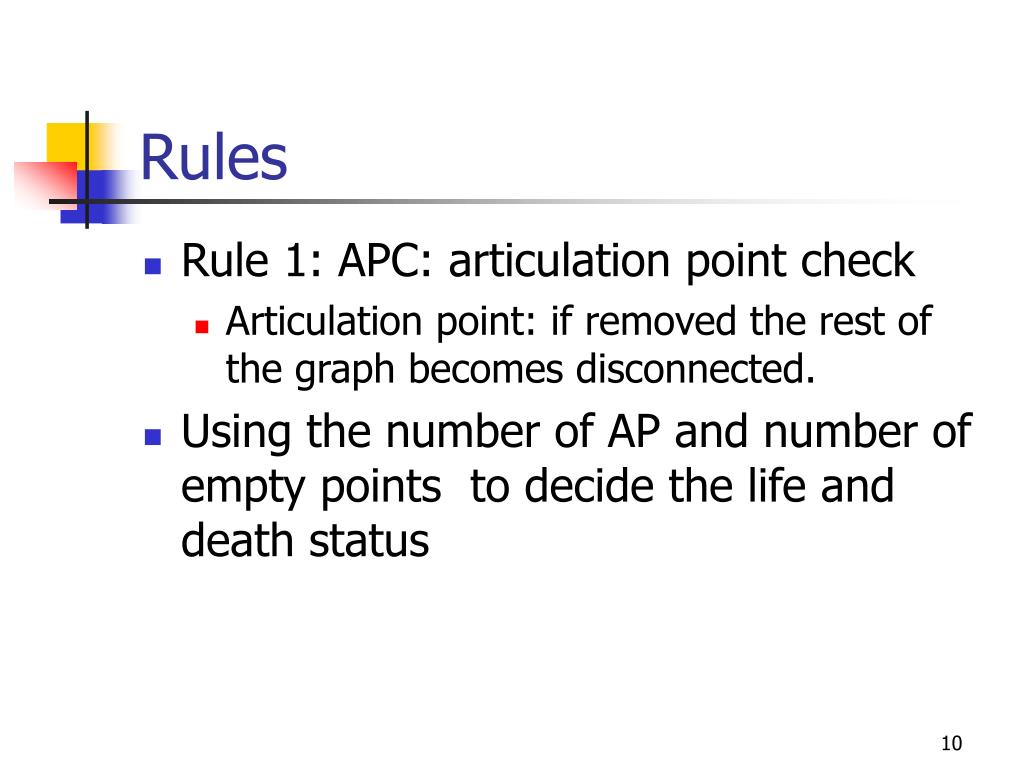

Rules
  • Rule 1: APC: articulation point check
    • Articulation point: if removed the rest of the graph becomes disconnected.
  • Using the number of AP and number of empty points to decide the life and death status
examples 11
Examples (1)
  • Empty points = 6, AP = 0:
  • Empty points = 6, AP = 4, 3, 2:
examples 21

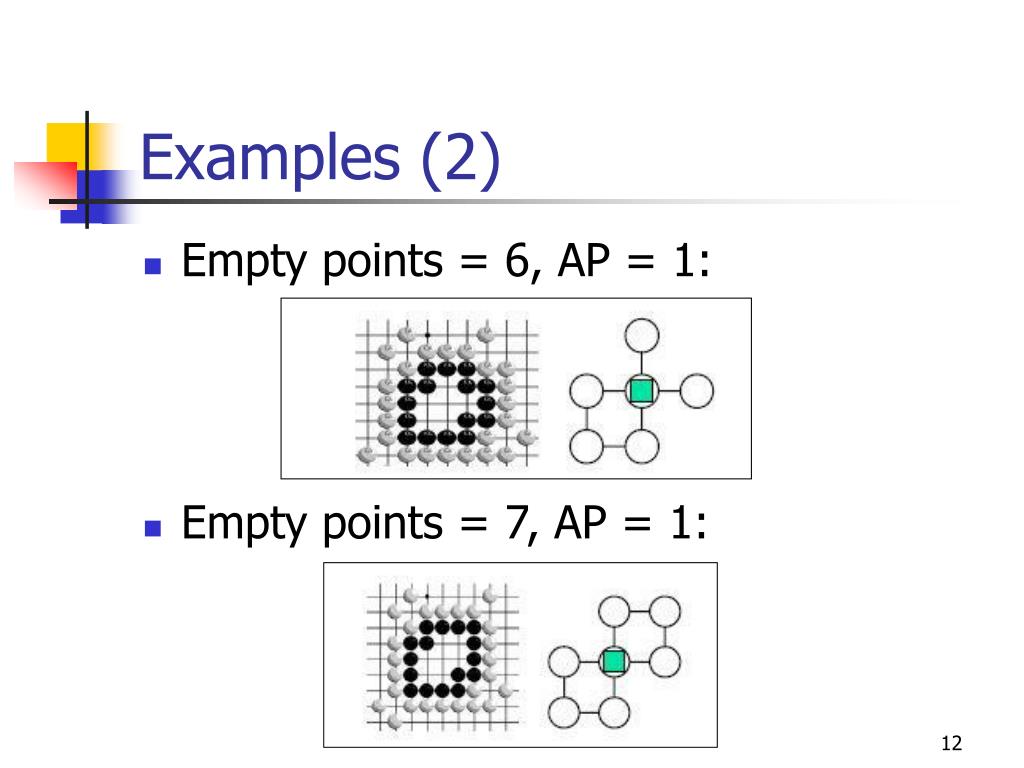

Examples (2)
  • Empty points = 6, AP = 1:
  • Empty points = 7, AP = 1:
evaluation of seki

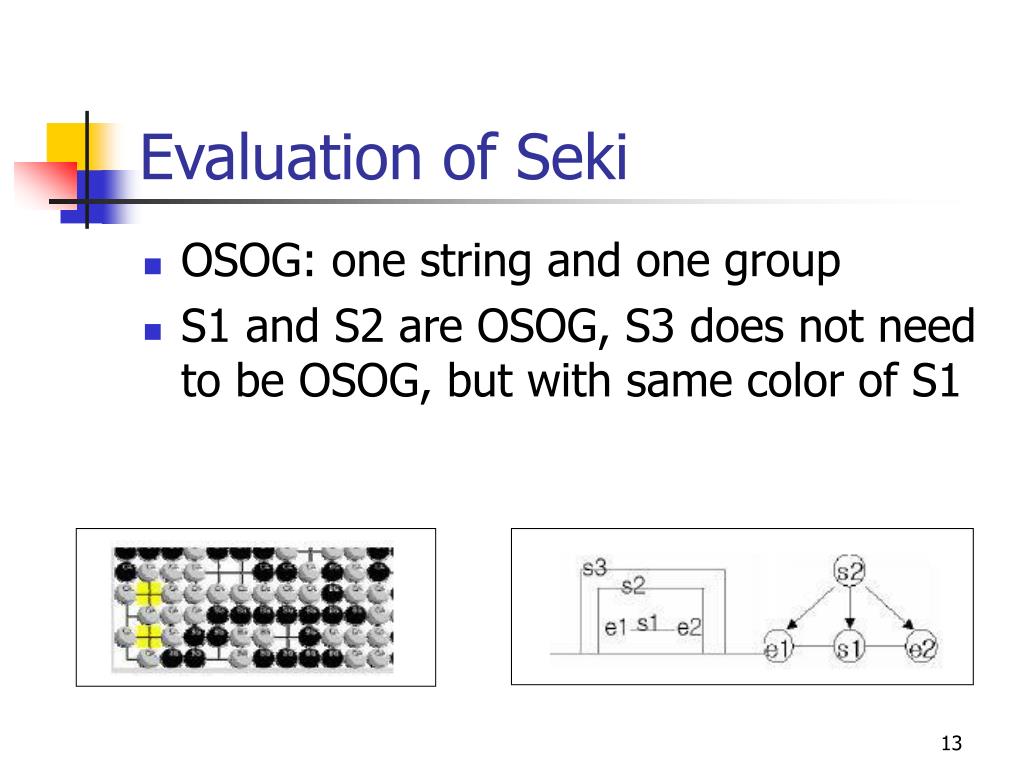

Evaluation of Seki
  • OSOG: one string and one group
  • S1 and S2 are OSOG, S3 does not need to be OSOG, but with same color of S1
judgment of seki jos

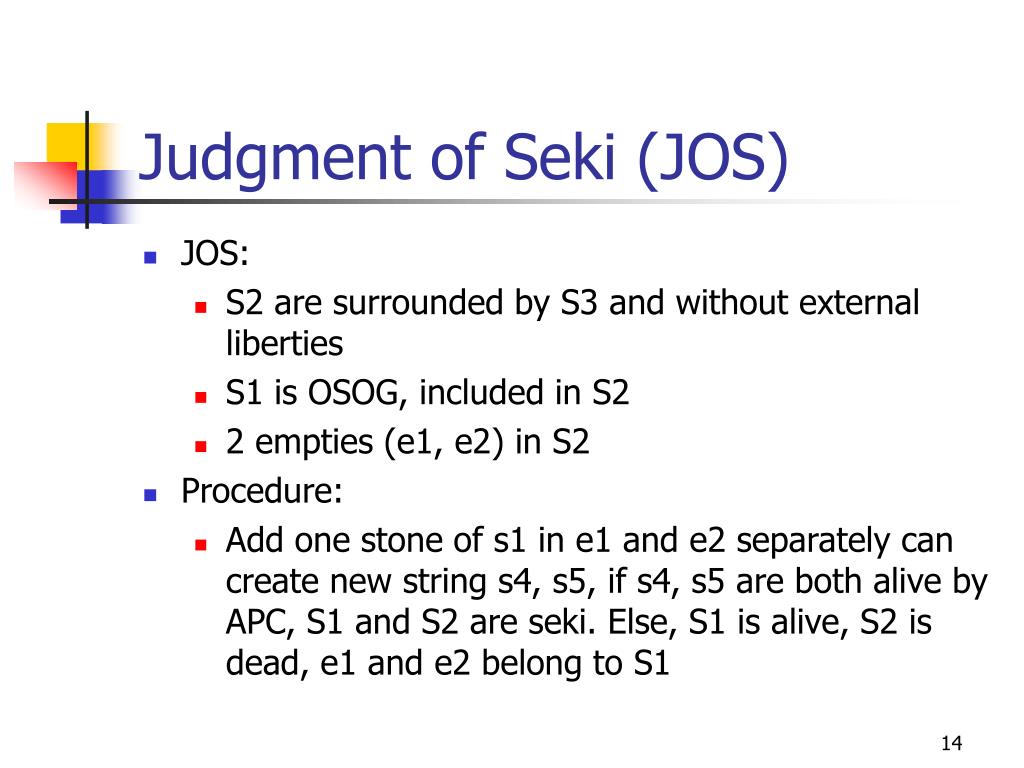

Judgment of Seki (JOS)
  • JOS:
    • S2 are surrounded by S3 and without external liberties
    • S1 is OSOG, included in S2
    • 2 empties (e1, e2) in S2
  • Procedure:
    • Add one stone of s1 in e1 and e2 separately can create new string s4, s5, if s4, s5 are both alive by APC, S1 and S2 are seki. Else, S1 is alive, S2 is dead, e1 and e2 belong to S1
examples1

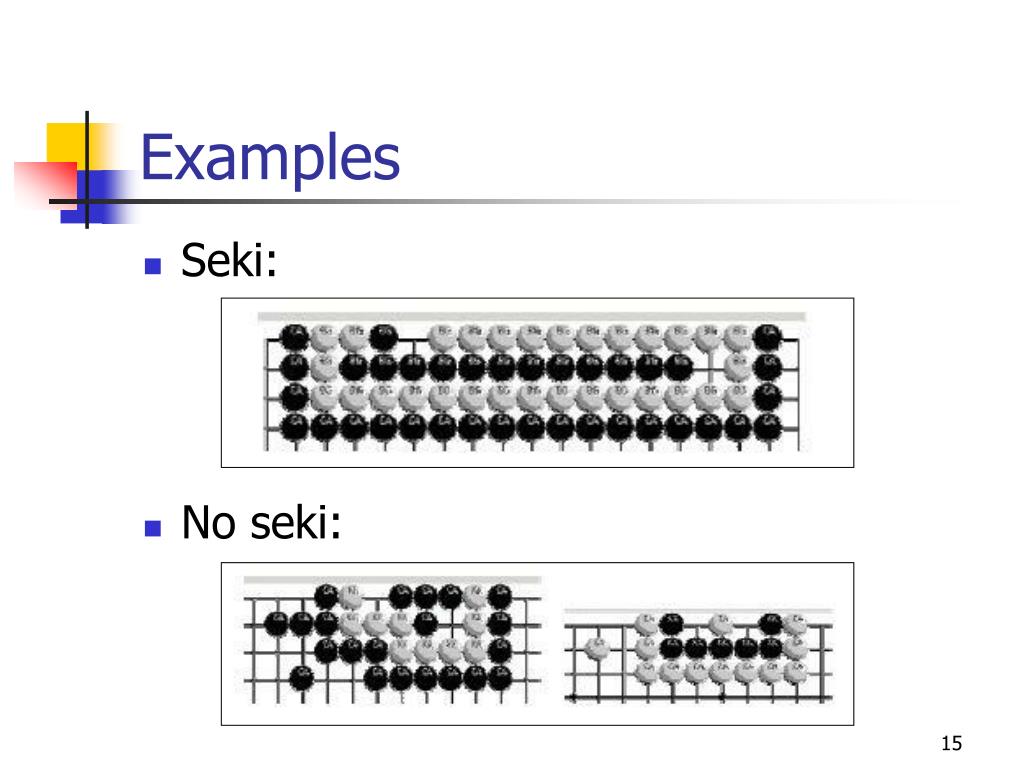

Examples
  • Seki:
  • No seki:
experiments

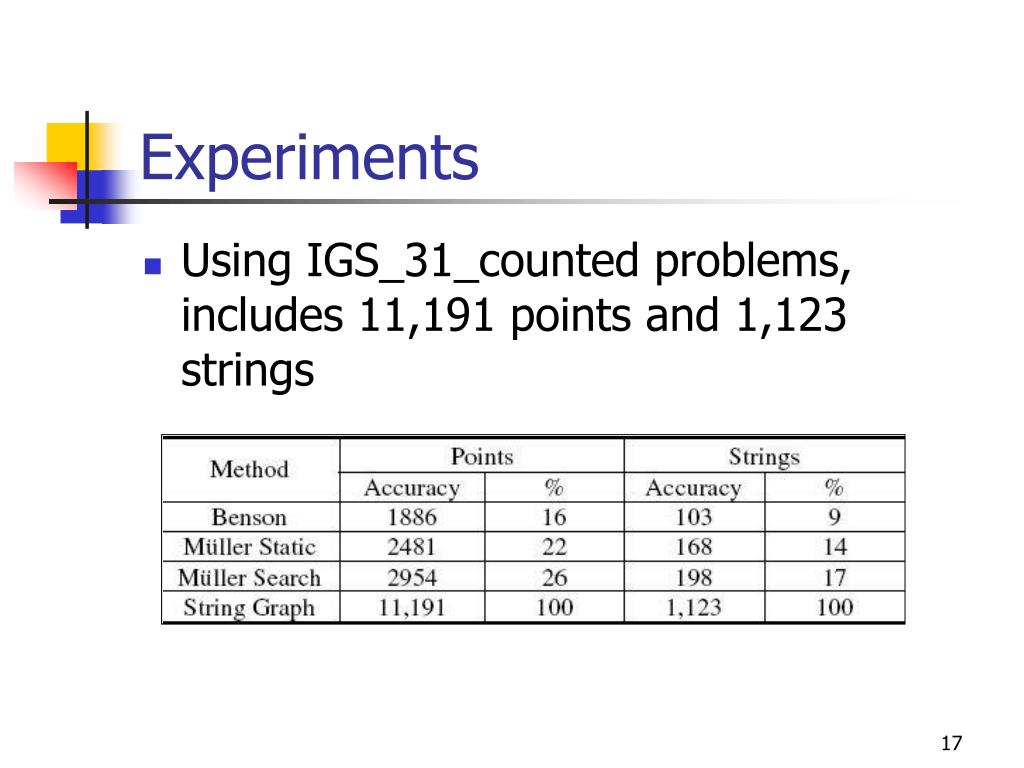

Experiments
  • Using IGS_31_counted problems, includes 11,191 points and 1,123 strings
summary

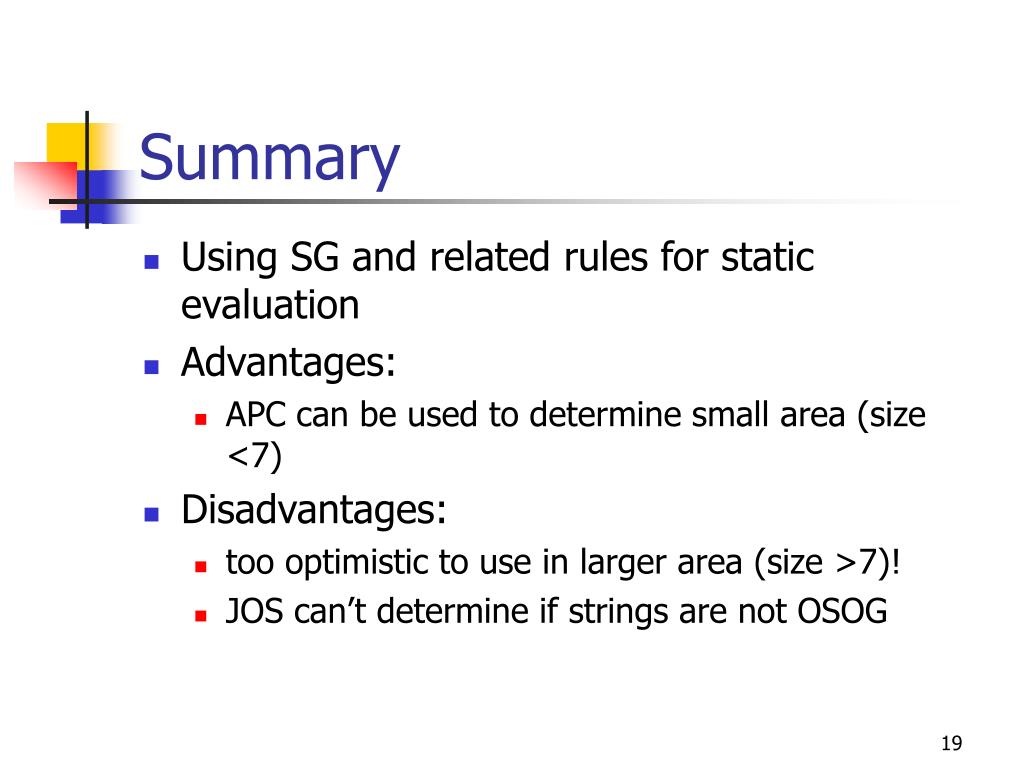

Summary
  • Using SG and related rules for static evaluation
  • Advantages:
    • APC can be used to determine small area (size <7)
  • Disadvantages:
    • too optimistic to use in larger area (size >7)!
    • JOS can’t determine if strings are not OSOG
