Lesson 5.3 Congruent Angles Associated with Parallel Lines

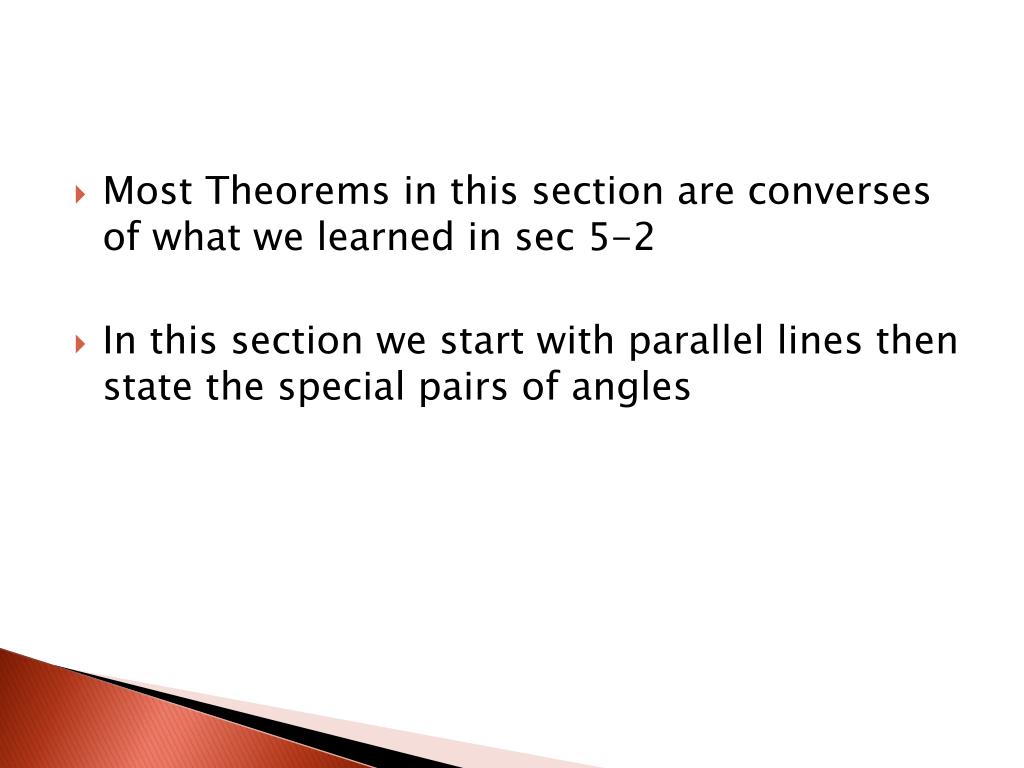

Most Theorems in this section are converses of what we learned in sec 5-2 • In this section we start with parallel lines then state the special pairs of angles
Parallel Postulate: Through a point not on a line, there is exactly one parallel to the given line. P a

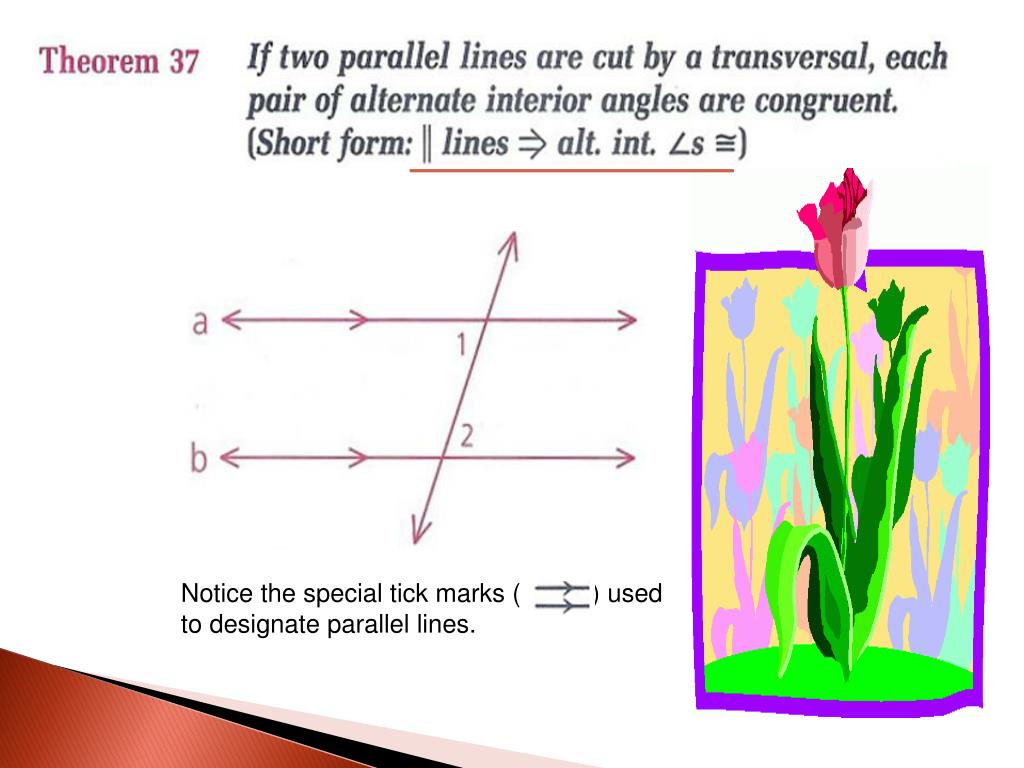

Notice the special tick marks ( ) used to designate parallel lines.

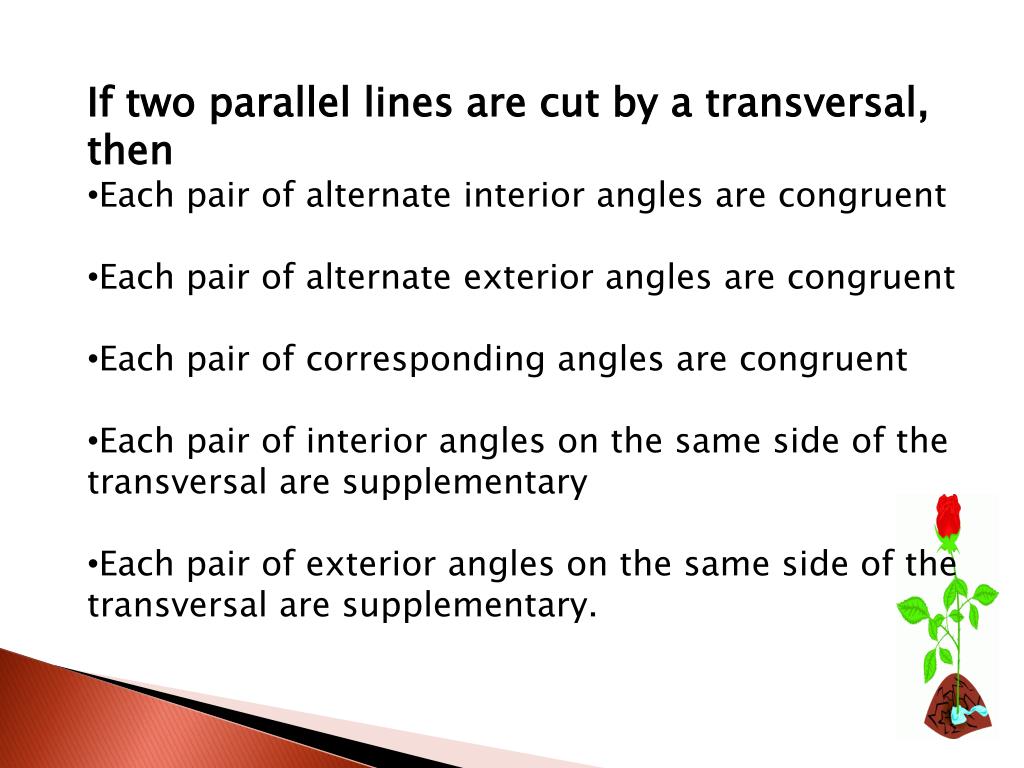

If two parallel lines are cut by a transversal, then • Each pair of alternate interior angles are congruent • Each pair of alternate exterior angles are congruent • Each pair of corresponding angles are congruent • Each pair of interior angles on the same side of the transversal are supplementary • Each pair of exterior angles on the same side of the transversal are supplementary.

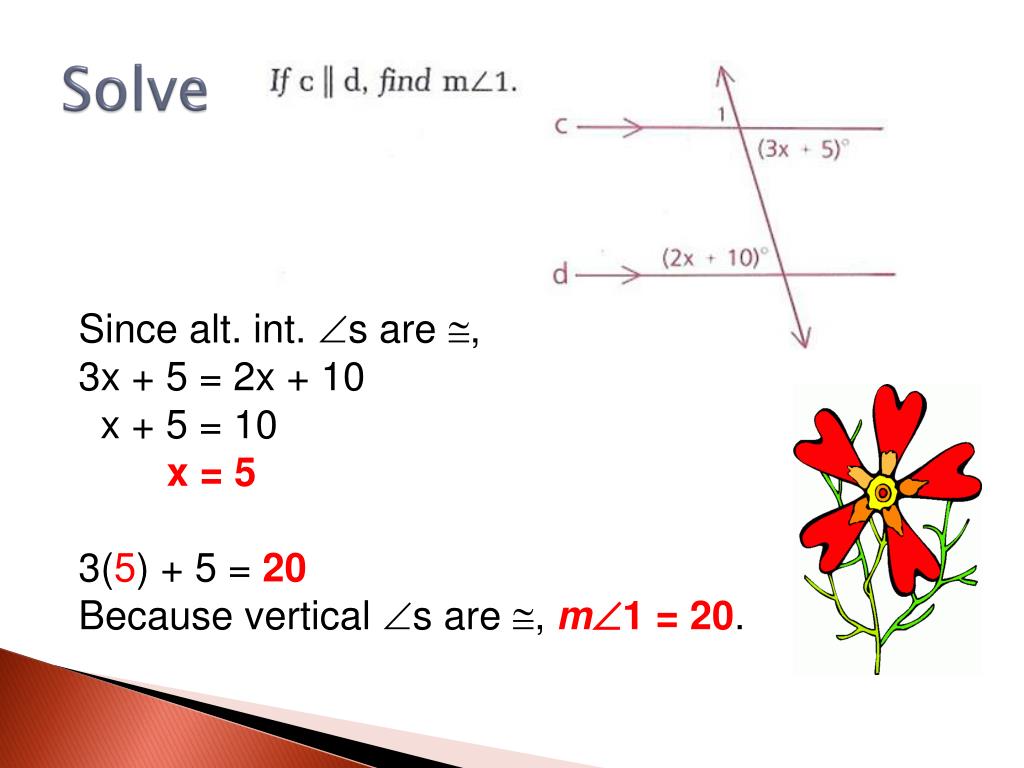

Solve Since alt. int. s are , 3x + 5 = 2x + 10 x + 5 = 10 x = 5 3(5) + 5 = 20 Because vertical s are , m1 = 20.

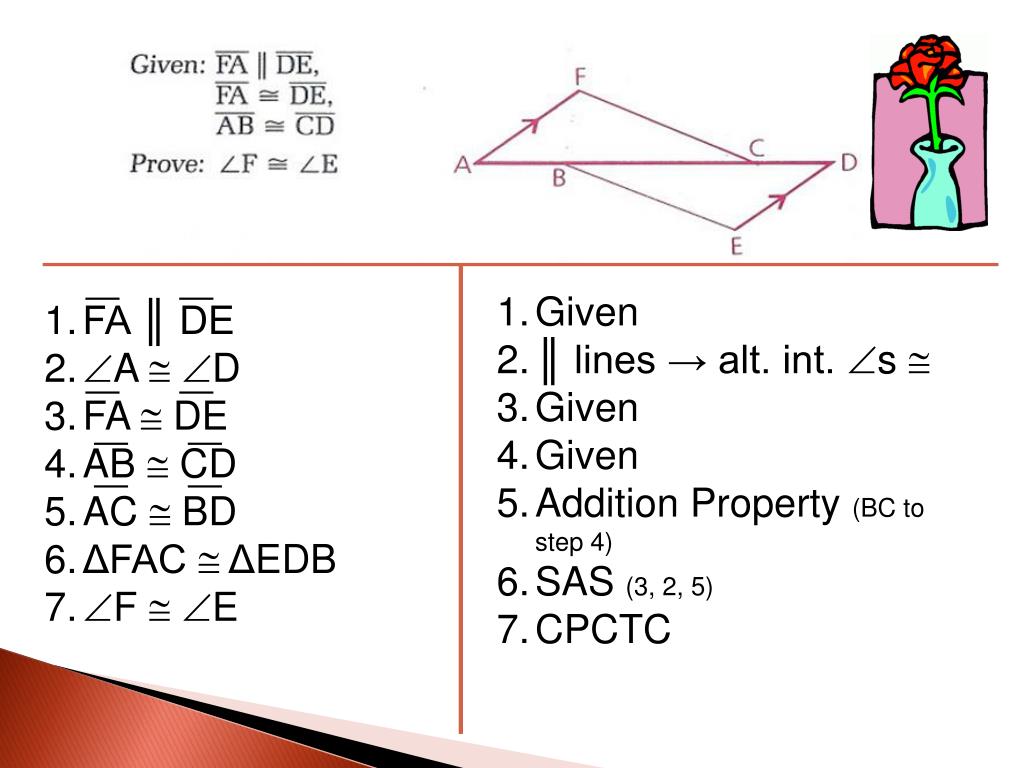

Given ║ lines → alt. int. s Given Given Addition Property (BC to step 4) SAS (3, 2, 5) CPCTC FA ║ DE A D FA DE AB CD AC BD ΔFAC ΔEDB F E

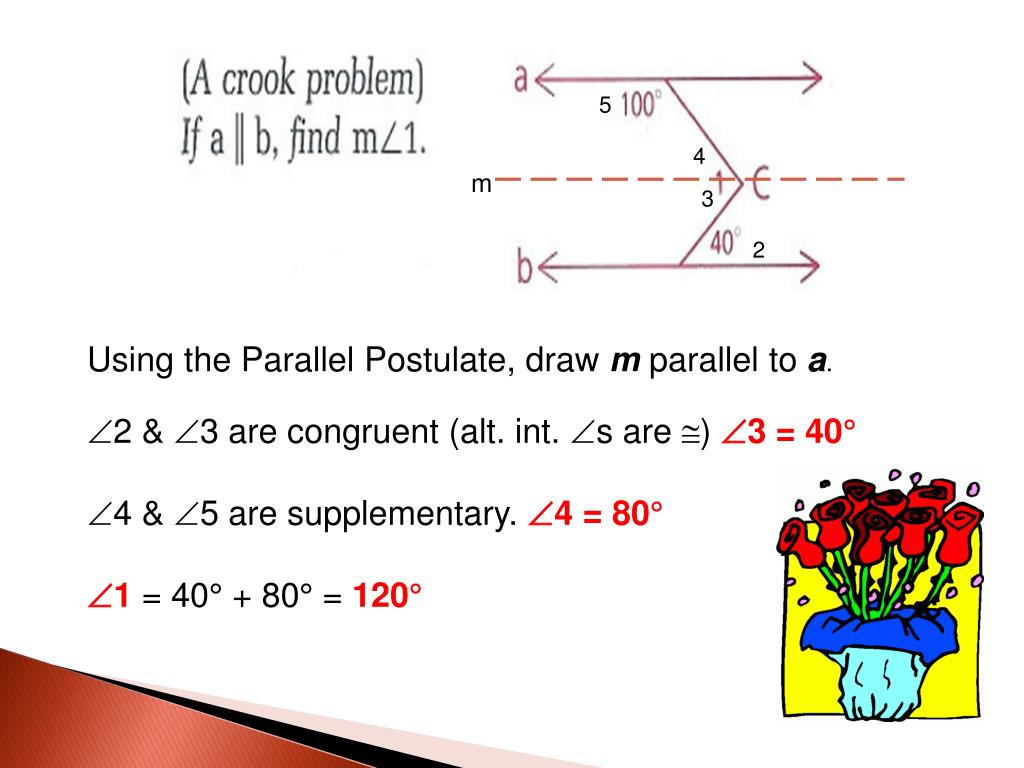

5 4 m 3 2 Using the Parallel Postulate, draw m parallel to a. 2 & 3 are congruent (alt. int. s are ) 3 = 40° 4 & 5 are supplementary. 4 = 80° 1 = 40° + 80° = 120°
PAI • PAE • PCA • PSSIS • PSSES • 2P3P • Dual ̸̸ ̸ theorem • Dual ⊥ theorem
