    1. Supporting & Troubleshooting MobilePOS

    2. MobilePOS First Principles • Allow wait staff to take orders from customers using mobile devices • Provide a subset of WTA functionality • Allow user to complete full check lifecycle • Create check • Save Check • Recall Check • Tender Check • Be simple, reliable and intuitive to use

    3. MobilePOS Components • SQL Database • Web Services • Mpos Sync Application • Mpos Config Application • Mpos Transaction Processing Service • Order Monitor • Mpos Client • Mpos Client Database

    4. SQL Database • Store for all information relating to Mpos • Mpos Configuration Data • IG Configuration Data • Screens • Users • Menu Items • Modifiers • Choice Groups • Etc • Data for checks created in Mpos

    5. SQL Database • Stored Procedures • No Mpos application contains hard coded SQL Statements • Mostly contains transient information • All IG data is pulled back periodically • Only data that is not stored anywhere else is • Service Area data • Mpos check data • Backups?

    6. SQL Database • Can exist on a clustered environment • However… SQL Components still need to be installed on Mpos server for the SDF creation • Database is called “OrderManager” • See history for Mpos for explanation of that! • Under the hood…

    7. Web Services • What are Web Services? • Re-usable chunks of code stored on a server • Called by a client application • Accessed via HTTP • Why are they used ? • Just like stored procedures • Centralization • Reusability • Distributed Workload • Abstraction

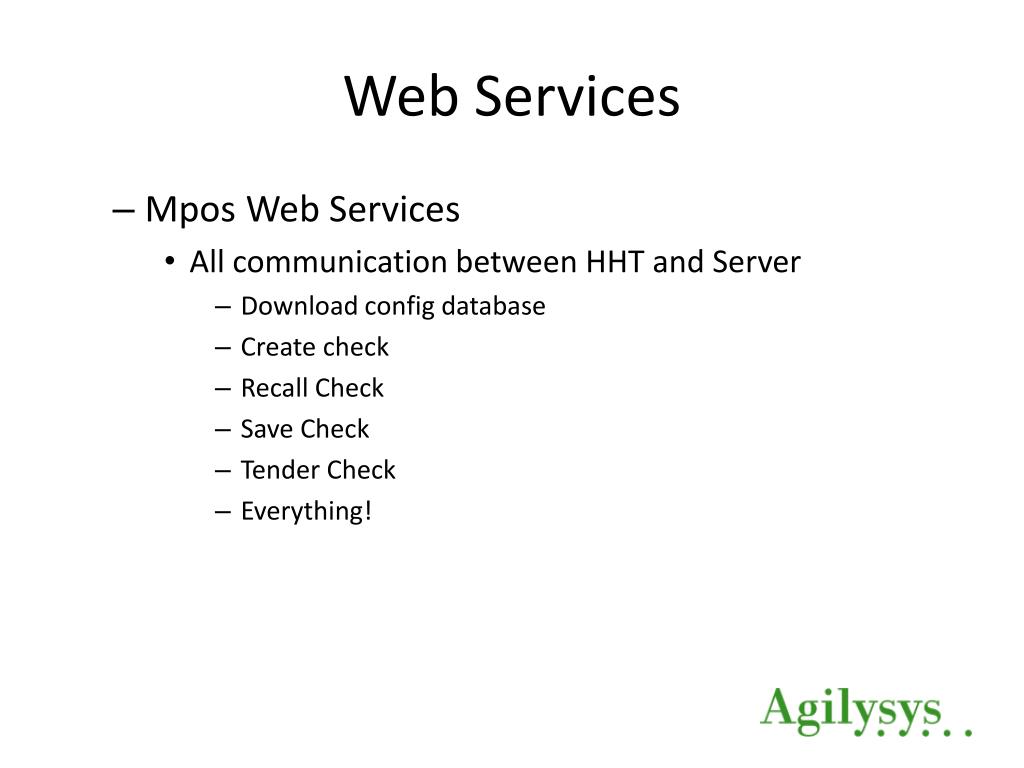

    8. Web Services • Mpos Web Services • All communication between HHT and Server • Download config database • Create check • Recall Check • Save Check • Tender Check • Everything!

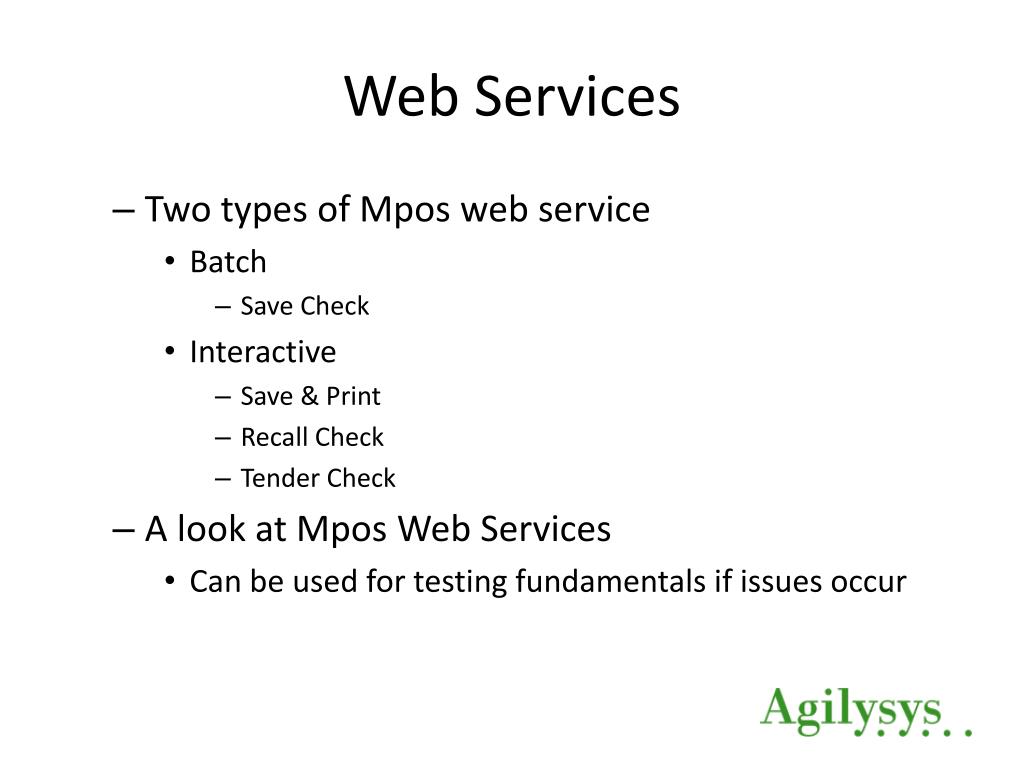

    9. Web Services • Two types of Mpos web service • Batch • Save Check • Interactive • Save & Print • Recall Check • Tender Check • A look at Mpos Web Services • Can be used for testing fundamentals if issues occur

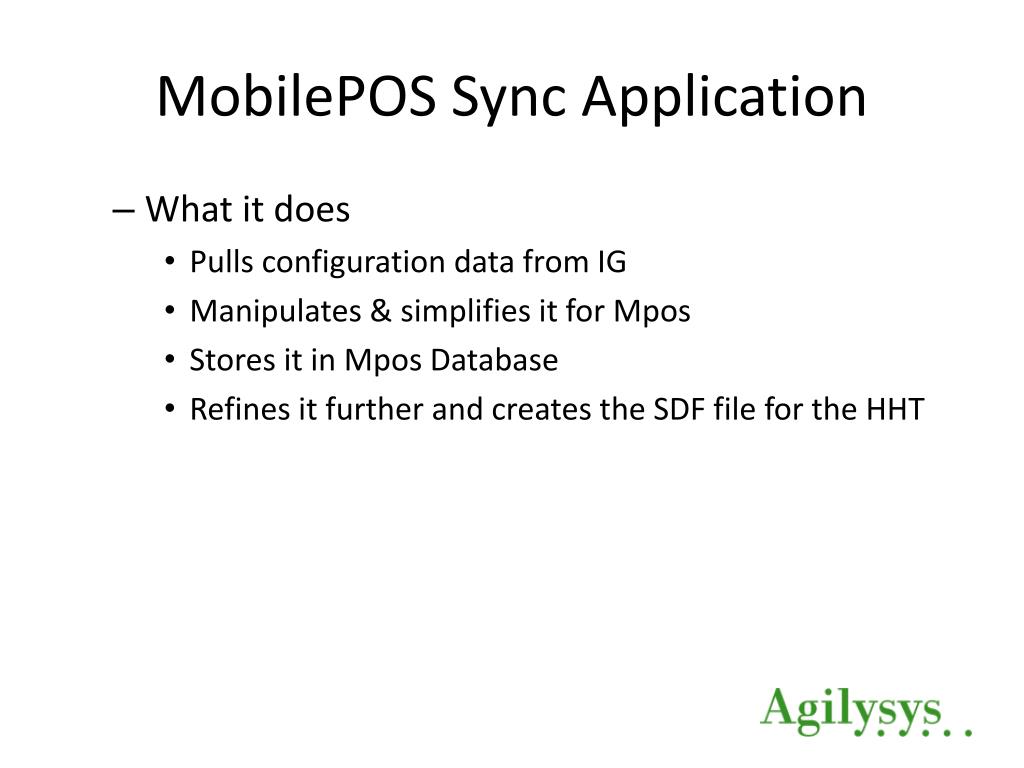

    10. MobilePOS Sync Application • What it does • Pulls configuration data from IG • Manipulates & simplifies it for Mpos • Stores it in Mpos Database • Refines it further and creates the SDF file for the HHT

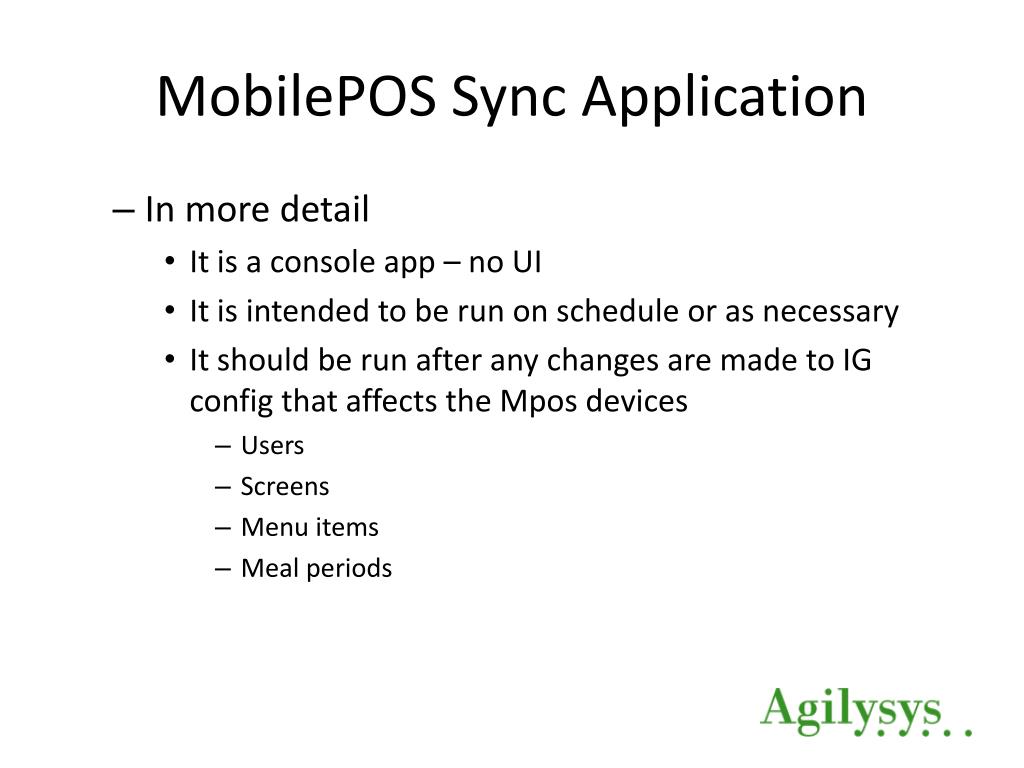

    11. MobilePOS Sync Application • In more detail • It is a console app – no UI • It is intended to be run on schedule or as necessary • It should be run after any changes are made to IG config that affects the Mpos devices • Users • Screens • Menu items • Meal periods

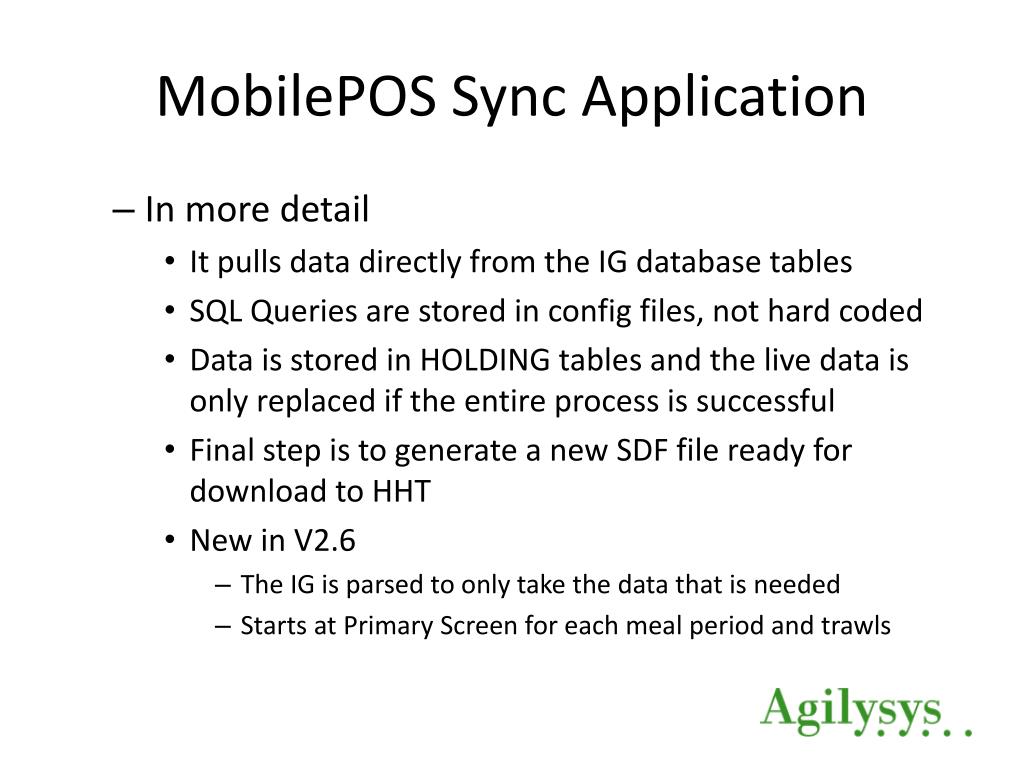

    12. MobilePOS Sync Application • In more detail • It pulls data directly from the IG database tables • SQL Queries are stored in config files, not hard coded • Data is stored in HOLDING tables and the live data is only replaced if the entire process is successful • Final step is to generate a new SDF file ready for download to HHT • New in V2.6 • The IG is parsed to only take the data that is needed • Starts at Primary Screen for each meal period and trawls

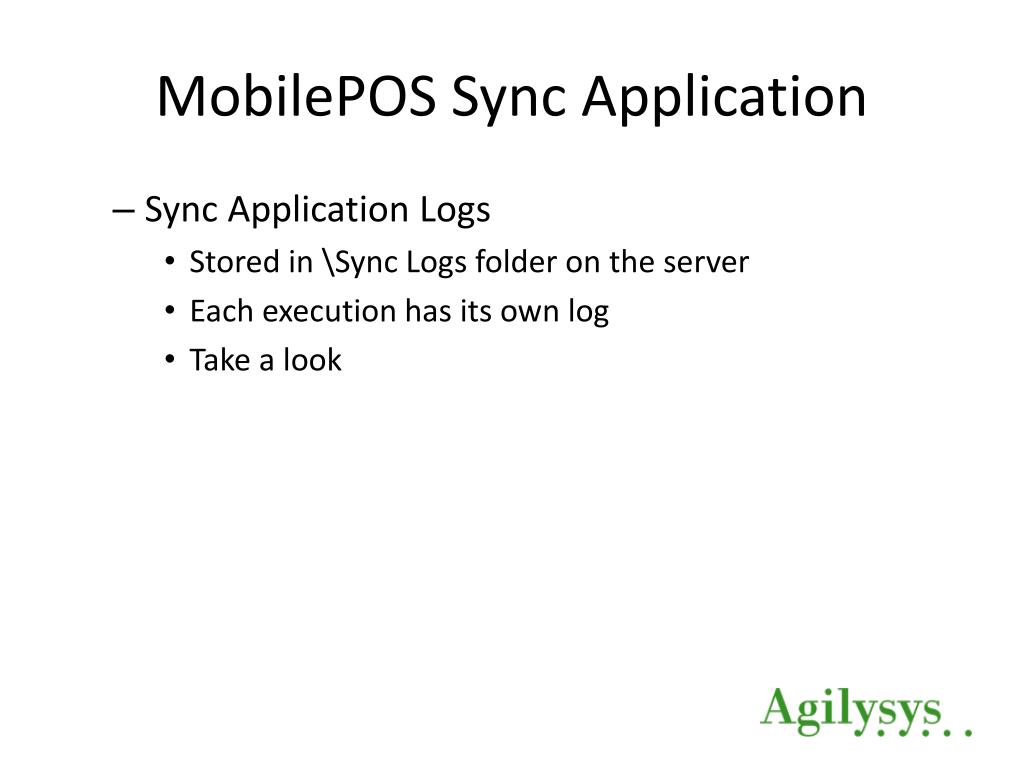

    13. MobilePOS Sync Application • Sync Application Logs • Stored in \Sync Logs folder on the server • Each execution has its own log • Take a look

    14. Transaction Processing Service • Takes transactions from the database and processes them in batch mode • Passes them to the TPG • Waits for a response • Updates Mpos status accordingly • Windows Service – no UI • Logs stored in \Order Processing Logs folder • New log started at either • Service start-up • File size is aprox 1mb

    15. Transaction Processing Service • Runs on a 10 second cycle • Will classify processing errors in two ways • Fatal Error • Invalid Employee • Check already closed • Invalid Profit Centre • User will be notified • Non-Fatal Error • General comms errors with TPG • KP Problems • Will be re-queued for next pass

    16. Order Monitor Utility • Allows admins to view mPos activity • Shows processing queues • Allows you to get a high level overview of a check, or general status of Mpos environment

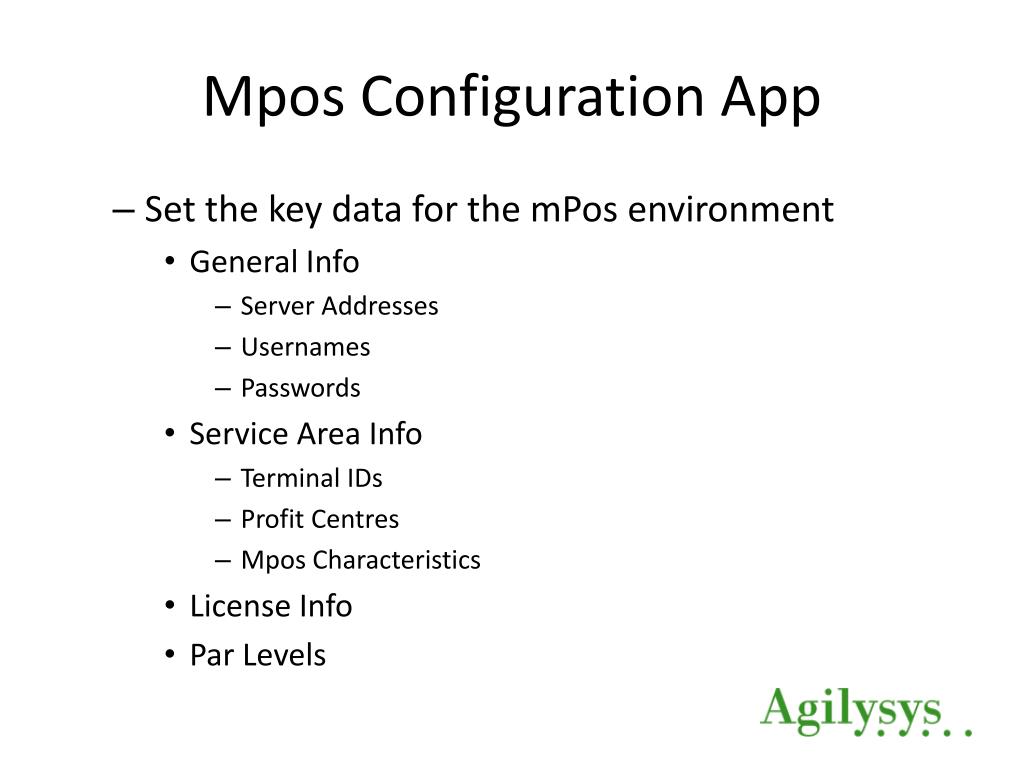

    17. Mpos Configuration App • Set the key data for the mPos environment • General Info • Server Addresses • Usernames • Passwords • Service Area Info • Terminal IDs • Profit Centres • Mpos Characteristics • License Info • Par Levels

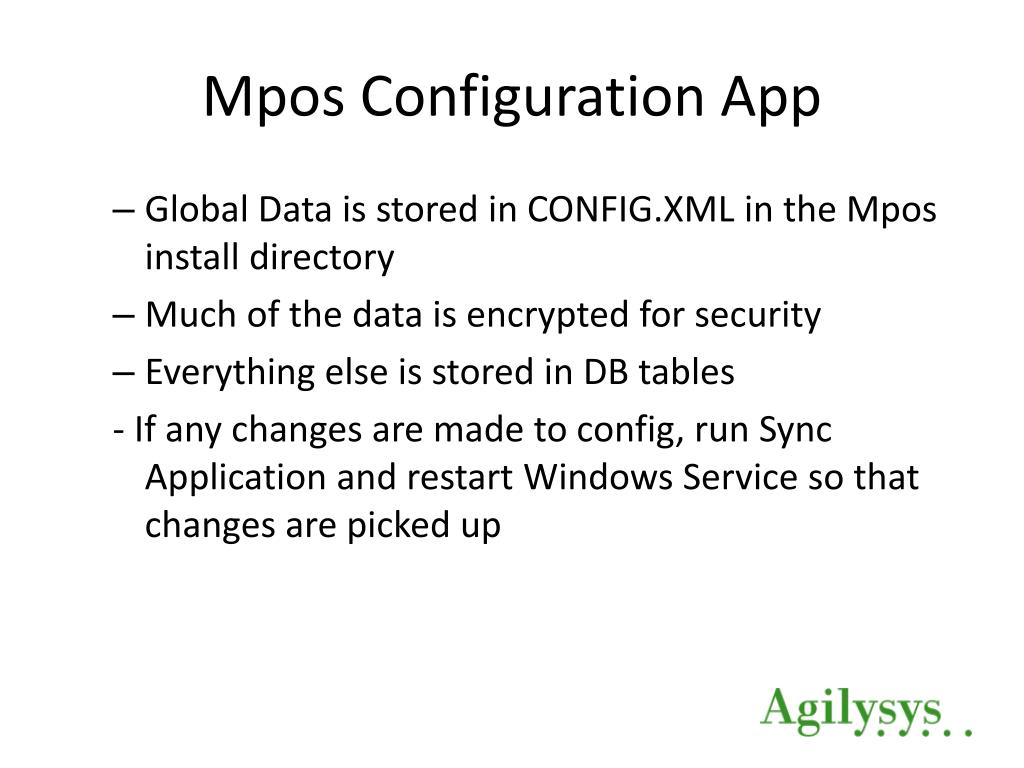

    18. Mpos Configuration App • Global Data is stored in CONFIG.XML in the Mpos install directory • Much of the data is encrypted for security • Everything else is stored in DB tables - If any changes are made to config, run Sync Application and restart Windows Service so that changes are picked up

    19. What do all the options mean? • Options tab • Use Seat Numbers • Use Course Numbers • Use Infogenesis Table Layout • Allow Auto Numbering of checks • Tender Only Mode • Re-Stock Mode

    20. What do all the options mean? • Tenders tab • Prompt for Gratuity • Use Digital Signatures • Allowed Tenders

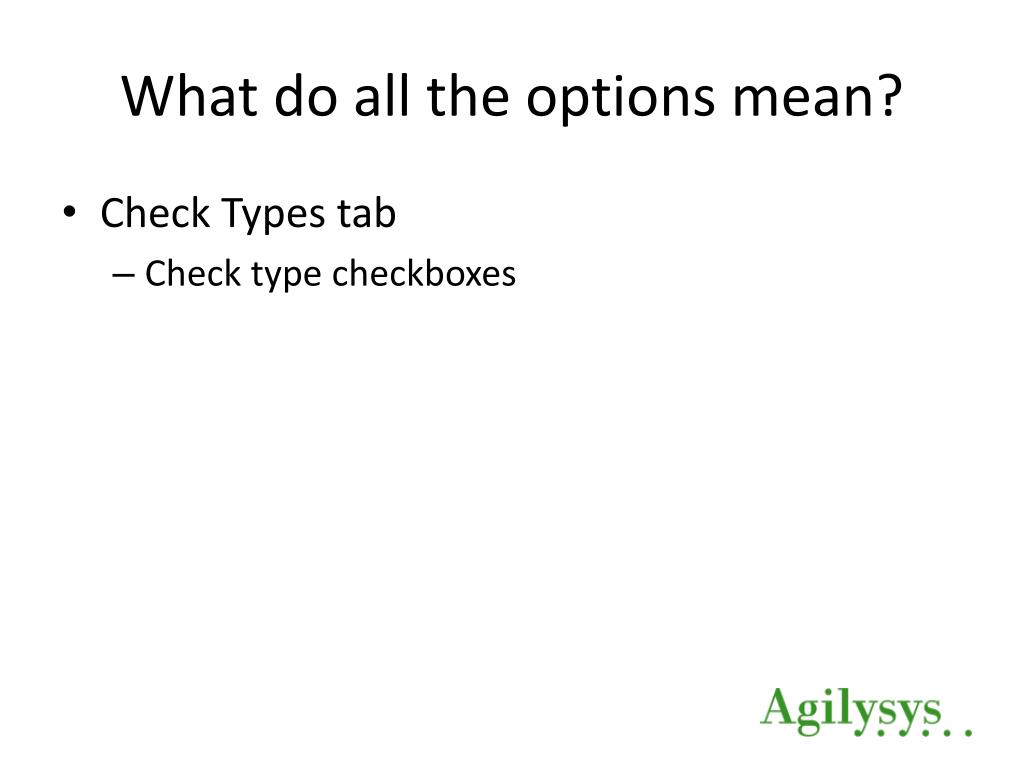

    21. What do all the options mean? • Check Types tab • Check type checkboxes

    22. What do all the options mean? • Stadium Seating tab • Use stadium seating • Sections • Rows • Seats

    23. What can go wrong? • HHT Issues • Device lockups & crashes • Device reboot (1 & 9 & red button) • Hardware failures • Warranty repair • Loss of network connectivity • No network coverage / inability to connect • Device connected to network, but HTTP connections fail

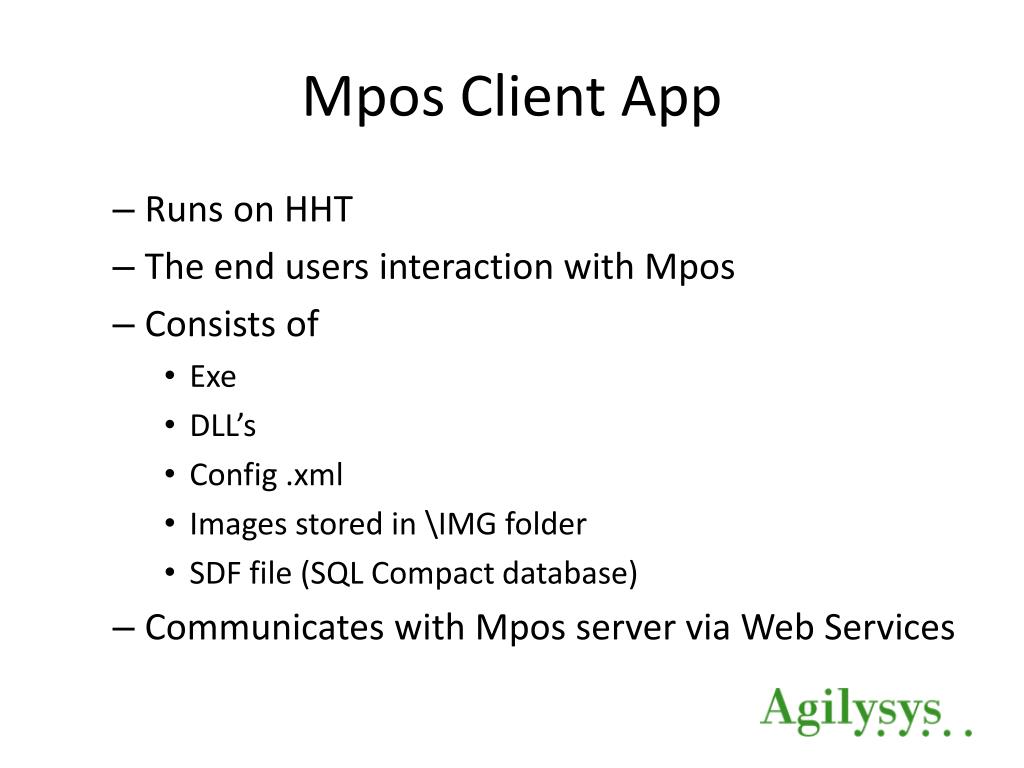

    24. Mpos Client App • Runs on HHT • The end users interaction with Mpos • Consists of • Exe • DLL’s • Config .xml • Images stored in \IMG folder • SDF file (SQL Compact database) • Communicates with Mpos server via Web Services

    25. Other files on the server • Config.XML • Configuration data (back this up!) • Query_config_vx.xml • Contains the SQL queries used to retrieve data from IG • Can be modified • Be very very careful! • Tender_query_config_vx.xml • Contains info about how each tender verification code should be handled • Colour_map.xml • Translates IG button colours into XHTML standard colours

    26. What can go wrong? • Loss of network connectivity • Go back to basics • Exit Mpos • Check network connections • Check Internet Explorer can browse Mpos Server • Check that Mpos client config has correct address for Mpos Server • Check that a PC on same network can web browse Mpos server • Check IIS is running on Mpos server • Check that Web Services are running correctly

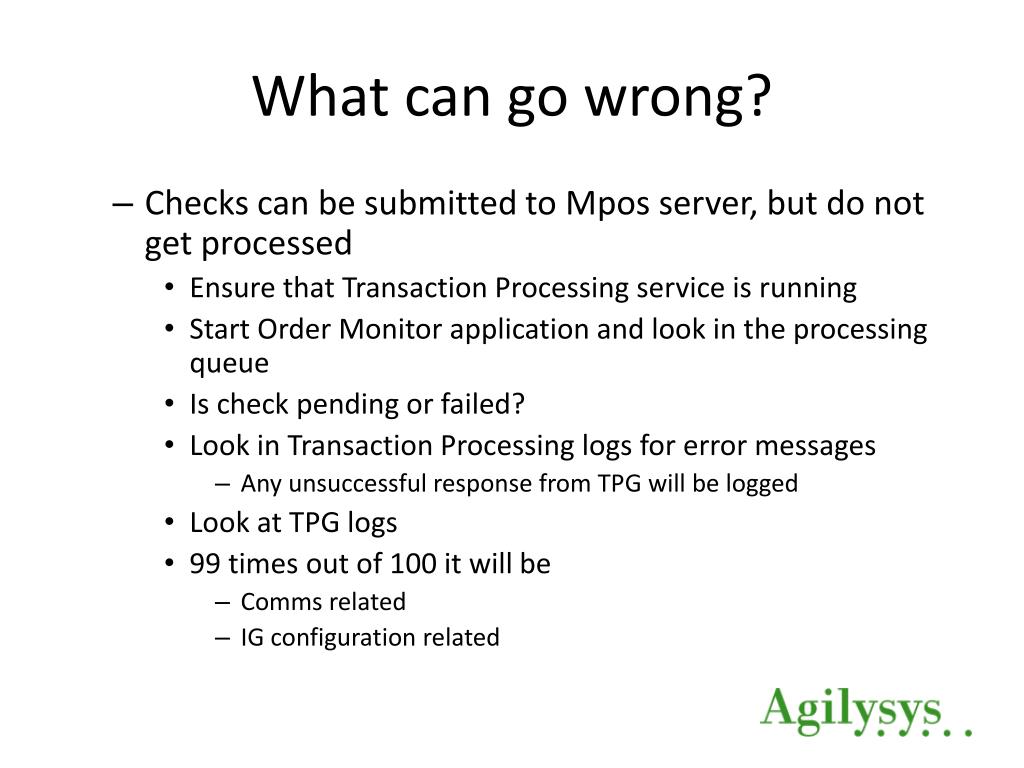

    27. What can go wrong? • Checks can be submitted to Mpos server, but do not get processed • Ensure that Transaction Processing service is running • Start Order Monitor application and look in the processing queue • Is check pending or failed? • Look in Transaction Processing logs for error messages • Any unsuccessful response from TPG will be logged • Look at TPG logs • 99 times out of 100 it will be • Comms related • IG configuration related

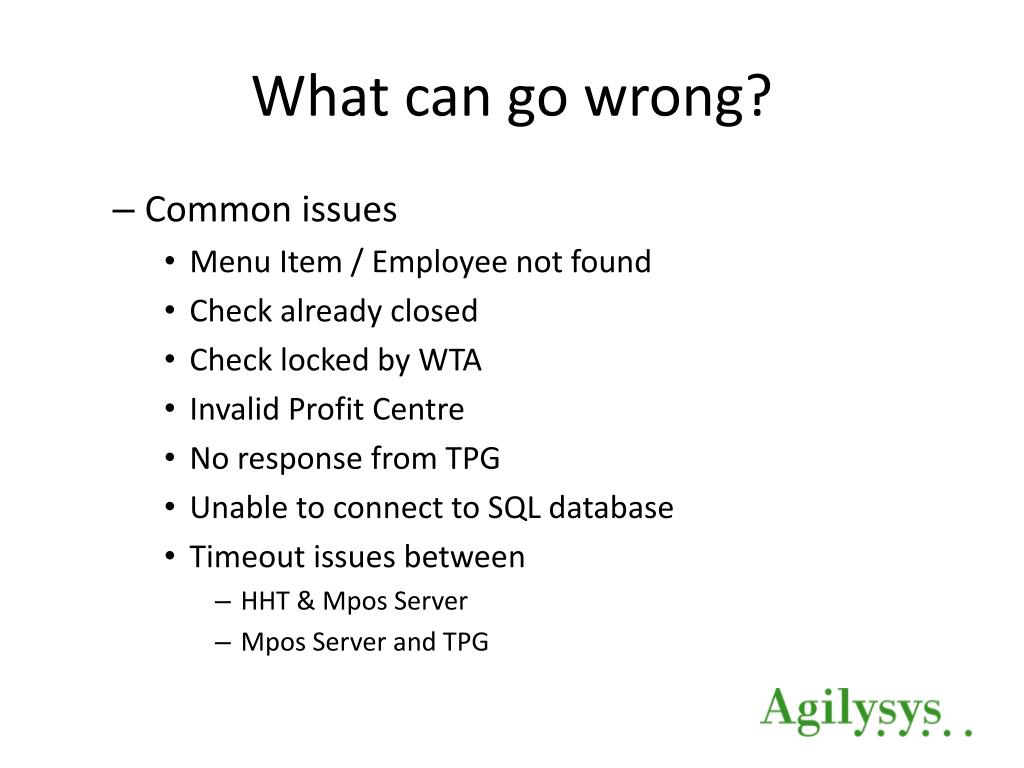

    28. What can go wrong? • Common issues • Menu Item / Employee not found • Check already closed • Check locked by WTA • Invalid Profit Centre • No response from TPG • Unable to connect to SQL database • Timeout issues between • HHT & Mpos Server • Mpos Server and TPG

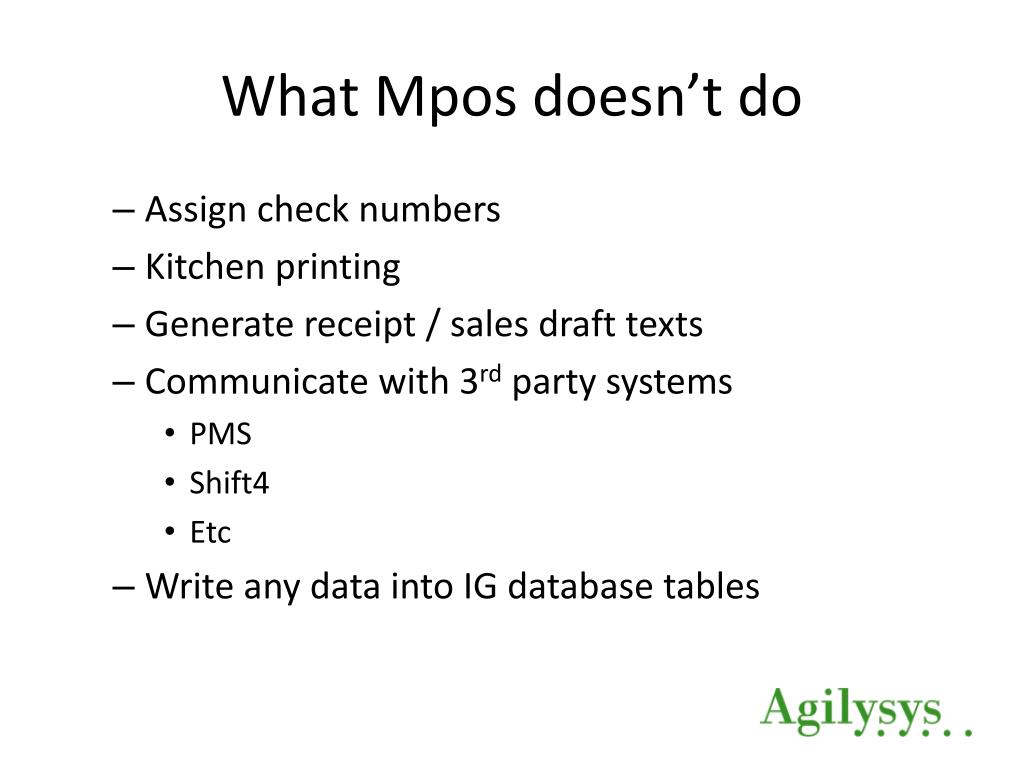

    29. What Mpos doesn’t do • Assign check numbers • Kitchen printing • Generate receipt / sales draft texts • Communicate with 3rd party systems • PMS • Shift4 • Etc • Write any data into IG database tables

    30. Limitations • All the TPG limitations we know and love • Cant split checks • No part payments • Cant cancel authorizations • Only a subset of tender verification codes supported • Cant assign course numbers properly • Etc

    31. Limitations • Cannot tender offline • Cannot do hold & fire ordering

    32. Process Walk Through • Create a new check • Recall an existing check and add items to it • Tender a check • Cash • Credit Card • GA • Room • Folio
