Forced-Air Heating Systems and Hydronic Systems

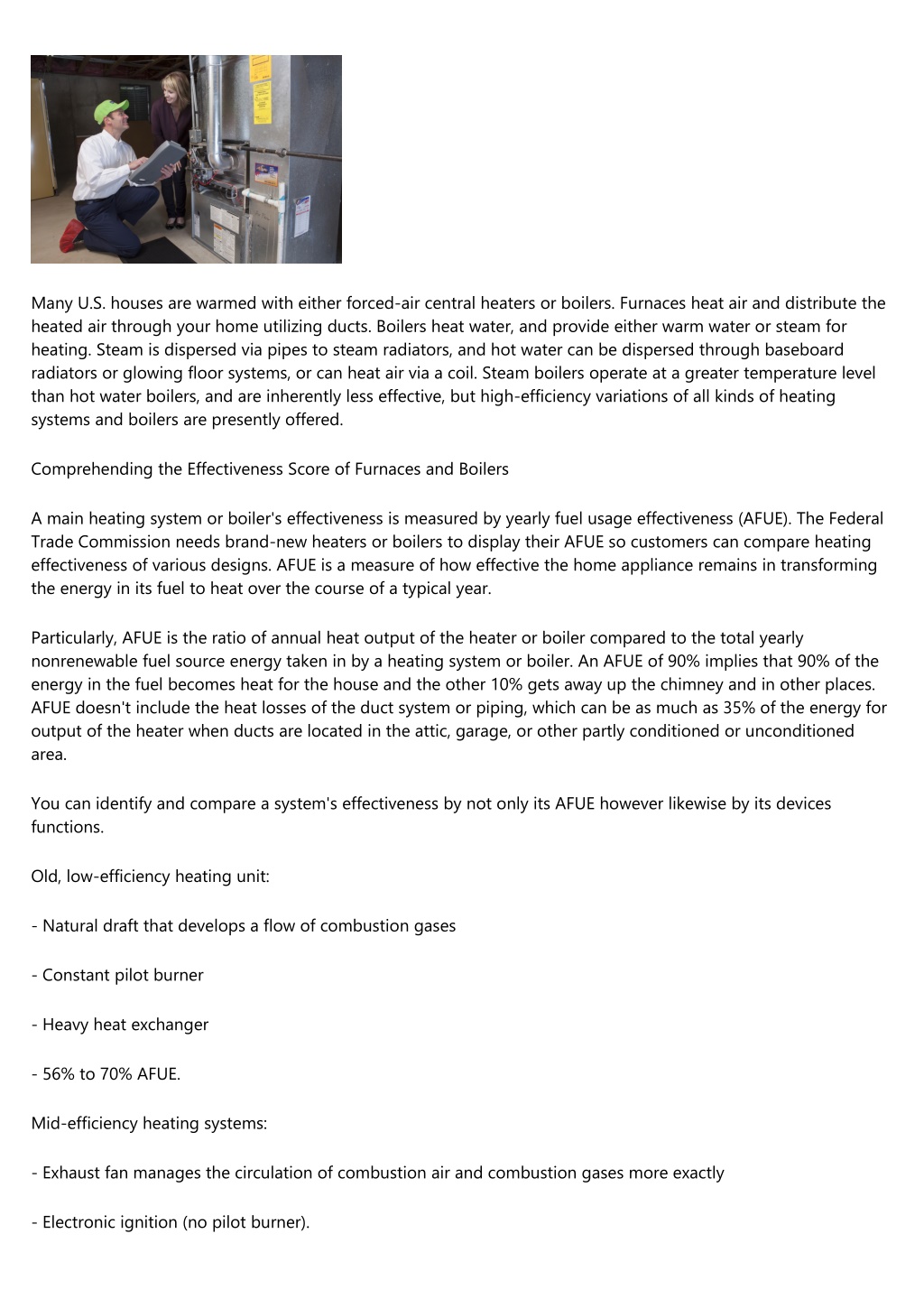

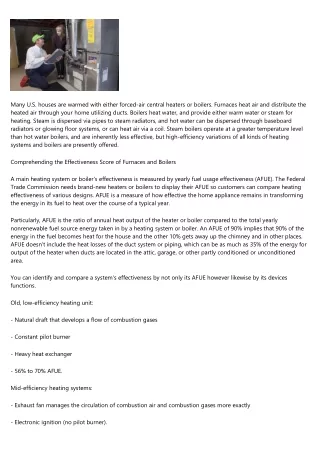

1. Many U.S. houses are warmed with either forced-air central heaters or boilers. Furnaces heat air and distribute the heated air through your home utilizing ducts. Boilers heat water, and provide either warm water or steam for heating. Steam is dispersed via pipes to steam radiators, and hot water can be dispersed through baseboard radiators or glowing floor systems, or can heat air via a coil. Steam boilers operate at a greater temperature level than hot water boilers, and are inherently less effective, but high-efficiency variations of all kinds of heating systems and boilers are presently offered. Comprehending the Effectiveness Score of Furnaces and Boilers A main heating system or boiler's effectiveness is measured by yearly fuel usage effectiveness (AFUE). The Federal Trade Commission needs brand-new heaters or boilers to display their AFUE so customers can compare heating effectiveness of various designs. AFUE is a measure of how effective the home appliance remains in transforming the energy in its fuel to heat over the course of a typical year. Particularly, AFUE is the ratio of annual heat output of the heater or boiler compared to the total yearly nonrenewable fuel source energy taken in by a heating system or boiler. An AFUE of 90% implies that 90% of the energy in the fuel becomes heat for the house and the other 10% gets away up the chimney and in other places. AFUE doesn't include the heat losses of the duct system or piping, which can be as much as 35% of the energy for output of the heater when ducts are located in the attic, garage, or other partly conditioned or unconditioned area. You can identify and compare a system's effectiveness by not only its AFUE however likewise by its devices functions. Old, low-efficiency heating unit: - Natural draft that develops a flow of combustion gases - Constant pilot burner - Heavy heat exchanger - 56% to 70% AFUE. Mid-efficiency heating systems: - Exhaust fan manages the circulation of combustion air and combustion gases more exactly - Electronic ignition (no pilot burner).

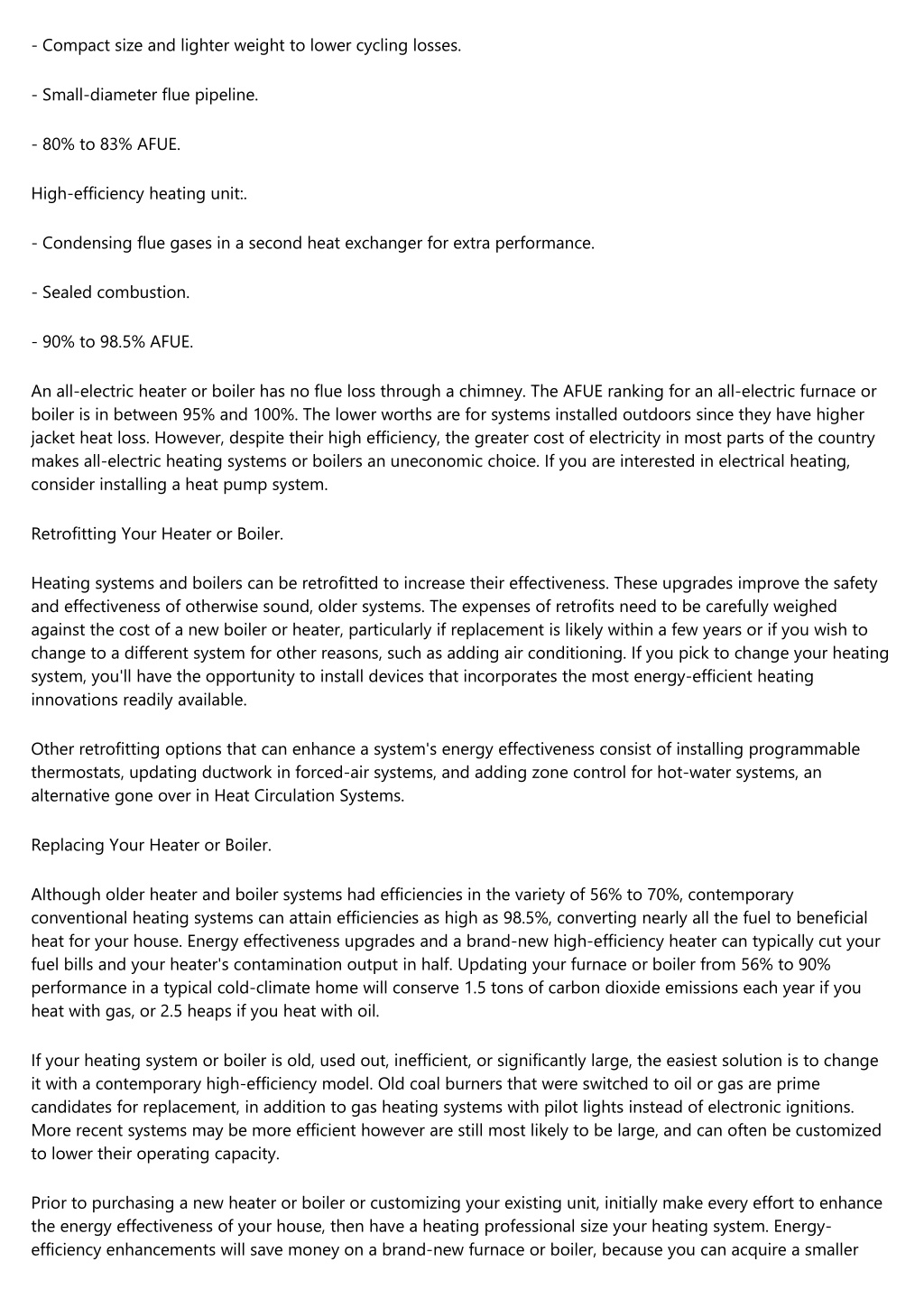

2. - Compact size and lighter weight to lower cycling losses. - Small-diameter flue pipeline. - 80% to 83% AFUE. High-efficiency heating unit:. - Condensing flue gases in a second heat exchanger for extra performance. - Sealed combustion. - 90% to 98.5% AFUE. An all-electric heater or boiler has no flue loss through a chimney. The AFUE ranking for an all-electric furnace or boiler is in between 95% and 100%. The lower worths are for systems installed outdoors since they have higher jacket heat loss. However, despite their high efficiency, the greater cost of electricity in most parts of the country makes all-electric heating systems or boilers an uneconomic choice. If you are interested in electrical heating, consider installing a heat pump system. Retrofitting Your Heater or Boiler. Heating systems and boilers can be retrofitted to increase their effectiveness. These upgrades improve the safety and effectiveness of otherwise sound, older systems. The expenses of retrofits need to be carefully weighed against the cost of a new boiler or heater, particularly if replacement is likely within a few years or if you wish to change to a different system for other reasons, such as adding air conditioning. If you pick to change your heating system, you'll have the opportunity to install devices that incorporates the most energy-efficient heating innovations readily available. Other retrofitting options that can enhance a system's energy effectiveness consist of installing programmable thermostats, updating ductwork in forced-air systems, and adding zone control for hot-water systems, an alternative gone over in Heat Circulation Systems. Replacing Your Heater or Boiler. Although older heater and boiler systems had efficiencies in the variety of 56% to 70%, contemporary conventional heating systems can attain efficiencies as high as 98.5%, converting nearly all the fuel to beneficial heat for your house. Energy effectiveness upgrades and a brand-new high-efficiency heater can typically cut your fuel bills and your heater's contamination output in half. Updating your furnace or boiler from 56% to 90% performance in a typical cold-climate home will conserve 1.5 tons of carbon dioxide emissions each year if you heat with gas, or 2.5 heaps if you heat with oil. If your heating system or boiler is old, used out, inefficient, or significantly large, the easiest solution is to change it with a contemporary high-efficiency model. Old coal burners that were switched to oil or gas are prime candidates for replacement, in addition to gas heating systems with pilot lights instead of electronic ignitions. More recent systems may be more efficient however are still most likely to be large, and can often be customized to lower their operating capacity. Prior to purchasing a new heater or boiler or customizing your existing unit, initially make every effort to enhance the energy effectiveness of your house, then have a heating professional size your heating system. Energy- efficiency enhancements will save money on a brand-new furnace or boiler, because you can acquire a smaller

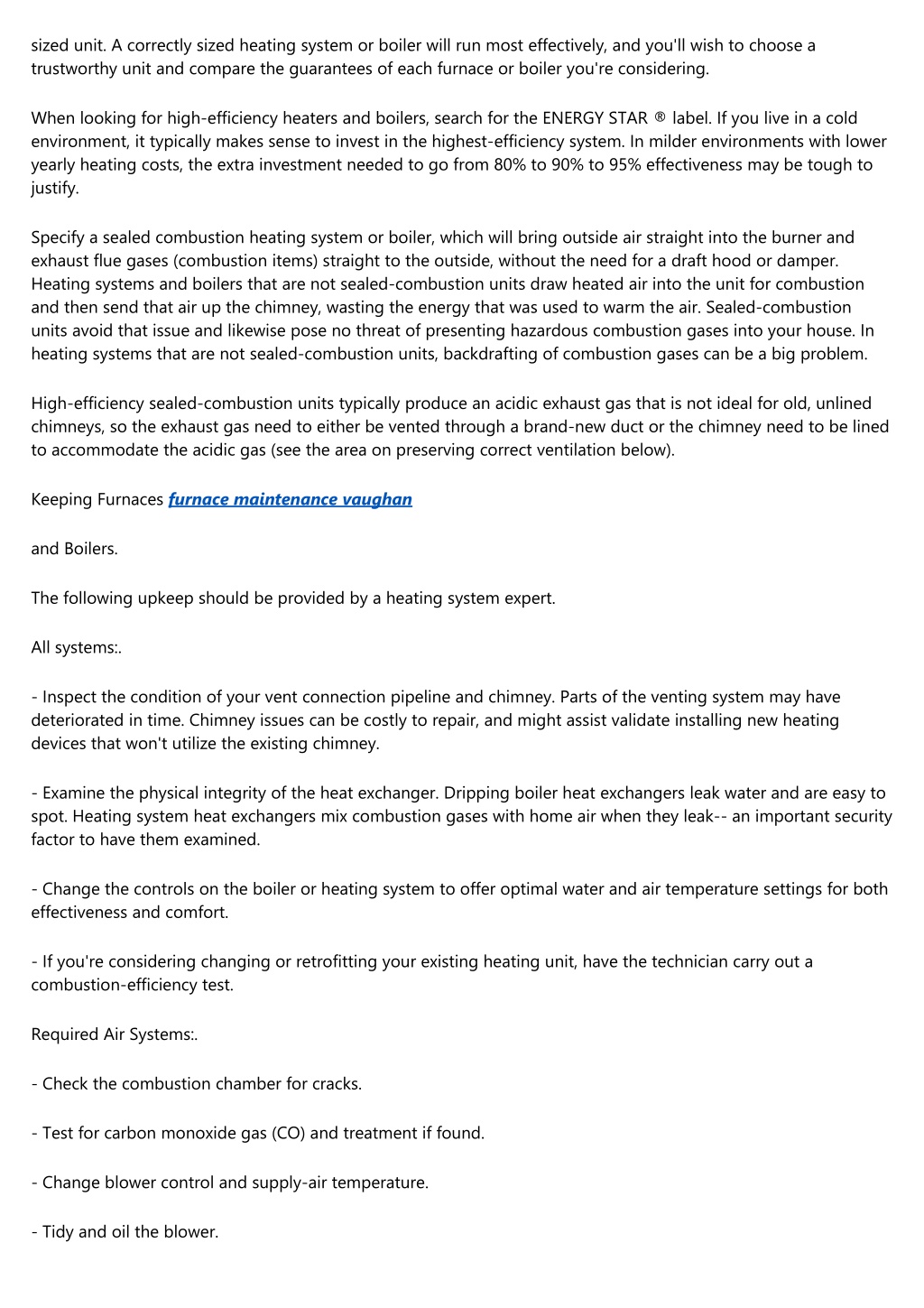

3. sized unit. A correctly sized heating system or boiler will run most effectively, and you'll wish to choose a trustworthy unit and compare the guarantees of each furnace or boiler you're considering. When looking for high-efficiency heaters and boilers, search for the ENERGY STAR ® label. If you live in a cold environment, it typically makes sense to invest in the highest-efficiency system. In milder environments with lower yearly heating costs, the extra investment needed to go from 80% to 90% to 95% effectiveness may be tough to justify. Specify a sealed combustion heating system or boiler, which will bring outside air straight into the burner and exhaust flue gases (combustion items) straight to the outside, without the need for a draft hood or damper. Heating systems and boilers that are not sealed-combustion units draw heated air into the unit for combustion and then send that air up the chimney, wasting the energy that was used to warm the air. Sealed-combustion units avoid that issue and likewise pose no threat of presenting hazardous combustion gases into your house. In heating systems that are not sealed-combustion units, backdrafting of combustion gases can be a big problem. High-efficiency sealed-combustion units typically produce an acidic exhaust gas that is not ideal for old, unlined chimneys, so the exhaust gas need to either be vented through a brand-new duct or the chimney need to be lined to accommodate the acidic gas (see the area on preserving correct ventilation below). Keeping Furnaces furnace maintenance vaughan and Boilers. The following upkeep should be provided by a heating system expert. All systems:. - Inspect the condition of your vent connection pipeline and chimney. Parts of the venting system may have deteriorated in time. Chimney issues can be costly to repair, and might assist validate installing new heating devices that won't utilize the existing chimney. - Examine the physical integrity of the heat exchanger. Dripping boiler heat exchangers leak water and are easy to spot. Heating system heat exchangers mix combustion gases with home air when they leak-- an important security factor to have them examined. - Change the controls on the boiler or heating system to offer optimal water and air temperature settings for both effectiveness and comfort. - If you're considering changing or retrofitting your existing heating unit, have the technician carry out a combustion-efficiency test. Required Air Systems:. - Check the combustion chamber for cracks. - Test for carbon monoxide gas (CO) and treatment if found. - Change blower control and supply-air temperature. - Tidy and oil the blower.

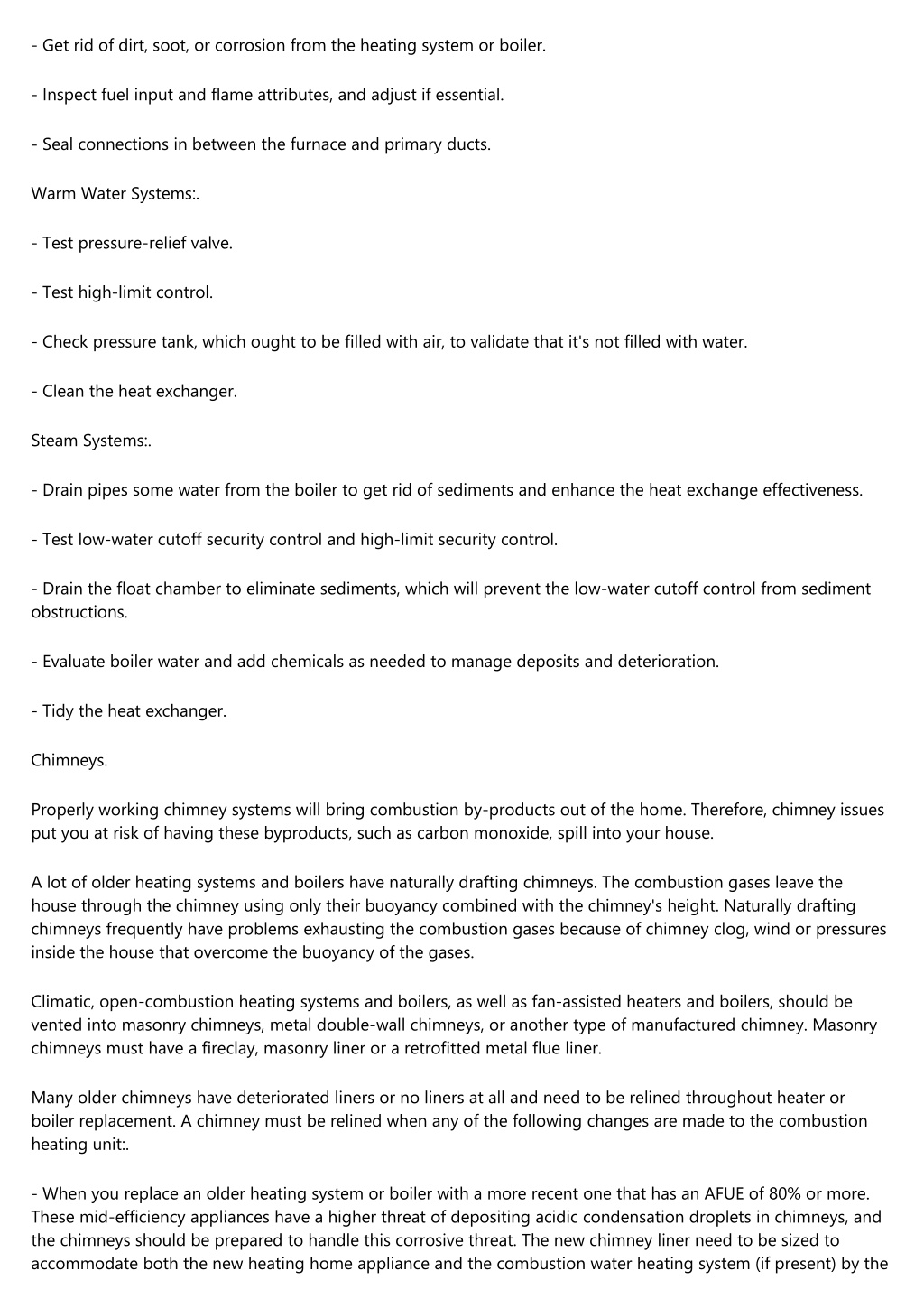

4. - Get rid of dirt, soot, or corrosion from the heating system or boiler. - Inspect fuel input and flame attributes, and adjust if essential. - Seal connections in between the furnace and primary ducts. Warm Water Systems:. - Test pressure-relief valve. - Test high-limit control. - Check pressure tank, which ought to be filled with air, to validate that it's not filled with water. - Clean the heat exchanger. Steam Systems:. - Drain pipes some water from the boiler to get rid of sediments and enhance the heat exchange effectiveness. - Test low-water cutoff security control and high-limit security control. - Drain the float chamber to eliminate sediments, which will prevent the low-water cutoff control from sediment obstructions. - Evaluate boiler water and add chemicals as needed to manage deposits and deterioration. - Tidy the heat exchanger. Chimneys. Properly working chimney systems will bring combustion by-products out of the home. Therefore, chimney issues put you at risk of having these byproducts, such as carbon monoxide, spill into your house. A lot of older heating systems and boilers have naturally drafting chimneys. The combustion gases leave the house through the chimney using only their buoyancy combined with the chimney's height. Naturally drafting chimneys frequently have problems exhausting the combustion gases because of chimney clog, wind or pressures inside the house that overcome the buoyancy of the gases. Climatic, open-combustion heating systems and boilers, as well as fan-assisted heaters and boilers, should be vented into masonry chimneys, metal double-wall chimneys, or another type of manufactured chimney. Masonry chimneys must have a fireclay, masonry liner or a retrofitted metal flue liner. Many older chimneys have deteriorated liners or no liners at all and need to be relined throughout heater or boiler replacement. A chimney must be relined when any of the following changes are made to the combustion heating unit:. - When you replace an older heating system or boiler with a more recent one that has an AFUE of 80% or more. These mid-efficiency appliances have a higher threat of depositing acidic condensation droplets in chimneys, and the chimneys should be prepared to handle this corrosive threat. The new chimney liner need to be sized to accommodate both the new heating home appliance and the combustion water heating system (if present) by the

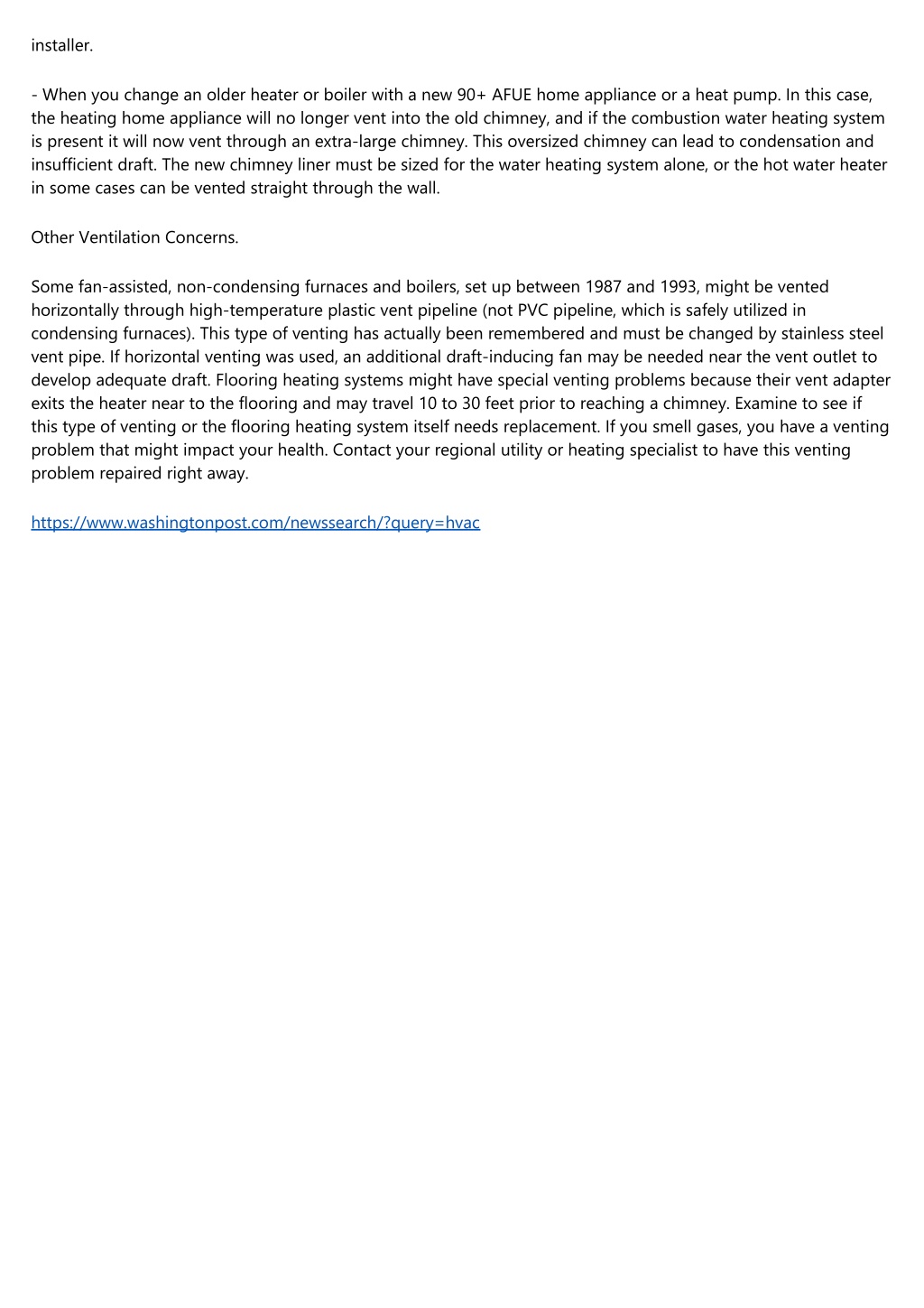

5. installer. - When you change an older heater or boiler with a new 90+ AFUE home appliance or a heat pump. In this case, the heating home appliance will no longer vent into the old chimney, and if the combustion water heating system is present it will now vent through an extra-large chimney. This oversized chimney can lead to condensation and insufficient draft. The new chimney liner must be sized for the water heating system alone, or the hot water heater in some cases can be vented straight through the wall. Other Ventilation Concerns. Some fan-assisted, non-condensing furnaces and boilers, set up between 1987 and 1993, might be vented horizontally through high-temperature plastic vent pipeline (not PVC pipeline, which is safely utilized in condensing furnaces). This type of venting has actually been remembered and must be changed by stainless steel vent pipe. If horizontal venting was used, an additional draft-inducing fan may be needed near the vent outlet to develop adequate draft. Flooring heating systems might have special venting problems because their vent adapter exits the heater near to the flooring and may travel 10 to 30 feet prior to reaching a chimney. Examine to see if this type of venting or the flooring heating system itself needs replacement. If you smell gases, you have a venting problem that might impact your health. Contact your regional utility or heating specialist to have this venting problem repaired right away. https://www.washingtonpost.com/newssearch/?query=hvac
