Presentation Transcript
msc clinical biochemistry

MSc Clinical Biochemistry.

Carbohydrate Metabolism.

plan for the evening
Plan For The Evening.
  • History of Diabetes and some things you did n’t know..
  • Carbohydrate Physiology.
  • Diabetes Mechanisms.
  • Treatment.
  • Complications.
  • Some Worked Examples.
it s all greek to me
It’s all Greek to Me!!!
  • Diabetes Mellitus
    • Dia through
    • Betes to go.
    • Mellitus honey

“Anyone got a sweet tooth?”

not a new disease
Not a New Disease….
famous folks
Famous Folks.
  • Below are just a handful of the celebrities, sportsmen, politicians and socialites who have diabetes yet have not let the condition hold them back from attaining their goals and dreams.
  • Showbusiness
    • Andrew Lloyd Webber,ElizabethTaylor,HalleBerry,SharonStone,Victor Garber, Vanessa Williams.
  • Athletes
    • Ayden Byle, Chris Southwell, Steve Redgrave, Gary Mabbutt.
  • Musicians
    • Damon Dash, Aretha Franklin,Randy Jackson, Nick Jonas.
  • Artists, Authors & Comedians
    • Jimmy Tarbuck [Comedian]HG Wells [Author]

There are currently over 2.6 million people with diabetes in the UK and there are up to half a million people with diabetes who have the condition and don't know it.

Including both adults and children, we estimate that:

15 per cent of people with diabetes have Type 1 diabetes.

85 per cent of people with diabetes have Type 2 diabetes.


  • Glucose is the principle energy source for our body.
  • Most organs have alternatives.
  • Glucose and to lesser extent ketones are the only options for brain function because.
    • Can’t store significant glucose.
    • Can’t synthesise glucose.
    • Can’t metabolise other substrates.


  • Peptide Hormone
  • Produced by b cells in the Islets of Langerhans in the pancreas
  • Starts as pro- insulin and is cleaved to produce C-Peptide and Insulin.


  • Peptide Hormone
  • Produced by the a cells in the Islets of Langerhans in the pancreas.
  • Generally opposes action of insulin.
normal glucose metabolism
Normal Glucose Metabolism.
  • The gut as a result of hydrolysis or hepatic conversion of a variety of ingested carbohydrates.
  • Hepatic and some other glycogen stores (glycogenolysis)
  • New synthesis from precursors. Gluconeogenesis occurs in the liver 70-90%ish and kidneys 10-25% from glucogenic amino acids and from glycerol, lactate and pyruvate.
mechanisms preventing reversing hypoglycaemia
Mechanisms Preventing /Reversing Hypoglycaemia.
  • Adrenergic/ Sympathetic Response.
    • Promotes glycogenolysis, gluconeogenesis and increased glucose output by the liver, reduces gluocse clearance by adipose and skeletal muscle. Promotes lipolysis to provide alternative fuel sources. Inhibits insulin secretion.
  • Counter-regulatory Hormones.
    • Glucagon promotes glycogenolysis, glucosneogenis and thus increased glucose output from the liver. May increase hepatic ketone production.
    • Cortisol promotes glycogenolysis, glucosneogenis and thus increased glucose output from the liver. reduces gluocse clearance by adipose and skeletal muscle
    • Growth Hormone promotes hepatic glycogenolysis and increased hepatic glucose output, promotes lipolysis.
  • Other mechanisms.
    • Insulin secretion inhibited
    • Feelings of hunger promote eating.
    • Hypoglycaemia per se stimulates hepatic glucose output
energy use
Energy Use.
  • Glucose provides 40-60% of bodies fuel expenditure on standard Western Diet.
  • During high intensity exercise and 4-6 hours post prandial glucose is the most prominent energy source.
  • Glucose is also the most efficient source of energy
    • 6 moles ATP per mole of Oxygen consumed.
glucose cellular uptake
Glucose Cellular Uptake.
  • Glucose is hydrophilic and requires a transporter to help it through the cell membrane.
  • GLUTS potentially bidirectional. Glucose trapped in cells by phosphorylation mediated by hexokinase/glucokinase.
  • Glucose then used for
    • Aerobic use, anaerobic use, synthesis of other molecules i.e. ( glycerol and carbon skeletons of non-essential amino acids), or stored as glycogen.
the input of insulin
The input of Insulin.
  • Insulin interacts with insulin receptors. The signal cascade that results from this leads to GLUT molecules migrating to the cell membrane.
  • The insulin and their receptor molecules are subsequently internalised. Receptors are later recycled to the surface.
  • It is thought that internalisation of insulin is important to convey growth and protein synthesis signals to the cell nucleus.
  • Also important to remove insulin from the circuation.
insulin and growth factors
Insulin and Growth Factors.
  • Insulin also has a measure of growth promoting activity.
  • Insulin-like Growth Factors IGF-1 and IGF-2 are closely homologous to insulin and are weak agonists to insulin receptors. Their impact on glucose metabolism is possibly less significant. The role is more relevent as a cellular growth factorr.
  • Tumour related hypoglycaemia can be a result of IGF excess.
type 1
Type 1
  • 5-10% of Diabetics.
  • Severe insulin deficiency resulting from autoimmune B cell destruction.
  • Absolute requirement for exogenous insulin to avoid rapid decline into cachexia, dehydration, ketoacidosis and death.
  • Pre Banting and Best very poor almost universially fatal prognosis.
type 2
Type 2
  • Probably heterogeneous diagnosis of exclusion.
  • Usually a measure of insulin resistance with often an ultimate insulin deficiency.
  • Some patients initially misdiagnosed may have LADA.
  • Usually present with obesity and increased BMI.
  • Some argue that insulin is often required to support oral and dietary control at a median 7 years post diagnosis.
type 2 continued
Type 2 continued…
  • Leaner Type 2’s tend to be more insulin deficient, plumper Type 2’s tend to be more insulin resistant.
  • Controversial as to which mechanism predominates in Europe.
  • Secondary idiopathic causes may also “muddy the waters”
  • Inheritability a strong factor.
secondary causes to consider
Secondary Causes to Consider.
  • Alcohol related
  • Haemochromatosis
  • Coeliac Disease
  • Endocrine
    • PCOS
    • Steroid
    • Acromegaly
  • Insulin Antibodies (Historical.)
diabetic complications
Diabetic Complications.
  • Microvascular.
    • ? Principally due to hyper glycaemia per se
      • Increased activation of the polyol pathway ultimately rendering cells vulnerable to oxidative stress.
        • Sorbitol found in cateracts, peripheral nerve damage and renal glomeruli.
      • Advanced glycation end products have also been implicated in structural changes leading to microvascular permeability.
  • Hypertension
  • Lipid abnormalities.
    • More often a combination of low HDL, small dense LDL and hypertriglyceridaemia.
  • Diet
  • Exercise
  • Smoking Cessation
  • Aspirin
  • Lipid lowering agents
  • ACE inhibitors et al.
dcct and ukpds
  • Microvascular and to some extent maybe macrovascular complications can be delayed or even prevented by tight glycaemic control.
  • Oral Hypoglycaemic “of choice” metformin reduces hepatic glucose output
  • Other options include sulphoylureas.

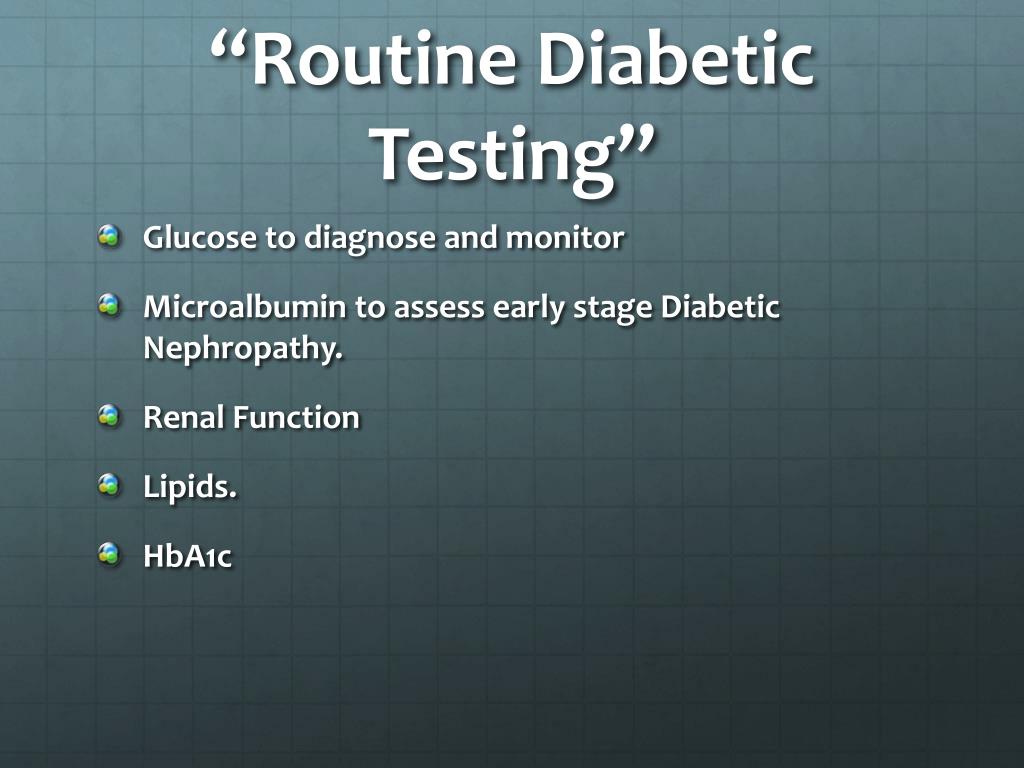

routine diabetic testing
“Routine Diabetic Testing”
  • Glucose to diagnose and monitor
  • Microalbumin to assess early stage Diabetic Nephropathy.
  • Renal Function
  • Lipids.
  • HbA1c
hba1 c1
  • Important Considerations
    • Glycation Rates.
    • Assay variability
    • Standardisation
    • Assay Frequency
    • Anaemia.
hba1 c2

Many people are advocating using HbA1c for diagnosis!
