Cladistics

Cladistics. Phylogeny. Study of evolutionary relationships. Cladistics. A method that applies the scientific method to the construction of evolutionary relationships. Cladogram. Diagram showing how organisms are related base on shared, derived characteristics. = derived characteristics.

elle
Download Presentation

Cladistics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Cladistics

  2. Phylogeny • Study of evolutionary relationships

  3. Cladistics • A method that applies the scientific method to the construction of evolutionary relationships

  4. Cladogram • Diagram showing how organisms are related base on shared, derived characteristics = derived characteristics

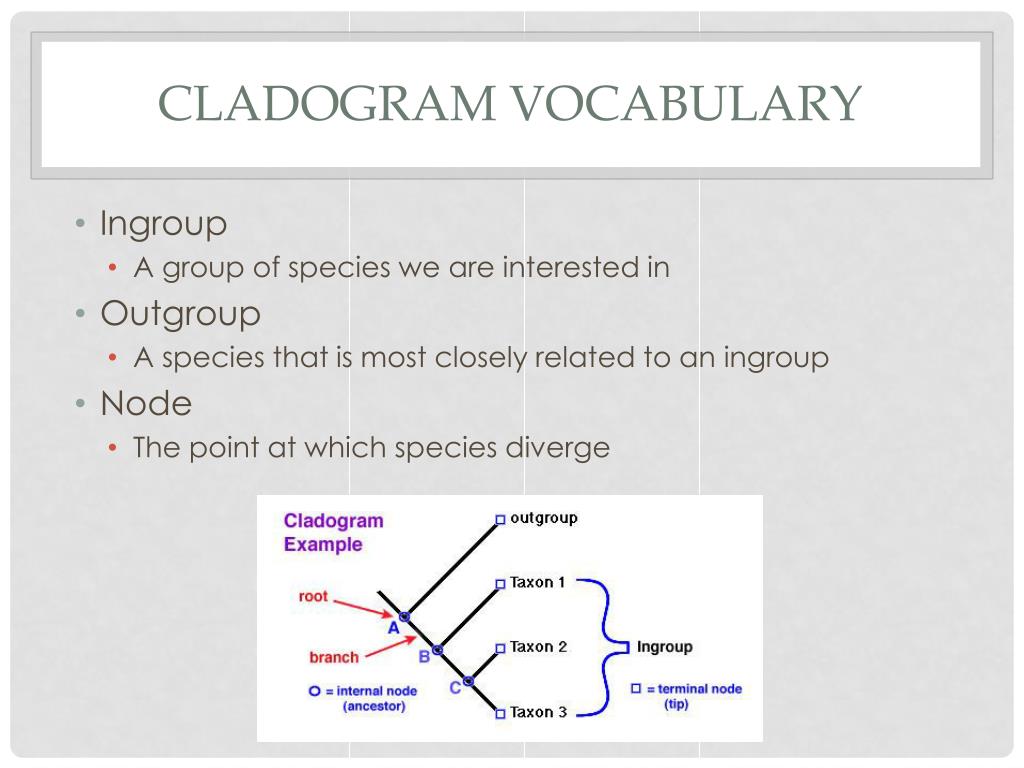

  5. Cladogram Vocabulary • Ingroup • A group of species we are interested in • Outgroup • A species that is most closely related to an ingroup • Node • The point at which species diverge

  6. Cladogram video

  7. Primate Cladogram

  8. DNA • With current DNA sequencing techniques, cladograms show amazing relationships

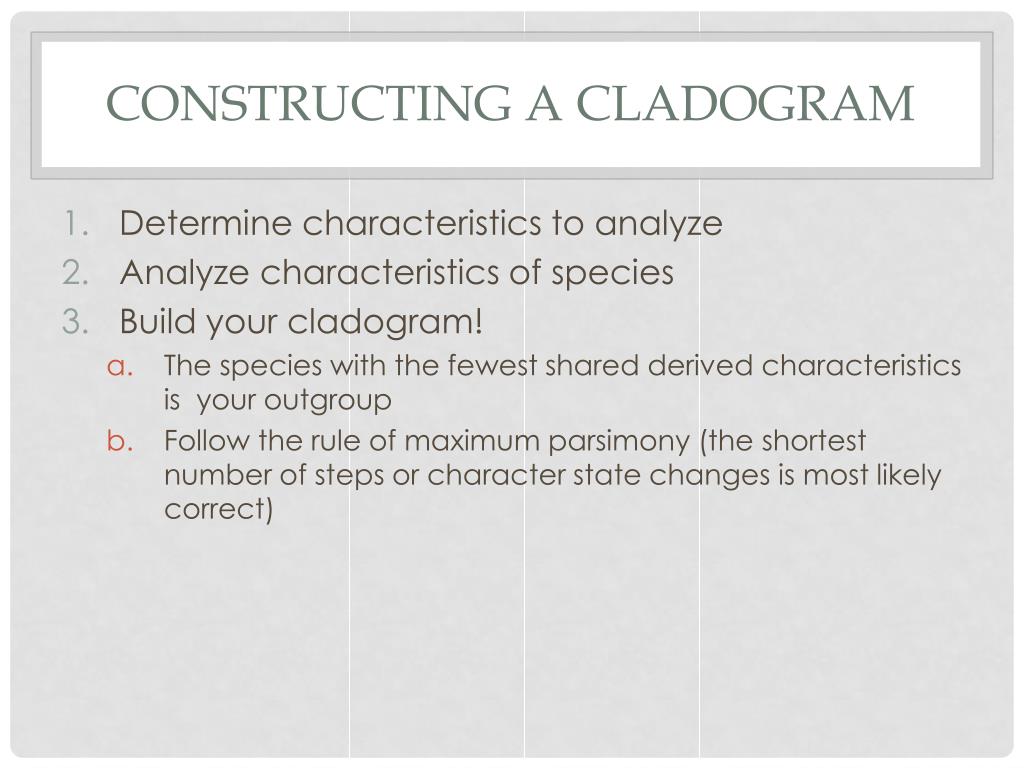

  9. Constructing a Cladogram • Determine characteristics to analyze • Analyze characteristics of species • Build your cladogram! • The species with the fewest shared derived characteristics is your outgroup • Follow the rule of maximum parsimony (the shortest number of steps or character state changes is most likely correct)

  10. Example: • Copy and complete the table below (mark “x” if an organism contains the character, leave the box blank if it does not):

  11. Construct your cladogram!

  12. Organism with the least number of traits goes at the bottom (less related to the rest) • Organism with the most traits goes at the top (more related to the rest)

  13. Add the derived characters (traits) where appropriate Earthworm Trout Lizard Human Backbone

  14. Earthworm Lizard Human Trout Hair Legs Backbone

More Related
