arena modeling
Arena modeling

Conceptual model can be converted into Arena model.

Arena model: connected building blocks.

Building blocks must be parameterized.

Arena interface demo

basic blocks
Basic blocks

Create / Process / Dispose

building blocks.

splitting transitions
Splitting transitions

Seize two resources, release one when finished.

Not directly possible in Arena:

Seize Delay: seize and keep all

Seize Delay Release: seize and return all.

Implementation: split!

ferry implementation arena
Ferry implementation (ARENA)

Split marked transitions.

Add "case" class for A2B and B2A.

Create once, do not dispose.

Resources cannot be added.

parameterization
Parameterization

Arena building blocks are parameterized.

Default parameters are set when installing blocks.

Resource consumption/production parameters

inferred from conceptual model.

Parameters to be added:

- arrival distribution for create blocks

(often negexp with a certain intensity),

- duration for process blocks

(sometimes 0 for blocks that result from splitting.

testing
Testing

After model construction, animated simulation is done.

Press ► button and observe.

Correct syntax errors.

Unexpected results: adapt or explain.

If found correct, choose Run Setup,

then Replication parameters tab.

Select a moderate replication length and

then press ►►, wait until completion

and examine the report.

Standard report: queue lengths for resources,

processing times for entities.

decide block
Decide block

Alternative paths:

assign block
Assign block

Assignment:

- attributes (per entity)

- variables (global)

"ordinary" programming

other blocks
Other blocks

In some cases, the simulation should report on special data

(e.g. expressions involving attributes and variables).

This can be achieved by including the Report block.

Separate block is used for duplication of entities.

Batch block is used for grouping entities.

For other Arena blocks, see the Arena book

W.D. Kelton, R.P. Sadowski, and D. Sturrock.

Simulation with Arena, 3rd ed.

McGraw-Hill, New York, 2004.

classwork
Classwork

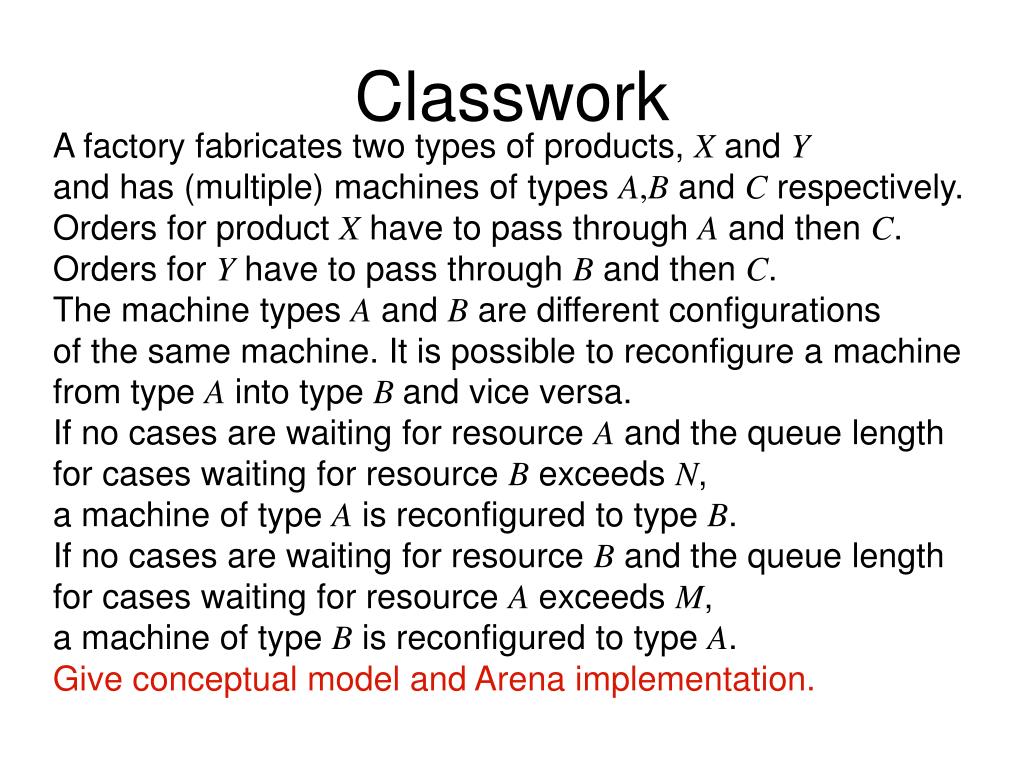

A factory fabricates two types of products, X and Yand has (multiple) machines of types A,B and C respectively.

Orders for product X have to pass through A and then C.

Orders for Y have to pass through B and then C.

The machine types A and B are different configurations

of the same machine. It is possible to reconfigure a machine

from type A into type B and vice versa.

If no cases are waiting for resource A and the queue length

for cases waiting for resource B exceeds N,

a machine of type A is reconfigured to type B.

If no cases are waiting for resource B and the queue length

for cases waiting for resource A exceeds M,

a machine of type B is reconfigured to type A.

Give conceptual model and Arena implementation.

parameters
Parameters

interarrival times X,Y : 1.0, resp. 0.85 minutes.

machines A, B and Cavailable: 2, 2, 4 (initially).

Processing duration: 1.6 minutes per A/B step

and 1.8 minutes for any C step.

Reconfiguration: 4 minutes (both A2B and B2A).

Find most effective N, M .
