氣壓乙級 術科 第 4 題

九十八學年度 教師教學媒體製作觀摩. 氣壓乙級 術科 第 4 題. 機械系 助理教授 王俊斌. 99.4.14. V 1 + A+. V 1 - A-. V 1 + A+. V 1 - A+. A- C-. B+. C+. B-. 雙動缸. 單動缸. 雙動缸. a 0 c 0. b 0 c 1. a 0 c 0. a 1. Pb. c 1. a 1. a 2. b 1. 第四題術科解答. 氣壓迴路圖. c 0. c 1. b 0. a 2 a 1 a 0. b 1. V 1 (±). A-. B+.

elita
Download Presentation

氣壓乙級 術科 第 4 題

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 九十八學年度教師教學媒體製作觀摩 氣壓乙級 術科 第4題 機械系 助理教授 王俊斌 99.4.14

  2. V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- 雙動缸 單動缸 雙動缸

  3. a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 第四題術科解答 • 氣壓迴路圖 c0 c1 b0 a2 a1 a0 b1 V1(±) A- B+ B- C+ C- A+ V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V

  4. Start Stop R R R (±) = ( Start+ R ). Stop R1(±) = ( Pb. a0. c0 + R1 ). a2 a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 R5(±) = a1 2 個a1, 難配線, 用Relay取代 B+ = R2. a0. c0 B- = c1 • 換級電路 –移位暫存法 V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V R1(+) R1(-) R2(+) R2(-) R2(±) = (a1 + R2 ). R1 R3(+) R3(-) R3(±) = (c1 .b0 + R3 ). R2 R4(-) R4(±) = (a1 + R4 ). R3 R4(+)

  5. R1.R2.R3.R4 R1.R2 R1.R2.R3.R4 R2.R3 R1.R3.R4 R3.R4 R1 R1 R4 R4 R2 R2 R3 R3 R1 R1 邏輯電路驅動接點之分析(0) I II III IV R1. R4 R4 V a1 c1. b0 a1 a2 PB.a0.c0

  6. R1.R2.R3.R4 R1.R2 R1.R2.R3.R4 R2.R3 R1.R3.R4 R3.R4 R1 R1 R4 R4 R2 R2 R3 R3 R1 R1 邏輯電路驅動接點之分析(1) I II III IV R1. R4 R4 V a1 c1. b0 a1 a2 PB.a0.c0

  7. R1.R2.R3.R4 R1.R2 R1.R2.R3.R4 R2.R3 R1.R3.R4 R3.R4 R1 R1 R4 R4 R2 R2 R3 R3 R1 R1 邏輯電路驅動接點之分析(2) I II III IV R1. R4 R4 V a1 c1. b0 a1 a2 PB.a0.c0

  8. R1.R2.R3.R4 R1.R2 R1.R2.R3.R4 R2.R3 R1.R3.R4 R3.R4 R1 R1 R4 R4 R2 R2 R3 R3 R1 R1 邏輯電路驅動接點之分析(3) I II III IV R1. R4 R4 V a1 c1. b0 a1 a2 PB.a0.c0

  9. R1.R2.R3.R4 R1.R2 R1.R2.R3.R4 R2.R3 R1.R3.R4 R3.R4 R1 R1 R4 R4 R2 R2 R3 R3 R1 R1 邏輯電路驅動接點之分析(4) I II III IV R1. R4 R4 V a1 c1. b0 a1 a2 PB.a0.c0

  10. R1.R2.R3.R4 R1.R2 R1.R2.R3.R4 R2.R3 R1.R3.R4 R3.R4 R1 R1 R4 R4 R2 R2 R3 R3 R1 R1 邏輯電路驅動接點之分析(5) I II III IV R1. R4 R4 V a1 c1. b0 a1 a2 PB.a0.c0

  11. A(+) = I.a1 + III.a1 + IV = R1.R2.a1 + R3.R4.a1 + R4 = a1. (R1.R2 + R3) + R4 A(+) 在第III與IV組均為ON,不需斷電. 故第III組的斷電接點R4可省略. a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V 邏輯電路分析 • A(+) :在I, III, IV組 ON 加入a1是作為「暫停時」, 執行中間位置暫停

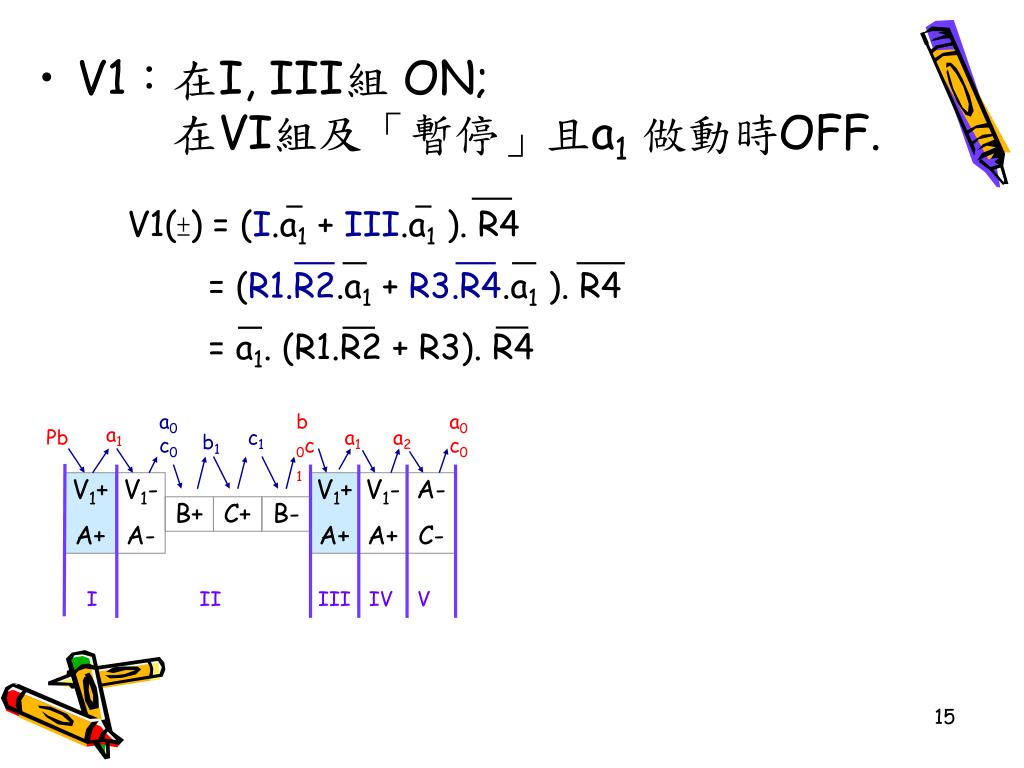

  12. V1(±) = (I.a1 + III.a1 ). R4 = (R1.R2.a1 + R3.R4.a1 ). R4 = a1. (R1.R2 + R3). R4 a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V • V1:在I, III組 ON; 在VI組及「暫停」且a1做動時OFF.

  13. A(-) = II + V = R2.R3+ R1 a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V • A(-) :在第II,V組 ON

  14. B(+) = II. a0.c0 = R2. R3. a0. c0 = R2. a0. c0 a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V • B(+) :在第II組a0作動,及c0作動時ON

  15. C(+) = II. b1 = R2. R3. b1 a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V • C(+) :在第II組作動b1時ON

  16. a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V • B(-) :在第II組c1作動時ON B(-) = II. c1 = R2. R3. c1 = c1

  17. C(-) = V = R1 a0c0 b0c1 a0c0 a1 Pb c1 a1 a2 b1 V1+ A+ V1- A- V1+ A+ V1- A+ A- C- B+ C+ B- I II III IV V • C(-) :在第V組ON

  18. R5(±) = a1 R2(±) = (R5+ R2 ). R1 R3(±) = (c1 .b0 + R3 ). R2 R1(±) = ( Pb. a0. c0 + R1 ). a2 R4(±) = (R5+ R4 ). R3 A(+) = a1. (R1.R2 + R3) + R4 A(-) = R2.R3 + R1 V(±) = a1. (R1.R2 + R3). R4 B(+) = R2. a0. c0 B(-) = c1 C(+) = R2. R3. b1 C(-) = R1 I = R1. R2 II = R2. R3 III = R3. R4 IV = R4 V = R1 完整邏輯方程式如下:

  19. a1 R5 R1 R3 R4 R2 a2 R1 a0 c0 Pb R5 R5 R1 R3 R2 R4 c1 b0 R2 R3 電氣迴路圖 R5(±) = a1 R1(±) = ( Pb. a0. c0 + R1 ). a2 R2(±) = (R5 + R2 ). R1 R3(±) = (c1 .b0 + R3 ). R2 R4(±) = (R5 + R4 ). R3

  20. a1 R5 R3 R2 R1 R4 a2 R1 a0 c0 Pb R5 R5 R3 R1 R2 R4 c1 b0 R2 R3

  21. R4 a1 R5 R1 R2 B+ V1(±) = a1. (R1.R2 + R3). R4 V1 R1 R2 A(+) = a1. (R1.R2 + R3) + R4 R3 R4 A+ a2 R1 B(+) = R2. a0. c0 a0 c0 Pb

  22. R4 a1 R5 R2 R1 R2 B+ R5 R1 V1 R1 R2 R2 A(-) = R2.R3 + R1 R3 C(-) = R1 R4 A+ R2 R3 A- R1 R1 C- a2 R1 a0 c0 Pb

  23. R4 a2 R1 a1 a0 c0 Pb R5 R1 R2 R2 B+ R5 R1 V1 R1 R2 R2 R3 R4 A+ R2 R3 A- R1 R1 C-

  24. R4 R3 b1 C+ C(+) = R2. R3.b1 R5 R3 B- R4 c1 b0 R2 R3 R2 R3 A- R1 R1 C- B(-) = c1

  25. 加入暫停(PSE)與重置(RE)按鈕 A- , B- , C- 通電. 其他斷電

  26. RE R4 R0 R0 a1 R2 R5 R1 R0 R0 重置(RE)按鈕 a2 R1 a0 c0 Pb R2 B+ V1 R1 R2 R3 A+ R4 R5 R1 上圖 R2 R2 R3 A- R1 R1 C-

  27. R3 R4 R0 b1 R5 R3 B- R4 R0 重置(RE)按鈕 C+ c1 b0 R2 下圖 R3

  28. PSE R4 R3 PSE R0 b1 C+ R5 R3 B- R4 PSE c1 b0 R2 R0 R3 暫停(PSE)按鈕 下圖

  29. RE R4 R0 R0 a1 R5 R1 R2 PSE PSE PSE R0 R0 暫停(PSE)按鈕 a2 R1 a0 c0 Pb R2 B+ V1 R1 R2 R3 A+ R4 R5 R1 上圖 R2 R2 R3 A- R1 R1 C-
