weighting versus pruning in rule validation for detecting network and host anomalies

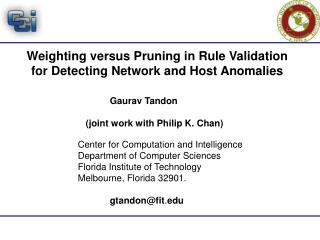

Weighting versus Pruning in Rule Validation for Detecting Network and Host Anomalies

  • Gaurav Tandon
  • (joint work with Philip K. Chan)
  • Center for Computation and Intelligence
  • Department of Computer Sciences
  • Florida Institute of Technology
  • Melbourne, Florida 32901.
  • gtandon@fit.edu
outline
Outline
  • Intrusion detection systems taxonomy
  • Aspects of rule quality
  • Rule pruning and weighting
  • Weight update methods
  • Experimental evaluation and results
  • Summary

Gaurav Tandon

intrusion detection systems
Intrusion Detection Systems
  • Signature Detection
    • Model “known attacks”
    • Advantage: Accuracy
    • Disadvantage: Unable to detect novel attacks
  • Anomaly Detection
    • Model “normal behavior”
    • Advantage: Detecting new attacks
    • Disadvantage: False alarms
  • Machine learning for Anomaly Detection
    • training from normal data only
    • “one-class” learning

Gaurav Tandon

learning rules for anomaly detection lerad
Learning Rules for Anomaly Detection (LERAD)
  • LERAD (Mahoney and Chan, ICDM 2003)
    • A, B, and X - attributes
    • a, b, x1, x2- values for corresponding attributes
  • Anomaly Score
    • Abnormal events: Degree of anomaly
    • Normal events: Zero

Gaurav Tandon

aspects of rule quality
Aspects of Rule Quality
  • Predictiveness
    • Measure of accuracy of consequent given antecedent
    • P (consequent | antecedent)
    • Examples: RIPPER, C4.5 rules
  • Belief
    • Measure of trust for entire rule
    • Example: Weights in ensemble methods, boosting

Gaurav Tandon

predictiveness vs belief for lerad rule
Predictiveness vs. Belief for LERAD rule
  • Predictiveness: p
    • P (not consequent | antecedent)
  • Belief: w
    • Weight for the entire rule

Gaurav Tandon

motivation and problem statement
Motivation and Problem Statement
  • Rule Pruning
    • Reduce overfitting
  • Rule Weighting
    • Use “belief” to combine predictions
  • Previous studies:
    • Pruning vs. no-pruning
    • Weighting vs. non-weighting
  • Current work:
    • Pruning vs. weighting

Gaurav Tandon

overview of lerad
Overview of LERAD
  • Generate candidate rules from a small training sample
  • Perform coverage test to minimize the rule set
  • Update rules with the entire training set
  • Validate rules on a separate validation set

Gaurav Tandon

anomaly score
Anomaly score
    • p: probability of observing a value not in the consequent
    • r: cardinality of the set {x1, x2, …} in the consequent
    • n: number of instances that satisfy the antecedent
    • (Witten and Bell, 1991)
  • Anomaly score = 1/p

Gaurav Tandon

revisit validation step
Revisit Validation Step
  • Generate candidate rules from a small training sample
  • Perform coverage test to minimize the rule set
  • Update rules with the entire training set
  • Validate rules on a separate validation set

Gaurav Tandon

rule pruning
Rule Pruning

Rule Set

r1

Conform

Validate

r2

Violate

r3

r4

Validation Data (normal)

Training Data (normal)

r5

r6

r7

  • Conformed rules kept
  • Violated rules pruned (False Alarm)

r8

r9

r10

Gaurav Tandon

rule pruning1
Rule Pruning
  • Given a rule and a data instance, three cases apply:
    • rule conformed
    • rule violated
    • rule inapplicable – no changes

Gaurav Tandon

case 1 rule conformed rule pruning
Case 1 - Rule Conformed (Rule Pruning)
  • Rule:
  • Data instance:

<SrcIP=128.1.2.3, DestIP=128.4.5.6, DestPort=80>

  • Updated rule:
    • Consequent - no changes
    • p = 3/101

Gaurav Tandon

case 2 rule violated rule pruning
Case 2 - Rule Violated (Rule Pruning)
  • Rule:
  • Data instance:

< SrcIP=128.1.2.3, DestIP=128.4.5.6, DestPort=23 >

  • Updated rule:
    • Any rule violation is a false alarm - remove rule

Gaurav Tandon

lerad rule generation
LERAD Rule Generation
  • Generate candidate rules from a small training sample
  • Perform coverage test to minimize the rule set
  • Update rules with the entire training set
  • Validate rules on a separate validation set

Gaurav Tandon

coverage and rule pruning
Coverage and Rule Pruning
  • Minimal set of rules to cover the training set
  • Each rule has large coverage on training set
  • Pruning reduces coverage
  • Potentially miss detections

Gaurav Tandon

lerad rule generation1
LERAD Rule Generation
  • Generate candidate rules from a small training sample
  • Perform coverage test to minimize the rule set
  • Update rules with the entire training set
  • Validate rules on a separate validation set

Gaurav Tandon

rule weighting
Rule Weighting

Weighted Rule Set

r1,w1

Conform

Validate

r2,w2

Violate

r3,w3

r4,w4

Validation Data (normal)

Training Data (normal)

r5,w5

r6,w6

r7,w7

  • Weight increase for conformed rules
  • Weight decrease for violated rules(False Alarm)

r8,w8

r9,w9

r10,w10

Gaurav Tandon

case 1 rule conformed rule weighting
Case 1 - Rule Conformed (Rule Weighting)
  • Rule:
  • Data instance:

<SrcIP=128.1.2.3, DestIP=128.4.5.6, DestPort=80>

  • Updated rule:
    • Consequent - no change
    • p = 3/101
    • w increase = w'

Gaurav Tandon

case 2 rule violated rule weighting
Case 2 - Rule Violated (Rule Weighting)
  • Rule:
  • Data instance:

<SrcIP=128.1.2.3, DestIP=128.4.5.6, DestPort=23>

  • Updated rule:
    • Consequent: add DestPort value 23
    • p = 4/101
    • w decrease = w'

Gaurav Tandon

anomaly score1
Anomaly Score
  • Rule Pruning:
    • rule predictiveness
  • Rule Weighting:
    • rule predictiveness
    • rule belief

where t – time elapsed since last anomaly

Gaurav Tandon

weighting method 1 winnow specialist
Weighting Method 1: Winnow-specialist
  • Rule k
  • Decrease weight:
  • Increase weight:

where

  • 2 parameters
  • Sum of rewards might not be equal to sum of penalties

Gaurav Tandon

weighting method 2 equal reward apportioning
Weighting Method 2: Equal Reward Apportioning
  • Weight sum does not change
    • Total reward = Total Penalty (TP)
  • Violated rules:
  • Confirmed rules:
    • where Nc is the number of conformed rules
  • 1 parameter

Gaurav Tandon

weighting method 3 weight of evidence
Weighting Method 3: Weight of Evidence

where

  • Subset of pruned rules kept
    • Only rules with negative weight of evidence removed
  • 0 parameters

Gaurav Tandon

empirical evaluation
Empirical Evaluation

Experimental Data

  • Network
    • IDEVAL-TCP, IDEVAL-PKT, IDEVAL-COMB, UNIV-TCP, UNIV-PKT, UNIV-COMB
  • Host
    • IDEVAL-BSM, UNM, FIT-UTK

Evaluation Criteria

  • AUC: Area under ROC curve
  • Up to 0.1% and 1% False Alarm (FA) rate

Gaurav Tandon

analysis of new attack s detected by rule weighting
Analysis of new attack(s) detected by rule weighting
  • New detections due to higher anomaly scores
    • Increased weights of conformed rules (kept by both pruning and weighting)
      • 2 new detections

2) Decreased weights of violated rules (removed by pruning but retained by weighting)

      • 18 new detections

Gaurav Tandon

overhead
Overhead
  • Training time
    • Avg. increase: 2.9%
  • Testing (detection) time
    • Avg. increase: 0.8%
  • Number of rules in rule set
    • Avg. increase: 2.9%

Gaurav Tandon

summary
Summary
  • Proposed weights representing rule belief for anomaly detection
  • Presented three weighting schemes
  • Compared Pruning and Weighting LERAD variants on various network and host data sets
  • Weighting scheme detects more attacks at lower false alarm rates than Pruning
  • Most new attacks detected by violated rules discarded by Pruning
  • Weighting has higher memory and time requirements than Pruning, still feasible for online system

Gaurav Tandon

slide31
Thank You

Poster # 2 tonight

Questions/Comments?

Gaurav Tandon
