High Reliability - E-Lins H900f 5G Industrial Dual Sim Router

E-Lins dual sim 5g industrial grade router H900f. It has high availability and security, which can ensure the reliability and security of the IoT system.

elinstechnology
Download Presentation

High Reliability - E-Lins H900f 5G Industrial Dual Sim Router

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

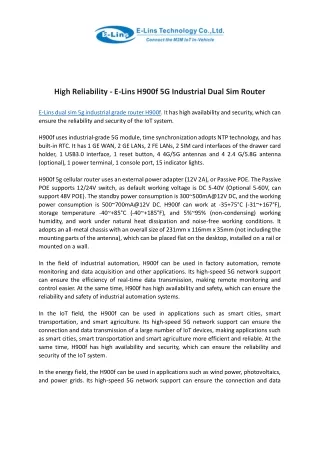

Presentation Transcript

  1. High Reliability - E-Lins H900f 5G Industrial Dual Sim Router E-Lins dual sim 5g industrial grade router H900f. It has high availability and security, which can ensure the reliability and security of the IoT system. H900f uses industrial-grade 5G module, time synchronization adopts NTP technology, and has built-in RTC. It has 1 GE WAN, 2 GE LANs, 2 FE LANs, 2 SIM card interfaces of the drawer card holder, 1 USB3.0 interface, 1 reset button, 4 4G/5G antennas and 4 2.4 G/5.8G antenna (optional), 1 power terminal, 1 console port, 15 indicator lights. H900f 5g cellular router uses an external power adapter (12V 2A), or Passive POE. The Passive POE supports 12/24V switch, as default working voltage is DC 5-40V (Optional 5-60V, can support 48V POE). The standby power consumption is 300~500mA@12V DC, and the working power consumption is 500~700mA@12V DC. H900f can work at -35+75°C (-31~+167°F), storage temperature -40~+85°C (-40~+185°F), and 5%~95% (non-condensing) working humidity, and work under natural heat dissipation and noise-free working conditions. It adopts an all-metal chassis with an overall size of 231mm x 116mm x 35mm (not including the mounting parts of the antenna), which can be placed flat on the desktop, installed on a rail or mounted on a wall. In the field of industrial automation, H900f can be used in factory automation, remote monitoring and data acquisition and other applications. Its high-speed 5G network support can ensure the efficiency of real-time data transmission, making remote monitoring and control easier. At the same time, H900f has high availability and safety, which can ensure the reliability and safety of industrial automation systems. In the IoT field, the H900f can be used in applications such as smart cities, smart transportation, and smart agriculture. Its high-speed 5G network support can ensure the connection and data transmission of a large number of IoT devices, making applications such as smart cities, smart transportation and smart agriculture more efficient and reliable. At the same time, H900f has high availability and security, which can ensure the reliability and security of the IoT system. In the energy field, the H900f can be used in applications such as wind power, photovoltaics, and power grids. Its high-speed 5G network support can ensure the connection and data

  2. transmission of a large number of energy monitoring and control devices, making applications such as wind power, photovoltaics and power grids more efficient and reliable. At the same time, H900f has high availability and safety, which can ensure the reliability and safety of the energy system. For example, in wind farm applications, H900f can be used to connect wind turbines and monitoring equipment to realize remote monitoring and control of wind farms. In the application of photovoltaic power plants, H900f can be used to connect photovoltaic battery packs and monitoring equipment to realize remote monitoring and control of photovoltaic power plants. The H900f industrial router is an industrial-grade 5G solution with high performance, high availability and high security, which can meet the needs of various industrial scenarios and provide efficient and reliable network connections for industries such as industrial automation, Internet of Things and energy. For more information, please visit E-Lins Technology.
