slide1

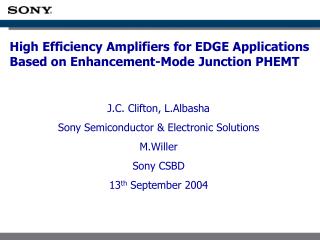

High Efficiency Amplifiers for EDGE Applications Based on Enhancement-Mode Junction PHEMT

J.C. Clifton, L.Albasha

Sony Semiconductor & Electronic Solutions

M.Willer

Sony CSBD

13th September 2004

technology sony j phemt

Id, Ig

Id

Vth

Ig

Vg

Schottky HEMT

Vf = 0.7 (V)

Technology: Sony J-PHEMT
  • Higher forward voltage enables positive drive.

JPHEMT Structure

Id

Source

p-Gate

Drain

InGaAs Channel

Ig

GaAs Sub.

JPHEMT Vf = 1.2 (V)

pn Junction Gate

  → High Vf → High Drain Current

objectives designing an edge pa
Objectives: Designing an EDGE PA
  • EDGE functionality required from iteration of current GSM PA: Dualmode PA.
  • Interface to a Direct Modulation Transceiver: to allow future inclusion of WCDMA for future single GSM/EDGE/WCDMA TX Architecture.
  • Inclusion of EDGE functionality with only a small impact to the size and cost of the basic GSM solution.
  • Meet EVM specifications over VSWR of 3:1 without isolator and avoid complex calibration/set-up.
  • Target EDGE efficiencies 25%+ whilst maintaining current GSM performance of 55-60%.
types of edge 8psk power amplifier

LogAmplifier

Sin(wt)

Phase detector

Types of EDGE (8PSK) Power Amplifier

Linear/Backed-Off PA Approach

  • J-PHEMT gives respectable efficiency at several dB back-off whilst maintaining EVM & ACPR
  • Simple and robust architecture
  • Also suited for WCDMA
  • Sometimes issues meeting EVM spec under mismatch conditions: Isolator.
  • Efficiency suffers under back-off

Fixed Vdd=3.5V Operation

GSM/EDGE PA

Pout=28.5dBm

PA

Backed off Input Power, Pin

Coupler for PACL

Increased Vgg for linear operation

Polar Loop Approach

  • J-PHEMT gives good saturated efficiency
  • Additional efficiency comes at the expense of much greater complexity
  • Difficult to adopt for WCDMA and use with direct modulator transceiver
  • Headline efficiency impacted by consumption within AM-AM and AM-PM feedback loops

Log Amplifier

Amplitude

Modulator

Phase Modulator or VCO

S(t)

S(t)

PA

PA

VCO

Limiter

Limiter

Sin(wt)

Limiter

Phase detector

simulation test bench
Simulation Test Bench
  • 3 Stage PA model based on Agilent Eesof model on ADS.
  • System simulation tool ptolemy to allow inclusion of AM and PM correction loops. Simulation of ACPR, EVM, output power and efficiency.
  • Used to simulate Linear/Back-off PA in addition to various different types of saturated PA.
envelope elimination and restoration eer power amplifiers for edge

Saturated PA Architectures

Envelope Elimination and Restoration (EER) Power Amplifiers for EDGE

Advantage: Drive Level and Power Control (eg drain regulation) similar to GMSK (constant Envelope)

Issue: Method of Envelope insertion and correction

Corrected Envelope inserted onto drain or gate supply

control characteristics 1mm 900mhz

20mm E-pHEMT Pin=15dBm

20

18

16

14

12

10

EVM%

EVM %

8

6

4

2

0

0

0.5

1

1.5

Gate Bias V

Control Characteristics (1mm, 900MHz)

Drain

Gate

eer based on drain voltage
EER Based on Drain Voltage

Corrected RF Output Signal

Corrected Drain Voltage (max=3.5V)

Associated Drain Current

DRAIN VOLTAGE/CURRENT CHARACTERISTICS

Loop Dynamics optimised to minimise Error Voltage whilst ensuring loop stability over range of control and supply voltages

RF Output Signal make to track EDGE Envelope by AM Correction Loop

PAE: 40-45% using fast DC-DC converter

phase distortions

LogAmplifier

Phase Distortions

60° Phase variation over envelope

EVM> 11%. AM-PM Correction loop required to reduce EVM to 1.5% and bring ACPR inside specification:

Log Amplifier

Amplitude

Modulator

Phase Modulator or VCO

S(t)

PA

PA

VCO

Limiter

Limiter

Sin(wt)

Limiter

Phase detector

eer based on gate voltage
EER Based on Gate Voltage

Phase error significantly reduced. Resulting EVM of 3.2%. Further reduced with the addition of simple pre-distortion circuit. Simulated PAE of 44%.

20 Degrees

adaptive bias control based on gate voltage
Adaptive Bias Control Based on Gate Voltage

PA operated in saturated mode. Gate tracking circuit designed to exhibit constant gain over input envelope. Simulated efficiency of 50%.

Resulting phase variation of <10° over envelope and EVM of 1%.

Phase error due to compression is partly offset by impact of phase variation caused by gate bias shifts required to keep gain constant

practical measurements of gate correction circuit with class a b pa out of compression
Practical Measurements of Gate Correction Circuit with Class A/B PA out of Compression

Gate AM correction circuit reduced EVM from 16% down to 3%.

-36.1dBc, 400KHz offset

-54.3dBc, 400KHz offset

Implementation Issues for PA in compression: AM Correction loop design –extreme sensitivity of gate voltage to EVM and ACPR.

linear pa investigations
Linear PA Investigations

Required improvements for product:

  • Elimination of output isolator: meet EVM spec in 3:1 Antenna VSWR
  • Elimination of output coupler/detector and control feedback loops: Open Loop Control
  • Avoidance of 30-40dB VGA/VVA which impacts power consumption, size and RX Noise performance (TX SAW not acceptable)
  • Improve efficiency compared to conventional EDGE Linear Power Amps
slide14

Objectives Met with Modified Linear PAModifications compared to conventional Linear PA to Improve Efficiency at back-off and simplify power control scheme

modified linear pa measured performance

Gate Supply= V1 for GSM

V2 for EDGE

(V2>V1)

DualMode PA

GMSK: Compressed

EDGE: Linear

RFin

GMSK O/P Matched

Input Step Attenuation: EDGE HI, GMSK LO

Vramp (GSM & EDGE)

Vd supply=Vbattery

Modified Linear PA: Measured Performance

RFout

34.5dBm GMSK

28.5dBm EDGE

(excluding VGA consumption required for conventional PA)

slide16

Modified Linear PA

Measured Pout/Temperature Characteristics

open loop operation and mismatch measurements
Open-Loop Operation and Mismatch: Measurements

Without isolator

Temperature stable, variable gain PA

Power Error Budget

Frequency Variation < +/-1.0dB

Temperature Variation < +/-1.0dB

WORST CASE < +/-2.0dB

SPEC(E2) +/-4.0dB

RX Noise: -82.3dBm/100KHz @20Mhz offset from carrier

(-10dBm input power, 28.3dBm Output)

conclusions
Conclusions
  • Promising simulation results for JPHEMT PA in both Saturated (Polar Loop/EER) and Linear modes, proving capabilities of the device.
  • Adaptive Bias Control of Compressed PA based on gate envelope tracking looks promising from viewpoint of reduced complexity and performance. However, significant implementation issues exist.
  • Approach based upon modified linear PA proved best suited to meeting original objectives.
  • EDGE RF functionality possible with very small size/cost impact to GSM solution. Forward compatibility with WCDMA.
acknowledgements
Acknowledgements
  • Colleagues at Atsugi Technology Centre: H. Kawasaki, H. Kawamura and H. Motoyama
  • Support from Thomas LeToux, project student from ULP France/UCL UK.
  • Agilent ADS UK team for simulation support.
