Presentation Transcript
dynamic binding section 10 4

Dynamic Binding(Section 10.4)

CSCI 431 Programming Languages

Fall 2003

A compilation of material developed by Felix Hernandez-Campos and Mircea Nicolescu

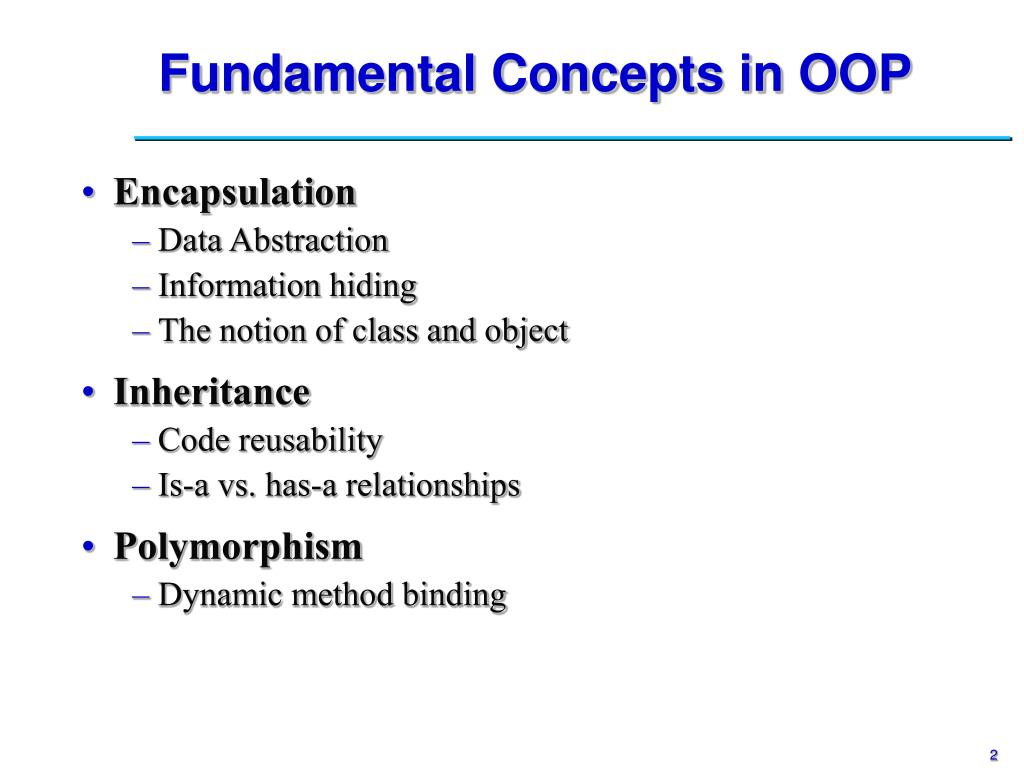

fundamental concepts in oop
Fundamental Concepts in OOP
  • Encapsulation
    • Data Abstraction
    • Information hiding
    • The notion of class and object
  • Inheritance
    • Code reusability
    • Is-a vs. has-a relationships
  • Polymorphism
    • Dynamic method binding

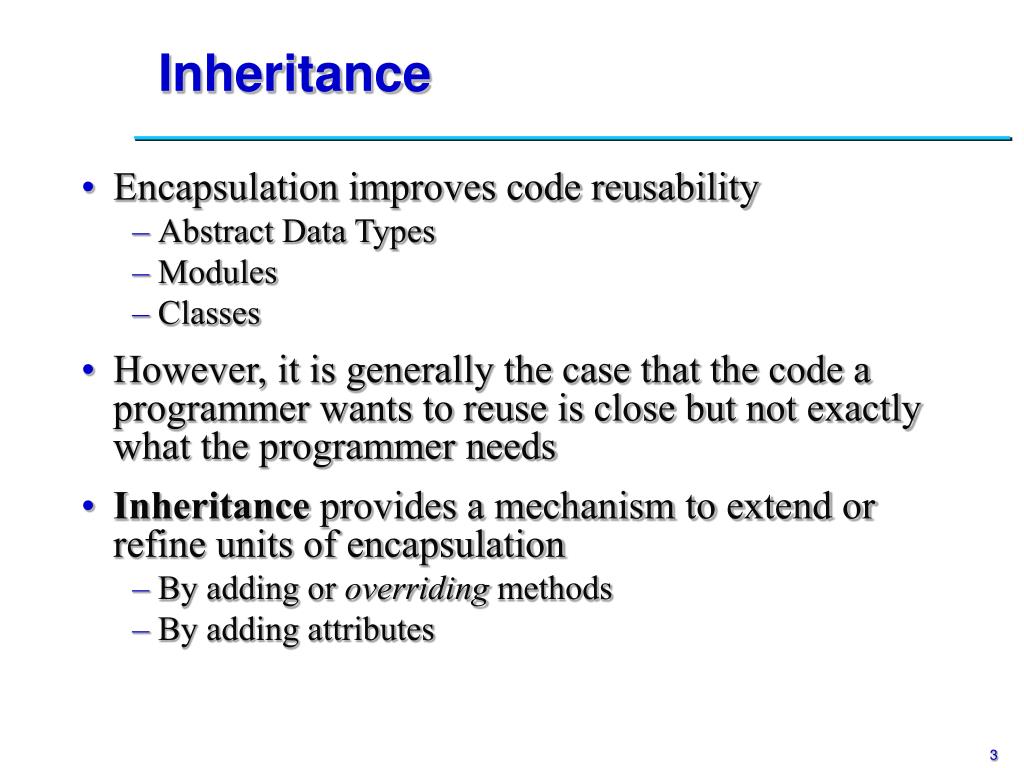

inheritance
Inheritance
  • Encapsulation improves code reusability
    • Abstract Data Types
    • Modules
    • Classes
  • However, it is generally the case that the code a programmer wants to reuse is close but not exactly what the programmer needs
  • Inheritance provides a mechanism to extend or refine units of encapsulation
    • By adding or overriding methods
    • By adding attributes

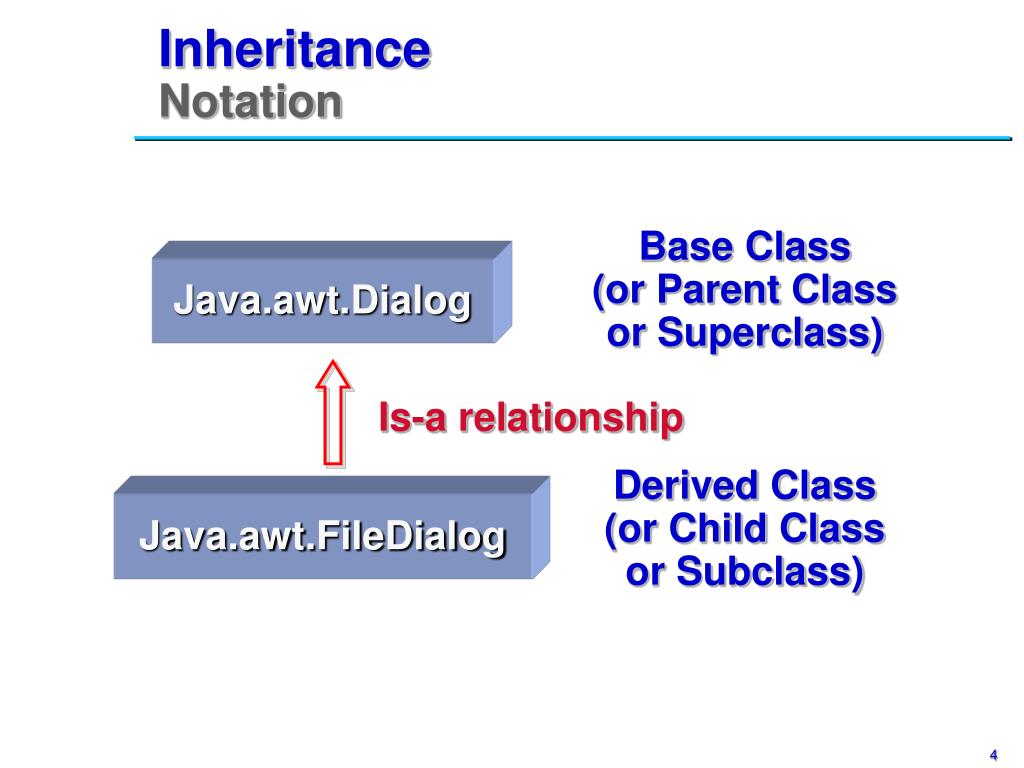

inheritance notation
InheritanceNotation

Base Class

(or Parent Class

or Superclass)

Java.awt.Dialog

Is-a relationship

Derived Class

(or Child Class

or Subclass)

Java.awt.FileDialog

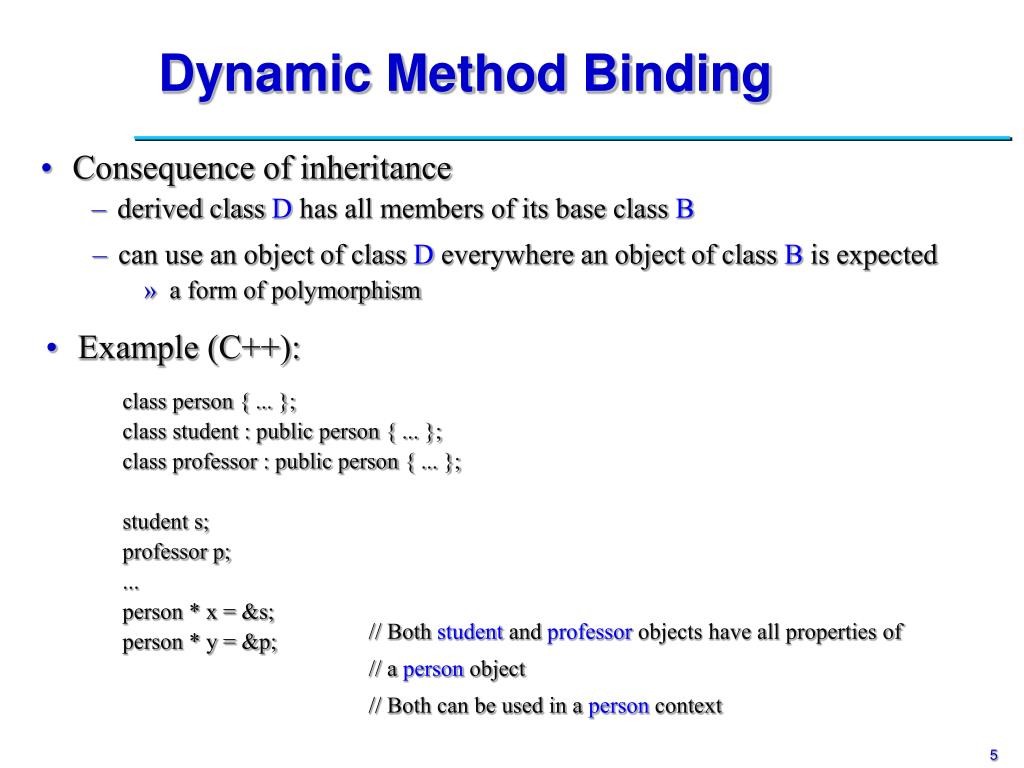

dynamic method binding

Example (C++):

class person { ... };

class student : public person { ... };

class professor : public person { ... };

student s;

professor p;

...

person * x = &s;

person * y = &p;

Dynamic Method Binding
  • Consequence of inheritance
    • derived class D has all members of its base class B
  • can use an object of class D everywhere an object of class B is expected
    • a form of polymorphism

// Both student and professor objects have all properties of

// a person object

// Both can be used in a person context

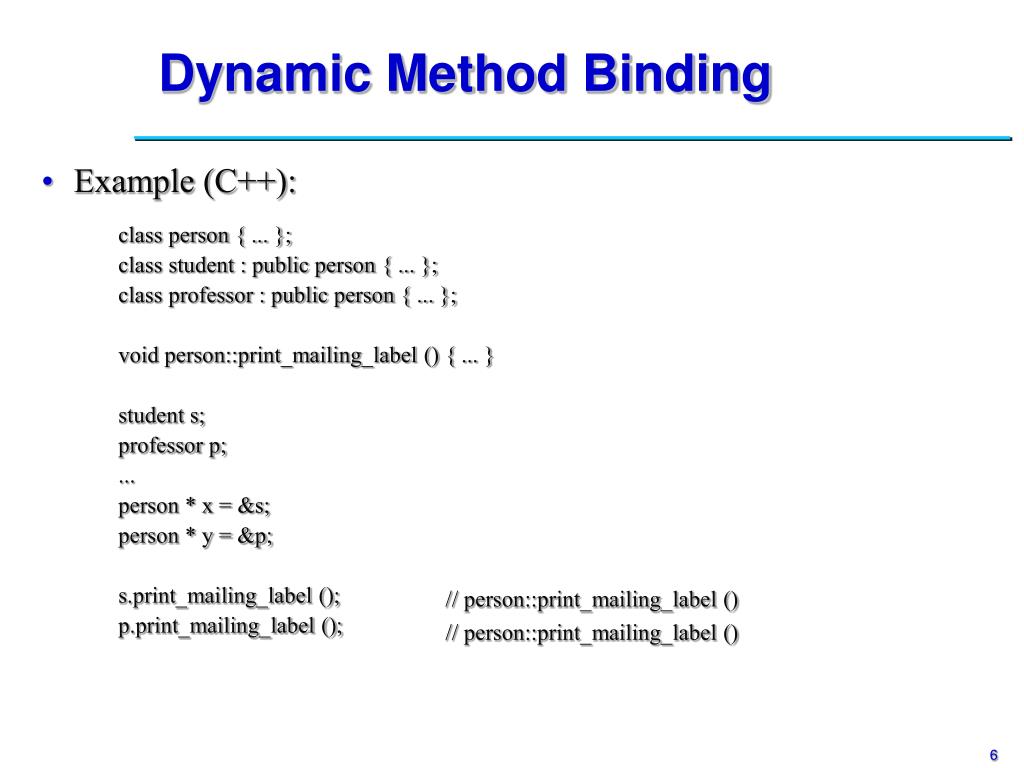

dynamic method binding6

Example (C++):

class person { ... };

class student : public person { ... };

class professor : public person { ... };

void person::print_mailing_label () { ... }

student s;

professor p;

...

person * x = &s;

person * y = &p;

s.print_mailing_label ();

p.print_mailing_label ();

// person::print_mailing_label ()

// person::print_mailing_label ()

Dynamic Method Binding
dynamic method binding7

Example (C++):

    • Suppose that we redefine print_mailing_label in both derived classes

void student::print_mailing_label () { ... }

void professor::print_mailing_label () { ... }

student s;

professor p;

...

person * x = &s;

person * y = &p;

s.print_mailing_label ();

p.print_mailing_label ();

// student ::print_mailing_label ()

// professor ::print_mailing_label ()

  • But what about:

x->print_mailing_label (); // ??

y->print_mailing_label (); // ??

Dynamic Method Binding
dynamic method binding8

Example (C++):

student s;

professor p;

...

person * x = &s;

person * y = &p;

x->print_mailing_label (); // ??

y->print_mailing_label (); // ??

  • Dynamic method binding – central issue to object-oriented programming
  • Example – list of persons that have overdue library books
    • list may contain both students and professors
    • traverse the list and print a mailing label - call the appropriate subroutine
Dynamic Method Binding
  • Two alternatives for choosing the method to call:
  • according to the types of variables (references) x and y – static method binding (will call the method of person in both cases)
  • according to the types of objects s and p to which x and y refer – dynamic method binding (will call the methods of student / professor)
dynamic method binding9

Disadvantage of dynamic method binding

  • run-time overhead
  • Smalltalk, Modula-3
    • dynamic method binding
  • Java, Eiffel
    • dynamic method binding by default
    • individual methods can be labeled final (Java) or frozen (Eiffel)
      • cannot be overriden by derived classes
      • use static method binding
Dynamic Method Binding
  • Simula, C++, Ada 95
    • static method binding by default
  • how do we specify dynamic binding in C++?
  • label individual methods as virtual

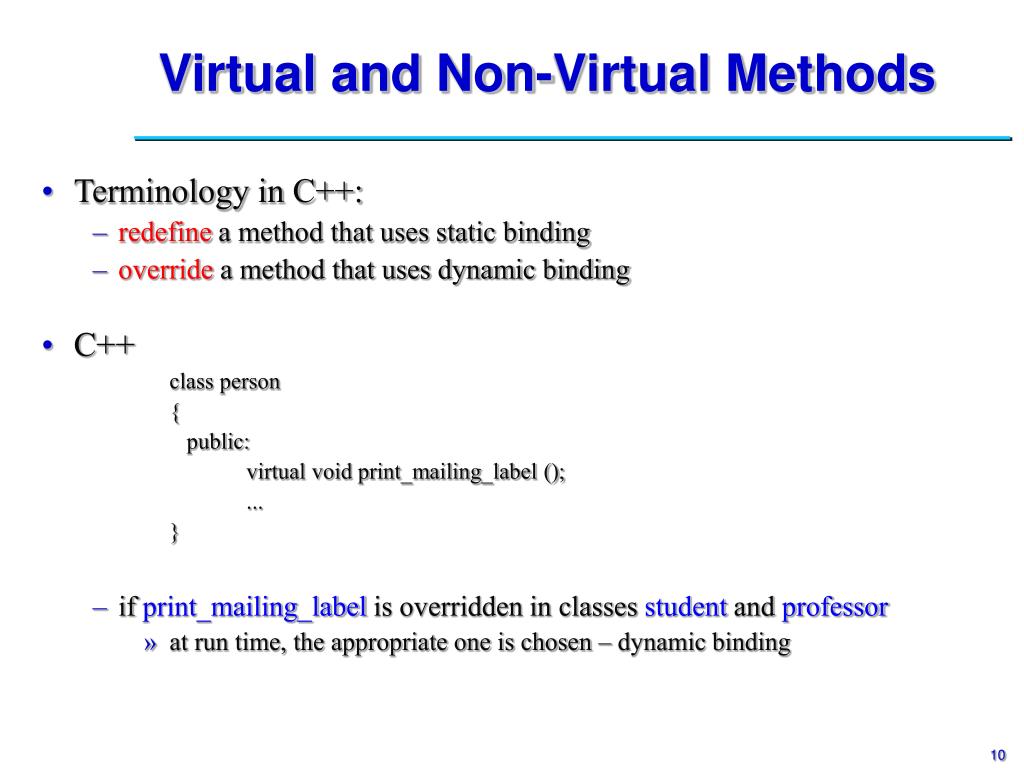

virtual and non virtual methods

Terminology in C++:

    • redefine a method that uses static binding
    • override a method that uses dynamic binding
  • C++

class person

{

public:

virtual void print_mailing_label ();

...

}

  • if print_mailing_label is overridden in classes student and professor
    • at run time, the appropriate one is chosen – dynamic binding
Virtual and Non-Virtual Methods
virtual and non virtual methods11

Ada

  • methods take as parameter the object they are applied to
  • dynamic binding is associated not with the method but with the parameter
  • here, r needs to be declared as person'Class→ dynamic binding
Virtual and Non-Virtual Methods
virtual and non virtual methods12

Static method binding is more efficient

  • When could it be undesirable?
  • May not preserve consistency in the derived class
  • Example:

class text_file

{

char * name;

long crt_pos;

public:

void seek (long pos); // non-virtual

...

};

class read_ahead_text_file : public text_file

{

char * upcoming_chars;

public:

void seek (long pos); // redefinition

// also updates the upcoming_chars

...

};

  • with static binding:
    • text_file::seek may be called for a read_ahead_text_file object, if used where text_file was expected
    • state of the read_ahead_text_file object would become inconsistent
Virtual and Non-Virtual Methods
abstract classes

C++

class person

{

...

public:

virtual void print_mailing_label () = 0;

...

};

  • Abstract method – virtual method with no body
    • also called pure virtual method in C++
  • Abstract class – it has at least one abstract method
    • cannot declare objects of an abstract class, just pointers
  • Purpose of an abstract class:
  • serve as base to derive concrete classes
  • a concrete class must provide a definition for every abstract method it inherits
  • Interface (Java) –

class with no other members than abstract methods

Abstract Classes
member lookup

Static method binding:

  • easy to find the method to call, based on the type of the variable
  • performed at compile time
  • Dynamic method binding
  • appropriate method is identified at run-time
  • objects must contain information to allow for finding the appropriate method
  • each object contains a pointer to a virtual method table (vtable)
  • all objects of a given class have the same vtable
Member Lookup
member lookup15

Implementation of a vtable:

  • Consider the code:

foo * f;

f->m();

  • Runtime overhead (compared to static binding) – two instructions
Member Lookup
  • The compiler will generate:
member lookup16

When defining a derived class:

  • Ordering is essential:
  • all new members introduced by bar must appear at the end:
    • additional data members (w) at the end of the record
    • additional virtual methods (s and t) at the end of the vtable
  • virtual methods overridden in bar (such as m) – appear in bar's vtable at the same place as in foo's vtable
Member Lookup
member lookup17

Allowed operations (same example):

class foo { ... };

class bar : public foo { ... };

...

foo F;

bar B;

foo * q;

bar * s;

q = &B; //

s = &F; //

Member Lookup

ok; references through q will use prefixes of B's data space and vtable

static semantic error; F lacks the additional data and vtable entries of a bar

type checking

C++

class foo { ... };

class bar : public foo { ... };

foo F;

bar B;

foo * q;

bar * s;

...

q = &B;

s = &F;

  • Type correctness of the code above – checked statically

s = q; //

  • But it can be done:

s = (bar*) q; //

  • Better solution:

s = dynamic_cast<bar*> (q); //

Type Checking

still an error

ok, but risky – programmer must ensure that q refers to a bar object

C++ specific – involves dynamic type check

type checking19

Java

    • allows only the "classic" cast, but with dynamic check
  • Eiffel

class foo ...

class bar inherit foo ...

...

f : foo;

b : bar;

...

f := b; -- always ok

b ?= f; -- reverse assignment, with dynamic check

  • Reverse assignment ?= assigns an object reference into a variable only if the type at run-time is acceptable
    • b gets f if f refers to a bar object at run-time
    • otherwise b gets nil
Type Checking
type checking implementation

Eiffel, Java, C++

    • what is needed to perform dynamic checking?
  • run-time type descriptor included in the object representation
  • Smalltalk
    • variables are untyped references
    • data members are never public
    • any assignment is legal
    • only method invocation ("send a message") is dynamically checked
      • implementation – dictionary that maps method names to their code
      • run-time – lookup in dictionary to check if method is supported
      • if not – dynamic semantic error
  • comparison to C++ approach:
  • more flexible in Smalltalk
  • less efficient – increased run-time cost
  • delayed reporting of errors
Type Checking – Implementation
member lookup21
Member Lookup
  • Disadvantages of virtual methods:
  • run-time cost
  • preclude in-line expansion of methods at compile time
    • performance decrease for small and frequently called methods
  • Potential problem with static lookup:
  • fragile base class problem (Java):
    • large standard library, evolving over time (adding new features)
    • user may have old library and run code designed for new library
    • code may use the new features
  • static lookup – invalid memory access
  • dynamic lookup – better, produce error message ("member not found")
classes as closures23

Advantage of latter version (with classes):

  • can also add data members to class bar (and object my_obj)
  • function f can use them
  • similarity between:
    • data members of an object with a virtual method, AND
  • referencing environment of a closure in a language with nested scopes
  • Application:
  • discrete event simulation
  • need to have a subroutine schedule_at that:
    • takes as parameters a time value and a function f (to be called at that time)
    • function f should have an arbitrary set of parameters
  • how do we pass such a function f (with ANY number of parameters)?
  • pass a "closure" instead – implemented with classes
Classes as "Closures"
