  1. JTAG Installation Guide (Bootloader installation) Simon Hsu

  2. Agenda • What is JTAG ?? • Purpose and Preparation • JTAG Cable /Wiring /Pin Definition /Position • Giveio installation guide • Setup procedure • Demo

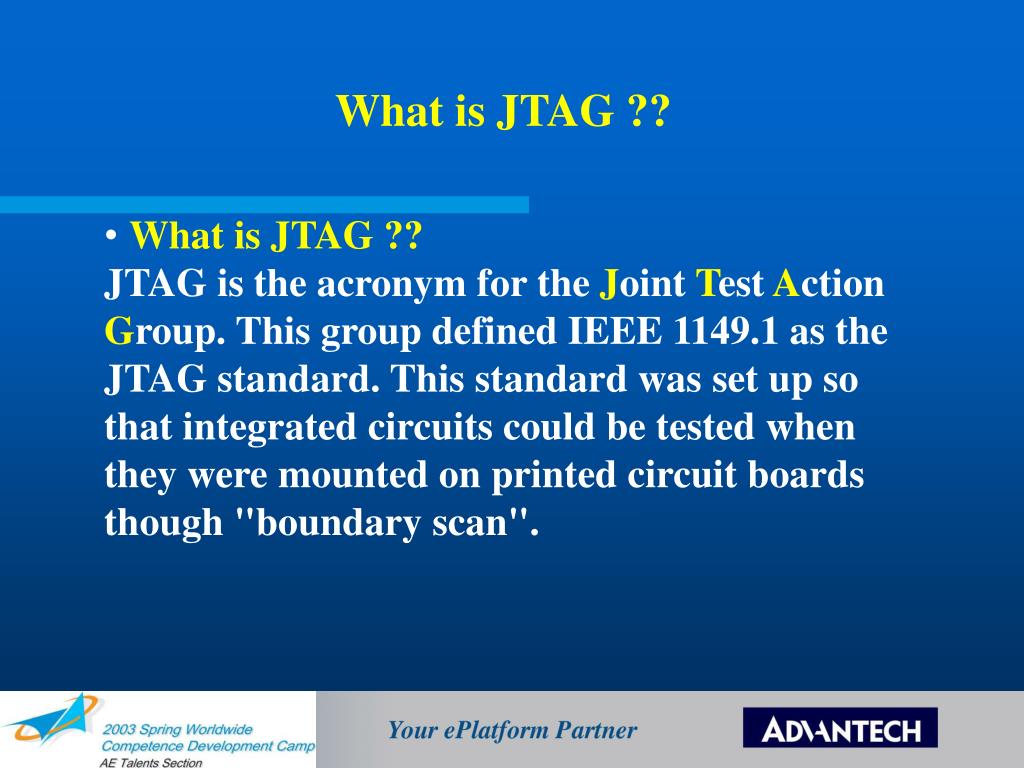

  3. What is JTAG ?? • What is JTAG ??JTAG is the acronym for the Joint Test Action Group. This group defined IEEE 1149.1 as the JTAG standard. This standard was set up so that integrated circuits could be tested when they were mounted on printed circuit boards though "boundary scan".

  4. Purpose and Preparation • Purpose: To burn the binary file from host PC to Intel Strata Flash ROM. • Preparation: • --Recommended OS in host PC: Win98,Win2k, WinXP • --Install “giveio” driver on host PC for Win2k and WinXP. • --JTAG cable • --Utility (JF1112.exe for PCM-7130/JFlashP.exe for PCM-7210)

  5. JTAG cable

  6. JTAG Wiring

  7. JTAG Pin Definition

  8. JTAG position -- PCM-7210 for example -- Pin1

  9. JTAG position -- PCM-7130 for example (1) --

  10. JTAG position -- PCM-7130 for example (2) --

  11. Giveio Installation Guide (1) • Installation Guide ( take Win2000 for example): • 1) Copy the “giveio.sys” to " \system32\drivers" • 2) Go to “Control Panel” and “Add/Remove Hardware”. • 3) Click Next and select “Add/Troubleshoot a device”. • 4) Select “Add a new device” and click Next. • 5) Select “No, I want to select the hardware from a list.”. • 6) Select “COM & LPT” and link to giveio driver.

  12. Giveio Installation Guide (2) Here

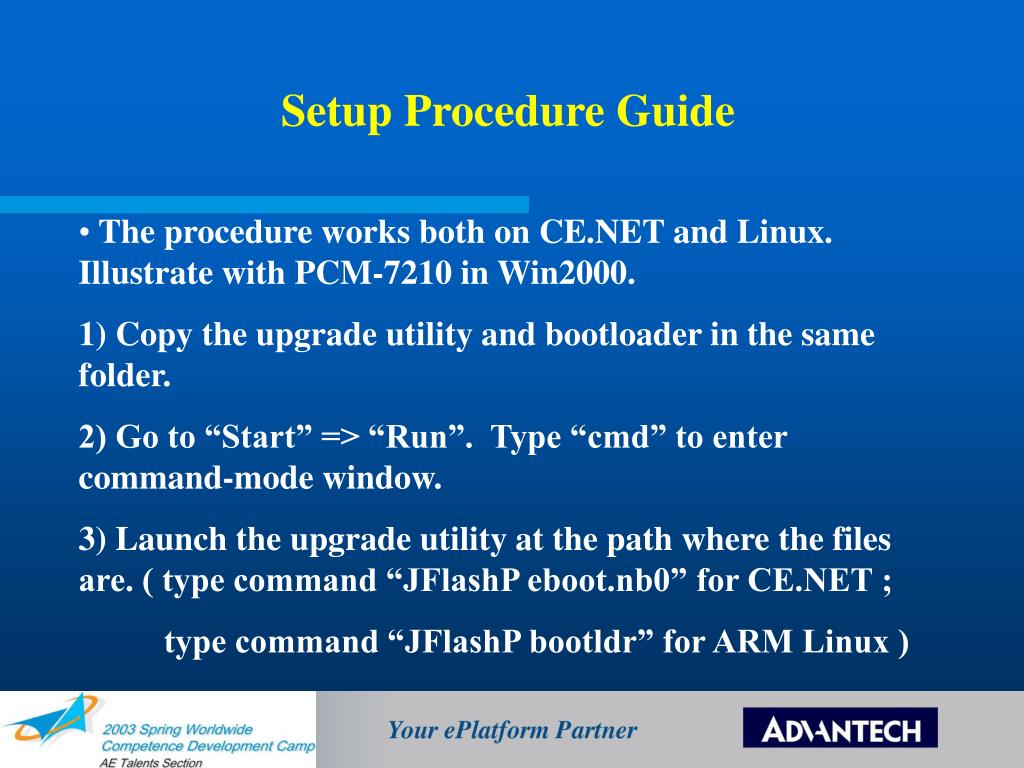

  13. Setup Procedure Guide • The procedure works both on CE.NET and Linux. Illustrate with PCM-7210 in Win2000. • 1) Copy the upgrade utility and bootloader in the same folder. • 2) Go to “Start” => “Run”. Type “cmd” to enter command-mode window. • 3) Launch the upgrade utility at the path where the files are. ( type command “JFlashP eboot.nb0” for CE.NET ; • type command “JFlashP bootldr” for ARM Linux )

  14. Setup Procedure -- PCM-7210 bootloader (1) -- Upgrade utility Bootloader filename

  15. Setup Procedure -- PCM-7210 bootloader (2) -- Type “y”, then Enter

  16. Setup Procedure -- PCM-7210 bootloader (3) --

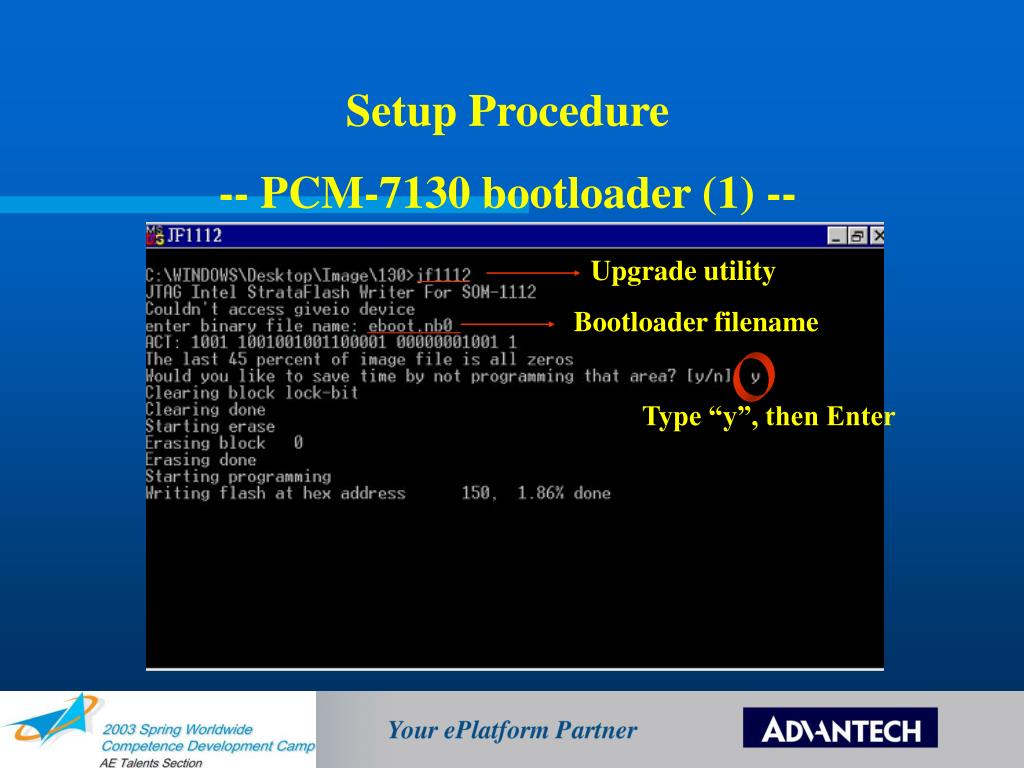

  17. Setup Procedure -- PCM-7130 bootloader (1) -- Upgrade utility Bootloader filename Type “y”, then Enter

  18. Setup Procedure -- PCM-7130 bootloader (2) -- Type “y”, then Enter

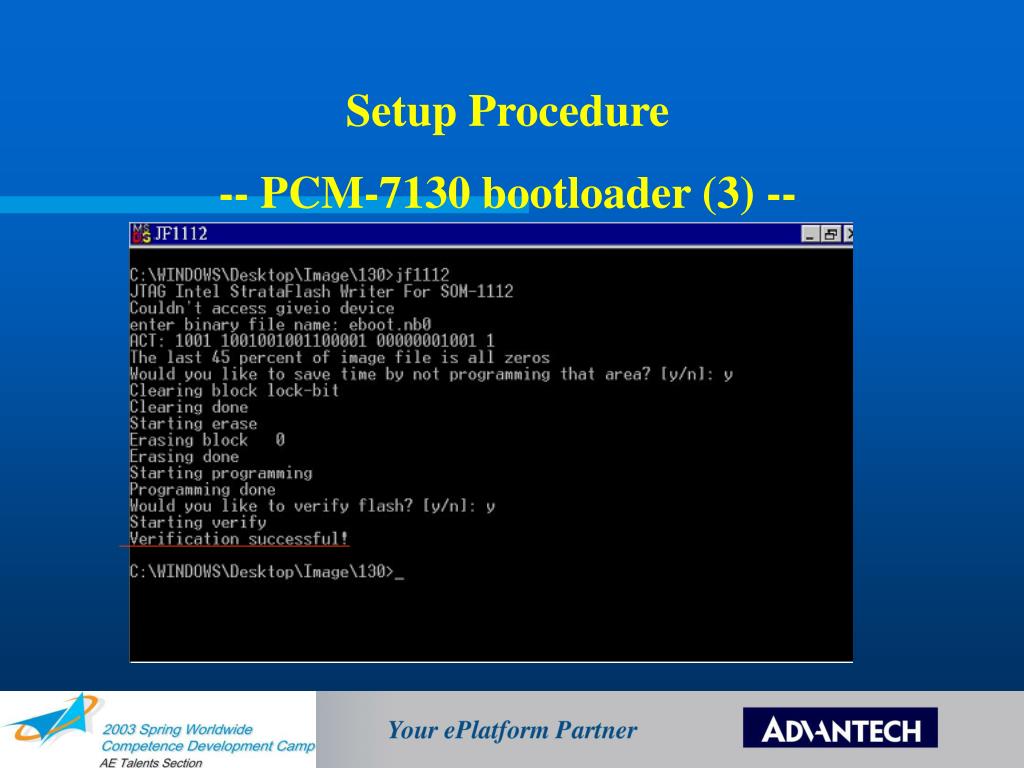

  19. Setup Procedure -- PCM-7130 bootloader (3) --
