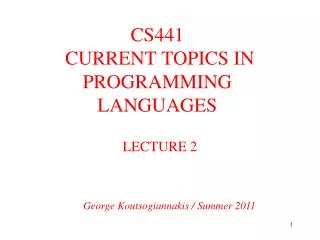

  1. CS441 CURRENT TOPICS IN PROGRAMMING LANGUAGES LECTURE 2 George Koutsogiannakis / Summer 2011

  2. Overview of Java EE • Past • discreet APIs allowed building of complex enterprise solutions. • EE • combines most of the above and new APIs into one enterprise bundle of tools and APIs.

  3. Distributed Multi-tiered Applications • Enterprise applications can be distributed in various servers located in different locations. • They are comprised of various tiers i.e.: • Client Tier (Presentation Tier): Consists of components that run on the client machine. Can be applets working in a Browser or application programs. • These components can communicate with a Web Server using HTTP protocol to send requests and receive responses. Or • They can communicate via another protocol with the Business Tier applications.

  4. Distributed Multi-tiered Applications • Web Tier: Consists of the Web Server and applications that run in the web server using special containers that the web server must have, i.e. Servlet container. • The Web Server can be Jakarta Tomcat or any other Web Server that has the proper containers. • The term container refers to special executable programs (sometimes called engines) that a server can have . These containers are capable of recognizing the particular type of java program that the server is interfacing with.

  5. Distributed Multi-tiered Applications • Business Tier: Components that run on distributed servers. Those servers can be RMI (Remote Method Invocation) servers or Application Servers with Enterprise Java Beans. • Notice that either the web server applications act as client to the remote servers (to RMI or Application Servers) • Or, that the Client Tier can directly contacts these distributed services via some protocol (without going through the web server). • The application servers are available through various vendors including Sun Microsystems (on April 20, 2009 Oracle announced that it is acquiring Sun MS- the deal is still pending closure).

  6. Distributed Multi-tiered Applications • Enterprise Information System Tier (Data Tier): Data bases that run on legacy machines and have various data that the customer at the Client Tier needs. • The Enterprise hires developers (and other software engineers) and obtains tools to establish the tiers. • A number of developers are working on the various tiers. Developers have specialized experiences based on the tier they are working with. • Their experience also is tool depended. Some are familiar with NetBeans, others with Websphere , others with .NET tools (Microsoft) and so on.

  7. Distributed Multi-tiered Applications • Other software engineers are responsible for the • Temporary deployment in the servers and the testing of the various parts of the enterprise application. • The final deployment in the servers.

  8. Example of Past Implementations • Web Server: Jakarta Tomcat • JDK SE: • SWING AND AWT Graphical Components • JDBC (Java Data Base Connectivity) • RMI (Remote Method Invocation) • RMI over IIOP (RMI over Internet Inter-Operability Protocol) • Servlet and Java Server Pages API could be added to SE • Java Email API couled be added to SE • Java Messaging Services API could be added to SE • Java Beans API

  9. DATA BASE Customer Accounts Servlet, Users Servlet, Updated Selections Servlet e.t.c, Applet, html files, images RMI SERVER /JDBC CLIENT GUI WEB SERVER INTERNET RMI SERVER / JDBC BROWSER PRESENTATION TIER WEB TIER AND BUSINESS RULES TIER DATA TIER 3-TIER ARCHITECTURE- Example from CS441 Project 2 Spring 08 • THE BASIC BANK SERVICES ARCHITECTURE IS:

  10. 3 Tier Example discrete API usage • The Web Server was Jakarta Tomcat • The Client GUI was an Applet • The business rules were applied via servlets, jsp • The RMI server demonstrated distributed applications (not necessarily collocated with the web server). • The distributed services used JDBC to connect to respective databases • Client Request -> Web Server-> proper servlet (servlet was a client to a RMI server) -> RMI server JDBC query->Database • Database query result (data)-> RMI server-> corresponding servlet (its client)-> response to web server servlet container-> HTTP response packets to client Applet

  11. DATA BASE Application Server EJBs CLIENT GUI WEB SERVER INTERNET Servlets/ Java Server Pages Application Server EJBs BROWSER PRESENTATION TIER BUSINESS RULES TIER DATA TIER Revised 3 tier architecture using Enterprise Java Beans and Application Servers Distributed Applications WEB TIER

  12. Revised 3 tier architecture using Enterprise Java Beans and Application Servers • Notice that the Communication between the client and the service needed can also be direct by passing the web tier and going through a private network: APPLICATION SERVER CLIENT NETWORK

  13. Revised 3 tier architecture using Enterprise Java Beans and Application Servers • Quite often the Application Server (such as GlassFish) contain the web server and the database. • Note that GlassFish used to be called Sun Application Server

  14. Multi Tier • Multi Tier architectures can be built where additional servers become part of the architecture such as: • Firewall server: handles all incoming traffic from the Internet, helps protect the rest of the system from attacks. • Local Balancer: Distributes transactions to various servers.

  15. Multi Tier • Transaction Processing Monitor: Handles incoming requests and forwards the request to the proper application server. • The above 3 types of servers define what is called PortalServices.

  16. Java EE • Integrates all API s and tools needed for establishing multi-tiered applications. • Combines Web Server and Application Server into Java EE Server. • GUI components for the client tier are created using Java Server Faces technology • Graphical Components are created on the server side and rendered as an object in a mark up language (HTML, XML etc.)

  17. Java EE Tiers CLIENT TIER- Java Application/Dynamic HTML pages/Java Script / Java Bean components Web Tier (Web Server) Java EE Server Enterprise Java Beans (Application Server) Databases

  18. Naming Services • Distributed Services Need to be discovered. • For Example: RMI provides a simple server called rmiregistry where remote servers can register their remote objects. • A client first contacts the registry to get a reference to the remote object (i.e. the name of the server, the port number that the server listens, the remote object id).

  19. Naming Services • Java EE includes the Java Naming and Directory Interface API ( JNDI). • This API allows clients to discover remote objects (provided those remote objects have registered with the JNDI)

  20. Java EE Security • Java EE allows security to be defined at the time of deployment of the application. • In discrete APIs security needs to be defined with special policy files and certificates. In addition separate programs are needed by using the various Security APIs. • Cumbersome and application specific. • Java EE utilizes the various Security APIs in an integrated approach to provide security settings at the time of deployment. • Uses the Java Authentication and Authorization Service.

  21. JEE APIs • Other APIs included in JEE: • JDBC (Java Data Base Connectivity) • Java Servlets and Java Server Pages (JSP) • Java Server Faces • Java Enterprise Beans • Java Message Service • Java Transactions • Java Email • JavaBeans Activation Framework • Various APIs for Web Services implementation

  22. Types of Tasks in an Enterprise • Purchasing of software from Java EE vendors who have implemented the Java EE server. • Tool providers for development tools and also packaging tools (i.e. NetBeans Development tool). • Development of Java Enterprise Beans, web components (applets,servlet, jsp other programs, java applications for client and other programs) • Assembly of the application into an EAR file. • Temporary Deployment of the application by an administrator into the server(s). • Testing • Final Deployment into the server(s).

  23. JAVA GRAPHICS • Let us revert to some basic Java Graphics before we return to the topics of server side Java. • Graphics should be understood before the concept of Java Server Faces as a substitute for graphical components is discussed or • Before the usage of NetBeans to create graphical components is discussed.

  24. JAVA GRAPHICS BASICS • JAVA CONCEPTS INVOLVED • AWT & SWING APIs PROVIDE • TOP CONTAINERS OBJECTS • COMPONENTS OBJECTS • SUB CONTAINERS OBJECTS • LAYOUT MANAGERS OBJECTS • PAINT / UPDATE/ REPAINT METHODS FOR EACH CONTAINER

  25. Java Graphics • Involves knowledge of various containers • i.e. Top Containers: JFrame, JApplet, JDialog • Other containers can be dropped into top containers: • JPanel • JInternal Frame • Other components can be dropped in a Container i.e. • JTextArea • JTextField • JButton • JEditorPane ( a component that allows html files to be displayed plus other text formats).

  26. Java Graphics • Involves knowledge of Layout Managers: • FlowLayout manager (default) • BorderLayout Manager • GridLayout Manager • GridBagLayout Manager • GridBagLayout is the one Layout manager used for professional presentations.

  27. BorderLayout Manager • Divides Screen up to 5 Areas: NORTH WEST CENTER EAST SOUTH

  28. BorderLayout Manager • Set up the top Container first by extending your class to inherit the container: public class MyClass extends JFrame { //call super class’ constructor to pass a name for the Frame public MyClass() { super(“My Frame Name”);

  29. BorderLayout Manager • Usage: Container c= getContentPane(); c.setLayout(new BorderLayout(5,5)); JButton b1=new Jbutton(“First Action”); c.add(b1, BorderLayout.NORTH); ……………………………………………………

  30. EVENT HANDLING • EVENT LISTENER INTERFACES. • EVENT OBJECTS. • EVENT ADAPTER CLASSES • TECHNIQUES FOR GENERATING EVENTS.

  31. EVENT HANDLING EVENT SOURCE EVENT OBJECT EVENT LISTENER

  32. Event Handling • Create component object • Register component object with the event handler object. • Create an event handler class that implements the Event Listener interface that goes with the particular component • Implement the proper method of the Even Listener Interface.

  33. MORTGAGE CALCULATOR –APPLICATION VERSION • JFRAME AND BORDER LAYOUT MANAGER • USAGE OF JPANEL AND BOX MANAGER. • JTABLE COMPONENT. • MODEL/ VIEW / CONTROLLER DESIGN PATTERN • DEMONSTRATION OF EVENT HANDLING • USING ANONYMOUS INNER CLASS • USING AN INNER CLASS • USING A SEPARATE FILE • ANOTHER VERSION USES GRID BAG LAYOUT MANAGER

  34. STUDY GUIDE • Read Web Based Applications Development: chapters 2 and 3 • Read Java EE Tutorial: Part II Chapter 3. • Study Mortgage Calculator examples for Graphics.
