Presentation Transcript

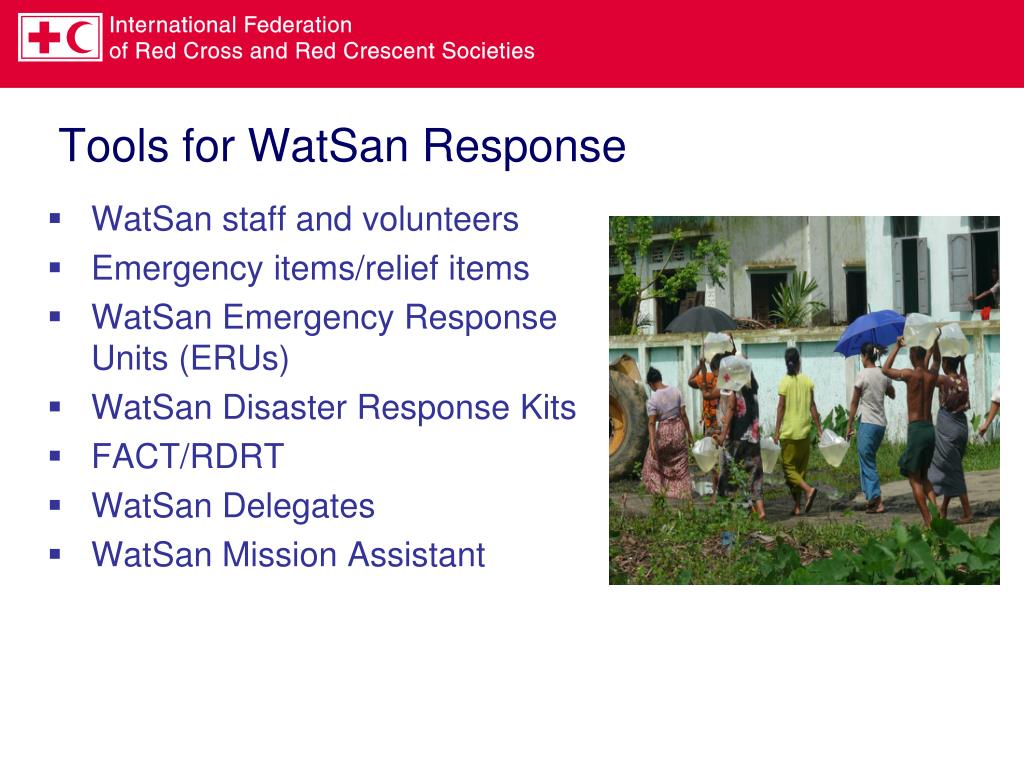

tools for watsan response
Tools for WatSanResponse
  • WatSan staff and volunteers
  • Emergency items/relief items
  • WatSanEmergency Response Units (ERUs)
  • WatSanDisaster Response Kits
  • FACT/RDRT
  • WatSan Delegates
  • WatSan Mission Assistant
slide4

WatSan ER Equipment by Country

Water and Sanitation in Asia Pacific

NS WatSan ER Equipment

IFRC WatSan ER Equipment

Deployed in 2010

slide6

WatSan Emergency Response Tools

DISASTER

TARGET POPULATION

2.000

5.000

10.000

15.000

20.000

40.000

WATSAN KIT 2

WATSAN KIT 5

WATSAN KIT 10

WATSAN ERU MODULE 15

MSM ERU MODULE 20

WATSAN ERU MODULE 40

watsan eru module 15

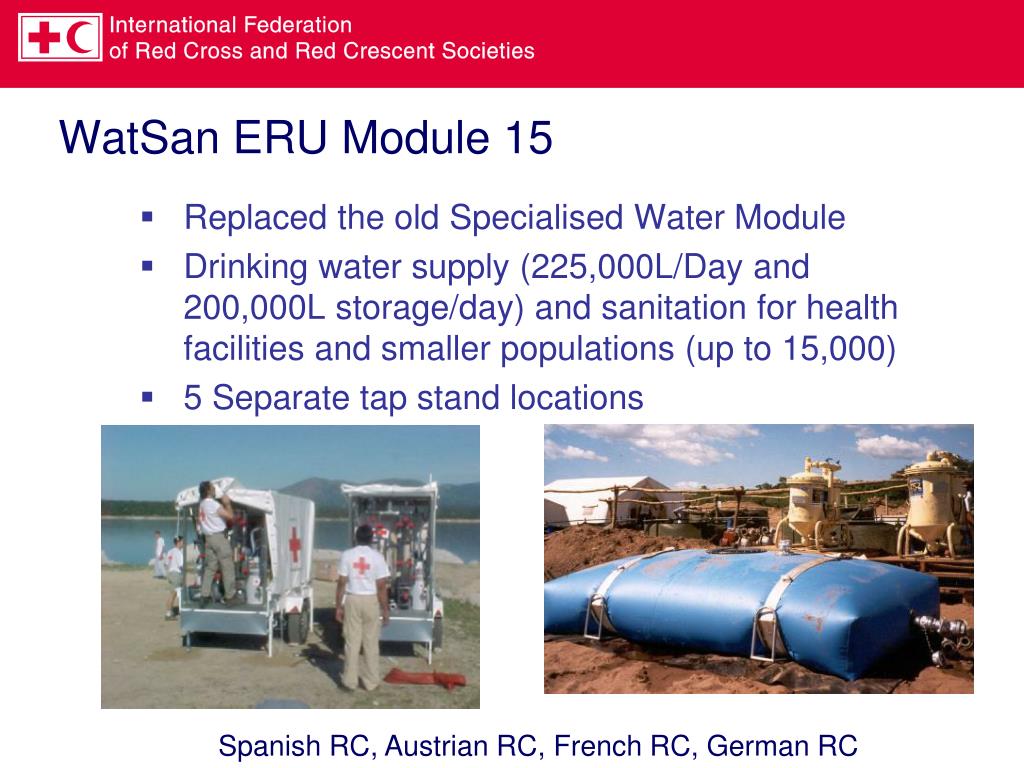

WatSanERU Module 15
  • Replaced the old Specialised Water Module
  • Drinking water supply (225,000L/Day and 200,000L storage/day) and sanitation for health facilities and smaller populations (up to 15,000)
  • 5 Separate tap stand locations

Spanish RC, Austrian RC, French RC, German RC

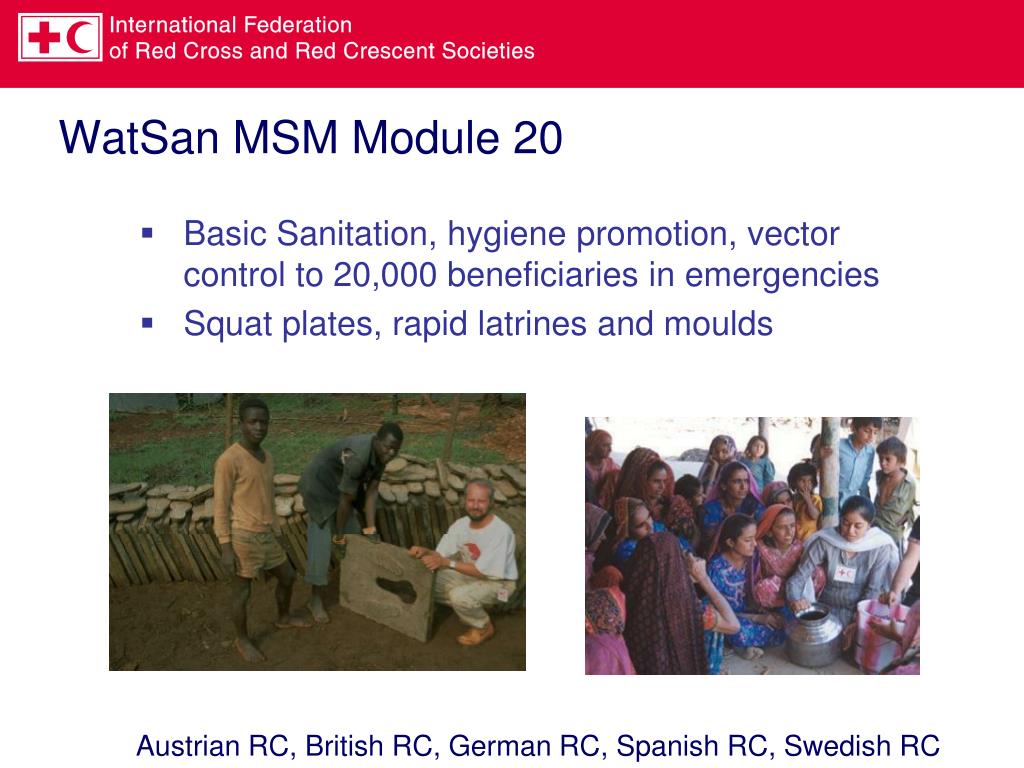

watsan msm module 20
WatSanMSM Module 20
  • Basic Sanitation, hygiene promotion, vector control to 20,000 beneficiaries in emergencies
  • Squat plates, rapid latrines and moulds

Austrian RC, British RC, German RC, Spanish RC, Swedish RC

watsan eru module 40
WatSanERU Module 40
  • Replaced the Treatment and Supply Mass Water Module
  • Provide 600,000L/Day for 40,000 beneficiaries in emergency situations
  • Transport and distribution of drinking water (75,000L/Day to beneficiaries in dispersed areas)

Austrian RC, French RC, German RC, Swedish RC

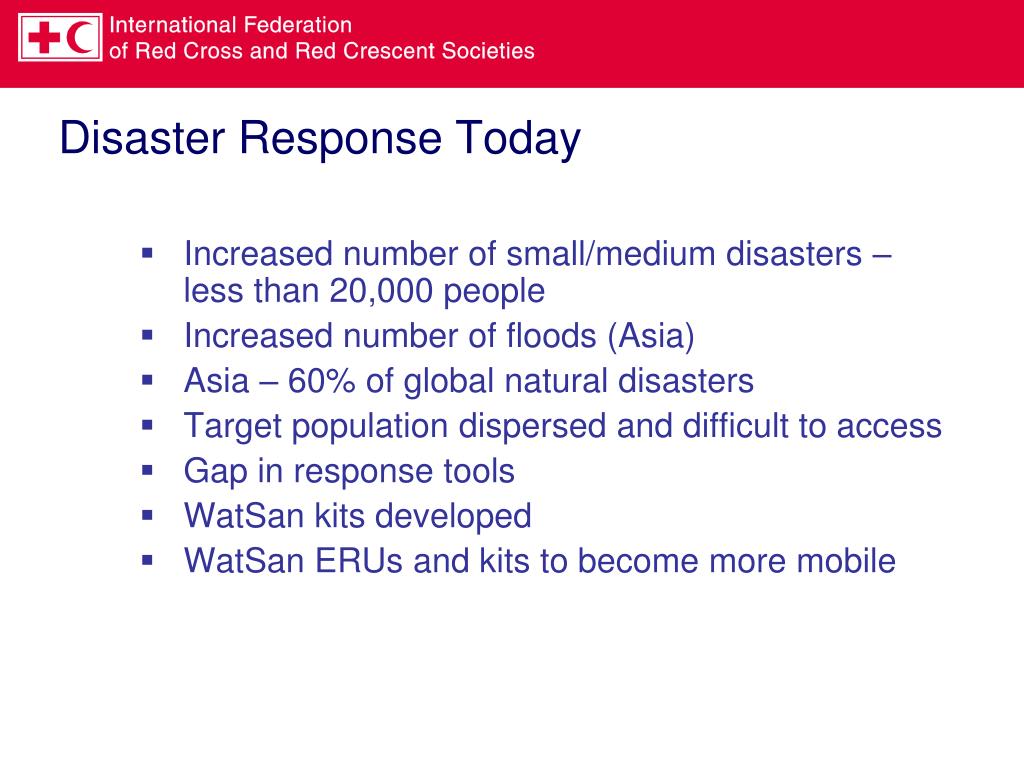

disaster response today
Disaster Response Today
  • Increased number of small/medium disasters – less than 20,000 people
  • Increased number of floods (Asia)
  • Asia – 60% of global natural disasters
  • Target population dispersed and difficult to access
  • Gap in response tools
  • WatSan kits developed
  • WatSan ERUs and kits to become more mobile
watsan kits
WatSan kits
  • WatSan kit 2
  • 2.000 beneficiaries
  • Household level
  • Two alternatives:
    • Chlorine tablets / sachets (incl. flocculants)
    • Ceramic filter
  • Latrine slabs
  • 1 hygiene promotion kit
  • WatSan kit 5
  • 5.000 beneficiaries
  • Community level
  • Water treatment + storing + distribution equipment
  • Latrine slabs + rapid latrine
  • 2 hygiene promotion kits
  • WatSan kit 10
  • 10.000 beneficiaries
  • Community level
  • Water treatment + storing + distribution equipment
  • Latrine slabs + rapid latrine
  • 4 hygiene promotion kits

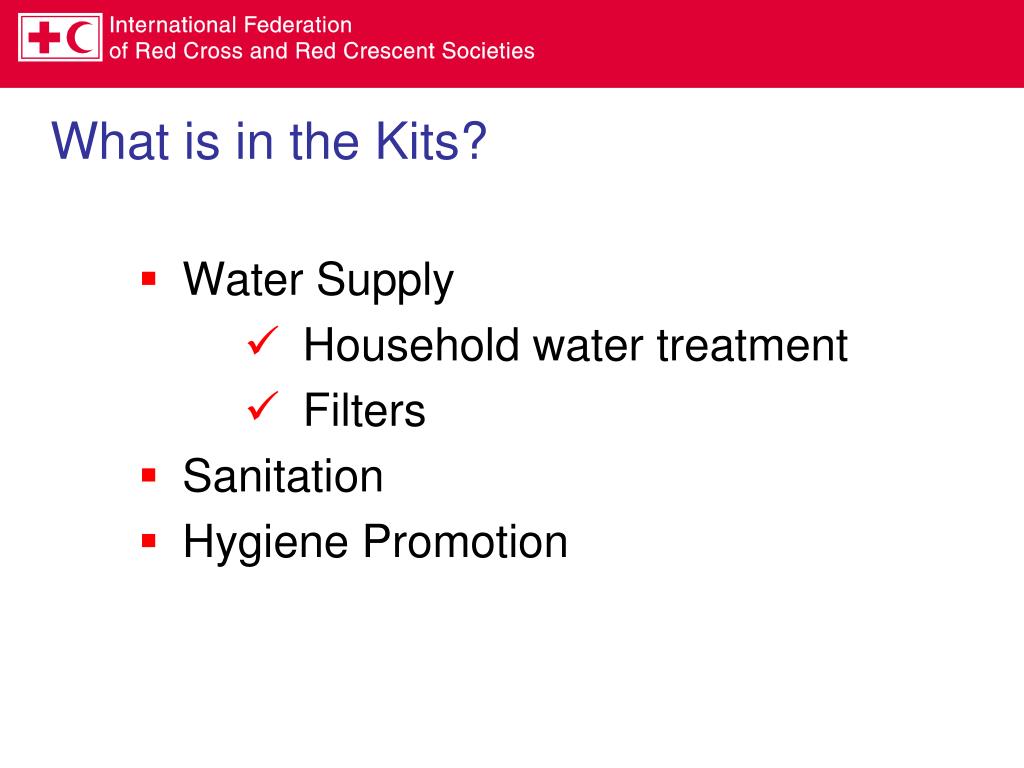

what is in the kits
What is in the Kits?
  • Water Supply
      • Household water treatment
      • Filters
  • Sanitation
  • Hygiene Promotion

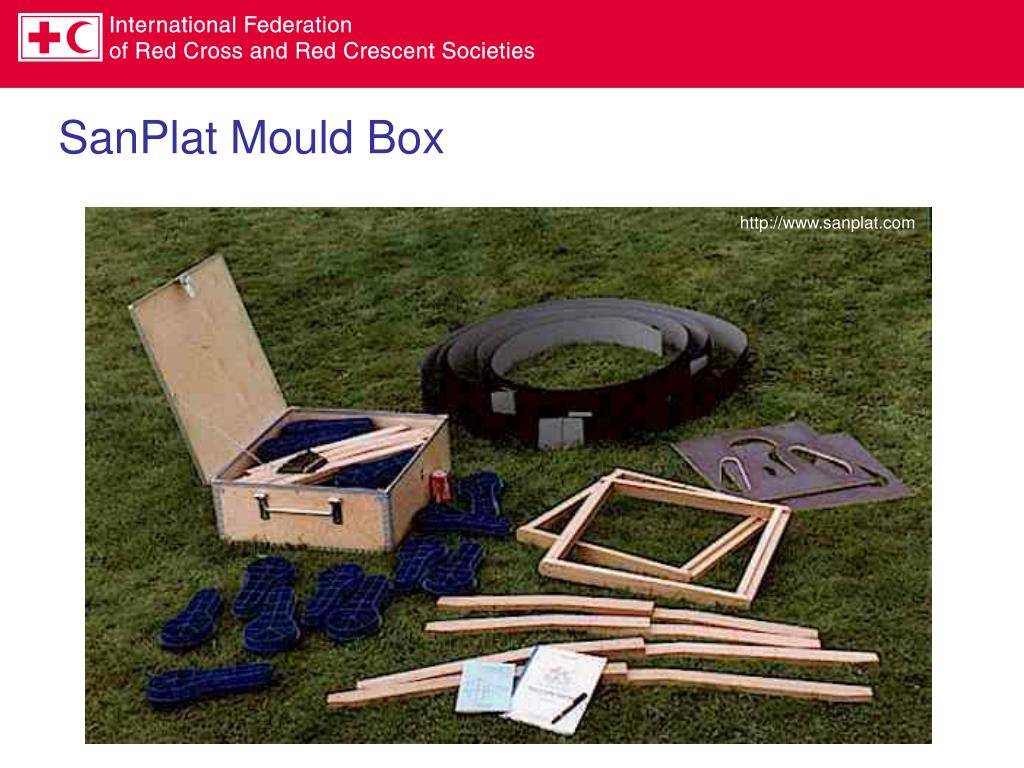

sanplat mould box
SanPlat Mould Box

http://www.sanplat.com

slide26
Soap

S O A P

watsan relief items
WatSanRelief Items
  • Chlorine Tablets
  • Jerry Cans (always together) 1 tablet 10-20L
  • Distribution with hygiene promotion
  • Buckets
  • Soap
  • Mosquito nets
