  1. Workshop on the Economic and Environmental Impacts of Bio-Based Production Global biomass energy potential Jose Roberto Moreira Brazilian National Reference Center on Biomass Chicago, Illinois, Usa June 8-9, 2004

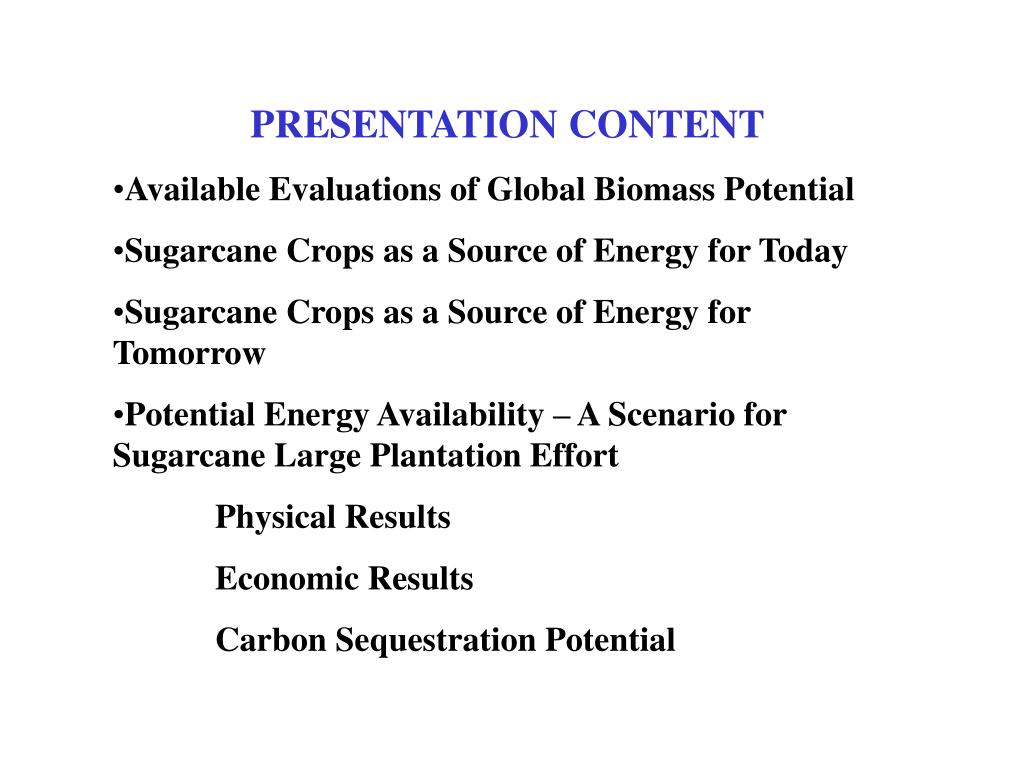

  2. PRESENTATION CONTENT • Available Evaluations of Global Biomass Potential • Sugarcane Crops as a Source of Energy for Today • Sugarcane Crops as a Source of Energy for Tomorrow • Potential Energy Availability – A Scenario for Sugarcane Large Plantation Effort • Physical Results • Economic Results • Carbon Sequestration Potential

  3. AMOUNT OF LAND REQUIRED FOR ALTERNATIVE ENERGY PRODUCTION MILLION HA EJ/YR WIND 300 (1) 660 SOLAR ENERGY 393 (2) 1600 BIOMASS 1280 (3) 440 HYDROELECTRIC 40 (4) 10 1) 10% of all earth land area with wind speed above 5.1 m/s at 10m height 2) 10% of the land area classified as “other lands” category by the FAO(1999) 3) All potential crop land area not been required for food crops in year 2050 are used 4) Production in 2000 Source: IPCC TAR, 2001

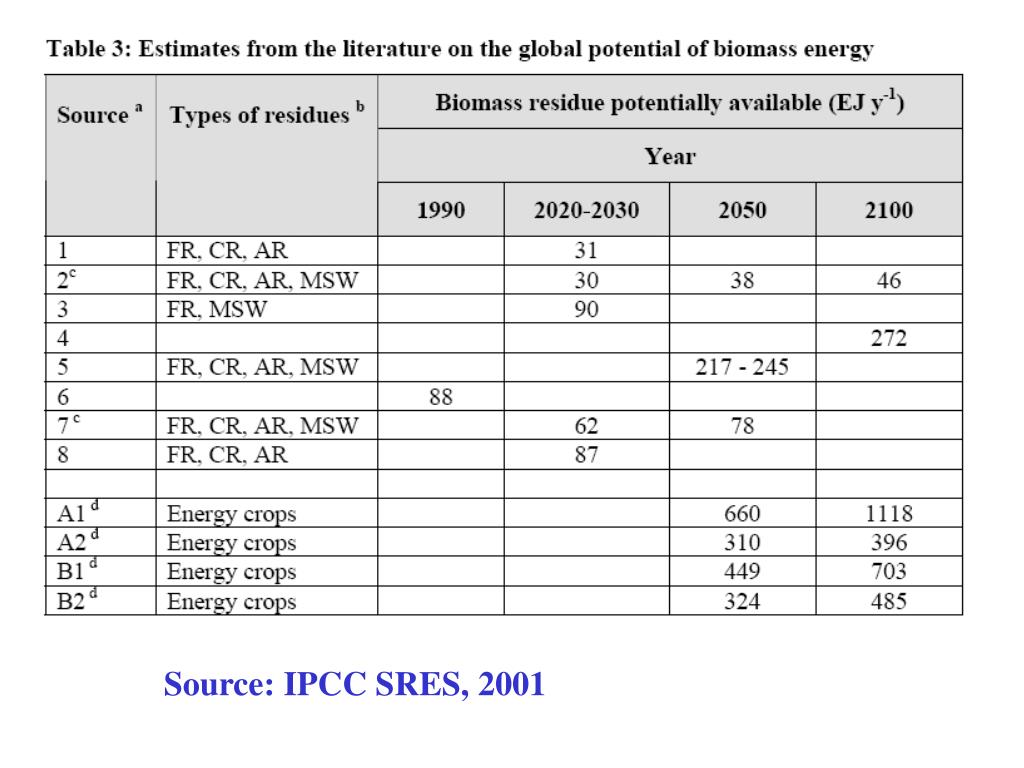

  4. Source: IPCC SRES, 2001

  5. BIOMASS ENERGY FROM SUGARCANE CROP

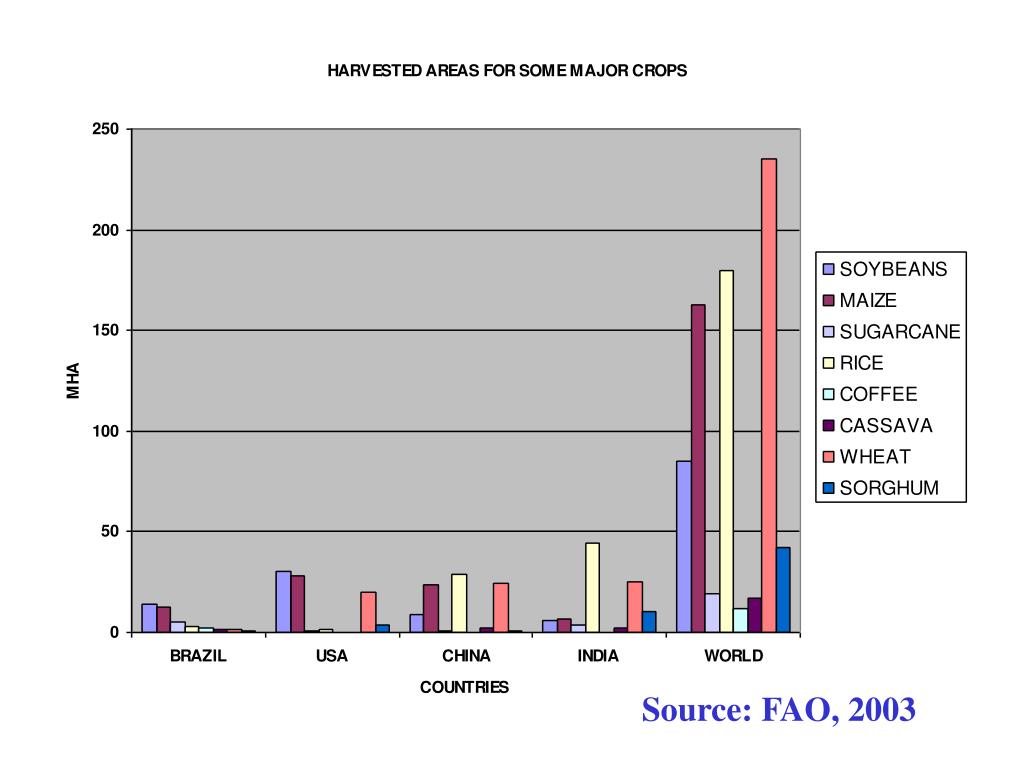

  6. Source: FAO, 2003

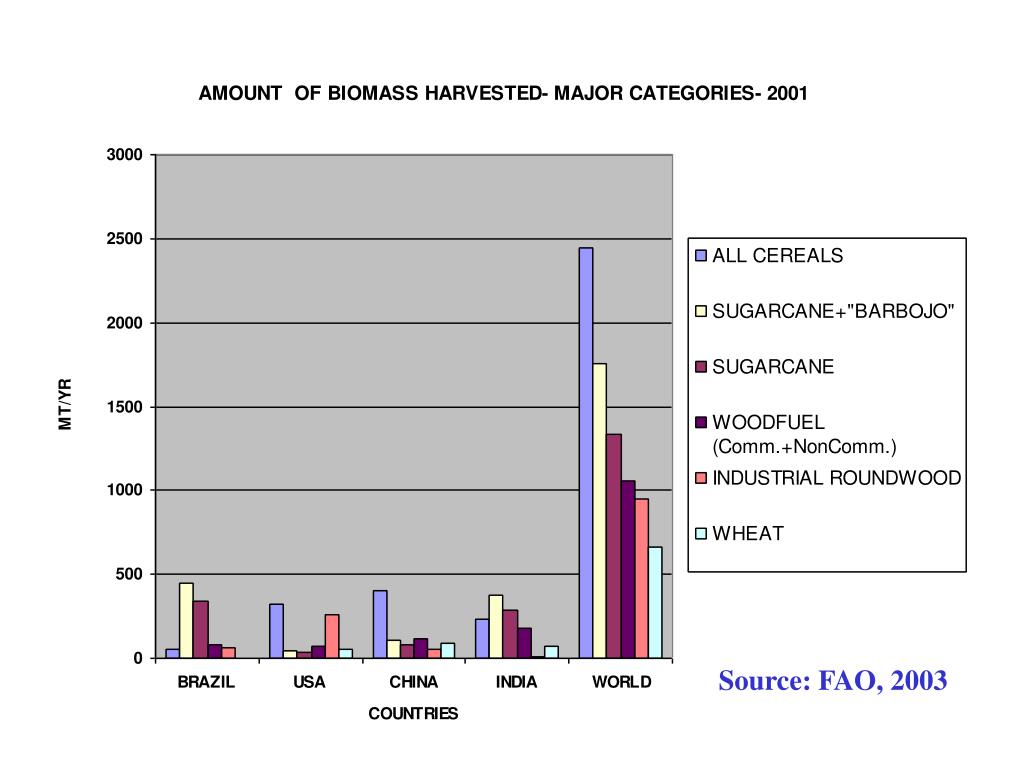

  7. Source: FAO, 2003

  8. Source: FAO, 2003

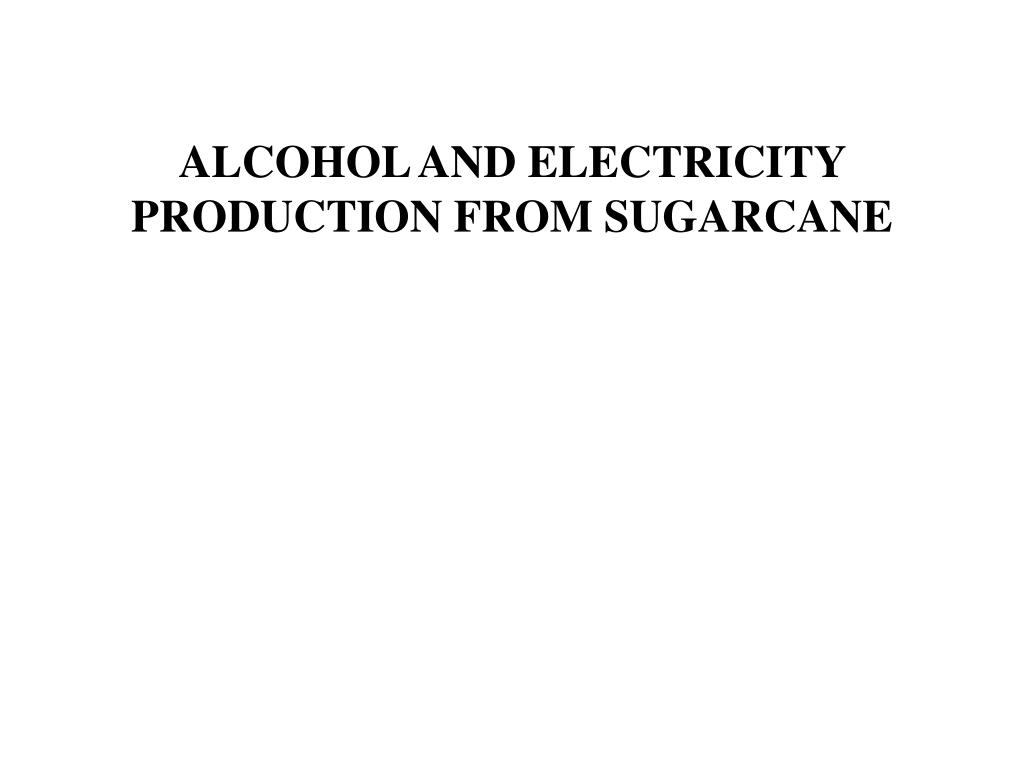

  9. ALCOHOL AND ELECTRICITY PRODUCTION FROM SUGARCANE

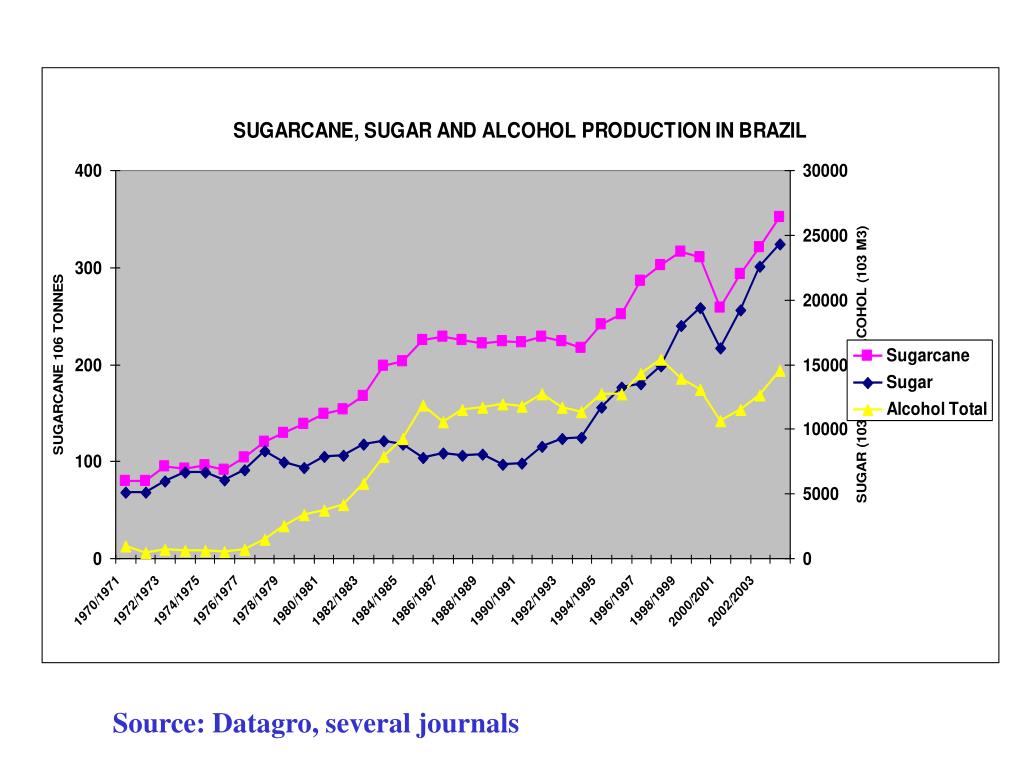

  10. Source: Datagro, several journals

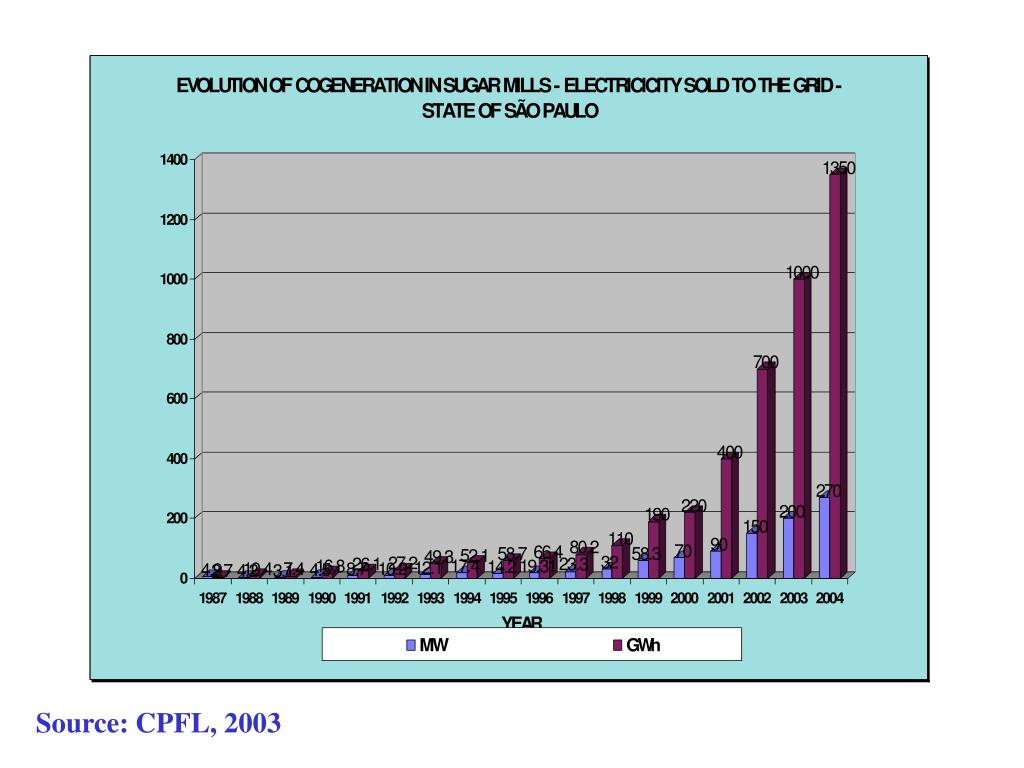

  11. Source: CPFL, 2003

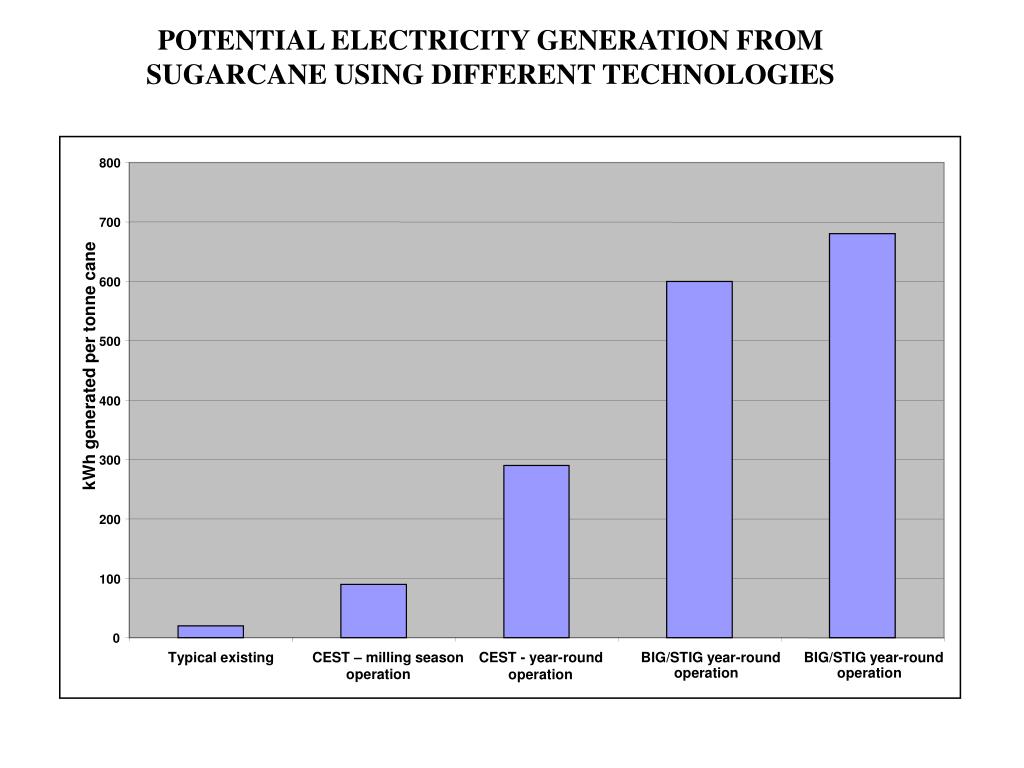

  12. 800 700 600 500 kWh generated per tonne cane 400 300 200 100 0 Typical existing CEST – milling season CEST - year-round operation BIG/STIG year-round BIG/STIG year-round operation operation operation POTENTIAL ELECTRICITY GENERATION FROM SUGARCANE USING DIFFERENT TECHNOLOGIES

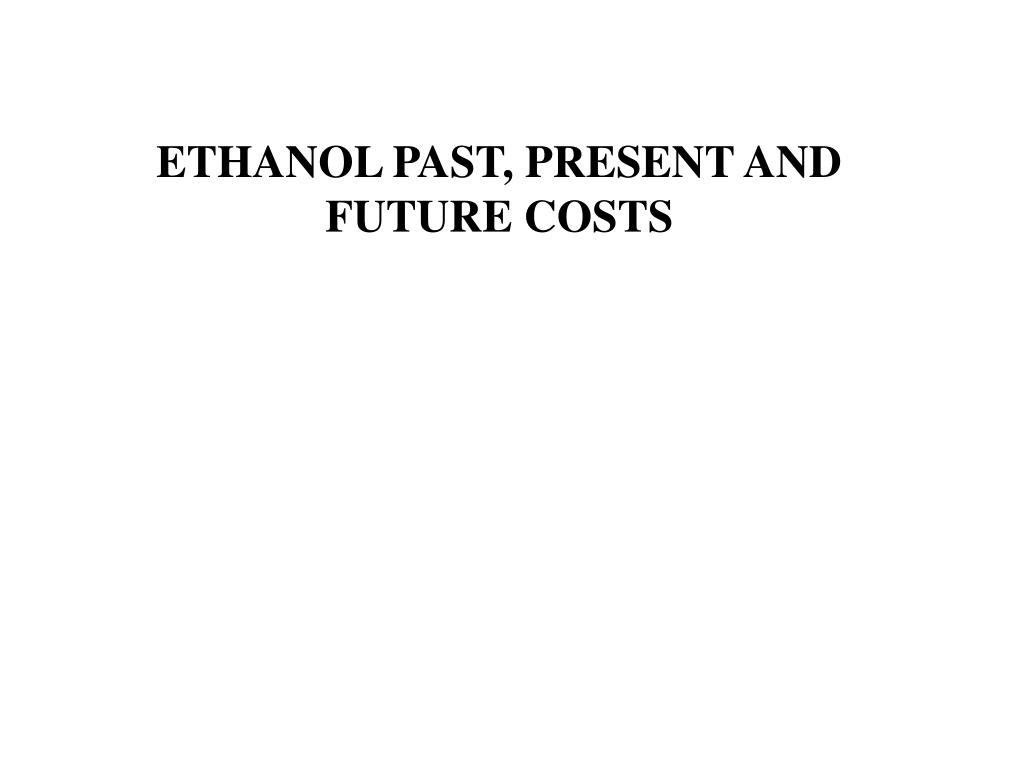

  13. ETHANOL PAST, PRESENT AND FUTURE COSTS

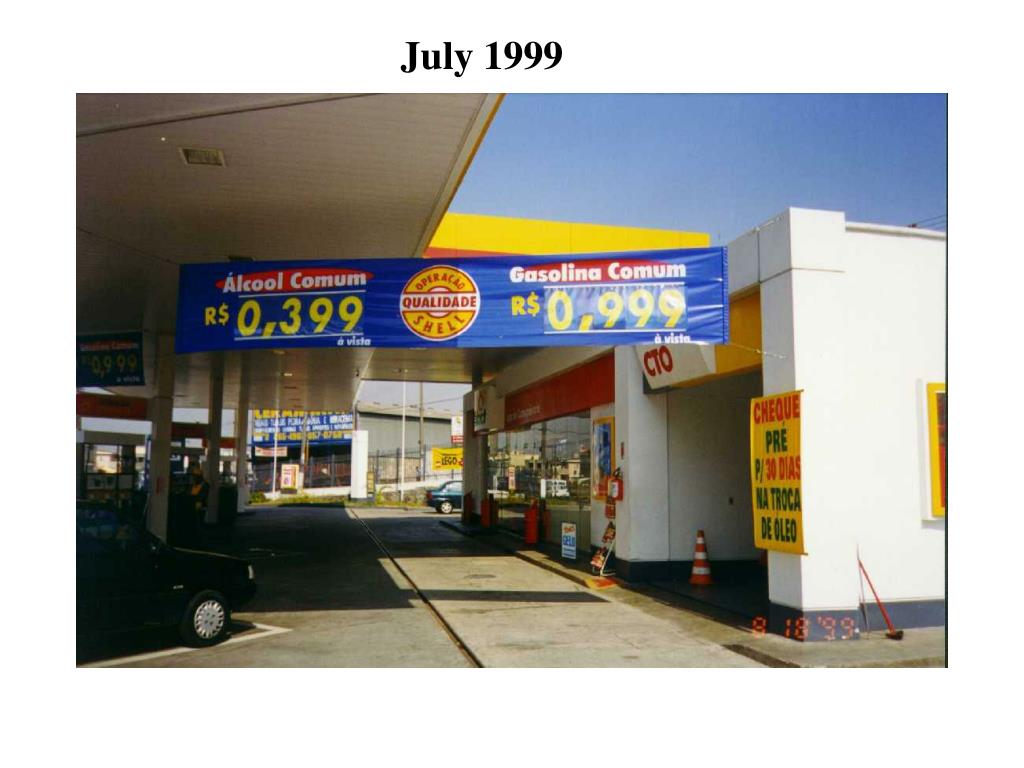

  14. July 1999

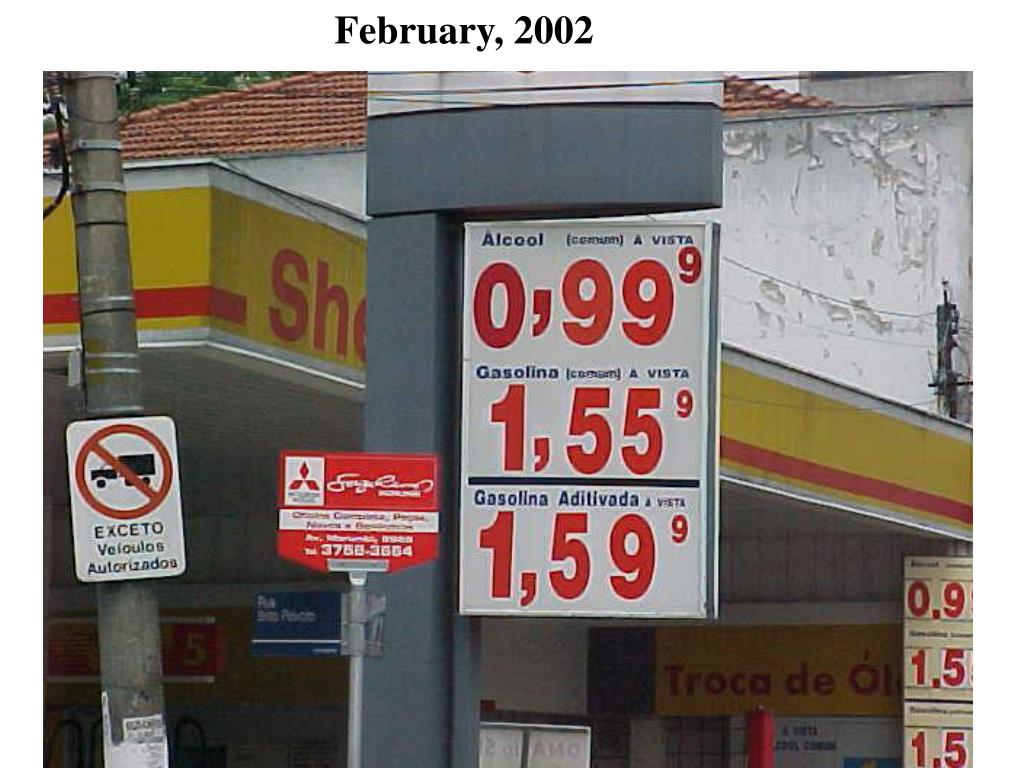

  15. February, 2002

  16. FUTURE SCENARIO FOR ENERGY FROM SUGARCANE LAND AVAILABILITY

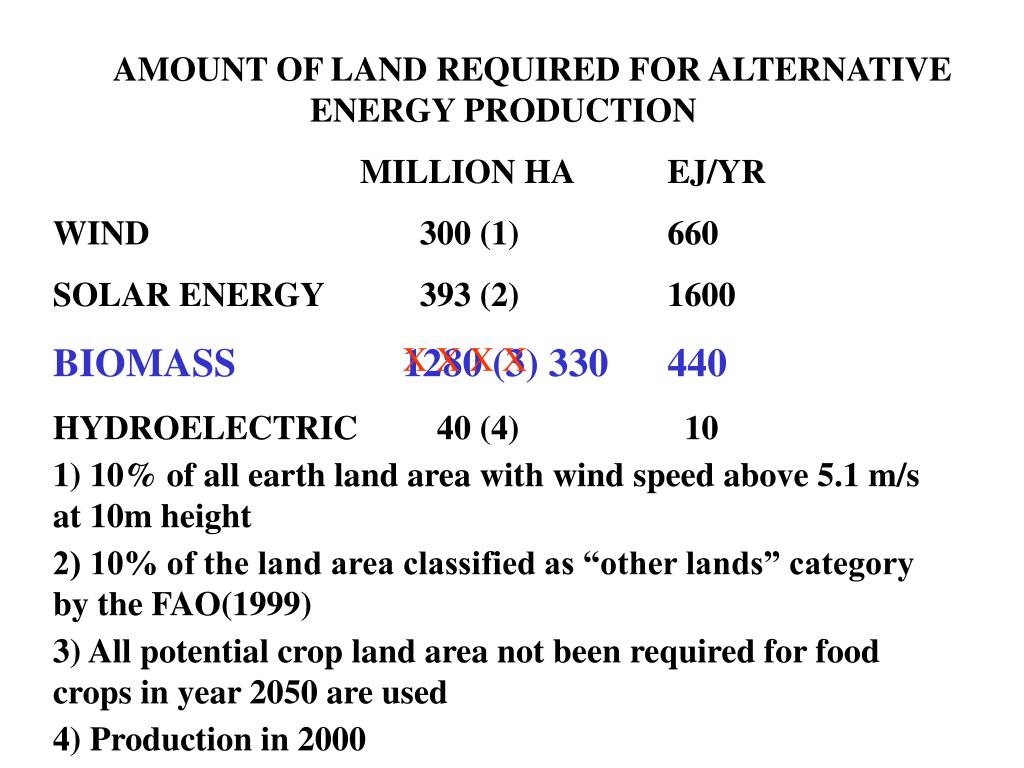

  17. AMOUNT OF LAND REQUIRED FOR ALTERNATIVE ENERGY PRODUCTION MILLION HA EJ/YR WIND 300 (1) 660 SOLAR ENERGY 393 (2) 1600 BIOMASS1280 (3) 330 440 HYDROELECTRIC 40 (4) 10 1) 10% of all earth land area with wind speed above 5.1 m/s at 10m height 2) 10% of the land area classified as “other lands” category by the FAO(1999) 3) All potential crop land area not been required for food crops in year 2050 are used 4) Production in 2000 X X X X

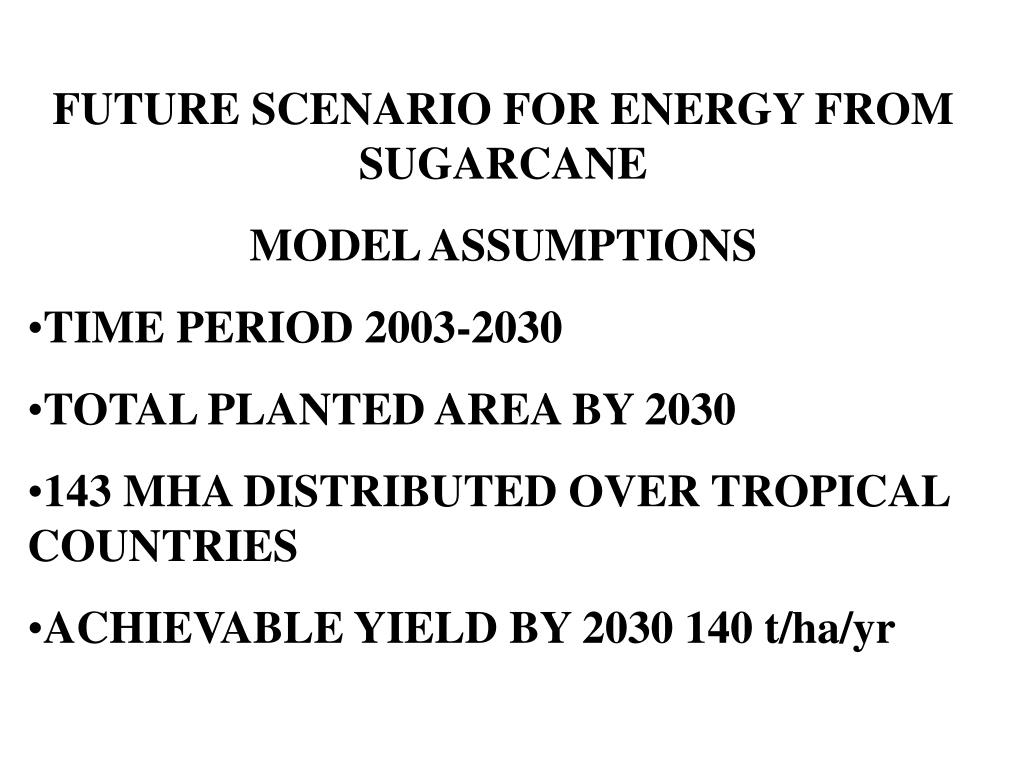

  18. FUTURE SCENARIO FOR ENERGY FROM SUGARCANE • MODEL ASSUMPTIONS • TIME PERIOD 2003-2030 • TOTAL PLANTED AREA BY 2030 • 143 MHA DISTRIBUTED OVER TROPICAL COUNTRIES • ACHIEVABLE YIELD BY 2030 140 t/ha/yr

  19. Planted area growth equal or less than 8%/yr Yield Growth = 3%/yr up to 140 t/ha/yr Electricity production = 50 to 500 kWh/tcane Ethanol production = 90 to 114 l/tcane

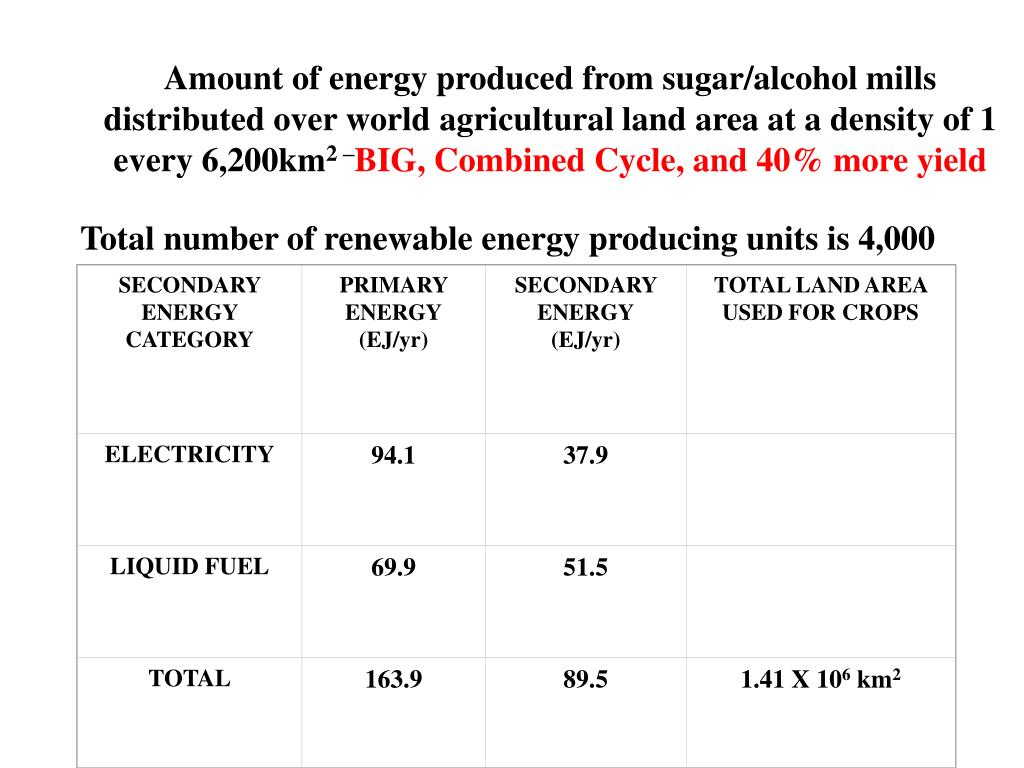

  20. SECONDARY ENERGY CATEGORY PRIMARY ENERGY (EJ/yr) SECONDARY ENERGY (EJ/yr) TOTAL LAND AREA USED FOR CROPS ELECTRICITY 94.1 37.9 LIQUID FUEL 69.9 51.5 TOTAL 163.9 89.5 1.41 X 106 km2 Amount of energy produced from sugar/alcohol mills distributed over world agricultural land area at a density of 1 every 6,200km2 –BIG, Combined Cycle, and 40% more yield Total number of renewable energy producing units is 4,000

  21. ECONOMIC RESULTS

  22. Source: IEA, 2003 & Author

  23. SUGARCANE RENEWABLE ENERGY PRODUCTION WITH CARBON SEQUESTRATION

  24. Source: Azar et al, 2003and Author
