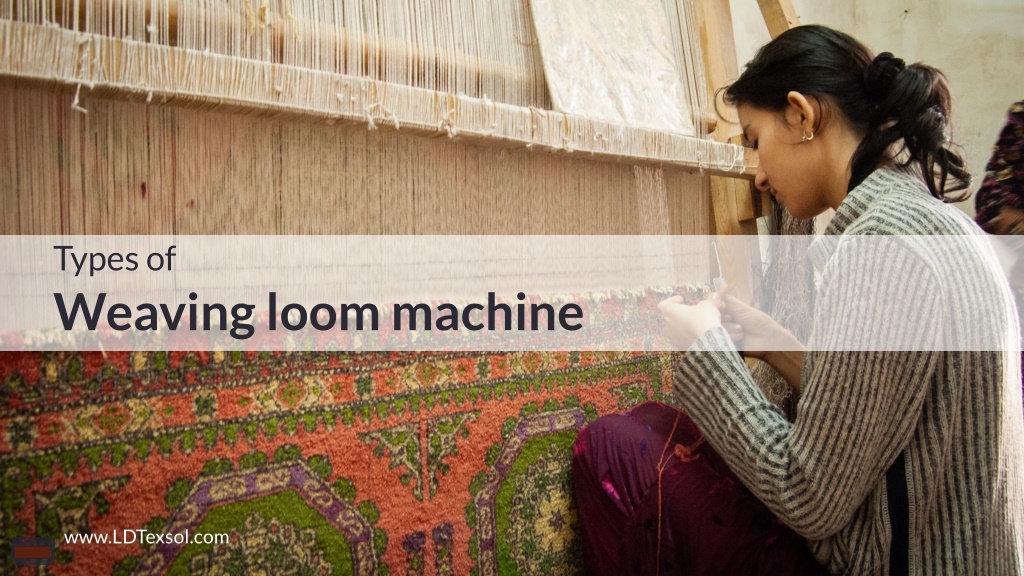

Types of Weaving loom machine

1. Types of Weaving loom machine www.LDTexsol.com

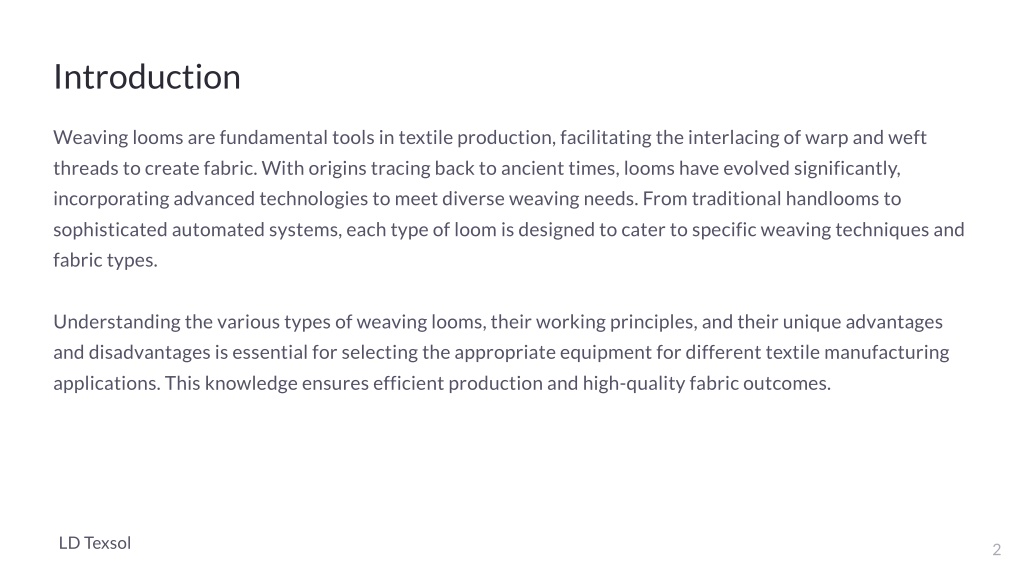

2. Introduction Weaving looms are fundamental tools in textile production, facilitating the interlacing of warp and weft threads to create fabric. With origins tracing back to ancient times, looms have evolved significantly, incorporating advanced technologies to meet diverse weaving needs. From traditional handlooms to sophisticated automated systems, each type of loom is designed to cater to specific weaving techniques and fabric types. Understanding the various types of weaving looms, their working principles, and their unique advantages and disadvantages is essential for selecting the appropriate equipment for different textile manufacturing applications. This knowledge ensures efficient production and high-quality fabric outcomes. LD Texsol 2

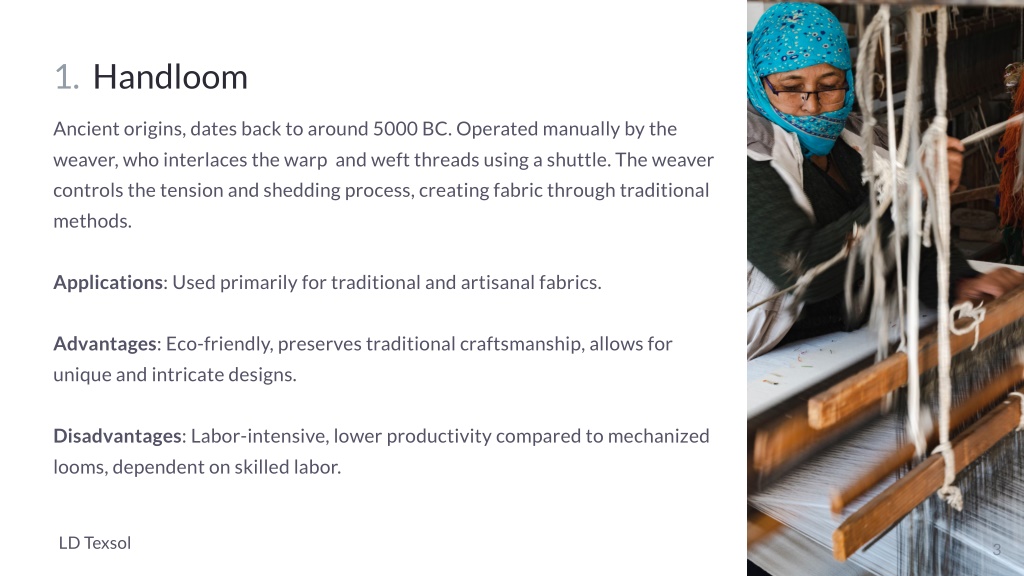

3. 1. Handloom Ancient origins, dates back to around 5000 BC. Operated manually by the weaver, who interlaces the warp and weft threads using a shuttle. The weaver controls the tension and shedding process, creating fabric through traditional methods. Applications: Used primarily for traditional and artisanal fabrics. Advantages: Eco-friendly, preserves traditional craftsmanship, allows for unique and intricate designs. Disadvantages: Labor-intensive, lower productivity compared to mechanized looms, dependent on skilled labor. LD Texsol 3

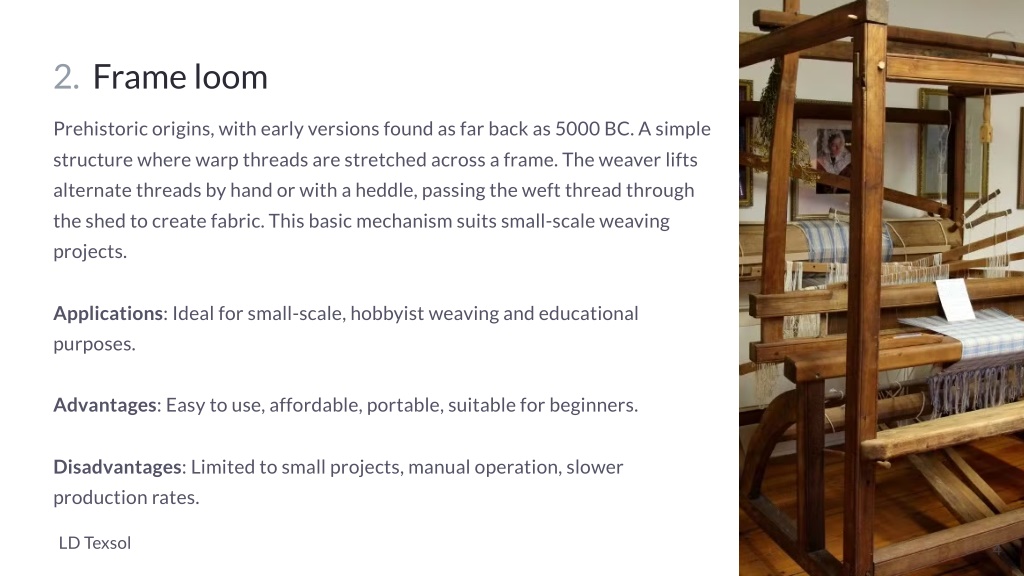

4. 2. Frame loom Prehistoric origins, with early versions found as far back as 5000 BC. A simple structure where warp threads are stretched across a frame. The weaver lifts alternate threads by hand or with a heddle, passing the weft thread through the shed to create fabric. This basic mechanism suits small-scale weaving projects. Applications: Ideal for small-scale, hobbyist weaving and educational purposes. Advantages: Easy to use, affordable, portable, suitable for beginners. Disadvantages: Limited to small projects, manual operation, slower production rates. LD Texsol 4

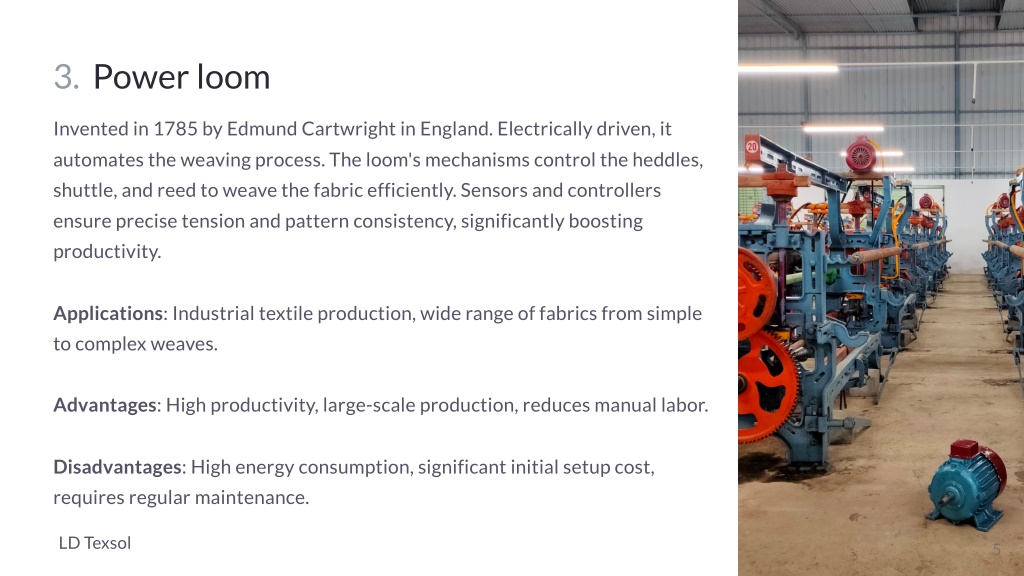

5. 3. Power loom Invented in 1785 by Edmund Cartwright in England. Electrically driven, it automates the weaving process. The loom's mechanisms control the heddles, shuttle, and reed to weave the fabric efficiently. Sensors and controllers ensure precise tension and pattern consistency, significantly boosting productivity. Applications: Industrial textile production, wide range of fabrics from simple to complex weaves. Advantages: High productivity, large-scale production, reduces manual labor. Disadvantages: High energy consumption, significant initial setup cost, requires regular maintenance. LD Texsol 5

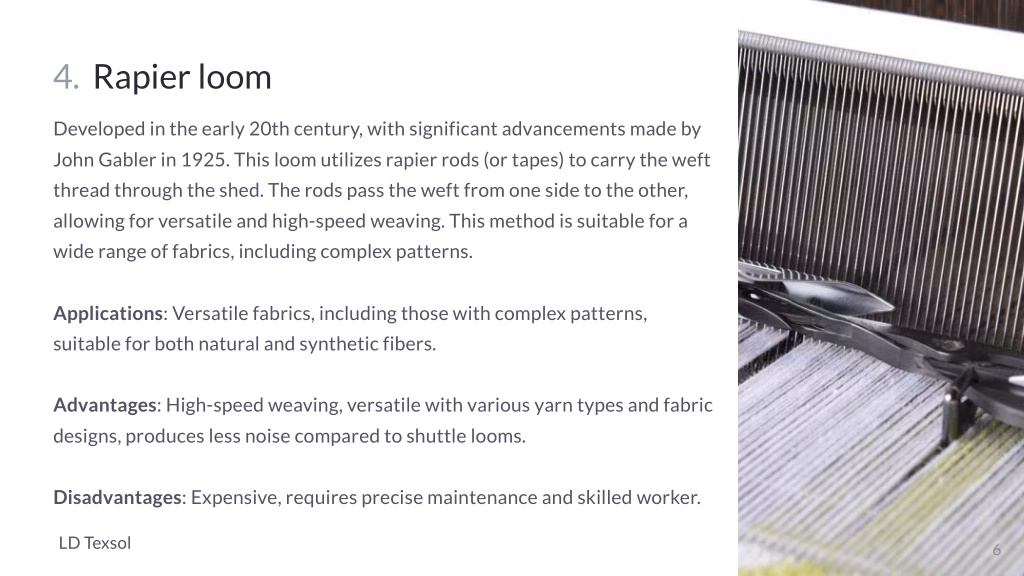

6. 4. Rapier loom Developed in the early 20th century, with significant advancements made by John Gabler in 1925. This loom utilizes rapier rods (or tapes) to carry the weft thread through the shed. The rods pass the weft from one side to the other, allowing for versatile and high-speed weaving. This method is suitable for a wide range of fabrics, including complex patterns. Applications: Versatile fabrics, including those with complex patterns, suitable for both natural and synthetic fibers. Advantages: High-speed weaving, versatile with various yarn types and fabric designs, produces less noise compared to shuttle looms. Disadvantages: Expensive, requires precise maintenance and skilled worker. LD Texsol 6

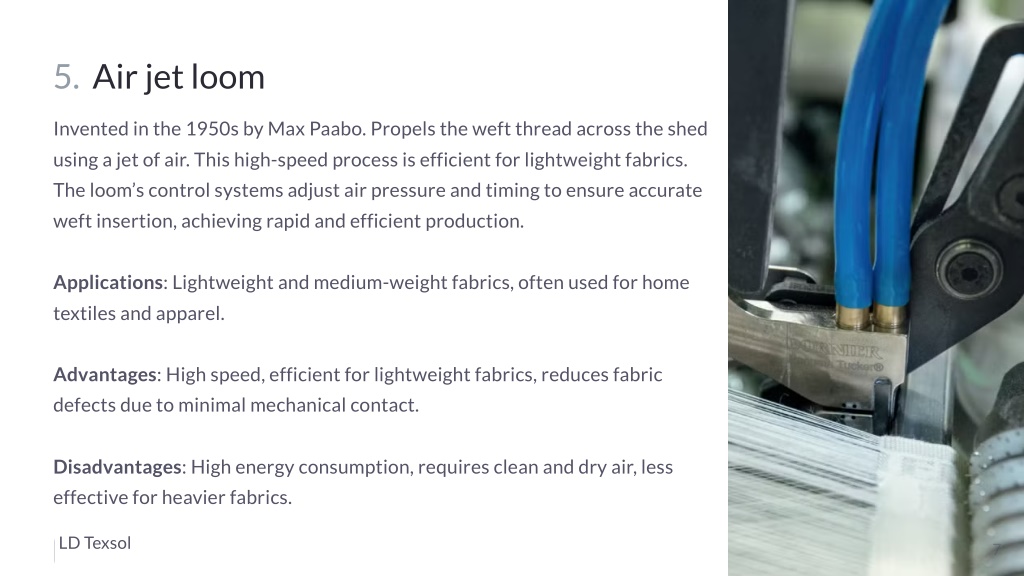

7. 5. Air jet loom Invented in the 1950s by Max Paabo. Propels the weft thread across the shed using a jet of air. This high-speed process is efficient for lightweight fabrics. The loom’s control systems adjust air pressure and timing to ensure accurate weft insertion, achieving rapid and efficient production. Applications: Lightweight and medium-weight fabrics, often used for home textiles and apparel. Advantages: High speed, efficient for lightweight fabrics, reduces fabric defects due to minimal mechanical contact. Disadvantages: High energy consumption, requires clean and dry air, less effective for heavier fabrics. LD Texsol 7

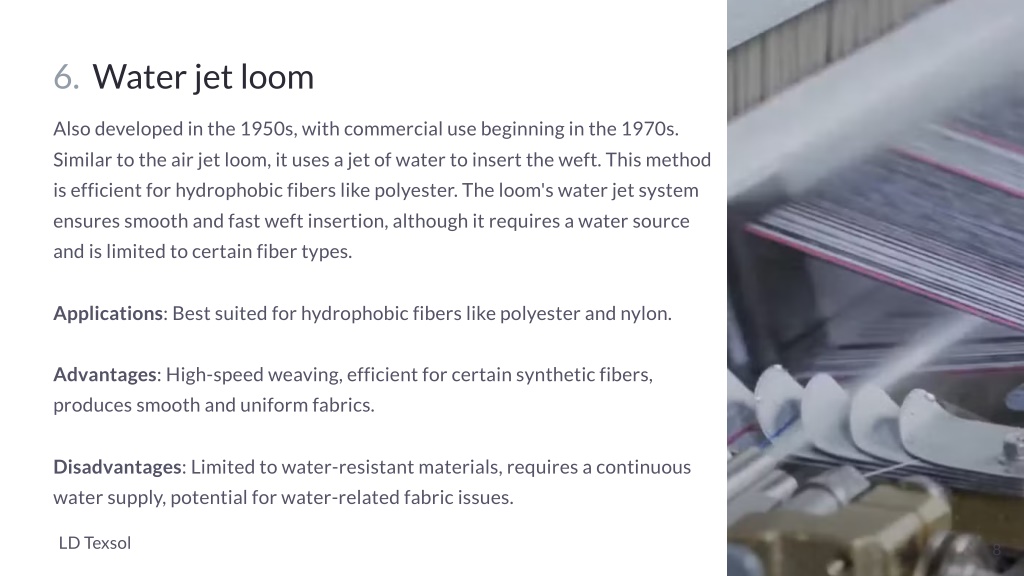

8. 6. Water jet loom Also developed in the 1950s, with commercial use beginning in the 1970s. Similar to the air jet loom, it uses a jet of water to insert the weft. This method is efficient for hydrophobic fibers like polyester. The loom's water jet system ensures smooth and fast weft insertion, although it requires a water source and is limited to certain fiber types. Applications: Best suited for hydrophobic fibers like polyester and nylon. Advantages: High-speed weaving, efficient for certain synthetic fibers, produces smooth and uniform fabrics. Disadvantages: Limited to water-resistant materials, requires a continuous water supply, potential for water-related fabric issues. LD Texsol 8

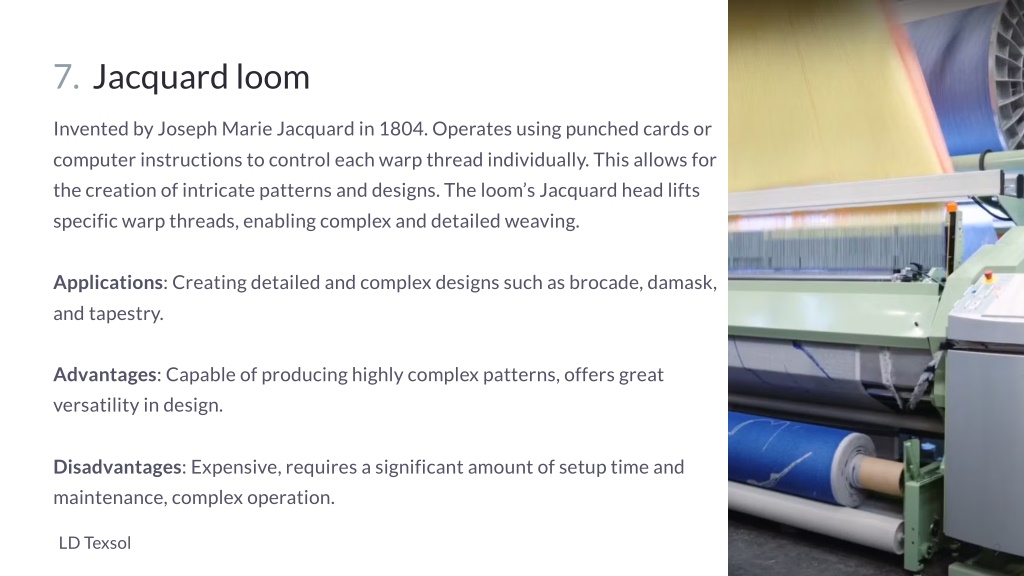

9. 7. Jacquard loom Invented by Joseph Marie Jacquard in 1804. Operates using punched cards or computer instructions to control each warp thread individually. This allows for the creation of intricate patterns and designs. The loom’s Jacquard head lifts specific warp threads, enabling complex and detailed weaving. Applications: Creating detailed and complex designs such as brocade, damask, and tapestry. Advantages: Capable of producing highly complex patterns, offers great versatility in design. Disadvantages: Expensive, requires a significant amount of setup time and maintenance, complex operation. LD Texsol 9

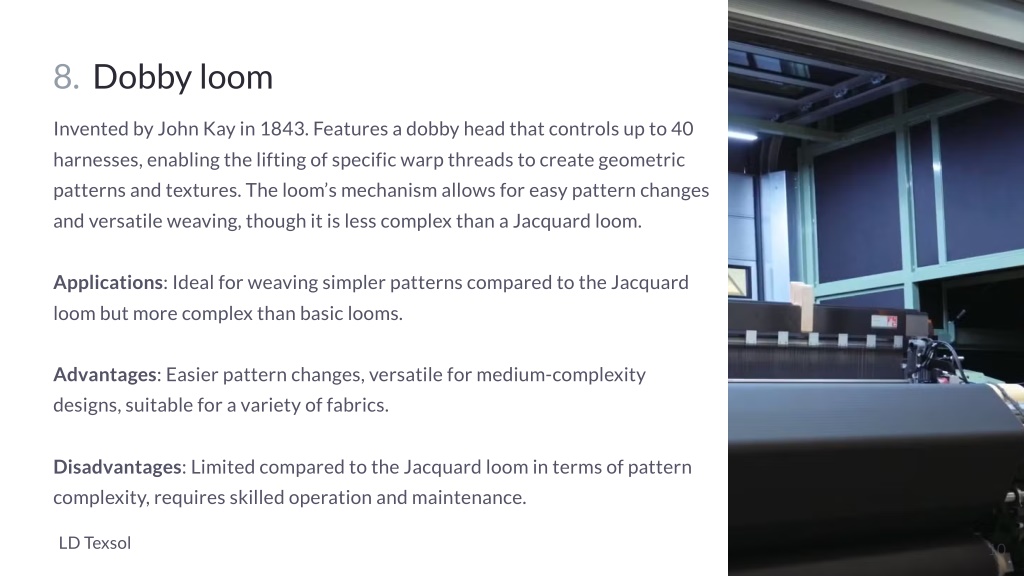

10. 8. Dobby loom Invented by John Kay in 1843. Features a dobby head that controls up to 40 harnesses, enabling the lifting of specific warp threads to create geometric patterns and textures. The loom’s mechanism allows for easy pattern changes and versatile weaving, though it is less complex than a Jacquard loom. Applications: Ideal for weaving simpler patterns compared to the Jacquard loom but more complex than basic looms. Advantages: Easier pattern changes, versatile for medium-complexity designs, suitable for a variety of fabrics. Disadvantages: Limited compared to the Jacquard loom in terms of pattern complexity, requires skilled operation and maintenance. LD Texsol 10

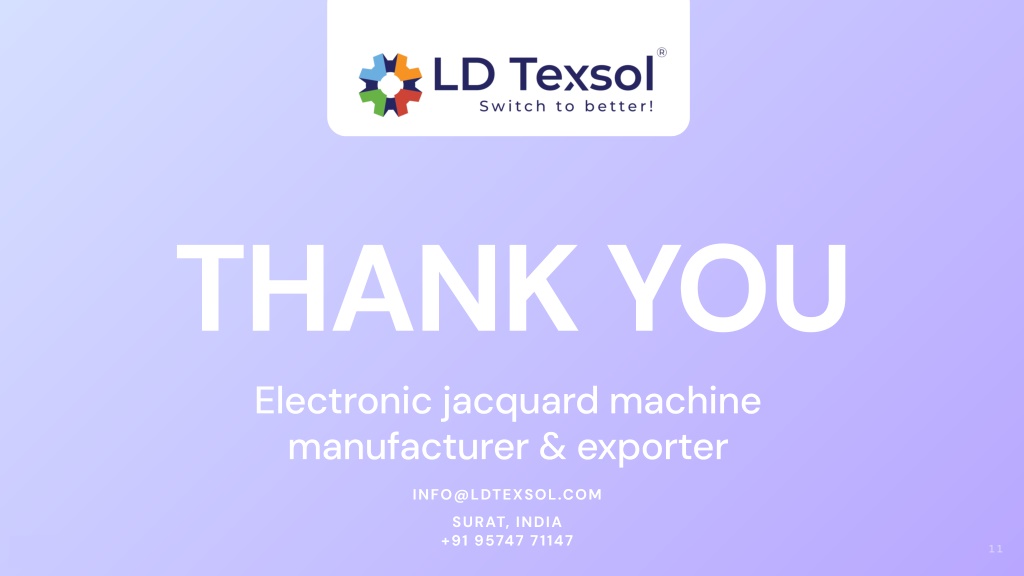

11. THANK YOU Electronic jacquard machine manufacturer & exporter INFO@LDTEXSOL.COM SURAT, INDIA +91 95747 71147 11
