  1. FUNCTION OF ELECTRONIC JACQUARD MACHINE WWW.LDTEXSOL.COM LD TEXSOL - MANUFACTURER OF JACQUARD MACHINE

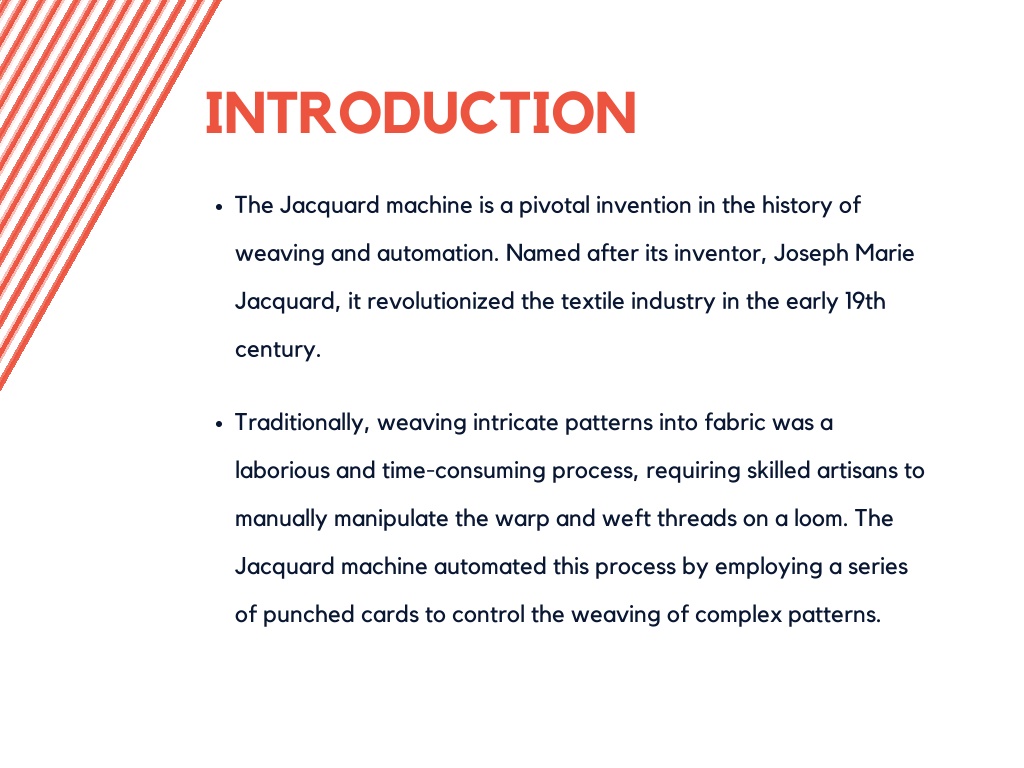

  2. INTRODUCTION The Jacquard machine is a pivotal invention in the history of weaving and automation. Named after its inventor, Joseph Marie Jacquard, it revolutionized the textile industry in the early 19th century. Traditionally, weaving intricate patterns into fabric was a laborious and time-consuming process, requiring skilled artisans to manually manipulate the warp and weft threads on a loom. The Jacquard machine automated this process by employing a series of punched cards to control the weaving of complex patterns.

  3. WEAVING Weaving is an ancient craft that dates back thousands of years. It involves the interlacing of warp and weft threads to create fabric. In traditional hand weaving, artisans used manual looms to produce textiles, a process that required great skill and time. The need for mechanization in weaving arose from the desire to increase productivity and produce more intricate designs. This led to the development of the Jacquard machine in the early 19th century.

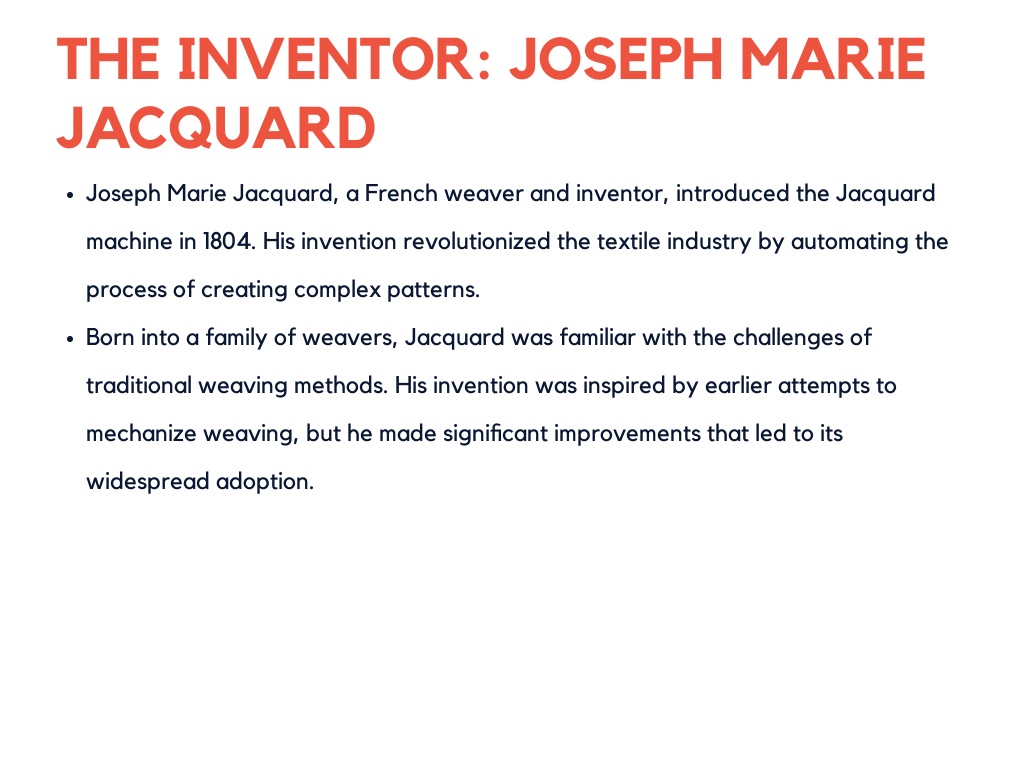

  4. THE INVENTOR: JOSEPH MARIE JACQUARD Joseph Marie Jacquard, a French weaver and inventor, introduced the Jacquard machine in 1804. His invention revolutionized the textile industry by automating the process of creating complex patterns. Born into a family of weavers, Jacquard was familiar with the challenges of traditional weaving methods. His invention was inspired by earlier attempts to mechanize weaving, but he made significant improvements that led to its widespread adoption.

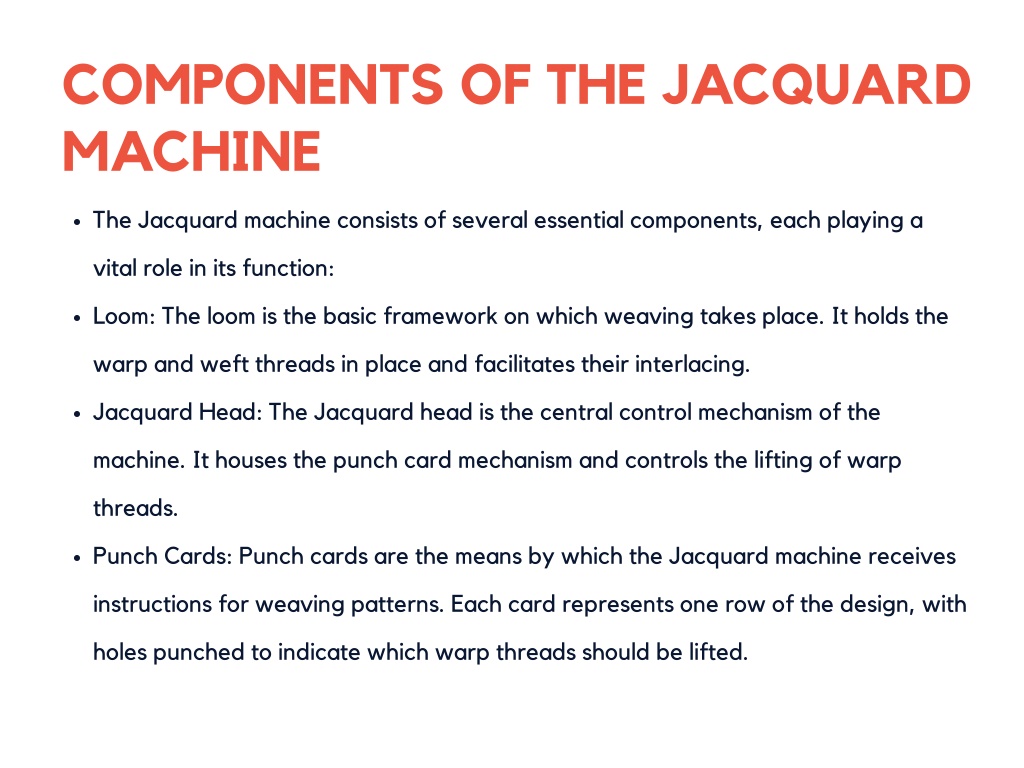

  5. COMPONENTS OF THE JACQUARD MACHINE The Jacquard machine consists of several essential components, each playing a vital role in its function: Loom: The loom is the basic framework on which weaving takes place. It holds the warp and weft threads in place and facilitates their interlacing. Jacquard Head: The Jacquard head is the central control mechanism of the machine. It houses the punch card mechanism and controls the lifting of warp threads. Punch Cards: Punch cards are the means by which the Jacquard machine receives instructions for weaving patterns. Each card represents one row of the design, with holes punched to indicate which warp threads should be lifted.

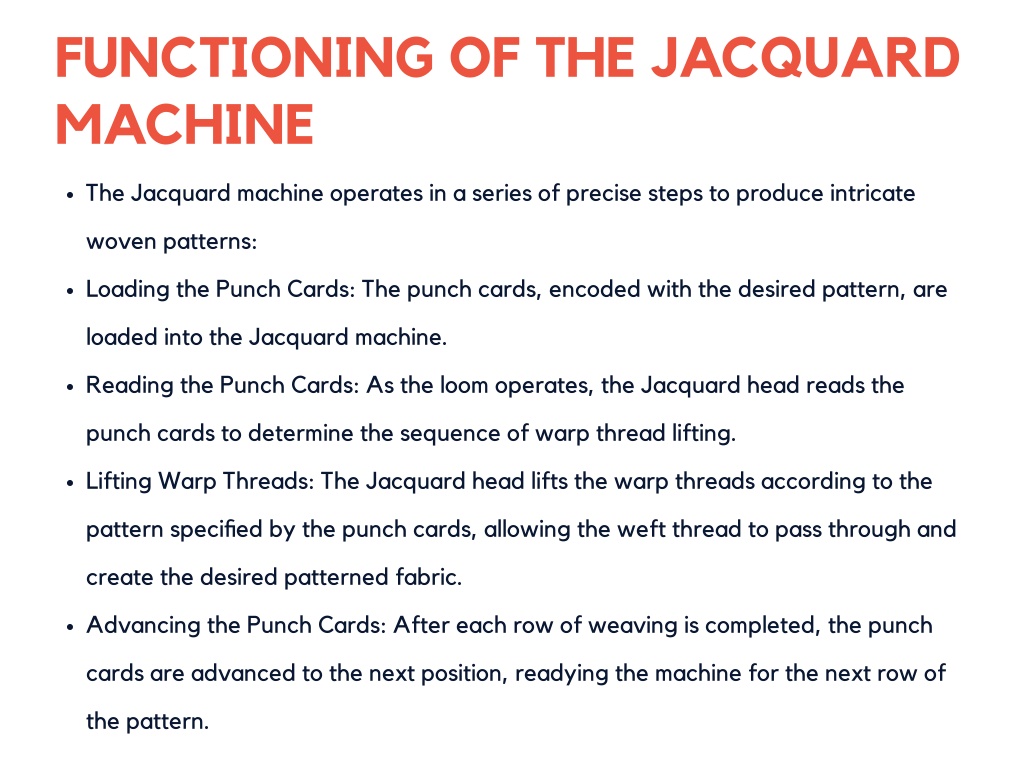

  6. FUNCTIONING OF THE JACQUARD MACHINE The Jacquard machine operates in a series of precise steps to produce intricate woven patterns: Loading the Punch Cards: The punch cards, encoded with the desired pattern, are loaded into the Jacquard machine. Reading the Punch Cards: As the loom operates, the Jacquard head reads the punch cards to determine the sequence of warp thread lifting. Lifting Warp Threads: The Jacquard head lifts the warp threads according to the pattern specified by the punch cards, allowing the weft thread to pass through and create the desired patterned fabric. Advancing the Punch Cards: After each row of weaving is completed, the punch cards are advanced to the next position, readying the machine for the next row of the pattern.

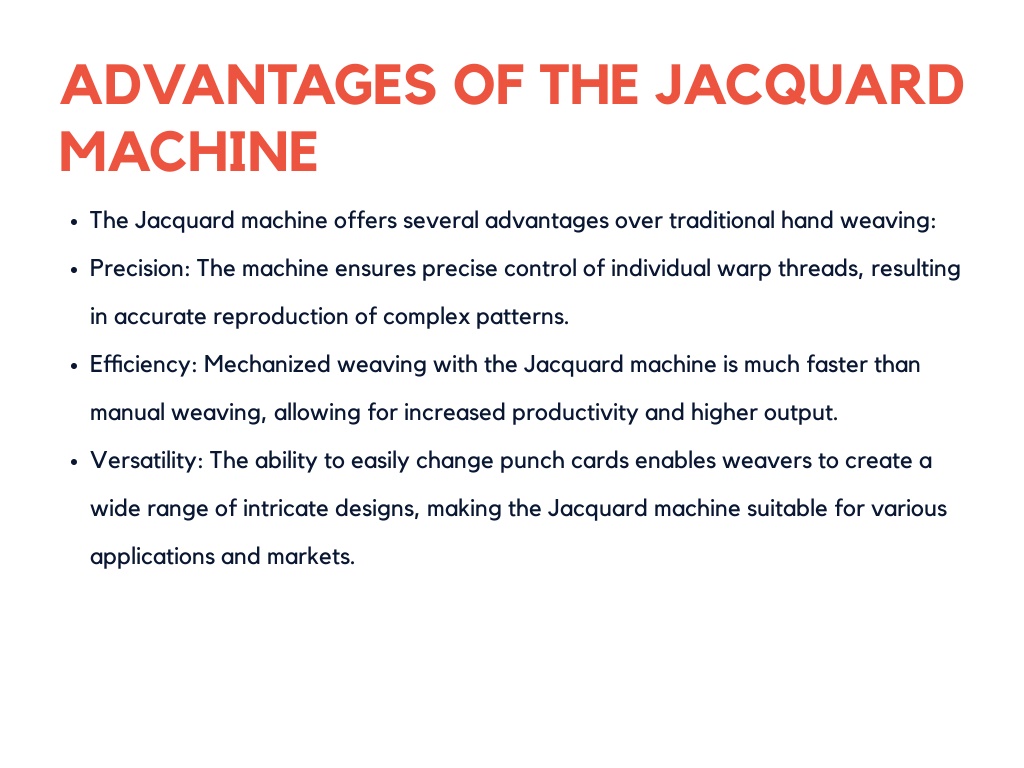

  7. ADVANTAGES OF THE JACQUARD MACHINE The Jacquard machine offers several advantages over traditional hand weaving: Precision: The machine ensures precise control of individual warp threads, resulting in accurate reproduction of complex patterns. Efficiency: Mechanized weaving with the Jacquard machine is much faster than manual weaving, allowing for increased productivity and higher output. Versatility: The ability to easily change punch cards enables weavers to create a wide range of intricate designs, making the Jacquard machine suitable for various applications and markets.

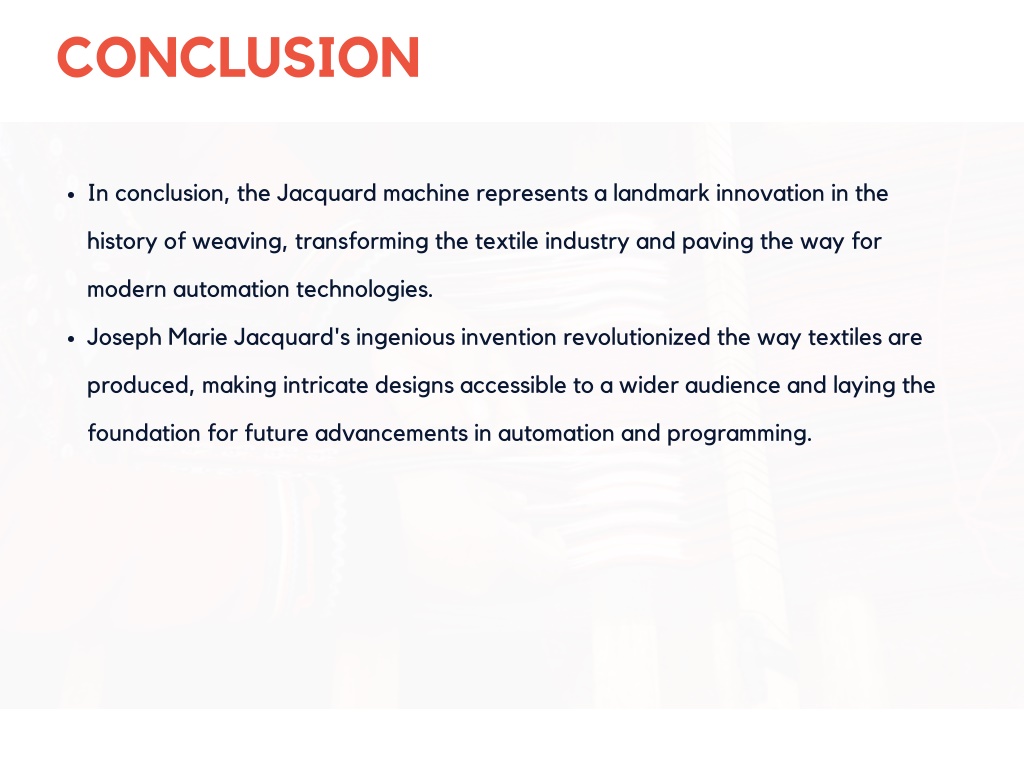

  8. CONCLUSION In conclusion, the Jacquard machine represents a landmark innovation in the history of weaving, transforming the textile industry and paving the way for modern automation technologies. Joseph Marie Jacquard's ingenious invention revolutionized the way textiles are produced, making intricate designs accessible to a wider audience and laying the foundation for future advancements in automation and programming.

  9. SWITCH TO BETTER! REACH TO US FOR MORE INFORAMATION CONTACT: LD TEXSOL I-66, CITY IND. ESTATE, UDHNA, SURAT, GUJARAT, INDIA - 394210 WWW.LDTEXSOL.COM
