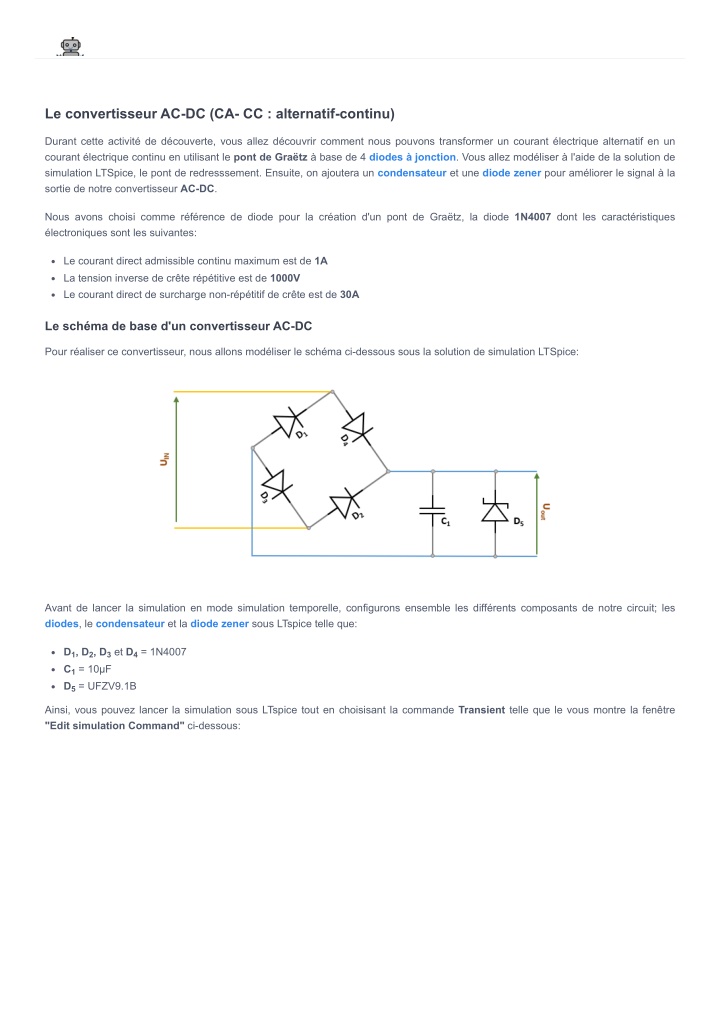

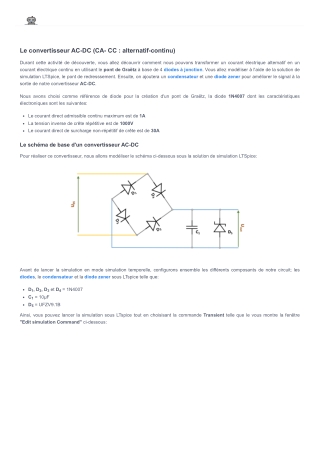

Durant cette activitu00e9 de du00e9couverte, vous allez du00e9couvrir comment nous pouvons transformer un courant u00e9lectrique alternatif en un courant u00e9lectrique continu en utilisant le pont de Grau00ebtz u00e0 base de 4 diodes u00e0 jonction. Vous allez modu00e9liser u00e0 l'aide de la solution de simulation LTSpice, le pont de redresssement. Ensuite, on ajoutera un condensateur et une diode zener pour amu00e9liorer le signal u00e0 la sortie de notre convertisseur AC-DC.
