Physics 101

1. Physics 101 001 September 4, 2014

2. First, a weighty matter Weight is a Force OUCH! Force = mass * acceleration Strain = function(ΔX)

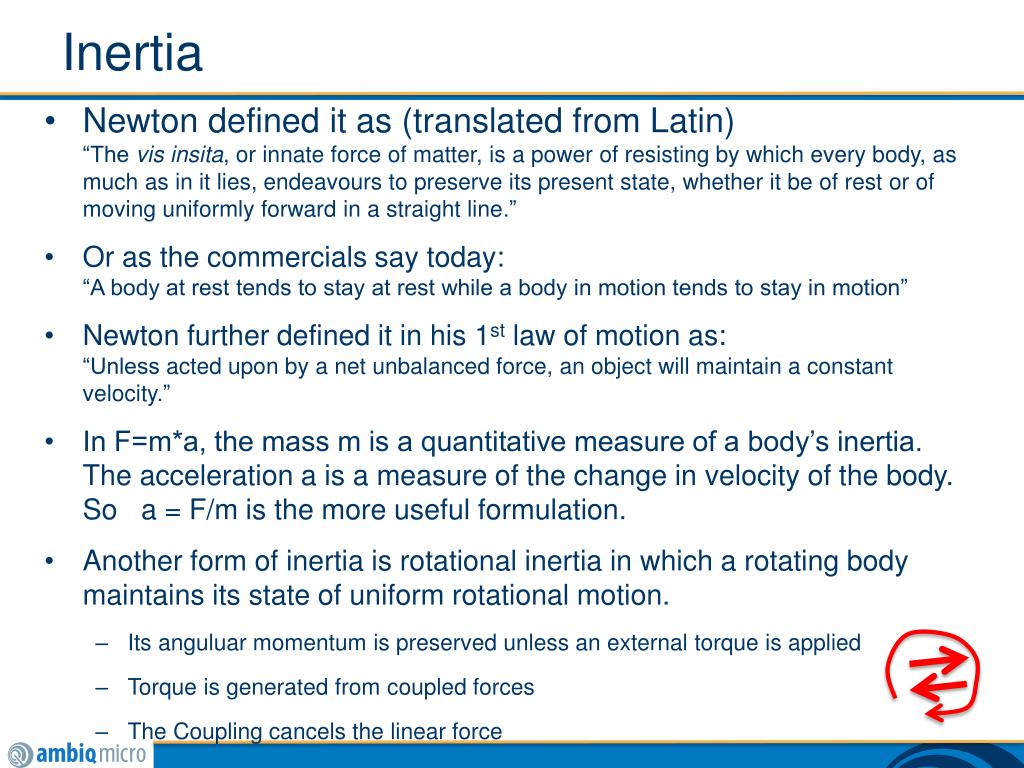

3. Inertia • Newton defined it as (translated from Latin)“Thevisinsita, or innate force of matter, is a power of resisting by which every body, as much as in it lies, endeavours to preserve its present state, whether it be of rest or of moving uniformly forward in a straight line.” • Or as the commercials say today:“A body at rest tends to stay at rest while a body in motion tends to stay in motion” • Newton further defined it in his 1st law of motion as:“Unless acted upon by a net unbalanced force, an object will maintain a constant velocity.” • In F=m*a, the mass m is a quantitative measure of a body’s inertia.The acceleration a is a measure of the change in velocity of the body.So a = F/m is the more useful formulation. • Another form of inertia is rotational inertia in which a rotating body maintains its state of uniform rotational motion. • Its anguluar momentum is preserved unless an external torque is applied • Torque is generated from coupled forces • The Coupling cancels the linear force

4. Inertia • Newton defined it as (translated from Latin)“Thevisinsita, or innate force of matter, is a power of resisting by which every body, as much as in it lies, endeavours to preserve its present state, whether it be of rest or of moving uniformly forward in a straight line.” • Or as the commercials say today:“A body at rest tends to stay at rest while a body in motion tends to stay in motion” • Newton further defined it in his 1st law of motion as:“Unless acted upon by a net unbalanced force, an object will maintain a constant velocity.” • In F=m*a, the mass m is a quantitative measure of a body’s inertia.The acceleration a is a measure of the change in velocity of the body.So a = F/m is the more useful formulation. • Another form of inertia is rotational inertia in which a rotating body maintains its state of uniform rotational motion. • Its anguluar momentum is preserved unless an external torque is applied • Torque is generated from coupled forces • The Coupling cancels the linear force

5. A Gedankenexperiment Let’s Fly an FA-18 Hornet for fun

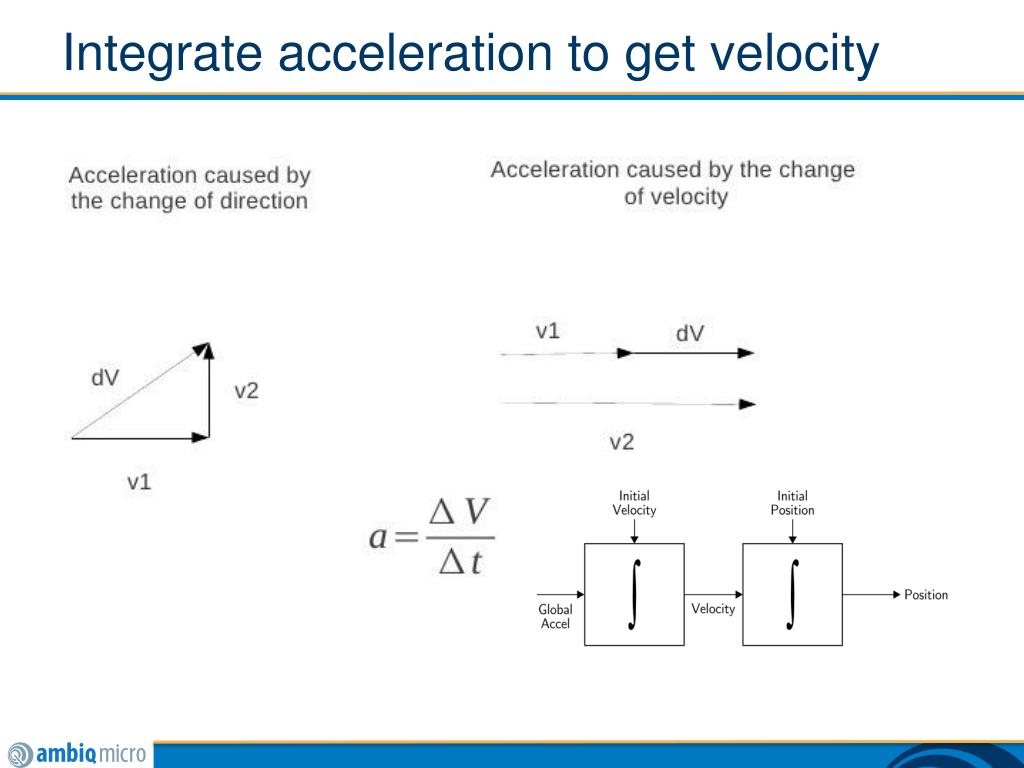

6. Integrate acceleration to get velocity

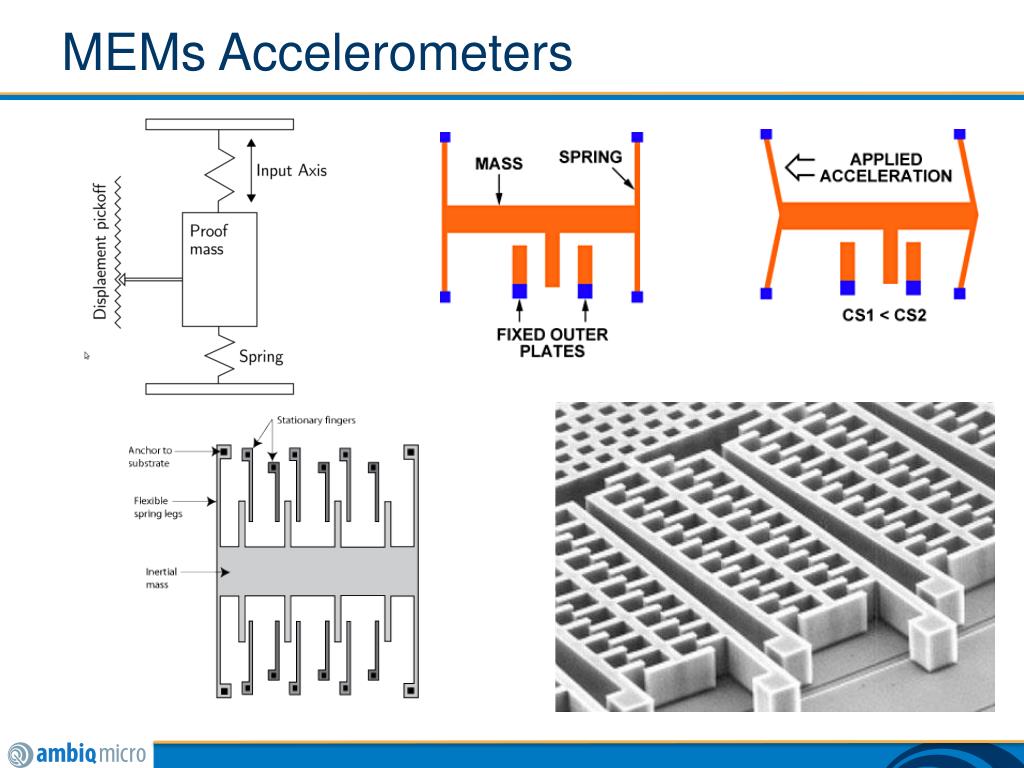

7. MEMs Accelerometers

8. Accelerometer data is very noisy! SOUND WHACKING Z Gravitational force tap

9. Magnitude of Acceleration Vector 9.80665 m/s2 or 32.174 ft/s2 IMPORTANT: We can remove the gravitational acceleration from the magnitude of the acceleration.

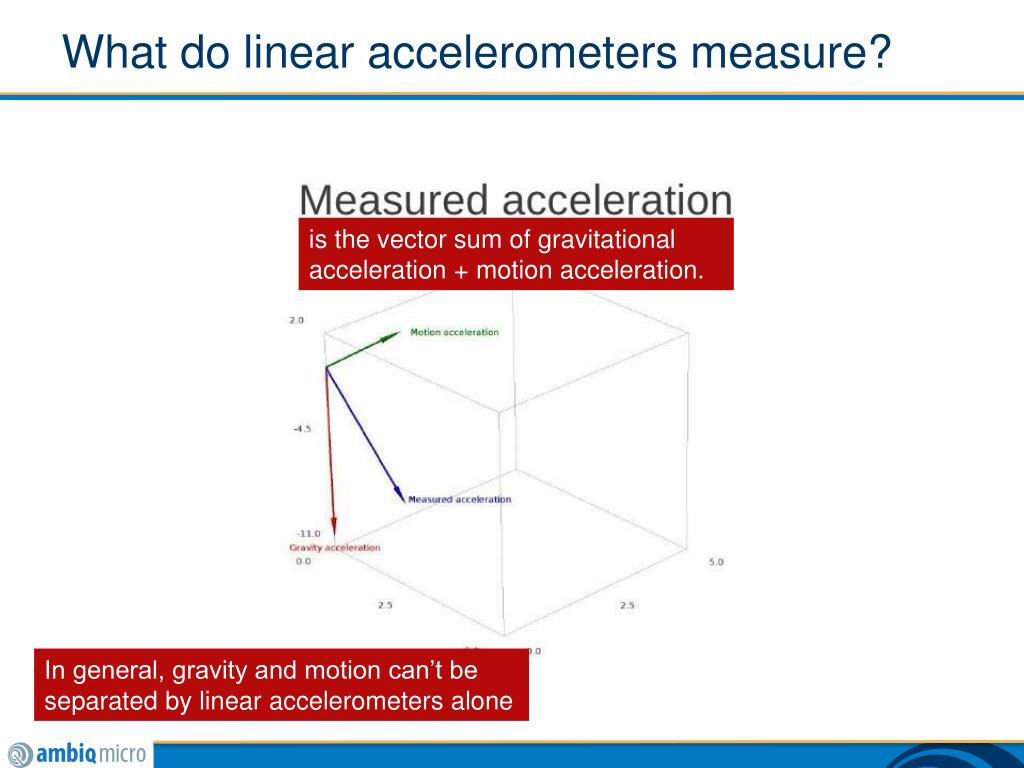

10. What do linear accelerometers measure? is the vector sum of gravitational acceleration + motion acceleration. In general, gravity and motion can’t be separated by linear accelerometers alone

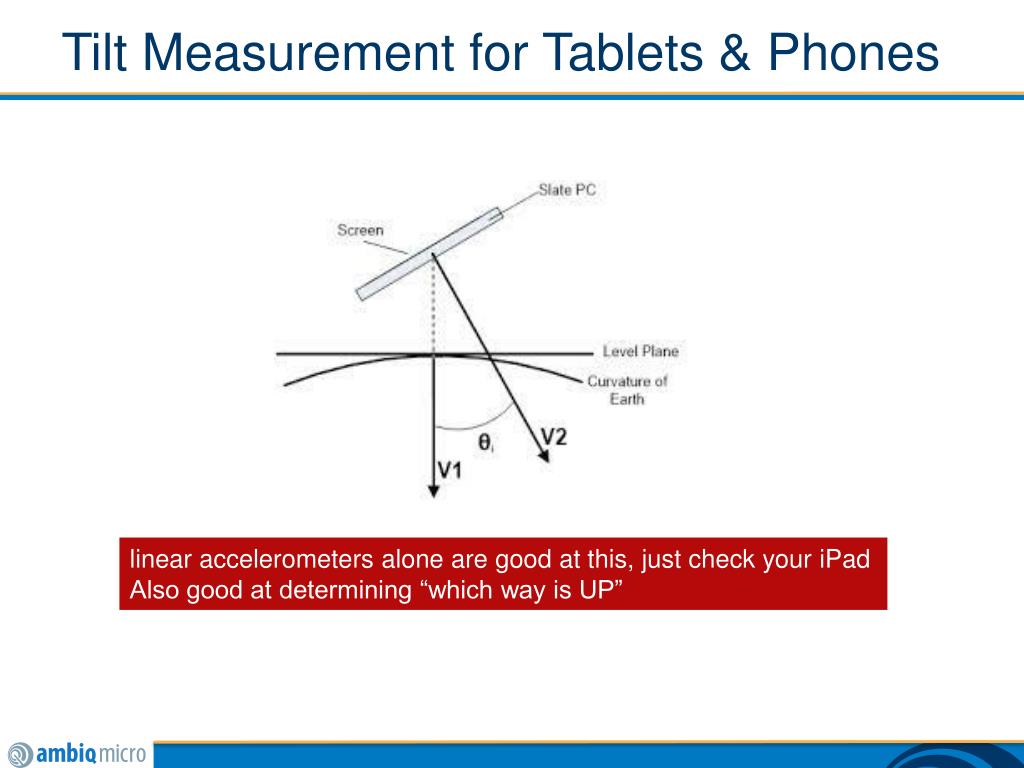

11. Tilt Measurement for Tablets & Phones linear accelerometers alone are good at this, just check your iPad Also good at determining “which way is UP”

12. Enter the Gyroscope Euler Angles

13. Removing gravity from measured accel.

14. Zero G Offset ==0 in a Rate-Gyro One Integration step What if Vx is not zero in the presence of zero rotation? Integration

15. Zero G Offset !=0 in a Rate-Gyro The bad news with any gyro is that not only does it have a zero G offset different from zero, but the offset drifts over time & temperature. Algorithms have to recalibrate on the fly.

16. Inertial Measurement Unit (IMU) An IMU is a device that measures and reports on velocity, orientation and gravitational direction based on accelerometers (3DOF) and in navigation applications a 3 axis rate-gyro (6DOF). In addition a full blown IMU includes a 3 axis magnetometer (9DOF). The Original Apollo IMU The IMU in today’s fitness bands only contain accelerometers. Accelerometer data is very noisy so the main processing they do is a sharp cut off low pass filter. Recall that without a gyro you can’t really separate gravity from motion.

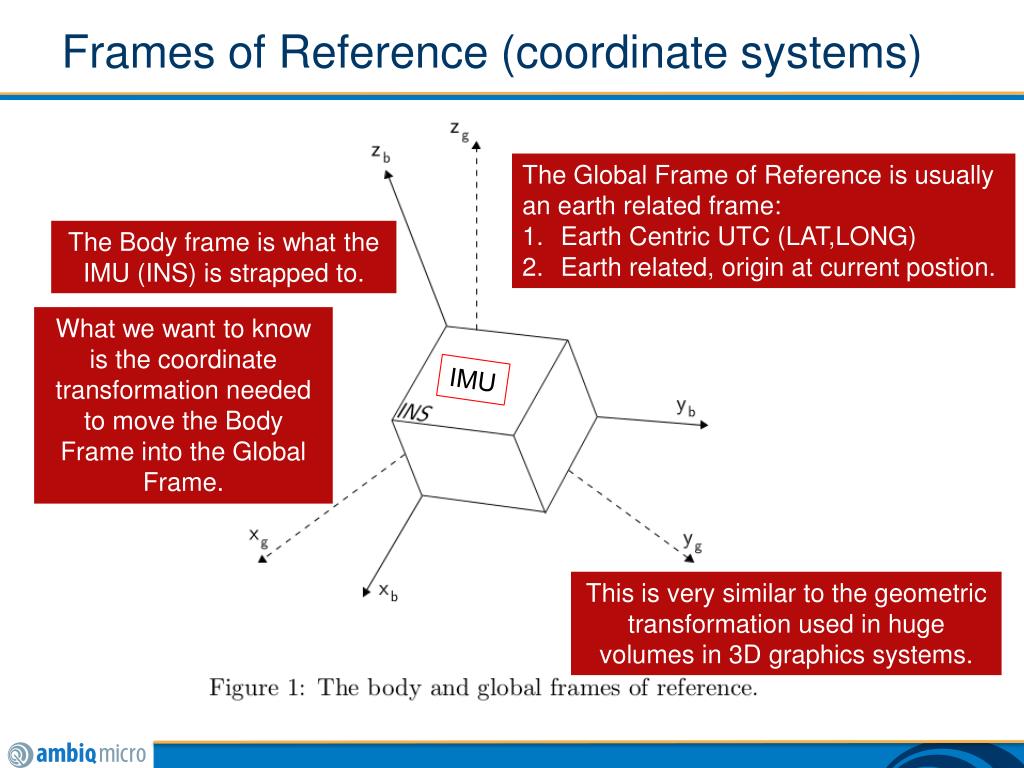

17. Frames of Reference (coordinate systems) The Global Frame of Reference is usually an earth related frame: Earth Centric UTC (LAT,LONG) Earth related, origin at current postion. The Body frame is what the IMU (INS) is strapped to. What we want to know is the coordinate transformation needed to move the Body Frame into the Global Frame. IMU This is very similar to the geometric transformation used in huge volumes in 3D graphics systems.

18. Apollo Style Stable Platform IMU The goal here is to keep the stable platform always oriented to the Global Frame of Reference and measure with the angle pickoffs how that differs from the Body Frame Feedback Control Loop analog Obviously fitness bands are not going to use the stable platform approach to INS applications!!! Now we have an inertial navigation system (INS) because we have determined both our orientation and our position. analog analog

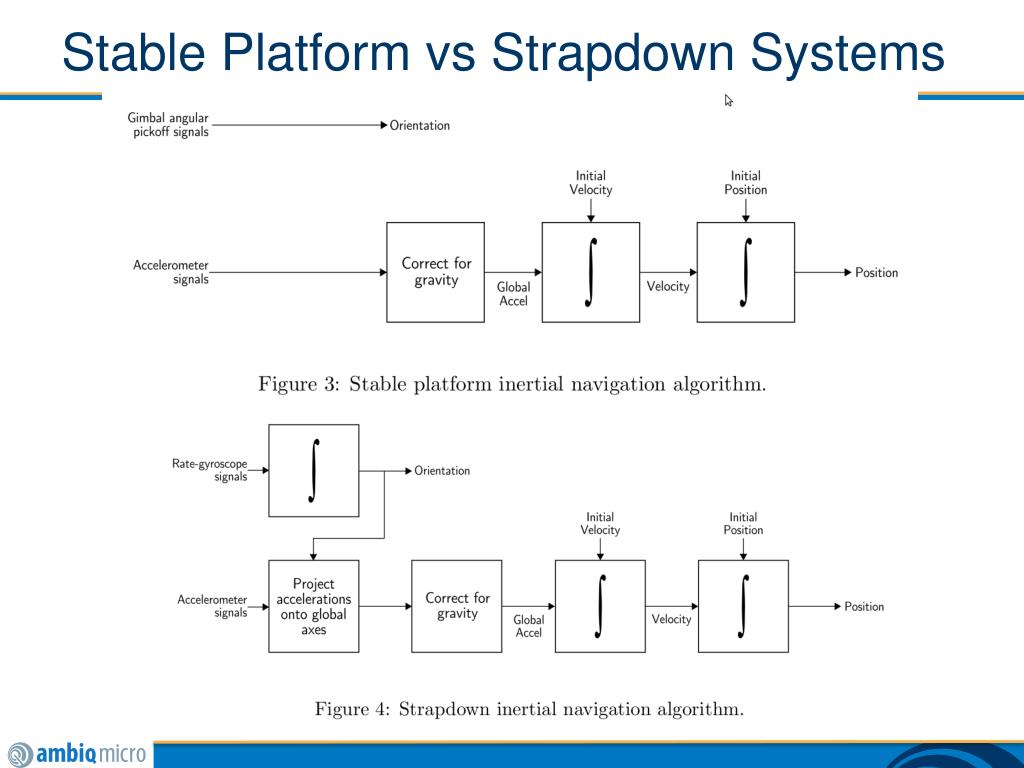

19. Stable Platform vs Strapdown Systems

20. Quaternion Math Tutorial • Fasten your seatbelts and raise your tray tables to their upright and locked position and brace for impact! • Quaternions scare all manner of mice and men • They go bump in the night • They are the reason your math teach gave you an F • OK they really are quite simple as we shall see. • Quaternions are composed of two things: • A 3 dimensional vector (X,Y,Z) • And a scalar value (W) representing the amount of rotation around the vector • Quaternion Q = (W,X,Y,Z) = W, X*i + Y*j + Z*k • Where (i,j,k) are 3D unit vectors defining a 3D frame of reference • And W, X, Y and Z are all real numbers

21. Whew that wasn’t so bad!!! • Quaternion Q = (W,X,Y,Z) has a magnitude • Magnitude = sqrt(W2 + X2 + Y2 + Z2) • For all of our computations, we can ignore (i,j,k) provided we just keep the dimensionality straight. • There are unit Quaternions just as there are unit vectors. • And they are computed in the same way • Unit W = W/magnitude • Unit X = X/magnitude • Unit Y = Y/magnitude • Unit Z = Z/magnitude • All Unit Quaternions map to the surface of a unit 4D Hyper-sphere WARNING: That one WILL hurt your head if you try to visualize it.

22. Quaternion Math Tutorial Continued • Unit Quaternions are important for several reasons • In the absence of accumulated errors, say from integration, computations on unit quaternions yield unit quaternions. • The components of unit quaternions correspond to direction cosines. • Computation of sines and cosines are reduced. • Periodically one checks computational results to see if a result needs to be renormalized to a unit quaternion. • Usually it doesn’t, saving the 4 painful divisions. • And you can skip the painful sqrt() when testing for renormalization. • Net net: using quaternions saves computational complexity. • Now I need to tell you that (i,j,k) are also multiplied by sqrt(-1) • Look up quaternions or Hamiltonians as they are sometimes known for more info • This is important when we look at multiplying two quaternions together. • But with care, we don’t need to do anything fancy provided we account for the sign changes.

23. Multiplying Two Quaternions • Let Q1 = (w1, x1, y1, z1) and Q2= (w2, x2, y2, z2) • Let Q = Q1 * Q2 • IMPORTANT: Q1 * Q2!= Q2* Q1 • We define the multiplication as: (Q1 * Q2).w = w1w2 - x1x2 - y1y2 - z1z2 (Q1 * Q2).x = w1x2 + x1w2 + y1z2 - z1y2 (Q1 * Q2).y = w1y2 - x1z2 + y1w2 + z1x2 (Q1 * Q2).z = w1z2 + x1y2 - y1x2 + z1w2 First observation: quaternion math involves a lot of:Multiply with Add and Multiply with Subtract. These are both special cases of multiply accumulate. And the accumulator has to be larger than 32-bits for 16 bit samples.Also floating point may be required/desired in many cases.

24. OK it does get a little more complicated • Let QC = Current Rotation and QT= Rotation for 1 Time Step • Then QC = QT * QC (remember not commutative) • Suppose QC holds the working rotation from the initial gravity • Starting with an axis of rotation and an angle, we compute QT as: (QT).w = cosf(fAngle/2) (QT).x = axis.x * sinf(fAngle/2) (QT).y = axis.y* sinf(fAngle/2) (QT).z = axis.z* sinf(fAngle/2) QC gets initialized to (1,0,0,0)

25. One more step!!! • We need to convert our quaternion into a 4x4 rotation matrix, M, so we can transform vectors into a new reference frame. • Then Ax,y,z can be rotated to A’x,y,z by the following:A’x,y,z= Ax,y,z * M • Where M is given by: 1-2y2-2z2 2xy-2wz 2xz+2wy 02xy+2wz 1-2x2-2z2 2yz+2wx 0 2xz-2yw 2xz+2wy 1-2x2-2z2 0 0 0 0 1 Thus the mathematics for accelerometer & gyro sensor fusion is almost all linear algebra and primarily multiply accumulate or multiply subtract

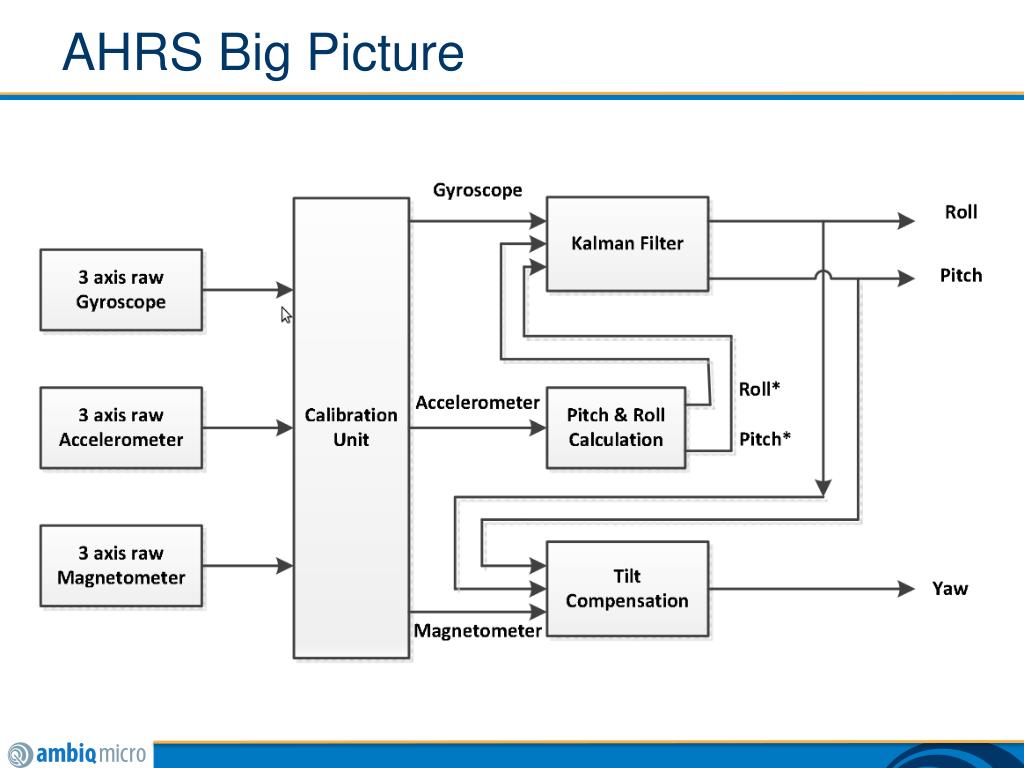

26. AHRS Big Picture

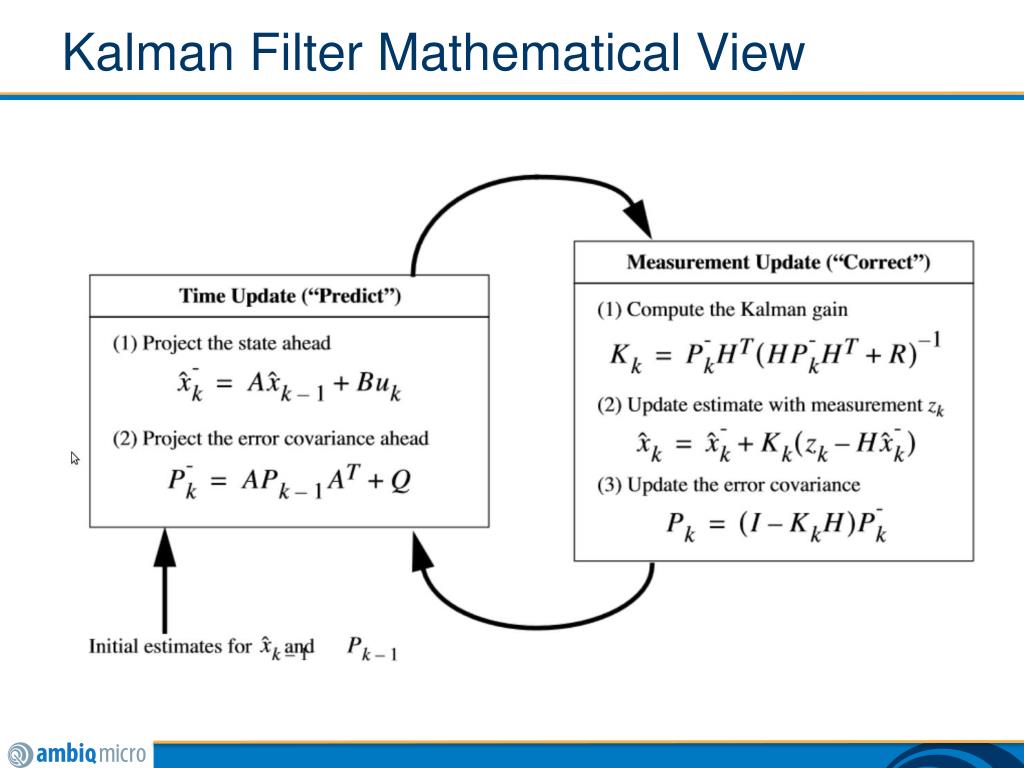

27. Kalman Filter Mathematical View

28. Kalman Filter Software View

29. Complimentary Filter

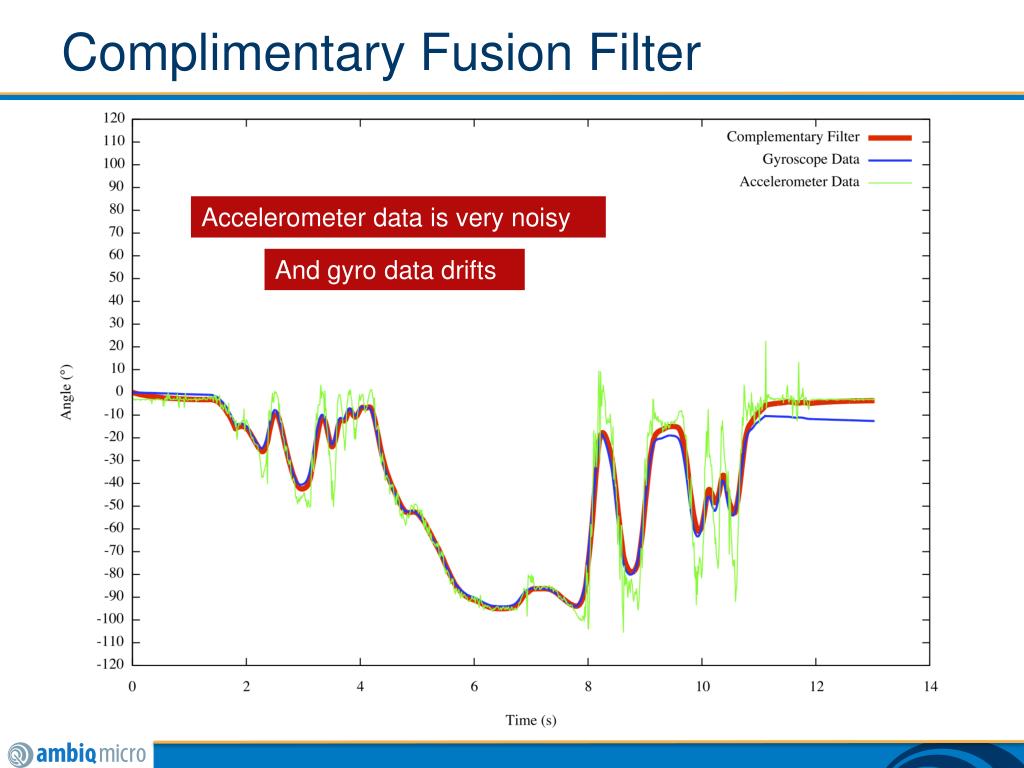

30. Complimentary Fusion Filter Accelerometer data is very noisy And gyro data drifts

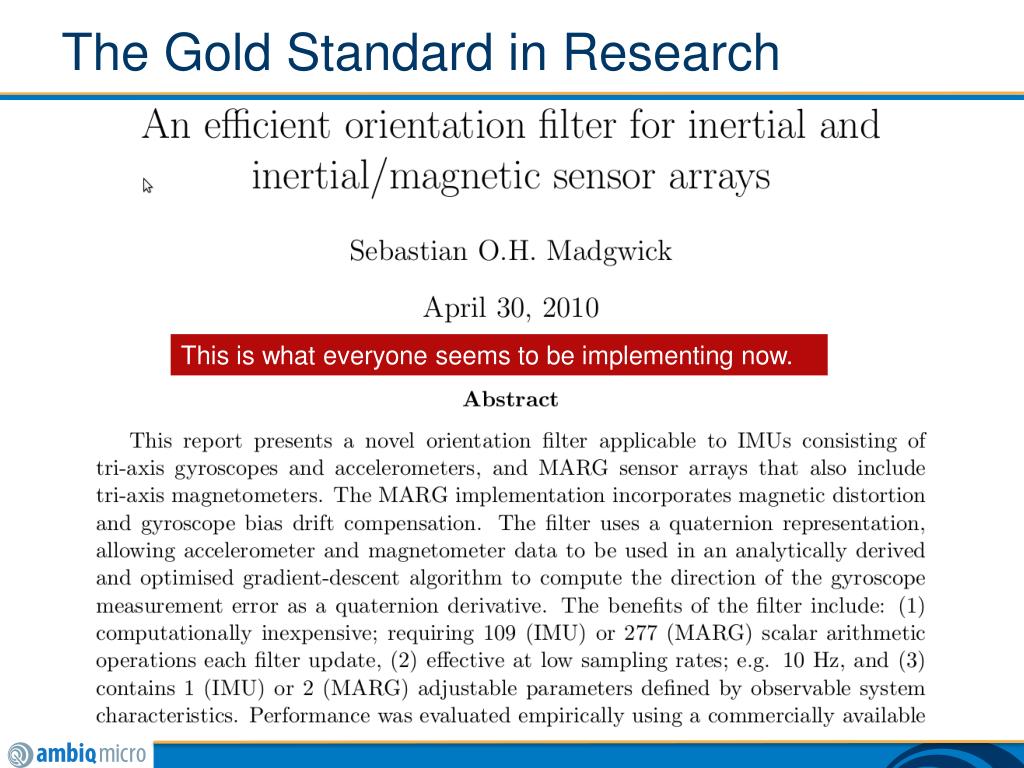

31. The Gold Standard in Research This is what everyone seems to be implementing now.

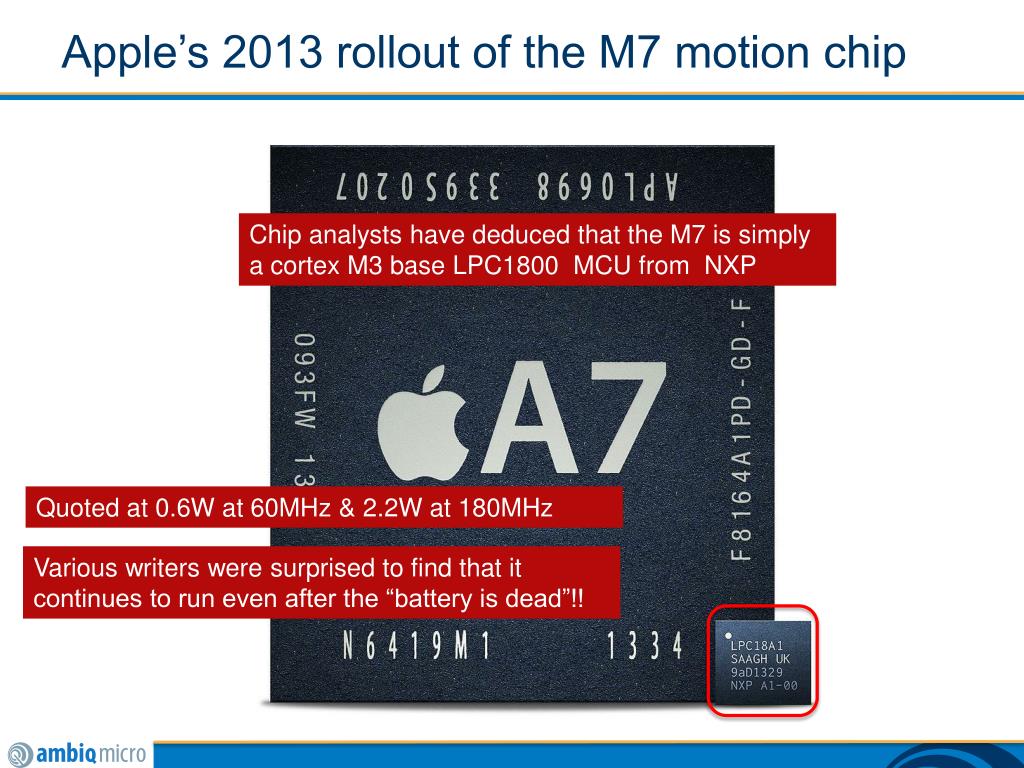

32. Apple’s 2013 rollout of the M7 motion chip Chip analysts have deduced that the M7 is simply a cortex M3 base LPC1800 MCU from NXP Quoted at 0.6W at 60MHz & 2.2W at 180MHz Various writers were surprised to find that it continues to run even after the “battery is dead”!!

33. Switching Gears not toContext Tracking

36. Motion Recognition Human motion recognition systems composed of wirelessly connected sensor motes (equipped with accelerometers and gyroscopes) attached to different body sites enable a variety of applications such as rehabilitation, sports science/medicine, geriatric care, and health/fitness monitoring. For example, such a system can be used to measure the effectiveness of active physiotherapy, to perfect techniques of sport persons, to remotely monitor and trigger emergency response for the elderly, and to help people lose weight by providing accurate estimates of their expended calories.

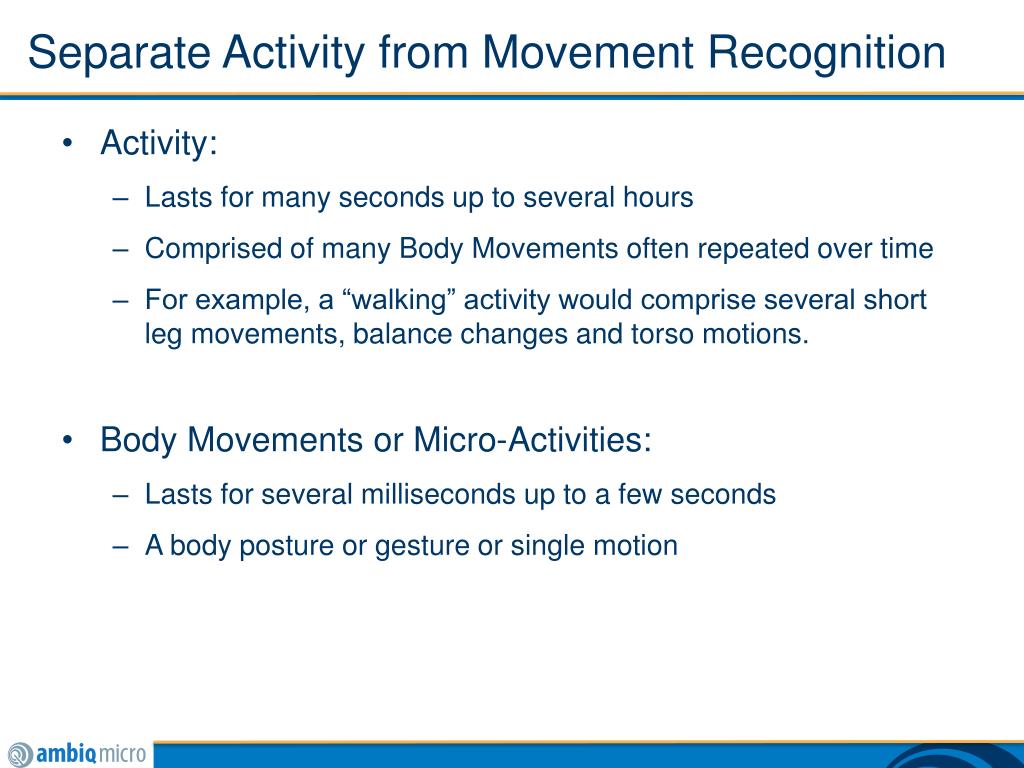

37. Separate Activity from Movement Recognition • Activity: • Lasts for many seconds up to several hours • Comprised of many Body Movements often repeated over time • For example, a “walking” activity would comprise several short leg movements, balance changes and torso motions. • Body Movements or Micro-Activities: • Lasts for several milliseconds up to a few seconds • A body posture or gesture or single motion

38. Pattern Recognition & Machine Learning • The literature is full of reports of trying pretty much every PR & ML approach to recognizing motions and activities. • All of these approaches involve feature extraction then some form of dimensional reduction. • Principal Component analysis is a statistical procedure involving orthogonal transforms (eigenvectors/values) to produce linear uncorrelated values called principle components. • The first component will be the dimension with the largest variance • Allows dimensional reduction of “non-principal” components. • Also goes under the names: Karhunen-Loeve Transform, singular value decomposition(SVD) and eigenvalue decompostion (EVD). • A long used and standard staple of the PR community • Reveals the underlying structure in the data & provides a weighted component value for estimation. • You still need to classify the action or motion but classification is easier

39. Support Vector Machines (SVM) • Currently the gold standard in research for classification for activities and motions. • Feature sets extracted from sensors include: • Linear accelerometer data • Rate gyro data • Computed features include: Mean, standard deviation, Maximum, peak-to-peak, RMS and correlation between accelerometer and gyro samples • These features are viewed as a P dimensional vector • The objective is to separate such points using a (P-1) dimensional hyper-plane • The mathematics are basically that of finding enough features to “support” determining on which side of the hyper-plane the current window’s samples lie.  Transformations & Polynomial Root finding. “Human motion recognition using a wireless sensor-based wearable system” John Paul Varkey • Dario Pompili • Theodore A. Walls

40. Raise Your Hand if you have an Android smart phone Lower Your Hand if you have NEVER ssh logged into your Android smart phone
