Development of Novel Lithium Salts for Battery Applications. Outline of the presentation. Introduction – searching for new salts for lithium batteries Synthesis and characterization of novel family of organic covalent lithium salts

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Development of Novel Lithium Salts for Battery Applications' - elana


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
outline of the presentation
Outline of the presentation
  • Introduction – searching for new salts for lithium batteries
  • Synthesis and characterization of novel family of organic covalent lithium salts
  • Properties of polymer and liquid electrolytes containing newly developed salts:
      • conductivity
      • lithium transference number
      • formation of ionic aggregates
      • electrochemical stability
      • performance in lithium batteries
  • Conclusions
anions

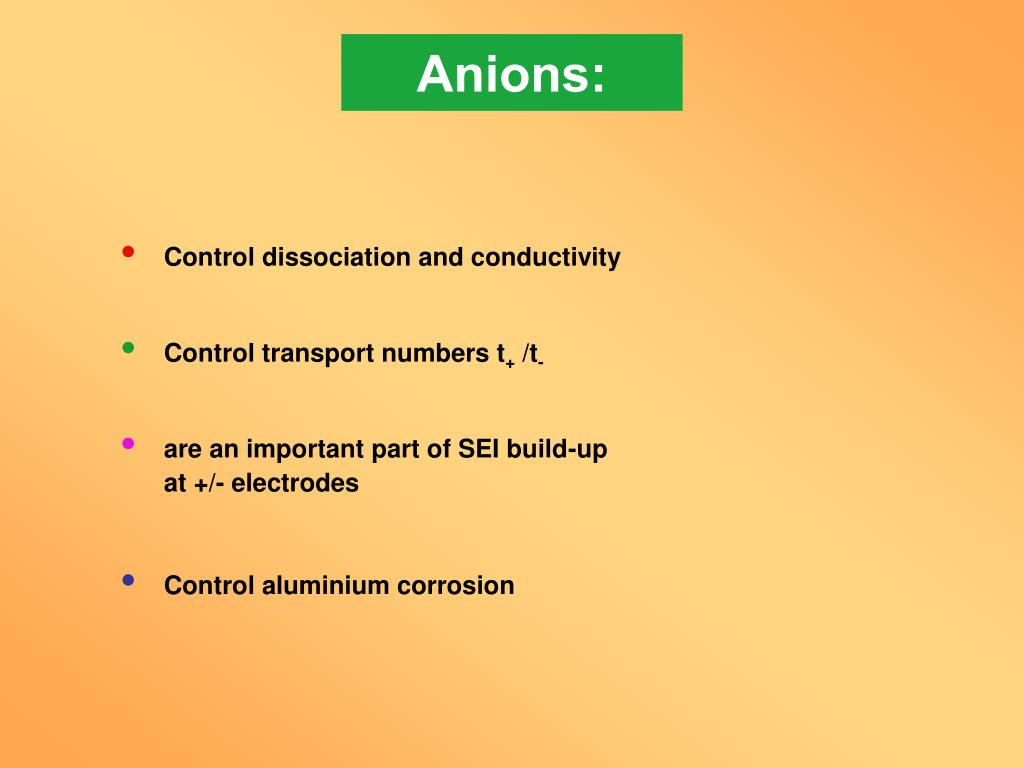

Anions:

• Control dissociation and conductivity

• Control transport numbers t+ /t-

• are an important part of SEI build-up

at +/- electrodes

• Control aluminium corrosion

slide4

ClO4-

BF4-

Explosive !

Toxic !

PF6-

AsF6-

SbF6-

Classics…

Tendency to décompose according to equilibrium:

LiBF4  BF3+ <LiF>

LiPF6  PF5 + <LiF>

Fast reaction above 80°C

 Destruction of electrolyte and interfaces

conceptual approach to anion design

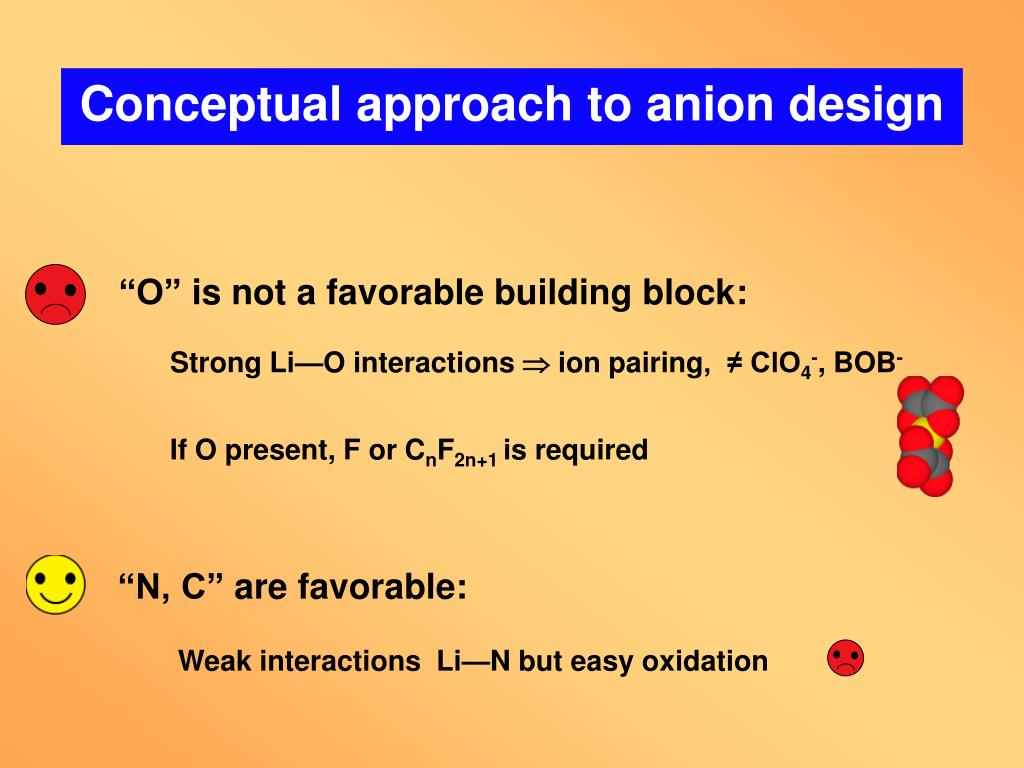

Conceptual approach to anion design
  • “O” is not a favorable building block:

Strong Li—O interactions  ion pairing, ≠ ClO4-, BOB-

  • “N, C” are favorable:

Weak interactions Li—N but easy oxidation

If O present, F or CnF2n+1 is required

stability domains
Stability Domains

Li metal

Fluorinated anions

Non fluorinated anions

h ckel anions
Hückel anions…

Aromaticity 4n + 2 «  » electrons

pKA = 10-60

pKA = 10-20

X = N, C-CN, CRF, S(O)RF

Gain of > 1 eV by resonance

See P. Johansson et alPhysical Chemistry Chemical Physics, volume 6, issue 5, (2004).

lidcta

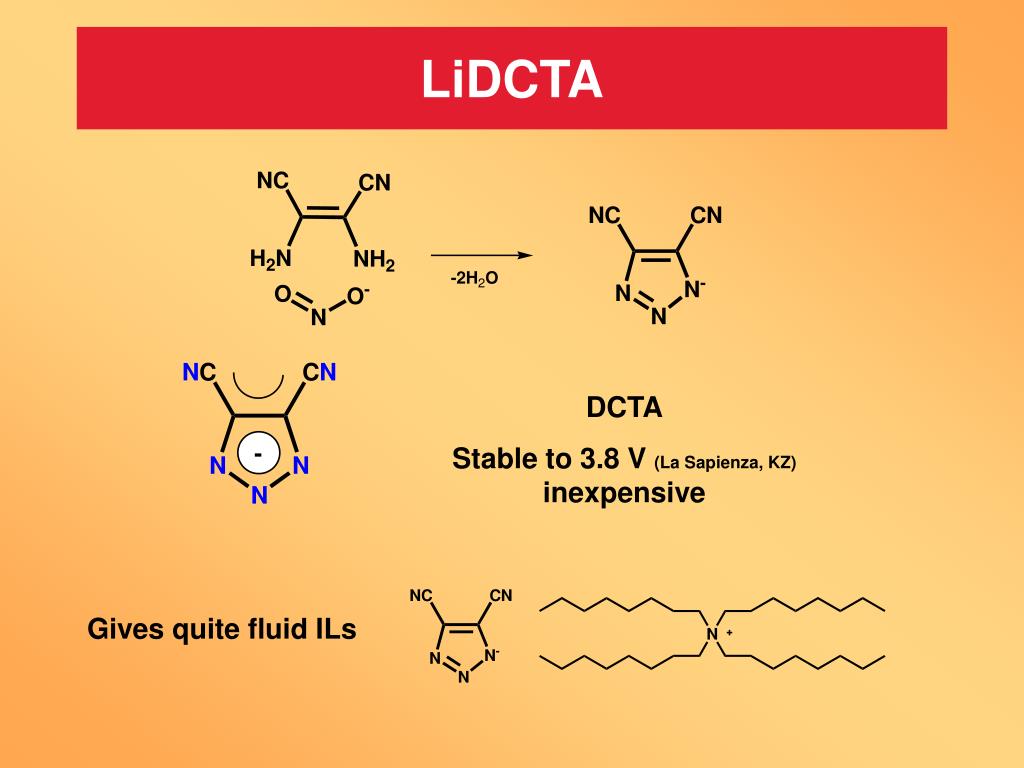

LiDCTA

DCTA

Stable to 3.8 V (La Sapienza, KZ)inexpensive

Gives quite fluid ILs

slide9

Most Stable Lithium Imidazole Configurations

1.93 Å

1.87 Å

1.88 Å

1.92 Å

LiTDI

LiPDI

B3LYP/6-311+G(d)

Scheers et al. 2009

slide10

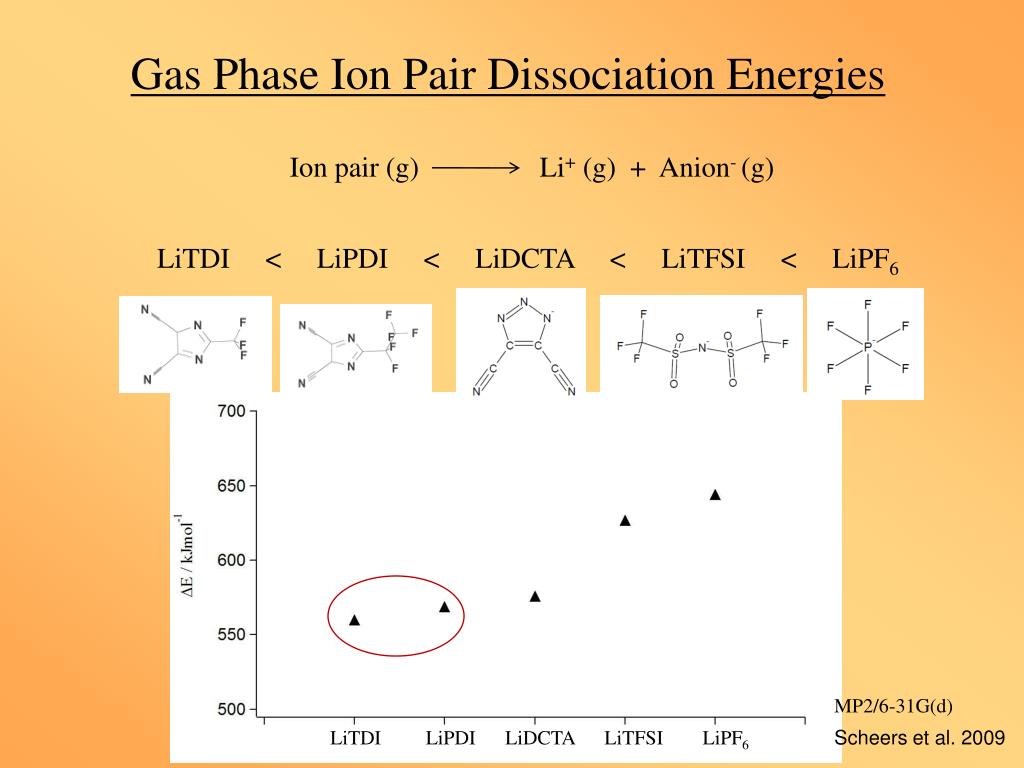

Gas Phase Ion Pair Dissociation Energies

Ion pair (g) Li+ (g) + Anion- (g)

LiTDI < LiPDI < LiDCTA < LiTFSI < LiPF6

MP2/6-31G(d)

LiTDI LiPDI LiDCTA LiTFSI LiPF6

Scheers et al. 2009

litdi 2 trifluoromethyl 4 5 dicyanoimidazole lithium salt
LiTDI (2-trifluoromethyl-4,5-dicyanoimidazole lithium salt)

- Easy, low‑demanding, inexpensive, one‑step, high yield syntheses;

- Salts are pure, stable in air atmosphere, non‑hygroscopic, stable up to 250°C, easy to handle;

conductivity in peo

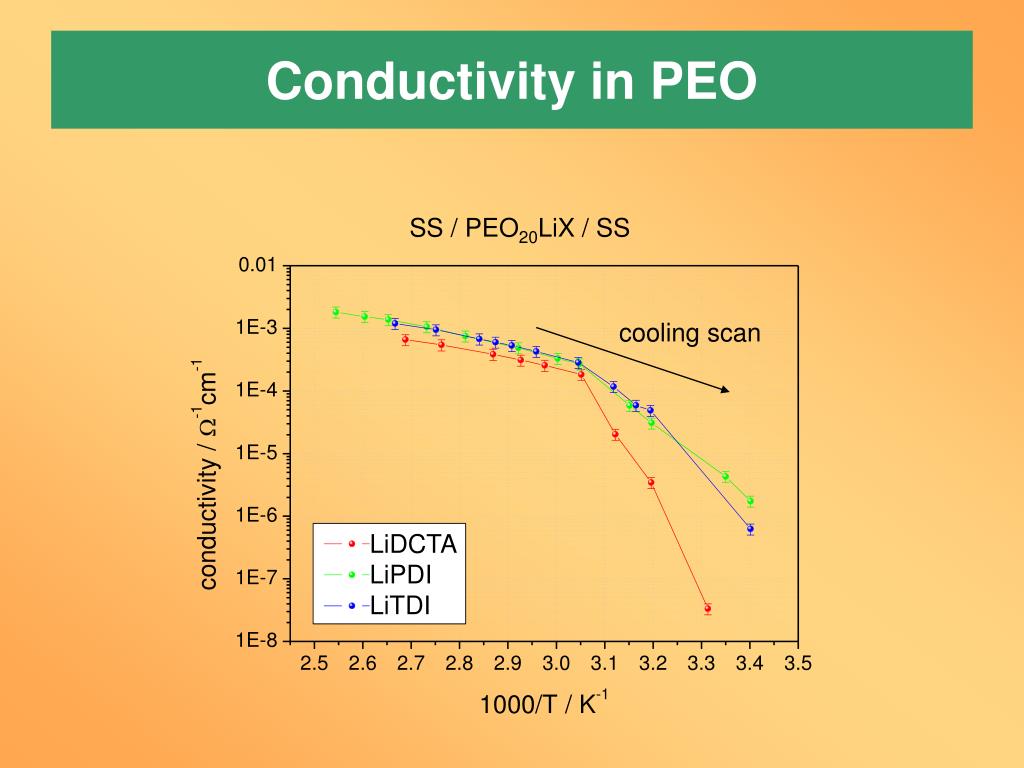

Conductivity in PEO

SS / PEO20LiX / SS

cooling scan

LiDCTA

LiPDI

LiTDI

lihdi peo conductivity
LiHDI-PEO Conductivity

1:25 Ea=76.4 kJ∙mol-1 1:50 Ea=121.8 kJ∙mol-1

slide15

PEO20LiTDI

PEO20LiPDI

Hot-Pressing

PEO20LiTDI

PEO20LiPDI

PEO20LiBOB/ LiBF4

Hot-Pressing

PEO20LiDCTA

Hot-Pressing

PEO20LiCF3SO3+ ZrO2SA

Casting

slide16

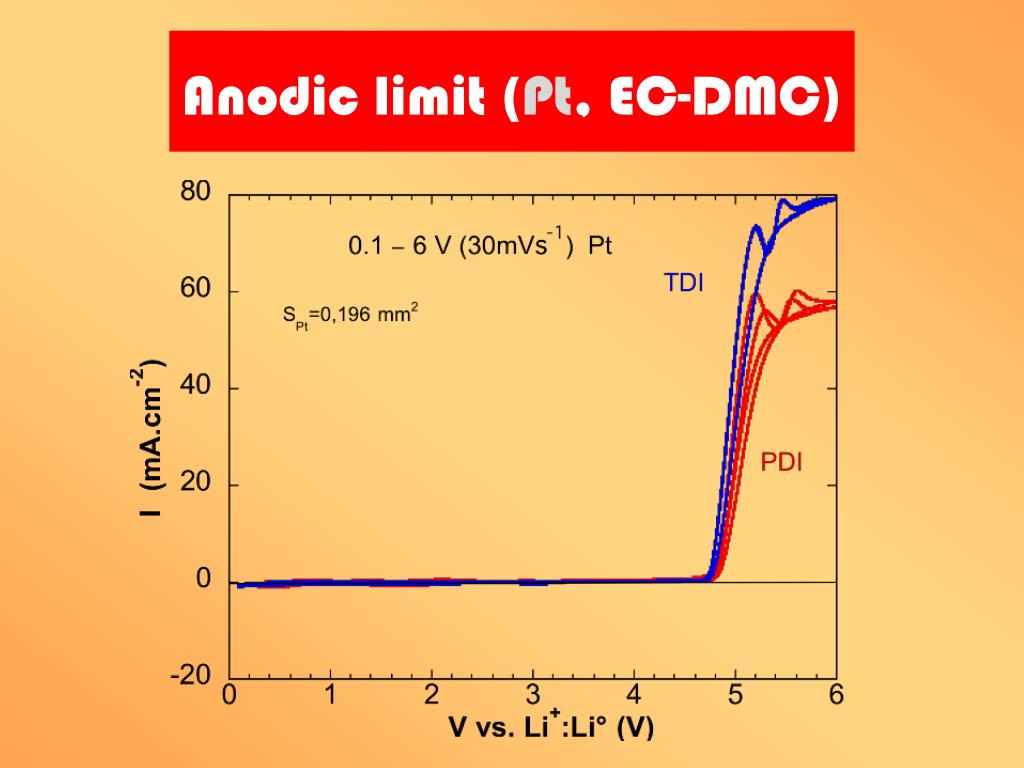

Anodic stability

Li / PEO20LiX / Super P

LiDCTA

LiPDI

LiTDI

slide17

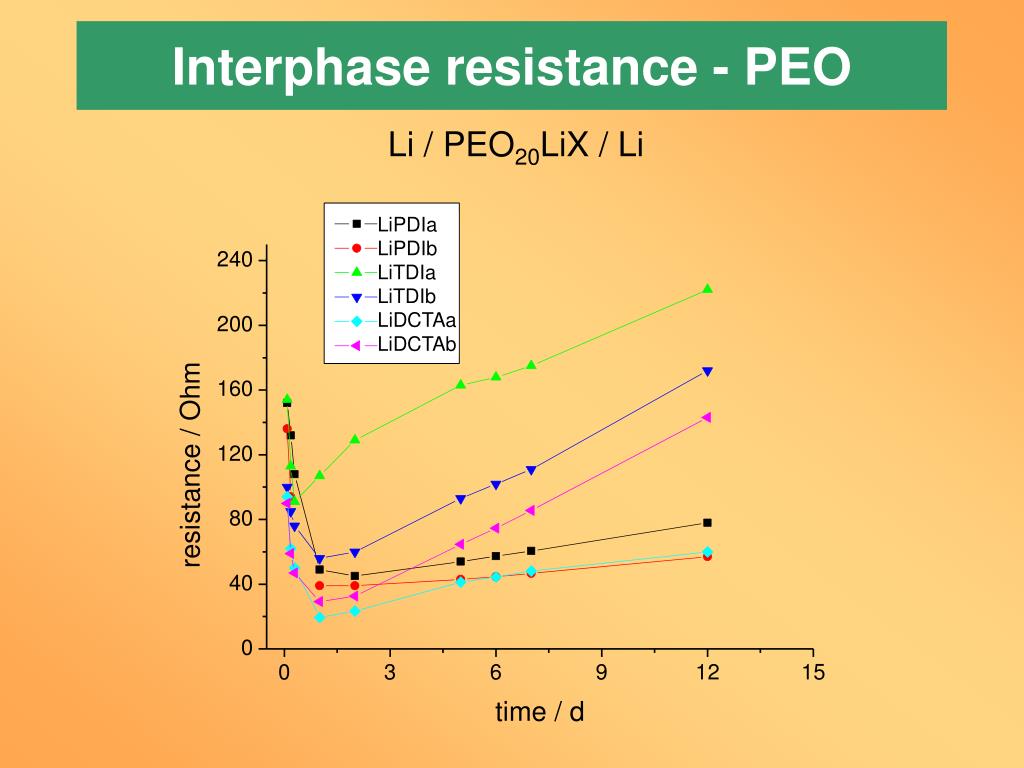

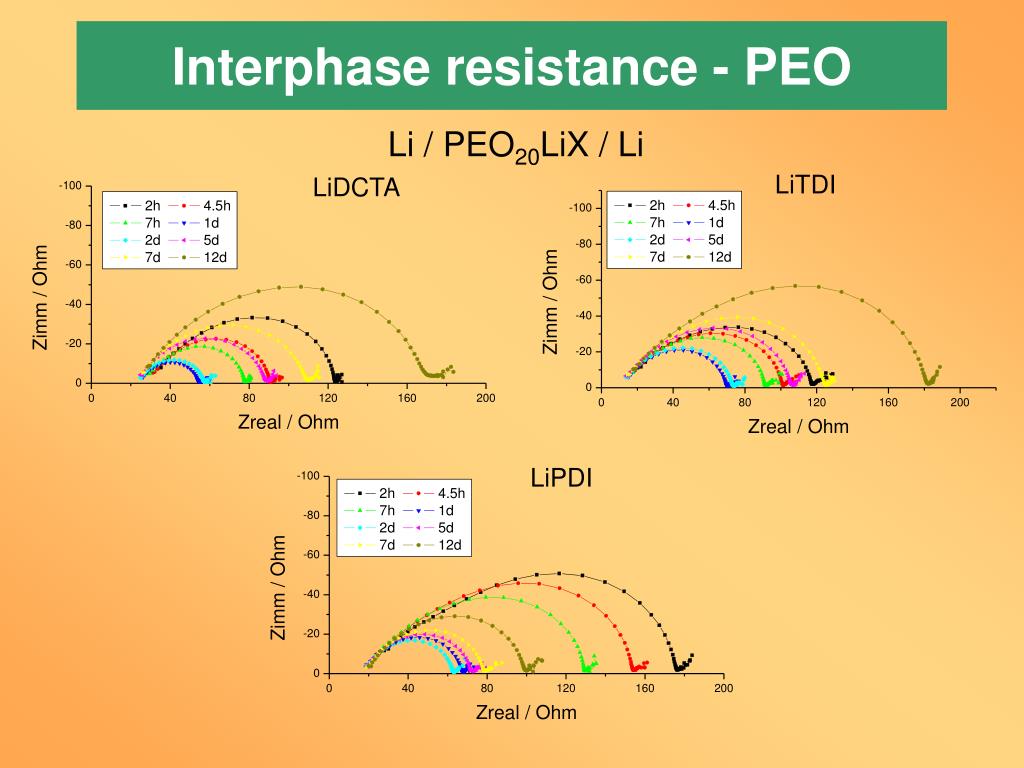

Interphase resistance - PEO

Li / PEO20LiX / Li

LiTDI

LiDCTA

LiPDI

slide18

Interphase resistance - PEO

Li / PEO20LiX / Li

LiPDIa

LiPDIb

LiTDIa

LiTDIb

LiDCTAa

LiDCTAb

rate capability peo
Rate capability (PEO)

% of capacity at C/20

rate capability peo21
Rate capability (PEO)

% of capacity at C/20

cycling limn 2 o 4 4 3 v ec dmc

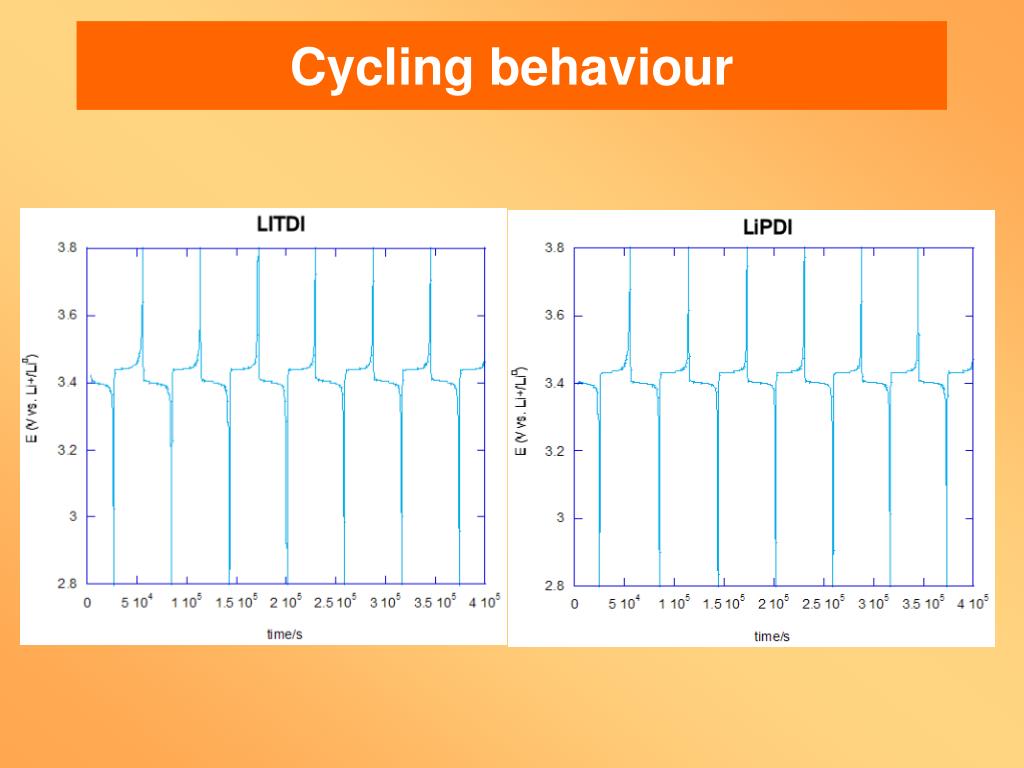

Cycling LiMn2O4 4.3 V (EC-DMC)

Swagelok cell , Al plunger

new imidazole derived salts
New imidazole-derived salts
  • Easy, low‑demanding, inexpensive, one‑step, high yield syntheses;
  • Salts are pure, stable in air atmosphere, non‑hygroscopic, stable up to 250°C, easy to handle;

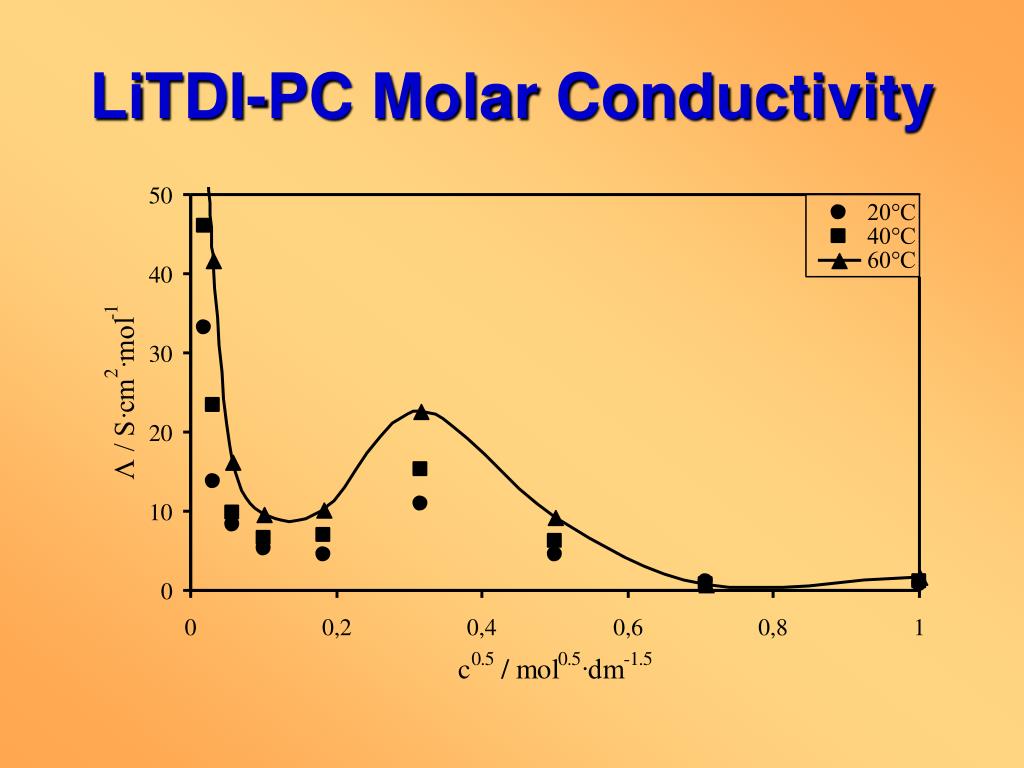

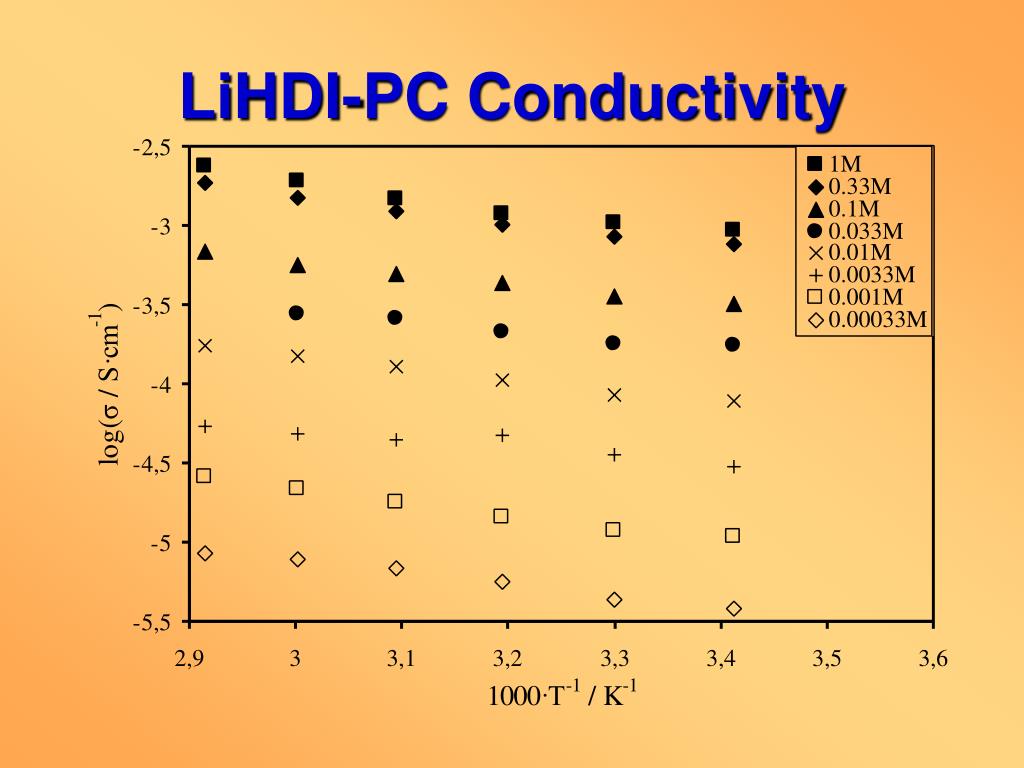

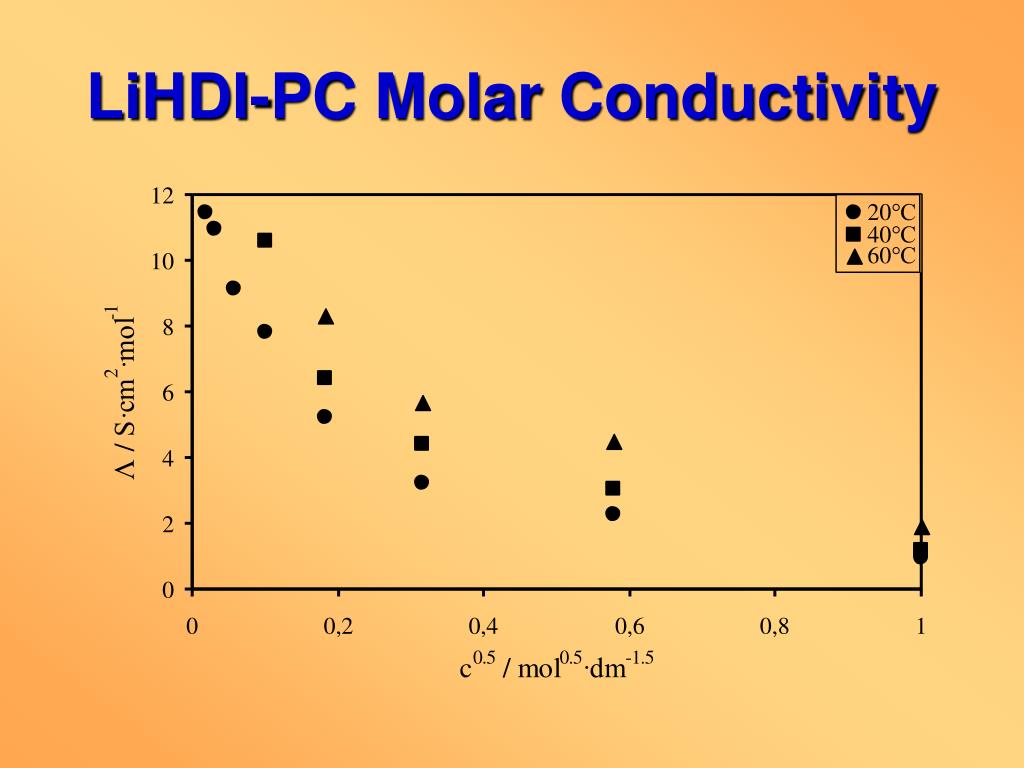

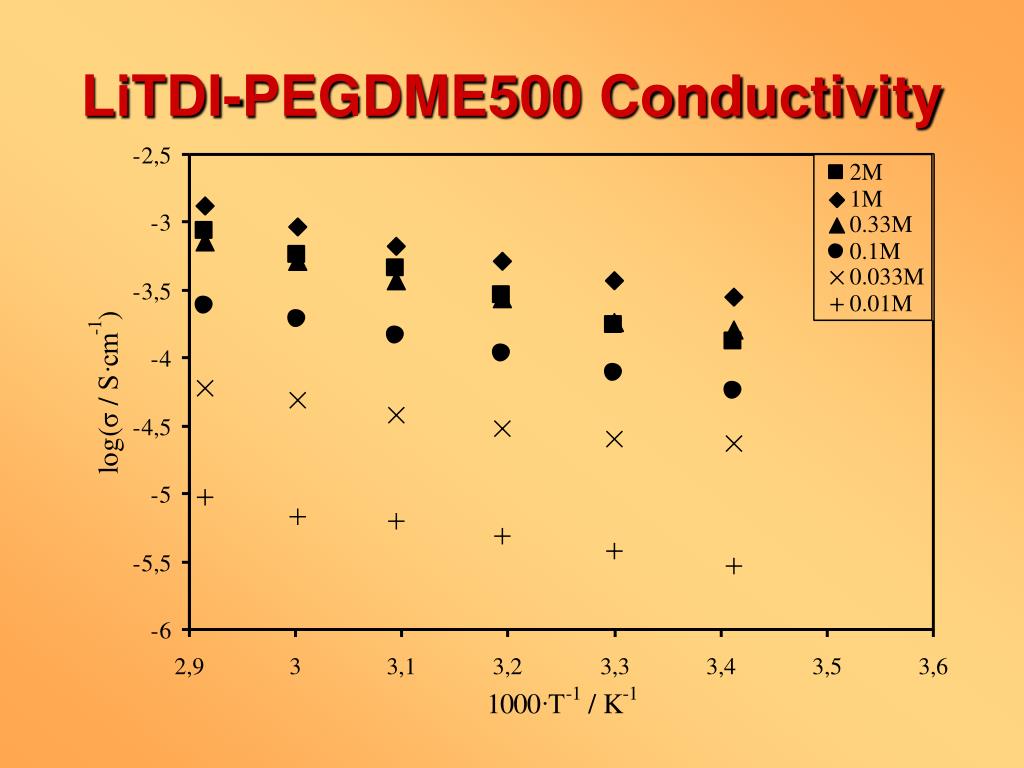

  • 20°C ionic conductivity exceeds:

10‑3 S∙cm-1 in PC, 10‑4 S∙cm‑1 in PEGDME500

10‑6 S∙cm‑1 in PEO (10‑4 S∙cm‑1 at 40°C)

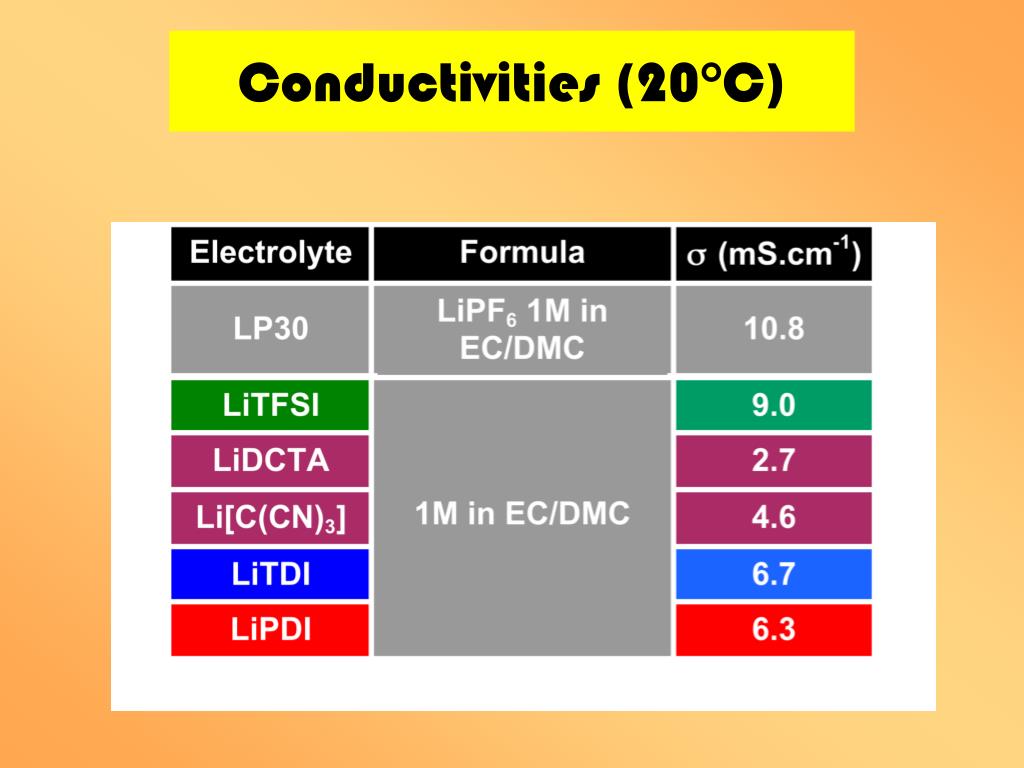

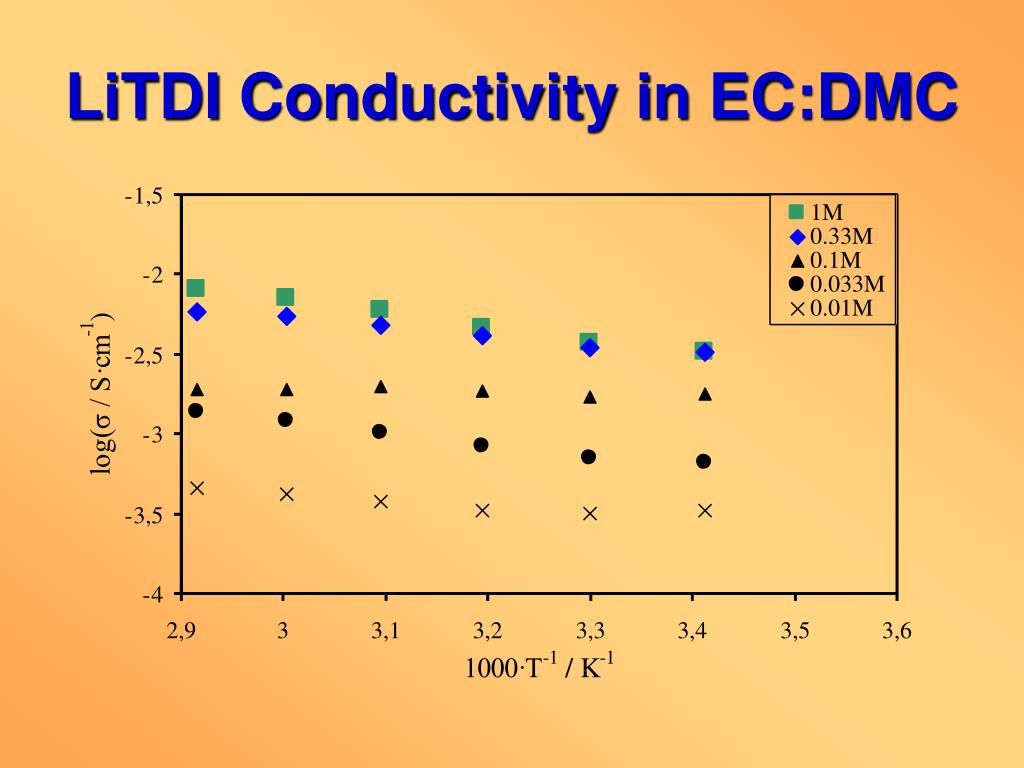

6 mS∙cm‑1 in EC:DMC

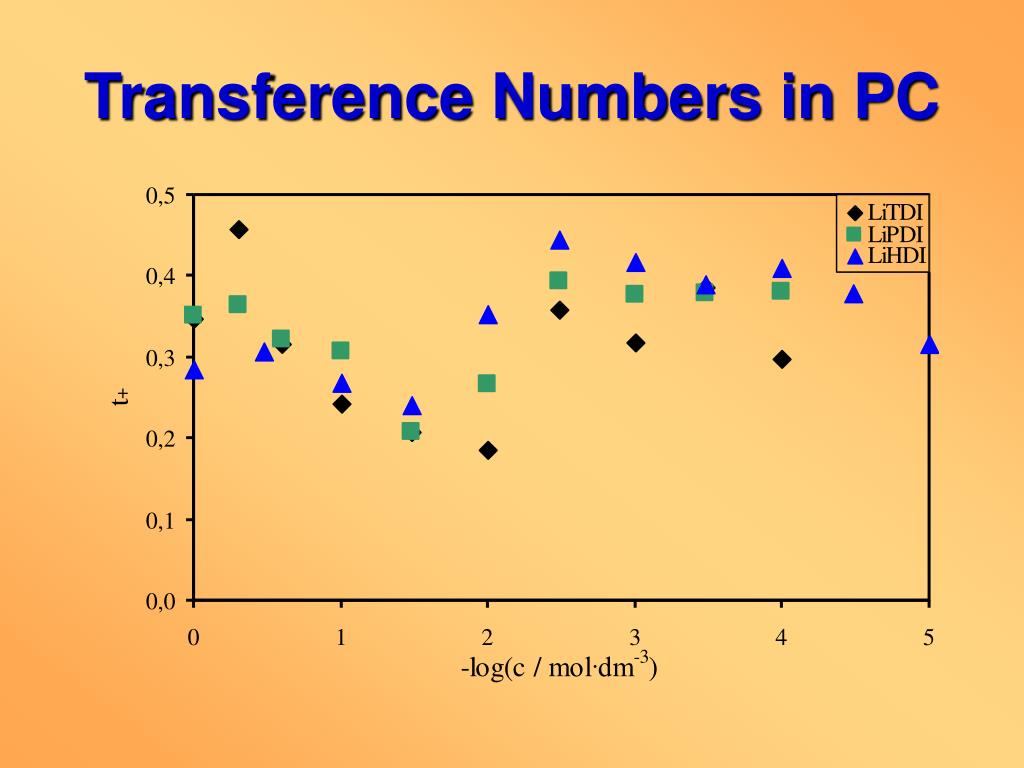

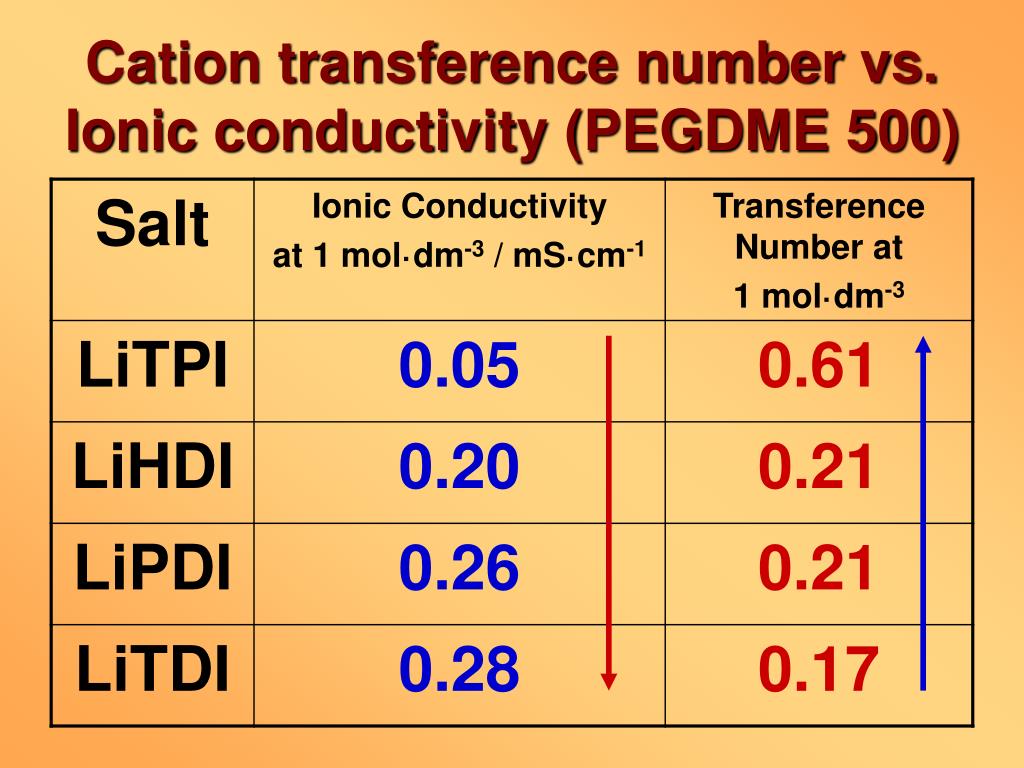

  • T+ at ionic conductivity maximum reaches:

0.45 in PC, 0.40 in EC-DMC, 0.25 in PEGDME500 (but overall max 0.62);

  • Stable over time against Li;

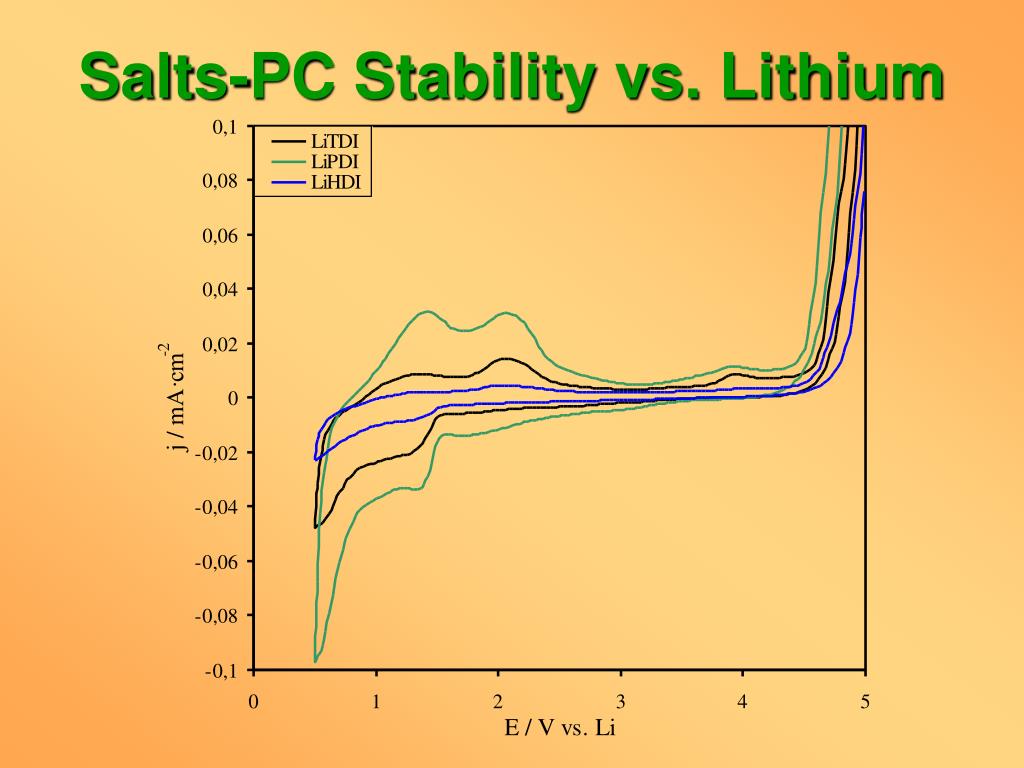

  • Stable up to 4.4 V vs. Li against metallic lithium anode;

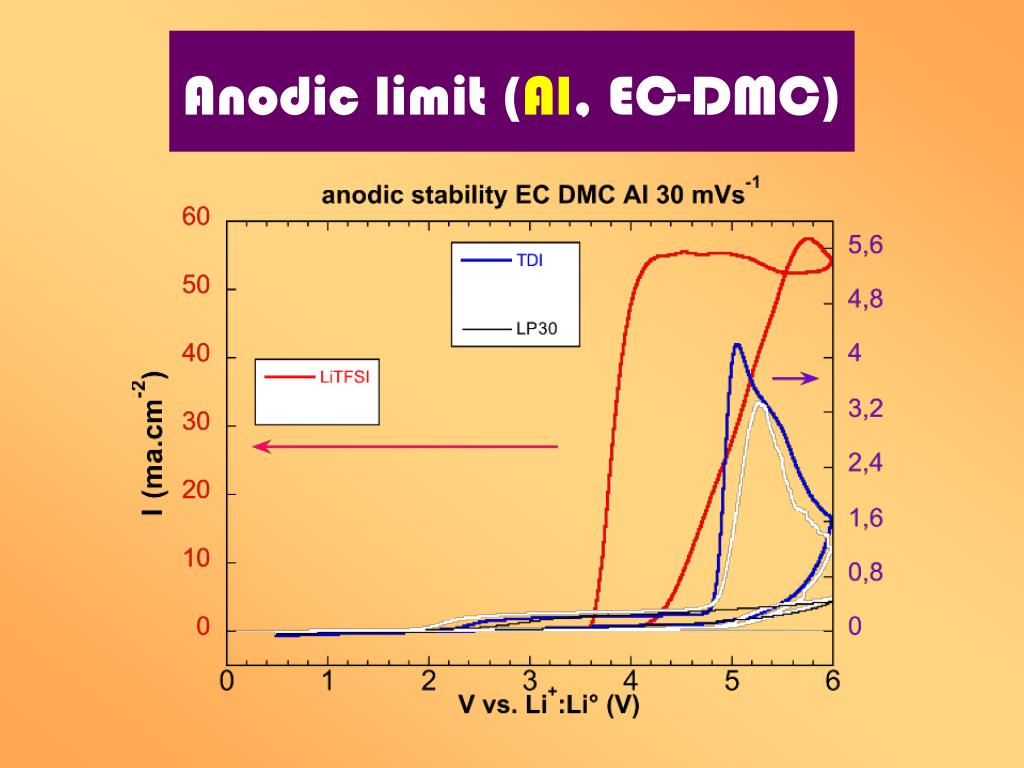

  • Stable up to 5.0 V vs. Li against aluminum;

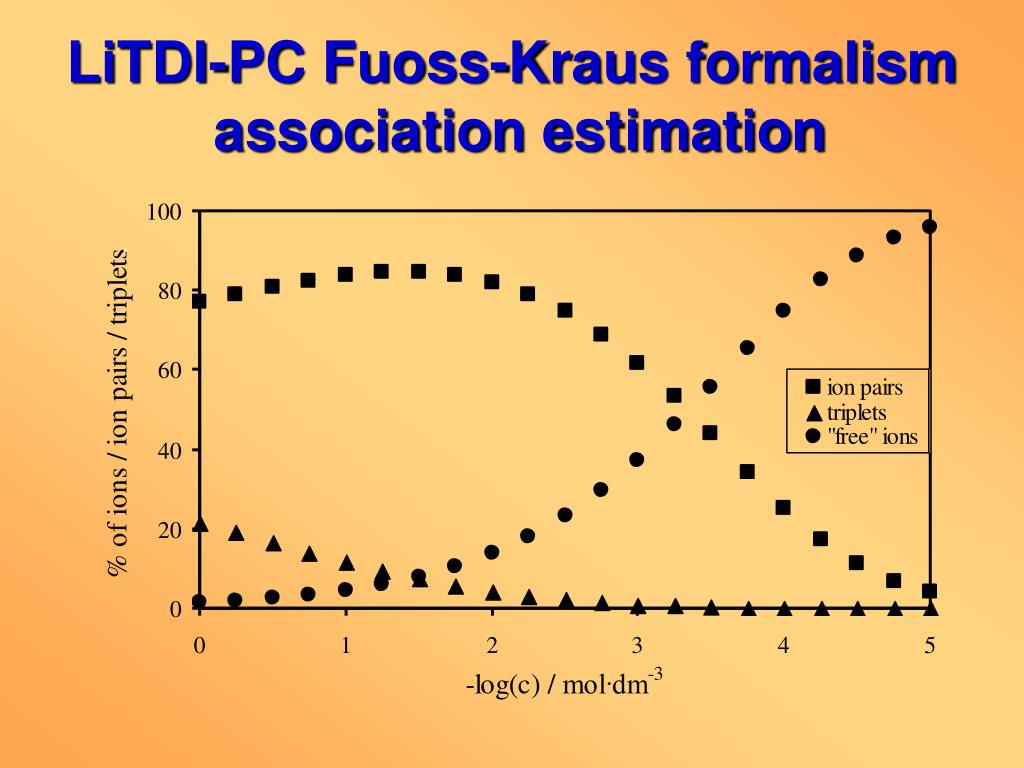

  • Much smaller association rate than commercially available salts;
research team working on new salts
Research team working on new salts

Presentation of research team

working on new lithium salts:

Warsaw University of Technology:

- L. Niedzickiand W. Wieczorek – characterization of salts and low molecular weight polyether electrolytes

- J. Prejzner, P. Szczeciński, M. Bukowska - synthesis of new salts

- Z. Żukowska – spectroscopic studies

Universite de Picardie Jules Verne, Laboratoire de Reactivite et de Chimie des Solides

- S. Grugeon, S. Laruelle - characterization of solid polymeric electrolytes, studies of electrochemical stability and battery performance

- and M. Armand – development of new salt systems

Faculty of Chemistry, University of Rome, “ La Sapienza

- S. Panero, P. Reale and B. Scrosati, - characterization of solid polymeric electrolytes; conductivity, transference numbers and electrochemical stability

Department of Applied Physics, Chalmers University of Technology,

- J. Scheers, P. Johansson, P. Jacobsson – modeling and spectroscopic studies

slide43

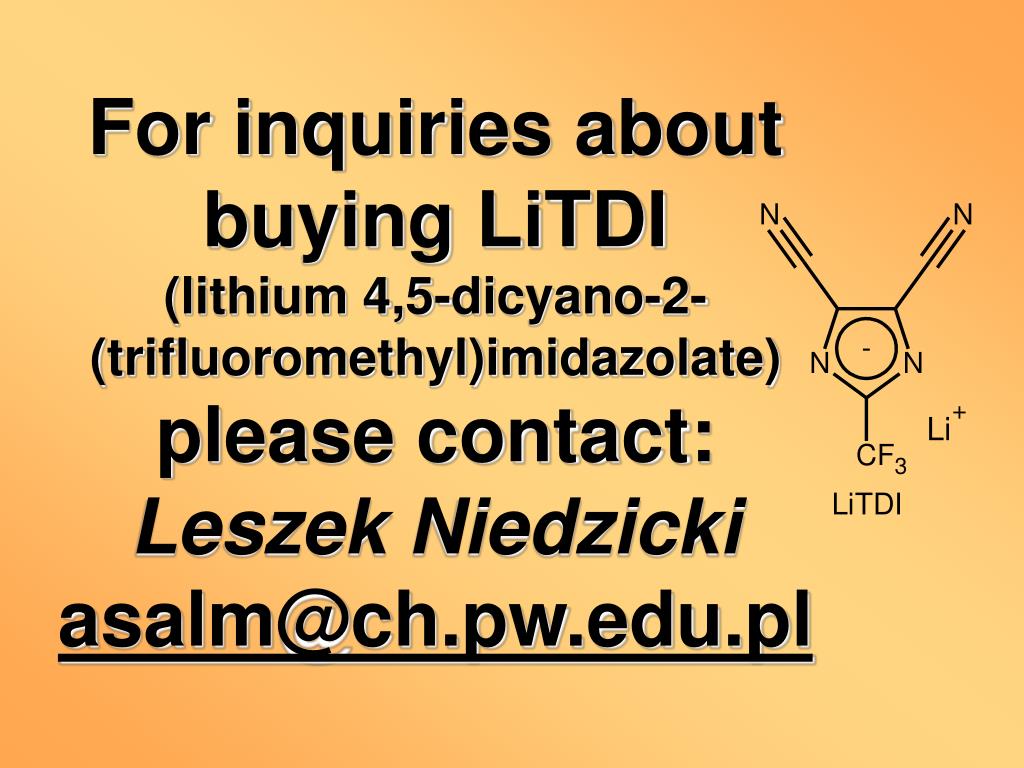

For inquiries about buying LiTDI(lithium 4,5-dicyano-2-(trifluoromethyl)imidazolate)please contact:Leszek Niedzickiasalm@ch.pw.edu.pl
