Narcinidae

Narcinidae. Narke =paralysis Numbfish. Characteristics. Round flat disc w/ soft edges no denticles or thorns Large spiracles Prominent caudal fin 1 st dorsal fin =2 nd dorsal fin Mouth tubular and protractile

elam
Download Presentation

Narcinidae

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

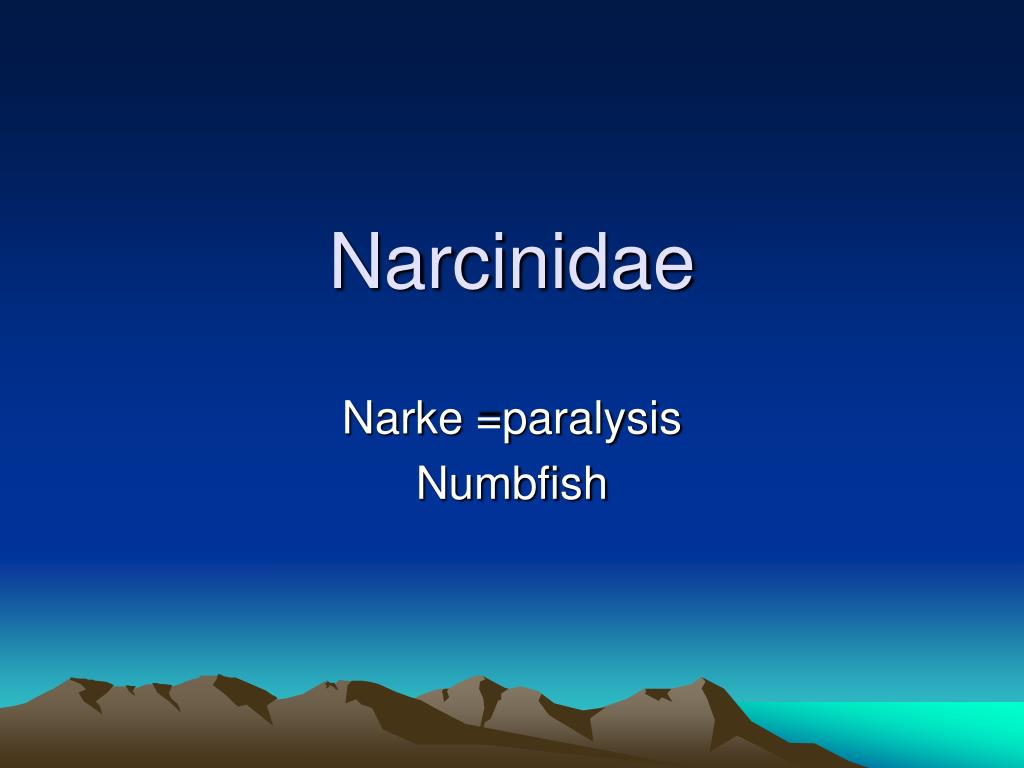

  1. Narcinidae Narke =paralysis Numbfish

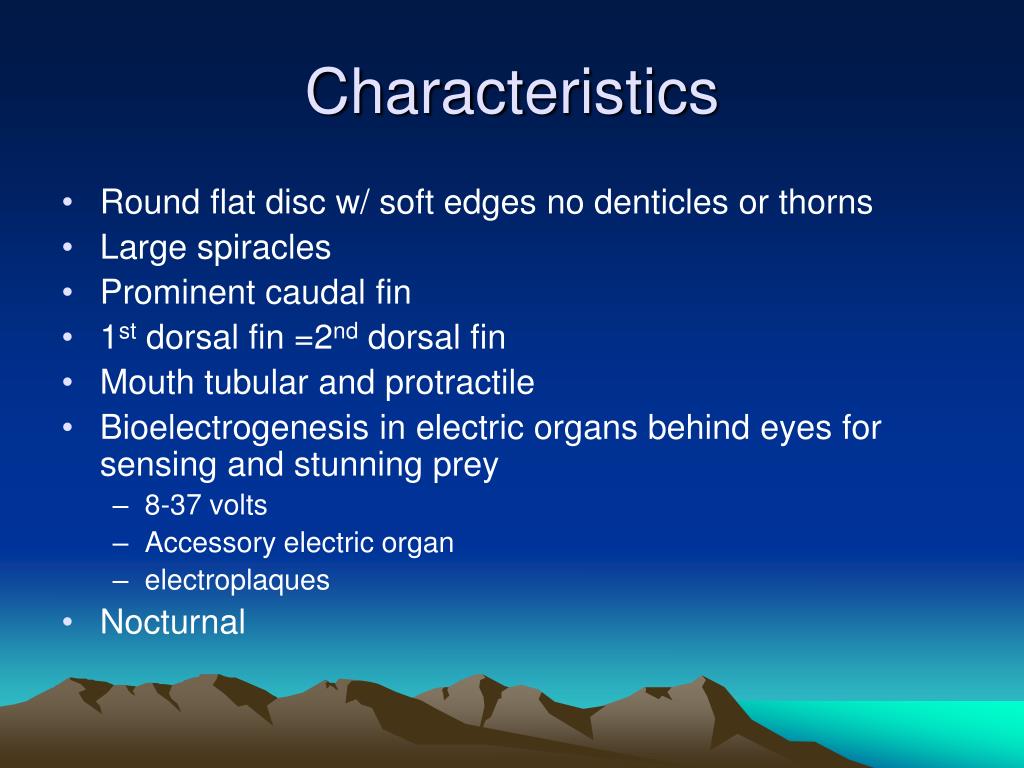

  2. Characteristics • Round flat disc w/ soft edges no denticles or thorns • Large spiracles • Prominent caudal fin • 1st dorsal fin =2nd dorsal fin • Mouth tubular and protractile • Bioelectrogenesis in electric organs behind eyes for sensing and stunning prey • 8-37 volts • Accessory electric organ • electroplaques • Nocturnal

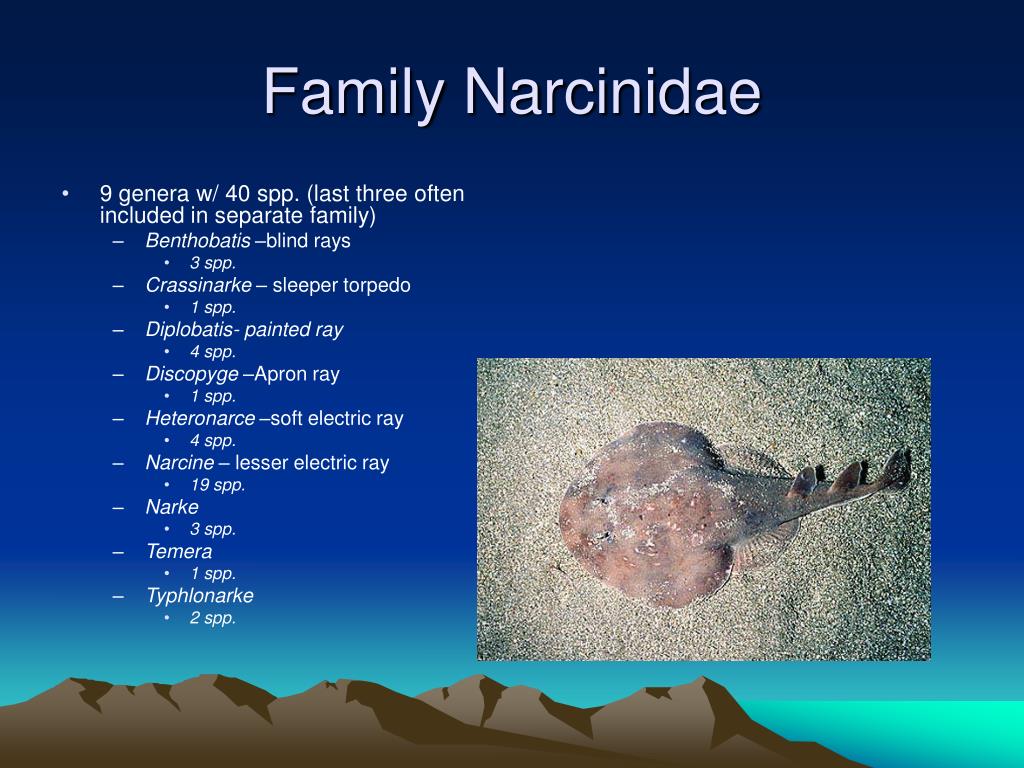

  3. Family Narcinidae • 9 genera w/ 40 spp. (last three often included in separate family) • Benthobatis –blind rays • 3 spp. • Crassinarke – sleeper torpedo • 1 spp. • Diplobatis- painted ray • 4 spp. • Discopyge –Apron ray • 1 spp. • Heteronarce –soft electric ray • 4 spp. • Narcine – lesser electric ray • 19 spp. • Narke • 3 spp. • Temera • 1 spp. • Typhlonarke • 2 spp.

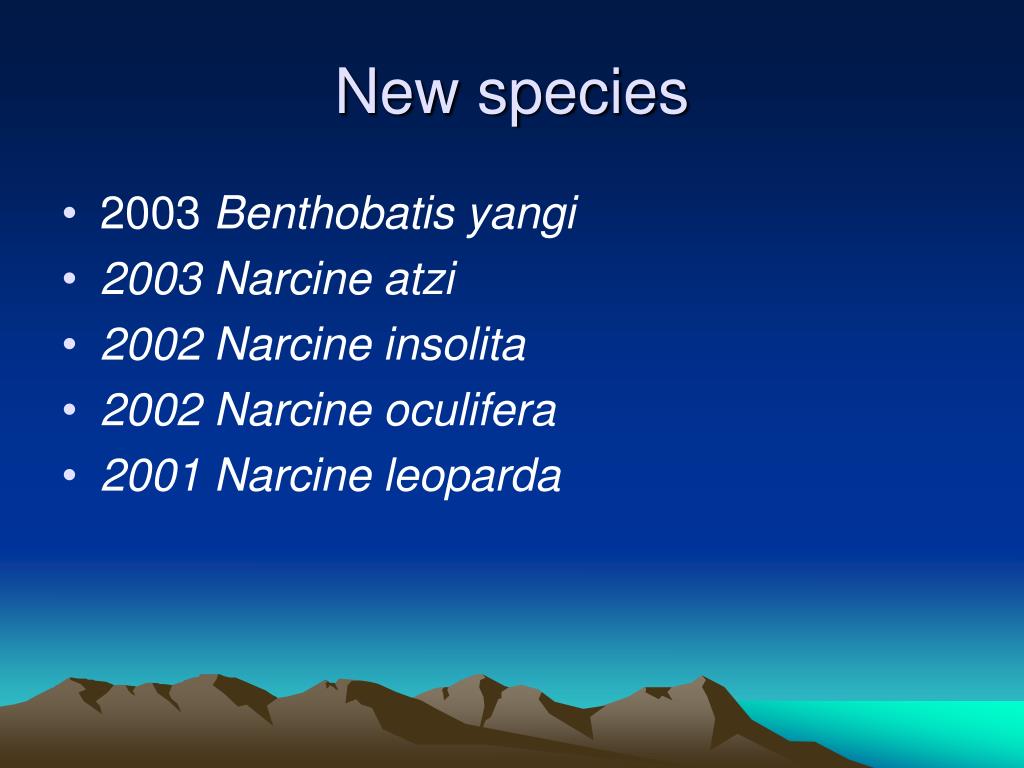

  4. New species • 2003 Benthobatis yangi • 2003 Narcine atzi • 2002 Narcine insolita • 2002 Narcine oculifera • 2001 Narcine leoparda

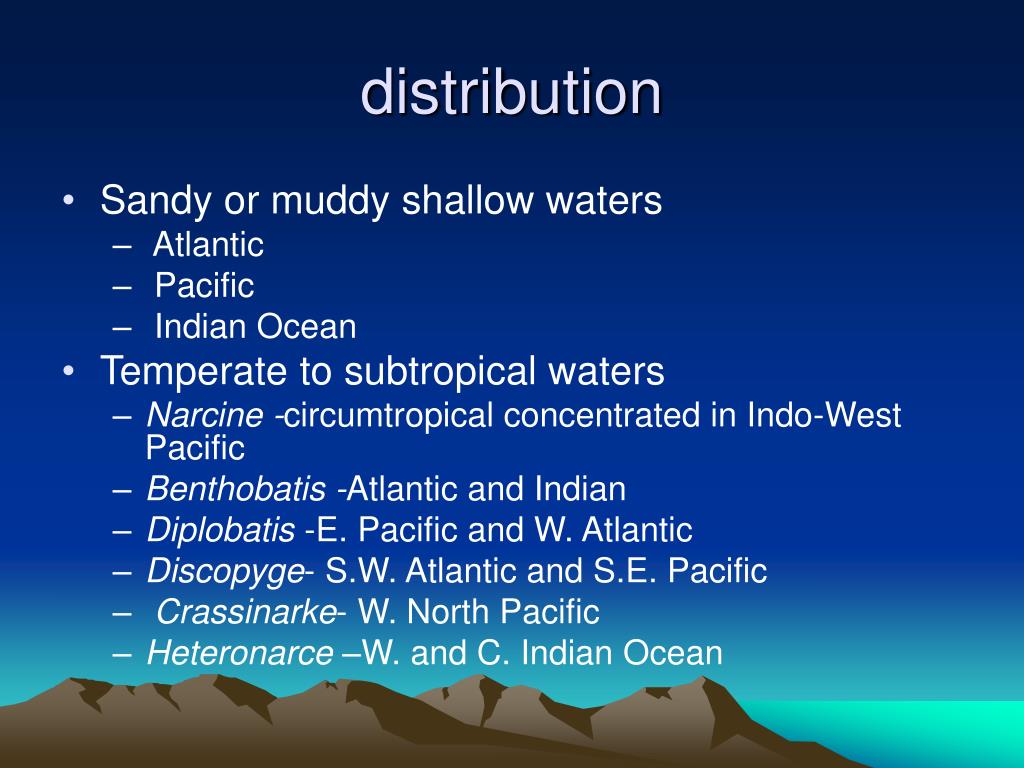

  5. distribution • Sandy or muddy shallow waters • Atlantic • Pacific • Indian Ocean • Temperate to subtropical waters • Narcine -circumtropical concentrated in Indo-West Pacific • Benthobatis -Atlantic and Indian • Diplobatis -E. Pacific and W. Atlantic • Discopyge- S.W. Atlantic and S.E. Pacific • Crassinarke- W. North Pacific • Heteronarce –W. and C. Indian Ocean

  6. Diplobatis ommata

  7. Narcine brasiliensis

  8. Crassinarke dormitor– sleeper torpedo

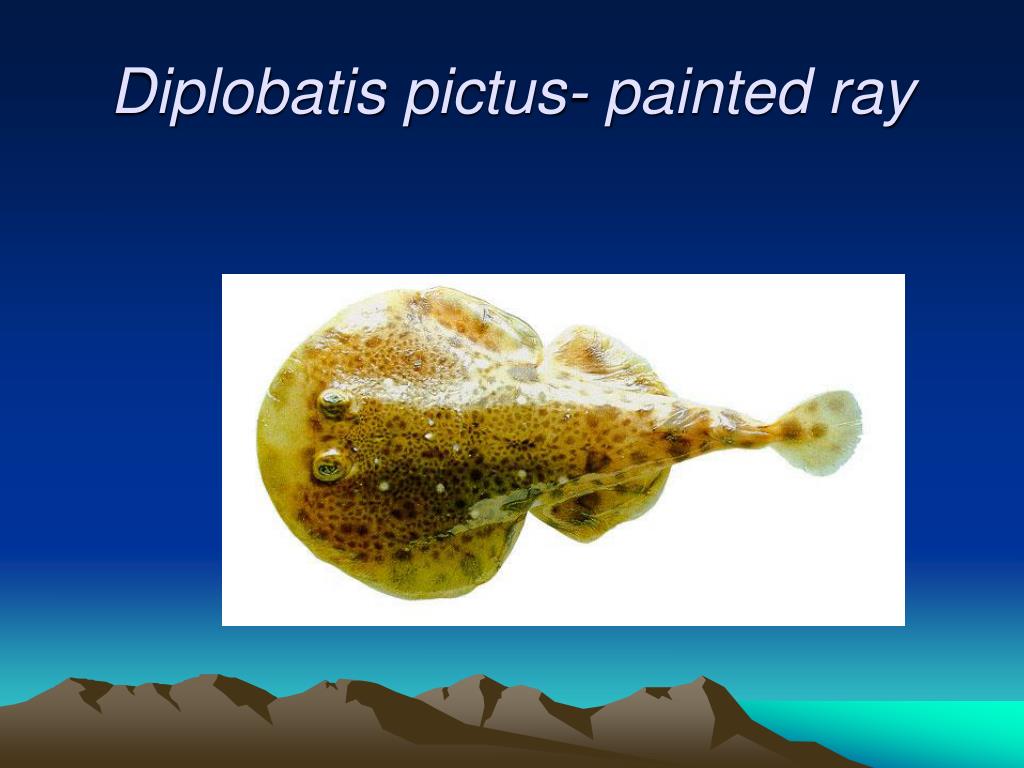

  9. Diplobatis pictus- painted ray

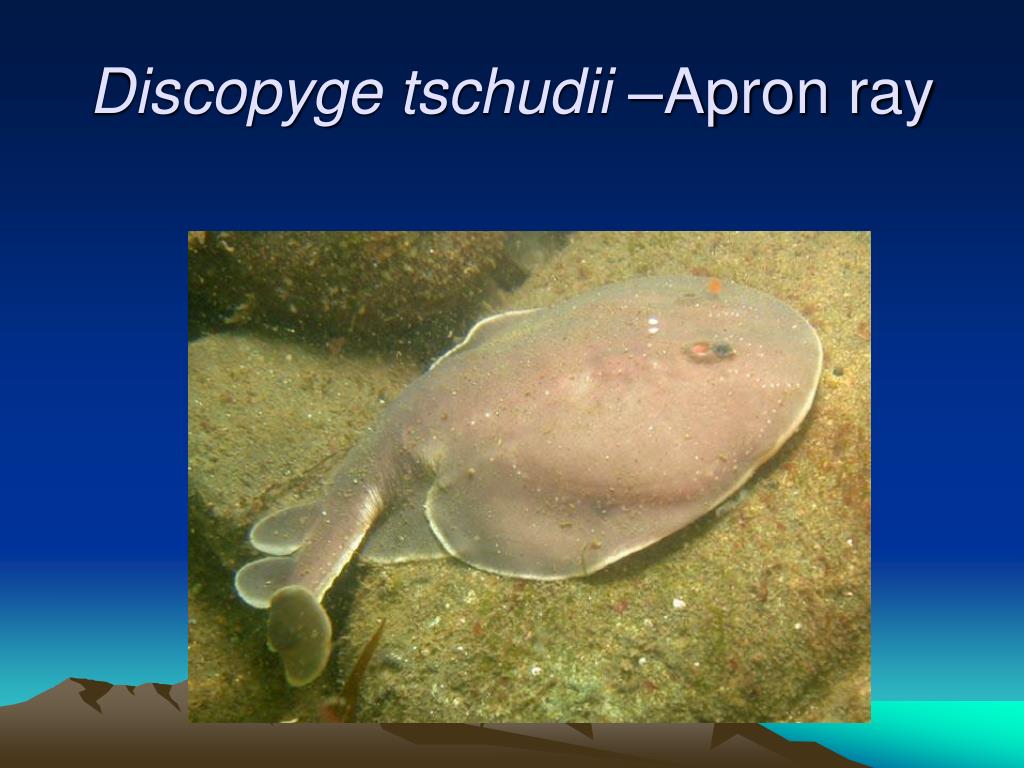

  10. Discopyge tschudii –Apron ray

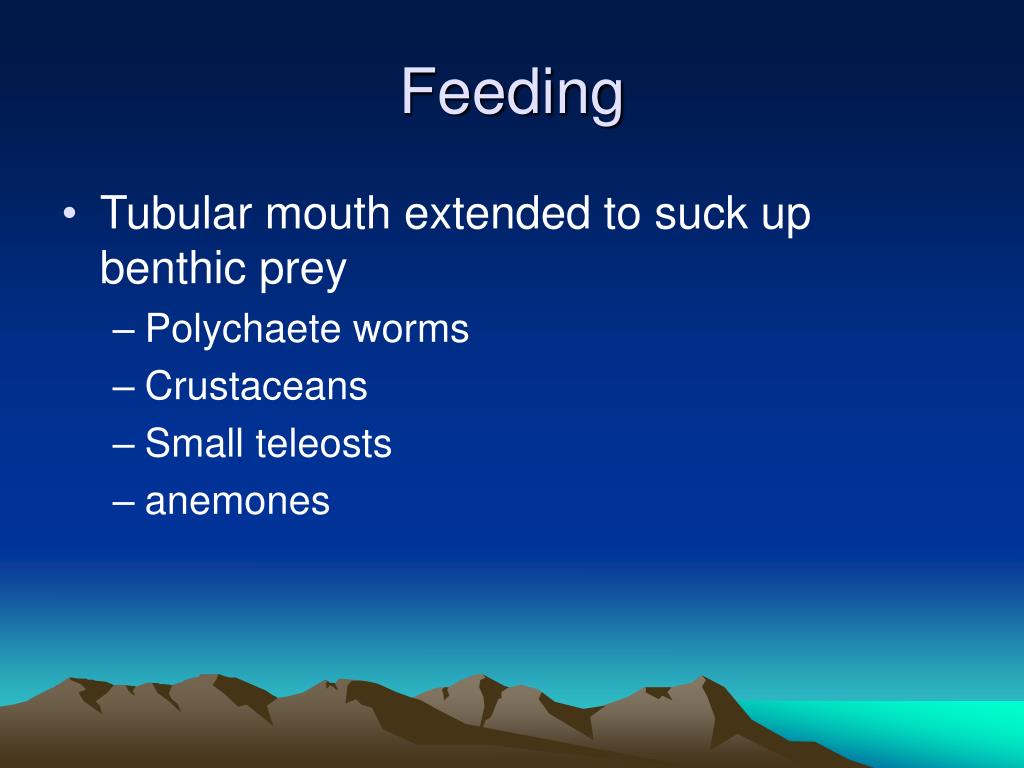

  11. Feeding • Tubular mouth extended to suck up benthic prey • Polychaete worms • Crustaceans • Small teleosts • anemones

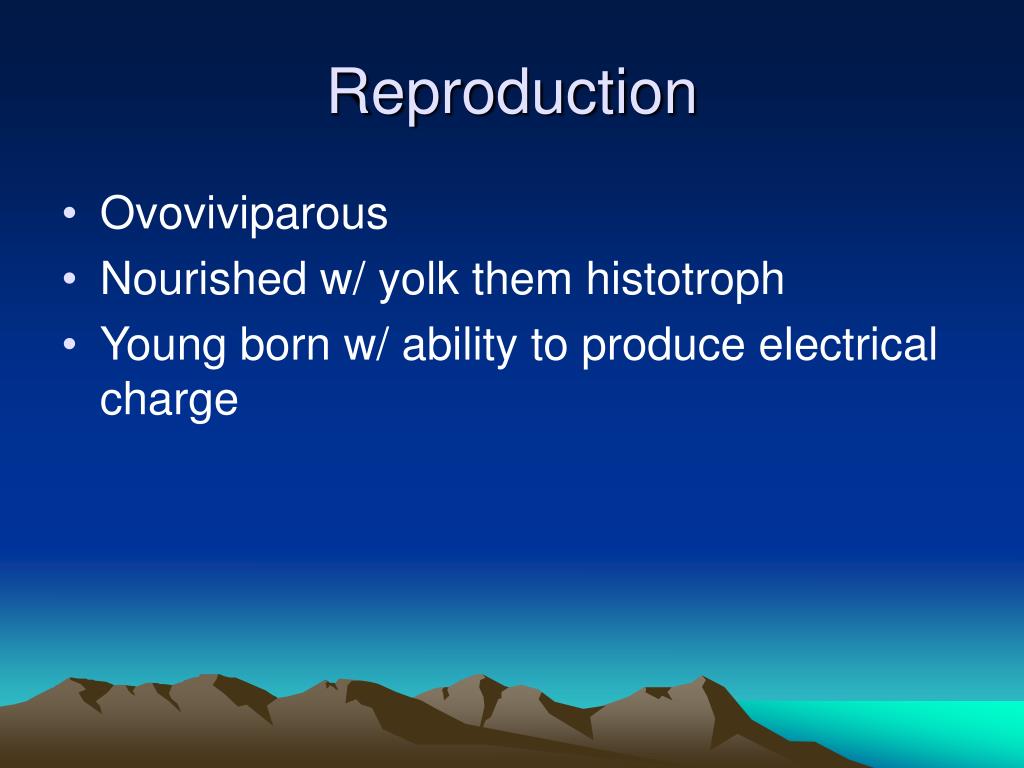

  12. Reproduction • Ovoviviparous • Nourished w/ yolk them histotroph • Young born w/ ability to produce electrical charge

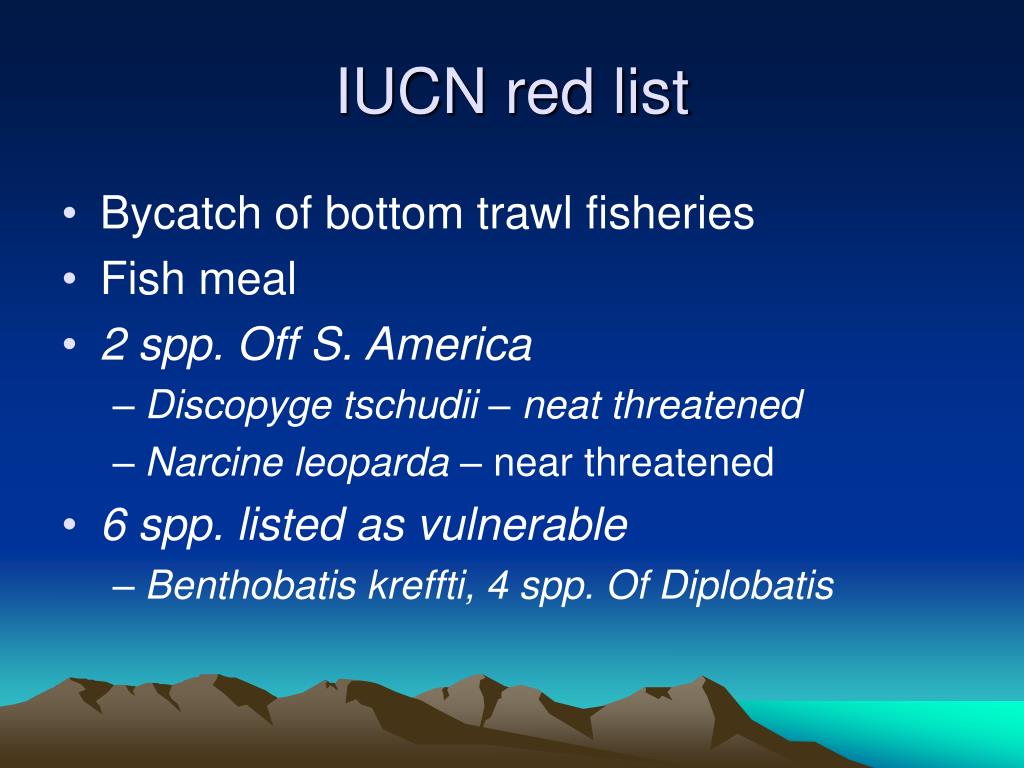

  13. IUCN red list • Bycatch of bottom trawl fisheries • Fish meal • 2 spp. Off S. America • Discopyge tschudii – neat threatened • Narcine leoparda – near threatened • 6 spp. listed as vulnerable • Benthobatis kreffti, 4 spp. Of Diplobatis

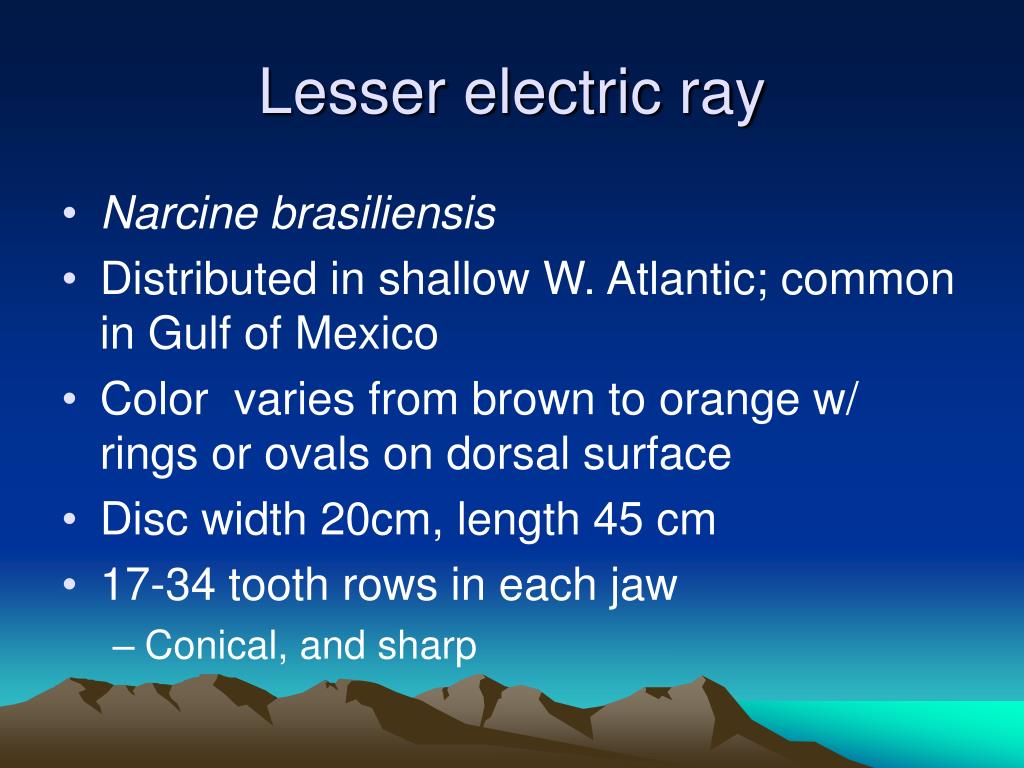

  14. Lesser electric ray • Narcine brasiliensis • Distributed in shallow W. Atlantic; common in Gulf of Mexico • Color varies from brown to orange w/ rings or ovals on dorsal surface • Disc width 20cm, length 45 cm • 17-34 tooth rows in each jaw • Conical, and sharp

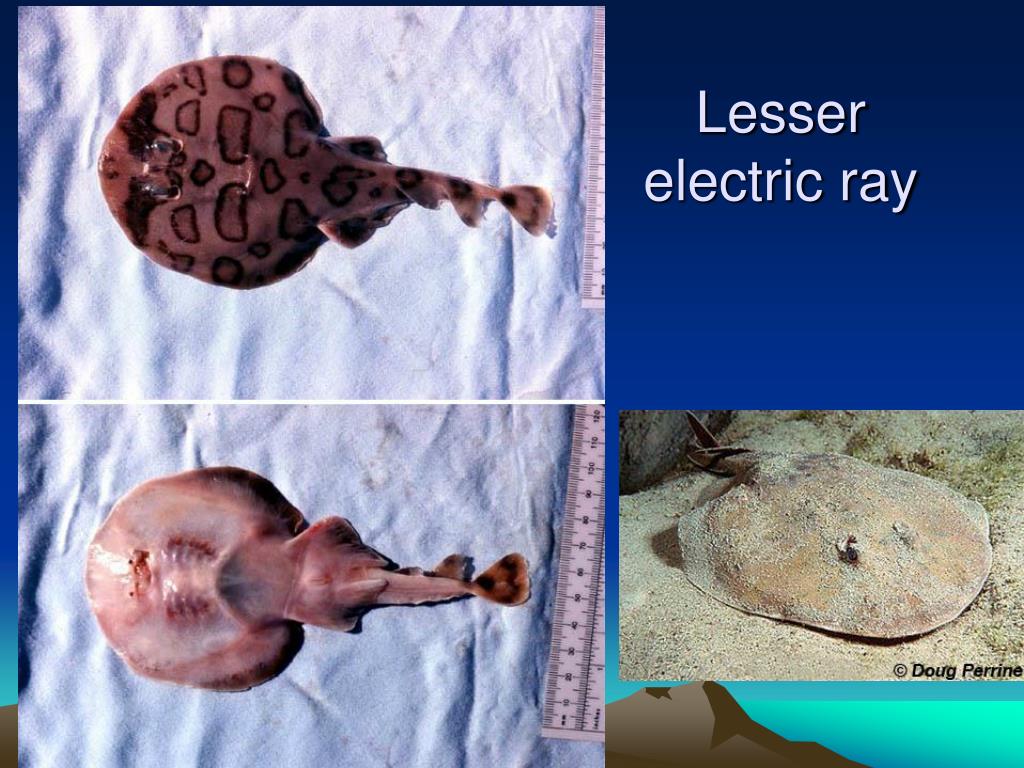

  15. Lesser electric ray

  16. Lesser electric ray
