  1. MARLOW 78E Motor Yacht:

  2. THE BRAND NEW 2005-THE STORY… The Yacht was originally delivered in Italy and cruised the Med for a couple of years, to be brought to Florida for resale. The current owners saw in its low hours (400) the opportunity to have/make a new boat more quickly than a new build, and set out to render everything new, a process which of course took longer than expected.  The project is now completed, and the boat is available. Almost everything is brand new on this boat, all electrical infrastructure to USA standards, all control panels, all chargers, voltage controllers, all fully redundant and complete Furuno electronics, stabilizers, tender and engine, upholstery and interior decoration, fabrics, draperies, bedspreads, linen, water-maker, water sterilizer system, entertainment systems, fuel polisher, all household appliances(cooktop, dishwasher, oven, washer, dryer, refrigerators ), exterior cushions, all canvas, to the bones bottom paint (peeled, restored, barrier coat), boot stripe paint, alarm system, satellite and cellular wifi networks, stern thruster, freezers, redundant hydraulics (both engines),  all teak floors refinished, custom-built desk area, salon and dining teak tables, varnish, second anchor and chain, engine room fans and controls, complete updated exhaust system, inverter system, most of exterior teak, BBQ grills, motorized top deck awning, fire extinguishers, exterior lighting, Stidd chair upholstery, etc, etc. The operative words are “brand new”… not “like new”, … “brand new”. And some would argue that the Cats at 640 hours are just broken in. Price: $2,849,000 US

  3. THE BRAND NEW 2005-THE STORY… Continued: Only personal items will be taken off the boat; dozens and dozens of small items will be left on board, such as $2,000 worth of charts and cruising guides, etc. To get a boat in this condition, the other way is to call the manufacturer and order a new build at close to double the cost, wait 2 years, and then spend the usual 12 months ironing out the wrinkles in any new build. We have spent the two years to make everything perfect, with all work executed under close surveillance from the boat`s Captain. She is ready to go, now. MYLY (her nickname) is under Canadian flag (same easy transfer procedure as US flagged ship) and Florida sales taxes are paid. Currently located in Palm Harbor Marina. Owners and Captain on board. Welcome.

  4. GENERAL DESCRIPTION, DIMENSIONS, AND EQUIPMENT • HIN # cn-xxe781071405 • Flag blue hull • Dimensions:  LOA 78’,                        beam 20’ 4”,                         draft 4’10”,                             • Displacement 100,000 lbs • Open hardtop fly bridge w/ radar mast for electronics • 4 staterooms, 3 full  w/ private heads and 4th stateroom w/ a single bunk in laundry area • Full crew quarters with 2 bunks and private entrance • Engines : caterpillar c-30 diesel engines 1550 hp, ser #’s clx00646 (7) • Engine hours 640 hours as of February, 2012 • Generators (2): northern lights 25kw w/ 1290 hours • Fuel 3000 gallons • Water 350 gallons • Separate drinking water tank of 150 gallons • Holding tank 100 gallons • Separate gray water holding • Naiad stabilizers

  5. CONSTRUCTION  • This yacht is constructed from the most modern materials and techniques providing more strength with less weight than possible with conventional technology. The use of Kevlar, modified epoxy resins and high density core materials allow the Marlow explorer to be stronger than the heaviest of hulls at a fraction of the weight. The use of modern honeycomb and structural foams is made on every counter, cabinet and sole in the yacht. The result is a yacht that cruises at 24 knots when conventionally constructed yachts would only achieve 19 knots with similar power. Even if speed is not a driving factor for you, the increased range and reduced fuel costs will be of great benefit.   • Proprietary high pressure lamination system, vacuum bagged       • Heavy duty 316l stainless rub rail • Molded FRP flush window frames                                                                                          • S/s ladder with teak steps cockpit to FB • Engineered sandwich construction throughout                                    • Bulwark doors and gates P&S • Laminated and tempered window glass • Portuguese bridge deck storage lockers • All decks teak • Velocity jet strut keels • Sliding hatch and door bridge to ph • S/s anchor roller • Transom door • VENTURI windscreen with s/s safety rail

  6. EXTERIOR HARDWARE AND FITTINGS  • All hardware s/s or chrome brass • Custom stainless anchor light and pennant bracket • Hidden fueling port with anti-spill catch • Sacrificial zincs on rudders and shafts (new) • 1.375” stanchions main deck • Windlass LOFRANS dual w/helm and deck controls • S/s rudders • Teak and s/s steering wheel • S/s cleats and hawse holes • Super duty custom trim tabs • Strut keels • Teak bow and stern staffs • Scuppers in cockpit • Sea water washroom, forward deck, high volume • AQUAMET 22 propeller shafting • EXALTO heavy duty windshield wipers and washers • Custom CNC cut Nibral propellers, s class • Bronze trough hull fittings • Spotlight with remote at each helm

  7. ELECTRONICS NEW JANUARY, 2011 (ALL INSTRUMENTS AVAILABLE AT BOTH PILOTHOUSE AND FLYBRIDGE STATIONS UNLESS SPECIFIED) • As installed diagram by HST NMEA 2000 • All functions are redundant, linked on Ethernet network • Various keyboards and mouse and chargers • KVH sat dome w/ matching dome for antennas • 5 direct TV receivers and TVs • Redundant FURUNO MFDBB Navet 3d black box • FURUNO MaxSea computer and navigation system • Dual FURUNO color monitors 17 inch         (total 4) • Flir camera controller night vision • FURUNO fl-50 multi-xl depth, speed, etc. • FURUNO nav pilot autopilot • Dual FURUNO radars, 6kw/12kw open arrays • Naiad multi-sea stabilizer controls (enhanced fins) • Side power bow/stern thruster control w/ additional in aft deck driving station • FURUNO nav net 3d control console • Wireless shifter/thruster remote by “captain controller” • Echo pilot FLS platinum forward seeking sonar             • TELULAR cell system providing Wi-Fi throughout vessel • Wireless networks for cell and satellite • AIS system pb-50

  8. ELECTRONICS NEW JANUARY, 2011 Continued: • THRANE & THRANE sat phone (antenna on hardtop). • 3 surveillance cameras linked to console • FURUNO nav pilot pump (hydraulics control) • Rudder feedback • AIRMAX PB 200 weather service SIRIUS XM weather (antenna on hardtop). • I-COM IC-M604 vhf radios w/ hailer (mounted on radar support). • I-COM COMMANDMIC 3 remote handsets at alternate stations . • Vhf antennas w/ 8 foot risers and hinged mountings • SANSHIN hr-1012 search lamp control (lamp on ph roof). • GLOMEX TV antenna (mounted on hardtop) • Dual s/s air horns (mounted on ph roof)

  9. ELECTRICAL AC AND DC  • Twin northern lights 25kva generators                                                             • Large house banks 4x200ah heavy duty batteries • Main power distribution panel upgraded to survey specs 7-2011                  • Ph panel equipped w/er fan remote on/off switch, a/c chiller remote switches, master volt remote monitor panel for all chargers and invertors functions                                                                           • Ph panel input power meters for shore and generator inputs, blue sea systems 8247 multi-meters, volts, amps, frequency. • Led backlit during invertors operation for all invertors loads                   • Upgraded a/c circulation fans for aft salon and crew cabin units               • Upgraded a/c sea water pump relay controller w/ spare relays • New a/c chiller control circuit boards 5-2011 • New engine room control panel in lazzarette w/ new relays/contactors/ timers • Mastervolt invertor charger unit Mass Combi 24/4000-100 (new in 1-2011) • Mastervolt battery charger for generator battery bank, 12/35-3 (new 1-2012) • Mastervolt battery charger for engine main battery bank, 24/40-3 (new 7-2011) • Mastervolt battery charger for house service bank, 24/80-3 (new in 7-2011) • Mastervolt house service bank isolator (new in 7-2011) • Shore inlets 2 x 50 a                                                                                                                 • Glendenning cable masters • Bonding system

  10. CONTROL AND NAVIGATION • Bow and stern thrusters controlled from FB, PH, cockpit and remote wireless • Two control stations, FB and ph, fully equipped • Power hydraulic steering system (either engine) • Aqua signal navigational lighting system • 6” Ritchie compass • Complete engine instrumentation at both stations • Electronic engine controls • Engine hours meters • Engine alarm system • Intercom system 3 stations         (PH, Engine room, FB) • Hanshin searchlight electronic controls FB, PH • Cockpit control station incl. Thrusters • KAHLENBERG air horns, dual trumpet

  11. GENERAL ACCOMODATIONS /FEATURES  • Chilled water air conditioning and heating • Teak paneling and cabinetry • Solid hardwood valances • Teak and holly sole • English beveled mirrors • Dovetail Douglas fir drawers • Brass or s/s hardware • Stainless ball bearings drawer slides • Cabinets with tambour faces • All cabinets lined with Formica inside • Insulated ducting and hardwood grills for a/c • Lamp positive cabinet locks • All cabinetry fully cedar lined • Décor fabrics, draperies, bedspreads • Teak wood blinds, salon and ph • Cylinder lifts on berths • GROHE top line faucets and fixtures • TV cabinet motorized • Granite counters in galley and heads • Stainless port lights in all staterooms and heads • UV / heat repellant 3 m in ph windows (80% heat reduction)

  12. GENERAL ACCOMODATIONS /FEATURES Continued: • Fire extinguishers in all staterooms • Entertainment equipment all new 1-2011 • Motorized bed lift in master • Central vacuum w/outlets in salon, fwd cabin area, pilot house, and crew • Matching carpets w/ black binding in all cabin areas, pilot house, galley, and salon. • All bedding new in 2011 • Fire extinguishers in all cabin and galley areas w/ identifying placards • All fabrics and carpets marine grade

  13. HEADS (ALL 5) • In master, VIP, crew, guest, fourth stateroom • FRP interior with varnished trim • Louvered cabinet doors • Granite counters • English beveled mirrors • Electric/vacuum flush toilets • Teak framed Lexan doors to showers • China sink • Mirrored ceiling • Vent blower • GROHE faucets for sink and showers • Night switches

  14. SALON AND DINING ROOM  • The salon is very spacious, full beam • All 10 large windows have teak blinds • Rich carpeting • Two leather recliners w/ massage vibration and heating • Sony 46 inch BRAVIA HDMI TV • Motorized TV elevator in entertainment cabinet w/ remote • Sony 5 disc CD changer cbp-ce375 • Sony blue ray player bdp-5370 • Yamaha surround sound amplifier • Yamaha I-pod station • Polk audio base speaker

  15. SALON AND DINING ROOM Continued: • Logitech all-in-one entertainment remote control • Sony EC3 stereo receiver w/CD • Direct TV receiver • Polk audio base speaker                                                                                     • 2 custom built-in couches with storage • Marlow custom teak salon table  • Forward area dining with seating for four                                                 • Full-size  wet bar w/hidden sink to port • SUB ZERO wine cellar • Refrigerator w/icemaker • 6 cabinet doors • Overhead hand rail • Custom glass storage locker • Custom built in salon office desk, 7 foot w/ file storage left, printer/scanner/fax right w/ 2 drawers

  16. GALLEY FEATURES AND EQUIPMENT • Centrally located on the main deck, aft of the pilot house, 2 steps up from salon • Opening in cabinets that allows seeing right through the galley, which can be closed with tambour door . • Generous cabinet space • Black galaxy granite counter tops • Under mounted sink looking forward  • MIELE dishwasher optima series (new 1-2011) • SUB ZERO  freezer • DACOR cook top (new 4-2011) • 2 SUB ZERO double drawer refrigerator units (total 4) • DACOR oven (new 1-2011) • Teak and holly flooring • SHARP microwave convection oven • Louvered cabinets • BROAN trash compactor (new 2-2011) • FRANKE double sink w/tap • Badger sink disposal 1/3 hp (new 1-2011)                                                • Tube light under counter • GROHE faucet • Drinking water faucet (3 filter levels plus sterilizer) • Exhaust blower over cook top • Cutting board sink covers • Wooden blinds

  17. PILOT HOUSE FEATURES AND EQUIPMENT (SEE ALSO SECTION ON ELECTRONICS) • Command station for all electronics, hydraulics and power sources (see section on electronics) • Electronics same as fly bridge plus single station echo pilot fwd color sonar • Dinette settee ultra leather “caramel” (new in 2011) • Ph sliding doors locking system upgraded w/ aft slide bolt latches • Remote water maker control (STB. side work station) • Paradox alarm/monitoring control (STB. side work station) • Port anchor chain placard on ph overhead panel • Fwd ph windows, all 4 hatches, and FB doors from ph, 3 m UV window tint • Custom engraved indicator panel with 24 indicator lights for all bilge pumps, high water alarms, navigation lights, and temperature alarms                                                                   • Houses the lower helm • Stidd captain chair

  18. PILOT HOUSE FEATURES AND EQUIPMENT (SEE ALSO SECTION ON ELECTRONICS)  Continued: • Raised position close to the bow-excellent visibility • Seating area with teak moveable dining table • Helm station intercom to FB and engine room • Preferred area for all underway • Holding tank gauge w/ discharge controls • Can be divided by tambour tour rear of galley • Tank tender system for water, waste, and fuel tanks • Teak and holly flooring • S/s see-through stairs to fly bridge • Stereo/CD player • 12 volt dc power control panel • 24 volt dc power outlet panel • 110 volt receptacles control panel • Inverter control panel • Steering control station wood wheel                                                                 • Teak electronics mounting panels • Teak valance board w/tube light • Windshield defrosters • Lighted stairway to fore cabins

  19. MASTER STATEROOM • Full beam forward of engine room, amidships, insulated from engine room by bulkhead, fuel tanks and his & hers heads • His and hers heads • King size berth • Large stall shower • Bench seat to port, with ample drawer and 3 hanging lockers • 4 hanging lockers to starboard, drawers, lockers • Desk and lighted vanity forward, swing out stool • Built-in night stands with swing arm lamps • Drawers under bunk • 26`` SHARP TV • 2 full length mirrors • Tube light under berth • 6 heavy duty 316l port lights with screens and blackout • 3 under deck storage areas • Direct TV receiver • Sony ec3 stereo receiver w/CD • SHOJI screens • 2 sentry safes in master w/ touch pad access

  20. Master Stateroom

  21. Master Bath

  22. VIP STATEROOM & SUITE Forward of owner and guest accommodations 72 in king sized berth Draperies  Cedar lined lockers Chest of drawers under berth w/ auto lighting VIP head and shower Valance 15`` SHARP flat screen TV                                                              S/s square port lights w/screens Sony EC3 stereo receiver w/CD Vanity Direct TV receiver Below sole storage Full height locker

  23. VIP Stateroom

  24. VIP Bath

  25. PORT GUEST STATEROOM • Twin berths separated by large storage locker • Teak hull battens • 15`` SHARP flat screen TV • Cedar lined hanging lockers • Teak and holly sole • S/s square port lights w/screens • Under deck storage • Private head and shower • Granite counter in head • China sink with GROHE faucet • Sony EC3 stereo receiver w/CD • Separate stall shower • Heavy duty 316l port lights w/screens and blackouts

  26. STARBOARD GUEST ROOM / LAUNDRY AREA • Single bunk ,left open when not in use • Full size under bunk new MIELE washer and dryer • 2 port lights • Tambour door for privacy when used • Full length beveled mirror

  27. CREW QUARTERS • Full beam aft of engine room • Twin bunks • Night stand • Hanging locker • Head with separate shower                                                                               • Entertainment system • 110v refrigerator (new in 2011) • 110v microwave (new in 2011) • SAMSUNG 23 inch HDMI TV (new in 2011) • SAMSUNG blue ray player (new in 2011)   • Cockpit entrance and transom door entrance                                       • Spacious hangers • Upgraded built in closet and drawer unit (new in 2011)

  28. EXTERIOR GENERAL INFORMATION • All exterior seating white w/ dark blue stripe, ultra leather material (new 1-2011). • All seating and table covers (new 1-2011) • 12 custom white w/ blue stripe pillows, RALPH LAUREN material w/ 2 mesh storage bags. • 3 custom deck lounge pads, RALPH LAUREN material w/ storage bags.

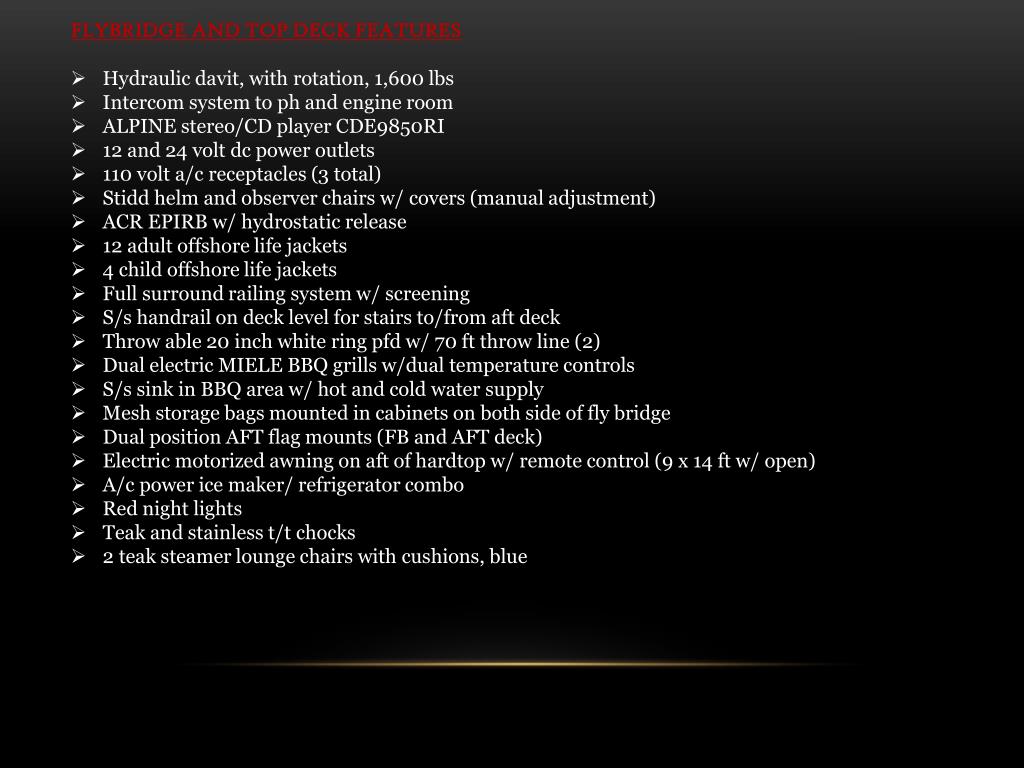

  29. FLYBRIDGE AND TOP DECK FEATURES • Hydraulic davit, with rotation, 1,600 lbs • Intercom system to ph and engine room • ALPINE stereo/CD player CDE9850RI • 12 and 24 volt dc power outlets • 110 volt a/c receptacles (3 total) • Stidd helm and observer chairs w/ covers (manual adjustment) • ACR EPIRB w/ hydrostatic release • 12 adult offshore life jackets • 4 child offshore life jackets • Full surround railing system w/ screening • S/s handrail on deck level for stairs to/from aft deck • Throw able 20 inch white ring pfd w/ 70 ft throw line (2) • Dual electric MIELE BBQ grills w/dual temperature controls • S/s sink in BBQ area w/ hot and cold water supply • Mesh storage bags mounted in cabinets on both side of fly bridge • Dual position AFT flag mounts (FB and AFT deck) • Electric motorized awning on aft of hardtop w/ remote control (9 x 14 ft w/ open) • A/c power ice maker/ refrigerator combo • Red night lights • Teak and stainless t/t chocks • 2 teak steamer lounge chairs with cushions, blue

  30. HARDTOP EQUIPMENT ON TOP • AIRMAR weather antenna • GLOMEX  TV antenna                             • KVH THRANE & THRANE satellite phone antenna • 2 VHF 8ft antennas  • ON RADAR MAST • KVH satellite receiver (portside dome) • 6kw radar array • 12kw radar array • Hailer horn • FLIR infra red night vision • 2 4ft antennas  • IN SECOND DOME (STARBOARD SIDE) • GPS antenna • Main N2K antenna • AIS antenna • SRA SIRIUS galaxy antenna (weather and radio)

  31. FORWARD DECK FEATURES AND EQUIPMENT • S/s DANFORTH anchor 80 lbs w/ 250 foot chain, painted to lengths, placard in pilot house • S/s BRUCE anchor 110 lbs w/ 50 foot chain and 200 foot ¾ inch rode • LOFRANS dual windlass w/ deck mounted VETUS controls and pilot house/FB switch • S/s anchor tethers w/ clips • Polyform anchor marking ball w/ line • Shore water inlet in port line locker • Phone/TV jacks in port line locker • Fresh/sea water wash down supply in STB. line locker • 2 revere offshore elite life rafts w/ hydrostatic release and mounts

  32. MAIN/AFT DECK FEATURES AND EQUIPMENT • 10- ¾ inch dock lines • Pilot house fwd window screens, white • Pilot house door tracks fitted w/Delron for ease of operation. • Deck and ceiling lamps refitted w/ dual color led, blue/white operation. • 12 mega fend fender hooks, 4 Taylor made fenders w/ covers (12 x 34inch). • 32 inch throwable life ring w/ 70 foot throw line • “Marlow explorer” s/s 10 inch bell • Aft station controls w/ thruster control in aft seat lounge. • Aft deck camera

  33. SWIM PLATFORM FEATURES AND EQUIPMENT • 3 s/s “n” rails w/ extra storage receivers • BESENZONI passerelle with handrails and lights • Aft mounted cable master w/ 50 ft extensions (2) and (1) 25 ft extension cable • Upgrade design storage locker hatch • 3 Taylor made fenders w/ custom lines for tender docking across swim deck • Sea/fresh water wash downs w/shower (STB. side) • TV phone jacks, oil changer outlet (port side) • Swim ladder retractable

  34. LAZZERETTE AREA FEATURES AND EQUIPMENT • Charles Iso-boost units on each shore power source • Galvanic isolators on each shore power source • Input/output breakers on both sides of boost units before shore relays/contactors • Hitachi compressor w/ remote fitting and lines • 2 kOBALT s/s tool boxes w/ CRAFTMAN tools • Stern thruster battery box w/ 24 volt power outlet • Main engine room a/c distribution cabinet w/ new shore power relays/contactors/timers

  35. ENGINE ROOM AND BILGES FEATURES AND EQUIPMENT Full standup height Air conditioned Engines : caterpillar c-30 diesel engines 1550 hp, ser #’s clx00646 (7) Engine hours 640 hours as of February, 2012 2 northern lights 25kva Easy access to engine sides Sea chest supplying all required sea water (engines, generators, chillers, etc) with individual shut-off valves Two 1,500 gallons fuel tanks front of bulkhead at center of buoyancy (no level change influence)-soundproofing Flexible aqua drive couplings and thrust bearings Fresh water outlet with hose for engine and gens Pressure fresh water faucet                                                                                Soft engine mounts 304 stainless domestic water tanks Drive coupling covers-FRP

  36. ENGINE ROOM AND BILGES FEATURES AND EQUIPMENT Continued: Heavy duty manual bilge pump PSR fresh water pressure system Under water exhaust system Updated exhaust system-new 24v waterproof overhead lights Sea chest inspection and clean-out port High water bilge alarm Seacock on all seawater supply lines            Shower pumps Custom clear Lexan sound shields on generators Drip less engine shaft seal logs PJR drinking water pump FRP gray and black holding tanks Water heater, 30 gal stainless steel Heavy duty vacuum pumps for gray/black water Smooth finish gel coated bilges HD watertight engine room door with inspection port All battery chargers new since 2011 (see electrical)                                                GIANNESCHI ventilation fans, 4/230 volt/3 phase motors with individual frequency speed drives and 4 position switch and remote on/off switch in pilot house (new 2011)                                          Lead/foam sound insulation

  37. ENGINE ROOM AND BILGES FEATURES AND EQUIPMENT Continued: REVERSO oil change system w/ swim deck discharge fitting for used oil recovery NAIAD roll stabilizer system service in 2011, fins upgraded (see hull) ESI fuel polisher/filtration system Dual engine room cameras Main engine block heaters w/ new switch and breaker Sea recovery water maker 900-2 GPD Generator remotes w/ gauge packages Mounted storage boxes for supplies/hardware Hydraulic pumps (steering, stabs) driven by either  engine Sea water pump Sight gauges on tanks Dockside or overboard discharge Engine isolation switches Common drainage system (sinks, decks, showers, bilges) Varnished teak bilge grating 24v FLUO lighting Color coding on all piping (fuel, waters, hydraulics) Dc and ac outlets Four 3700 GPH bilge pumps with auto & manual switches High temp silicone exhaust hoses Baffled air inlet system Polished s/s engine beds, risers and fuel manifolds 24v bilge blowers Engine lube oil tank

  38. TENDER AND EQUIPMENT • 2009 scout sport fisher 145 fiberglass boat                                              • 40 hp Yamaha 4 stroke outboard motor • Color matched BIMINI top w/ boot • GARMIN 4208 chart plotter/GPS/ sounder • GARMIN VHF radio model vhf 100 w/ 8 foot antenna • Battery switch • USCG safety equipment package • Anchor w/ chain and rode
