  1. Upgrading to SharePoint 2010 Don Pistulka Microsoft Technical Specialist CDW

  2. Don Pistulka • Microsoft Technical Specialist, CDW • SharePoint Migrations Lead • Member of Microsoft's Upgrade IT Kitchen for 2010 • Contact/Follow Me • @DonPistulka • Don.pistulka@cdw.com • Donpistulka.spaces.live.com

  3. Agenda • Overview of What’s New/Changed • Upgrade Methodology • Get Prepared Today • Requirements for Upgrade to 2010 • Supported Upgrade Methods • Unsupported Upgrade Methods • Visual Upgrade • Pre-Upgrade Checker • 3rd Party Tools – When to us them

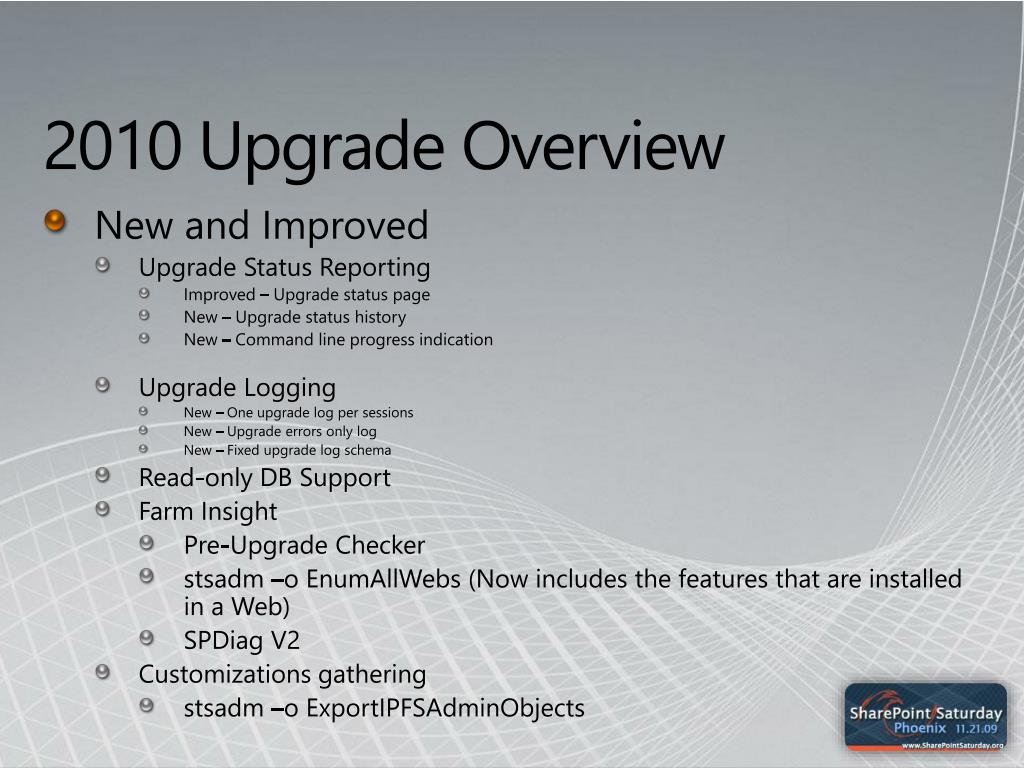

  4. 2010 Upgrade Overview • New and Improved • Upgrade Status Reporting • Improved – Upgrade status page • New – Upgrade status history • New – Command line progress indication • Upgrade Logging • New – One upgrade log per sessions • New – Upgrade errors only log • New – Fixed upgrade log schema • Read-only DB Support • Farm Insight • Pre-Upgrade Checker • stsadm –o EnumAllWebs (Now includes the features that are installed in a Web) • SPDiagV2 • Customizations gathering • stsadm –o ExportIPFSAdminObjects

  5. What’s New for Upgrade • Parallel Upgrades • Visual Upgrade • V2V and B2B Support • Pre-Upgrade Checker • Resume-able Upgrade • STSADM (SP2) • stsadm-o enumallwebs (Shows orphaned sites) • stsadm-o enumallwebs -databasenamesharepoint_site_content_db • stsadm-o variationsfixuptool • stsadm–o deletesite (With force allows you to delete orphaned sites) • Test-SPContentDatabase

  6. Upgrade Methodology • Learn • Prepare • Test Read upgrade documentation – Resources • Implement • Validate Run Pre Upgrade Checker Beta bits are out – Test lab • Upgrade to 2007 SP2 October CU • Meet Requirements Find issues in test labs and beta

  7. Preparing for 2010 Today • Prepare Your Environment • Clean up unused sites (Archive or delete) • Limit Databases to 100GB’s • Move sites/ site collections • Optimize large lists and views • Remove unused features/add missing features • Test, Test, Test • Make a virtual copy of your environment in Hyper V • Run pre-upgrade checker • Use Visual Upgrade (More on this later) • Mock upgrade – Beta now Available • Do it again • Get Hardware in Place as Needed • Understand SharePoint 2010 requirements

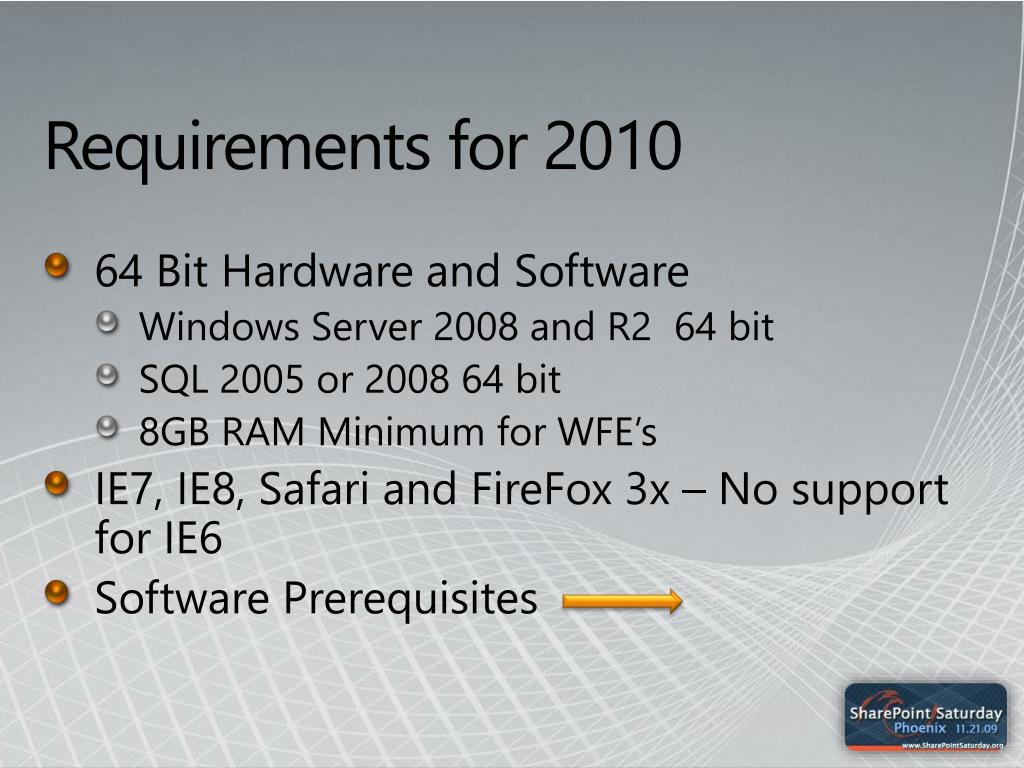

  8. Requirements for 2010 • 64 Bit Hardware and Software • Windows Server 2008 and R2 64 bit • SQL 2005 or 2008 64 bit • 8GB RAM Minimum for WFE’s • IE7, IE8, Safari and FireFox3x – No support for IE6 • Software Prerequisites

  9. Software Prerequisites • Microsoft SQL Server 2008 SP1 (http://go.microsoft.com/fwlink/?LinkId=166490) • Microsoft SQL Server 2005 SP3 (http://go.microsoft.com/fwlink/?LinkId=166496) • Microsoft Windows Server 2008 Standard SP2 (http://go.microsoft.com/fwlink/?LinkId=166500) • Microsoft .NET Framework 3.5 Service Pack 1 (http://go.microsoft.com/fwlink/?LinkId=131037) • Microsoft SQL Server 2008 Express Edition Service Pack 1 (http://go.microsoft.com/fwlink/?LinkId=166503) • Microsoft "Geneva" Framework (http://go.microsoft.com/fwlink/?LinkID=165752) • Microsoft Sync Framework v1.0 (http://go.microsoft.com/fwlink/?LinkID=141237&clcid=0x409) • Microsoft Filter Pack 2.0 (http://go.microsoft.com/fwlink/?LinkId=166504) • Microsoft Chart Controls for Microsoft .NET Framework 3.5 (http://go.microsoft.com/fwlink/?LinkID=141512) • Windows PowerShell 2.0 CTP3 (http://go.microsoft.com/fwlink/?LinkId=165758) • Microsoft SQL Server 2008 Native Client (http://go.microsoft.com/fwlink/?LinkId=166505) • Microsoft SQL Server 2008 Analysis Services ADOMD.NET (http://go.microsoft.com/fwlink/?LinkId=130651) • Microsoft Silverlight 3.0 (http://go.microsoft.com/fwlink/?LinkId=166506) • ADO.NET Data Services v1.5 CTP2 (http://go.microsoft.com/fwlink/?LinkId=158354) for Windows Server 2008 SP2 • ADO.NET Data Services v1.5 CTP2 (http://go.microsoft.com/fwlink/?LinkId=159780) for Windows Server 2008 R2

  10. Upgrade Methods • Database Attach • Still the most common • Parallel Upgrades • Command line (STSADM) and PowerShell Cmdlets • In Place Upgrade • Need hardware • Only preferred for smaller farms • Testing still required • Single Click Install - SQL Migration • Windows Internal Database (WID)

  11. Unsupported Scenarios • Upgrade from earlier than WSS v3 SP2/MOSS 2007 SP2 • Direct upgrade from WSS v2/SPS 2003 or earlier • Side by side installation • Gradual upgrade

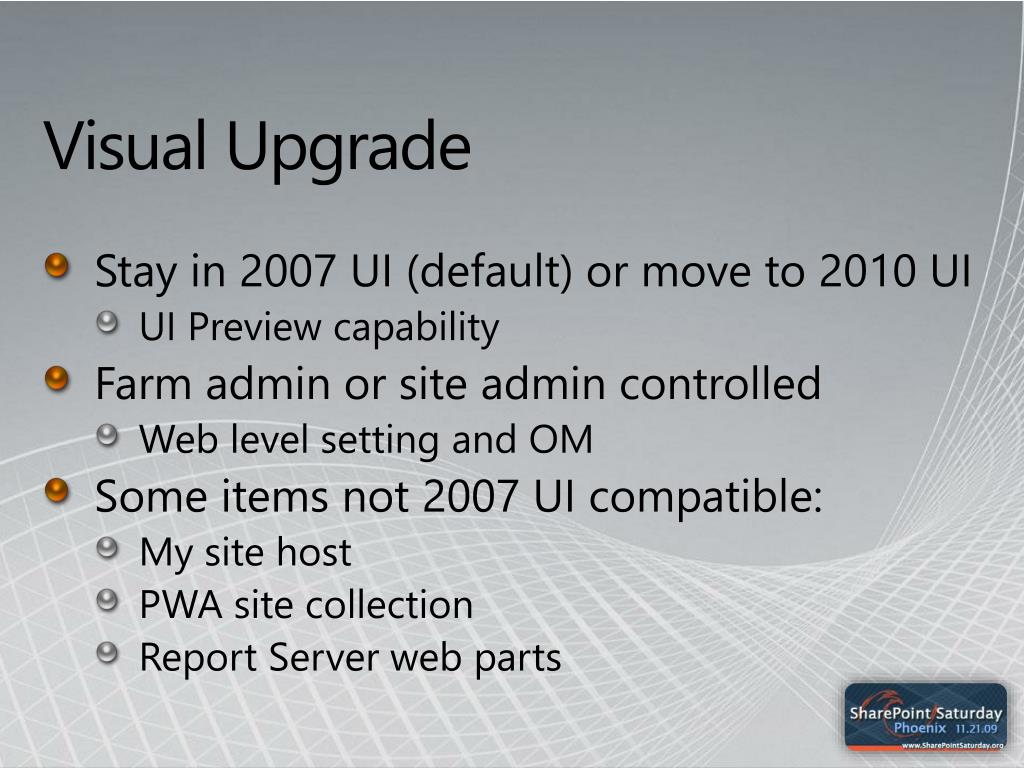

  12. Visual Upgrade • Stay in 2007 UI (default) or move to 2010 UI • UI Preview capability • Farm admin or site admin controlled • Web level setting and OM • Some items not 2007 UI compatible: • My site host • PWA site collection • Report Server web parts

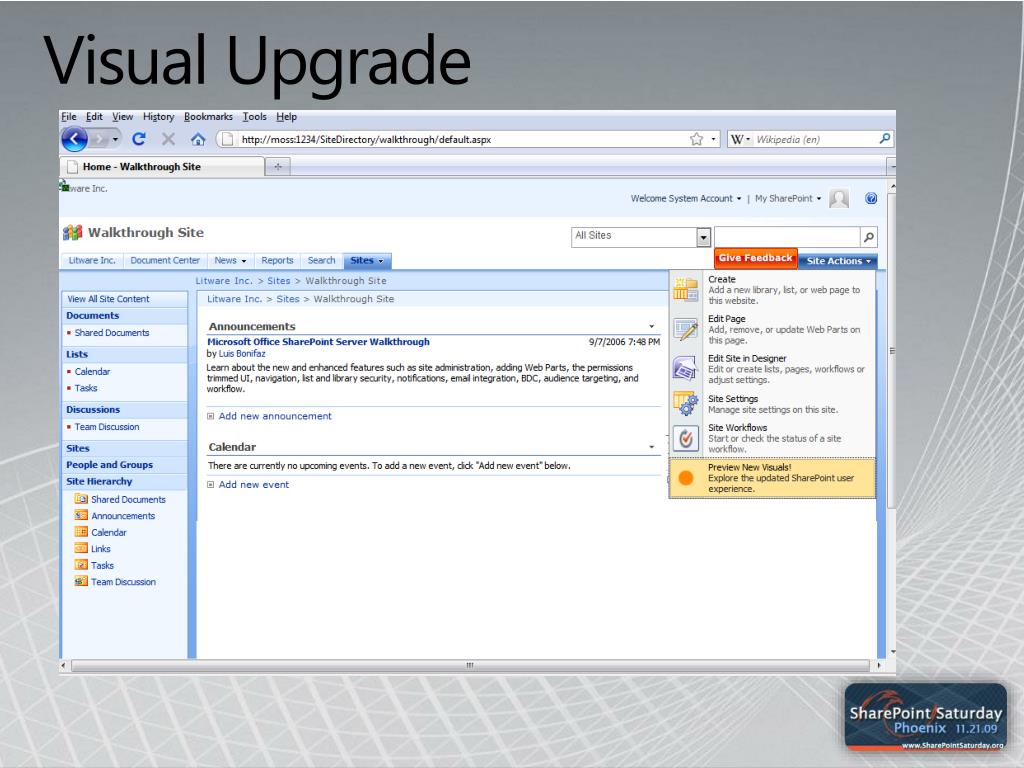

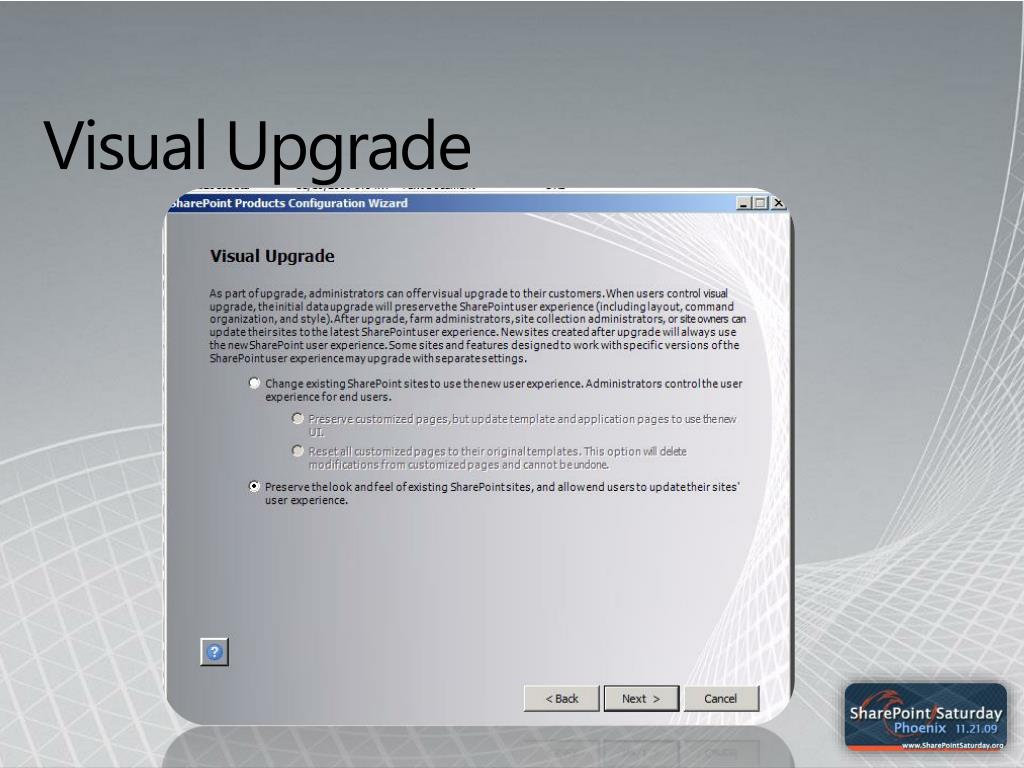

  13. Visual Upgrade

  14. Visual Upgrade

  15. Preview

  16. Apply Visuals

  17. PreUpgradeCheck • STSADM.exe –o preupgradecheck • Makes no changes to environment or data • Not Required • A list of all servers and components in the farm, and whether the servers meet the following requirements for upgrading: 64-bit hardware and the Windows Server 2008 operating system. • The alternate access mapping URLs that are being used in the farm. • A list of all site definitions, site templates, features, and language packs that are installed in the farm. • Whether there are customizations in the farm that are not supported (such as database schema modifications). • Whether there are any database or site orphans in the farm. • Whether there are missing or invalid configuration settings in the farm (such as a missing Web.config file, invalid host names, or invalid service accounts). • Missing features or site definitions • Whether the databases meet the requirements for upgrade — for example, databases are set to read/write, and any databases and site collections that are stored in Windows Internal Database are not larger than 4 GB.

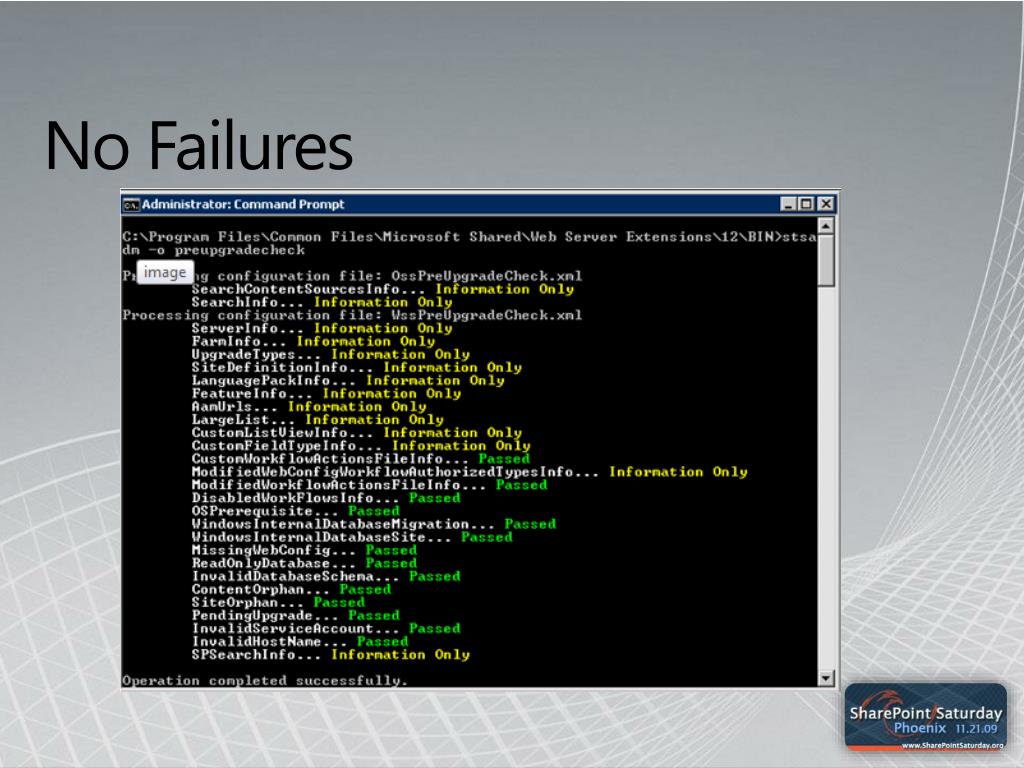

  18. No Failures

  19. With Failures

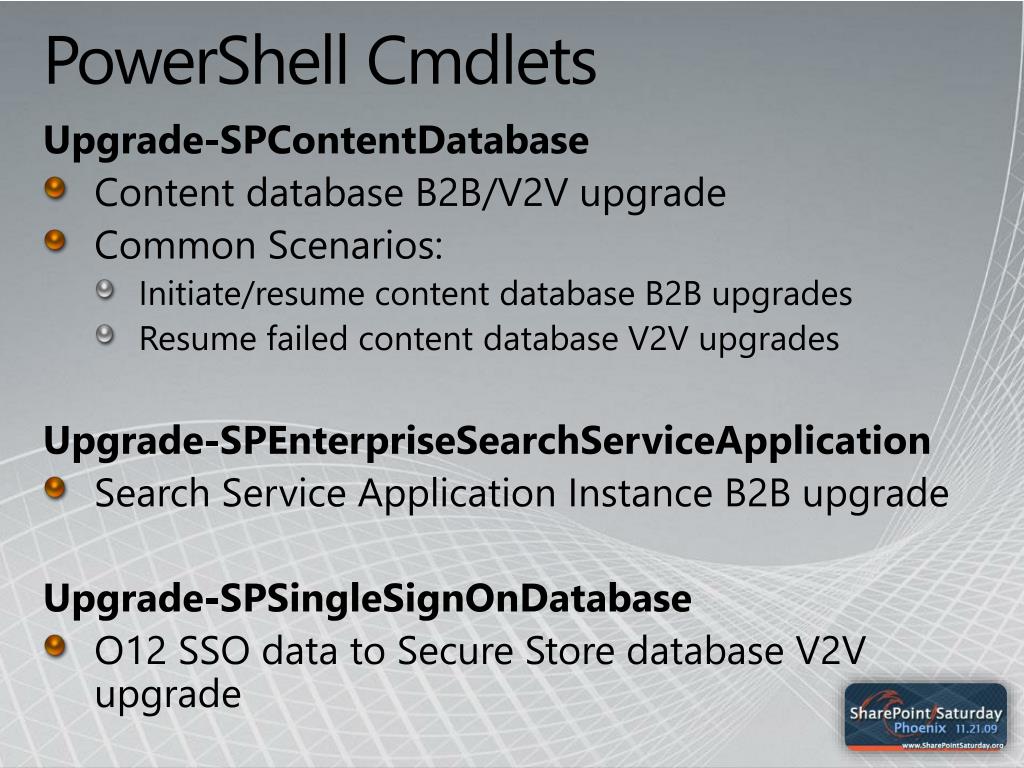

  20. PowerShell Cmdlets Upgrade-SPContentDatabase • Content database B2B/V2V upgrade • Common Scenarios: • Initiate/resume content database B2B upgrades • Resume failed content database V2V upgrades Upgrade-SPEnterpriseSearchServiceApplication • Search Service Application Instance B2B upgrade Upgrade-SPSingleSignOnDatabase • O12 SSO data to Secure Store database V2V upgrade

  21. Database Attach Process using STSADM • stsadm -o addcontentdb -url<URL> -databasename<database name>

  22. 3rd Party Tools • Quest Software • Metalogix • Scenarios for 3rd Party Tools • POC or Pilot of one site/department • Move to different templates (Publishing) • Re-factor. Move sites to new, smaller databases • Limit the data being migrated • Move a site to new site collection • Promote a site to a site collection • Direct Migration from 2003

  23. Resources • http://msdn.microsoft.com/en-us/sharepoint/ee514557.aspx • Roadmap for Upgrade - http://technet.microsoft.com/en-us/library/ee731988(office.14).aspx • Upgrade Search Service - http://technet.microsoft.com/en-us/library/cc263403(office.14).aspx • SharePoint Team blog - http://blogs.msdn.com/sharepoint/archive/2009/05/07/announcing-sharepoint-server-2010-preliminary-system-requirements.aspx
