  1. Toshiba Toshiba V-Series Toshiba International Corporation

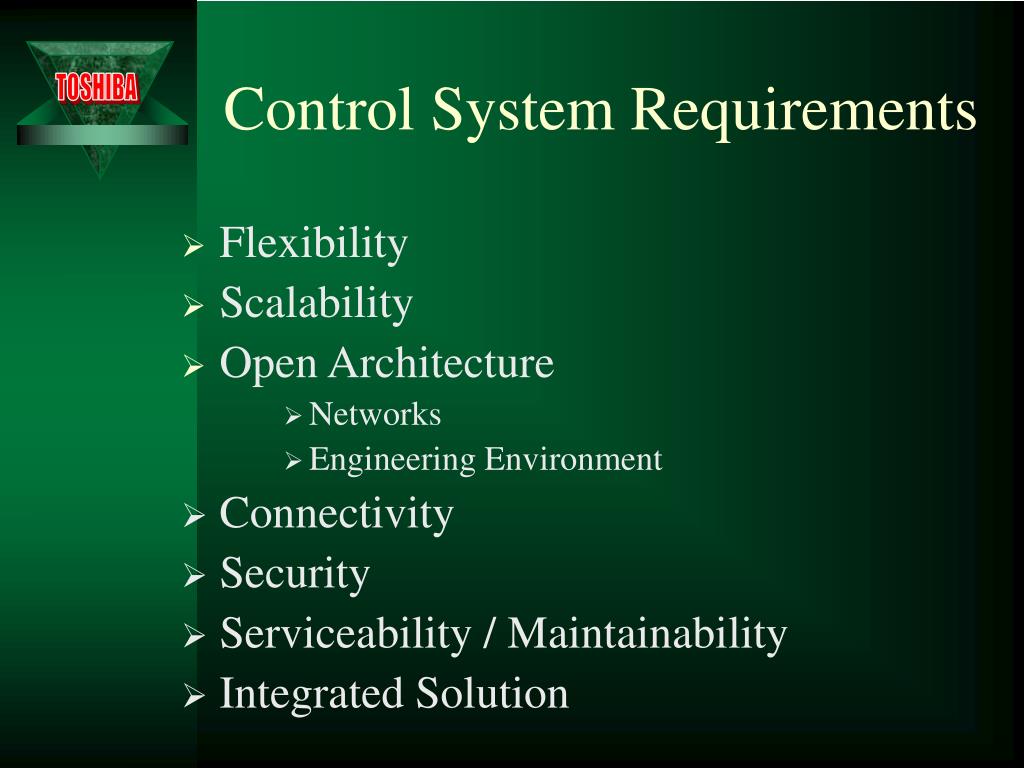

  2. Control System Requirements • Flexibility • Scalability • Open Architecture • Networks • Engineering Environment • Connectivity • Security • Serviceability / Maintainability • Integrated Solution

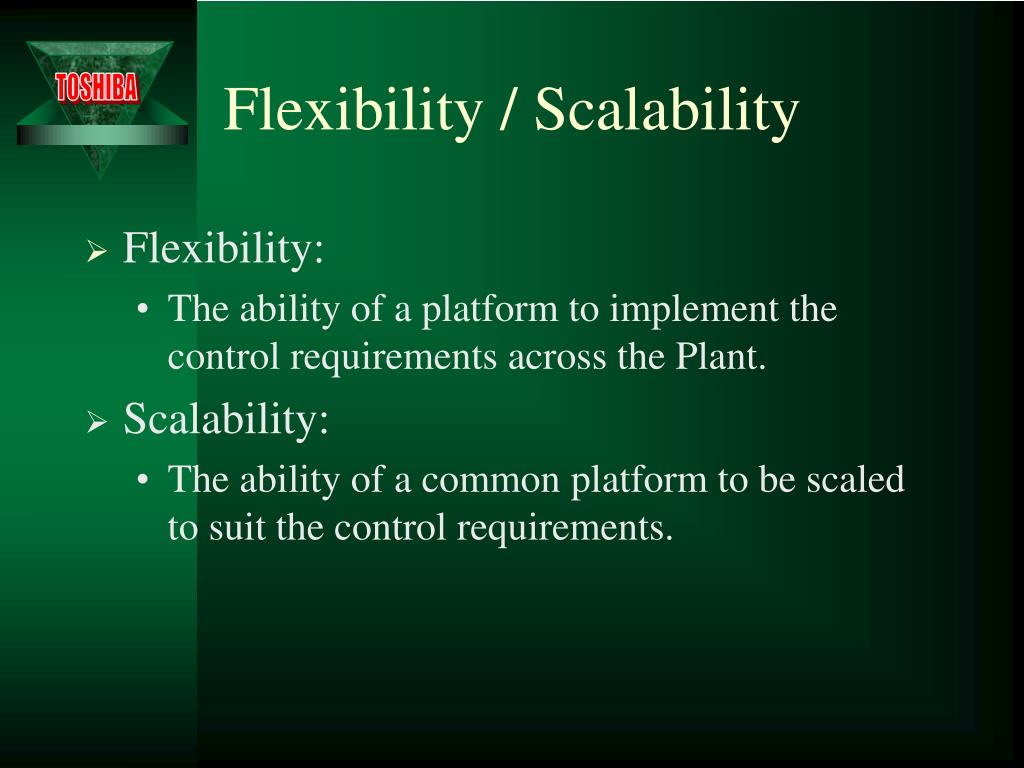

  3. Flexibility / Scalability • Flexibility: • The ability of a platform to implement the control requirements across the Plant. • Scalability: • The ability of a common platform to be scaled to suit the control requirements.

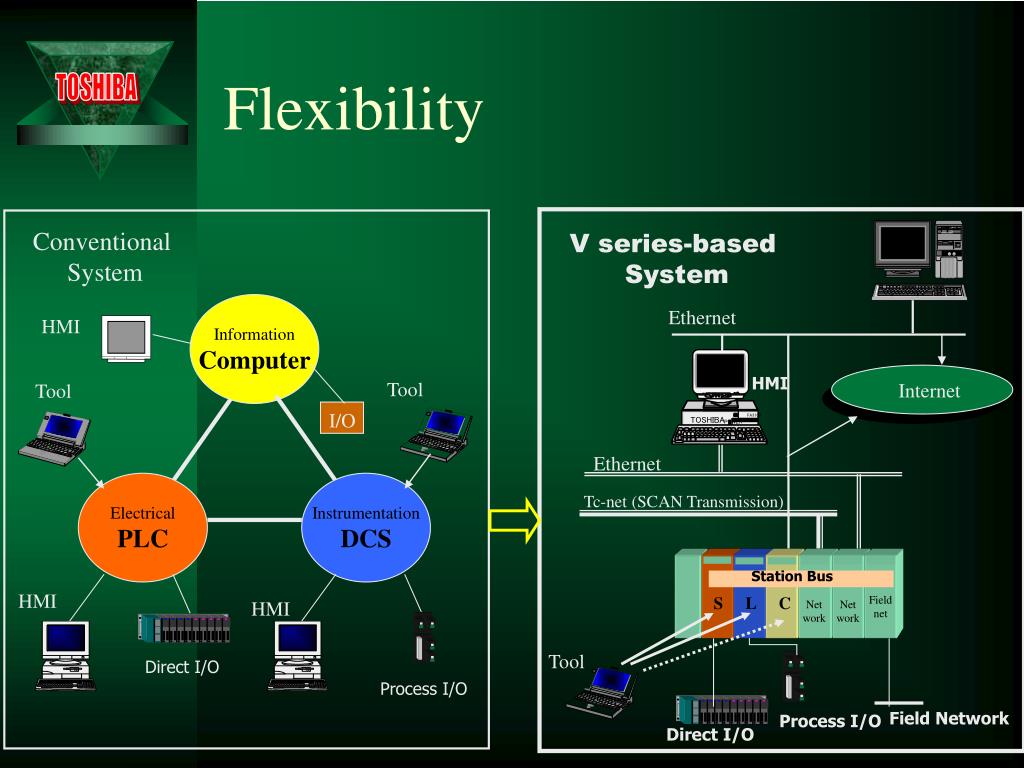

  4. Internet TOSHIBA FA3100 TOSHIBA POWER Information Computer Ethernet HMI HMI Tool Tool Ethernet I/O Electrical PLC Instrumentation DCS Station Bus Tc-net (SCAN Transmission) HMI S L C Field net HMI Net work Net work Tool Direct I/O Process I/O Field Network Process I/O Direct I/O Flexibility Conventional System V series-based System

  5. V series V Series vs Conventional Platform Scale Business PC Large DCS PLC Industrial PC Small One-Loop Controller Mini S: Sequence Control Motion, Logic L: Loop Control   Loop C: Computer Control   Data processing Purpose

  6. DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 DI335 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 123456789101112 V V V Ethernet TC-net Serial Bus(Duplex) Direct I/O bus Serial Bus(Duplex) Direct I/O bus I F P S I F P S ~ ~ I F P S I F P S ~ ~ Direct I/O Process I/O Direct I/O Process I/O Flexibility – I/O Style Direct I/O & or Process I/O • Direct I/O for discrete application. • Process I/O for analog loops and redundancy. • Ease of access to each I/O from S and L.

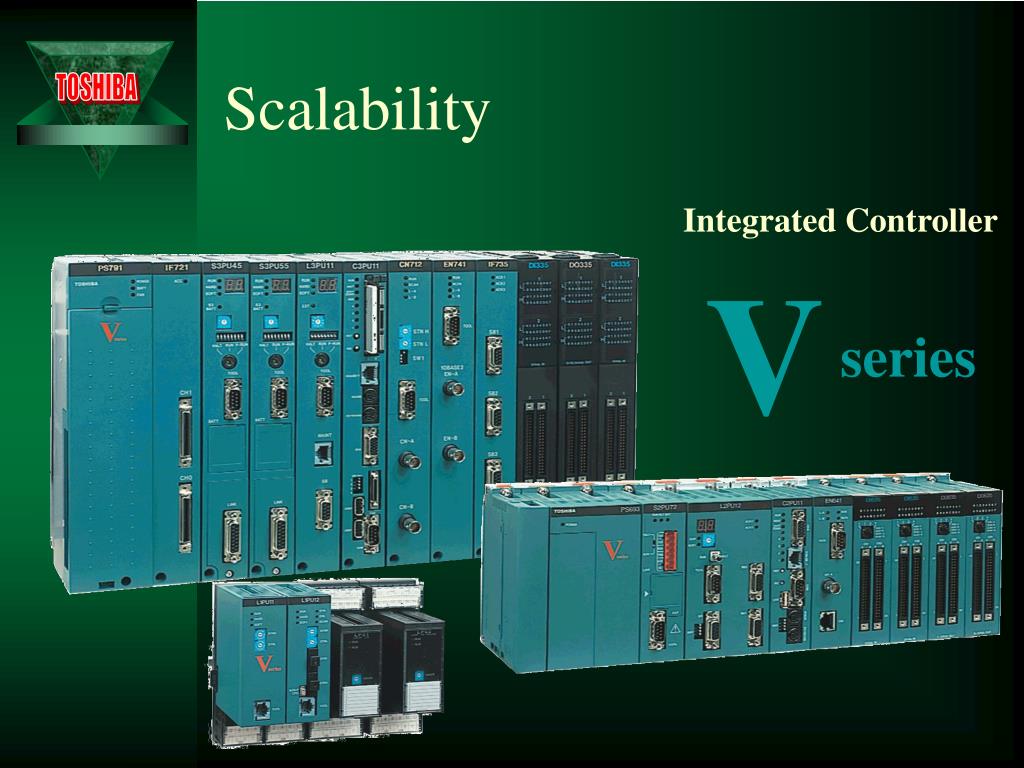

  7. Scalability Integrated ControllerVseries

  8. Scalability Model 3000 series Scale Large S3 L3 C3 Model 2000 series S2 L2 C2 Small L1 Model 1000 series Mini S: Sequence Control L: Loop Control C: Computer Control Purpose

  9. Open Architecture • Networks • Ethernet – TCP/IP, UDP/IP • DeviceNet • FieldBus • Engineering Environment • IEC61131-3 • Interfacing • OPC

  10. PC Ethernet TC-net Model 2000 Model 1000 Model 3000 DeviceNet Touch Panel Foundation Fieldbus Open Architecture - Networks • Monitoring & Control Network: Ethernet • High-speed Control Network: TC-net

  11. Open Architecture - Networks • Ethernet Supervising and Information LAN • (Duplicated Transmission Optional) • TC-net 100 Time Critical Application • Metal Industries, General purpose, etc. • TC-net 10 PLC/PLC Communication • System and Control Global Variable • FL-Net Remote I/O High Speed Network • ProfiBus European Based Field Bus • DeviceNet FA Device Open Network • FieldBus Foundation Field Bus • TL-S20 PLC/PLC Communication, TOSHIBA Drive • ControlNet AB Data LAN • OPC OLE for Process Control

  12. Engineering Environment IEC61131-3 Summary • 5 languages • Select and combine any of them • User definable function block • Software components, reusability • Integrated Engineering environment • No boundary between PA & FA • Layered Engineering • User definable data type • Strict data type & syntax check • Common language and terminology for application engineers worldwide

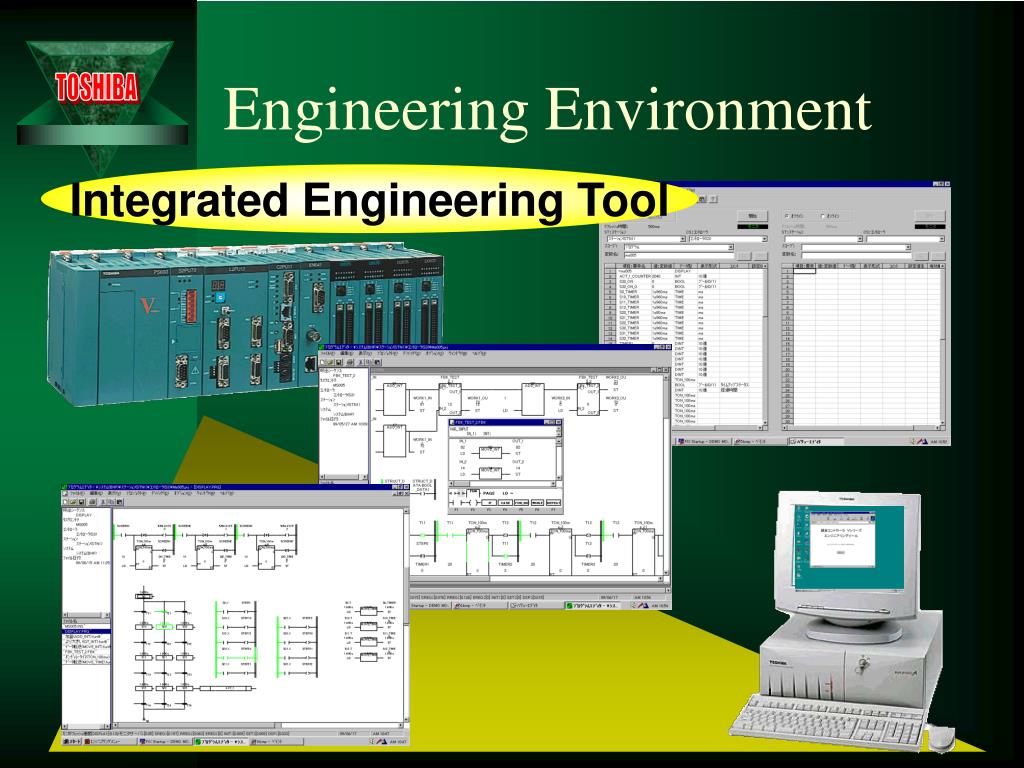

  13. Engineering Environment Integrated Engineering Tool

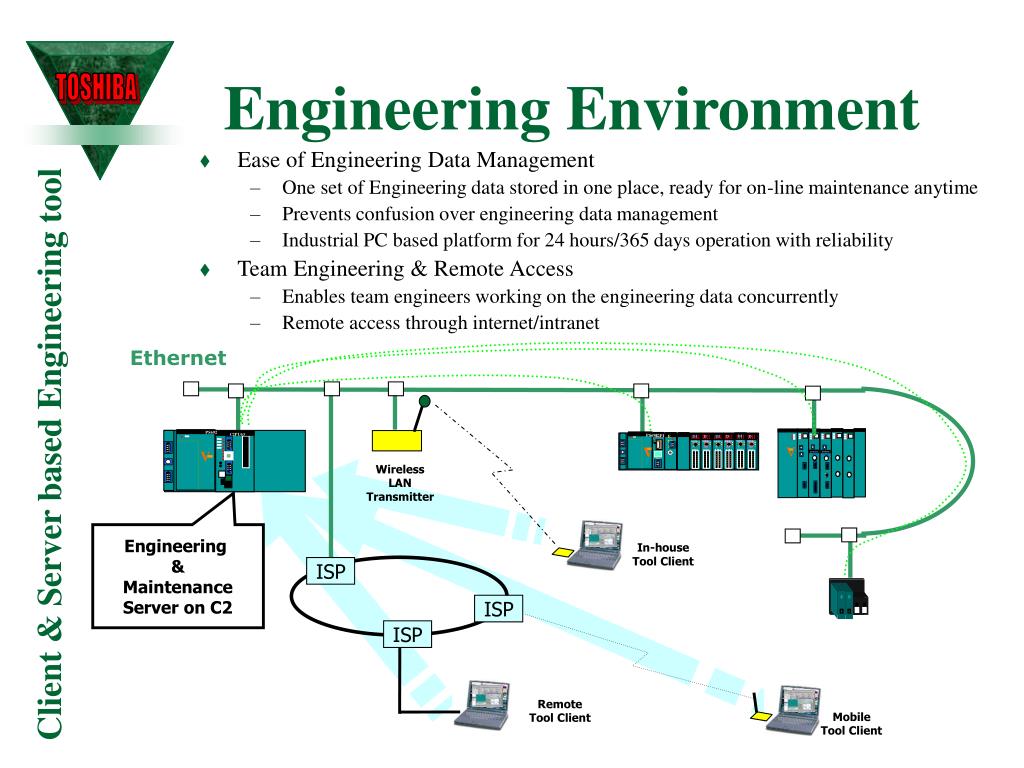

  14. S2PU72 C2PU63 DI635 DI635 PS692 PS692 DI635 DO635 DO635 DO635 V V EN631 Ethernet V Wireless LAN Transmitter Engineering & Maintenance Server on C2 In-house Tool Client ISP ISP ISP Remote Tool Client Mobile Tool Client Engineering Environment • Ease of Engineering Data Management • One set of Engineering data stored in one place, ready for on-line maintenance anytime • Prevents confusion over engineering data management • Industrial PC based platform for 24 hours/365 days operation with reliability • Team Engineering & Remote Access • Enables team engineers working on the engineering data concurrently • Remote access through internet/intranet Client & Server based Engineering tool

  15. Internet Access Line Internet WAP Gateway WAP Gateway ISP S2&C2 Mobile Terminal PC at Central Control Station Mobile Phone Connectivity • Bringing together of mobile technology with the control system • Efficient and secured remote monitoring by image transmission on site

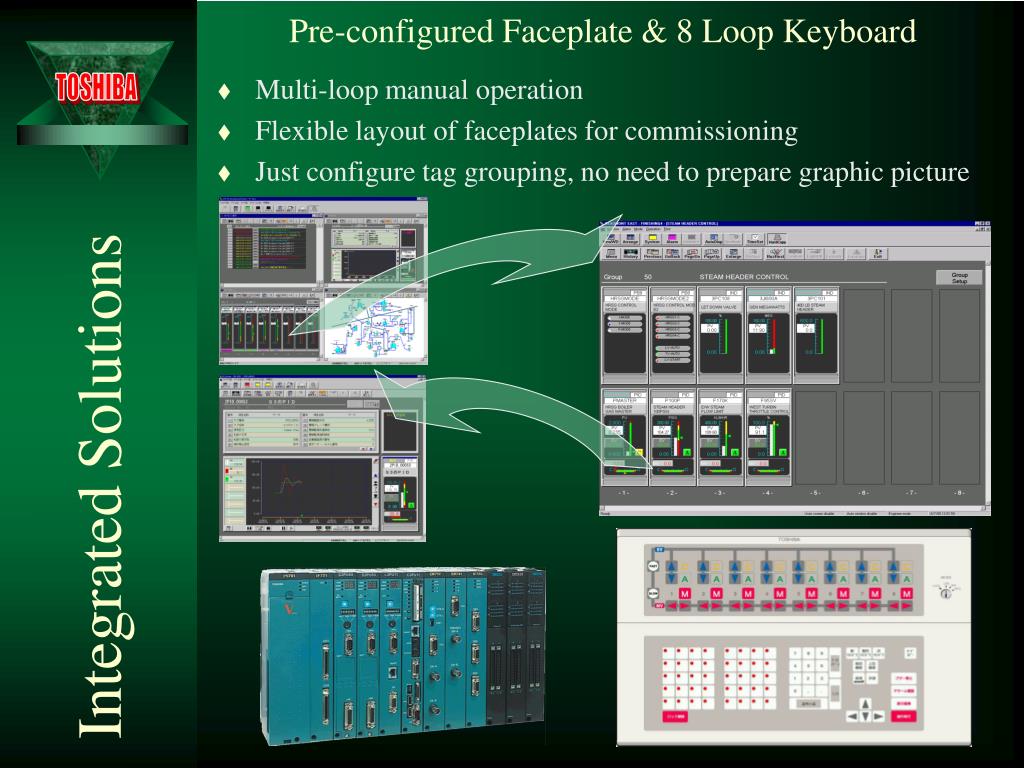

  16. Pre-configured Faceplate & 8 Loop Keyboard Integrated Solutions • Multi-loop manual operation • Flexible layout of faceplates for commissioning • Just configure tag grouping, no need to prepare graphic picture

  17. Gas Turbine HRSG V-Series Controller C module Functional System Layout Alarm Prt Hard Copy L module S module EWS-Printer OIS-DS1 OIS-DS2 OIS-DS3 EWS V 2000 V 2000 V 2000 V 2000 V 2000 V 2000 V 2000 V 2000 Primary Primary Primary Primary Secondary Secondary Secondary Secondary Unit #1 Unit #2 Unit #3 Unit #4 Process I/O Process I/O Process I/O Process I/O Integrated Solutions COGEN System

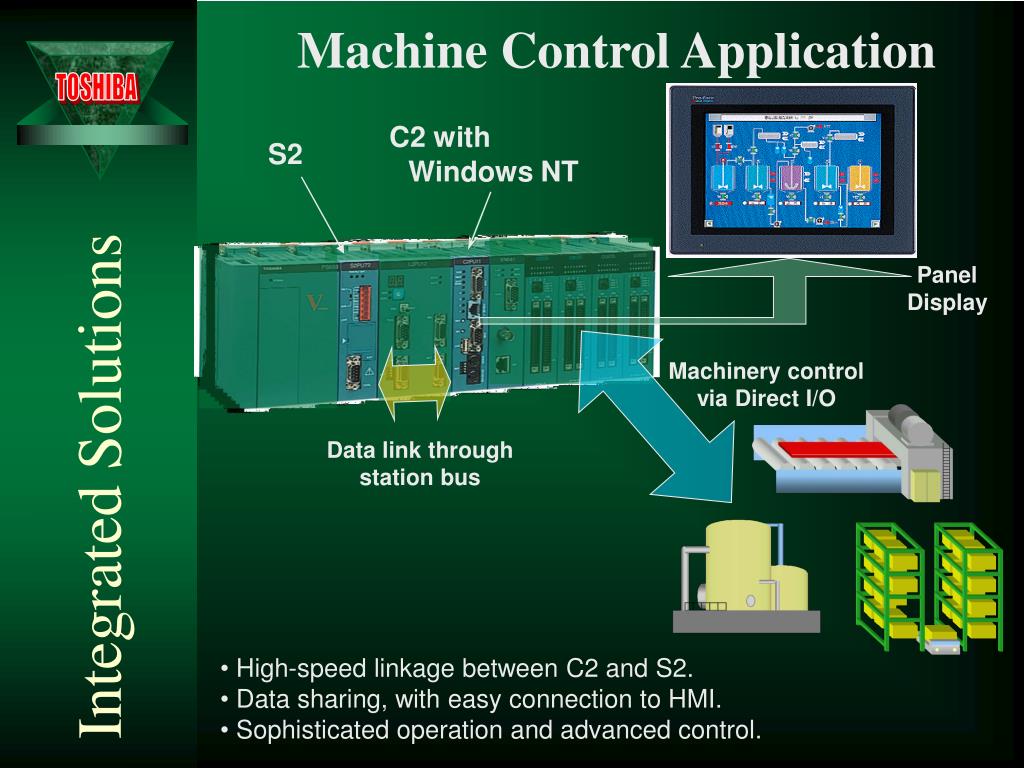

  18. C2 with  Windows NT S2 Panel Display Machinery control via Direct I/O Data link through station bus Machine Control Application Integrated Solutions • High-speed linkage between C2 and S2. • Data sharing, with easy connection to HMI. • Sophisticated operation and advanced control.

  19. Compact SCADA Loop Controller SCADA Package Loop Display Hybrid Controller with Graphic Panel Graphic Panel Compact Solutions - L1 Integrated Solutions

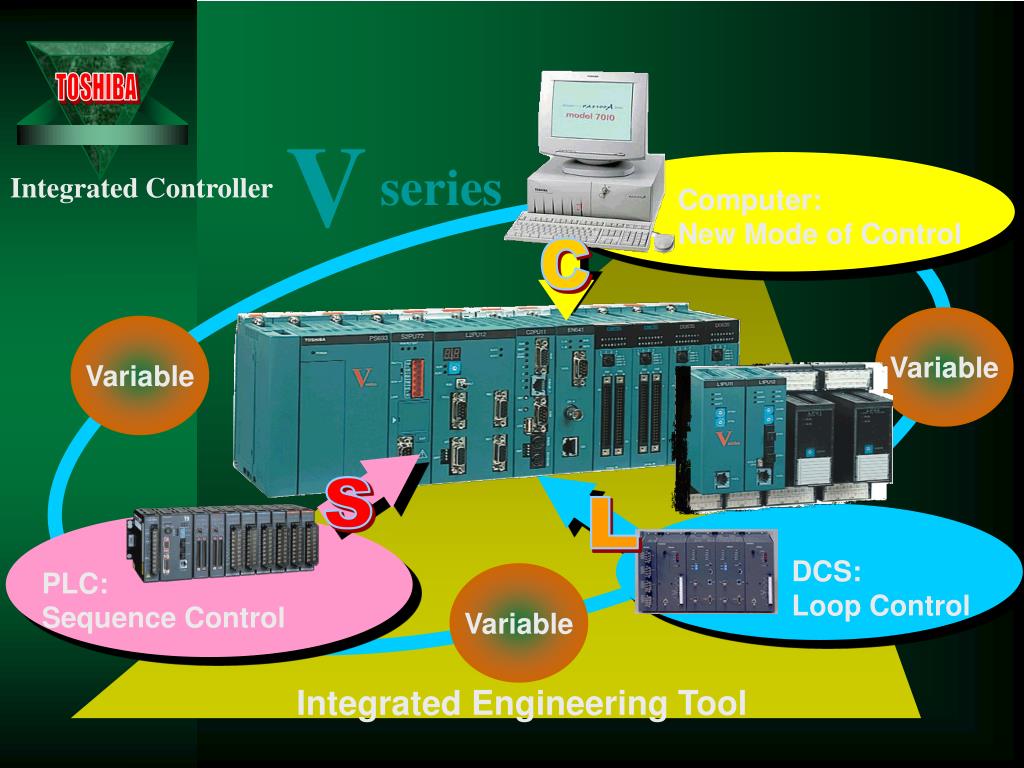

  20. Computer: New Mode of Control C Variable Variable S L DCS: Loop Control PLC: Sequence Control Variable Integrated Engineering Tool Integrated ControllerV series
